Page 116 of 230

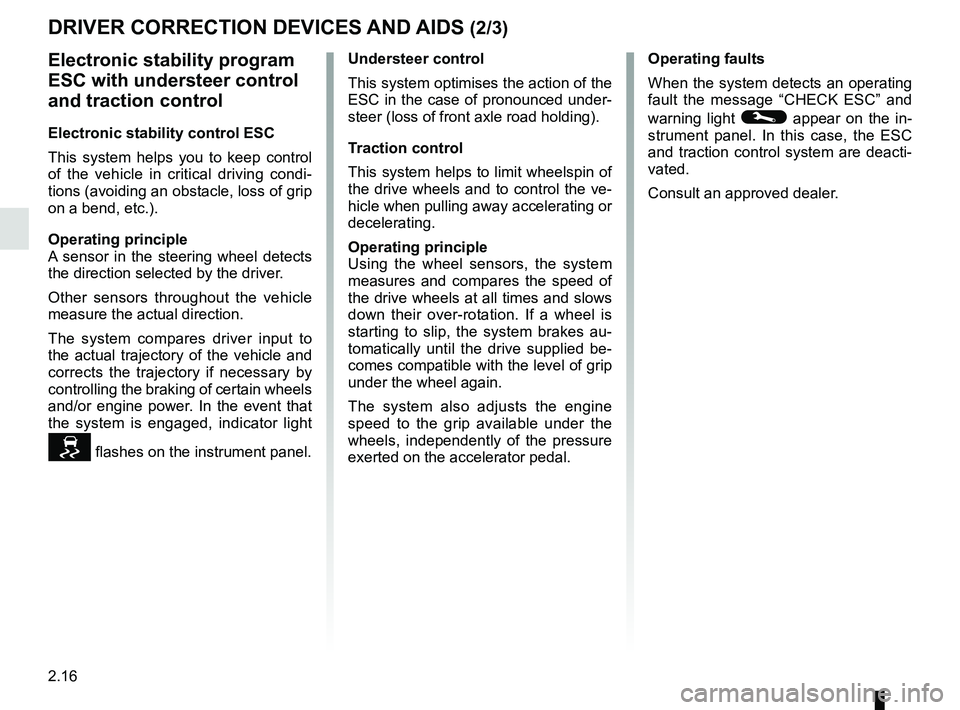

2.16
DRIVER CORRECTION DEVICES AND AIDS (2/3)
Electronic stability program
ESC with understeer control
and traction control
Electronic stability control ESC
This system helps you to keep control
of the vehicle in critical driving condi-
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
flashes on the instrument panel. Understeer control
This system optimises the action of the
ESC in the case of pronounced under-
steer (loss of front axle road holding).
Traction control
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au-
tomatically until the drive supplied be-
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal. Operating faults
When the system detects an operating
fault the message “CHECK ESC” and
warning light
© appear on the in-
strument panel. In this case, the ESC
and traction control system are deacti-
vated.
Consult an approved dealer.
Page 190 of 230

5.22
FUSES (2/2)
Number Allocation
1 Not used
2 Not used
3 Air conditioning, pedestrian
horn
4 heating, traction battery
5 Rear windscreen wiper
6 Horn, diagnostic socket
7 Heated seats, telematic box
8 Traction battery
9 Passenger compartment
ECU
10 Windscreen washer
11 Brake lights
12 Passenger compartment
ECU
13 Electric window, ECO mode
14 Heated rear screen
15 Starter
12
3456
78910
11121314
15161718
19202122
23242526
27
28
29
Allocation of fusesThe presence of certain fuses de-
pends on the vehicle equipment
level.
Number Allocation
16 Brake lights, additional
equipment, ABS, ESP,
luggage compartment light,
courtesy light, rain and light
sensor
17 Radio, navigation system,
display, alarm
18 Additional equipment
19 Heated door mirrors
20 Hazard lights, rear fog lights
21 Central locking of opening
elements
22 Instrument panel
23 Not used
24 Radio, heated seats, brake
lights
25 Front accessories socket
26 Towbar
27 Electric front windows
28 Rear-view mirror control
29 Passenger compartment
motor-driven fan assembly
Page 226 of 230

7.4
ALPHABETICAL INDEX (4/5)
pedestrian warning system ................................................ 1.84
power-assisted steering..................................................... 1.61
practical advice ..........................................................2.6 → 2.9
presentation of the electric vehicle batteries ..............................................................\
.1.2 → 1.7
pretensioners ..........................................................\
........... 1.41
puncture........................................................................\
5.6, 5.8
R
radio........................................................................\
.. 3.14, 5.28
radio frequency remote control/key use ....................................................................\
.. 1.17, 1.19
range of the traction battery........................................ 2.6 – 2.7
rear bench seat....................................................... 3.23 – 3.24
rear lights changing bulbs .................................................5.16 → 5.18
rear screen demisting ..............................................................\
......... 3.2
rear seats functions ........................................................... 3.23 – 3.24
rear view camera .................................................... 2.27 – 2.28
rear view mirrors ................................................................ 1.82
remote control door locking batteries ..............................................................\
......... 5.31
remote control electric door locking .......................... 1.17, 1.19
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.28
replacement parts ................................................................ 6.7
reverse gear selecting ................................................................ 2.4 – 2.5
reversing sensor ..................................................... 2.25 – 2.26
S
seat belts ...............................................................1.37 → 1.45
see-me-home lighting ........................................................ 1.86
service sheets..........................................................6.8 → 6.13side indicator lights
changing bulbs ............................................................. 5.19
side protection devices ...................................................... 1.44
signals and lights ...................................................1.85 → 1.87
speed control .............................................................. 2.4 – 2.5
speed limiter ..........................................................2.18 → 2.20
steering wheel adjustment .............................................................\
...... 1.61
storage compartment.............................................3.19 → 3.21
storage compartments ...........................................3.19 → 3.21
sun visor ................................................................... 3.16, 3.21
T
tailgate ................................................ 1.24 – 1.25, 3.25 – 3.26
tanks and reservoirs brake fluid ...................................................................... 4.5
coolant ................................................................\
........... 4.4
tanks and reservoirs: windscreen washer ........................................................ 4.5
technical specifications .......................................6.2, 6.4 → 6.7
temperature regulation ........................................... 3.12 – 3.13
tool kit ........................................................................\
.......... 5.6
towing in the event of energy failure ...........................5.25 → 5.27
breakdown .......................................................5.25 → 5.27
towing equipment fitting ................................................................\
............ 3.26
towing hitch...................................................... 5.6, 5.26 – 5.27
towing rings ...........................................................1.49 → 1.51
traction battery charge .................................................................\
........... 1.9
traction battery ...........................................................1.2 → 1.8
traction battery charge ....................................1.9 → 1.16, 1.19
traction control .......................................................2.15 → 2.17
transporting children ..........................1.46 – 1.47, 1.49 → 1.60
