Poste de conduite à gauche (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_1
20 Gearstick
21 Remote control/location for radio,
navigation system.
22 Cruise control/speed limiter con -
trols.
23 Bonnet release control.
24 Headlight adjustment control.
25 Additional heating switch.
26 ECO mode switch.
27 Controls for:
– cruise control/speed limiter;
– parking distance;
– activation/deactivation of the
horn.

1 Stalk for:
– direction indicator lights;
– exterior lights;
– front fog lights;
– rear fog lights.
2 – Horn,
– location for driver’s air bag.
3 Instrument panel.
4 Stalk for:
– windscreen wipers;
– windscreen washer;
– trip computer and warning
system.
5 Ignition switch.
6 Central display:
– seat belt reminder warning light;
– airbag deactivation warning
light;
– navigation;
– clock;
– exterior temperature.
7 Centre air vent.
8 Controls for ventilation, heating
and de-icing. 9 Windscreen demister outlet.
10 Location for passenger air bag.
11 Speaker.
12 Side air vent.
13 Side window demister outlet.
14 Glove box.
15 Storage space or accessories
socket.
16 Hazard warning lights switch.
17 Central door locking/unlocking
switch.
18 Cigar lighter/12V socket.
19 Handbrake.
DriviNg POSitiON, leFt-hAND Driver (2/2)
the equipment fitted, described below, DePeNDS ON the verSiON AND cOUNtr Y.

JauneNoirNoir texte
1.59
ENG_UD29121_4
Poste de conduite à droite (X61 électrique - Renault)
ENG_NU_911-4_F61e_Renault_1
DriviNg POSitiON: right-hAND Drive (2/2)
20 Location for radio, navigation
system.
21 Gearstick
22 Cigarette lighter/12V socket.
23 Handbrake.
24 Door electric locking/unlocking
switch.
25 Hazard warning lights switch.
26 Storage space or accessories
socket.
27 Glovebox
28 Bonnet release control.

10 – Horn.
– Location for driver’s air bag.
11 Instrument panel.
12 Ignition switch.
13 Stalk for:
– windscreen wipers;
– windscreen washer;
– trip computer and warning
system.
14 Cruise control/speed limiter con -
trol.
15 Additional heating switch.
16 ECO mode switch.
17 Activation/deactivation control for
the horn.
18 Headlight adjustment control.
19 Cruise control/speed limiter con -
trols.

1 Side window demister outlet.
2 Side air vent.
3 Speaker.
4 Location for passenger air bag.
5 Windscreen demister outlet.
6 Controls for ventilation, heating
and de-icing.
7 Centre air vent.
8 Central display:
– seat belt reminder warning light;
– airbag deactivation warning
light;
– navigation;
– clock;
– exterior temperature.
9 Stalk for:
– direction indicator lights,
– exterior lights;
– front fog lights;
– rear fog lights.
the equipment fitted, described below, DePeNDS ON the verSiON AND cOUNtr
Y.

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
external temperature ............................ (up to the end of the DU)
1.75
ENG_UD21606_3
Heure et température extérieure (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_1

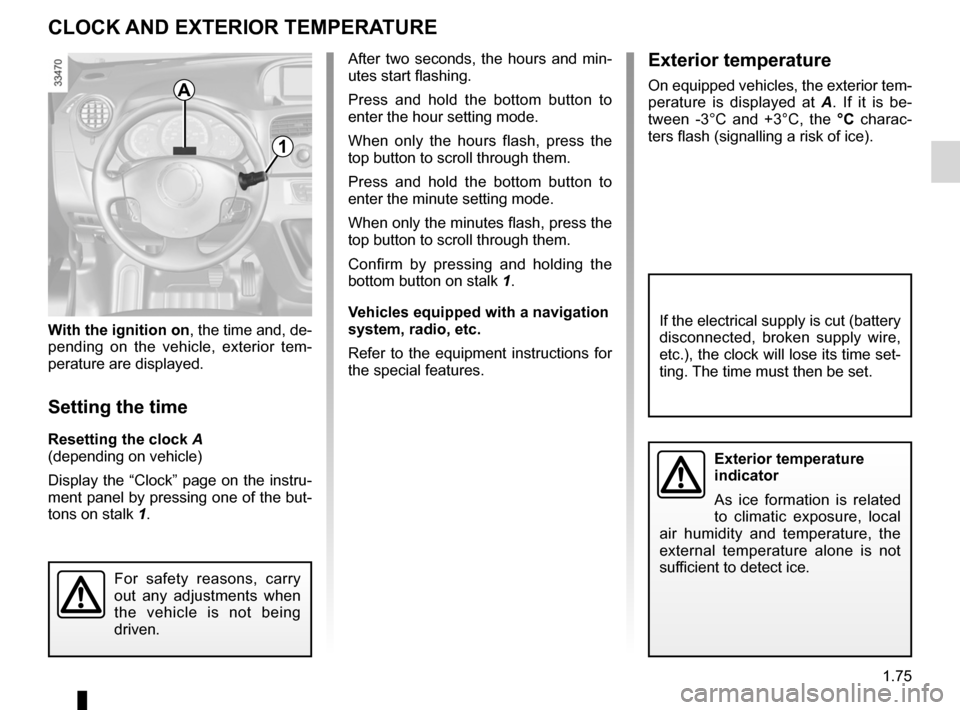

Clock and exterior temperature
clOcK AND eXteriOr temPerA tUre
exterior temperature
indicator
As ice formation is related
to climatic exposure, local
air humidity and temperature, the
external temperature alone is not
sufficient to detect ice.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting. The time must then be set.
A
1
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
After two seconds, the hours and min-
utes start flashing.
Press and hold the bottom button to
enter the hour setting mode.
When only the hours flash, press the
top button to scroll through them.
Press and hold the bottom button to
enter the minute setting mode.
When only the minutes flash, press the
top button to scroll through them.
Confirm by pressing and holding the
bottom button on stalk 1.
v ehicles equipped with a navigation
system, radio, etc.
Refer to the equipment instructions for
the special features.
With the ignition on, the time and, de-
pending on the vehicle, exterior tem
-
perature are displayed.
Setting the time
resetting the clock A
(depending on vehicle)
Display the “Clock” page on the instru-
ment panel by pressing one of the but-
tons on stalk 1.
exterior temperature
On equipped vehicles, the exterior tem-
perature is displayed at A . If it is be -
tween -3°C and +3°C, the °c charac -
ters flash (signalling a risk of ice).

JauneNoirNoir texte
5.27
ENG_UD23043_4
Fusibles (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_5
Fuses (2/2)
Some functions are protected by fuses
located in the engine compartment.
However, because of their reduced ac-
cessibility, you are advised to have
these fuses replaced by an approved
Dealer.symbol allocation symbolallocation
Z
Interior lighting, electric
door mirrors, rain/light sen-
sors, heating and air con -
ditioning system.
î
Radio, display, heating and
air conditioning system,
heated seat
ÌHornInstrument panel
DRear fog lights, warningëAccessories socket, cigar
lighter
Electric windowsö
Consumer cut-out (radio,
navigation system, display,
alarm)
ñHeated seatsgHeated door mirrors
fRear screen wiperHFront/rear windscreen wash-
ers
xPassenger compartment
heating systemNCentral door locking
aDaPt Location reserved for addi
-
tional equipment.
nABS
ßBrake lights
allocation of fuses (the presence of fuses DePenDs On the eQuIPment leVel
OF the VehIcle)
