Page 3 of 233
0.1
ENG_UD19396_3
Bienvenue (X35 - X44 - X45 - X73 - X81 - J81 - X84 - X85 - B85 - C85 - S85 - X91 - X70 - X76 - X83 - X61 - TEST - X77 ph2 - K85 - X95 - X33 - X43 - X38 - X65 PH5 -
ENG_NU_977-2_H45_Ph2_Renault_0
Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from the vehicle manu-
facturer.
This Driver’s Handbook contains the information necessary:
– for you to familiarise yourself with your vehicle, to use it to its best advantage and to benefit fully from the all the functions and
the technical developments it incorporates.
– to ensure that it always gives the best performance by following the simple, but comprehensive advice concerning regular main-
tenance.
– to enable you to deal quickly with minor faults not requiring specialist attention.
It is well worth taking a few minutes to read this handbook to familiarise yourself with the information and guidelines it contains
about the vehicle and its functions and new features. If certain points are still unclear, our Network technicians will be only too
pleased to provide you with any additional information.
The following symbol will help you when reading this handbook:
Welcome to your new vehicle
The descriptions of the models given in this handbook are based on the technical specifications at the time of writing. This hand-
book covers all items of equipment (both standard and optional) available for these models but whether or not these are
fitted to the vehicle depends on the version, options selected and the country where the vehicle is sold.
This handbook may also contain information about items of equipment to be introduced later in the model year .
Throughout the manual, the “approved Dealer” is your RENAULT Dealer. To indicate a hazard, danger or safety recommendation.
Enjoy driving your new vehicle.
Page 5 of 233
0.3
ENG_UD10779_7
Sommaire Général (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 -
ENG_NU_977-2_H45_Ph2_Renault_0
Getting to know your vehicle ...............................
Driving
...................................................................
Your comfort .........................................................
Maintenance .........................................................
Practical advice ....................................................
Technical specifications ......................................
Alphabetical index ...............................................
Sections
1
C O N T E N T S
2
3
4
5
6
7
Page 209 of 233
6.1
ENG_UD27168_2
Contents 6 (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.14
Page 210 of 233
vehicle identification ............................. (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
paintwork reference .......................................................... (current page)
6.2
ENG_UD22100_5
Plaques d’identification véhicule (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Vehicle identification plates
Vehicle identification plates
a
B
a
1
2
34
5
678
9
10
11
12
13
t he information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
depending on the vehicle, this
information is also given on
marking B.
2 M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Front axle maximum permissible
all-up weight.
5 Rear axle maximum permissible
all-up weight.
6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica -
tion.
12 Fabrication number.
13 Interior trim code.
Page 212 of 233
dimensions ........................................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
6.4
ENG_UD23539_3
Dimensions (en mètres) (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Dimensions
diMensions (in metres)
955 2.690 875
4.5201.545
1.550
2.120
1.695 (1)
1.715 (2)
(1) without roof rack
(2) with roof rack
Page 213 of 233
enginetechnical specifications ................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
engine specifications ............................ (up to the end of the DU)
6.5
ENG_UD23904_4
Caractéristiques moteurs (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6

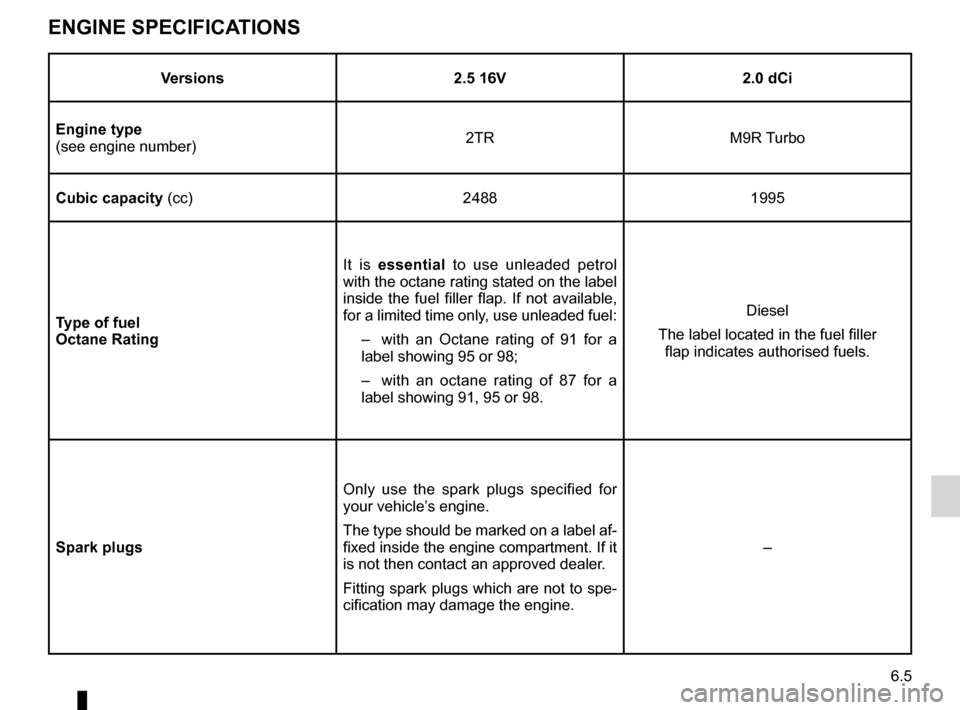

Engine specifications
engine specifications
Versions 2.5 16V2.0 dci
engine type
(see engine number) 2TR
M9R Turbo
cubic capacity (cc) 2 488 1 995
t ype of fuel
octane Rating It is
essential to use unleaded petrol
with the octane rating stated on the label
inside the fuel filler flap. If not available,
for a limited time only, use unleaded fuel:
– with an Octane rating of 91 for a
label showing 95 or 98;
– with an octane rating of 87 for a
label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for
your vehicle’s engine.
The type should be marked on a label af-
fixed inside the engine compartment. If it
is not then contact an approved dealer.
Fitting spark plugs which are not to spe-
cification may damage the engine. –
Page 214 of 233
technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
6.6
ENG_UD13158_4
Masses (enKg) (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Weights
Towing weights
Weights (in kg)
Maximum permissible all-up weight (MMac)
total train weight (MtR) Weights indicated on the manufacturer’s plate
(refer to Section 6 “Vehicle identification plate”)
t owing weight braked found by calculating:
total train weight
Maximum permissible all-up weight
t owing weight unbraked 750
permissible nose weight 100
permissible load on the roof with the carrying device 85 kg (including the carrying device)
t owing weight (t owing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact your approved Dealer about any towing equipment.
– For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, the following is
tolerated:
– rear axle maximum permissible weight exceeded by no more than 15%,
– maximum permissible all-up weight exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter .
the weights indicated are those of a basic model without options: they will vary depending on the equipment level of
your vehicle. consult an authorised dealer.
Page 215 of 233
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD21022_2
Pi ces de rechange et r parations (X35 - X44 - X45 - H45 - X65 - X77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X76 - X83 - X95 - B95 - D95 - E95 - K95 - J95 - R95 -
ENG_NU_977-2_H45_Ph2_Renault_6
Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
ReplaceMent paRts and RepaiRs
Page 228 of 233
7.2
ENG_UD27169_2
Index (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (2/5)
driver’s position ................................. 1.40 – 1.41, 1.44 → 1.47
driving ................................................ 2.2 → 2.16, 2.18 → 2.41
driving position settings ............................................................. 1.17 – 1.18
e
electric beam height adjustment ........................................ 1.66
electric windows ..................................................... 3.14 – 3.15
electronic parking brake ........................................ 2.10 → 2.13
Electronic Stability Program: ESP .........................2.24 → 2.28
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ............................................. 5.2 – 5.3
engine technical specifications .................................................. 6.5
engine oil ................................................................... 4.4 → 4.6
engine oil level ................................................................... 1.49
engine specifications ........................................................... 6.5
engine start/stop button .............................................. 2.3 – 2.4
environment ....................................................................... 2.17
ESP: Electronic Stability Program .........................2.24 → 2.28
external lights and signals ................................................. 1.66
F
4 wheel drive (4WD) .............................................. 2.21 → 2.23
faults operating faults ................................................ 5.29 → 5.33
filter air filter ........................................................................... 4.9
diesel filter ...................................................................... 4.9
particle filter .......................................................... 1.46, 2.8
passenger compartment filter ........................................ 4.9
fittings .................................................................... 3.22 → 3.27
fog lights ............................................................................ 5.11
front passenger air bag deactivation ................................. 1.36
front seat adjustment electric controls ............................................................ 1.15manual controls
................................................ 1.15 – 1.16
front seats adjustment .......................................................1.14 → 1.16
fuel advice on fuel economy ............................................... 2.14
capacity ............................................................ 1.70 → 1.72
filling ........................................................ 1.46, 1.70 → 1.72
grade ................................................................ 1.70 → 1.72
fuel economy ......................................................... 2.14 → 2.16
fuel filler cap .......................................................... 1.70 → 1.72
fuel level ............................................................................ 1.48
fuel priming bulb ......................................................... 1.72, 2.8
fuel repriming ..................................................................... 1.72
fuel tank capacity ............................................................ 1.70 → 1.72
fuel tank capacity ................................................... 1.70 → 1.72
fuses ....................................................................... 5.18 – 5.19
G
gear lever ............................................................................. 2.9
glove box ........................................................................... 3.22
h
handbrake ............................................................................ 2.9
hands-free telephone integrated control ............................ 3.38
hazard warning lights signal .................................. 1.62 → 1.65
headlight beam adjustment ............................................... 1.66
headlight flashers .............................................................. 1.62
headrest .................................................................... 1.14, 3.29
heating and air conditioning system ........................ 3.7 → 3.13
heating system ........................................................ 3.4 → 3.12
hill start .............................................................................. 2.28
Hill Start Assistance (HSA) ................................................ 2.28
horn ................................................................................... 1.62
horn: flash ............................................................................. 1.62
Page 230 of 233
7.4
ENG_UD27169_2
Index (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
reference ........................................................................ 6.2
parking distance control ......................................... 2.36 → 2.38
power-assisted steering ..................................................... 1.60
puncture ..................................................................... 5.2 → 5.5
R
radio................................................................................... 3.38
rear bench seat ....................................................... 3.30 – 3.31
rear parcel shelf ................................................................. 3.34
rear screen de-icing/demisting ................................... 3.6, 3.10
rear seats functions ........................................................... 3.30 – 3.31
rear view mirrors ................................................................ 1.61
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.13
RENAULT card battery .......................................................................... 5.22
use ....................................................................... 1.2 → 1.8
RENAULT card battery ...................................................... 5.22
replacement parts ................................................................ 6.7
reverse gear selecting .................................................... 2.9, 2.39 → 2.41
reversing sensor .................................................... 2.36 → 2.38
roof bars ............................................................................ 3.37
roof rack roof bars ....................................................................... 3.37
running in ............................................................................. 2.2
S
screen wash/wipe ................................................... 1.67 – 1.68
seat belt pretensioners front seat belt ...................................................1.21 → 1.24
seat belts ......................................... 1.17 → 1.19, 1.21 → 1.24
see-me-home lighting ........................................................ 1.64
service sheets .......................................................... 6.8 → 6.13
side and number plate lighting changing bulbs ............................................................. 5.14side indicator lights
changing bulbs ............................................................. 5.14
signals and lights ................................................... 1.63 → 1.65
special features of diesel versions ..............................2.7 – 2.8
special features of petrol vehicles ....................................... 2.6
speed limiter .......................................................... 2.29 → 2.31
starting the engine ...................................................... 2.3 – 2.4
steering wheel adjustment ................................................................... 1.60
stopping the engine ............................................................. 2.5
storage compartment ............................................. 3.22 → 3.27
storage compartments ........................................... 3.22 → 3.27
sun visor ............................................................................ 3.18
sunroof .................................................................... 3.16 – 3.17
t
tailgate ........................................................... 3.32 – 3.33, 3.35
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ........................................................................... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ....................................... 6.2, 6.4 → 6.7
telephone ........................................................................... 3.38
temperature ....................................................................... 1.39
temperature regulation ............................................ 3.7 → 3.12
tool kit .................................................................................. 5.3
towing breakdown .......................................................5.25 → 5.28
towing equipment ......................................................... 3.35
towing a caravan ........................................................ 3.35, 6.6
towing equipment fitting ............................................................................ 3.35
towing hitch ............................................................ 5.25 → 5.28
towing rings ............................................................ 3.35 – 3.36
towing weights ..................................................................... 6.6
