Blind Spot Warning (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_2

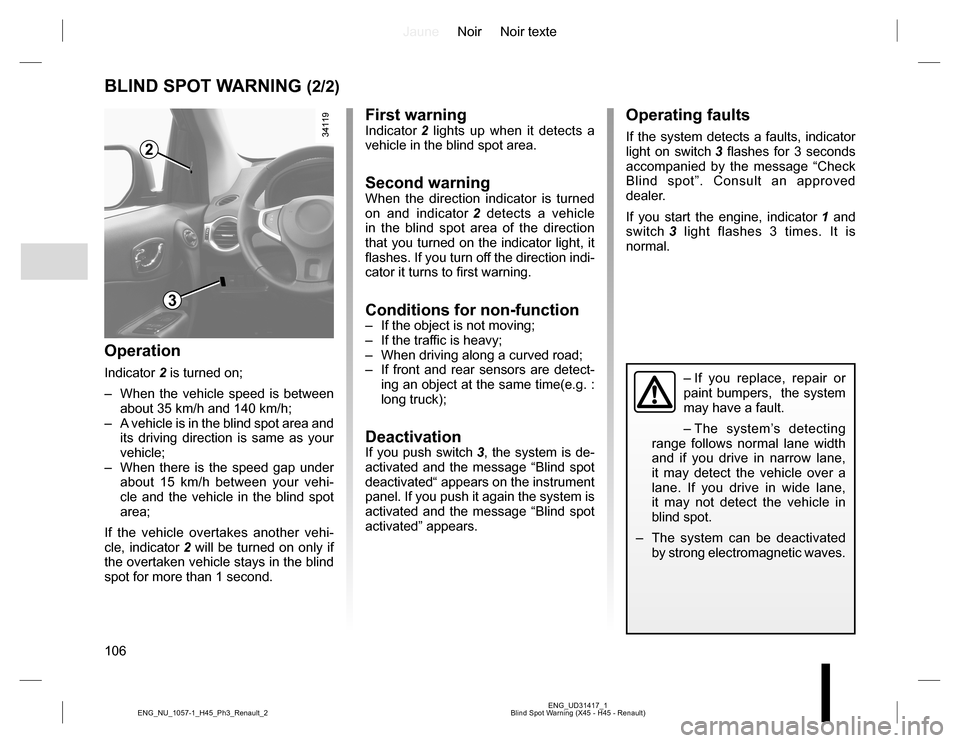

BLIND SPOT WARNING (2/2)
Operating faults
If the system detects a faults, indicator
light on switch 3 flashes for 3 seconds
accompanied by the message “Check
Blind spot”. Consult an approved
dealer.
If you start the engine, indicator 1 and
switch 3 light flashes 3 times. It is
normal.2
3
First warningIndicator 2 lights up when it detects a
vehicle in the blind spot area.
Second warningWhen the direction indicator is turned
on and indicator 2 detects a vehicle
in the blind spot area of the direction
that you turned on the indicator light, it
flashes. If you turn off the direction indi-
cator it turns to first warning.
Conditions for non-function– If the object is not moving;
– If the traffic is heavy;
– When driving along a curved road;
– If front and rear sensors are detect-
ing an object at the same time(e.g. :
long truck);
DeactivationIf you push switch 3, the system is de-
activated and the message “Blind spot
deactivated“ appears on the instrument
panel. If you push it again the system is
activated and the message “Blind spot
activated” appears.
– If you replace, repair or
paint bumpers, the system
may have a fault.
– The system’s detecting
range follows normal lane width
and if you drive in narrow lane,
it may detect the vehicle over a
lane. If you drive in wide lane,
it may not detect the vehicle in
blind spot.
– The system can be deactivated
by strong electromagnetic waves.
Operation
Indicator 2 is turned on;
– When the vehicle speed is between
about 35 km/h and 140 km/h;
– A vehicle is in the blind spot area and
its driving direction is same as your
vehicle;
– When there is the speed gap under
about 15 km/h between your vehi-
cle and the vehicle in the blind spot
area;
If the vehicle overtakes another vehi-
cle, indicator 2 will be turned on only if
the overtaken vehicle stays in the blind
spot for more than 1 second.
Page 114 of 232

JauneNoir Noir texte
11 4
ENG_UD27281_8
Aide au parking (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_2
Operating principle
On equipped vehicles, ultrasonic sen-
sors fitted in the vehicle’s rear and/or
front bumper measure the distance
between the vehicle and an obstacle
when reversing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 25 centi-
metres from the obstacle.
Special features
Ensure that the ultrasonic sensors are
not obscured (by dirt, mud, snow, etc.).
This function is an additional aid that indicates the distance between the
vehicle and an obstacle whilst reversing, using sound signals.
Under no circumstances should it replace the driver’s care or responsibil-
ity whilst reversing.
The driver should always look out for sudden hazards during driving: always
ensure that there are no moving obstacles (such as a child, animal, pram or bi-
cycle, etc.) or small, narrow objects such as stones or posts in your path when
manoeuvring.
PARKING DISTANCE CONTROL (1/3)
Front parking distance
control
(Depending on the vehicle)
Operation
When moving forwards at less than
7 mph (12 km/h), when any object
is detected less than approximately
1 metre from the front of the vehicle: a
beep sounds.
Automatic activation/deactivation of
front parking distance control
The system deactivates:
– when the vehicle speed is above ap-
proximately 7 mph (12 km/h);
– When the vehicle is stationary for
more than three seconds: only in the
case that the vehicle speed dropped
from above approximately 7 mph
(12 km/h) and an obstacle is more
than 30 centimetres away from the
vehicle (e.g., traffic jam);
– when the vehicle is in neutral or
when the gear lever has been shifted
to N or P for automatic gearboxes.
Page 116 of 232

JauneNoir Noir texte
11 6
ENG_UD27281_8
Aide au parking (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_2
Temporary activation/deactivation
Press switch 1 to deactivate the
system: the indicator light on the switch
comes on and the message “Parking
sensor off” is displayed on the instru-
ment panel.
The system is reactivated by pressing
the switch.
Note: in this case, the system is au-
tomatically reactivated each time the
engine is switched off.
1
Activating/deactivating for long
periods
Press the switch for approximately
3 seconds to deactivate the system: the
indicator light on the switch comes on
and the message “Parking sensor off”
is displayed on the instrument panel.
The system is reactivated by press-
ing the switch again for approximately
3 seconds.
Operating faultsWhen the system detects an operat-
ing fault, the message “Check parking
sensor” is displayed on the instrument
panel, the
© warning light comes
on and a beep sounds.
Consult an approved Dealer.
When the vehicle is being driven
at a speed below 7 mph (12 km/h),
certain noises (motorcycle, lorry,
pneumatic drill, rain, alarm etc.) may
trigger the beeping sound.
PARKING DISTANCE CONTROL (3/3)
Under the following conditions, the
parking distance control system
may not function:
– the sensors are obscured (dirt,
mud, snow, etc.);
Clean with a soft cloth.
– the sensors are frozen.
Under the following conditions, the
parking distance control system
may malfunction:
– uneven surface, gravel track, hill,
forest track, etc.
– floods or water splashes.
The system may not detect objects
such as the following:
– narrow obstacles (sharp-edged
objects or rope);
– materials which absorb sound
waves easily (cotton, sponge,
snow, etc.)
Page 207 of 232

JauneNoir Noir texte
207
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
-

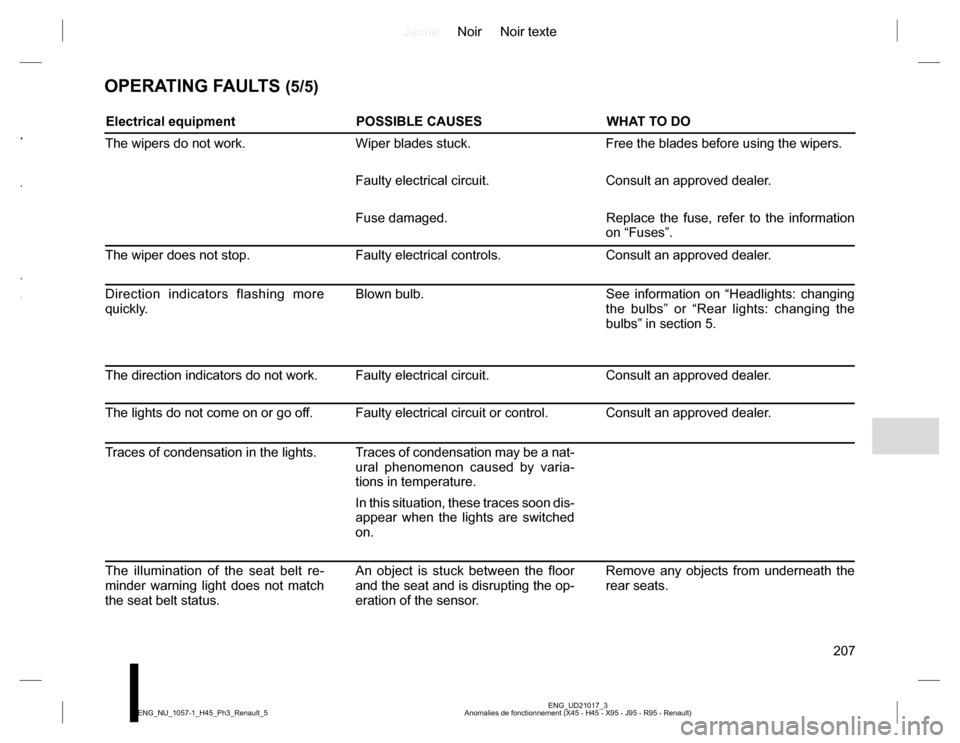

OPERATING FAULTS (5/5)
Electrical equipment POSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
Fuse damaged. Replace the fuse, refer to the information
on “Fuses”.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly.Blown bulb. See information on “Headlights: changing
the bulbs” or “Rear lights: changing the
bulbs” in section 5.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The lights do not come on or go off. Faulty electrical circuit or control. Consult an approved dealer.
Traces of condensation in the lights. Traces of condensation may be a nat-
ural phenomenon caused by varia-
tions in temperature.
In this situation, these traces soon dis-
appear when the lights are switched
on.
The illumination of the seat belt re-
minder warning light does not match
the seat belt status.An object is stuck between the floor
and the seat and is disrupting the op-
eration of the sensor.Remove any objects from underneath the
rear seats.
Page 230 of 232

JauneNoir Noir texte
230
ENG_UD31952_3
Index (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_7
ALPHABETICAL INDEX (4/5)
reference ........................................................................ 6.2
parking distance control.........................................2.36 → 2.38
power-assisted steering..................................................... 1.60
puncture.....................................................................5.2 → 5.5
R
radio................................................................................... 3.38
rear bench seat....................................................... 3.30 – 3.31
rear parcel shelf ................................................................. 3.34
rear screen de-icing/demisting ................................... 3.6, 3.10
rear seats
functions ........................................................... 3.30 – 3.31
rear view mirrors ................................................................ 1.61
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.13
RENAULT card
battery .......................................................................... 5.22
use .......................................................................1.2 → 1.8
RENAULT card battery ...................................................... 5.22
replacement parts ................................................................ 6.7
reverse gear
selecting ....................................................2.9, 2.39 → 2.41
reversing sensor ....................................................2.36 → 2.38
roof bars ............................................................................ 3.37
roof rack
roof bars ....................................................................... 3.37
running in ............................................................................. 2.2
S
screen wash/wipe ................................................... 1.67 – 1.68
seat belt pretensioners
front seat belt ...................................................1.21 → 1.24
seat belts ......................................... 1.17 → 1.19, 1.21 → 1.24
see-me-home lighting ........................................................ 1.64
service sheets..........................................................6.8 → 6.13
side and number plate lighting
changing bulbs ............................................................. 5.14side indicator lights
changing bulbs ............................................................. 5.14
signals and lights ...................................................1.63 → 1.65
special features of diesel versions.............................. 2.7 – 2.8
special features of petrol vehicles ....................................... 2.6
speed limiter ..........................................................2.29 → 2.31
starting the engine ...................................................... 2.3 – 2.4
steering wheel
adjustment ................................................................... 1.60
stopping the engine ............................................................. 2.5
storage compartment.............................................3.22 → 3.27
storage compartments ...........................................3.22 → 3.27
sun visor ............................................................................ 3.18
sunroof.................................................................... 3.16 – 3.17
T
tailgate ........................................................... 3.32 – 3.33, 3.35
tanks and reservoirs
brake fluid ...................................................................... 4.8
coolant ........................................................................... 4.7
tanks and reservoirs:
windscreen washer ........................................................ 4.9
technical specifications .......................................6.2, 6.4 → 6.7
telephone ........................................................................... 3.38
temperature ....................................................................... 1.39
temperature regulation ............................................3.7 → 3.12
tool kit .................................................................................. 5.3
towing
breakdown .......................................................5.25 → 5.28
towing equipment ......................................................... 3.35
towing a caravan ........................................................ 3.35, 6.6
towing equipment
fitting ............................................................................ 3.35
towing hitch............................................................5.25 → 5.28
towing rings ............................................................ 3.35 – 3.36
towing weights ..................................................................... 6.6
