Blind Spot Warning (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_2
BLIND SPOT WARNING (1/2)
This system notifies the driver when
the other vehicle comes up in the blind
spot.
This function uses sensors 1 installed
in the front and rear bumper of both
sides.
Please confirm that the sensors are not
covered by dirt, mud or snow.
This system is activated when the ve-
hicle speed is between about 35 km/h
and 140 km/h.
When the engine is started, the system
adopts the status that was active when
the engine was last stopped.
This function is an addi-
tional aid that indicates
there is the other vehicle in
the blind spot area.
Under no circumstances should it
replace the driver’s care or respon-
sibility whilst driving.
The driver should always look out
for sudden hazards during driv-
ing: always ensure that there are
no moving obstacles (such as a
child, animal, pram or bicycle, etc.)
or small, narrow objects such as
stones or posts in the blind spot
area when manoeuvring.
2
Indicator 2
Indicator 2 is located in driver side and
front passenger side.
1

JauneNoir Noir texte
11 8
ENG_UD27292_7
Bo tes de vitesses automatiques ou variation continue (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_2
AUTOMATIC OR CONTINUOUSLY VARIABLE TRANSMISSION (2/3)
Driving in manual mode
With the selector lever in position D,
move the lever to the left. Shifting the
lever repeatedly allows you to change
gears manually:
– backwards to shift down the gears;
– forwards to shift up the gears.
The gear selected is displayed on the
instrument panel.
Special cases
Under certain driving conditions (e.g.
engine protection, or electronic stability
control (ESC) operational etc.) the au-
tomatic system may change gear auto-
matically.
Likewise, to prevent incorrect manoeu-
vres, a gear change may be refused by
the automatic system: in this case the
gear display flashes for a few seconds
as a warning.
Special circumstances
– If the bends and road surface do
not allow you to stay in automatic
mode (e.g. in the mountains), we
recommend that you change to
manual mode.
This will prevent repeated gear
changes when climbing and will
enable engine braking on long de-
scents.
– In very cold weather, to avoid stall-
ing the engine, start the engine and
wait a few seconds before moving
the lever from position P or N to po-
sition D or R.
– Vehicles not fitted with traction
control: to avoid wheelspin when
starting on a slippery or low grip sur-
face, change to manual mode and
select second gear before moving
off.
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
Depending on the vehicle, apply the
handbrake or check that the elec-
tronic parking brake is on (refer to
the information on the Parking brake in
Section 2).
In very cold weather, the system may prevent the gears from being shifted in
manual mode until the gearbox reaches the right temperature.
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap-
proved Dealer.

JauneNoir Noir texte
125
ENG_UD28046_5
Chauffage, air conditionn manuel (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
MANUAL AIR CONDITIONING, HEATING SYSTEM (2/3)
Adjusting the ventilation
speed
Normal use
Turn control C to one of the four posi-
tions to start the ventilation system and
adjust the power.
Select position 1 for minimum ventila-
tion and position 4 for maximum ven-
tilation.Position 0
In this case:
– the air conditioning stops automati-
cally even if button F is activated (the
indicator light on the button remains
lit).
– the ventilation speed is zero.
– you will, however, feel a slight flow of
air when the vehicle is moving.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light illuminated) or off (indicator
light extinguished) using button F.
The air conditioning system is used
for:
– lowering the temperature inside the
passenger compartment;
– quickly eliminating humidity.
The air conditioning does not operate
when the exterior temperature is low.
When the air conditioning system is
used for long periods, it may begin to
feel cold.
If it does, increase the temperature
(turn control A clockwise).
ABCDE
F

JauneNoir Noir texte
128
ENG_UD20983_3
Conditionnement d’air automatique bizone (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
AUTOMATIC CLIMATE CONTROL (2/6)
Automatic mode
Press the automatic mode button 3.
The indicator light on the button comes
on.
The automatic climate control system
ensures, in most cases, a comfortable
temperature in the passenger compart-
ment, while maintaining good visibility
and optimising fuel consumption.
This is the recommended mode of
use.To reach and keep the chosen comfort
level and to maintain good visibility, the
system controls:
– ventilation speed;
– air distribution;
– air conditioning start/stop;
– air temperature.
Only the temperatures and the indi-
cator light on the button 3 are lit up.
In automatic mode (with the indi-
cator light lit up on button 3), the
system automatically controls all the
functions.
When you modify certain functions,
the indicator light on button 3 goes
out. Only the modified function stops
being controlled by the system.
3

JauneNoir Noir texte
133
ENG_UD31460_4
Air conditionn : informations et conseils d utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing
consumption and therefore
helping to preserve the
environment:
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection
frequency.
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an op-
erating fault.
– Reduction in de-icing, demist-
ing or air conditioning per-
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged.
– No cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Advice on use
In some situations, (air conditioning
off, air recirculation activated, venti-
lation speed at zero or low, etc.) you
may notice that condensation starts
to form on the windows and wind-
screen.
If there is condensation, use the
“Clear View” function to remove it,
then use the air conditioning in auto-
matic mode to stop it forming again.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Note
Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.

JauneNoir Noir texte
136
ENG_UD31692_4
Toit ouvrant lectrique (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
ELECTRIC SUNROOF (1/2)
The system operates:
– when the ignition is switched on,
– when the ignition is switched off until
the driver’s door is opened/closed
(limited to approximately 45 sec-
onds).
Tilting the sunroofOpening: open the sunroof blind, then
press button 2 (side A): the sunroof tilts
open.
Closing: press 2 (side B).
Sliding the sunroofOpening: open the sunroof blind then
briefly press button 2 (side A)
Using button 2 stops the sunroof
moving.
Closing: briefly press 2 (side B).
Sunroof blind
Move handles 1 forwards or backwards
to open the blind as required.
– Never operate the sunroof with
the blind closed.
– Never drive with the sunroof open
and the sun blind closed.
2
A
B
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short period of time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
If something gets trapped, reverse
the direction of travel as soon as
possible by pressing the rear of
button 2 (on the side marked A).
Risk of serious injury.
1

JauneNoir Noir texte
199
ENG_UD31483_4
Remorquage : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
TOWING: breakdown (1/4)
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button twice without pressing on the
pedals. The steering column unlocks,
the vehicle accessory functions are
supplied with power and you can use
the lights (stop lights, directional indica-
tor lights, etc.): the vehicle must have
its lights on at night.
Do not remove the RENAULT card from
the reader when the vehicle is being
towed.
Press the Start/Stop button twice in
succession to switch off the ignition
once towing is finished (risk of running
down the battery).
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact your approved Dealer.

JauneNoir Noir texte
203
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

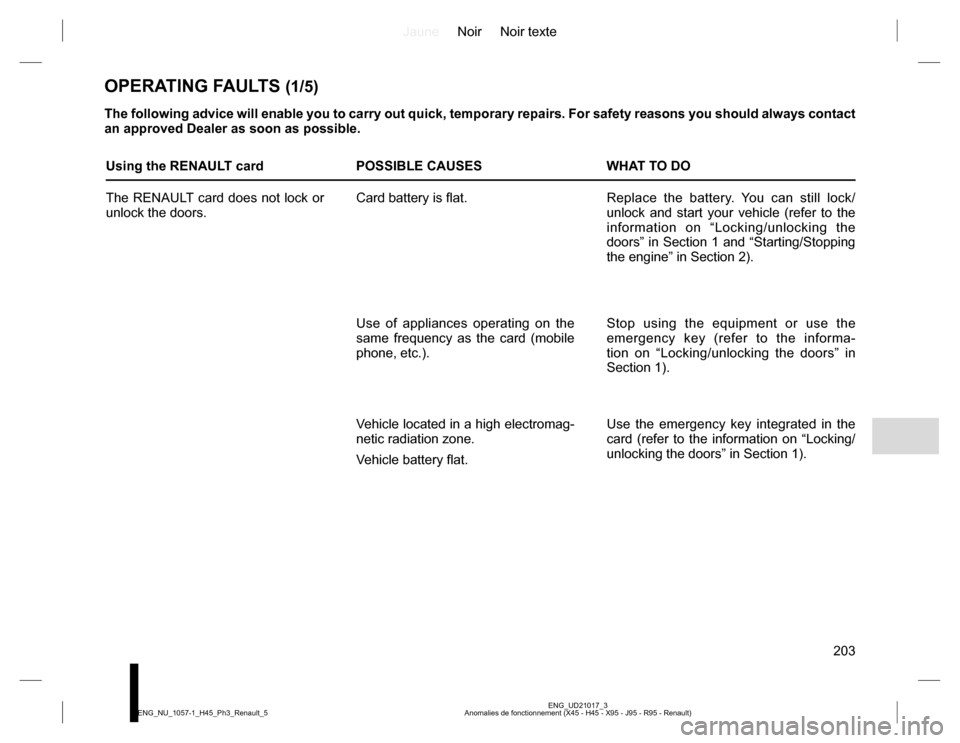

OPERATING FAULTS (1/5)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved Dealer as soon as possible.
Using the RENAULT card POSSIBLE CAUSES WHAT TO DO
The RENAULT card does not lock or
unlock the doors.Card battery is flat.Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
Use of appliances operating on the
same frequency as the card (mobile
phone, etc.).Stop using the equipment or use the
emergency key (refer to the informa-
tion on “Locking/unlocking the doors” in
Section 1).
Vehicle located in a high electromag-
netic radiation zone.
Vehicle battery flat.Use the emergency key integrated in the
card (refer to the information on “Locking/
unlocking the doors” in Section 1).

JauneNoir Noir texte
204
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

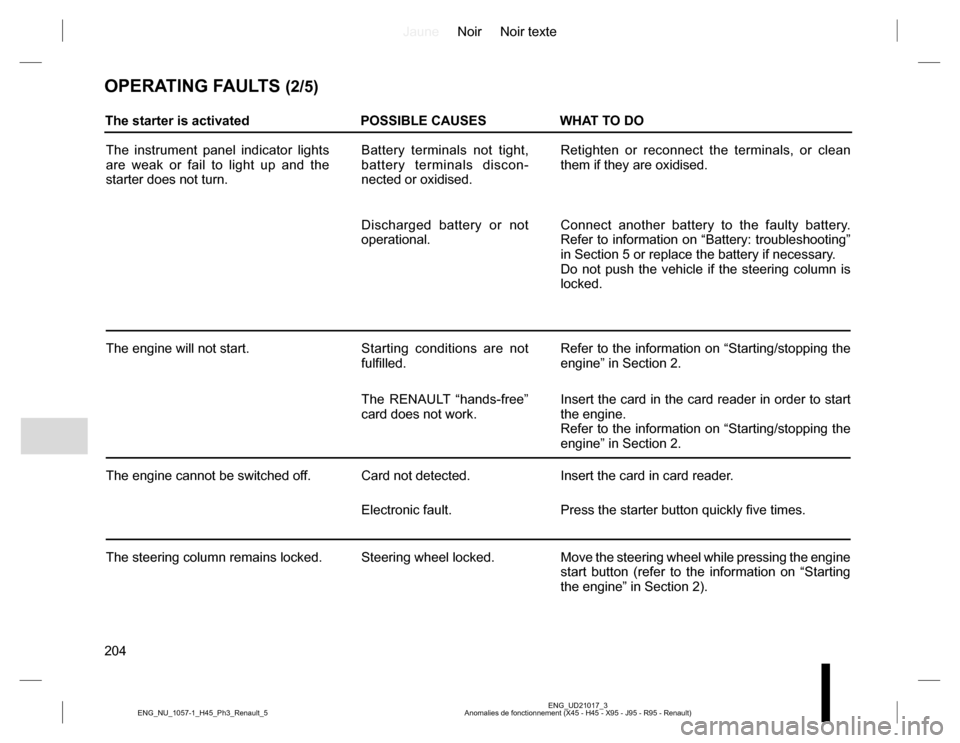

OPERATING FAULTS (2/5)
The starter is activated POSSIBLE CAUSES WHAT TO DO
The instrument panel indicator lights
are weak or fail to light up and the
starter does not turn.Battery terminals not tight,
battery terminals discon-
nected or oxidised.Retighten or reconnect the terminals, or clean
them if they are oxidised.
Discharged battery or not
operational.Connect another battery to the faulty battery.
Refer to information on “Battery: troubleshooting”
in Section 5 or replace the battery if necessary.
Do not push the vehicle if the steering column is
locked.
The engine will not start.Starting conditions are not
fulfilled.Refer to the information on “Starting/stopping the
engine” in Section 2.
The RENAULT “hands-free”
card does not work.Insert the card in the card reader in order to start
the engine.
Refer to the information on “Starting/stopping the
engine” in Section 2.
The engine cannot be switched off. Card not detected. Insert the card in card reader.
Electronic fault. Press the starter button quickly five times.
The steering column remains locked. Steering wheel locked. Move the steering wheel while pressing the engine
start button (refer to the information on “Starting
the engine” in Section 2).

JauneNoir Noir texte
228
ENG_UD31952_3
Index (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_7
ALPHABETICAL INDEX (2/5)
driver’s position .................................1.40 – 1.41, 1.44 → 1.47
driving ................................................ 2.2 → 2.16, 2.18 → 2.41
driving position
settings ............................................................. 1.17 – 1.18
E
electric beam height adjustment ........................................ 1.66
electric windows ..................................................... 3.14 – 3.15
electronic parking brake ........................................2.10 → 2.13
Electronic Stability Program: ESP .........................2.24 → 2.28
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ............................................. 5.2 – 5.3
engine
technical specifications .................................................. 6.5
engine oil ...................................................................4.4 → 4.6
engine oil level ................................................................... 1.49
engine specifications ........................................................... 6.5
engine start/stop button .............................................. 2.3 – 2.4
environment ....................................................................... 2.17
ESP: Electronic Stability Program .........................2.24 → 2.28
external lights and signals ................................................. 1.66
F
4 wheel drive (4WD) ..............................................2.21 → 2.23
faults
operating faults ................................................5.29 → 5.33
filter
air filter ........................................................................... 4.9
diesel filter ...................................................................... 4.9
particle filter .......................................................... 1.46, 2.8
passenger compartment filter ........................................ 4.9
fittings ....................................................................3.22 → 3.27
fog lights ............................................................................ 5.11
front passenger air bag deactivation ................................. 1.36
front seat adjustment
electric controls ............................................................ 1.15manual controls ................................................ 1.15 – 1.16
front seats
adjustment .......................................................1.14 → 1.16
fuel
advice on fuel economy ............................................... 2.14
capacity ............................................................1.70 → 1.72
filling ........................................................1.46, 1.70 → 1.72
grade ................................................................1.70 → 1.72
fuel economy .........................................................2.14 → 2.16
fuel filler cap ..........................................................1.70 → 1.72
fuel level ............................................................................ 1.48
fuel priming bulb ......................................................... 1.72, 2.8
fuel repriming ..................................................................... 1.72
fuel tank
capacity ............................................................1.70 → 1.72
fuel tank capacity ...................................................1.70 → 1.72
fuses ....................................................................... 5.18 – 5.19
G
gear lever............................................................................. 2.9
glove box ........................................................................... 3.22
H
handbrake............................................................................ 2.9
hands-free telephone integrated control ............................ 3.38
hazard warning lights signal ..................................1.62 → 1.65
headlight beam adjustment ............................................... 1.66
headlight flashers .............................................................. 1.62
headrest.................................................................... 1.14, 3.29
heating and air conditioning system ........................3.7 → 3.13
heating system ........................................................3.4 → 3.12
hill start .............................................................................. 2.28
Hill Start Assistance (HSA) ................................................ 2.28
horn ................................................................................... 1.62
horn:
flash ............................................................................. 1.62
