Cartes RENAULT t l commande : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
REMOTE CONTROL RENAULT CARDS: use
Locking the doors
Press the locking button 2.
The hazard warning lights flash twice
to indicate that the doors have locked:
if a door or the boot is open or not prop-
erly shut, or if a RENAULT card is still in
the reader, the doors and boot quickly
lock then unlock and the hazard warn-
ing lights and indicator lights do not
flash.
Unlocking/locking the tailgate
only
Press button 4 to unlock or lock the
boot.Unlocking the doors
Press unlocking button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
1
23
4
The card buttons are deactivated
when the engine is running.
Distance lighting function
This can, for example, identify the ve-
hicle from a distance when parked in a
car park.
The dipped beam headlights, indicator
lights and interior lights come on for ap-
proximately 30 seconds when button 3
is pressed.
Note: pressing button 3 again switches
off the lighting.
RENAULT card non-detection
alarm
The message “Keycard not detected”
and a beep will warn you if you open
a door with the engine running and the
card is not in the reader. The warning
disappears when the card is inserted in
the reader again.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is unlocked;
– two flashes indicates that the
vehicle is locked.

JauneNoir Noir texte
12
ENG_UD27284_5
Carte RENAULT : supercondamnation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RENAULT CARD: deadlocking
To activate deadlockingPress button 2 or 3 once.
Note: to raise the windows simulta-
neously, the button must be held down
for more than one second.
The hazard warning lights will flash
three times to signal deadlocking.
To lock the vehicle, without
deadlocking
Press button 2 or 3 twice.
Note: to raise the windows simulta-
neously, the second time the button is
pressed, it must be held down for more
than one second.
The hazard warning lights flash twice
to indicate that the doors have locked.
To unlock the vehiclePress button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
After activating deadlocking using
button 2, “hands-free” unlocking is
deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
1
2
Warning: deadlocking is
activated the first time
button 1 is pressed.
Never use deadlocking if
someone is still inside the vehicle.
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
3

JauneNoir Noir texte
65
ENG_UD7744_2
Rétroviseurs (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
REAR VIEW MIRRORS
Door mirrors
With the engine running, move
button 1:
– position C to adjust the left-hand
door mirror;
– position E to adjust the right-hand
door mirror;
D is the inactive position.
Folding door mirrors
With the engine running, move
button 1 to position F: the door mirrors
fold away.
To reset them for driving, return to posi-
tion C, D or E.
Heated door mirrors
Mirror de-icing is carried out at the
same time as rear screen de-icing.
The driver’s door mirror
may have two clearly de-
fined zones. Zone B shows
what can normally be seen
in an ordinary rear-view mirror.
Zone A increases rear side visibility
for greater safety.
The objects in zone A look much
further away than they really are.
1
CDE
F
AB
Interior rear view mirror
Its position can be adjusted.
Rear view mirror with lever 2
For night driving, to avoid being dazzled
by the headlights of the car behind you,
flip the small lever 2 located behind the
rear view mirror.
Rear view mirror without lever 2
The rear view mirror darkens automati-
cally at night if you are being followed
by a vehicle with its lights on.
2

JauneNoir Noir texte
72
ENG_UD27146_5
Essuie-vitre, lave-vitre avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
WINDSCREEN WASH, WIPE (2/2)
Windscreen washer,
headlight washers
(depending on vehicle)
With the ignition on, pull stalk 1 to-
wards you, then release.
Headlights off
One short pull activates the windscreen
washers and one sweep of the wind-
screen wipers.
A longer pull activates the windscreen
washers and four sweeps of the wind-
screen wipers followed by one sweep a
few seconds later.Headlights on
The headlight washers will be activated
at the same time.
1
In freezing or snowy weather, ensure
they are not stuck to the windscreen
(including the central area located
behind the interior rear-view mirror)
and the rear screen before starting
the wipers (risk of motor overheat-
ing).
Check the condition of the wiper
blades. You are responsible for their
service life:
– they must remain clean: clean
the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In all cases, replace them as soon
as they begin to lose efficiency: ap-
proximately once a year.
Before any action involving
the windscreen (washing
the vehicle, de-icing, clean-
ing the windscreen, etc.)
return stalk 1 to position B (park).
Risk of injury and/or damage.
1A
B
C
D
E

JauneNoir Noir texte
139
ENG_UD23659_3
Eclairage intérieur (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3
INTERIOR LIGHTING (1/2)
Courtesy lightsUse switch 3:
– left-hand side: the light comes on
when a door is opened. The light
goes off when all the doors are
closed. If the ignition is off and a door
is closed, the light goes off after ap-
proximately 30 seconds;
– right-hand side: the light does not
come on when a door is opened.
Map reading lights
In the front seats, press lens 1 for the
driver and 2 for the front passenger.
Door lights
Each light 4 comes on when a door is
opened.
Glove box light 5
Light 5 comes on when the cover is
opened.
When the doors or luggage com-
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
12
3
4
5

JauneNoir Noir texte
175
ENG_UD31512_3
Contents 5 (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

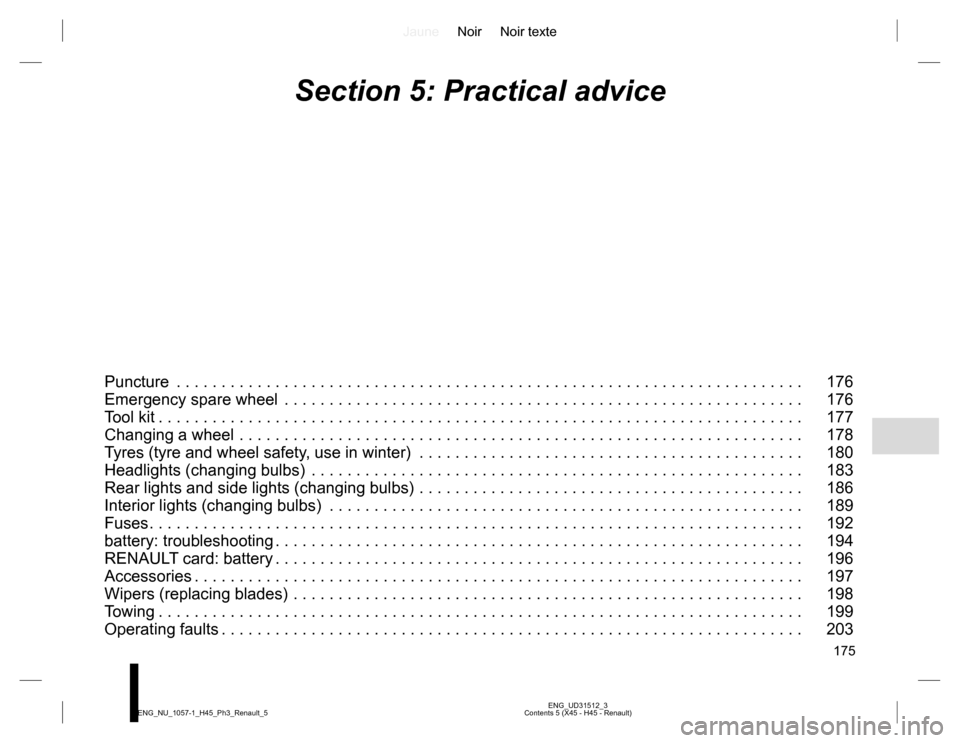

Section 5: Practical advice
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Emergency spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Rear lights and side lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Interior lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
battery: troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
RENAULT card: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Wipers (replacing blades) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

JauneNoir Noir texte
190
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

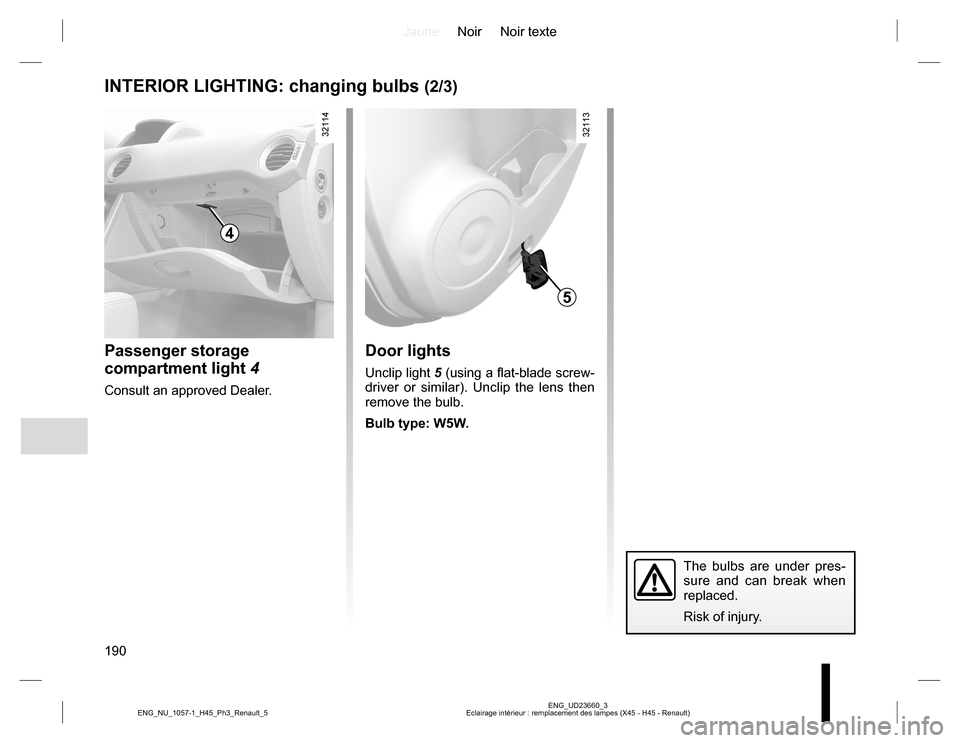

INTERIOR LIGHTING: changing bulbs (2/3)
Passenger storage
compartment light 4
Consult an approved Dealer.
Door lights
Unclip light 5 (using a flat-blade screw-
driver or similar). Unclip the lens then
remove the bulb.
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5
4

JauneNoir Noir texte
191
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

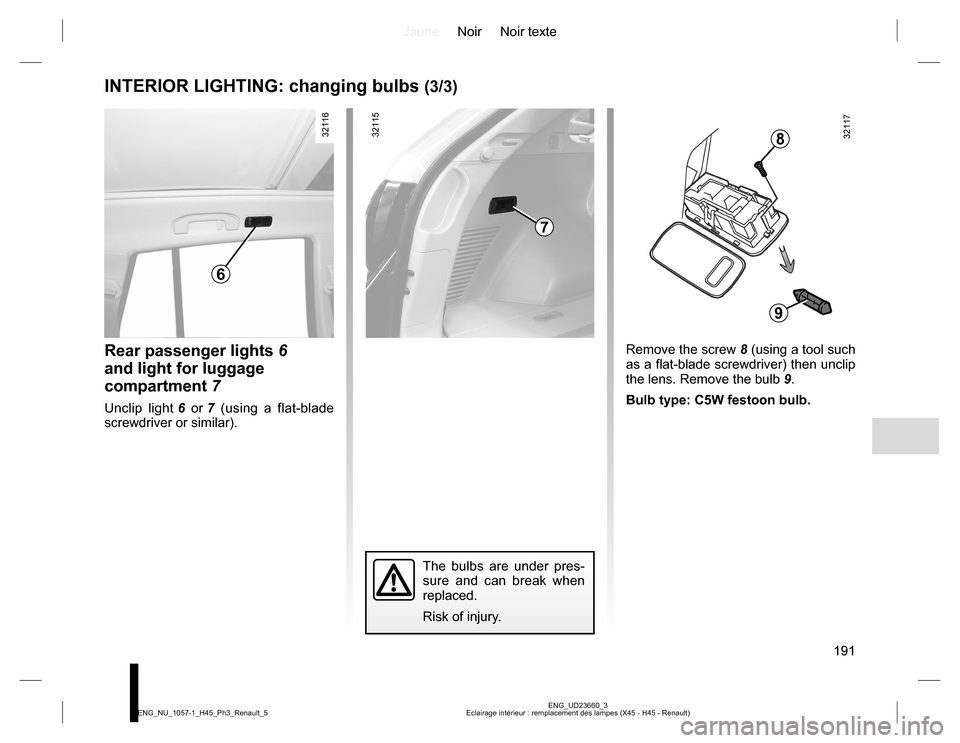

INTERIOR LIGHTING: changing bulbs (3/3)
Rear passenger lights 6
and light for luggage
compartment 7
Unclip light 6 or 7 (using a flat-blade
screwdriver or similar).
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Remove the screw 8 (using a tool such
as a flat-blade screwdriver) then unclip
the lens. Remove the bulb 9.
Bulb type: C5W festoon bulb.
7
8
9
6

JauneNoir Noir texte
193
ENG_UD21012_4
Fusibles (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
FUSES (2/2)
Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)
Some accessories are protected by
fuses located in the engine compart-
ment in fuse box A.
However, because of their reduced ac-
cessibility, we advise you to have your
fuses replaced by an approved Dealer.
A
Symbol Allocation Symbol Allocation
SPARE Spare fuses ELEC IGN Electrical equipment
BLOWER
MOTORVentilation4WD
CONTAll-wheel drive trans-
mission
REAR
DEFOGHeated rear screen METER Counter
BOSE AMP Audio systemROOM
LAMPInterior light
FRONT
POWER
SOCKETFront lightsMIRROR
HEATERHeated door mirrors
CIGAR
LIGHTERCigar lighterBOSE
AMPAudio system
AUDIO
MIRRORAudio system and elec-
tric rear-view mirrorsSTOP
LAMPBrake lights
REAR
POWER
SOCKETRear lightsELEC
B (+)Electrical equipment
AIR BAG Air bag
METER Equipment and options

JauneNoir Noir texte
229
ENG_UD31952_3
Index (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_7
ALPHABETICAL INDEX (3/5)
sounding the horn ........................................................ 1.62
I
indicators ............................................................................. 5.9
indicators:
exterior temperature indicator ...................................... 1.39
instrument panel ..............................................1.44 → 1.59
instrument panel .............................. 1.44 → 1.59, 1.63 → 1.65
instrument panel messages...................................1.52 → 1.59
interior trim
maintenance ..................................................... 4.14 – 4.15
J
jack ............................................................................5.3 → 5.5
L
levels:
brake fluid ...................................................................... 4.8
coolant ........................................................................... 4.7
engine oil .............................................................4.4 → 4.6
windscreen washer reservoir ......................................... 4.9
lifting the vehicle
changing a wheel .................................................. 5.4 – 5.5
lighting:
exterior .............................................................1.63 → 1.65
instrument panel ..............................................1.63 → 1.65
interior ..........................................3.20 – 3.21, 5.15 → 5.17
lights
additional ..................................................................... 5.11
adjustment ................................................................... 1.66
changing bulbs .................................................... 5.9 – 5.10
fog lights ...................................................................... 5.11
front ................................................................................ 5.9
mobile directional ......................................................... 1.64
lights:
adjustment of headlight beam height ........................... 1.66brake lights ......................................................... 5.12, 5.14
dipped beam headlights ............................1.63 → 1.65, 5.9
direction indicators ....................................... 1.62, 5.9, 5.12
fog lights ............................................................. 1.65, 5.11
hazard warning ............................................................ 1.62
main beam headlights .................................................... 5.9
number plate lights ...................................................... 5.14
reversing lights ............................................................. 5.13
side lights ..............................1.63 → 1.65, 5.9, 5.12 – 5.13
lights-on warning buzzer.................................................... 1.64
locking the doors ............................................1.2 → 1.10, 1.13
luggage compartment cover .............................................. 3.34
luggage retaining net ......................................................... 3.36
M
maintenance:
bodywork .......................................................... 4.12 – 4.13
interior trim ........................................................ 4.14 – 4.15
mechanical .........................................4.2 – 4.4, 6.8 → 6.13
mileage before service .......................................6.8 → 6.13
map reading lights .................................................. 3.20 – 3.21
methods of restraint in addition to the seat belts ...1.25 → 1.27
multimedia equipment ....................................................... 3.38
N
navigation .......................................................................... 3.38
navigation system .............................................................. 3.38
O
oil change ............................................................................ 4.6
opening the doors ....................................................1.9 → 1.12
operating faults ......................................................5.29 → 5.33
P
paintwork
maintenance ..................................................... 4.12 – 4.13
