Page 101 of 286

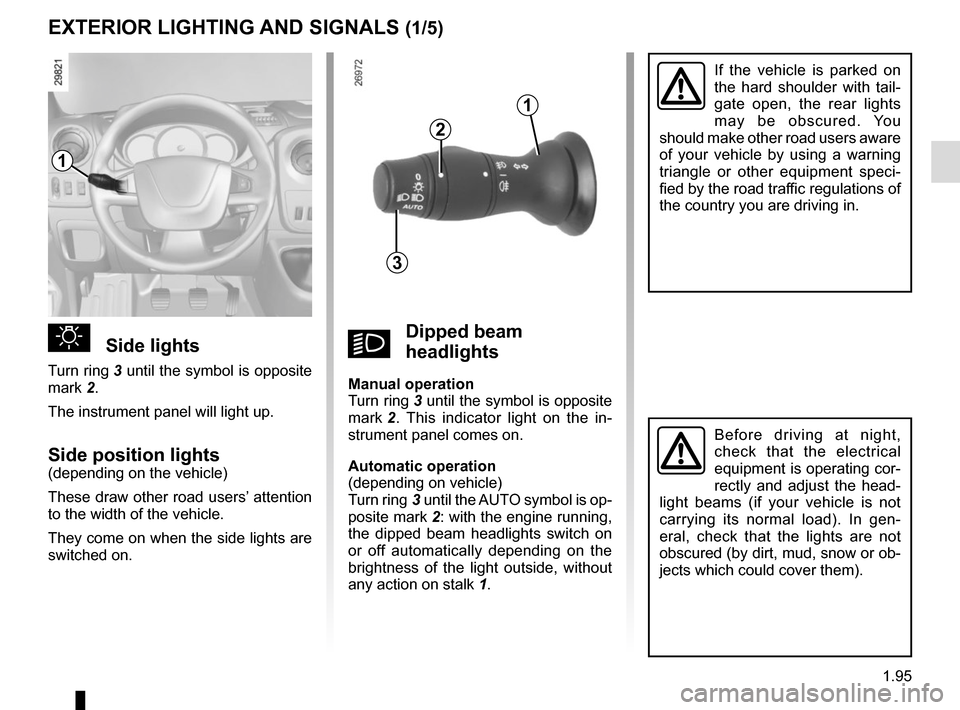

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.95
EXTERIOR LIGHTING AND SIGNALS (1/5)
uSide lights
Turn ring 3 until the symbol is opposite
mark 2.
The instrument panel will light up.
Side position lights(depending on the vehicle)
These draw ot

Page 102 of 286

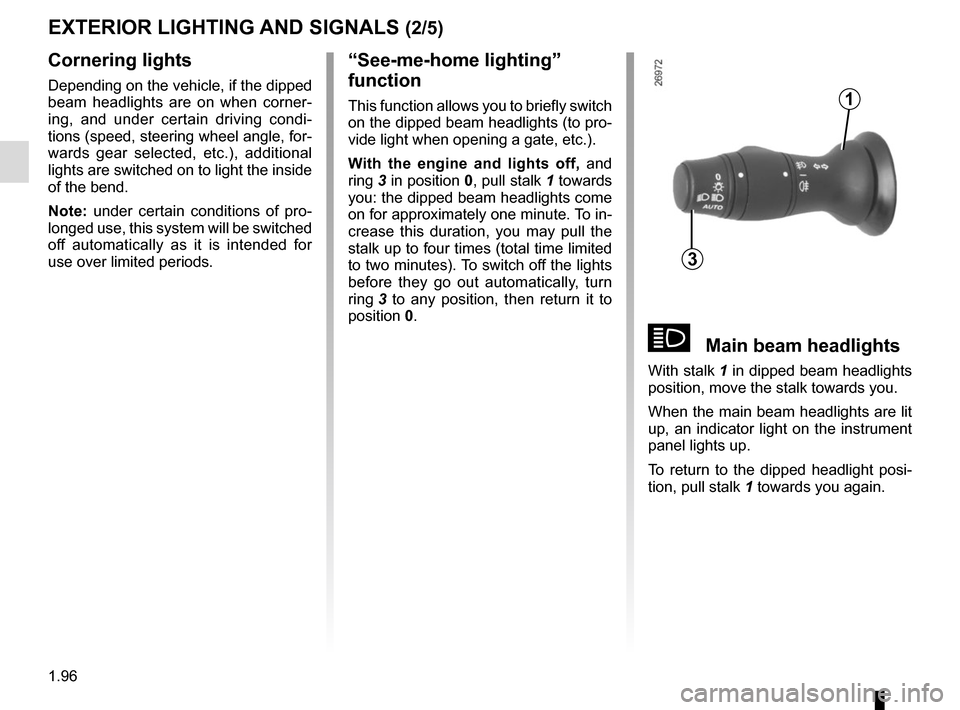

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.96
áMain beam headlights
With stalk 1 in dipped beam headlights
position, move the stalk towards you.
When the main beam headlights are lit
up, an indicator light on the instrument
panel lights

Page 103 of 286

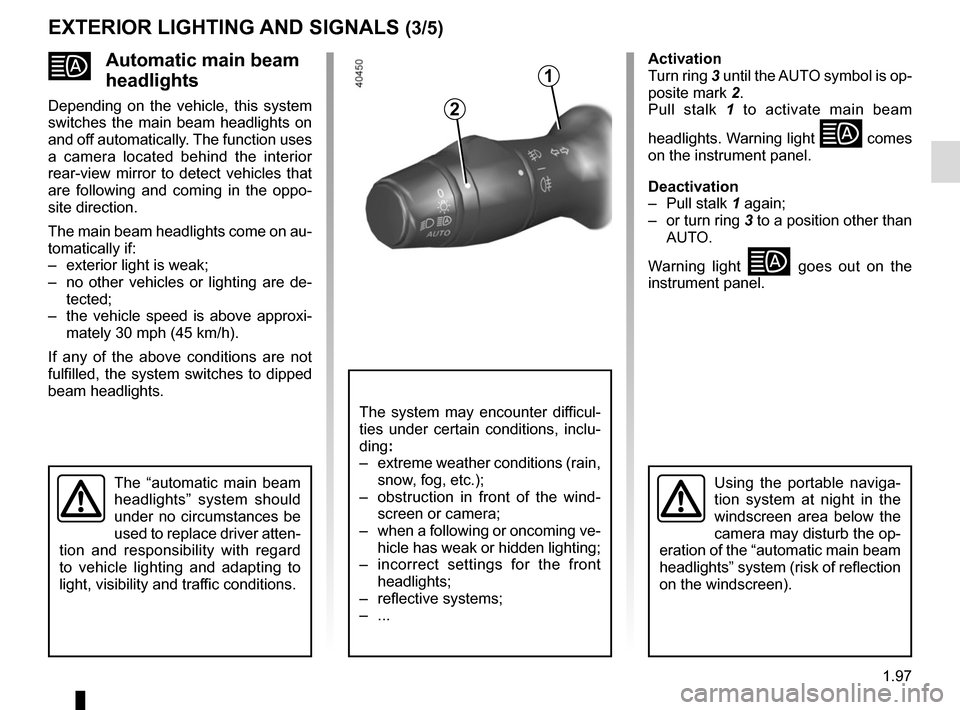

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.97
Automatic main beam
headlights
Depending on the vehicle, this system
switches the main beam headlights on
and off automatically. The function uses
a camera located behind the interior
rea

Page 104 of 286

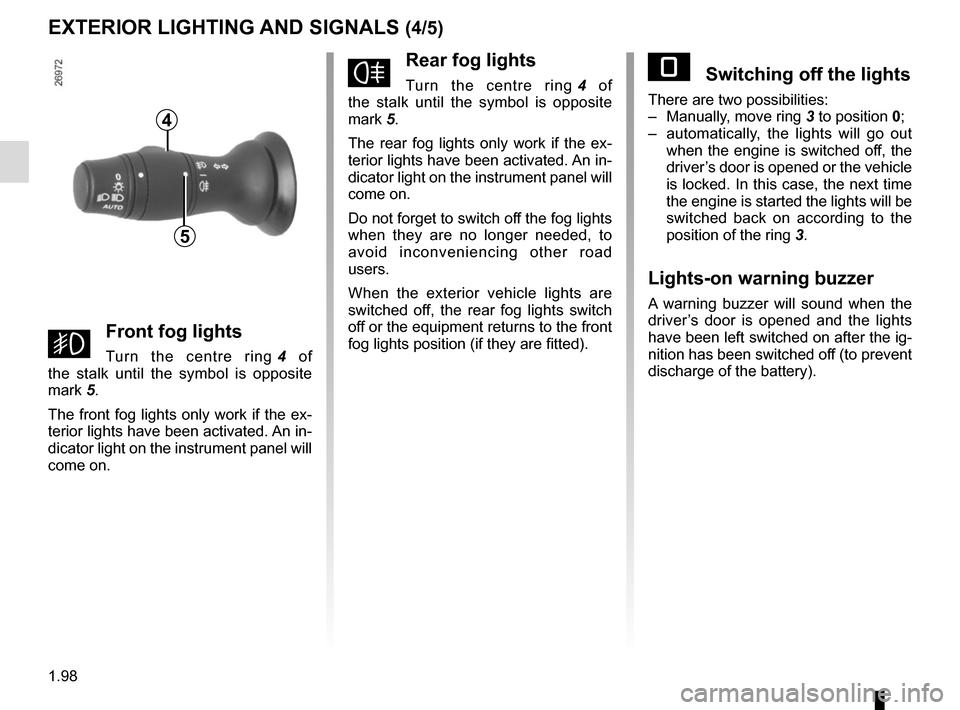

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.98
EXTERIOR LIGHTING AND SIGNALS (4/5)
gFront fog lights
Turn the centre ring 4 of
the stalk until the symbol is opposite
mark 5.
The front fog lights only work if the ex-
terior lights have been

Page 105 of 286

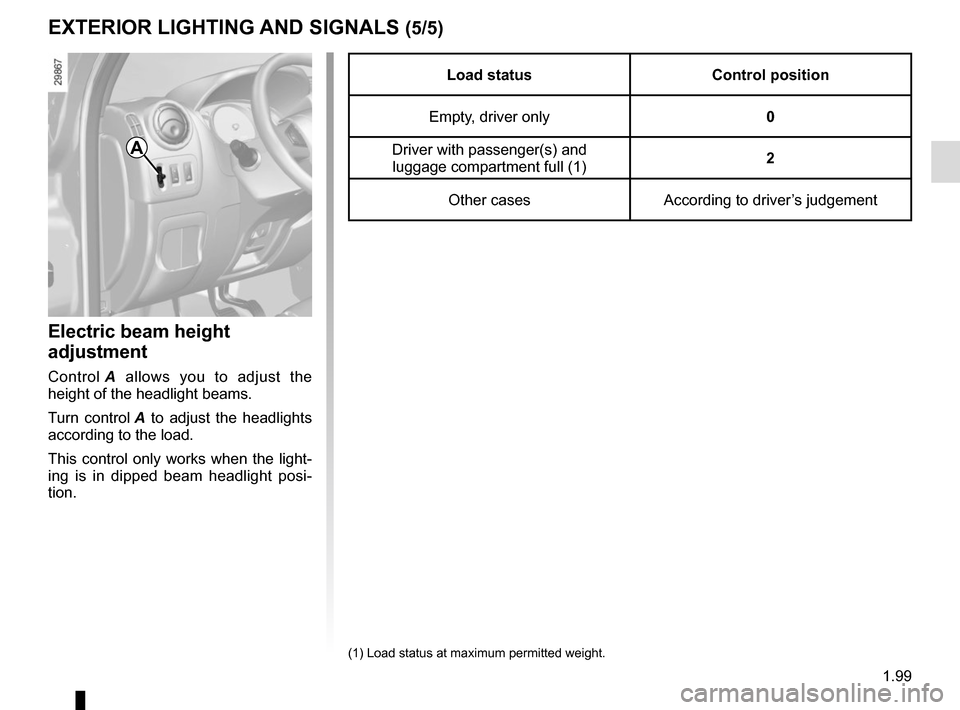

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.99
Load statusControl position
Empty, driver only 0
Driver with passenger(s) and  luggage compartment full (1) 2
Other cases According to driver’s judgement
EXTERIOR LIGHTING AND SIGNALS (5/5)
Ele

Page 106 of 286

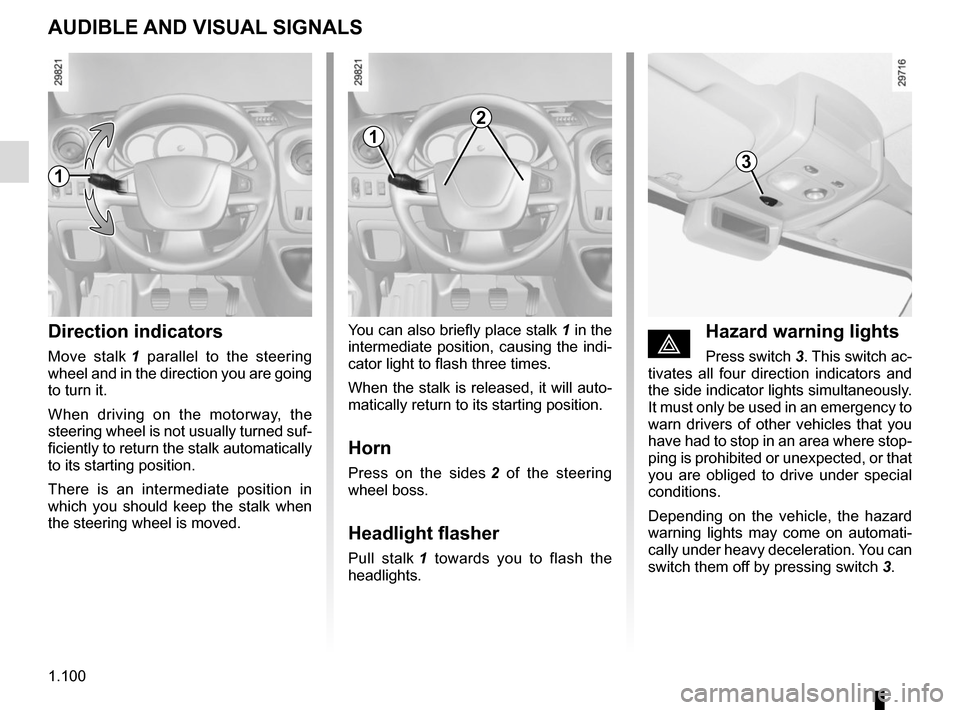

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.100
AUDIBLE AND VISUAL SIGNALS
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is

Page 107 of 286

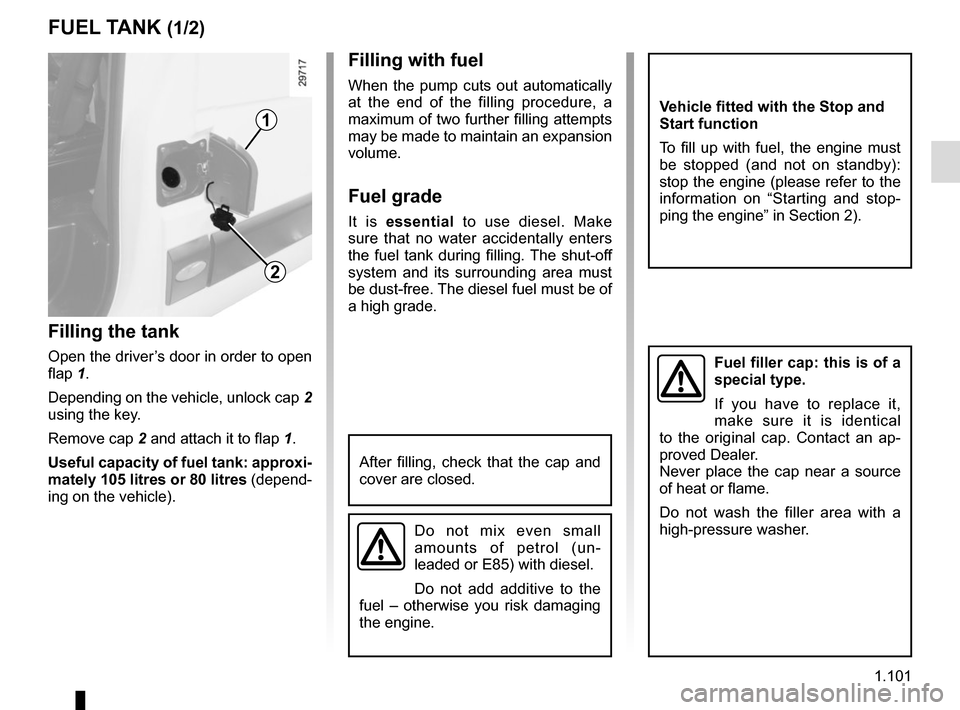

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.101
FUEL TANK (1/2)
Filling the tank
Open the driver’s door in order to open
flap 1.
Depending on the vehicle, unlock cap  2
using the key.
Remove cap  2 and attach it to flap 1.
Useful capacity

Page 108 of 286

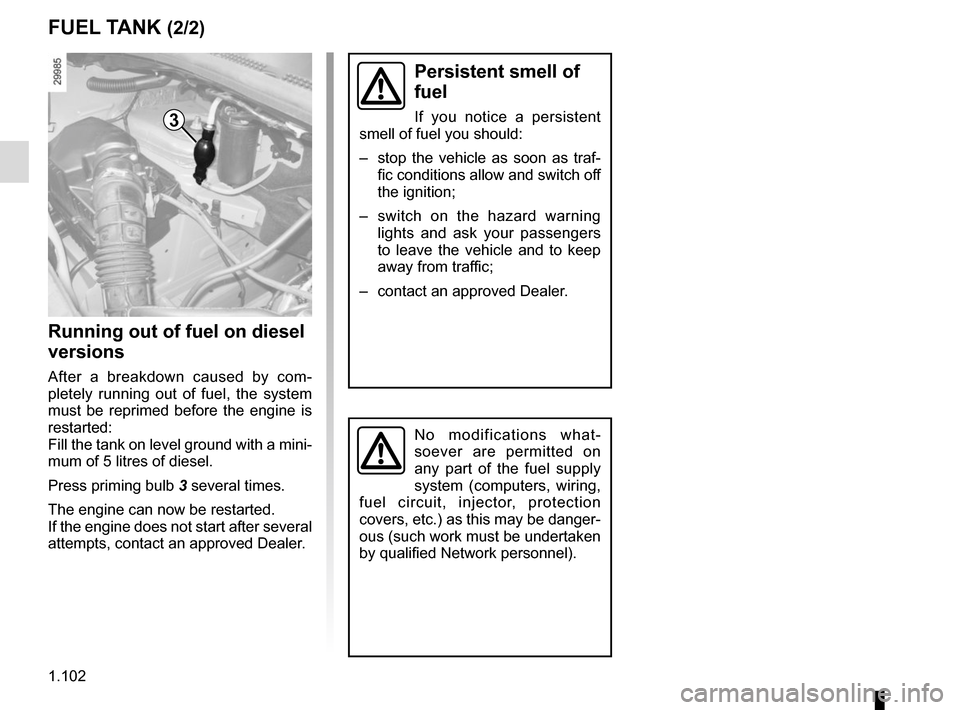

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.102
FUEL TANK (2/2)
No modifications what-
soever are permitted on
any part of the fuel supply
system (computers, wiring,
fuel circuit, injector, protection
covers, etc.) as this may be danger-

Page 109 of 286

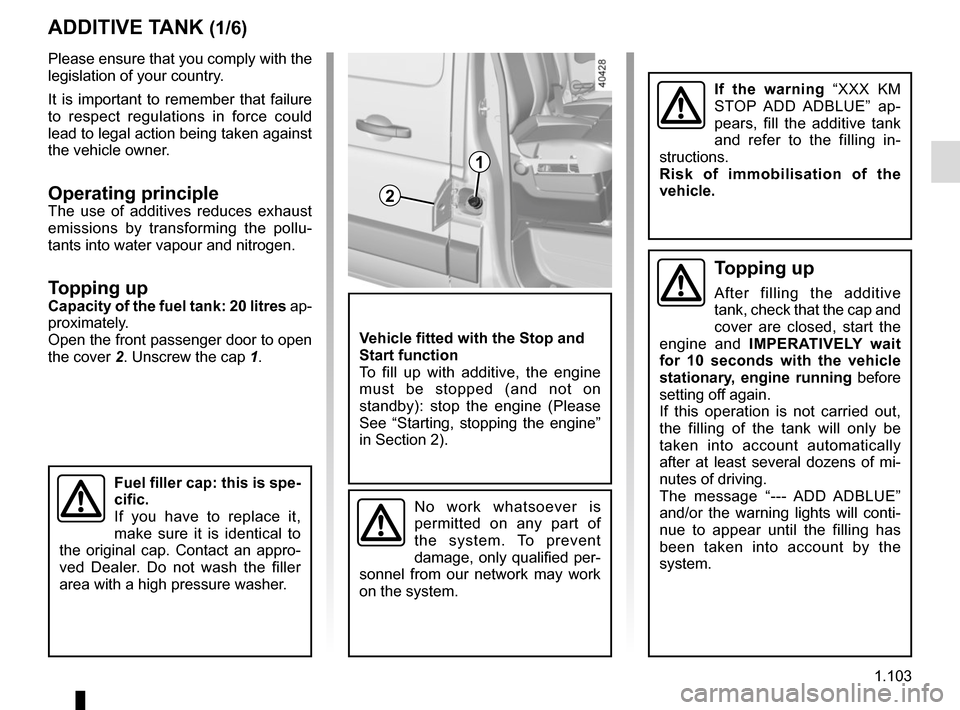

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.103
Please ensure that you comply with the
legislation of your country.
It is important to remember that failure
to respect regulations in force could
lead to legal action being taken against
th

Page 110 of 286

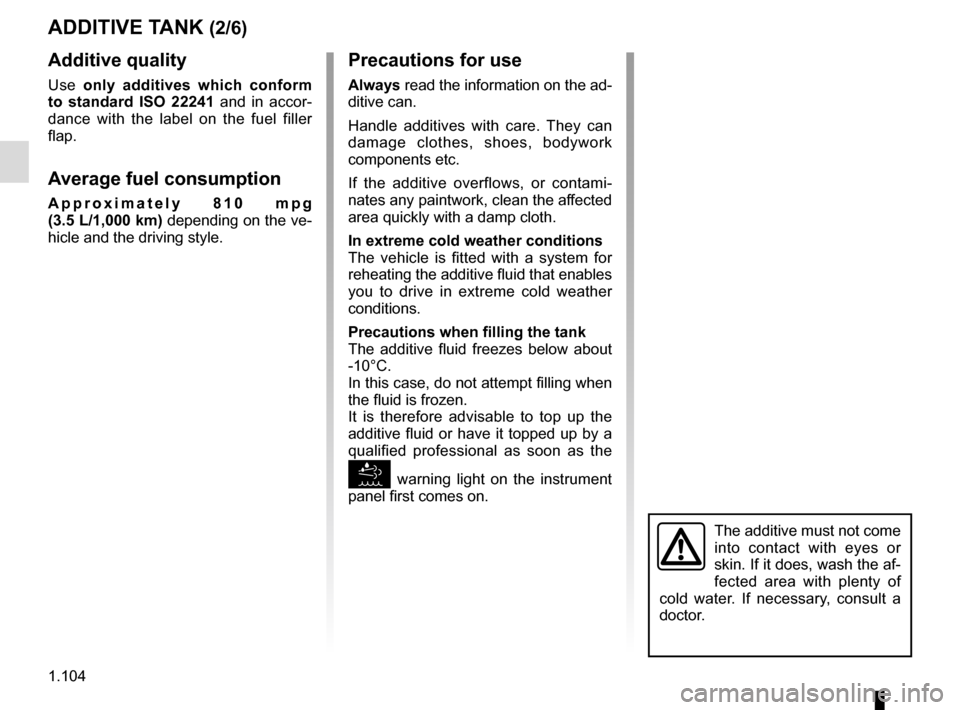

RENAULT MASTER 2017 X62 / 2.G Owners Manual 1.104
ADDITIVE TANK (2/6)Precautions for use
Always read the information on the ad-
ditive can.
Handle additives with care. They can
damage clothes, shoes, bodywork
components etc.
If the additive o
