Page 101 of 181
Downloaded from www.Manualslib.com manuals search engine B
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page20

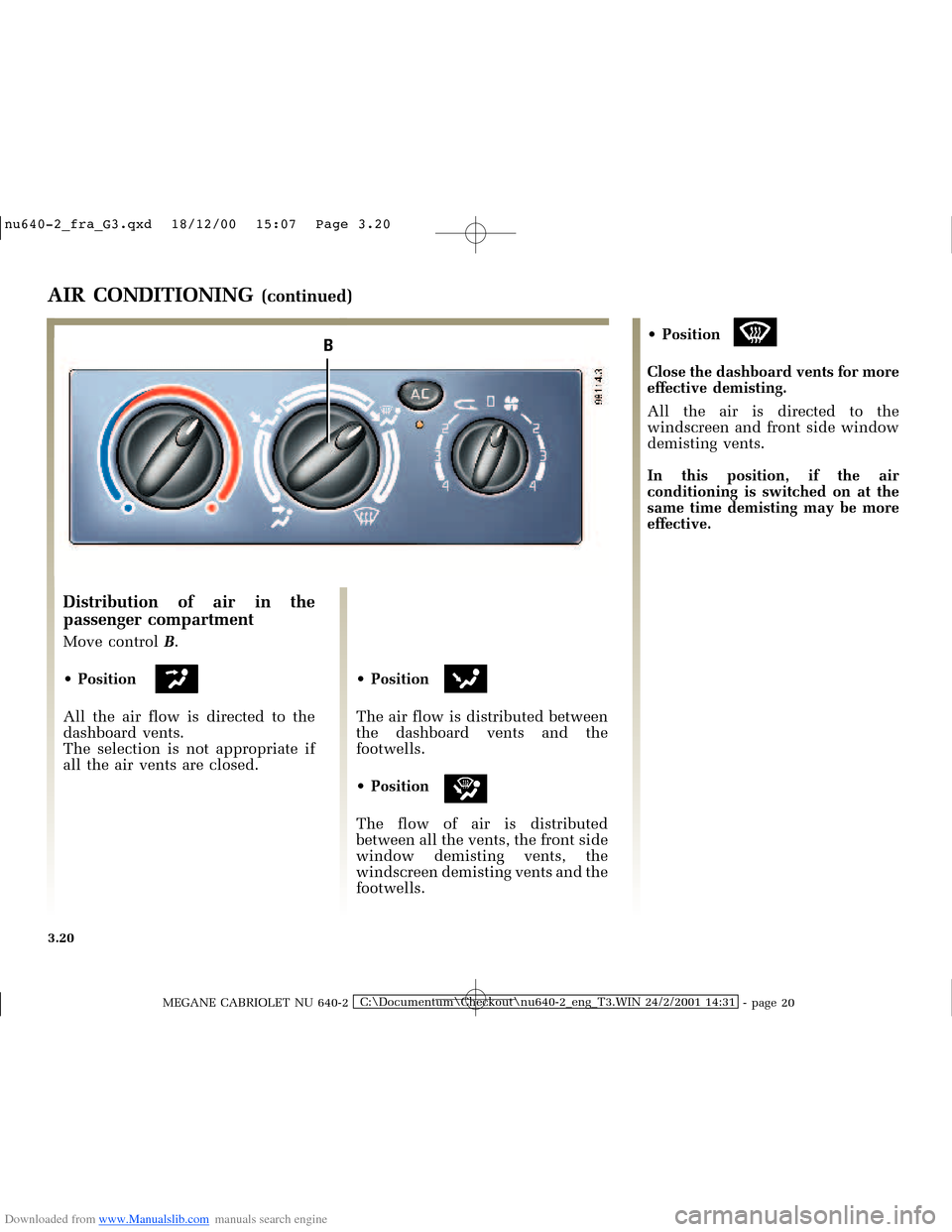

3.20
AIR CONDITIONING(continued)
Distribution of air in the
passenger compartment
Move controlB.
•Position
All the air flow is directed to the
dashboard vents.
The selection is not appropriate if
all the air vents are closed.•Position
The air flow is distributed between
the dashboard vents and the
footwells.
•Position
The flow of air is distributed
between all the vents, the front side
window demisting vents, the
windscreen demisting vents and the
footwells.•Position
Close the dashboard vents for more
effective demisting.
All the air is directed to the
windscreen and front side window
demisting vents.
In this position, if the air
conditioning is switched on at the
same time demisting may be more
effective.
Page 102 of 181
![RENAULT MEGANE 2000 X64 / 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine CDE
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\](/img/7/1565/w960_1565-101.png "RENAULT MEGANE 2000 X64 / 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine CDE
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\")
Downloaded from www.Manualslib.com manuals search engine CDE
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page21

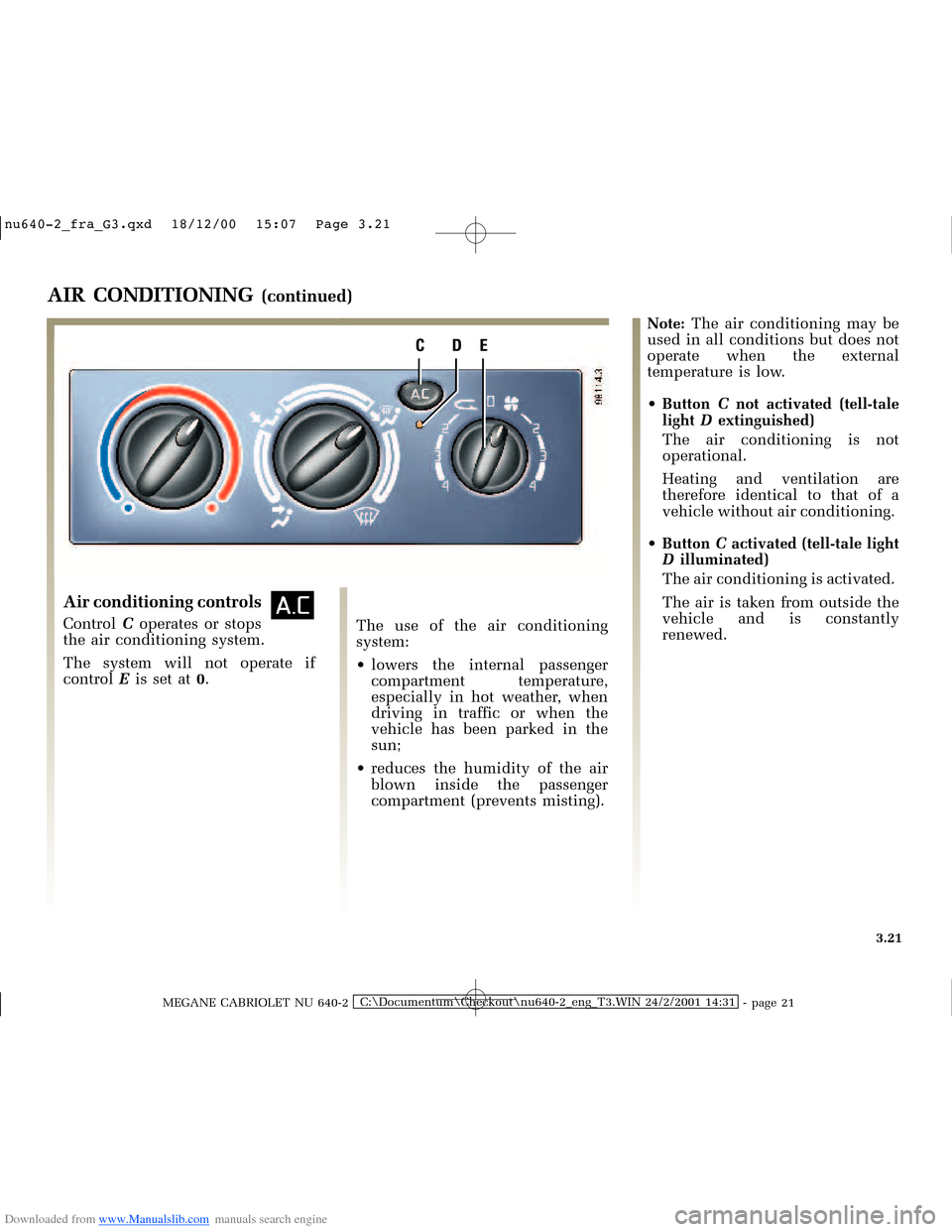

3.21
AIR CONDITIONING(continued)
Air conditioning controls
ControlCoperates or stops
the air conditioning system.
The system will not operate if
controlEis set at0.The use of the air conditioning
system:
• lowers the internal passenger
compartment temperature,
especially in hot weather, when
driving in traffic or when the
vehicle has been parked in the
sun;
• reduces the humidity of the air
blown inside the passenger
compartment (prevents misting).Note:The air conditioning may be
used in all conditions but does not
operate when the external
temperature is low.
•ButtonCnot activated (tell-tale
lightDextinguished)
The air conditioning is not
operational.
Heating and ventilation are
therefore identical to that of a
vehicle without air conditioning.
•ButtonCactivated (tell-tale light
Dilluminated)
The air conditioning is activated.
The air is taken from outside the
vehicle and is constantly
renewed.
Page 103 of 181
Downloaded from www.Manualslib.com manuals search engine CD
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page22

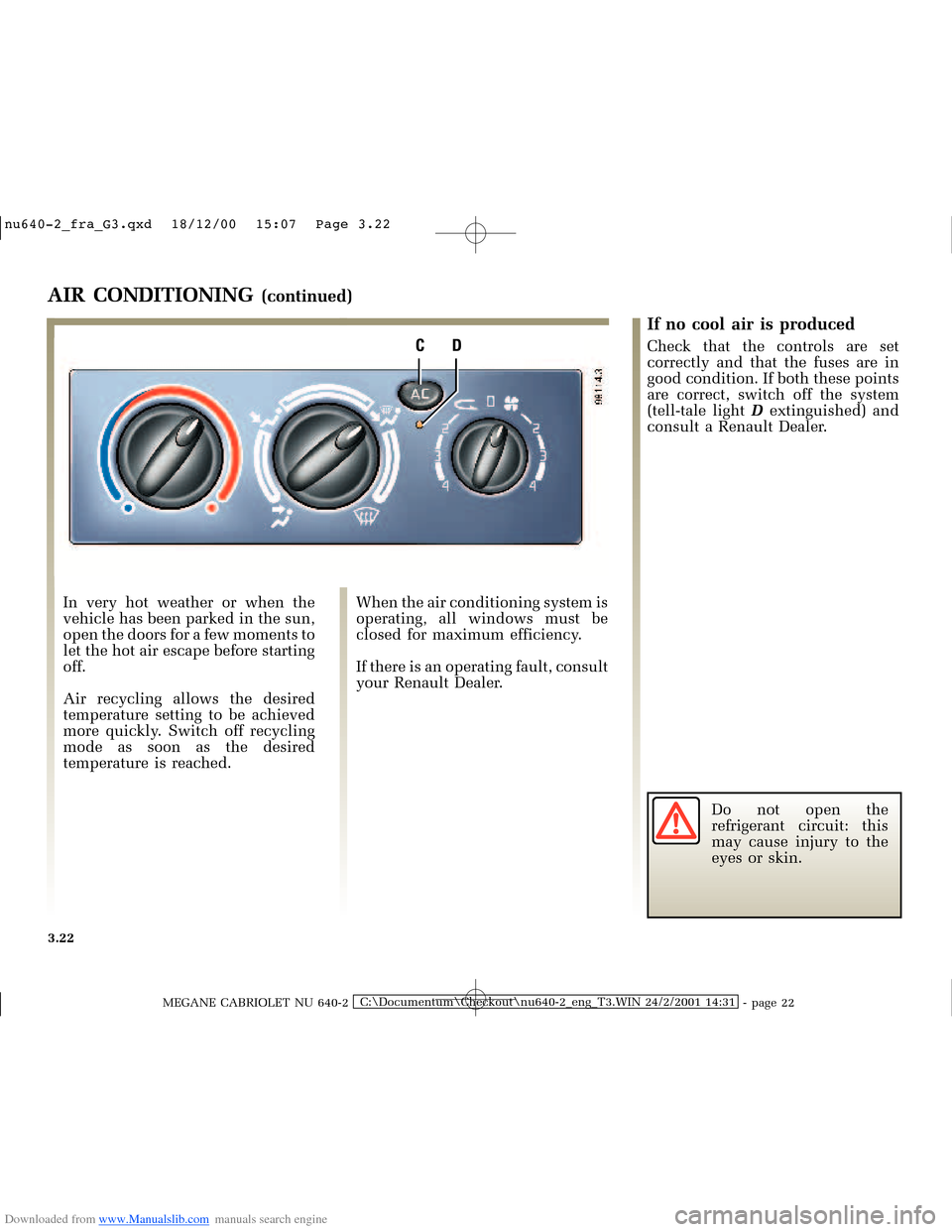

3.22
AIR CONDITIONING(continued)
In very hot weather or when the
vehicle has been parked in the sun,
open the doors for a few moments to
let the hot air escape before starting
off.
Air recycling allows the desired
temperature setting to be achieved
more quickly. Switch off recycling
mode as soon as the desired
temperature is reached.When the air conditioning system is
operating, all windows must be
closed for maximum efficiency.
If there is an operating fault, consult
your Renault Dealer.
If no cool air is produced
Check that the controls are set
correctly and that the fuses are in
good condition. If both these points
are correct, switch off the system
(tell-tale lightDextinguished) and
consult a Renault Dealer.
Do not open the
refrigerant circuit: this
may cause injury to the
eyes or skin.
Page 104 of 181
Downloaded from www.Manualslib.com manuals search engine E
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page23

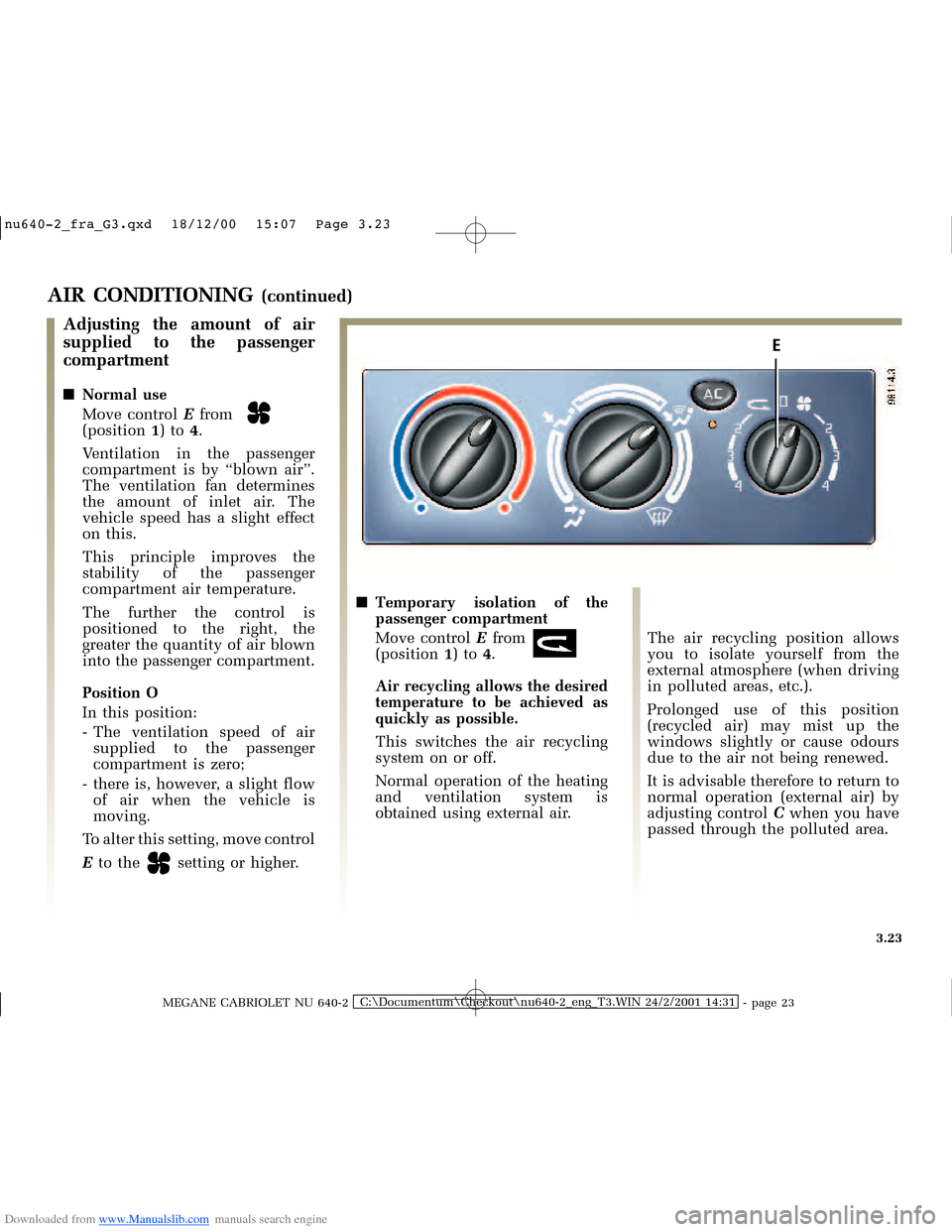

3.23
AIR CONDITIONING(continued)
Adjusting the amount of air
supplied to the passenger
compartment
ONormal use
Move controlEfrom
(position1)to4.
Ventilation in the passenger
compartment is by “blown air”.
The ventilation fan determines
the amount of inlet air. The
vehicle speed has a slight effect
on this.
This principle improves the
stability of the passenger
compartment air temperature.
The further the control is
positioned to the right, the
greater the quantity of air blown
into the passenger compartment.
Position O
In this position:
- The ventilation speed of air
supplied to the passenger
compartment is zero;
- there is, however, a slight flow
of air when the vehicle is
moving.
To alter this setting, move control
Eto the setting or higher.
OTemporary isolation of the
passenger compartment
Move controlEfrom
(position1)to4.
Air recycling allows the desired
temperaturetobeachievedas
quickly as possible.
This switches the air recycling
system on or off.
Normal operation of the heating
and ventilation system is
obtained using external air.The air recycling position allows
you to isolate yourself from the
external atmosphere (when driving
in polluted areas, etc.).
Prolonged use of this position
(recycled air) may mist up the
windows slightly or cause odours
due to the air not being renewed.
It is advisable therefore to return to
normal operation (external air) by
adjusting controlCwhen you have
passed through the polluted area.
Page 105 of 181
![RENAULT MEGANE 2000 X64 / 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 1
2
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\](/img/7/1565/w960_1565-104.png "RENAULT MEGANE 2000 X64 / 1.G Owners Manual Downloaded from www.Manualslib.com manuals search engine 1
2
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\")
Downloaded from www.Manualslib.com manuals search engine 1
2
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page24

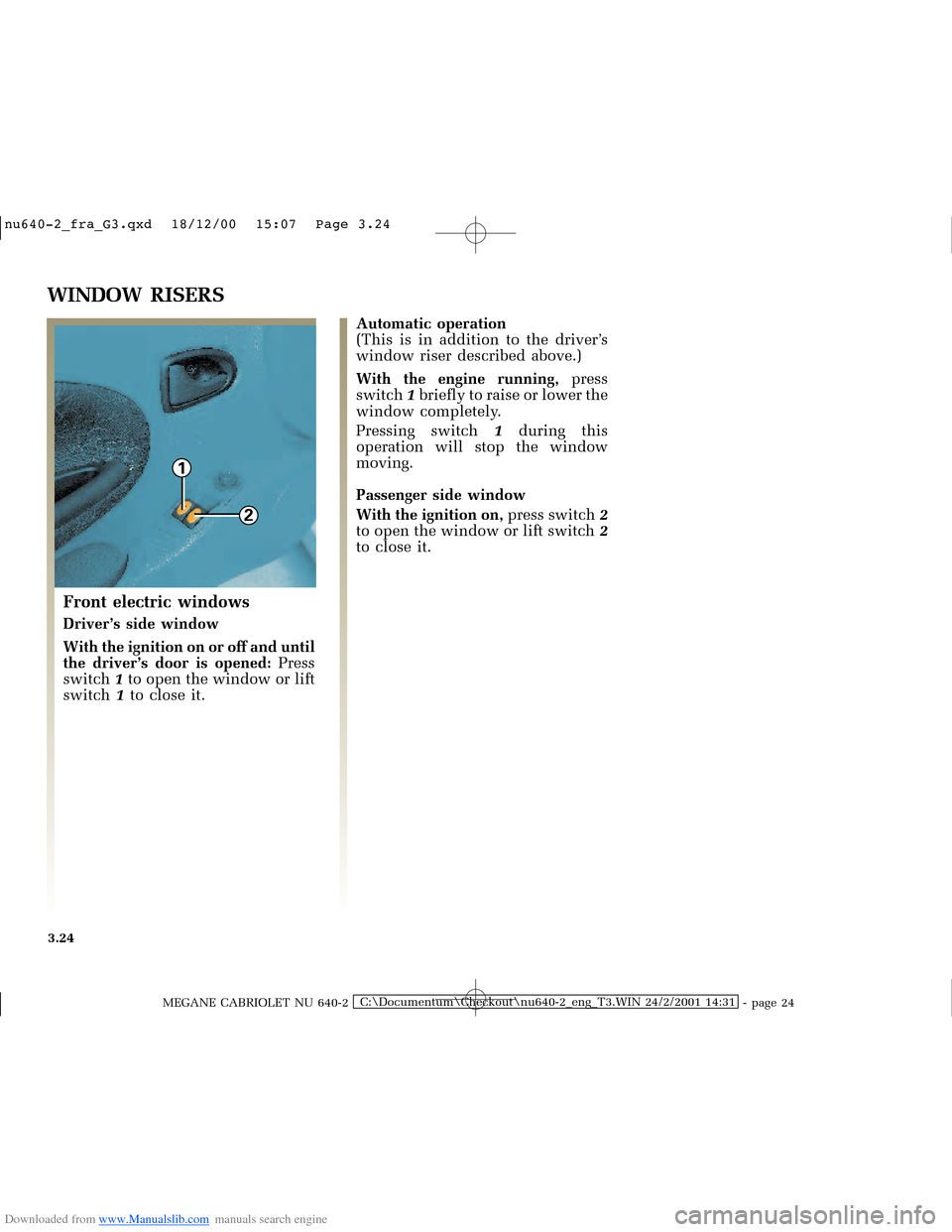

3.24
WINDOW RISERS
Front electric windows
Driver’s side window
With the ignition on or off and until
the driver’s door is opened:Press
switch1to open the window or lift
switch1to close it.Automatic operation
(This is in addition to the driver’s
window riser described above.)
With the engine running,press
switch1briefly to raise or lower the
window completely.
Pressing switch1during this
operation will stop the window
moving.
Passenger side window
With the ignition on,press switch2
to open the window or lift switch2
to close it.
Page 106 of 181
Downloaded from www.Manualslib.com manuals search engine 34
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page25

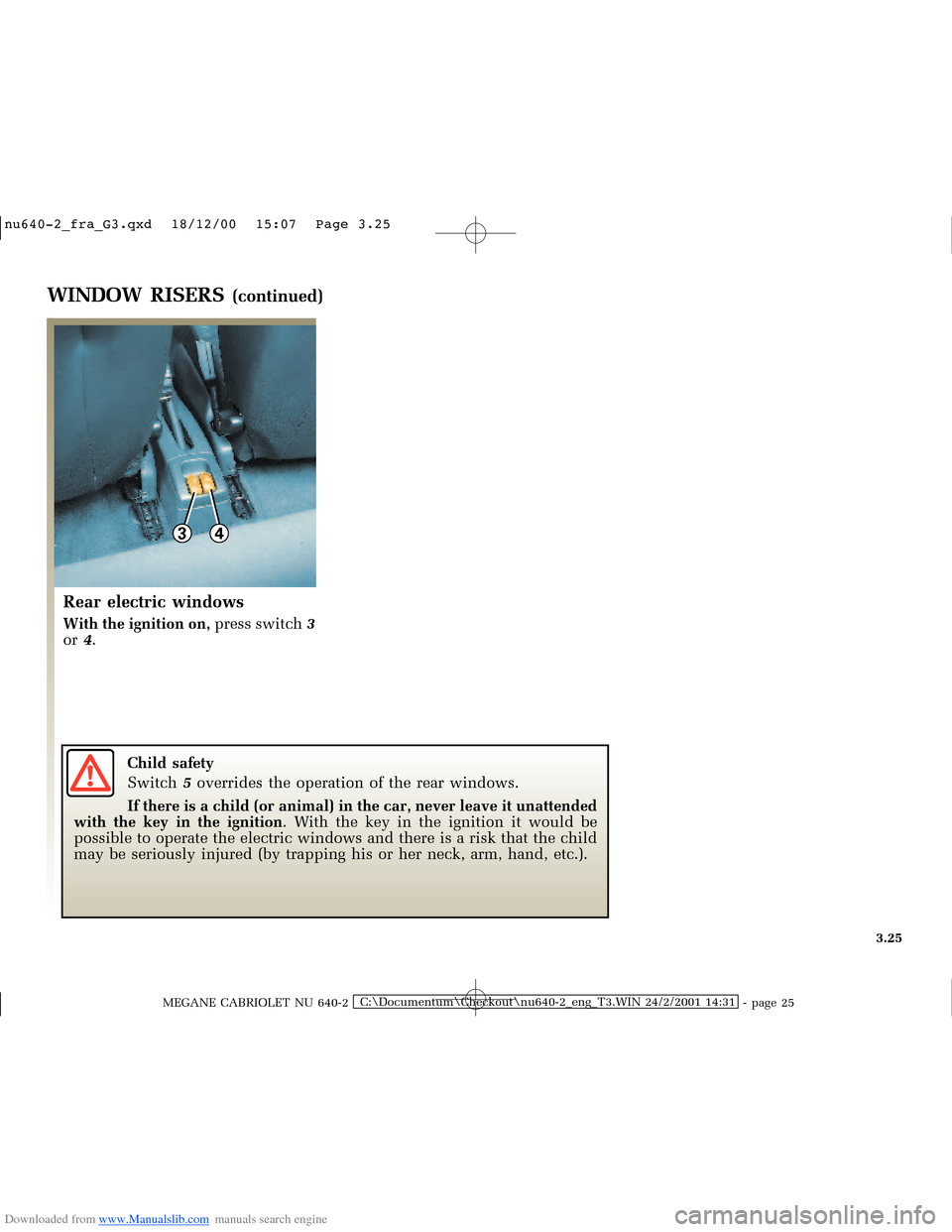

3.25
WINDOW RISERS(continued)
Rear electric windows
With the ignition on,press switch3
or4.
Child safety
Switch5overrides the operation of the rear windows.
If there is a child (or animal) in the car, never leave it unattended
with the key in the ignition. With the key in the ignition it would be
possible to operate the electric windows and there is a risk that the child
may be seriously injured (by trapping his or her neck, arm, hand, etc.).
Page 107 of 181
Downloaded from www.Manualslib.com manuals search engine 1A2
3
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page26
3.26
INTERIOR LIGHTS
Courtesy lightA
Pressing switch1gives:
- continuous lighting,
- lighting switched on when one of
the front doors is opened. The
light only goes out when the doors
are closed correctly,
- lighting permanently off.
Map reading light3
To turn on or off, operate switch2.
Adjust map reading light3as you
wish.Vehicles with automatic operation
of interior lighting
•If the doors are unlocked using the
plip remote control, the interior
lighting is switched on for
approximately 15 seconds.
• If the doors are locked using the
plip remote control, the lighting is
switched off immediately.
• If the door is open (or not properly
closed), the lighting is switched
on for a period of approximately
15 minutes.
• If all the doors are closed, the
interior lights start to dim when
the ignition is switched on.
Page 108 of 181
Downloaded from www.Manualslib.com manuals search engine 4
3
1
2
5
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page27
3.27
ASHTRAY - CIGAR LIGHTER / SUN VISOR / WINDSCREEN
Ashtray in front console
To open, pull cover2.
To empty the ashtray, pull out the
cover completely towards you and
the ashtray will be released from its
housing.
Front cigar lighter
With the ignition on, press in the
cigar lighter1.
It will spring back with a click when
it is ready. Pull it out to use. After
use, replace it without pushing it all
the way in.
Front sun visor
Lower the sun visor3.
Non-illuminated vanity mirror
The vanity mirrors are concealed by
covers4.
Illuminated vanity mirrors
An illuminated vanity mirror5
fitted in the sun visor will be
illuminated automatically when the
cover4is raised.
Windscreen with reflective
layers
This windscreen reflects the sun
and, in particular, limits the
infrared rays entering the passenger
compartment.
An area around the interior rear
view mirror is suitable for affixing
passes to the windscreen (e.g.
motorway permits, car park season
tickets, etc.).
Page 109 of 181
Downloaded from www.Manualslib.com manuals search engine 3
4
4
1
2
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page28

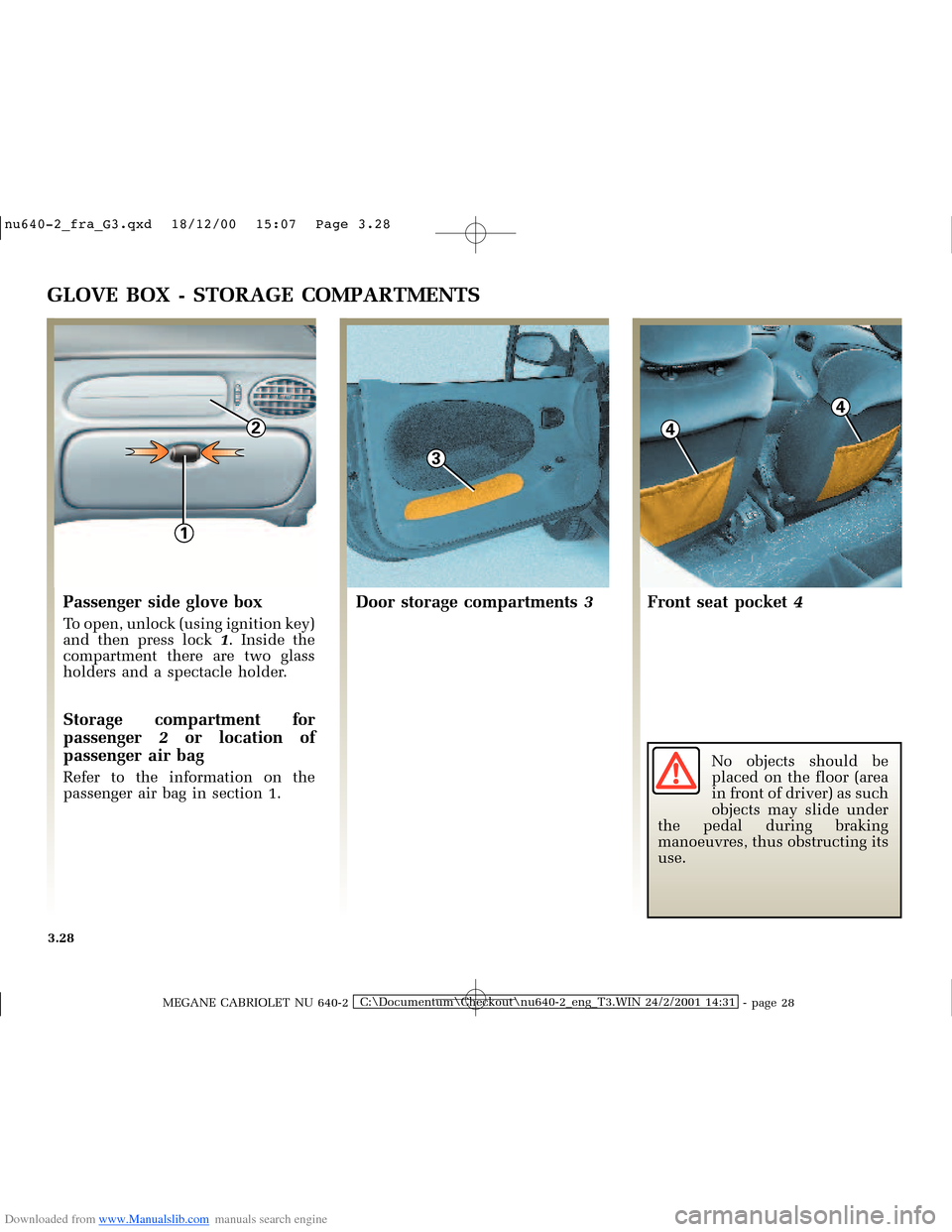

3.28
GLOVE BOX - STORAGE COMPARTMENTS
Passenger side glove box
To open, unlock (using ignition key)
andthenpresslock1.Insidethe
compartment there are two glass
holders and a spectacle holder.
Storage compartment for
passenger2or location of
passenger air bag
Refer to the information on the
passenger air bag in section 1.
Door storage compartments3Frontseatpocket4
No objects should be
placed on the floor (area
in front of driver) as such
objects may slide under
the pedal during braking
manoeuvres, thus obstructing its
use.
Page 110 of 181
Downloaded from www.Manualslib.com manuals search engine 1
1
2
3
3
4
5
6
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T3.WIN 24/2/2001 14:31-page29

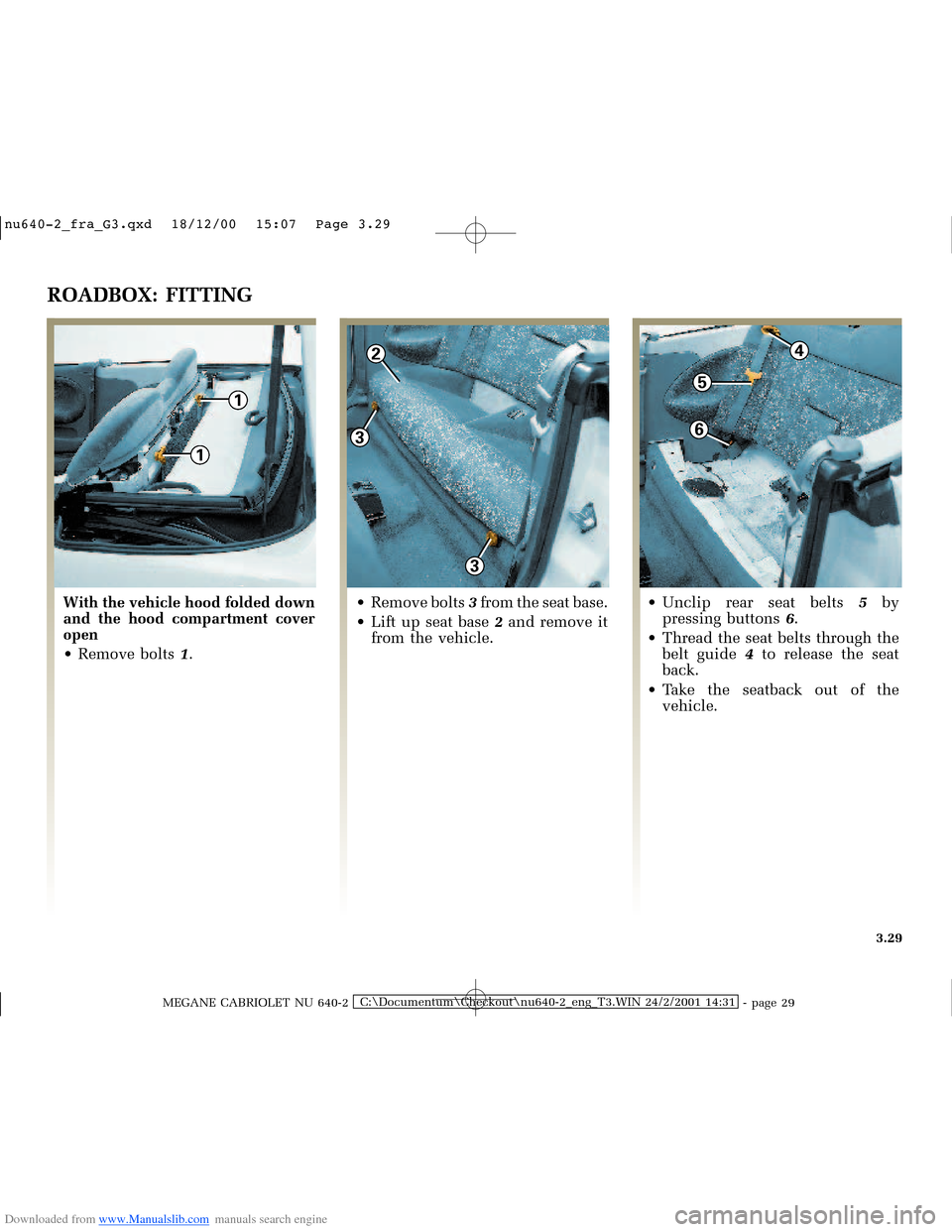

3.29
ROADBOX: FITTING
With the vehicle hood folded down
and the hood compartment cover
open
•Remove bolts1.•Removebolts3from the seat base.
• Lift up seat base2and remove it
from the vehicle.• Unclip rear seat belts5by
pressing buttons6.
• Thread the seat belts through the
belt guide4to release the seat
back.
• Take the seatback out of the
vehicle.
