5.28

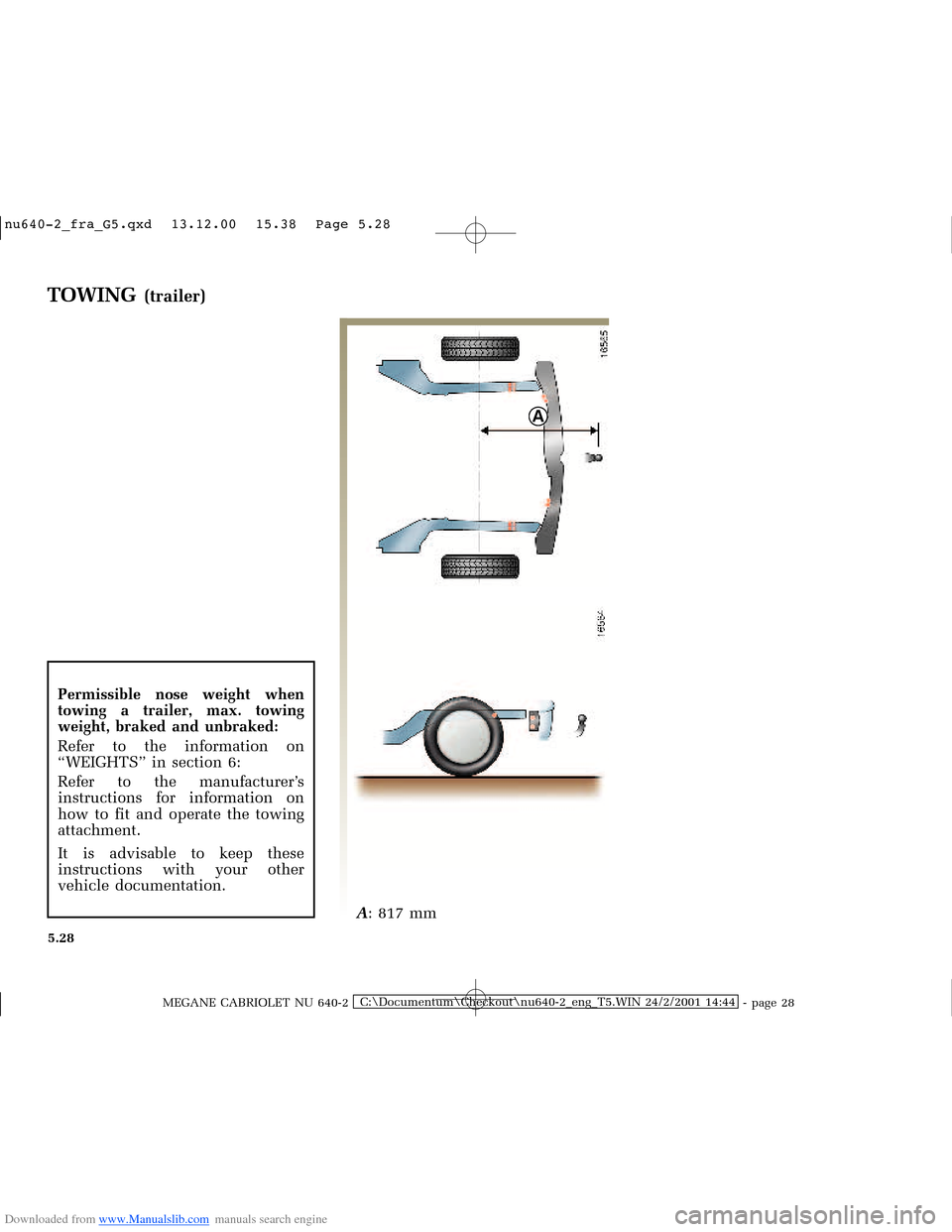

TOWING(trailer)
Permissible nose weight when
towing a trailer, max. towing
weight, braked and unbraked:
Refer to the information on
“WEIGHTS” in section 6:
Refer to the manufacturer’s
instructions for information on
how to fit and operate the towing
attachment.
It is advisable to keep these
instructions with your other
vehicle documentation.
A: 817 mm
Page 162 of 181
Downloaded from www.Manualslib.com manuals search engine 1
Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page29
5.29
SYSTEM FOR CUTTING OFF THE FUEL SUPPLY IN THE EVENT OF A SEVERE IMPACT
Your vehicle may be equipped with
a system for cutting off the fuel
supply in the event of a severe
impact.
This system is planned to disable
and thus isolate the fuel supply
system if a severe impact occurs.
Following an impact, the system
can be enabled but only after it
has been inspected by a qualified
person from the Renault network
who must ensure that:
• the vehicle can be driven;
•thereisnosmelloffuel;
• and that the fuel system is not
leaking.
Enabling the system
If the conditions for restarting the
fuel supply system are met (see
box), it is only necessary to press
button1to enable the system.
Page 163 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page30
5.30
OPERATING INCIDENTS
Your car should not be affected by incidents likely to keep it off the road for long if you have followed the Renault
Servicing Programme regularly.
The following hints will enable you to get going again quickly, albeit temporarily. For reasons of safety you should
always consult a Renault Dealer as soon as you can.
When starter is activated CAUSES REMEDIAL ACTION
•There is no response, the warning
lights fail to illuminate and the starter
does not turn.Battery lead disconnected or
terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
Battery unserviceable. Change battery.
• Warning light bulbs go dim and
starter turns very slowly.Battery terminals not tight.
Terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
• The engine is difficult to start in
damp weather or after washing.Poor ignition, ignition system damp. Dry spark plug leads and ignition coil.
• The engine is difficult to start when
hot.Faulty carburation (bubbles of
vaporised fuel in circuit).Let the engine cool down.
Poor compression. Consult a Renault Dealer.
Page 164 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page31
5.31
OPERATING INCIDENTS(continued)
When starter is activated CAUSES REMEDIAL ACTION
•The engine fires once or twice then
dies. It is difficult to start when cold.Engine immobiliser active. See “engine immobiliser” section.
Starting procedure incorrect See “starting engine” section.
or
Poor fuel supply or ignition fault. If the vehicle will not start, do not
keep trying to start it.
Consult a Renault Dealer.
System for cutting off fuel supply
activated if vehicle has been subjected
to severe impact.Consult a Renault Dealer (see
information on fuel cut-off system in
section 5).
• Vibrations Incorrect tyre pressures, incorrectly
balanced or damaged.Check tyre inflation pressures. If this
is not the problem, have them checked
by a Renault Dealer.
• Coolant boiling in expansion bottle. Mechanical defect: cylinder head
gasket blown, faulty water pump.Stop the engine.
Consult a Renault Dealer.
Engine cooling fan not working. Check appropriate fuse, otherwise
consult a Renault Dealer.
Page 165 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page32
5.32
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
•Abnormal white smoke from the
exhaust.Mechanical defect: cylinder head
gasket blown.Stop the engine.
Consult a Renault Dealer.
• Smoke under the bonnet. Short circuit. Stop, turn the ignition off, disconnect
the battery.
Coolant circuit fault. Consult a Renault Dealer.
• The oil pressure warning light
illuminates:
- when cornering or braking. Oil level too low. Top up the oil.
- on idling Oil pressure too low. Consult the nearest Renault Dealer.
- is slow to extinguish or remains
illuminated on acceleration.Loss of oil pressure. Stop: call for assistance from Renault
Dealer.
• Engine loses power. Clogged air filter. Change element.
Fuel supply faulty. Check fuel level.
Faulty spark plugs, incorrectly set. Consult a Renault Dealer.
• Idling unsteady or engine stalls. Lack of compression (spark plugs,
ignition, air leak).Consult a Renault Dealer.
Page 166 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page33
5.33
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
•Steering becomes hard to turn. Belt broken. Have the belt replaced.
Lack of oil in pump. Top up the oil (see maintenance
section).
If the problem persists, consult a
Renault Dealer.
• The engine overheats. The coolant
temperature warning light illuminates
(or the gauge needle moves into the
red zone).Water pump: belt stretched or broken.
Faulty engine cooling fan.Stop the vehicle and switch off the
engine. Consult a Renault Dealer.
Coolant leaks. Check the condition of hoses and
clips.
Check the expansion bottle: it should
contain coolant. If it does not, top it
up(having let it cool down). Take care
not to scald yourself. This action is
only temporary: consult your Renault
Dealer as soon as possible.
Radiator
Never fill a hot radiator with cold coolant if a considerable quantity has been lost. After any operation on the
vehicle which has involved even partial draining of the cooling system, it must be refilled with a new mixture
prepared in the correct proportions. Reminder: only products approved by our Technical Department may be
used for this purpose.
Page 167 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page34
5.34

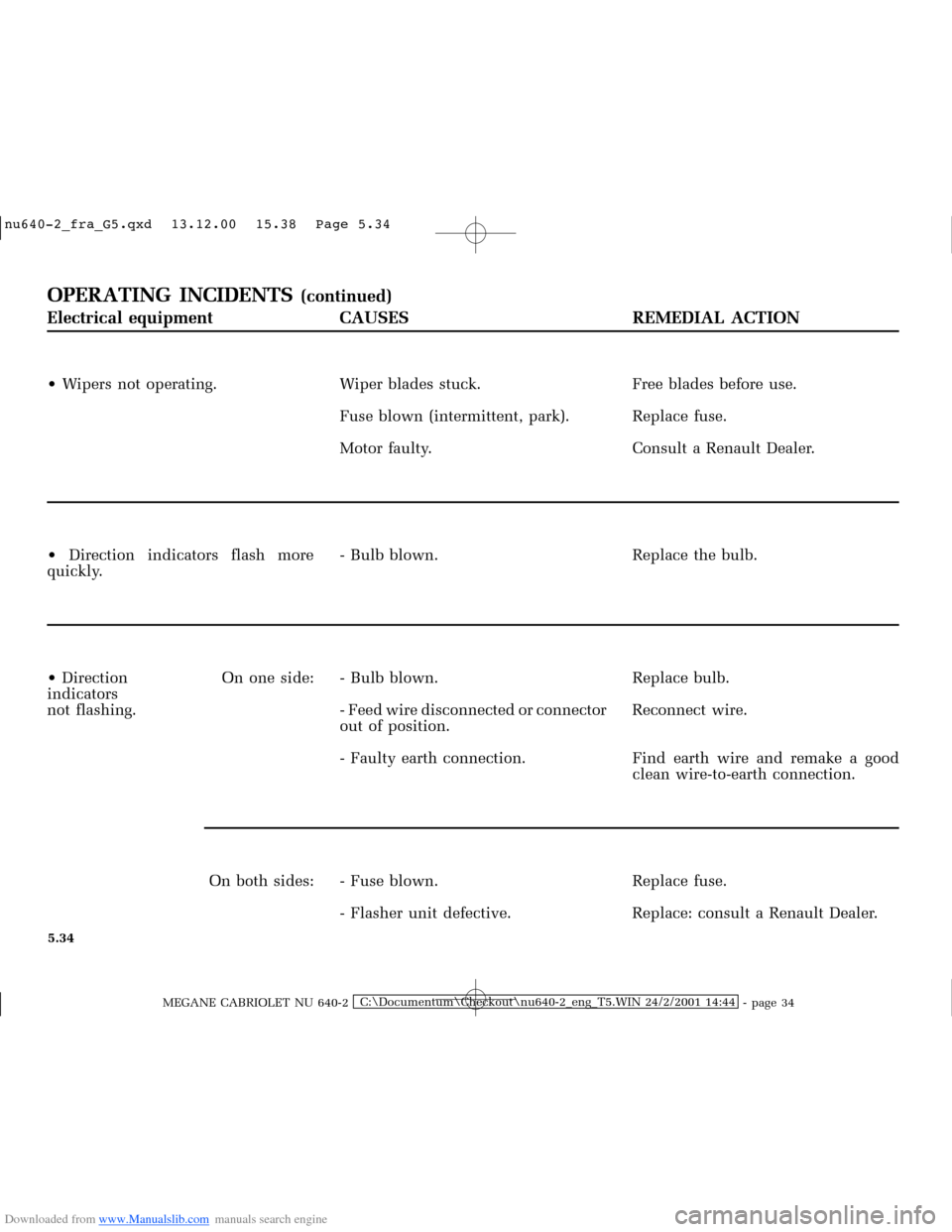

OPERATING INCIDENTS(continued)
Electrical equipment CAUSES REMEDIAL ACTION
•Wipers not operating. Wiper blades stuck. Free blades before use.
Fuse blown (intermittent, park). Replace fuse.
Motor faulty. Consult a Renault Dealer.
• Direction indicators flash more
quickly.- Bulb blown. Replace the bulb.
• Direction
indicators
not flashing.On one side: - Bulb blown. Replace bulb.
- Feed wire disconnected or connector
outofposition.Reconnect wire.
- Faulty earth connection. Find earth wire and remake a good
clean wire-to-earth connection.
On both sides: - Fuse blown. Replace fuse.
- Flasher unit defective. Replace: consult a Renault Dealer.
Page 168 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page35
5.35
OPERATING INCIDENTS(continued)
Electrical equipment CAUSES REMEDIAL ACTION
Headlights
not working.One: - Bulb blown. Replace bulb.
- Wire disconnected or connector out
of position.Check and reconnect wire or
connector.
- Faulty earth connection. See above.
Both: - If the circuit is fused: Check fuse and change if necessary.
• Traces of condensation in the lights. This is not a defect. The presence of
traces of condensation in lights is a
natural phenomenon linked to the
variations in temperature.
These traces will disappear rapidly
once the lights are switched on.
Page 169 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page36
5.36
Page 170 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T6.WIN 24/2/2001 9:55-page1
6.01
Section 6: Technical specifications
Identification plates ............................................................................................................................... 6.02 - 6.03
Dimensions ........................................................................................................................................................ 6.04
Engine specifications ........................................................................................................................................ 6.05
Towing weights ................................................................................................................................................. 6.06
Weights .............................................................................................................................................................. 6.06
Replacement parts ............................................................................................................................................ 6.07
