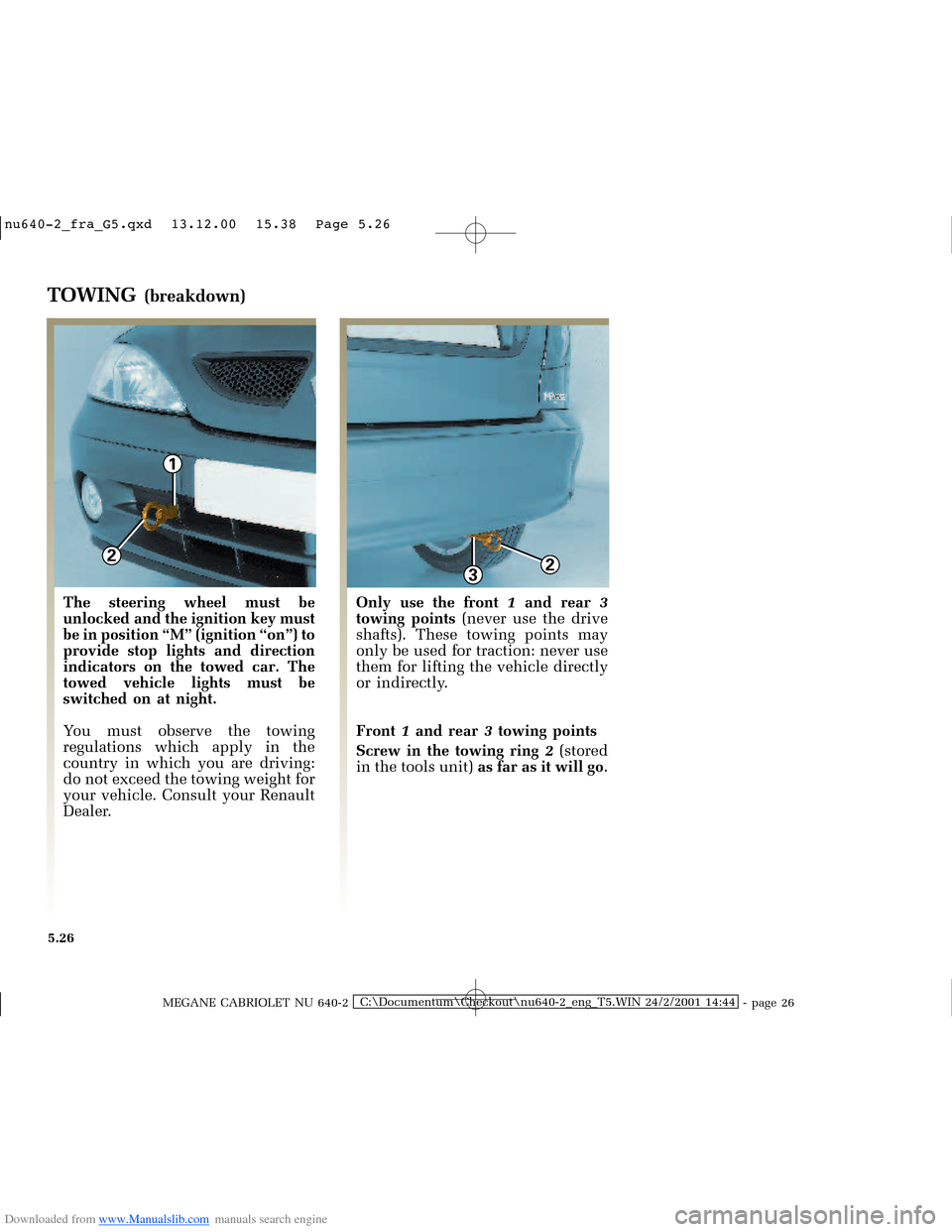

5.26
TOWING(breakdown)
The steering wheel must be
unlocked and the ignition key must
be in position “M” (ignition “on”) to
provide stop lights and direction
indicators on the towed car. The
towed vehicle lights must be
switched on at night.
You must observe the towing
regulations which apply in the
country in which you are driving:
do not exceed the towing weight for
your vehicle. Consult your Renault
Dealer.Only use the front1and rear3
towing points(never use the drive
shafts). These towing points may
only be used for traction: never use
them for lifting the vehicle directly
or indirectly.
Front1and rear3towing points
Screw in the towing ring2(stored
in the tools unit)asfarasitwillgo.
Page 163 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page30
5.30
OPERATING INCIDENTS
Your car should not be affected by incidents likely to keep it off the road for long if you have followed the Renault
Servicing Programme regularly.
The following hints will enable you to get going again quickly, albeit temporarily. For reasons of safety you should
always consult a Renault Dealer as soon as you can.
When starter is activated CAUSES REMEDIAL ACTION
•There is no response, the warning
lights fail to illuminate and the starter
does not turn.Battery lead disconnected or
terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
Battery unserviceable. Change battery.
• Warning light bulbs go dim and
starter turns very slowly.Battery terminals not tight.
Terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
• The engine is difficult to start in
damp weather or after washing.Poor ignition, ignition system damp. Dry spark plug leads and ignition coil.
• The engine is difficult to start when
hot.Faulty carburation (bubbles of
vaporised fuel in circuit).Let the engine cool down.
Poor compression. Consult a Renault Dealer.
Page 165 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page32
5.32
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
•Abnormal white smoke from the
exhaust.Mechanical defect: cylinder head
gasket blown.Stop the engine.
Consult a Renault Dealer.
• Smoke under the bonnet. Short circuit. Stop, turn the ignition off, disconnect
the battery.
Coolant circuit fault. Consult a Renault Dealer.
• The oil pressure warning light
illuminates:
- when cornering or braking. Oil level too low. Top up the oil.
- on idling Oil pressure too low. Consult the nearest Renault Dealer.
- is slow to extinguish or remains
illuminated on acceleration.Loss of oil pressure. Stop: call for assistance from Renault
Dealer.
• Engine loses power. Clogged air filter. Change element.
Fuel supply faulty. Check fuel level.
Faulty spark plugs, incorrectly set. Consult a Renault Dealer.
• Idling unsteady or engine stalls. Lack of compression (spark plugs,
ignition, air leak).Consult a Renault Dealer.
Page 166 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page33

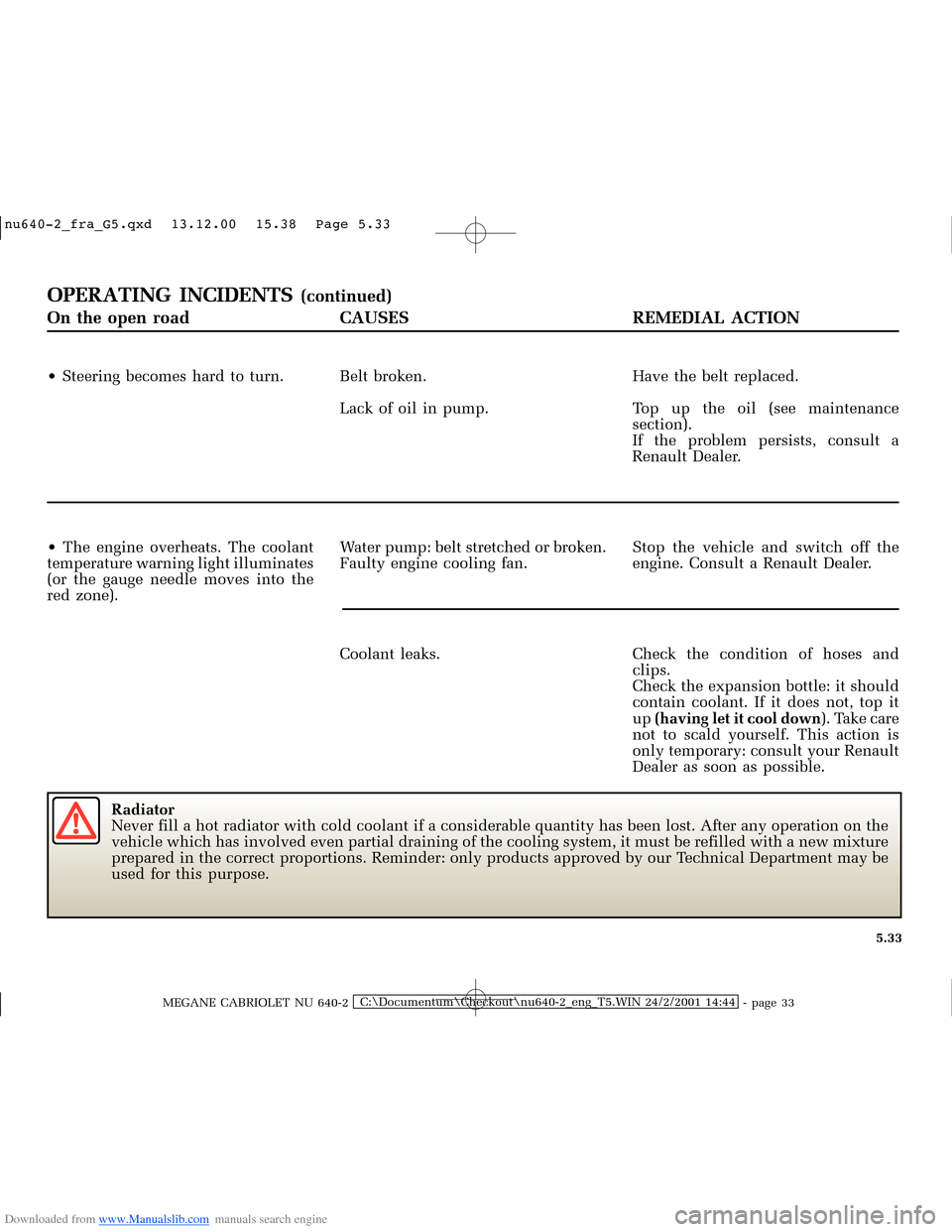

5.33
OPERATING INCIDENTS(continued)
On the open road CAUSES REMEDIAL ACTION
•Steering becomes hard to turn. Belt broken. Have the belt replaced.
Lack of oil in pump. Top up the oil (see maintenance
section).
If the problem persists, consult a
Renault Dealer.
• The engine overheats. The coolant
temperature warning light illuminates
(or the gauge needle moves into the
red zone).Water pump: belt stretched or broken.
Faulty engine cooling fan.Stop the vehicle and switch off the
engine. Consult a Renault Dealer.
Coolant leaks. Check the condition of hoses and
clips.
Check the expansion bottle: it should
contain coolant. If it does not, top it
up(having let it cool down). Take care
not to scald yourself. This action is
only temporary: consult your Renault
Dealer as soon as possible.
Radiator
Never fill a hot radiator with cold coolant if a considerable quantity has been lost. After any operation on the
vehicle which has involved even partial draining of the cooling system, it must be refilled with a new mixture
prepared in the correct proportions. Reminder: only products approved by our Technical Department may be
used for this purpose.
Page 168 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T5.WIN 24/2/2001 14:44-page35

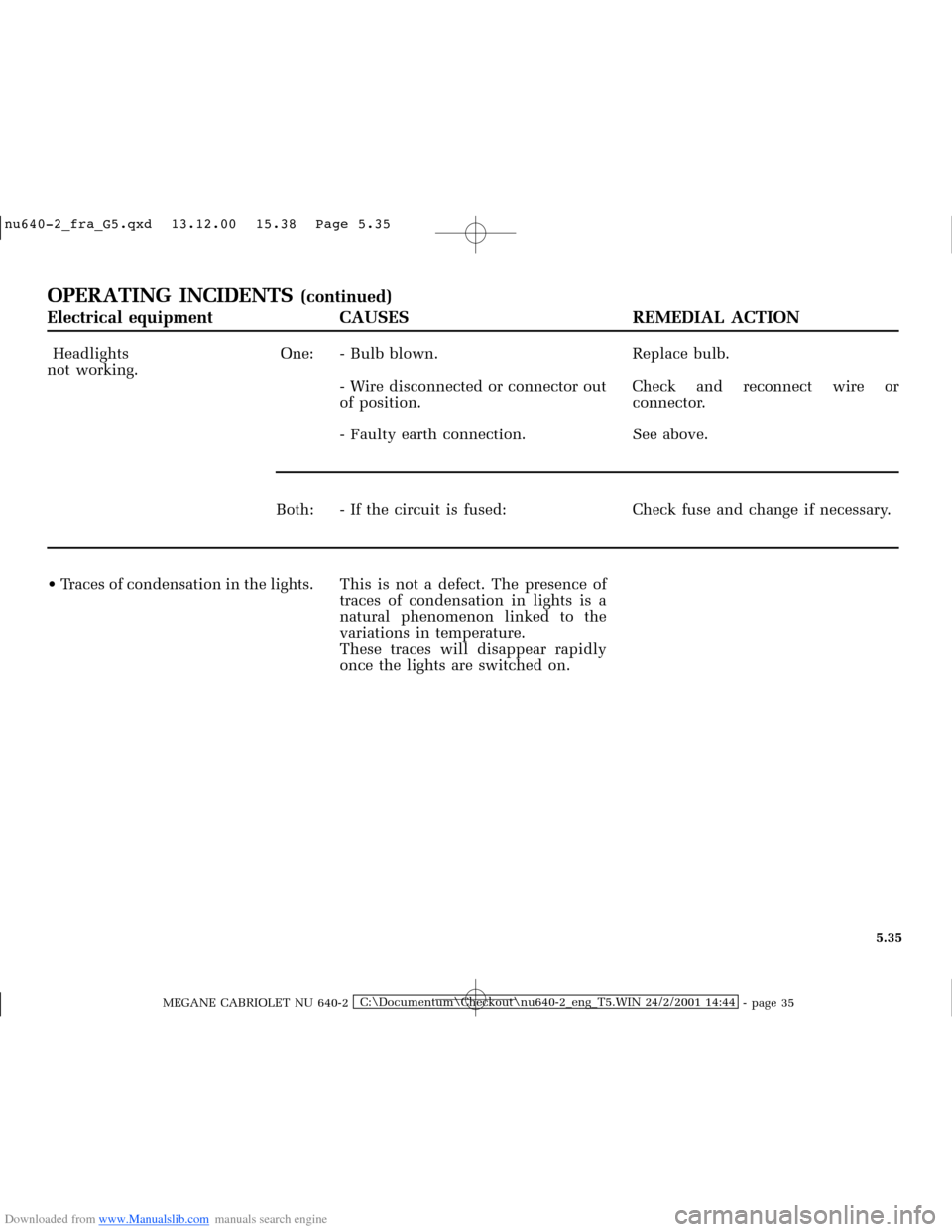

5.35
OPERATING INCIDENTS(continued)
Electrical equipment CAUSES REMEDIAL ACTION
Headlights
not working.One: - Bulb blown. Replace bulb.
- Wire disconnected or connector out
of position.Check and reconnect wire or
connector.
- Faulty earth connection. See above.
Both: - If the circuit is fused: Check fuse and change if necessary.
• Traces of condensation in the lights. This is not a defect. The presence of
traces of condensation in lights is a
natural phenomenon linked to the
variations in temperature.
These traces will disappear rapidly
once the lights are switched on.
Page 177 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T6.WIN 24/2/2001 9:55-page8
ALPHABETICAL INDEX
AABS: anti-lock braking system .................... 2.16 - 2.17
Accessories .............................................................. 5.24
Additional driving lights ........................................ 5.11
Adjusting beam height ........................................... 1.50
Adjusting the front seats ........................................ 1.10
Adjusting your driving position ............................ 1.12
Air bag ....................................................... 1.15
¬1.20
Air conditioning ........................................ 3.19 ¬3.23
Air vents ....................................................... 3.15 - 3.16
Anti-lock braking system: ABS ................... 2.16 - 2.17
Anti-pollution (advice) ............................. 2.06
¬2.08
Ashtrays ................................................................... 3.27
Attachments (towing) ............................................. 5.28
Audible and visual warnings ................................. 1.47
Automatic door locking when driving .................. 1.06
Automatic gearbox (use) ........................... 2.19
¬2.21
Automatic transmission selector lever .... 2.19 ¬2.21
BBattery ............................................. 4.12 - 5.18
¬5.20
Bonnet ........................................................... 4.02 - 4.03
Brake fluid ............................................................... 4.10
Brief overview ......................................................... 0.02
Bulbs (replacement) .................................. 5.09
¬5.15
Bulbs .......................................................... 5.09 ¬5.15
Buzzer (lights on) ......................................... 1.05 - 1.48
CCatalytic converter (features of petrol versions) .. 2.04
Catalytic converter (special points) ....................... 2.04
Changing a wheel ..................................... 5.02
¬5.05
Changing gear ........................................................... 2.05
Child booster cushion/seats ..................... 1.21
¬1.27
Child restraint system .............................. 1.21 ¬1.27
Child safety .......................... 1.02 - 1.21 ¬1.27 - 3.25
Cigarette lighter ....................................................... 3.27
Clock ............................................................. 1.43 - 1.44
Closing the electric hood ............................ 3.10 - 3.11
Closing the hood manually ...................... 3.03
¬3.05CControls ...................................................... 1.28
¬1.31
Coolant ...................................................................... 4.09
Courtesy lights ................................... 3.11 - 3.12 - 5.14
DDashboard ................................................... 1.28
¬1.31
De-icing the windscreen ......................................... 1.51
Demisting: Rear screen ............................................ 1.51
Windscreen ............................................ 1.51
Dimensions ............................................................... 6.04
Dipstick .......................................................... 4.04 - 4.05
Direction indicators ..... 1.47 - 5.09 - 5.10 - 5.12 - 5.13
Door locking ............................................... 1.02
¬1.06
Doors ........................................................... 1.02 ¬1.06
Driver's layout ............................................ 1.28 ¬1.31
Driving ........................................................ 2.02 ¬2.21
Driving module (computer) ...................... 1.40 ¬1.42
EElectric door locking ................................. 1.02
¬1.06
Electric hood .............................................. 3.09 ¬3.14
Electric hood opening ................................... 3.12 - 3.13
Emergency brake assistance .................................... 2.18
Emergency spare wheel ........................................... 5.02
Engine (technical specifications) ............................ 6.05
Engine immobiliser ....................................... 1.07 - 1.08
Engine oil ................................................... 4.04
¬4.07
Engine specifications ............................................... 6.05
Environment ............................................................. 2.09
Exterior temperature ................................................ 1.43
External lighting and signals .................... 1.47
¬1.50
FFilters ........................................................................ 4.12
Fitting a radio ................................................ 5.22 - 5.23
Fog lights (headlight) ............................................... 5.11
Front seat belt pretensioners ................................... 1.15
Front seats (adjusting) ............................................. 1.10
Page 178 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T6.WIN 24/2/2001 9:55-page9

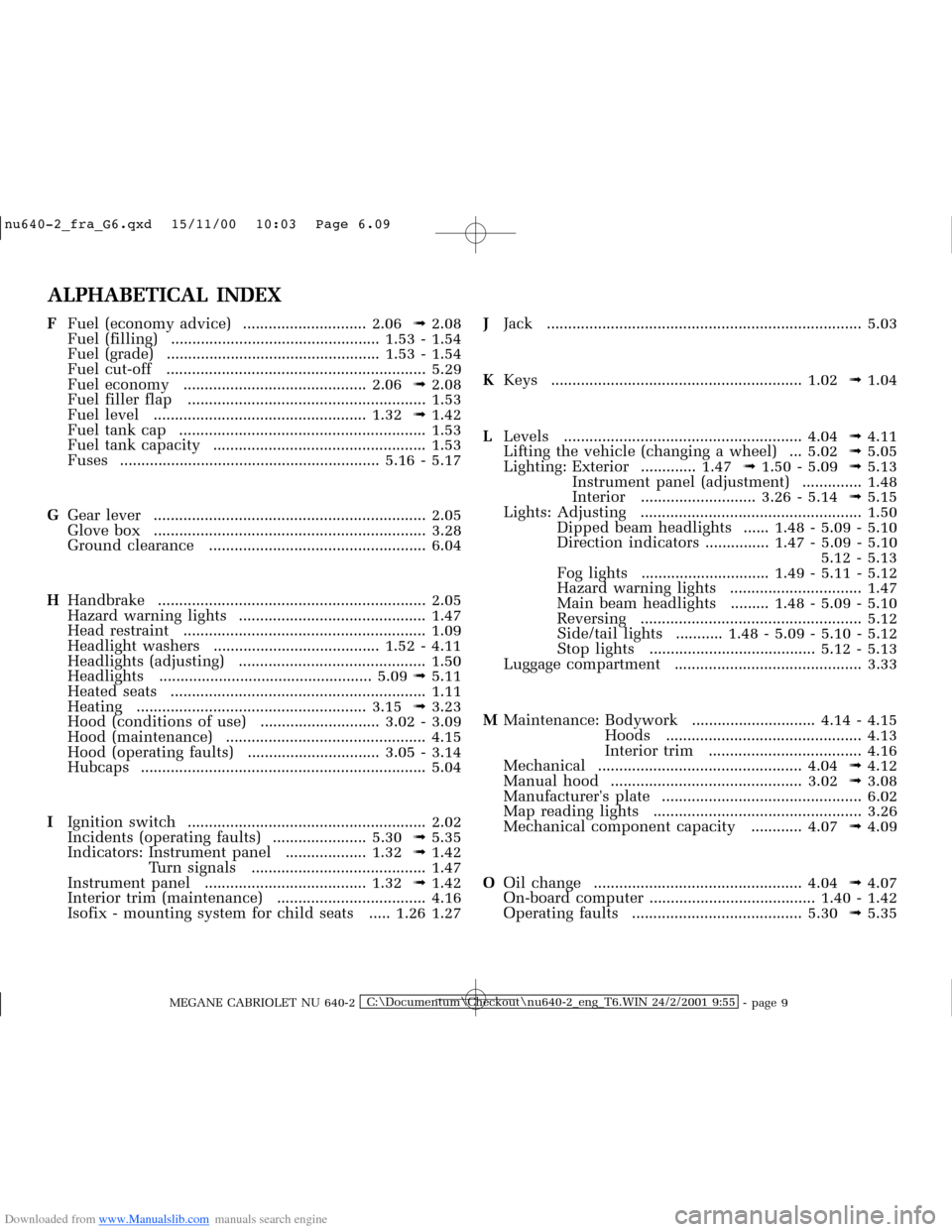

ALPHABETICAL INDEX
FFuel (economy advice) ............................. 2.06 ¬2.08
Fuel (filling) ................................................. 1.53 - 1.54
Fuel (grade) .................................................. 1.53 - 1.54
Fuel cut-off ............................................................. 5.29
Fuel economy ........................................... 2.06
¬2.08
Fuel filler flap ........................................................ 1.53
Fuel level .................................................. 1.32
¬1.42
Fuel tank cap .......................................................... 1.53
Fuel tank capacity .................................................. 1.53
Fuses ............................................................. 5.16 - 5.17
GGear lever ................................................................ 2.05
Glove box ................................................................ 3.28
Ground clearance ................................................... 6.04
HHandbrake ............................................................... 2.05
Hazard warning lights ............................................ 1.47
Head restraint ......................................................... 1.09
Headlight washers ....................................... 1.52 - 4.11
Headlights (adjusting) ............................................ 1.50
Headlights .................................................. 5.09
¬5.11
Heated seats ............................................................ 1.11
Heating ...................................................... 3.15
¬3.23
Hood (conditions of use) ............................ 3.02 - 3.09
Hood (maintenance) ............................................... 4.15
Hood (operating faults) ............................... 3.05 - 3.14
Hubcaps ................................................................... 5.04
IIgnition switch ........................................................ 2.02
Incidents (operating faults) ...................... 5.30
¬5.35
Indicators: Instrument panel ................... 1.32 ¬1.42
Turn signals ......................................... 1.47
Instrument panel ...................................... 1.32
¬1.42
Interior trim (maintenance) ................................... 4.16
Isofix - mounting system for child seats ..... 1.26 1.27JJack .......................................................................... 5.03
KKeys ........................................................... 1.02
¬1.04
LLevels ........................................................ 4.04
¬4.11
Liftingthevehicle(changingawheel) ...5.02 ¬5.05
Lighting: Exterior ............. 1.47 ¬1.50 - 5.09 ¬5.13
Instrument panel (adjustment) .............. 1.48
Interior ........................... 3.26 - 5.14
¬5.15
Lights: Adjusting .................................................... 1.50
Dipped beam headlights ...... 1.48 - 5.09 - 5.10
Direction indicators ............... 1.47 - 5.09 - 5.10
5.12 - 5.13
Fog lights .............................. 1.49 - 5.11 - 5.12
Hazard warning lights ............................... 1.47
Main beam headlights ......... 1.48 - 5.09 - 5.10
Reversing .................................................... 5.12
Side/tail lights ........... 1.48 - 5.09 - 5.10 - 5.12
Stop lights ....................................... 5.12 - 5.13
Luggage compartment ............................................ 3.33
MMaintenance: Bodywork ............................. 4.14 - 4.15
Hoods .............................................. 4.13
Interior trim .................................... 4.16
Mechanical ................................................ 4.04
¬4.12
Manual hood ............................................. 3.02 ¬3.08
Manufacturer's plate ............................................... 6.02
Map reading lights ................................................. 3.26
Mechanical component capacity ............ 4.07
¬4.09
OOil change ................................................. 4.04
¬4.07
On-board computer ....................................... 1.40 - 1.42
Operating faults ........................................ 5.30
¬5.35
Page 179 of 181
Downloaded from www.Manualslib.com manuals search engine Q X B I U D B * T [ G 3 D J H
MEGANE CABRIOLET NU 640-2C:\Documentum\Checkout
u640-2_eng_T6.WIN 24/2/2001 9:55-page10
ALPHABETICAL INDEX
PPaintwork (maintenance) .............................. 4.14 - 4.15
Paintwork (reference) ............................................... 6.02
Power steering .......................................................... 2.05
Power steering pump ............................................... 4.08
Practical advice ............................................ 5.02
¬5.35
Puncture ....................................................... 5.02 ¬5.05
RRadio (pre-fitting) .......................................... 5.22 - 5.23
Radio frequency remote control ................. 1.02
¬1.04
Radio installation .......................................... 5.22 - 5.24
Radio remote control (batteries) .............................. 5.21
Rear screen (demisting) ........................................... 1.51
Rear-view mirrors .......................................... 1.45 - 1.46
Replacement parts .................................................... 6.07
Replacing a bulb .......................................... 5.09
¬5.15
Reverse gear .............................................................. 2.05
Roadbox ........................................................ 3.29
¬3.32
Running in ................................................................ 2.02
SSeat belts ...................................................... 1.12
¬1.20
Side-mounted repeaters ........................................... 5.13
Ski flap ...................................................................... 3.34
Speakers (location) ........................................ 5.22 - 5.23
Starting the engine ................................................... 2.03
Steering wheel (adjusting) ....................................... 1.46
Storage compartments .............................................. 3.28
Sun visor ................................................................... 3.14
System for cutting off fuel in the event
of a severe impact ................................................ 5.29
TTanks and reservoirs:
Brake fluid reservoir ............................................ 4.10
Coolant capacity ................................................... 4.09
Fuel (capacity) ........................................... 1.53 - 1.54
Headlight washer bottle ....................................... 4.11
Windscreen washer bottle ................................... 4.11Technical specifications .............................. 6.02
¬6.07
Time ................................................................ 1.43 - 1.44
Tool kit (wheelbrace/jack ...) ................................... 5.03
Towing (attachments) ............................................... 5.28
Towing (breakdown) ...................................... 5.26 - 5.27
Towing a caravan ..................................................... 6.06
Towing hitches ......................................................... 5.26
Towing weights ......................................................... 6.06
Turning circle ........................................................... 6.04
Tyre pressures ................................................ 0.04 - 5.07
Tyres ............................................................. 5.06
¬5.08
VVanity mirror ............................................................ 3.14
Vehicle identification .................................... 6.02 - 6.03
Vehicle identification plates ......................... 6.02 - 6.03
Ventilation .................................................... 3.15
¬3.23
WWarning and indicator lights ..................... 1.32
¬1.42
Washing ......................................................... 4.13 - 4.15
Weights ..................................................................... 6.06
Wheelbrace ............................................................... 5.03
Wheels (safety) ............................................ 5.06
¬5.08
Window winder ............................................ 3.24 - 3.25
Windows ........................................................ 3.24 - 3.25
Windscreen ............................................................... 3.14
Windscreen washer ....................................... 1.52 - 4.11
Windscreen wipers (blades) .................................... 5.25
Windscreen wipers .................................................. 1.52
Wiper blades ............................................................. 5.25
