RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.55
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
 15  Ignition switch (vehicles with key).
  16  Control for adjusting steering

Page 62 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.56
šSide light warning light
áMain beam headlight tell-
tale
kDipped beam headlight tell-
tale
fRear fog lights tell-tale
Automatic main beam head-
light indicator light
Please refer to t

Page 63 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.57
WARNING LIGHTS (2/6)
MLow fuel level warning light
It lights up orange when the ig-
nition or the engine is switched on then,
depending on the vehicle, goes off after
a few seconds or is displa

Page 64 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.58
xAnti-lock braking warning
light
It lights up when the ignition or the
engine is switched on and goes off after
a few seconds.
If it lights up when you are driving, it in-
dicates a fault in t

Page 65 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.59
WARNING LIGHTS (4/6)
ÉPreheating warning light
(Diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation.
It goes out when pr

Page 66 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.60
WARNING LIGHTS (5/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Assisted parking brake fault
light
Please refer to the information on the
“Assiste

Page 67 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.61
WARNING LIGHTS (6/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
On display C
Passenger airbag ON
Please refer to the information
on “Child safety

Page 68 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.62
DISPLAYS AND INDICATORS (1/6)
Instrument panel  A
lights up when the driver’s door is
opened. In some cases, the appear-
ance of a warning light is accompanied
by a message.
On a vehicle equi

Page 69 of 316

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.63
DISPLAYS AND INDICATORS (2/6)
Fuel gauge 6
If the level is at the minimum, warn-
ing light
M integrated in the indica-
tor comes on orange, accompanied by
a beep. Fill up as soon as possible.
6

Page 70 of 316

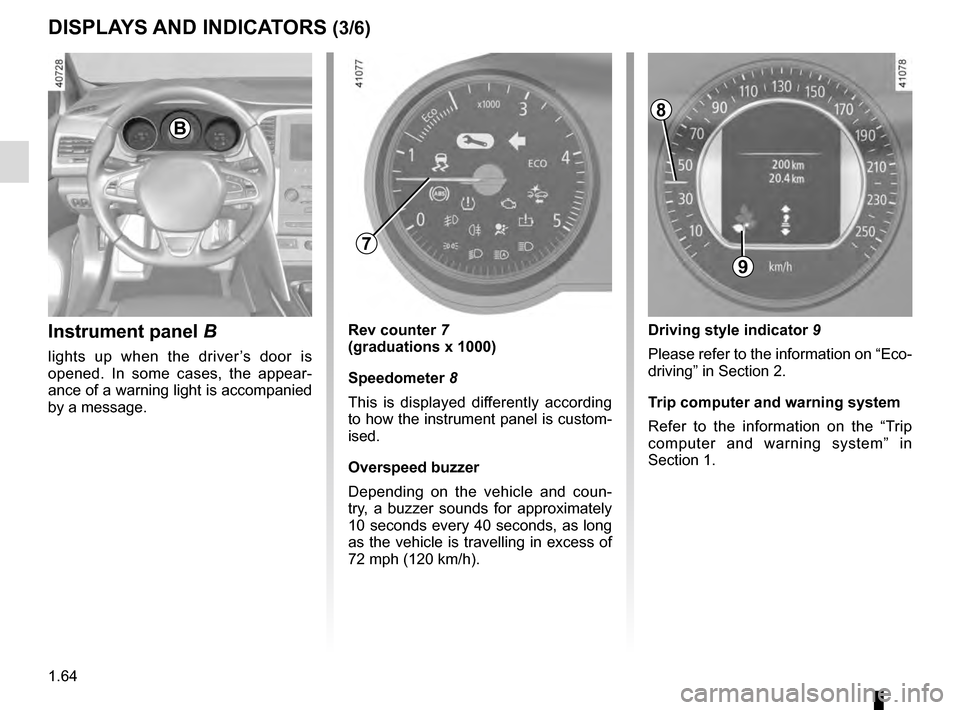

RENAULT MEGANE 2016 X95 / 3.G Repair Manual 1.64
DISPLAYS AND INDICATORS (3/6)
Instrument panel  B
lights up when the driver’s door is
opened. In some cases, the appear-
ance of a warning light is accompanied
by a message.
Rev counter 7
(gr
