RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual
Manufacturer: RENAULT, Model Year: 2015, Model line: MEGANE COUPE CABRIOLET, Model: RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.GPages: 236, PDF Size: 5.1 MB
Page 121 of 236

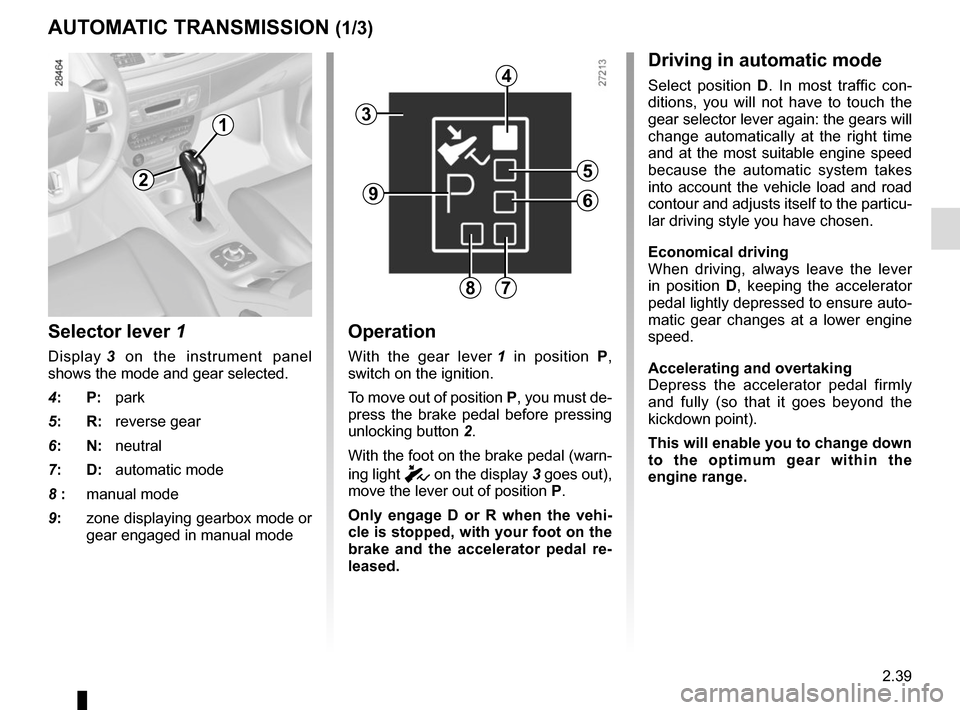

2.39
Selector lever 1
Display 3 on the instrument panel
shows the mode and gear selected.
4: P: park
5: R: reverse gear
6: N: neutral
7: D: automatic mode
8 : manual mode
9: zone displaying gearbox mode or
gear engaged in manual mode
Operation
With the gear lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
unlocking button 2.
With the foot on the brake pedal (warn-
ing light
c on the display 3 goes out),
move the lever out of position P.
Only engage D or R when the vehi-
cle is stopped, with your foot on the
brake and the accelerator pedal re-
leased.
AUTOMATIC TRANSMISSION (1/3)
Driving in automatic mode
Select position D. In most traffic con-
ditions, you will not have to touch the
gear selector lever again: the gears will
change automatically at the right time
and at the most suitable engine speed
because the automatic system takes
into account the vehicle load and road
contour and adjusts itself to the particu-
lar driving style you have chosen.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
speed.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.
3
2
1
4
5
6
78
9
Page 122 of 236

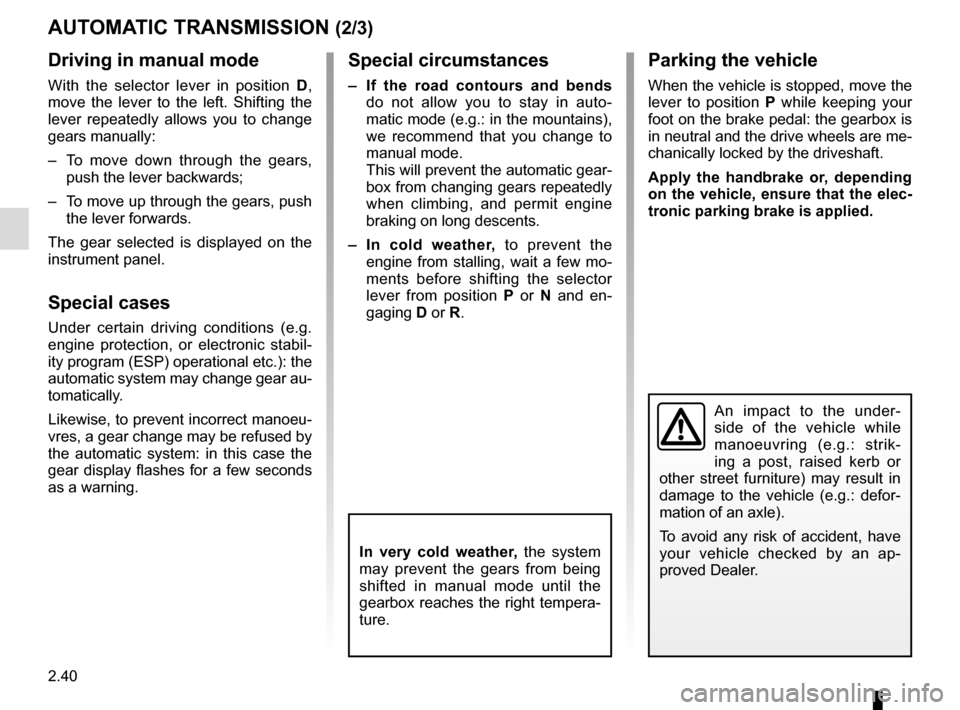

2.40
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
Apply the handbrake or, depending
on the vehicle, ensure that the elec-
tronic parking brake is applied.
Special circumstances
– If the road contours and bends
do not allow you to stay in auto-
matic mode (e.g.: in the mountains),
we recommend that you change to
manual mode.
This will prevent the automatic gear-
box from changing gears repeatedly
when climbing, and permit engine
braking on long descents.
– In cold weather, to prevent the
engine from stalling, wait a few mo-
ments before shifting the selector
lever from position P or N and en-
gaging D or R.
Driving in manual mode
With the selector lever in position D,
move the lever to the left. Shifting the
lever repeatedly allows you to change
gears manually:
– To move down through the gears, push the lever backwards;
– To move up through the gears, push the lever forwards.
The gear selected is displayed on the
instrument panel.
Special cases
Under certain driving conditions (e.g.
engine protection, or electronic stabil-
ity program (ESP) operational etc.): the
automatic system may change gear au-
tomatically.
Likewise, to prevent incorrect manoeu-
vres, a gear change may be refused by
the automatic system: in this case the
gear display flashes for a few seconds
as a warning.
AUTOMATIC TRANSMISSION (2/3)
In very cold weather, the system
may prevent the gears from being
shifted in manual mode until the
gearbox reaches the right tempera-
ture.
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap-
proved Dealer.
Page 123 of 236
2.41

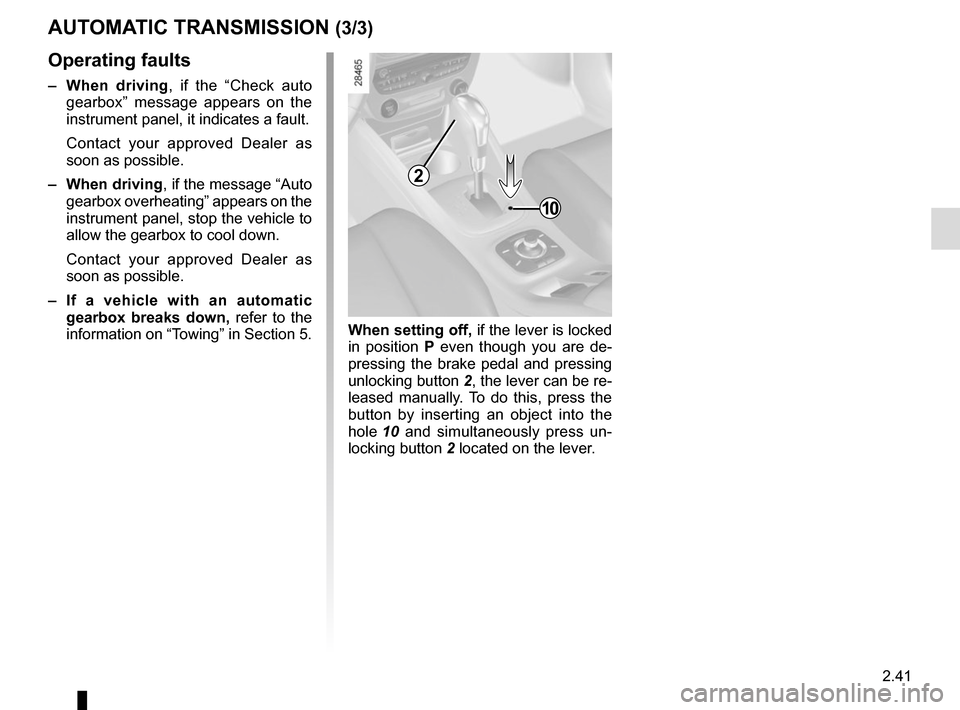

When setting off, if the lever is locked
in position P even though you are de-
pressing the brake pedal and pressing
unlocking button 2, the lever can be re-
leased manually. To do this, press the
button by inserting an object into the
hole 10 and simultaneously press un-
locking button 2 located on the lever.
AUTOMATIC TRANSMISSION (3/3)
Operating faults
– When driving , if the “Check auto
gearbox” message appears on the
instrument panel, it indicates a fault.
Contact your approved Dealer as
soon as possible.
– When driving , if the message “Auto
gearbox overheating” appears on the
instrument panel, stop the vehicle to
allow the gearbox to cool down.
Contact your approved Dealer as
soon as possible.
– If a vehicle with an automatic
gearbox breaks down, refer to the
information on “Towing” in Section 5.
10
2
Page 124 of 236

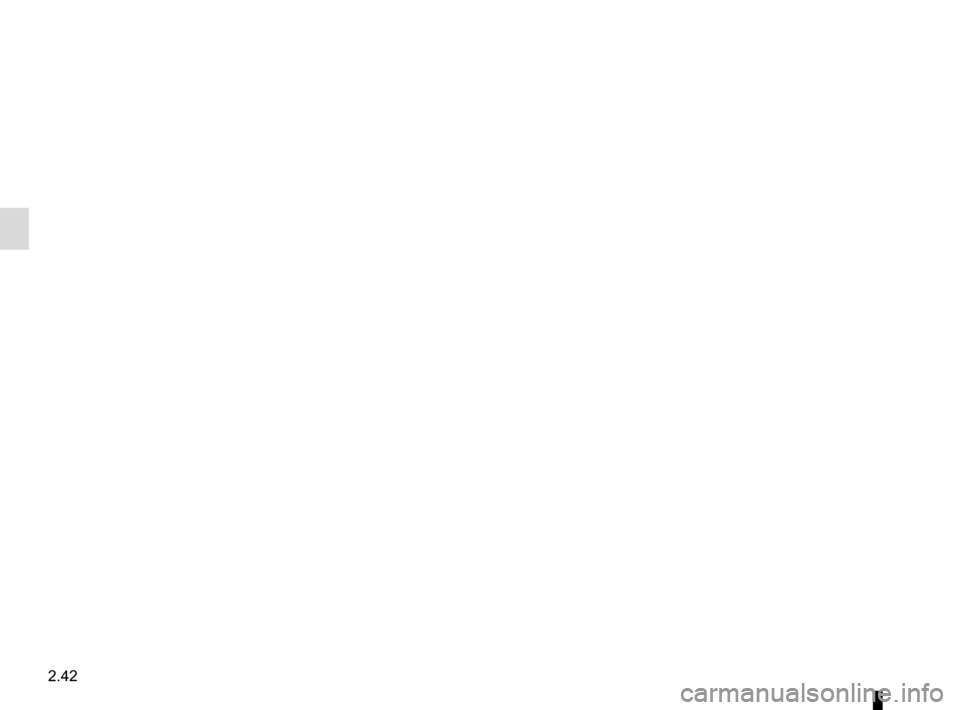

2.42
Page 125 of 236
3.1

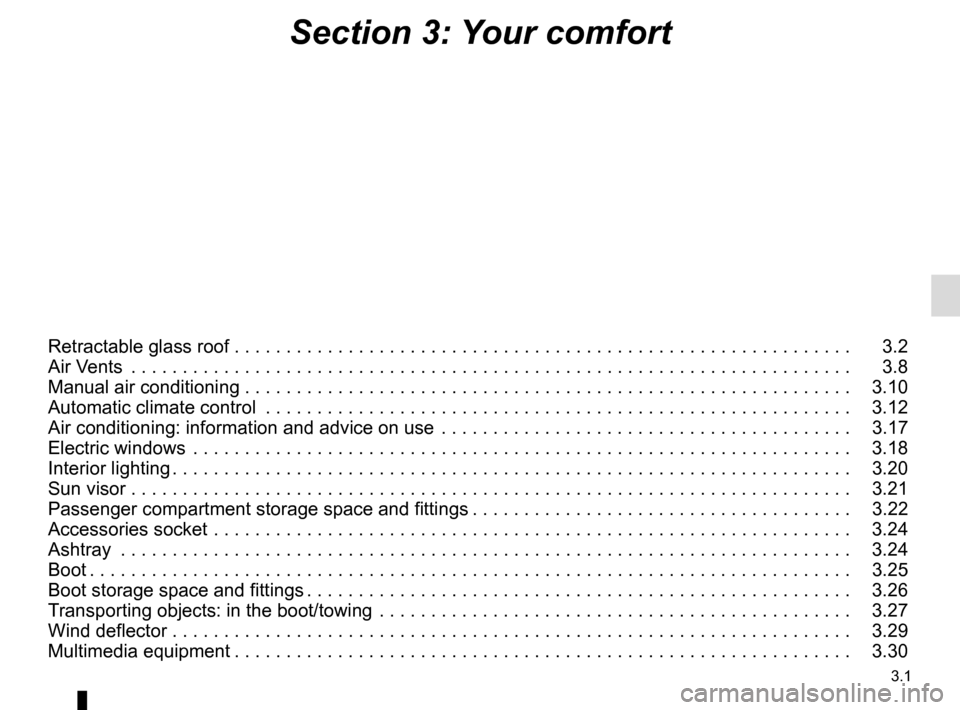

Section 3: Your comfort
Retractable glass roof . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.8
Manual air conditioning . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 3.12
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 3.17
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.18
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 3.22
Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25
Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 3.26
Transporting objects: in the boot/towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . 3.27
Wind deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.29
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 3.30
Page 126 of 236
3.2

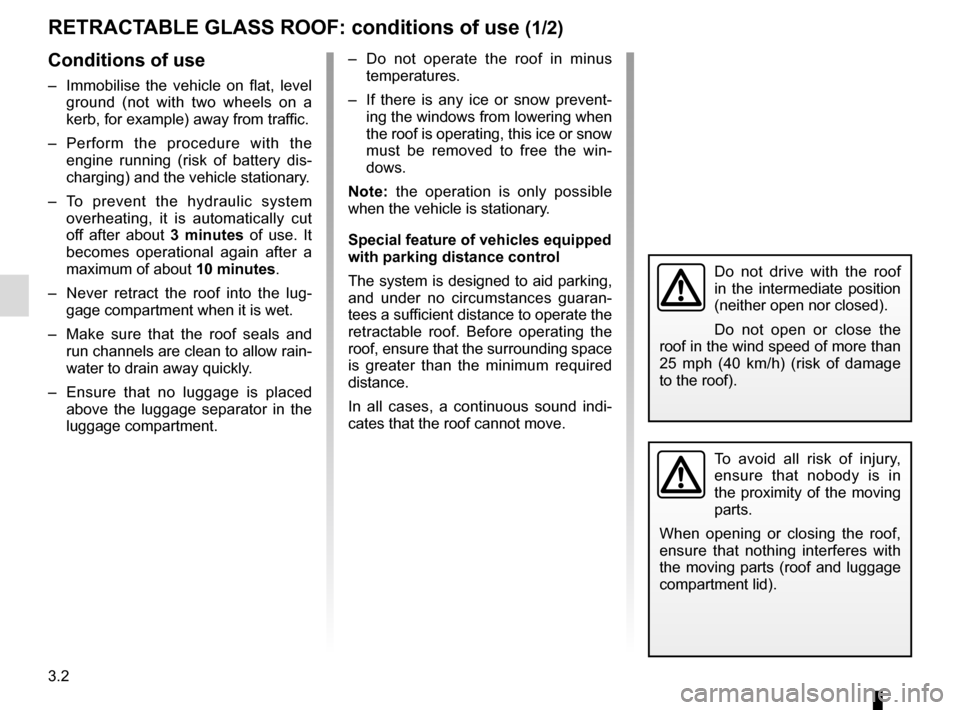

RETRACTABLE GLASS ROOF: conditions of use (1/2)
Conditions of use
– Immobilise the vehicle on flat, level ground (not with two wheels on a
kerb, for example) away from traffic.
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– To prevent the hydraulic system overheating, it is automatically cut
off after about 3 minutes of use. It
becomes operational again after a
maximum of about 10 minutes.
– Never retract the roof into the lug- gage compartment when it is wet.
– Make sure that the roof seals and run channels are clean to allow rain-
water to drain away quickly.
– Ensure that no luggage is placed above the luggage separator in the
luggage compartment.
Do not drive with the roof
in the intermediate position
(neither open nor closed).
Do not open or close the
roof in the wind speed of more than
25 mph (40 km/h) (risk of damage
to the roof).
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
– Do not operate the roof in minus temperatures.
– If there is any ice or snow prevent- ing the windows from lowering when
the roof is operating, this ice or snow
must be removed to free the win-
dows.
Note: the operation is only possible
when the vehicle is stationary.
Special feature of vehicles equipped
with parking distance control
The system is designed to aid parking,
and under no circumstances guaran-
tees a sufficient distance to operate the
retractable roof. Before operating the
roof, ensure that the surrounding space
is greater than the minimum required
distance.
In all cases, a continuous sound indi-
cates that the roof cannot move.
Page 127 of 236
3.3

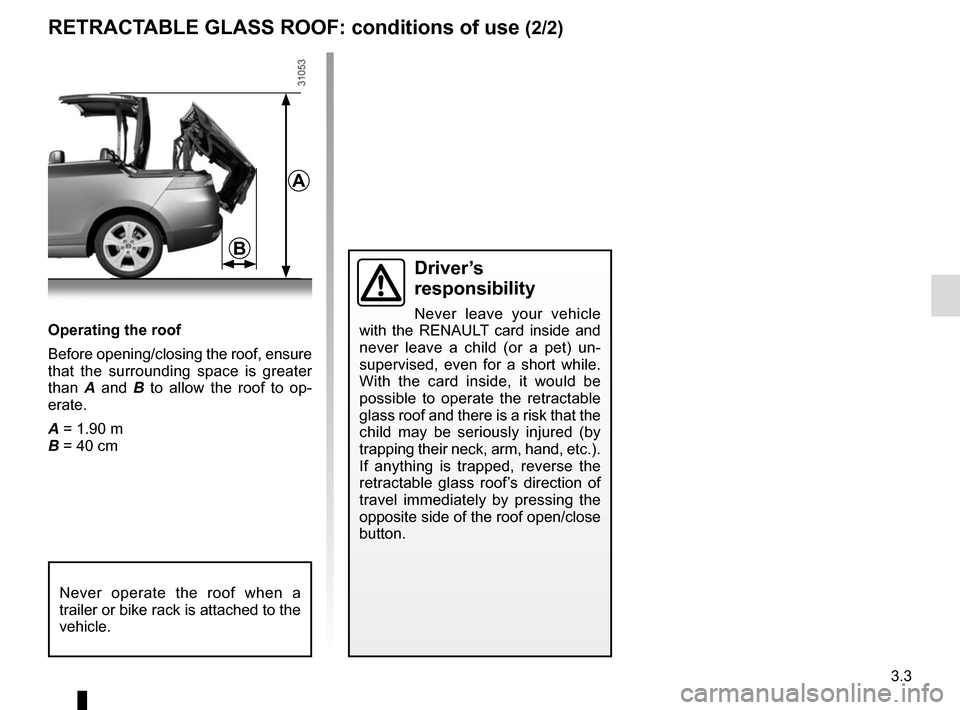

Operating the roof
Before opening/closing the roof, ensure
that the surrounding space is greater
than A and B to allow the roof to op-
erate.
A = 1.90 m
B = 40 cm
Driver’s
responsibility
Never leave your vehicle
with the RENAULT card inside and
never leave a child (or a pet) un-
supervised, even for a short while.
With the card inside, it would be
possible to operate the retractable
glass roof and there is a risk that the
child may be seriously injured (by
trapping their neck, arm, hand, etc.).
If anything is trapped, reverse the
retractable glass roof’s direction of
travel immediately by pressing the
opposite side of the roof open/close
button.
A
B
RETRACTABLE GLASS ROOF: conditions of use (2/2)
Never operate the roof when a
trailer or bike rack is attached to the
vehicle.
Page 128 of 236
3.4

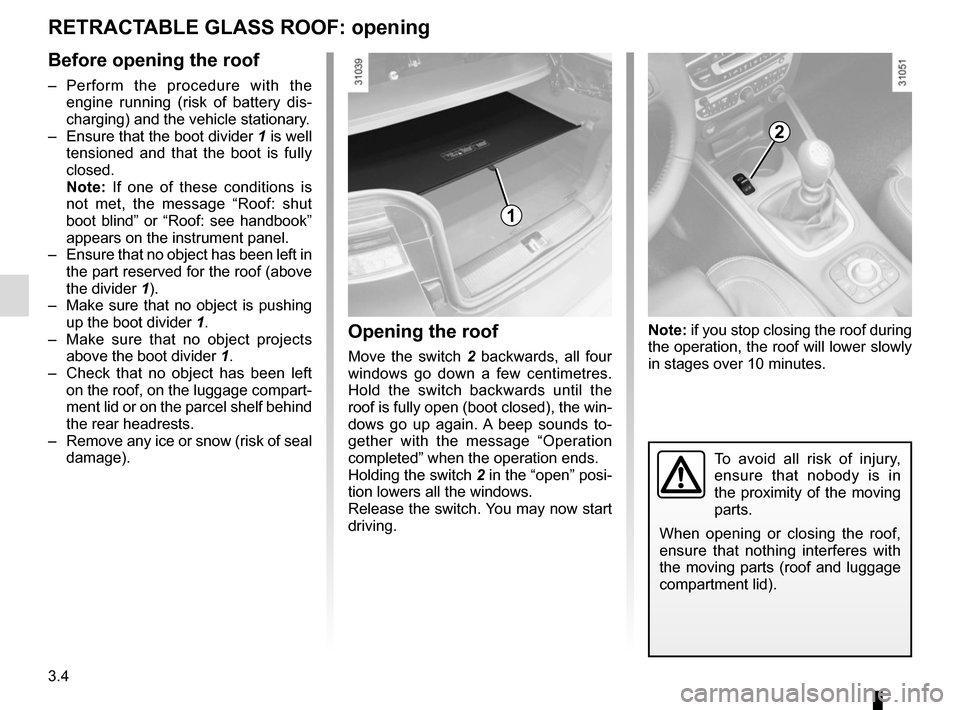

RETRACTABLE GLASS ROOF: opening
Before opening the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the boot divider 1 is well
tensioned and that the boot is fully
closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind” or “Roof: see handbook”
appears on the instrument panel.
– Ensure that no object has been left in the part reserved for the roof (above
the divider 1).
– Make sure that no object is pushing up the boot divider 1.
– Make sure that no object projects above the boot divider 1.
– Check that no object has been left on the roof, on the luggage compart-
ment lid or on the parcel shelf behind
the rear headrests.
– Remove any ice or snow (risk of seal damage).
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
1
2
Opening the roof
Move the switch 2 backwards, all four
windows go down a few centimetres.
Hold the switch backwards until the
roof is fully open (boot closed), the win-
dows go up again. A beep sounds to-
gether with the message “Operation
completed” when the operation ends.
Holding the switch 2 in the “open” posi-
tion lowers all the windows.
Release the switch. You may now start
driving. Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.
Page 129 of 236
3.5

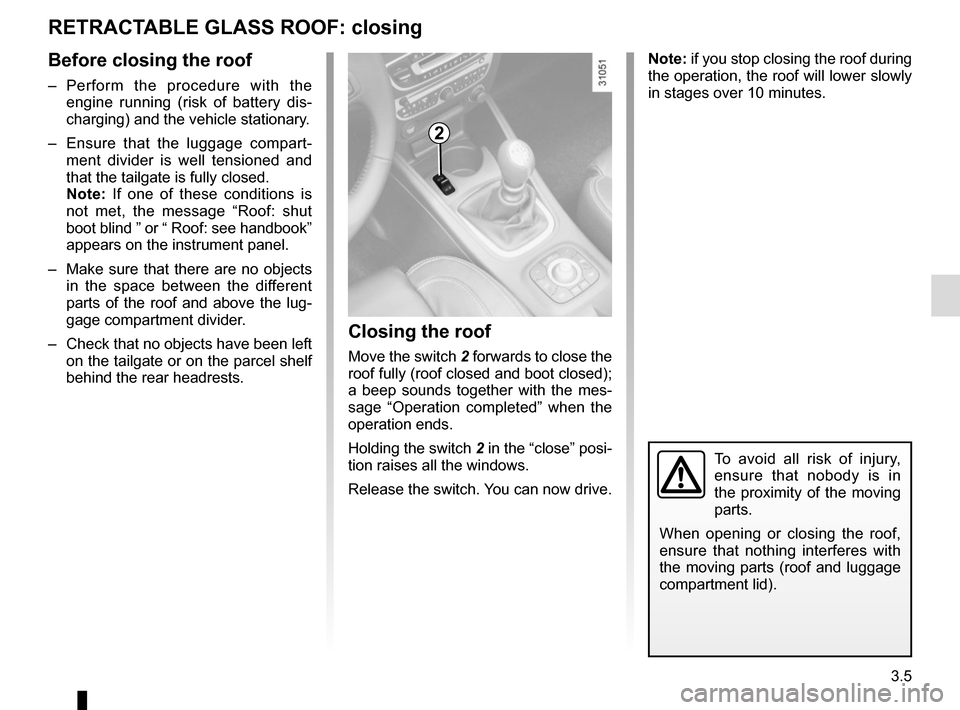

RETRACTABLE GLASS ROOF: closing
Closing the roof
Move the switch 2 forwards to close the
roof fully (roof closed and boot closed);
a beep sounds together with the mes-
sage “Operation completed” when the
operation ends.
Holding the switch 2 in the “close” posi-
tion raises all the windows.
Release the switch. You can now drive.
Before closing the roof
– Perform the procedure with the engine running (risk of battery dis-
charging) and the vehicle stationary.
– Ensure that the luggage compart- ment divider is well tensioned and
that the tailgate is fully closed.
Note: If one of these conditions is
not met, the message “Roof: shut
boot blind ” or “ Roof: see handbook”
appears on the instrument panel.
– Make sure that there are no objects in the space between the different
parts of the roof and above the lug-
gage compartment divider.
– Check that no objects have been left on the tailgate or on the parcel shelf
behind the rear headrests.
2
Note: if you stop closing the roof during
the operation, the roof will lower slowly
in stages over 10 minutes.
To avoid all risk of injury,
ensure that nobody is in
the proximity of the moving
parts.
When opening or closing the roof,
ensure that nothing interferes with
the moving parts (roof and luggage
compartment lid).
Page 130 of 236
3.6

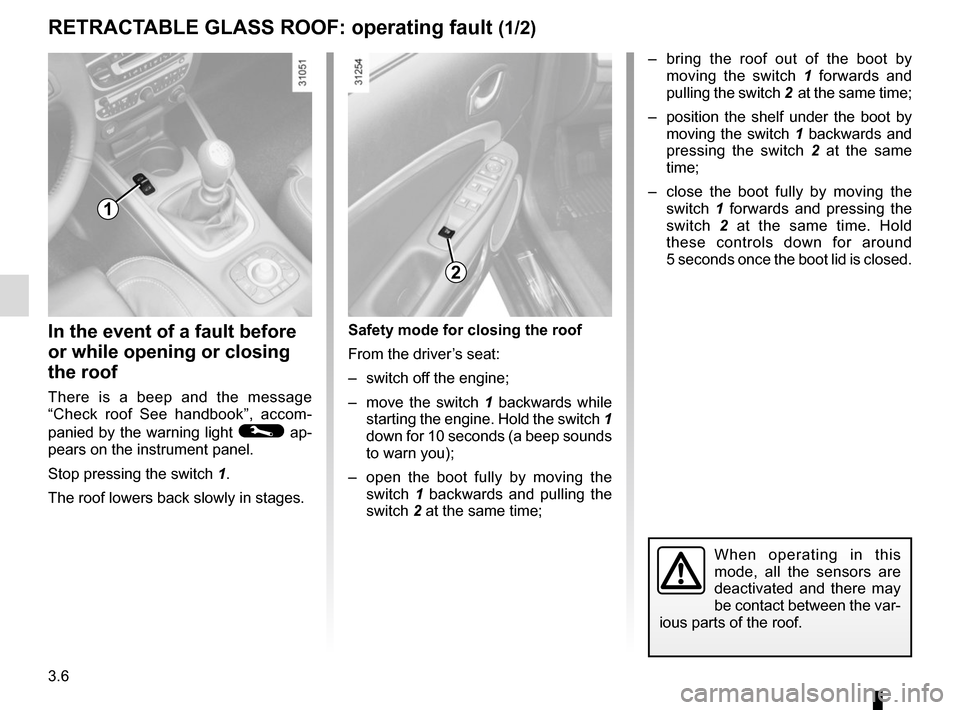

RETRACTABLE GLASS ROOF: operating fault (1/2)
In the event of a fault before
or while opening or closing
the roof
There is a beep and the message
“Check roof See handbook”, accom-
panied by the warning light
© ap-
pears on the instrument panel.
Stop pressing the switch 1.
The roof lowers back slowly in stages.
Safety mode for closing the roof
From the driver’s seat:
– switch off the engine;
– move the switch 1 backwards while
starting the engine. Hold the switch 1
down for 10 seconds (a beep sounds
to warn you);
– open the boot fully by moving the switch 1 backwards and pulling the
switch 2 at the same time;
1
– bring the roof out of the boot by moving the switch 1 forwards and
pulling the switch 2 at the same time;
– position the shelf under the boot by moving the switch 1 backwards and
pressing the switch 2 at the same
time;
– close the boot fully by moving the switch 1 forwards and pressing the
switch 2 at the same time. Hold
these controls down for around
5 seconds once the boot lid is closed.
2
When operating in this
mode, all the sensors are
deactivated and there may
be contact between the var-
ious parts of the roof.
