RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual https://www.carmanualsonline.info/img/7/1601/w960_1601-0.png RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual

Page 181 of 236

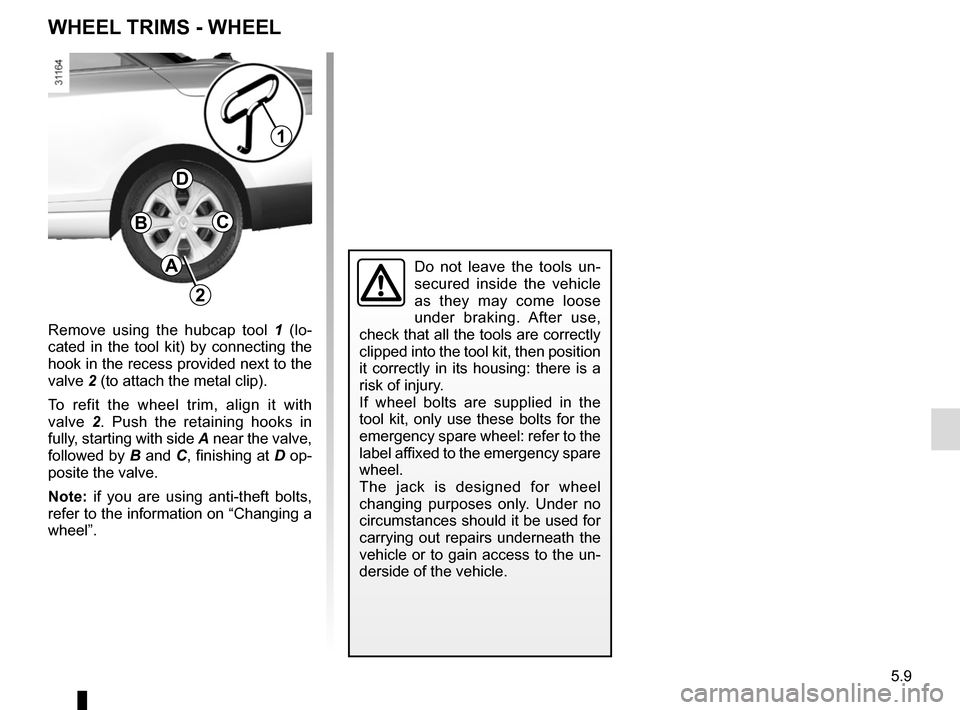

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.9
WHEEL TRIMS - WHEEL
Do not leave the tools un-
secured inside the vehicle
as they may come loose
under braking. After use,
check that all the tools are correctly
clipped into the tool kit, the

Page 182 of 236

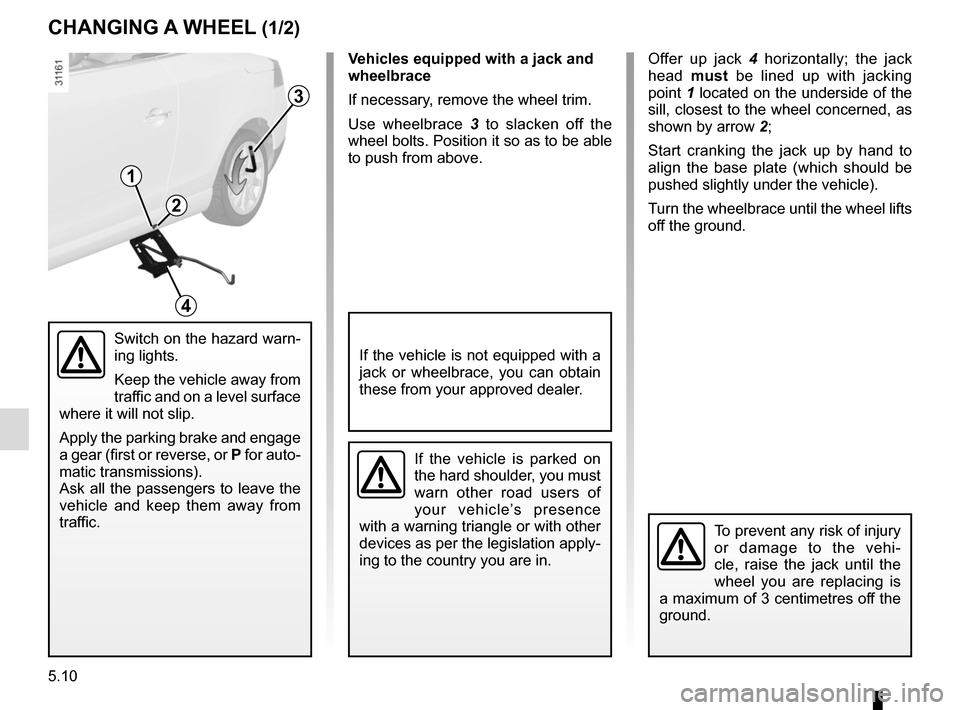

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.10
Offer up jack 4 horizontally; the jack
head  must be lined up with jacking
point  1 located on the underside of the
sill, closest to the wheel concerned, as
shown by arrow  2;
Start cranking

Page 183 of 236

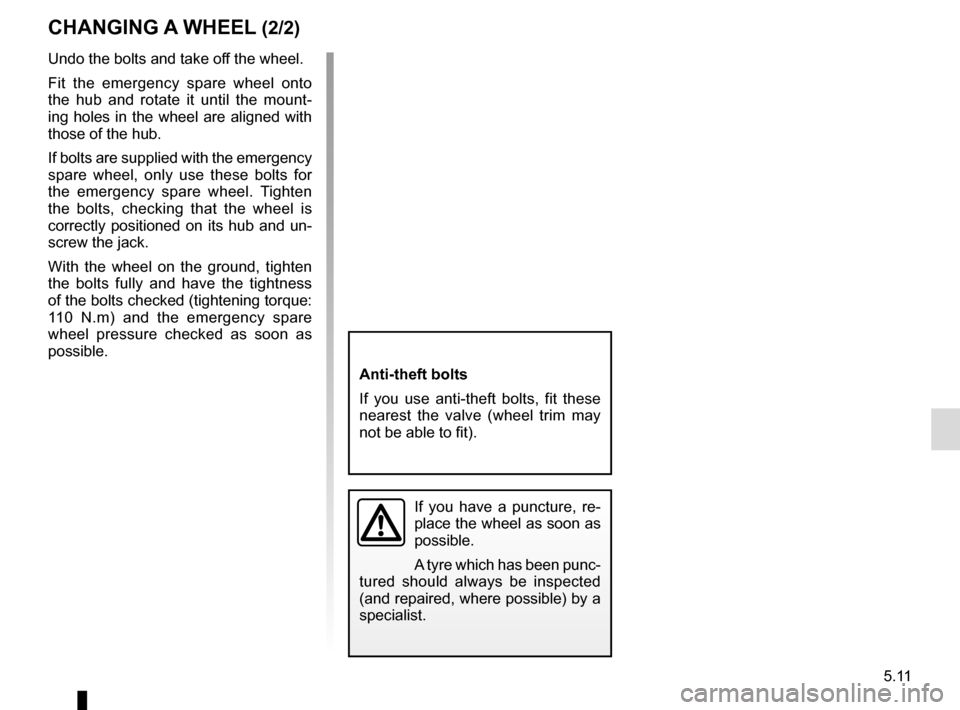

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.11
CHANGING A WHEEL (2/2)
Anti-theft bolts
If you use anti-theft bolts, fit these
nearest the valve (wheel trim may
not be able to fit).
If you have a puncture, re-
place the wheel as soon as
pos

Page 184 of 236

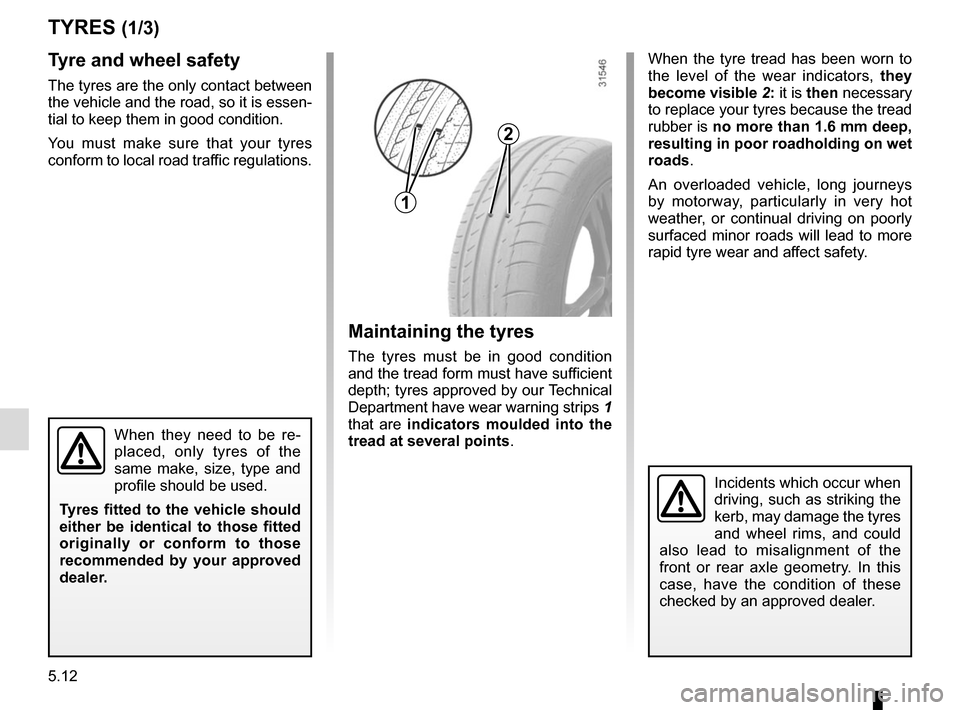

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.12
TYRES (1/3)
Maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have wear warning strips 1
that

Page 185 of 236

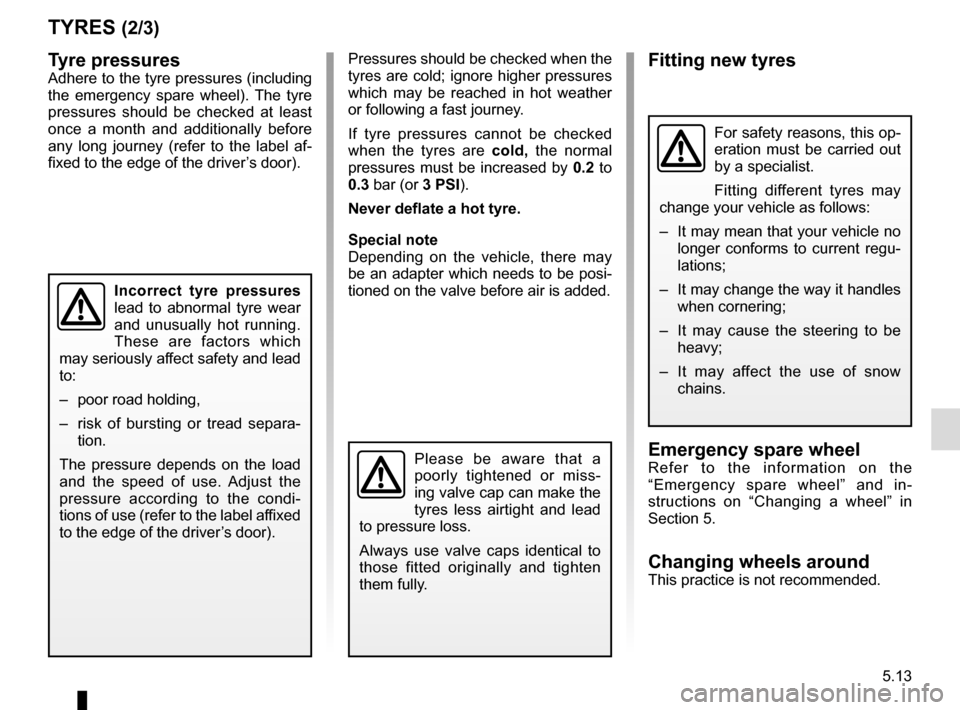

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.13
Tyre pressuresAdhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to

Page 186 of 236

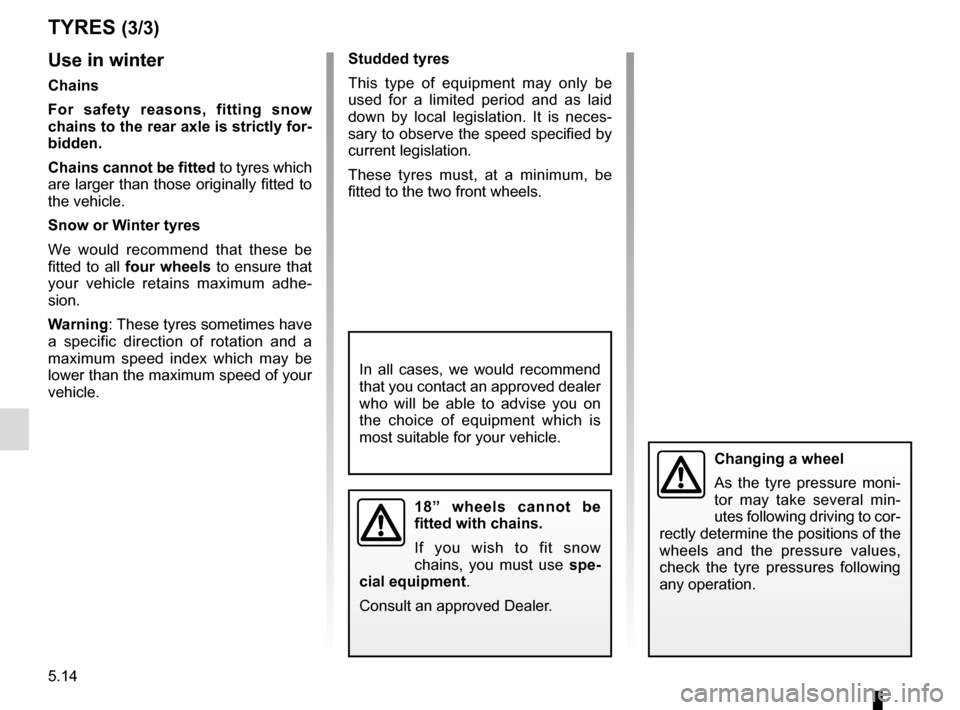

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.14
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted to
the veh

Page 187 of 236

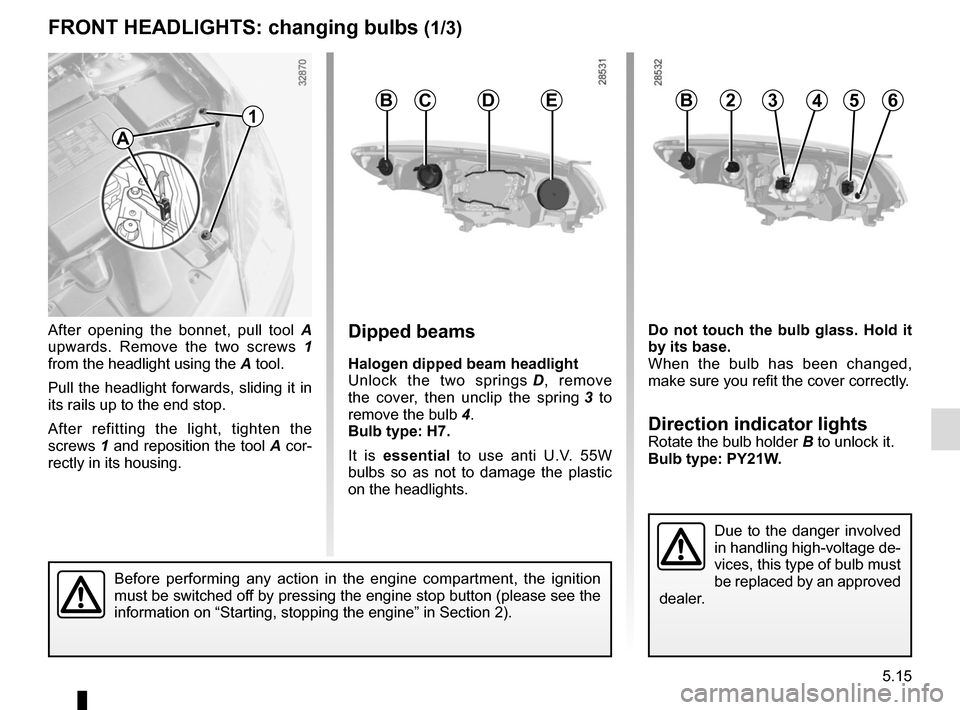

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.15
FRONT HEADLIGHTS: changing bulbs (1/3)
After opening the bonnet, pull tool A
upwards. Remove the two screws  1
from the headlight using the  A tool.
Pull the headlight forwards, sliding it in

Page 188 of 236

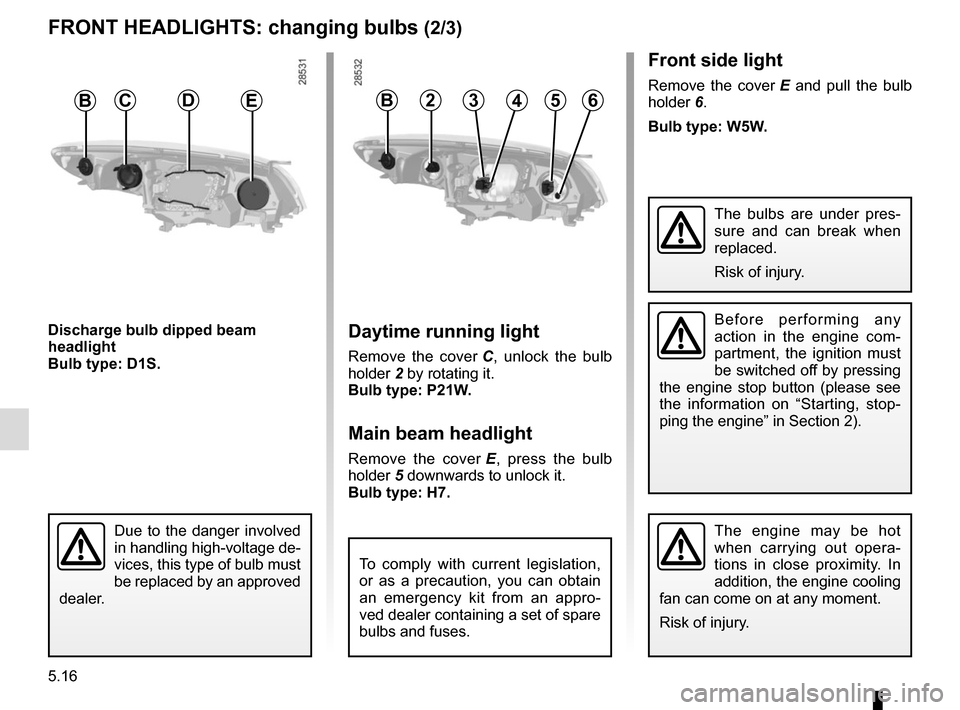

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.16
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The bulbs are under pres-
sure and can b

Page 189 of 236

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.17
FRONT HEADLIGHTS: changing bulbs (3/3)
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved Dealer.
Any operation on (or mo-
dification

Page 190 of 236

RENAULT MEGANE COUPE CABRIOLET 2015 X95 / 3.G Owners Manual 5.18
REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (1/2)
Direction indicator light  3
– From the luggage compartment,
remove the screws 1 ;
–  from the outside, pull the light to- wards you (m
