1.1
Section 1: Getting to know your vehicle
RENAULT card: General information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.14
Headrests - Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Additional methods of restraint: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.23in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . 1.23
to the rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . 1.27
side protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . 1.28
if the vehicle overturns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.30
Child safety: General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . 1.31 choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . 1.34
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.36
deactivating/activating the front passenger air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.43
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.44
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.48 trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . 1.53
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.64
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 1.64 vehicle settings customisation menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 1.65
Clock and outdoor temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.66
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.67
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.68
Headlight beam adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 1.71
Windscreen washer/wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.72
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.77

1.16
FRONT SEATS WITH MANUAL CONTROL
To move the seat forwards or
back
Lift handle 1 to release. Release the
handle at the desired position and
make sure that it is locked.
To adjust the height of the
seat base
Lower or pull lever 2 as many times as
is necessary to raise or lower the seat
base.
To tilt the seatback
Turn control knob 3 to the required po-
sition.
Heated seats(depending on vehicle)
With the engine running, turn control 4
to either position 1, 2 or 3 (depending
on the temperature required). An in-
dicator light on the instrument panel
lights up once the front seat heating
system is operating.
The system, which has a thermostat,
decides whether or not the heating is
needed.
For safety reasons, carry out any adjustments when the vehicle is not
being driven.
We would advise you not to recline the seatbacks too far to ensure that
the effectiveness of the seat belts is not reduced.
Nothing should be placed on the floor (area in front of driver) as suc\
h objects may
slide under the pedal during braking manoeuvres, thus obstructing its us\
e.
1
32
4
5
To adjust the lumbar support
on the driver’s seat
Lower handle 5 to increase the support
and lift to decrease it.

1.17
Adjusting the seat position
To move the seat base forwards or
back, move switch 4 forwards or back-
wards.
To raise or lower the seat base, move
switch 4 upwards or downwards.
Adjusting the seatback:
To tilt the seatback, move the top of
switch 3 forwards or backwards.
FRONT SEATS WITH ELECTRIC CONTROL
1
4
3
25
Make sure that the seat-
backs are correctly locked
in place.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Heated seats(depending on vehicle)
With the engine running, turn control 1
to either position 1, 2 or 3 (depending
on the temperature required). An in-
dicator light on the instrument panel
lights up once the front seat heating
system is operating.
The system, which has a thermostat,
decides whether or not the heating is
needed.
Adjusting the lumbar support
on the driver’s seat
Lower handle 5 to increase the support
and lift to decrease it.
Special note
On equipped vehicles, buttons 2 are
used to store the chosen driving posi-
tion (refer to the following page).

1.18

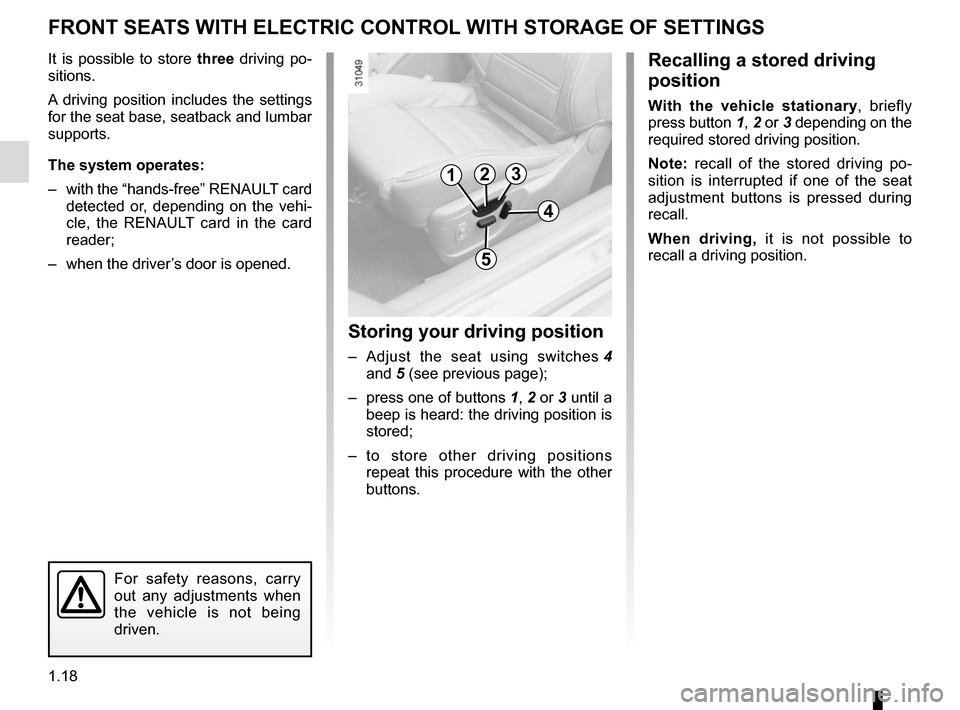

FRONT SEATS WITH ELECTRIC CONTROL WITH STORAGE OF SETTINGS
It is possible to store three driving po-
sitions.
A driving position includes the settings
for the seat base, seatback and lumbar
supports.
The system operates:
– with the “hands-free” RENAULT card detected or, depending on the vehi-
cle, the RENAULT card in the card
reader;
– when the driver’s door is opened.
Storing your driving position
– Adjust the seat using switches 4
and 5 (see previous page);
– press one of buttons 1, 2 or 3 until a
beep is heard: the driving position is
stored;
– to store other driving positions repeat this procedure with the other
buttons.
Recalling a stored driving
position
With the vehicle stationary, briefly
press button 1, 2 or 3 depending on the
required stored driving position.
Note: recall of the stored driving po-
sition is interrupted if one of the seat
adjustment buttons is pressed during
recall.
When driving, it is not possible to
recall a driving position.
123
4
5
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

1.20
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Incorrectly adjusted or
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt 2 should be worn flat over the
thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep-
ing bulky objects under the belts, etc.
SEAT BELTS (1/3)
1
2
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving
position
– Sit well back in your seat (having
first removed your coat or jacket).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head- rest. For maximum safety, your head
must be as close as possible to the
headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.

7.2
ALPHABETICAL INDEX (2/5)
doors/tailgate .........................................1.8 → 1.11, 1.14, 3.25
driver’s position .................................................... 1.44 → 1.50
driving .............................. 2.2 → 2.5, 2.9 → 2.17, 2.20 → 2.41
driving position settings............................................................ 1.20 → 1.22
driving recommendations ..................................... 2.15 → 2.17
E
electric beam height adjustment ........................................ 1.71
electric windows ..................................................... 3.18 – 3.19
electronic parking brake ....................................... 2.12 → 2.14
electronic stability control: ESC ............................ 2.24 → 2.27
emergency brake assist........................................ 2.24 → 2.27
emergency braking ............................................... 2.24 → 2.27
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ...................................................... 5.2
engine coolant ..................................................................... 4.9
engine oil ......................................................... 1.50, 4.4 → 4.8
engine oil capacity .................................................... 4.6 → 4.8
engine oil level .......................................................... 4.4 → 4.8
engine standby ......................................................... 2.6 → 2.8
engine start/stop button ............................................ 2.3 → 2.5
environment ............................................................\
........... 2.19
ESC: electronic stability control ............................ 2.24 → 2.27
external temperature ......................................................... 1.66
F
faults operating faults ............................................... 5.31 → 5.36
filter air filter ........................................................................\
. 4.11
diesel filter .................................................................... 4.11
oil filter .......................................................... 4.7 – 4.8, 4.11
passenger compartment filter ...................................... 4.11
fittings ..................................................................... 3.22 – 3.23
fog lights ............................................................... 5.15 → 5.17front passenger air bag deactivation ................................. 1.40
front seat adjustment ......................................................... 1.16
front seats
adjustment .................................. 1.15 – 1.16, 1.20 → 1.22
with electric controls..................................................\
... 1.17
with manual controls .................................................... 1.16
fuel advice on fuel economy ............................................... 2.15
capacity ...............................................................\
......... 1.77
consumption............................................. 1.49, 1.55 – 1.56
filling ....................................................... 1.48, 1.77 → 1.79
grade ............................................................... 1.77 → 1.79
fuel consumption ..................... 1.49, 1.55 – 1.56, 2.15 → 2.17
fuel economy ........................................................ 2.15 → 2.17
fuel filler cap ......................................................... 1.77 → 1.79
fuel level ........................................................................\
.... 1.51
fuel tank capacity ........................................................... 1.77 → 1.79
fuel tank capacity .................................................. 1.77 → 1.79
fuses ....................................................................... 5.22 – 5.23
G
gear lever..............................................................\
............. 2.11
H
handbrake...............................................................\
.. 1.48, 2.11
hands-free telephone integrated control ............................ 3.30
hazard warning lights signal ................................... 1.67 – 1.68
headlight beam adjustment ............................................... 1.71
headlight flashers .............................................................. 1.67
headlight washer ............................................................... 1.76
headrest................................................................\
............. 1.15
heating and air conditioning system .................................. 3.17
heating system ..................................................... 3.10 → 3.16
hill descent control ................................................ 2.24 → 2.27
Hill Start Assist...................................................... 2.24 →

2.27

7.3
ALPHABETICAL INDEX (3/5)
horn ...................................................................\
................ 1.67
horn:flash ..................................................................\
........... 1.67
sounding the horn ........................................................ 1.67
hubcap tool ................................................................. 5.8 – 5.9
I
indicators ............................................ 1.48, 1.67, 5.15 → 5.17
indicators: direction indicators .............................................. 1.67, 5.18
exterior temperature indicator ...................................... 1.66
instrument panel ............................................. 1.48 → 1.54
instrument panel .......................................... 1.48 → 1.63, 1.68
instrument panel messages.................................. 1.53 → 1.63
interior trim maintenance ..................................................... 4.18 – 4.19
Isofix .................................................................\
................. 1.32
J
jack ...................................................................\
................... 5.8
L
levels .................................................................\
......4.9 → 4.11
levels: brake fluid .................................................................... 4.10
coolant ................................................................\
.. 1.52, 4.9
fuel ...................................................................\
............ 1.51
windscreen washer reservoir ....................................... 4.11
lifting the vehicle changing a wheel .............................................. 5.10 – 5.11
lighting: exterior ............................................................ 1.68 → 1.70
instrument panel .......................................................... 1.68
interior ........................................... 3.20 – 3.21, 5.20 – 5.21
lights additional..............................................................\
........ 5.17 adjustment .............................................................\
...... 1.71
changing bulbs ................................................ 5.15
→ 5.17
front ................................................................. 5.15 → 5.17
mobile directional ......................................................... 1.69
lights: adjusting...............................................................\
........ 1.71
brake lights............................................................\
....... 5.18
dipped beam headlights ................ 1.48, 1.68, 5.15 → 5.17
direction indicators ........................ 1.48, 1.67, 5.15 → 5.18
fog lights........................................ 1.48, 1.70, 5.15 → 5.18
hazard warning ............................................................ 1.67
main beam headlights ................... 1.48, 1.69, 5.15 → 5.17
number plate lights.....................................................\
.. 5.19
reversing lights ............................................................. 5.18
side lights ............................................................ 1.68, 5.18
locking the doors ............................................1.2 → 1.11, 1.14
M
maintenance ............................................................\
.......... 2.18
maintenance: bodywork........................................................... 4.16 – 4.17
interior trim ........................................................ 4.18 – 4.19
mechanical ........................................ 4.2 – 4.3, 6.9 → 6.14
mileage before service ...................................... 6.9 → 6.14
map reading lights .................................................. 3.20 – 3.21
menu for customising the vehicle settings ......................... 1.65
methods of restraint in addition to the front seat belts ..............
1.23 → 1.26
methods of restraint in addition to the seat belts .. 1.23 → 1.29
mileage before service ........................................... 1.57 – 1.58
multimedia equipment ....................................................... 3.30
N
navigation .............................................................\
............. 3.30
navigation system .............................................................. 3.30

7.4
ALPHABETICAL INDEX (4/5)
O
oil change ................................................................. 4.4 → 4.8
opening the doors ................................................... 1.9 → 1.13
operating faults ................................1.48 → 1.50, 5.31 → 5.36
P
paintwork maintenance ..................................................... 4.16 – 4.17
parking distance control........................................ 2.35 → 2.38
power-assisted steering.................................................\
.... 1.64
pretensioners ..........................................................\
........... 1.23
protective measures if the vehicle overturns ..................... 1.30
puncture.................................................... 5.2, 5.8, 5.10 – 5.11
R
radio...................................................................\
................ 3.30
range with fuel ................................................................... 1.56
rear screen de-icing/demisting ................................. 3.11, 3.15
rear view mirrors ................................................................ 1.43
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.14
RENAULT card battery ................................................................\
.......... 5.26
use ....................................................................\
.. 1.2 → 1.8
RENAULT card battery ...................................................... 5.26
replacement parts ................................................................ 6.8
retractable glass roof operating faults ..................................................... 3.6 – 3.7
operation ............................................................. 3.2 → 3.5
reverse gear selecting ..................................................2.11, 2.39 → 2.41
reversing sensor ................................................... 2.35 → 2.38
roof bars ........................................................................\
.... 3.27
running in ........................................................................\
..... 2.2
S
seat belt pretensioners ......................................... 1.23 → 1.26front seat belt .................................................. 1.23
→ 1.26
seat belts ................................. 1.20 → 1.26, 1.28 – 1.29, 1.49
see-me-home lighting ............................................... 1.69, 1.71
service sheets......................................................... 6.9 → 6.14
side indicator lights changing bulbs ............................................................. 5.19
side protection devices ...................................................... 1.28
signals and lights .................................................. 1.68 → 1.71
special features of diesel versions.....................................\
2.10
special features of petrol vehicles ....................................... 2.9
speed limiter ................................................ 1.49, 2.28 → 2.30
starting the engine .................................................... 2.3 → 2.8
steering wheel adjustment .............................................................\
...... 1.64
Stop & Start .............................................................. 2.6 → 2.8
Stop & Start function................................................. 2.6 → 2.8
stopping the engine .................................................. 2.3 → 2.5
storage compartment.............................................. 3.22 – 3.23
storage compartments ................................... 3.22 – 3.23, 3.26
sun visor ........................................................................\
.... 3.21
switching on the vehicle ignition .......................................... 2.4
T
tailgate .................................................................... 3.25 – 3.26
tanks and reservoirs brake fluid .................................................................... 4.10
coolant ................................................................\
........... 4.9
tanks and reservoirs: windscreen washer ...................................................... 4.11
technical specifications ............................. 6.3 → 6.5, 6.7 – 6.8
telephone ..............................................................\
............. 3.30
temperature regulation ......................................... 3.12 → 3.16
tool kit ........................................................................\
.......... 5.8
towing breakdown ........................................................ 5.29 – 5.30
towing equipment ......................................................... 3.28
