Page 66 of 242
1.60
ENG_UD23624_1
Ordinateur de bord : paramètres de voyage (X95 - B95 - D95 - K95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
TRIp c O mp UTER: trip settings (3/5)
Examples of selections Interpreting the display selected
c) m ileage before service.
Distance remaining until the next service (displayed in
miles/kilometres and months), then when the service
nears, several scenarios are possible:
–
d
istance/time remaining less than 900 miles (1,500
km) or one month: the message “Service due” is dis-
played accompanied by the nearest term (distance or
time);
–
distance
equal to 0 miles or service date reached:
the message “Service required” is displayed accom-
panied by the
© warning light.
The vehicle requires a service as soon as possible.
Service in
30000km/24 MONTHS Service due in 100km
Service due in 10 days
NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,
door-to-door journeys, extensive use at idle speed, towing a trailer etc). The distance remaining until the next service can there-
fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.
The mileage before service must only be reset after a service which complies with the recommendations in the maintenance
schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the re-
placement intervals for other parts in the maintenance schedule.
s
pecial note: To reset the distance before service, press and hold one of the display reset buttons for approximately 10 sec-
onds until the display shows the mileage permanently.
The display of information shown below
d E p EN ds ON THE v EHI c LE EQUI pm ENT AN d c OUNTRY.
Page 72 of 242
menu for customising the vehicle settings
(up to the end of the DU)
customising the vehicle settings ........... (up to the end of the DU)
customised vehicle settings .................. (up to the end of the DU)
1.66
ENG_UD11347_2
Menu de personnalisation des réglages du véhicule (X95 - B95 - D9\
5 - Renault)
ENG_NU_837-8_BDK95_Renault_1
vehicle settings customisation menu
vEHIcLE sETTINgs cUsTOmIsATION mENU
Adjusting the settingsPress one of buttons 2 or 3 to select a
function to change:
a)
Auto door locking while driving;
b)
Unlock driver
’s door only;
c)
Auto rear wipe with reverse gear;
d)
Auto dipped-beam headlights;
e)
Front parking sensor;
f)
Rear parking sensor;
g)
Parking sensor volume ;
h)
LANGUAGE
.
= function activated
< function deactivated
On equipped vehicles, this function,
which is integrated in the trip compu-
ter and warning system
1
,
allows you
to activate/deactivate some of the vehi-
cle’s functions.
Accessing the settings
customisation menu
With the vehicle stationary, press
either button 2
or 3
until the mes-
sage “Settings menu: press and hold”
appears on display
1 .
Press either
button
2 or 3 for longer than 2 seconds
to enter the menu.
Once a line has been selected, keep
pressing either button 2 or 3 to change
the function: If you select either “Parking
sensor volume” or “LANGUAGE”, you
will be given a new choice of options
(parking distance control volume or in-
strument panel language). In this case,
make your selection and confirm it by
holding either button
2
or
3,
the value
selected is shown by a
~ in front
of the line.
To exit the menu, select “EXIT” or
“BACK” then confirm by holding either
button
2
or
3 .
It may be necessary to
carry out this operation several times.
2
3
1
The vehicle settings customisation
menu cannot be used when driv-
ing. At speeds of above 12 mph (20
km/h) for vehicles with a manual
gearbox (0 mph for vehicles with an
automatic gearbox), the on-board
display returns automatically to the
trip computer and warning system
mode.
Page 81 of 242
wipers ................................................... (up to the end of the DU)
windscreen washer/wiper ..................... (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.75
ENG_UD17355_4
Essuie-vitre / lave-vitre avant (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Wash/Wipe
vehicle fitted with front
windscreen wiper rain sensor
A park
B
automatic wiper function.
When
this position is selected, the
system detects water on the wind-
screen and triggers the wipers at a
suitable wiping speed. It is possi-
ble to change the triggering thresh-
old and the time sweeps by turning
ring
2:
–
E
:
minimum sensitivity
–
F
:
maximum sensitivity
n
ote: in foggy weather or during
snowfalls, the wiping is not automati-
cally triggered and remains under
the driver’s control.
C
normal wip
ing speed
D
fast wiping
speed
s
pecial note
When driving the vehicle , the wiping
speed slows down whenever the ve-
hicle stops. For example, fast wiping
speed will slow to normal wiping speed.
As soon as the vehicle moves off,
wiping will return to the speed originally
selected.
If stalk
1
is operated, it overrides and
cancels the automatic function.
vehicle fitted with intermittent
windscreen wipers
A park
B
intermittent wiping
T
he wipers will pause for several
seconds between sweeps. It is
possible to change the time be-
tween sweeps by turning ring
2
.
C
normal wip
ing speed
D
fast wiping
speed
WINdscREEN WAsH/WIpE (1/2)
1
1
A
B
c
d
E
f
2
For all vehicles, position C can be
accessed with the ignition on and
positions
B
and
D
can only be ac-
cessed with the engine running.
Page 114 of 242
2.28
ENG_UD18935_2
Régulateur-limiteur de vitesse : fonction régulateur (X95 - B95 -\
D95 - Renault)
ENG_NU_837-8_BDK95_Renault_2
Jaune NoirNoir texte
Putting the function on
standby
The function is suspended when you:
–
press switch
4 (O);
–
depress the brake pedal;
–
depress
the clutch pedal or shift into
neutral if the vehicle has an auto-
matic gearbox.
In all three cases, the cruising speed re-
mains stored, it is no longer displayed in
zone
6
and the message “Memorised”
along with the stored speed will appear
on the instrument panel.
Standby is confirmed when zones
A, B
and
C go out.
Exceeding the cruising speed
The cruising speed may be exceeded
at any time by depressing the acceler-
ator pedal. The cruising speed flashes
on the instrument panel along with the
illumination of zone
C
in red.
Then, release the accelerator: after a
few seconds, the vehicle will automati-
cally return to its set cruising speed.
Cruising speed cannot be
maintained
If driving up or down a steep gradient,
the system is unable to maintain the
cruising speed: the stored speed on the
instrument panel will flash and zone
C
will light up in red to inform you of this
situation.
CRUISE CONTROL/SPEED LIMITER: cruise control function (3/4)
Adjusting the cruising speed
The cruising speed may be changed by
pressing the following repeatedly:
–
switch
2 (+) to increase the speed;
–
switch
3 (-) to decrease the speed.
The cruise control function
is in no way linked to the
braking system.
A
bC6
2
3
5
4
Page 119 of 242
automatic gearbox (use) ....................... (up to the end of the DU)
automatic gearbox selector lever.......... (up to the end of the DU)
changing gear ....................................... (up to the end of the DU)
reverse gear selecting .......................................... (up to the end of the DU)
driving ................................................... (up to the end of the DU)
2.33
ENG_UD21799_7
Boîte automatique (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_2
Selector lever 1
Display 3 on the instrument panel
shows the mode and gear selected.
4:
P:
park
5
:
R:
reverse gear
6
:
N:
neutral
7
:
D:
automatic mode
8
:
manual mo
de
9:
zone
displaying gearbox mode or
gear engaged in manual mode
Operation
With the gear lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
unlocking button
2
.
With the foot on the brake pedal (warn-
ing light
c on the display 3 goes out),
move the lever out of position P.
Only engage D or R when the vehi-
cle is stopped, with your foot on the
brake and the accelerator pedal re-
leased.
Automatic gearbox
AUTOMATIC TRANSMISSION (1/3)
Driving in automatic mode
Select position D. In most traffic con-
ditions, you will not have to touch the
gear selector lever again: the gears will
change automatically at the right time
and at the most suitable engine speed
because the automatic system takes
into account the vehicle load and road
contour and adjusts itself to the particu-
lar driving style you have chosen.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
speed.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.
3
2
1
4
5
6
78
9
Page 161 of 242
engine oil .............................................. (up to the end of the DU)
oil change ............................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
4.3
ENG_UD23617_4
Niveau huile moteur : généralités (X95 - B95 - D95 - K95 - Ren\
ault)
ENG_NU_837-8_BDK95_Renault_4
Engine oil level:
general information
engine Oil level: general information (1/2)
Minimum oil level warning on
the instrument panel
When the message “Checking control
functions” is displayed press button 3
or
4.
if
the level is below minimum: the
message “Oil level” appears on the dis-
play along with squares
1
that are re-
placed with dashes
2
when the level
goes down.
n
ote: The detailed level cannot be dis-
played if the vehicle was previously
only driven for a short time. if the level is at the minimum
The message “Top up oil level” and in-
dicator light © light up on the in-
strument panel.
i
t is vital to top up the oil as soon as
possible.
The display only warns the
driver if the oil level is at the
minimum level. It does not
inform the driver that the oil
level has exceeded the maximum
level as this can only be measured
using a dipstick.
It is normal for an engine to use oil for
lubrication and cooling of moving parts
and it is normal to top up the level be-
tween oil changes.
However, contact your approved
Dealer if more than 0.5 litres is being
consumed every 600 miles (1,000 km)
after the running in period.
Oil change frequency: check the oil
level from time to time and certainly
before any long journey to avoid the
risk of damaging your engine.
Reading the oil level
The oil level should be read with the ve-
hicle on level ground, after the engine
has been switched off for some time.
th
e dipstick must be used to read
the exact oil level and make sure
that the maximum level has not been
exceeded (risk of engine damage).
Refer to the following pages.
The instrument panel display only
alerts the driver when the oil level is at
its minimum.
3
4
Oil level
12
Page 163 of 242
engine oil .............................................. (up to the end of the DU)
oil change ............................................. (up to the end of the DU)
engine oil level ...................................... (up to the end of the DU)
engine oil capacity ................................ (up to the end of the DU)
4.5
ENG_UD21553_5
Niveau huile moteur : appoint/remplissage (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_4
topping up/filling

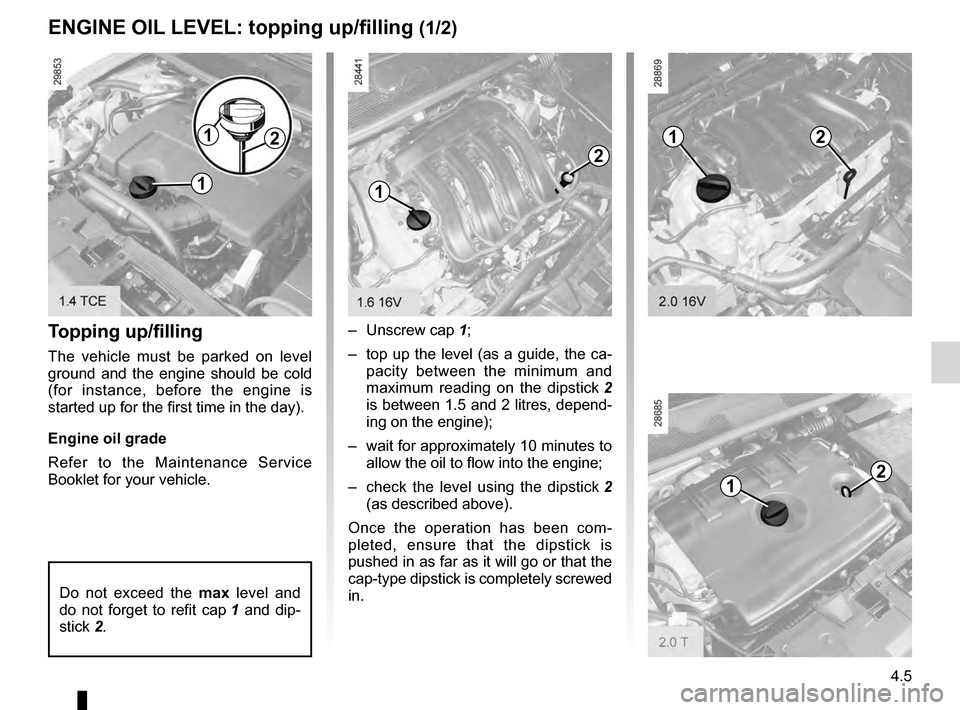

engine Oil level: topping up/filling (1/2)
topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is
started up for the first time in the day).
e
ngine oil grade
Refer to the Maintenance Service
Booklet for your vehicle. –
Unscrew cap
1;
– top up the level (as a guide, the ca-
pacity between the minimum and
maximum reading on the dipstick
2
is between 1.5 and 2 litres, depend-
ing on the engine);
–
wait
for approximately 10 minutes to
allow the oil to flow into the engine;
–
c
heck the level using the dipstick
2
(as described above).
Once the operation has been com-
pleted, ensure that the dipstick is
pushed in as far as it will go or that the
cap-type dipstick is completely screwed
in.
Do not exceed the max level and
do not forget to refit cap 1 and dip-
stick
2.
1
2
21
12
1
12
Page 181 of 242
changing a wheel.................................. (up to the end of the DU)
puncture................................................ (up to the end of the DU)
lifting the vehiclechanging a wheel ............................ (up to the end of the DU)
5.7
ENG_UD18916_4
Changement de roue (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_5

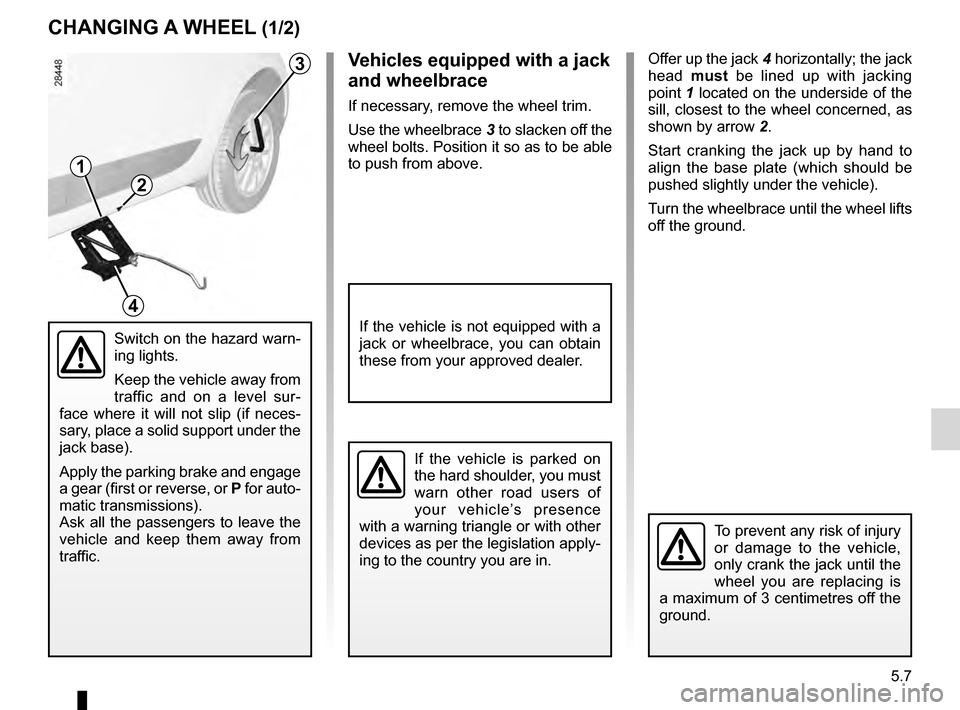

Offer up the jack 4 horizontally; the jack
h ead must be lined up with jacking
point
1 located on the underside of the
sill, closest to the wheel concerned, as
shown by arrow
2
.
Start cranking the jack up by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Turn the wheelbrace until the wheel lifts
off the ground.
Changing a wheel
Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level sur-
face where it will not slip (if neces-
sary, place a solid support under the
jack base).
Apply the parking brake and engage
a gear (first or reverse, or P for auto-
matic transmissions).
Ask all the passengers to leave the
vehicle and keep them away from
traffic.
3
1
2
4
changIng a wheel (1/2)
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Vehicles equipped with a jack
and wheelbrace
If necessary, remove the wheel trim.
Use the wheelbrace
3
to slacken off the
wheel bolts. Position it so as to be able
to push from above.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.
Page 186 of 242
lightsfront ................................................. (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.12
ENG_UD22105_3
Projecteurs avant : remplacement des lampes (X95 - B95 - D95 - Renault)\
ENG_NU_837-8_BDK95_Renault_5
Jaune NoirNoir texte

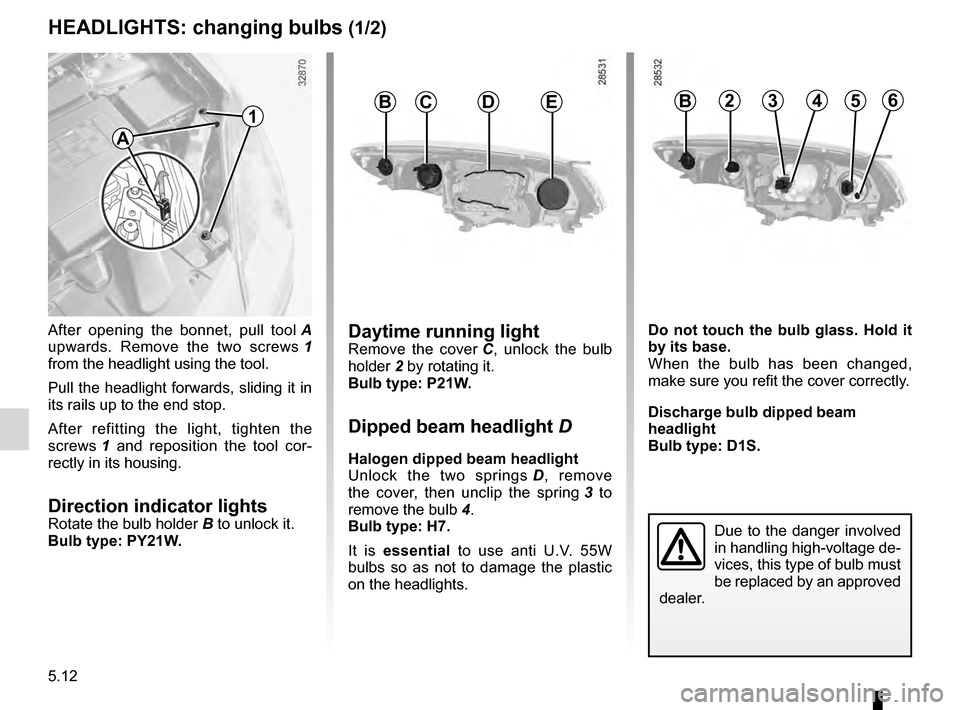

Headlights (changing bulbs)
heaDlIghts: changing bulbs (1/2)
After opening the bonnet, pull tool A
upwards. Remove the two screws 1
from the headlight using the tool.
Pull the headlight forwards, sliding it in
its rails up to the end stop.
After refitting the light, tighten the
screws
1
and reposition the tool cor-
rectly in its housing.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb type: P y 21 w.
Daytime running lightRemove the cover C, unlock the bulb
holder 2 by rotating it.
Bulb type: P21
w
.
Dipped beam headlight D
halogen dipped beam headlight
U nlock the two springs D,
remove
the cover, then unclip the spring
3
to
remove the bulb
4
.
Bulb type:
h 7.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
BcDe3245B6
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
Do not touch the bulb glass. h old it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Discharge bulb dipped beam
headlight
Bulb type: D1
s .
a
1
