technical specifications RENAULT MEGANE RS 2012 X95 / 3.G Owners Manual

0.1
ENG_UD17239_2
Bienvenue (X35 - X44 - X45 - X73 - X81 - J81 - X84 - X85 - B85 - C85 - \
S85 - X91 - X70 - X76 - X83 - X61 - X77 ph2 - K85 - X95 - X33 - X43 - X3\
8 - X65 PH5 - X62 - X32
ENG_NU_837-6_BDK95_Renault_0
Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from RENAULT,
92 100 Billancourt 2010.
This Driver’s Handbook contains the information necessary:
– for you to familiarise yourself with your vehicle, to use it to its best advantage and to benefit fully from the all the functions and
the technical developments it incorporates.
– to ensure that it always gives the best performance by following the simple, but comprehensive advice concerning regular main-
tenance.
– to enable you to deal quickly with minor faults not requiring specialist attention.
It is well worth taking a few minutes to read this handbook to familiarise yourself with the information and guidelines it contains
about the vehicle and its functions and new features. If certain points are still unclear, our Network technicians will be only too
pleased to provide you with any additional information.
The following symbol will help you when reading this handbook:
Welcome to your new vehicle
The descriptions of the models given in this handbook are based on the technical specifications at the time of writing. This hand-
book covers all items of equipment (both standard and optional) available for these models but whether or not these are
fitted to the vehicle depends on the version, options selected and the c\
ountry where the vehicle is sold.
This handbook may also contain information about items of equipment to b\
e introduced later in the model year.
Throughout the manual, the “approved Dealer” is your RENAULT Dealer. To indicate a hazard, danger or safety recommendation.
Enjoy driving your new vehicle.

0.3
ENG_UD6256_1
Sommaire Général (X95 - B95 - Renault)
ENG_NU_837-6_BDK95_Renault_0
Getting to know your vehicle ...............................
Driving
...................................................................
Your comfort .........................................................
Maintenance .........................................................
Practical advice ....................................................
Technical specifications ......................................
Alphabetical index ...............................................
Sections
1
C O N T E N T S
2
3
4
5
6
7

6.1
ENG_UD19032_7
Sommaire 6 (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

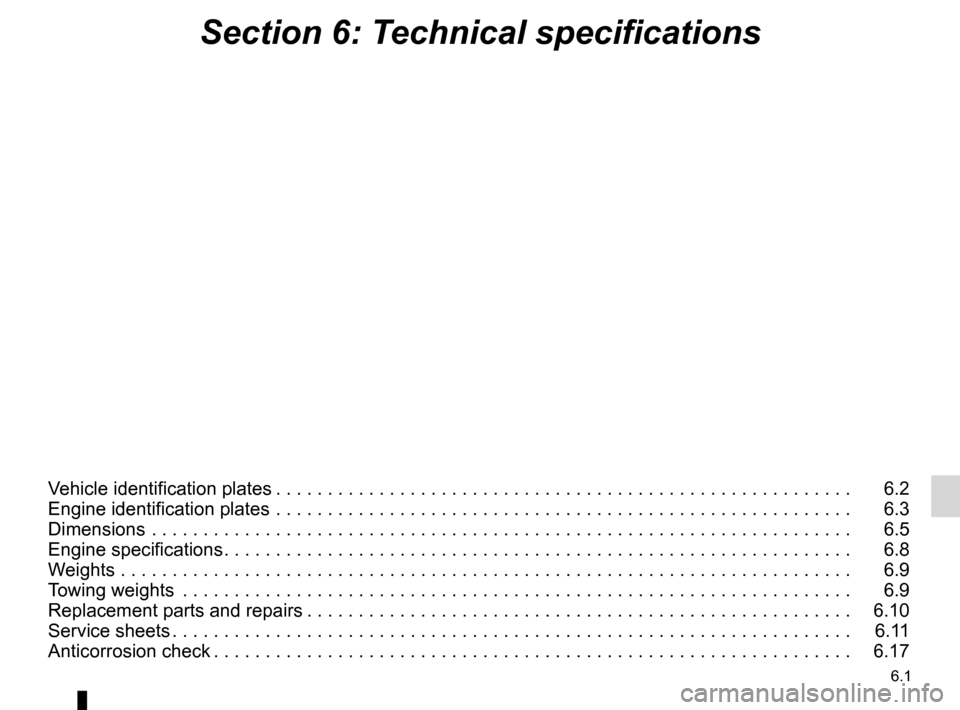

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.11
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.17

6.2
ENG_UD14568_2
Plaques d’identification véhicule (X95 - B95 - D95 - K95 - Renaul\
t)
ENG_NU_837-6_BDK95_Renault_6

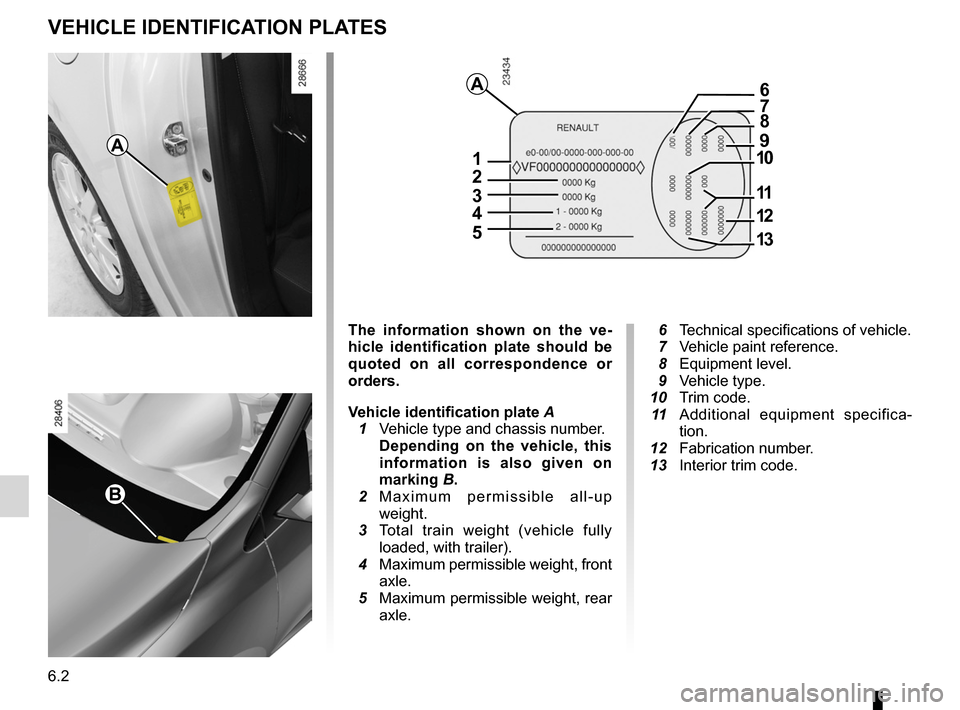

Vehicle identification plates
Vehicle identification plates
6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica -
tion.
12 Fabrication number.
13 Interior trim code.the information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
depending on the vehicle, this
information is also given on
marking B.
2 M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Maximum permissible weight, front
axle.
5 Maximum permissible weight, rear
axle.
a
B
a
1
2
3
4
5
678
910
12
13
11

technical specifications ......................... (up to the end of the DU)
vehicle identification plates ................... (up to the end of the DU)
6.3
ENG_UD11756_3
Plaques d’identification (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

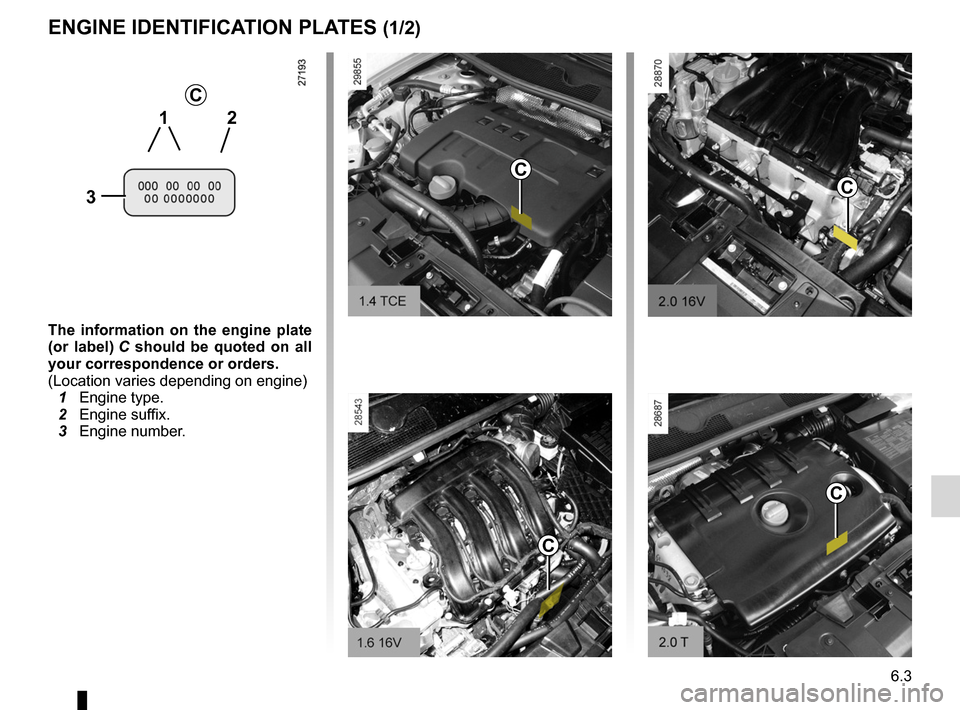

Engine identification plates
engine identification plates (1/2)
the information on the engine plate
(or label) C should be quoted on all
your correspondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
c
2
3
c
1
c
c
c

technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD14419_4
Dimensions (en mètre) (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

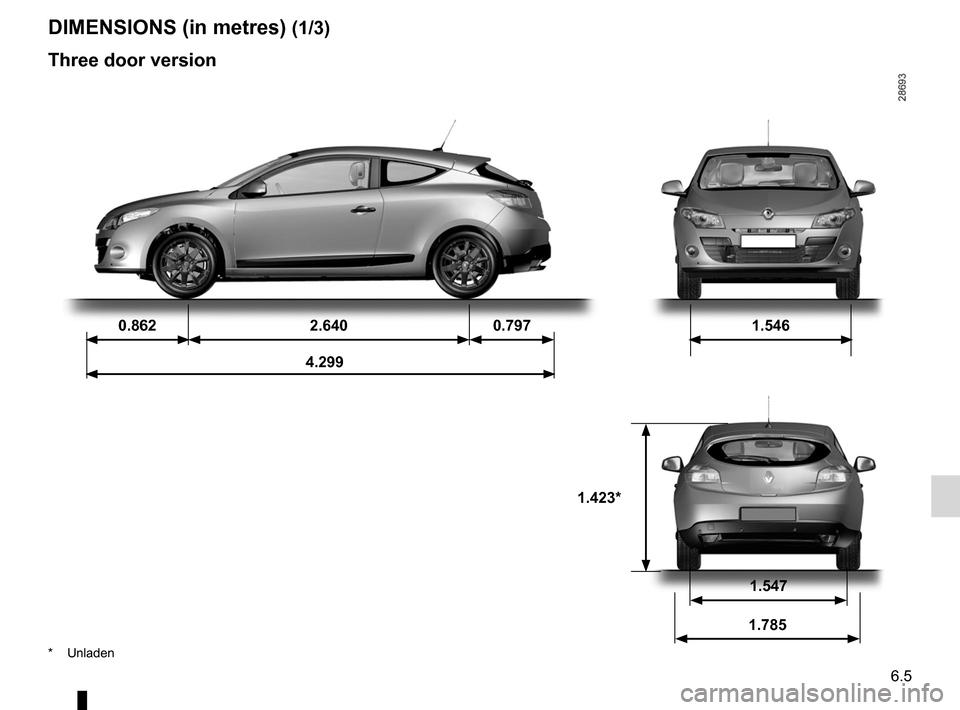

Dimensions
dimensions (in metres) (1/3)
three door version
0.862 2.6400.797 1.546
4.299
1.423*
1.547
1.785
* Unladen

technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
6.9
ENG_UD6360_1
Masse en Kg (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_6

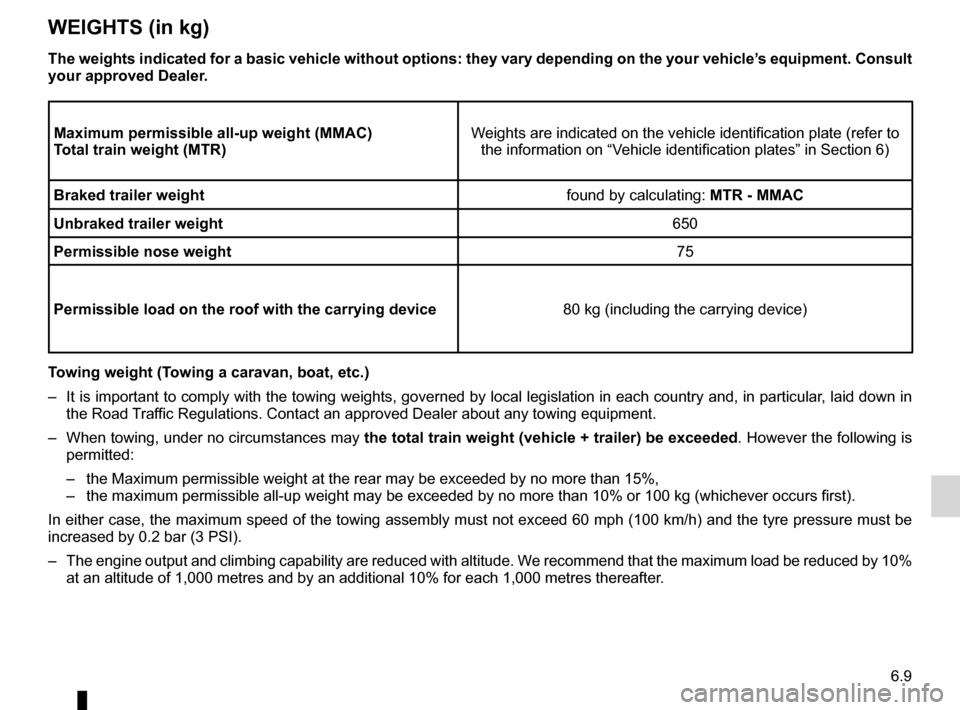

Weights
Towing weights
Weights (in kg)
the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment. consult
your approved dealer.
maximum permissible all-up weight (mmac)
t otal train weight (mtR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked trailer weight found by calculating: mtR - mmac
Unbraked trailer weight 650
permissible nose weight 75
permissible load on the roof with the carrying device 80 kg (including the carrying device)
t owing weight (t owing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.

technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.10
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_837-6_BDK95_Renault_6

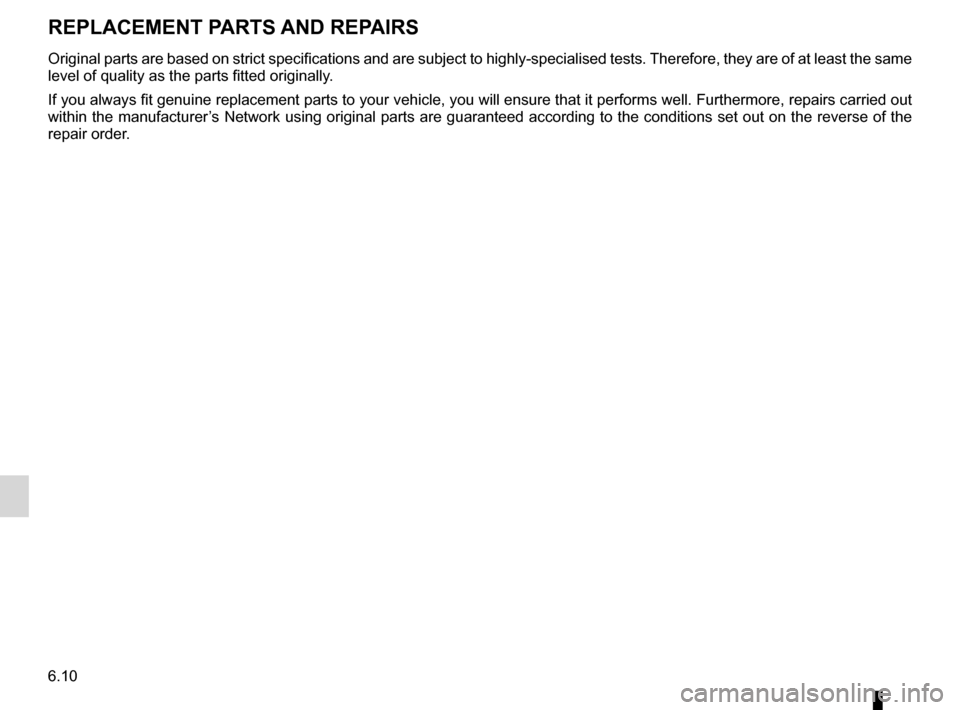

Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
Replacement paRts and RepaiRs

7.4
FRA_UD19033_8
Index (X95 - B95 - D95 - Renault)
ENG_NU_837-6_BDK95_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/5)
p
paintwork
maintenance ..................................................... 4.12 – 4.13
parking distance control ......................................... 2.30 → 2.32
power-assisted steering ..................................................... 1.67
pretensioners ..................................................................... 1.25
puncture .............................................................. 5.2, 5.6 → 5.8
R
radio........................................................................\
........... 3.36
fitting a radio ................................................................ 5.28
rear bench seat ...................................................... 3.22 → 3.24
rear parcel shelf ..................................................... 3.26 → 3.28
rear screen de-icing/demisting ..................................... 3.5, 3.9
rear seats functions .......................................................... 3.22 → 3.24
rear view mirrors ................................................................ 1.69
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.14
RENAULT card battery .......................................................................... 5.27
use ....................................................................... 1.2 → 1.9
RENAULT card battery ...................................................... 5.27
replacement parts .............................................................. 6.10
reverse gear selecting .................................................... 2.8, 2.33 → 2.35
reversing sensor .................................................... 2.30 → 2.32
roof bars ........................................................................\
.... 3.35
roof rack roof bars ....................................................................... 3.35
running in ........................................................................\
..... 2.2
S
screen wash/wipe .............................................................. 1.77
seat belt pretensioners .......................................... 1.25 → 1.28
front seat belt ...................................................1.25 → 1.28
seat belts .................................. 1.22 → 1.28, 1.30 – 1.31, 1.52 see-me-home lighting
............................................... 1.72, 1.74
service sheets ........................................................ 6.11 → 6.16
side indicator lights changing bulbs ............................................................. 5.20
side protection devices ...................................................... 1.30
signals and lights ................................................... 1.71 → 1.74
speakers location ........................................................................ 5.28
special features of diesel versions .......................................2.7
special features of petrol vehicles ....................................... 2.6
speed limiter ................................................. 1.51, 2.23 → 2.25
starting the engine ...................................................... 2.3 – 2.4
steering wheel adjustment ................................................................... 1.67
stopping the engine ............................................................. 2.5
storage compartment ............................................. 3.17 → 3.20
storage compartments ..................... 3.17 → 3.20, 3.29 → 3.31
storing the driver’s seat position ........................................1.20
sun visor ........................................................................\
.... 3.16
sunroof ................................................................... 3.12 → 3.14
switching on the vehicle ignition .......................................... 2.4
t
tailgate ........................... 3.25 – 3.26, 3.29 → 3.31, 3.33 – 3.34
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ........................................................................... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ............................ 6.3 → 6.7, 6.9 – 6.10
telephone ........................................................................\
... 3.36
temperature regulation ............................................ 3.6 → 3.10
tool kit ........................................................................\
.......... 5.6
towing breakdown ........................................................ 5.31 – 5.32
towing equipment ......................................................... 3.32
