RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual

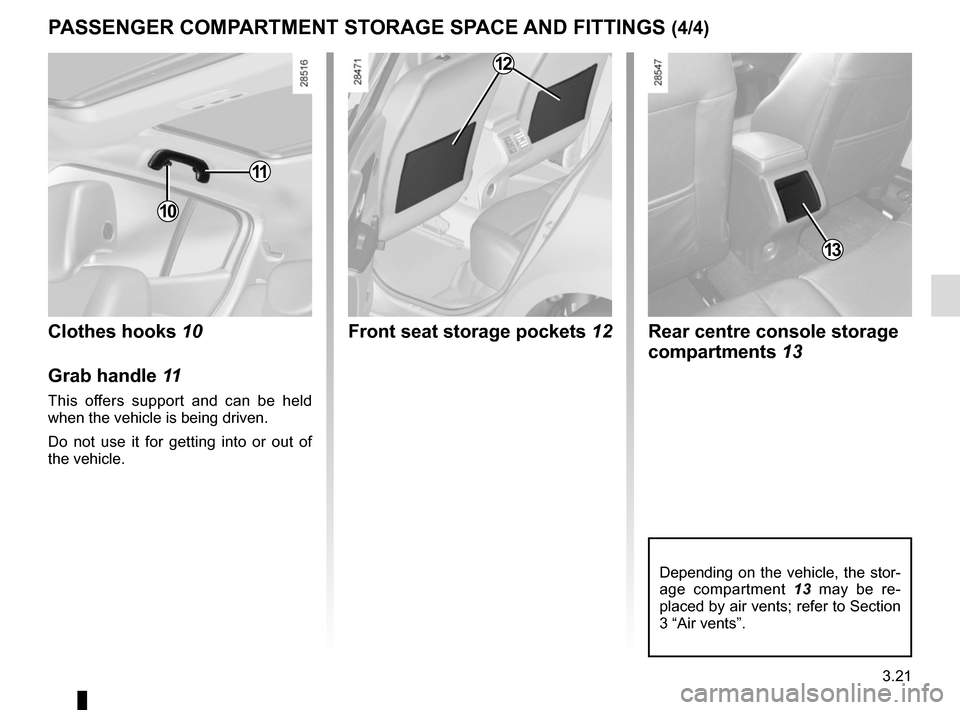

3.21
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Rear centre console storage
compartments 13
13
Depending on the vehicle, the stor-
age compartment 13 may be re-
placed by air vents; refer to Section
3 “Air vents”.
12
Front seat storage pockets 12
10
11
Clothes hooks 10
Grab handle 11
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.

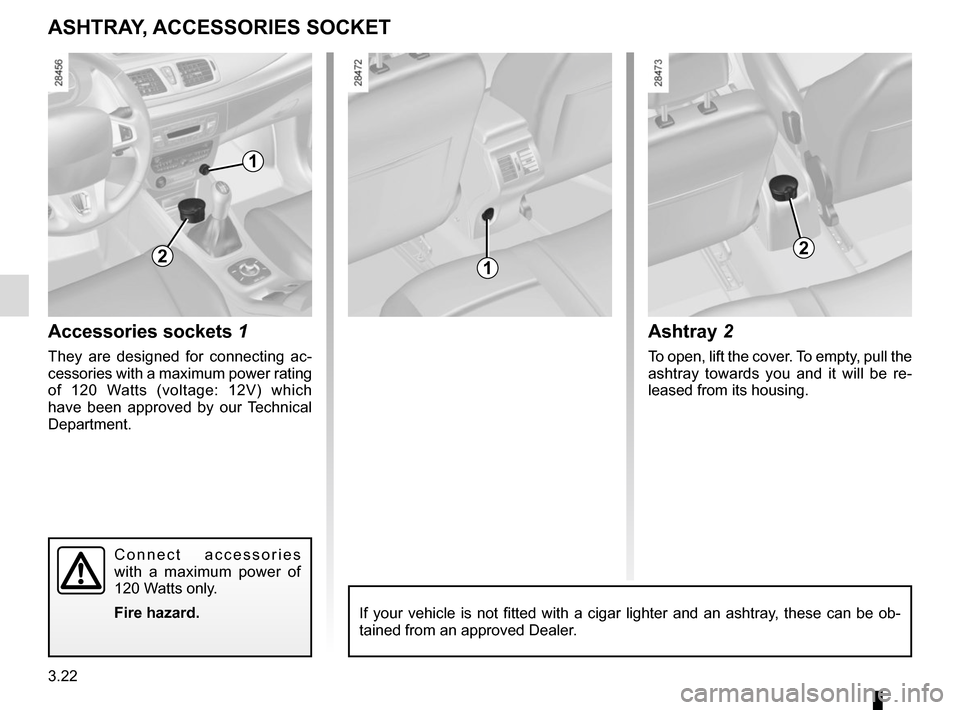

3.22
ASHTRAY, ACCESSORIES SOCKET
Accessories sockets 1
They are designed for connecting ac-
cessories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an approved Dealer.
1
22
1
Ashtray 2
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing.
Connect accessories
with a maximum power of
120 Watts only.
Fire hazard.

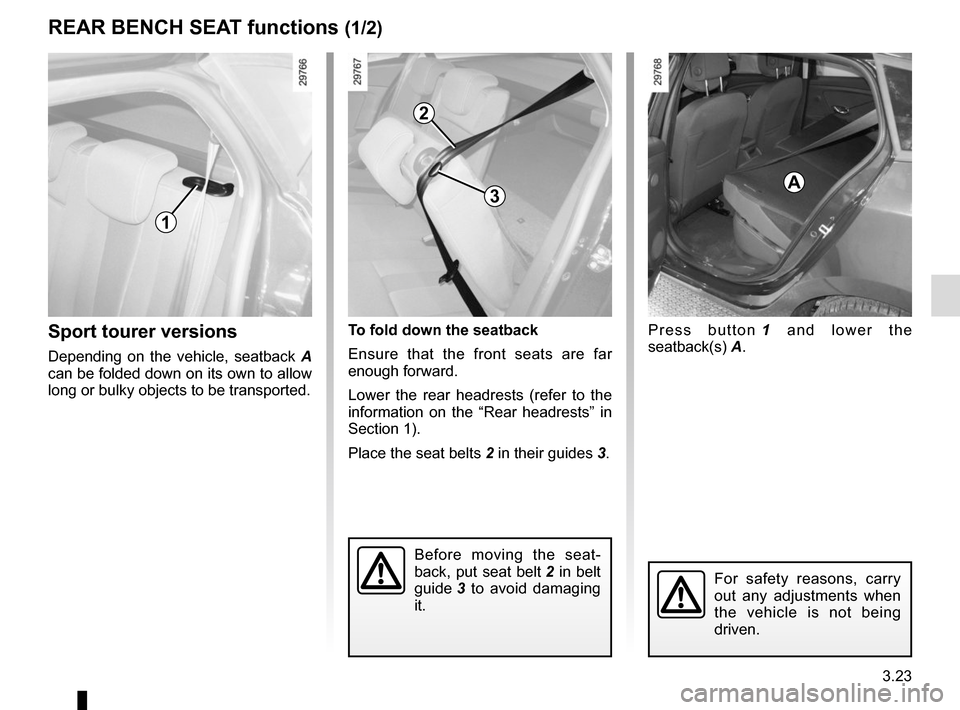

3.23
Press button 1 and lower the
seatback(s) A.
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the rear headrests (refer to the
information on the “Rear headrests” in
Section 1).
Place the seat belts 2 in their guides
3.Sport tourer versions
Depending on the vehicle, seatback A
can be folded down on its own to allow
long or bulky objects to be transported.
REAR BENCH SEAT functions (1/2)
1
A
2
3
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Before moving the seat-
back, put seat belt 2 in belt
guide 3 to avoid damaging
it.

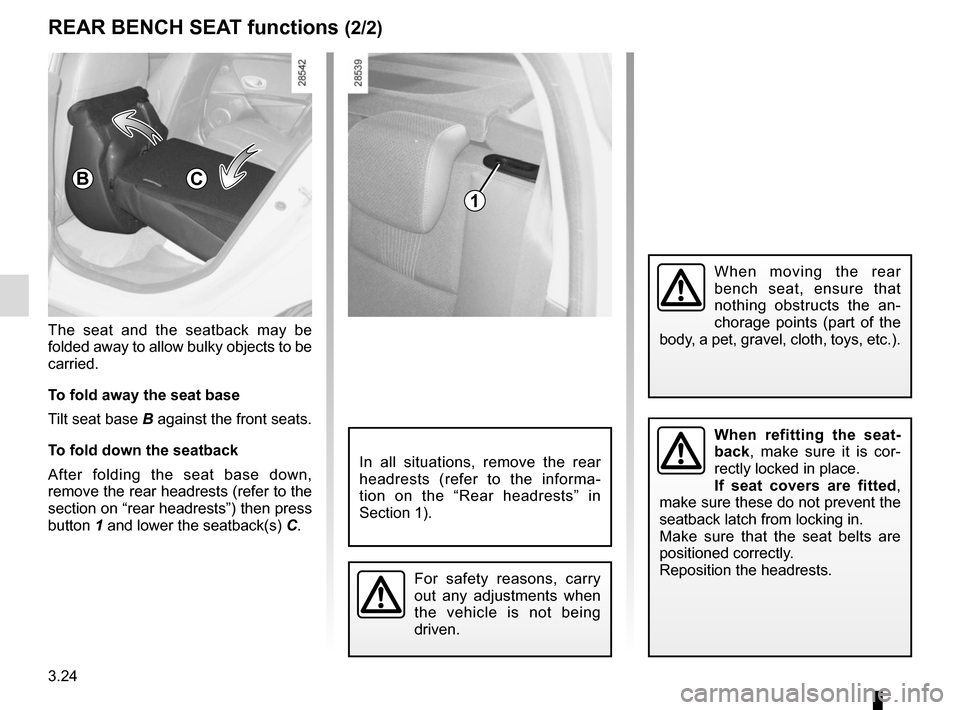

3.24
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
The seat and the seatback may be
folded away to allow bulky objects to be
carried.
To fold away the seat base
Tilt seat base B against the front seats.
To fold down the seatback
After folding the seat base down,
remove the rear headrests (refer to the
section on “rear headrests”) then press
button 1 and lower the seatback(s) C.
In all situations, remove the rear
headrests (refer to the informa-
tion on the “Rear headrests” in
Section 1).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
CB
REAR BENCH SEAT functions (2/2)
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).

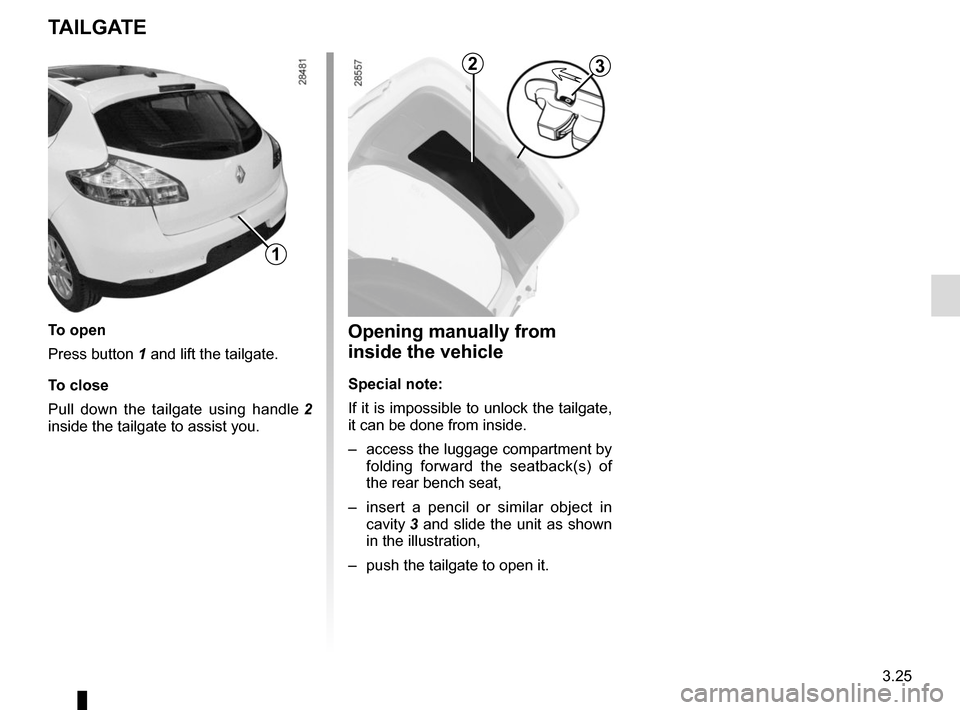

3.25
TAILGATE
To open
Press button 1 and lift the tailgate.
To close
Pull down the tailgate using handle 2
inside the tailgate to assist you.
1
Opening manually from
inside the vehicle
Special note:
If it is impossible to unlock the tailgate,
it can be done from inside.
– access the luggage compartment by folding forward the seatback(s) of
the rear bench seat,
– insert a pencil or similar object in cavity 3 and slide the unit as shown
in the illustration,
– push the tailgate to open it.
23

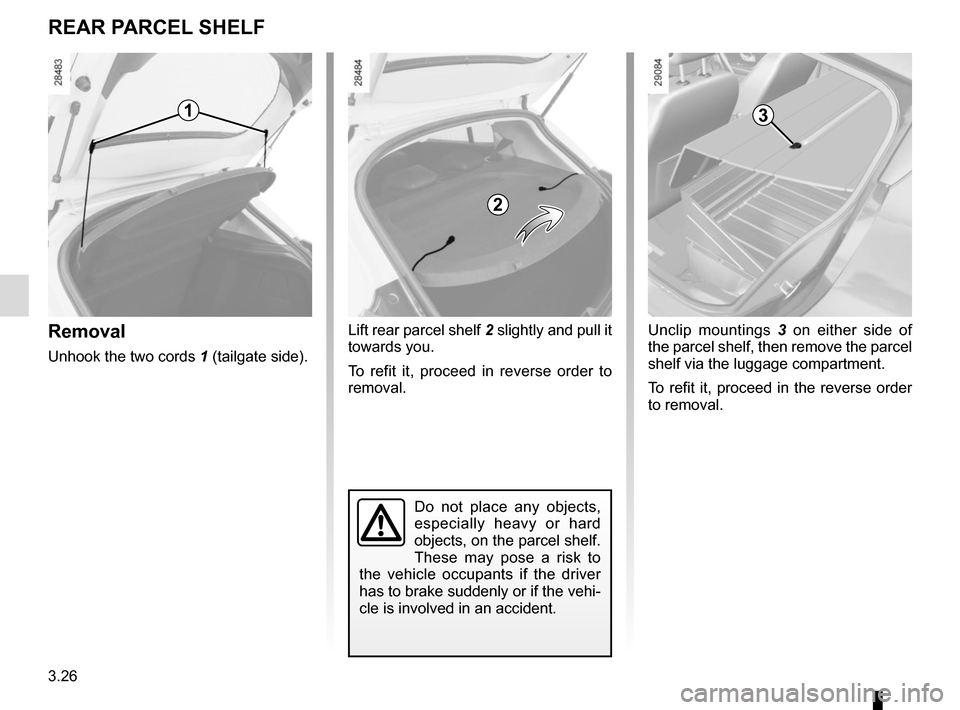

3.26
Removal
Unhook the two cords 1 (tailgate side).
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
Lift rear parcel shelf 2 slightly and pull it
towards you.
To refit it, proceed in reverse order to
removal.
REAR PARCEL SHELF
1
2
Unclip mountings 3 on either side of
the parcel shelf, then remove the parcel
shelf via the luggage compartment.
To refit it, proceed in the reverse order
to removal.
3

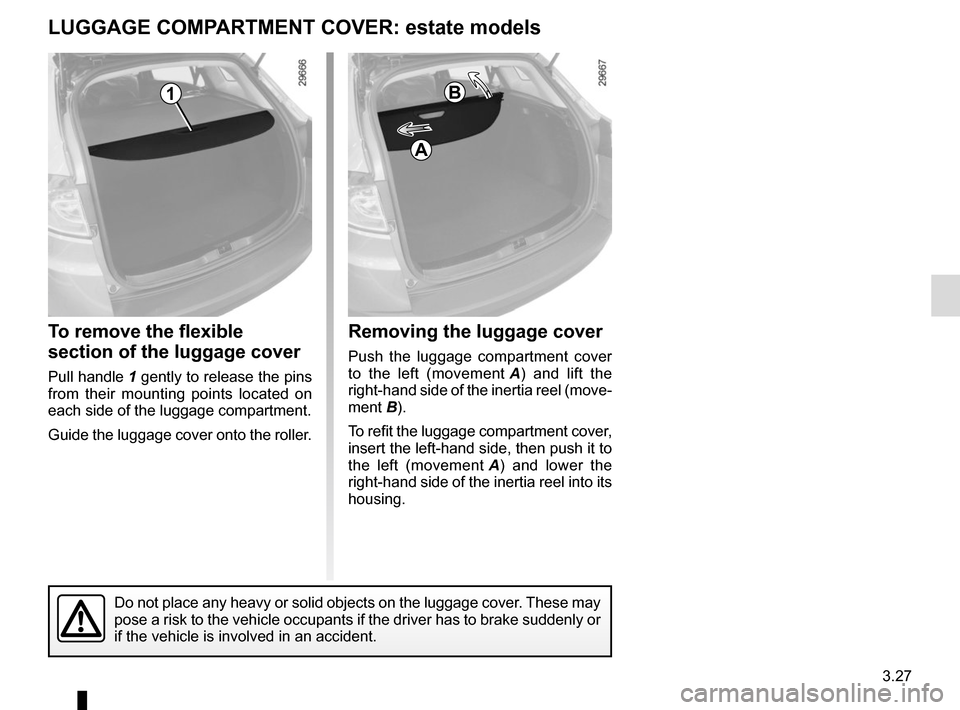

3.27
To remove the flexible
section of the luggage cover
Pull handle 1 gently to release the pins
from their mounting points located on
each side of the luggage compartment.
Guide the luggage cover onto the roller.
Removing the luggage cover
Push the luggage compartment cover
to the left (movement A) and lift the
right-hand side of the inertia reel (move-
ment B).
To refit the luggage compartment cover,
insert the left-hand side, then push it to
the left (movement A) and lower the
right-hand side of the inertia reel into its
housing.
LUGGAGE COMPARTMENT COVER: estate models
1B
A
Do not place any heavy or solid objects on the luggage cover. These may
pose a risk to the vehicle occupants if the driver has to brake suddenly\
or
if the vehicle is involved in an accident.

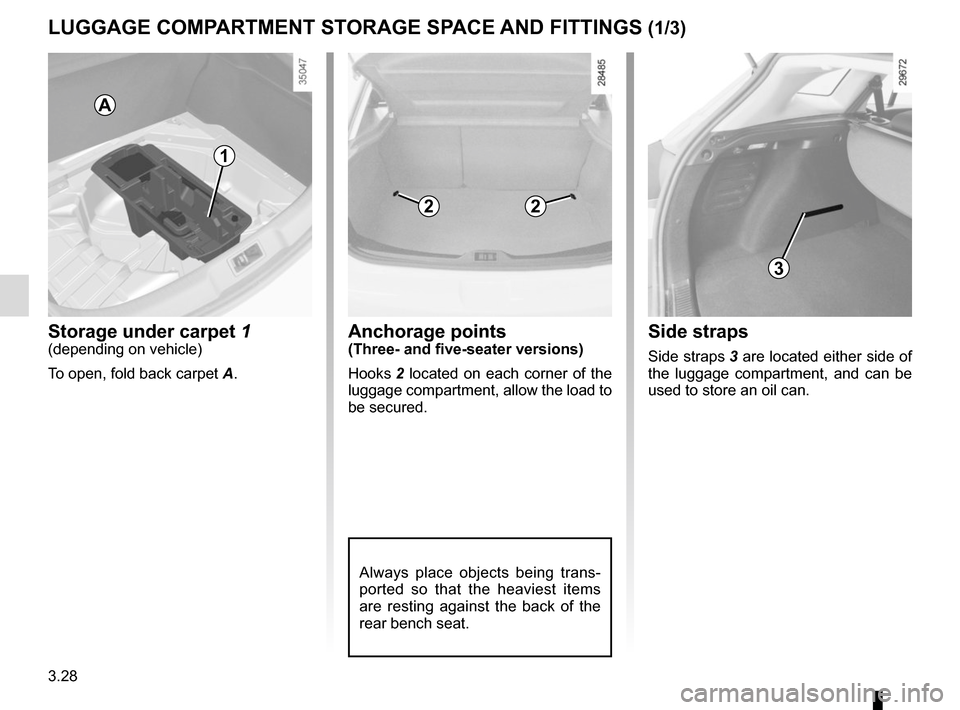

3.28
Anchorage points(Three- and five-seater versions)
Hooks 2 located on each corner of the
luggage compartment, allow the load to
be secured.
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS (1/3)
Storage under carpet 1(depending on vehicle)
To open, fold back carpet A.
22
Always place objects being trans-
ported so that the heaviest items
are resting against the back of the
rear bench seat.
Side straps
Side straps 3 are located either side of
the luggage compartment, and can be
used to store an oil can.
3
A
1

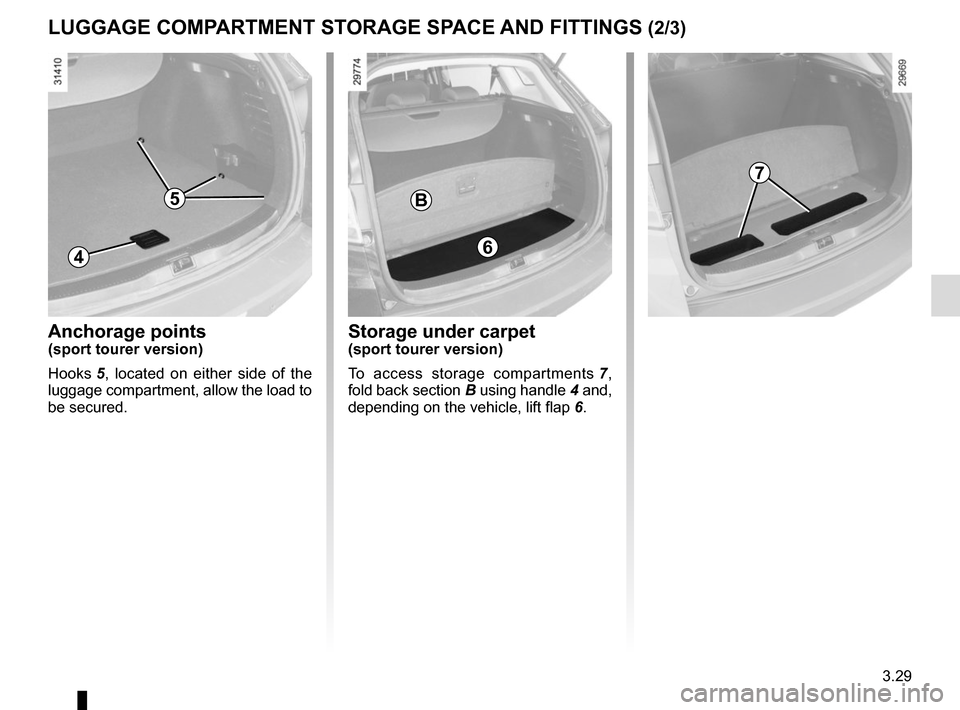

3.29
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS (2/3)
Storage under carpet(sport tourer version)
To access storage compartments 7,
fold back section B using handle 4 and,
depending on the vehicle, lift flap 6.
B
4
7
5
Anchorage points(sport tourer version)
Hooks 5, located on either side of the
luggage compartment, allow the load to
be secured.
6

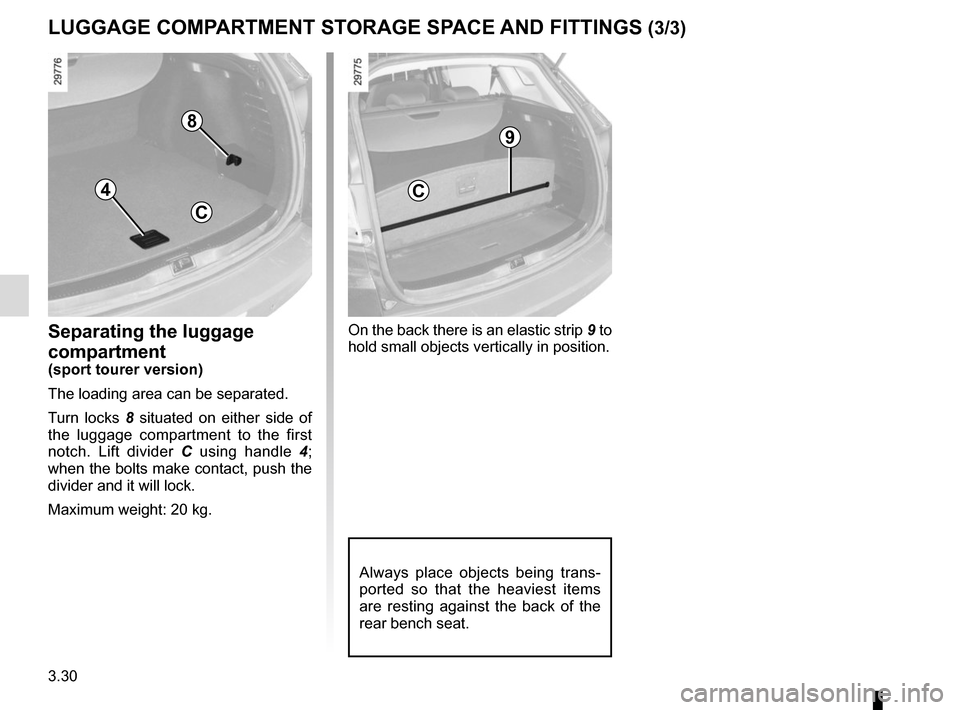

3.30
LUGGAGE COMPARTMENT STORAGE SPACE AND FITTINGS (3/3)
Separating the luggage
compartment
(sport tourer version)
The loading area can be separated.
Turn locks 8 situated on either side of
the luggage compartment to the first
notch. Lift divider C using handle 4;
when the bolts make contact, push the
divider and it will lock.
Maximum weight: 20 kg. On the back there is an elastic strip
9 to
hold small objects vertically in position.
8
4
C
C
9
Always place objects being trans-
ported so that the heaviest items
are resting against the back of the
rear bench seat.
