Page 211 of 268

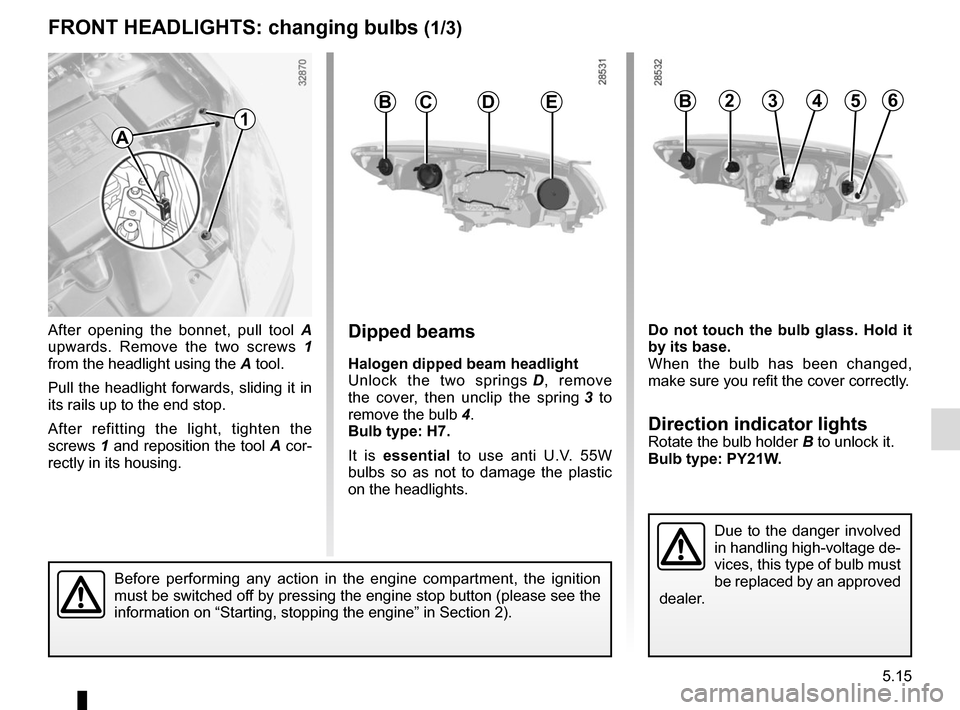

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.15
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Direction indicator lightsRotate the bulb holder B to unlock it.
Bulb

Page 212 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.16
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
To comply with current legislation,
or

Page 213 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.17

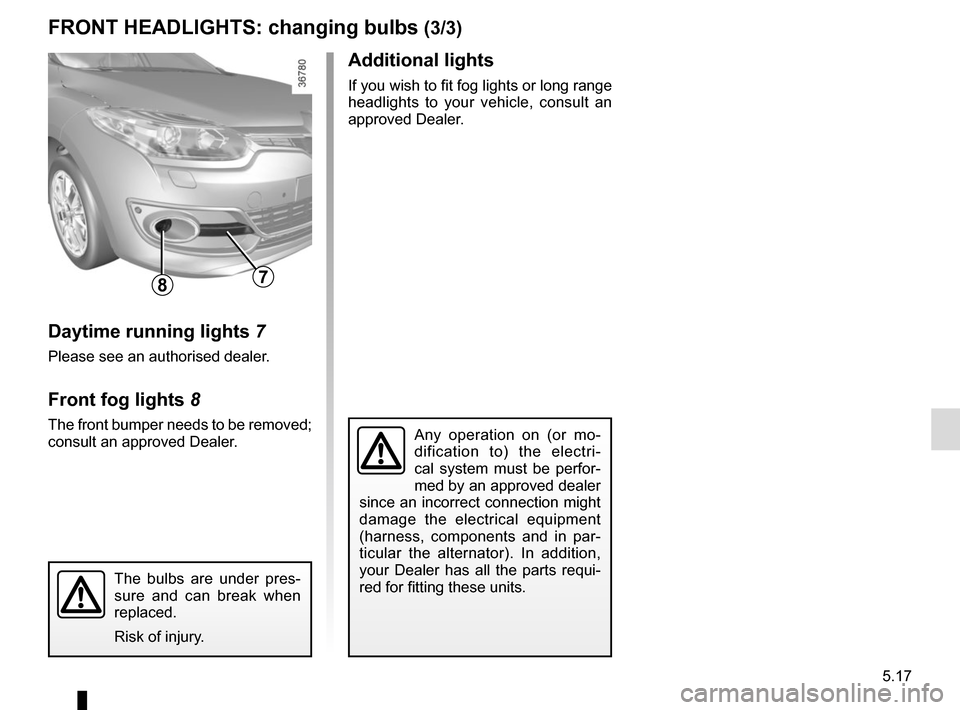

FRONT HEADLIGHTS: changing bulbs (3/3)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Daytime running lights 7
Please see an authorised dealer.
Front fog lights 8
Th

Page 214 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.18

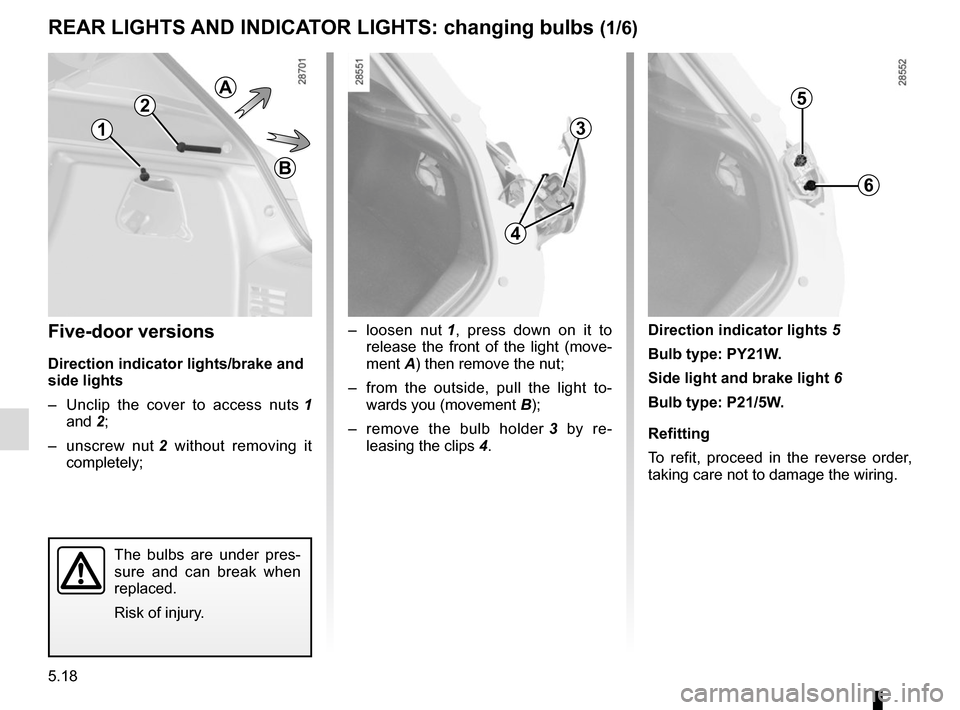

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (1/6)
5
– loosen nut 1, press down on it to
release the front of the light (move-
ment A) then remove the nut;
–  from the outside, pull the

Page 215 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.19

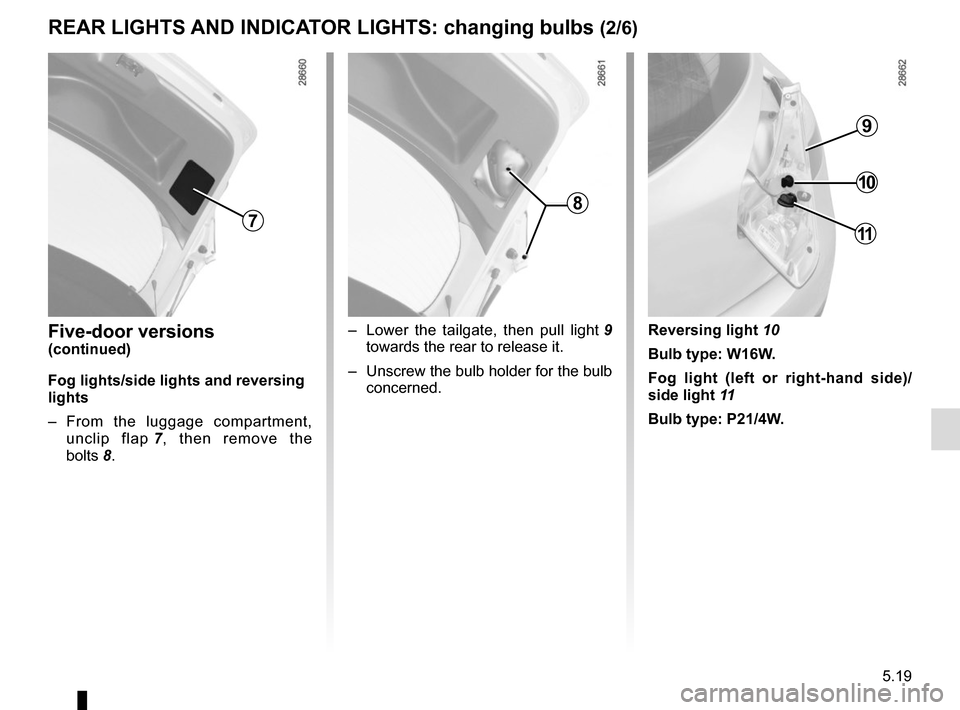

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (2/6)
Five-door versions
(continued)
Fog lights/side lights and reversing
lights
– From the luggage compartment,  unclip flap  7, then remove t

Page 216 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.20

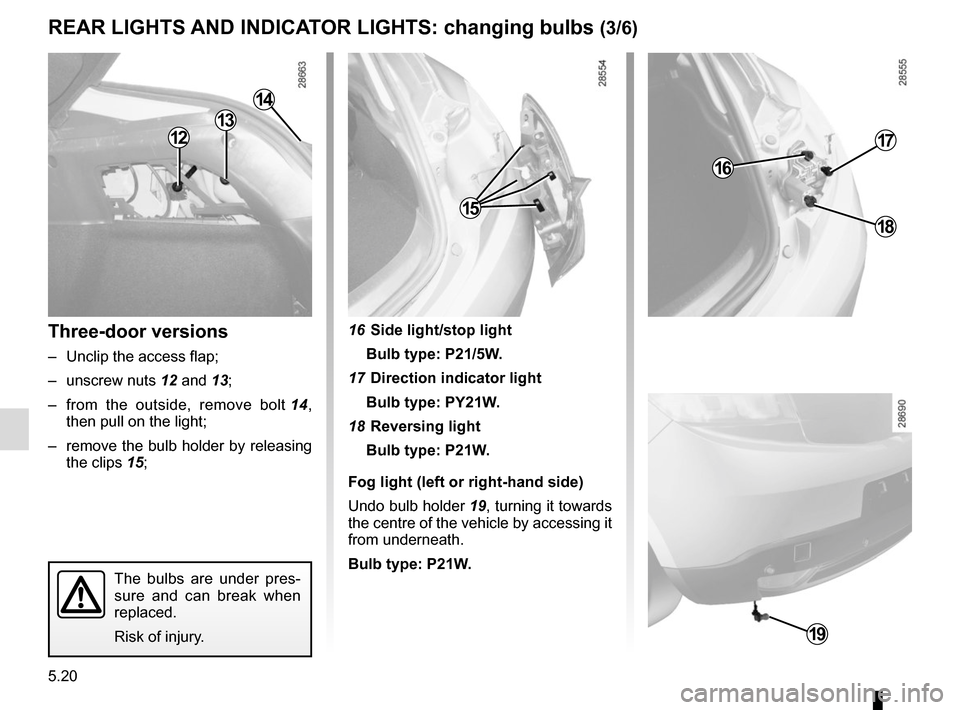

Three-door versions
–  Unclip the access flap;
– unscrew nuts 12 and 13;
–  from the outside, remove bolt  14,
then pull on the light;
–  remove the bulb holder by releasing  the clips 1

Page 217 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.21

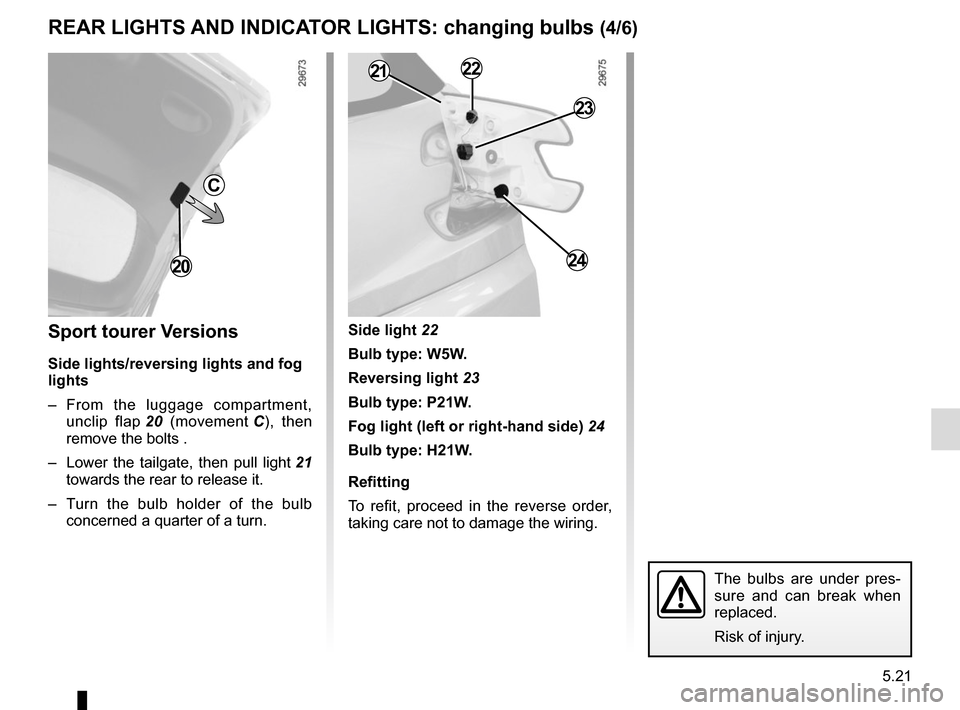

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (4/6)
Sport tourer Versions
Side lights/reversing lights and fog
lights
– From the luggage compartment,  unclip flap  20 (movement  C), then
r

Page 218 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.22

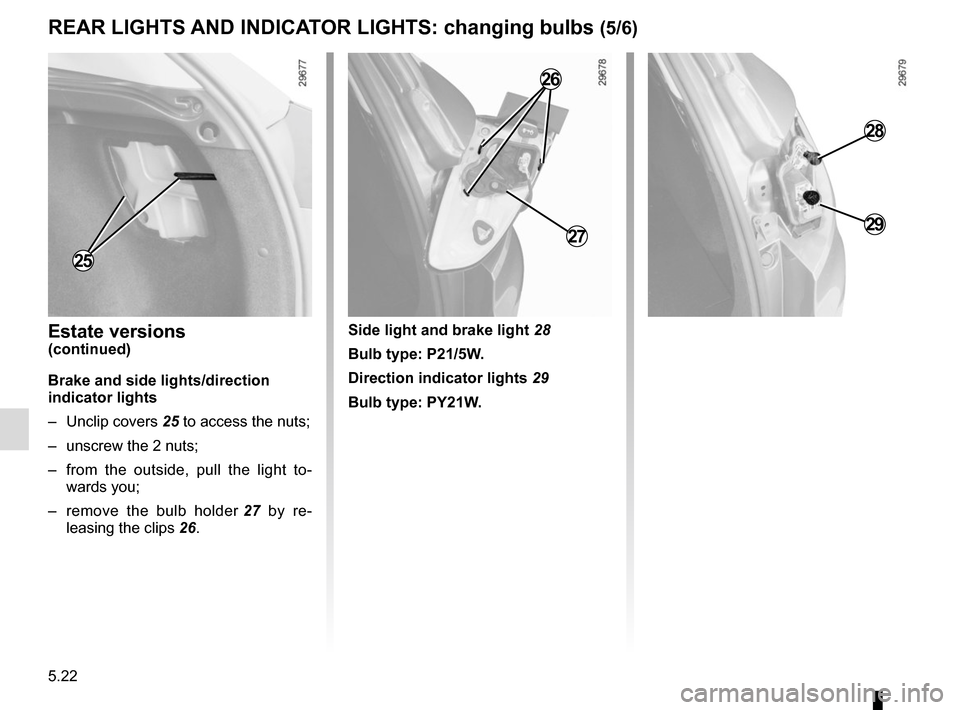

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (5/6)
28
29
Side light and brake light 28
Bulb type: P21/5W. Direction indicator lights  29
Bulb type: PY21W.Estate versions(continued)
Brake and

Page 219 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.23

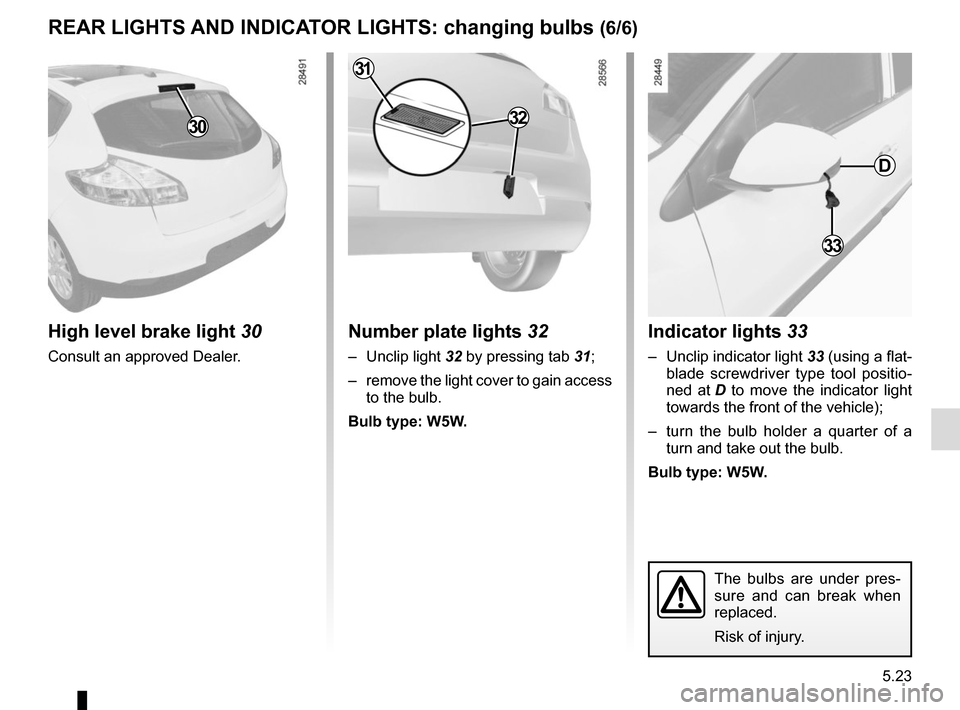

REAR LIGHTS AND INDICATOR LIGHTS: changing bulbs (6/6)
Indicator lights 33
–  Unclip indicator light 33 (using a flat-
blade screwdriver type tool positio-
ned at  D to move the indicator light

Page 220 of 268

RENAULT MEGANE SPORT TOURER 2015 X95 / 3.G Owners Manual 5.24
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

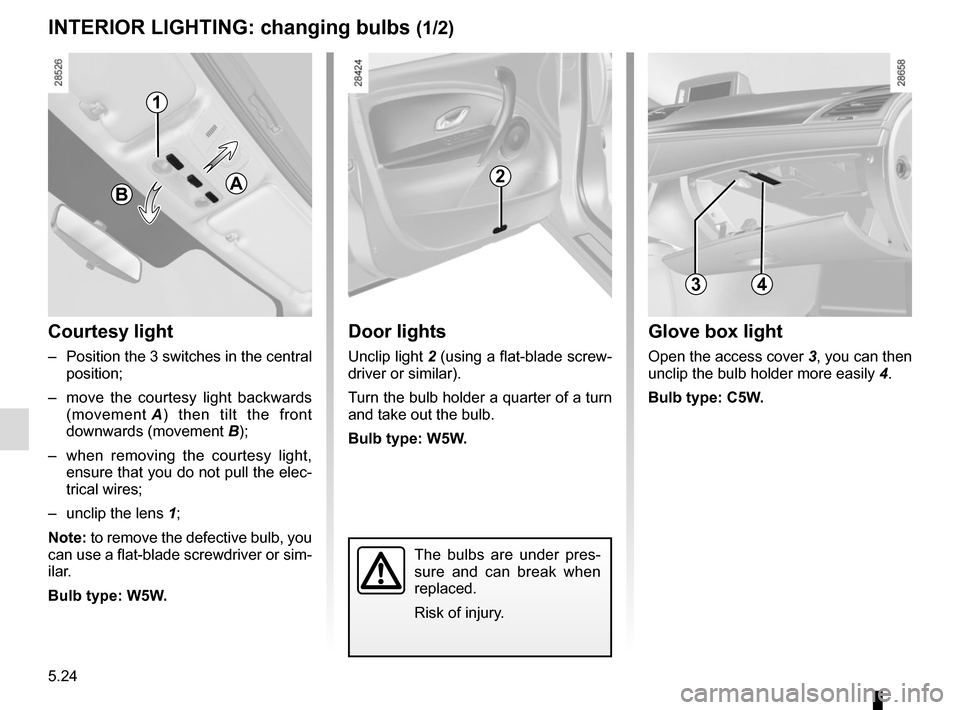

INTERIOR LIGHTING: changing bulbs (1/2)
Courtesy light
–  Position the 3 switches in the central  position;
–  mov
