RENAULT SANDERO 2012 Owners Manual

JauneNoirNoir texte
6.3
ENG_UD22608_6
Plaques identification (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
ENGINE IDENTIFICATION PLATES
The information shown on the ve -
hicle identification plate should be
quoted on all correspondence or
orders.
B – Engine plate or engine label
(Location varies depending on engine)
1 Engine type
2 Engine suffix
3 Engine number
B
B
B
B
B
3
21

engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
fuel grade ............................................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD18029_4
Caractéristiques moteur (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Engine specifications

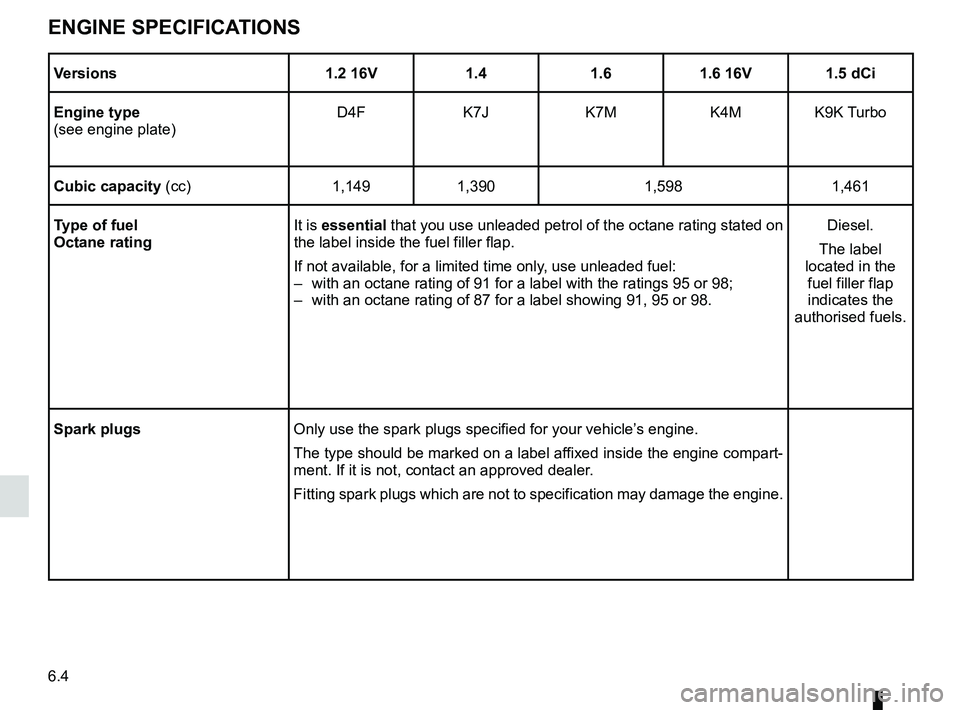

ENGINE SPECIFICATIONS
Versions 1.2 16V1.41.61.6 16V 1.5 dCi
Engine type
(see engine plate) D4F
K7JK7M K4MK9K Turbo
Cubic capacity (cc) 1,1491,390 1,5981,461
Type of fuel
Octane rating It is
essential that you use unleaded petrol of the octane rating stated on
the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98;
– with an octane rating of 87 for a label showing 91, 95 or 98. Diesel.
The label
located in the fuel filler flap
indicates the
authorised fuels.
Spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compart-
ment. If it is not, contact an approved dealer.
Fitting spark plugs which are not to specification may damage the engine.

technical specifications ......................... (up to the end of the DU)
dimensions ........................................... (up to the end of the DU)
6.5
ENG_UD22590_5
Dimensions (en mètres) (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Dimensions
1.470 - 1.483
1.480 - 1.494
1.746 - 1.753

0.781
0.785 2.589
2.5880.650
0.651
4.020 - 4.024
(*) Unladen
DIMENSIONS (in metres)
1.534(*)
1.546(*)

technical specifications ......................... (up to the end of the DU)
weight ................................................... (up to the end of the DU)
towing ................................................... (up to the end of the DU)
towing a caravan ................................................... (current page)
towing weights ....................................................... (current page)
weights .................................................................. (current page)
6.6
ENG_UD22397_6
Masses (en kg) (B90 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Weights/Towing weights

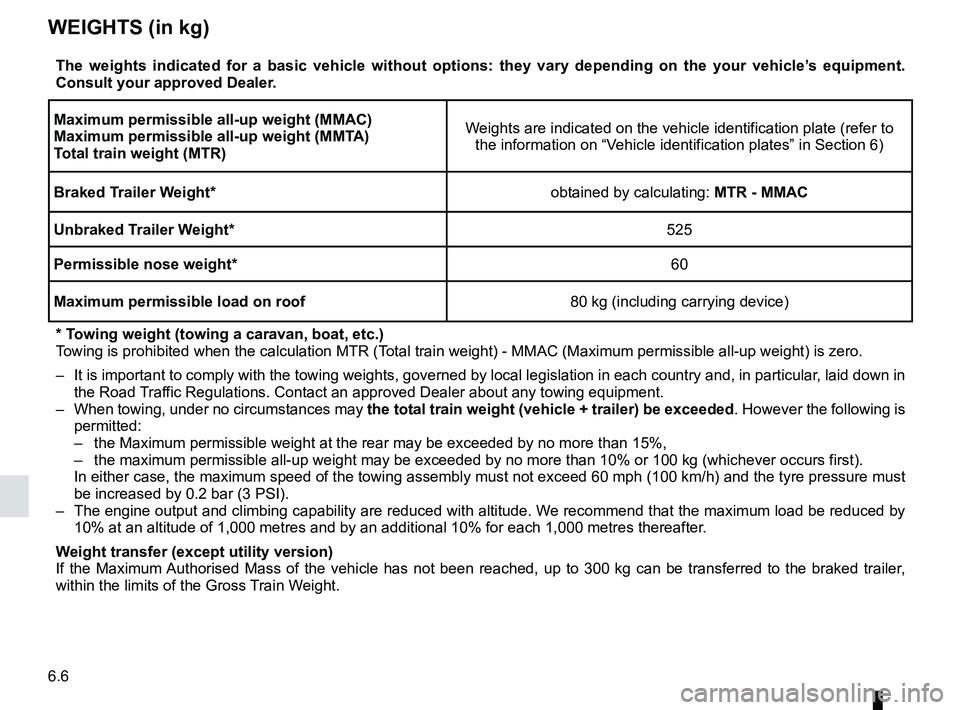

WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
Consult your approved Dealer.
Maximum permissible all-up weight (MMAC)
Maximum permissible all-up weight (MMTA)
Total train weight (MTR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* obtained by calculating: MTR - MMAC
Unbraked Trailer Weight* 525
Permissible nose weight* 60
Maximum permissible load on roof 80 kg (including carrying device)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the calculation MTR (Total train weight) - MMAC (Maximum permissible all-up weight) is zero\
.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more than 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10% or 100 kg (whichever occu\
rs first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer (except utility version)
If the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be transferred to the braked trailer,
within the limits of the Gross Train Weight.

technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD18209_6
Pièces de rechange et réparations (B90 - U90 - L90 Ph2 - F90 Ph2 \
- R90 Ph2 - H79 - Dacia)
ENG_NU_817-9_B90_Dacia_6
Replacement parts and repairs

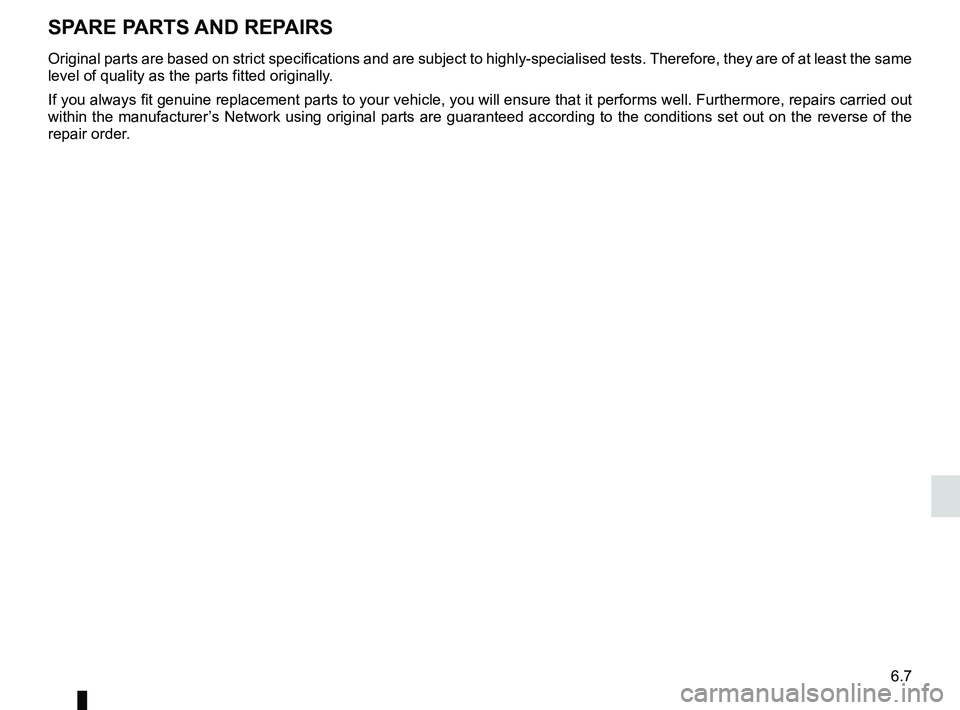

SPARE PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.

6.8
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_817-9_B90_Dacia_6
Jaune NoirNoir texte
Service sheets
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
VIN: .......................................................................\
...........
SERVICE SHEETS (1/6)

JauneNoirNoir texte
6.9
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_817-9_B90_Dacia_6

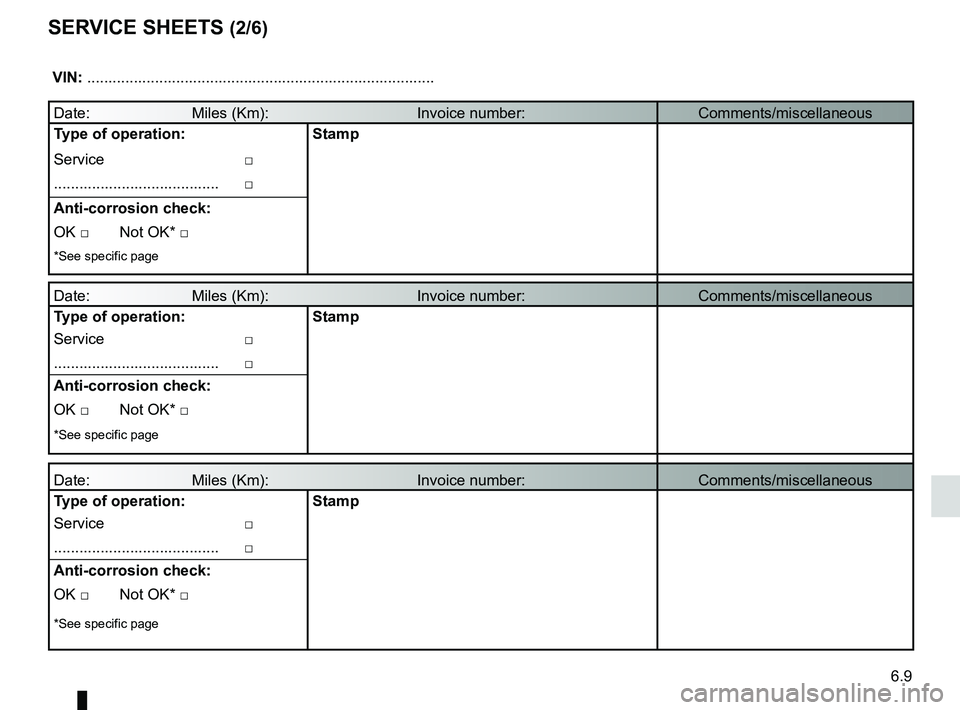

SERVICE SHEETS (2/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

6.10
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_817-9_B90_Dacia_6
Jaune NoirNoir texte
SERVICE SHEETS (3/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

JauneNoirNoir texte
6.11
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_817-9_B90_Dacia_6
SERVICE SHEETS (4/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page

6.12
ENG_UD21023_2
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X3\
3 - X47 - X43 - X38 - X65 PH5
ENG_NU_817-9_B90_Dacia_6
Jaune NoirNoir texte
SERVICE SHEETS (5/6)
VIN: .......................................................................\
...........
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): \
Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
