13B-150
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
*RCH = Passenger Compartment Heating Resistors
ET111SET NUMBER OF PASSENGER COMPARTMENT HEATING RESISTORS
STATUS DEFINITIONThis status indicates that the injection computer is blocking any change to the number
of passenger compartment air heating resistors active (active ones are not cut off, but
no more can be added). This freeze in the number of heating resistors is in response to
vehicle needs (availability of power, need for torque etc.).
Conformity check: Engine stopped and ignition on, or engine running and engine coolant
temperature > 80
°C
YESDepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required).
Status ET111 becomes YES when the number of activated passenger compartment
heating resistors is set by the injection computer.
NODepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer sets the number of activated passenger
compartment heating resistors (no more or no fewer than required). Status ET111
becomes NO if the number of passenger compartment heating resistors engaged can
be freely controlled by the UCH.
DCM1.2_V48_ET111/DCM1.2_V4C_ET111/DCM1.2_V50_ET111/DCM1.2_V54_ET111/DCM1.2_V58_ET111/DCM1.2_V5C_ET111

13B-151
AFTER REPAIRDeal with any faults. Clear the faults from the computer memory.
Switch off the ignition and carry out a road test followed by a test with the diagnostic
tool.
V10 MR-372-J84-13B100$150.mif
DIESEL INJECTION
Fault finding – Interpretation of statuses13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C
*RCH = Passenger Compartment Heating Resistors
ET112PASSENGER COMPARTMENT HEATING RESISTOR CUT-OFF
STATUS DEFINITIONThis status indicates that the injection computer is blocking activation of all passenger
compartment air heating resistors due to vehicle needs (availability of power, need for
torque, injection defect mode or heating and ventilation etc.).
Conformity check: Engine stopped and ignition on, or engine running and engine coolant
temperature > 80
°C
YESDepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer cuts off the passenger compartment heating
resistors.
Status ET112 becomes YES when the passenger compartment heating resistors are cut
off by the injection computer.
NODepending on the requirements of the injection system (e.g. torque reduction, power
requirements), the injection computer cuts off the passenger compartment heating
resistors.
Status ET112 becomes NO when the passenger compartment heating resistors can be
freely controlled by the UCH.
DCM1.2_V48_ET112/DCM1.2_V4C_ET112/DCM1.2_V50_ET112/DCM1.2_V54_ET112/DCM1.2_V58_ET112/DCM1.2_V5C_ET112

13B-214V10 MR-372-J84-13B100$190.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program No.: 4D
Vdiag No.: 48, 4C, 50,
54, 58, 5C

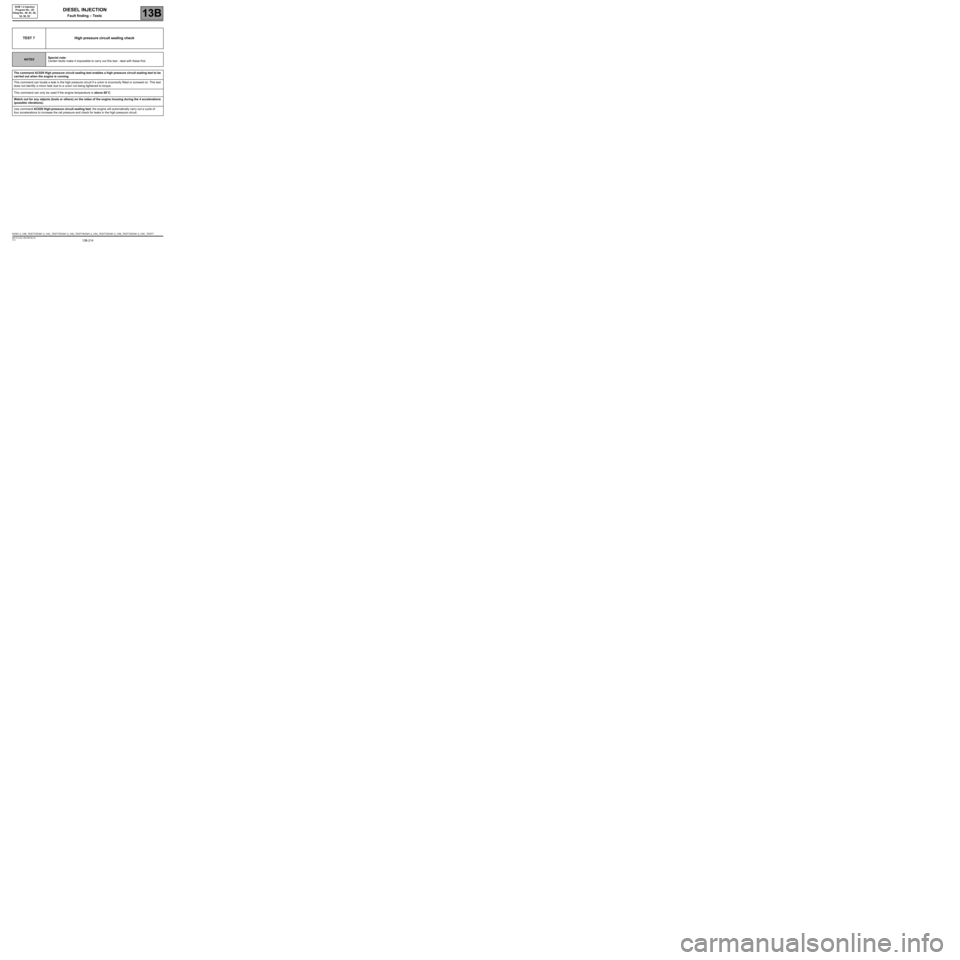

TEST 7 High pressure circuit sealing check
NOTESSpecial note:
Certain faults make it impossible to carry out this test - deal with these first.
The command AC029 High pressure circuit sealing test enables a high pressure circuit sealing test to be
carried out when the engine is running.
This command can locate a leak in the high pressure circuit if a union is incorrectly fitted or screwed on. This test
does not identify a minor leak due to a union not being tightened to torque.
This command can only be used if the engine temperature is above 60
°C.
Watch out for any objects (tools or others) on the sides of the engine housing during the 4 accelerations
(possible vibrations).
Use command AC029 High-pressure circuit sealing test; the engine will automatically carry out a cycle of
four accelerations to increase the rail pressure and check for leaks in the high pressure circuit.
DCM1.2_V48_TEST7/DCM1.2_V4C_TEST7/DCM1.2_V50_TEST7/DCM1.2_V54_TEST7/DCM1.2_V58_TEST7/DCM1.2_V5C_TEST7
