Page 140 of 510
13B-140
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF119
PRESENT
OR
STOREDCAMSHAFT SENSOR SIGNAL
1.DEF: No camshaft signal or timing fault (tension or setting)
2.DEF: Supply fault, signal interference, camshaft sensor internal fault
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– starting the engine,
– a road test.
Special notes:
–the level 1 warning light is lit.
Use bornier Elé.1681 for any operations on the injection computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
1.DEF
NOTESNone.
Check the condition of the camshaft sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 746).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
If the fault is stored:
Visually check the condition of the surrounding area.
If, on detection of the fault, the engine speed is considerably lower than the idling speed (less than 150 rpm) and
no customer complaint is declared (warning light indicated by the customer does not come on and vehicle can be
started), the fault was detected because the engine had stalled.
Clear the fault and carry out a road test.
EDC16CP33_V18_DF119 / EDC16CP33_V1C_DF119 / EDC16CP33_V54_DF119 / EDC16CP33_V20_DF119 / EDC16CP33_V58_DF119 /
EDC16CP33_V5C_DF119 / EDC16CP33_V24_DF119 / EDC16CP33_V04_DF119 / EDC16CP33_V08_DF119 / EDC16CP33_V44_DF119 /
EDC16CP33_V4C_DF119 / EDC16CP33_V34_DF119 / EDC16CP33_V38_DF119 / EDC16CP33_V74_DF119 / EDC16CP33_V28_DF119 /
EDC16CP33_V62_DF119 / EDC16CP33_V26_DF119 / EDC16CP33_V60_DF119
Page 141 of 510
13B-141
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$072.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
DF119
CONTINUED 1
Note:
Measure the resistance between the connections indicated without producing a short circuit between the
connections.
1. Disconnect the sensor before measuring the resistance with an Ohmmeter or multimeter.
2. Resistance between connections 3CQ and 3FB of component 746 (signal and supply) must be between
7.2 kΩ and 13.4 kΩ (10.2 kΩ nominal).
3. The resistance between connections 3PL and 3FB of component 746 (earth and supply) must be greater
than 100 kΩ.
4. The resistance between connections 3PL and 3CQ of component 746 (earth and signal) must be greater than
100 kΩ.
If the values are incorrect, replace the camshaft sensor.
Check the continuity of the following connections:
•3PL between components 120 and 746,
•3CQ between components 120 and 746.
Check the + 12 V after relay feed to the camshaft sensor on the following connection:
•3FB of component 746.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, replace the camshaft sensor.
2.DEF
NOTESPriorities when dealing with a number of faults:
– DF120 Engine speed sensor signal
Check the condition of the camshaft sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 746).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Page 143 of 510
13B-143
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
13B
DF120
PRESENT
OR
STOREDENGINE SPEED SENSOR SIGNAL
1.DEF: Engine speed signal interference, broken tooth on flywheel or engine speed
sensor internal fault
2.DEF: No engine speed signal, or interference affecting engine speed signal
NOTESConditions for applying the fault finding procedure to a stored fault:
If the fault is declared present after:
– starting the engine,
– a road test,
– attempting to start the engine.
Special notes:
The engine speed sensor is consistent with the camshaft sensor.
If the fault is present:
– particle filter regeneration is inhibited,
–the level 2 warning light is lit.
Use bornier Elé.1681 for any operations on the injection computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check the condition of the engine speed sensor connector (see Wiring Diagram Technical Note, Laguna II ph2,
Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 149).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check that the sensor is securely attached.
Measure the resistance between connections 3BG and 3BL of component 149.
If the winding resistance is not between 600Ω and 1000Ω, replace the engine speed sensor.
EDC16CP33_V18_DF120 / EDC16CP33_V1C_DF120 / EDC16CP33_V54_DF120 / EDC16CP33_V20_DF120 / EDC16CP33_V58_DF120 /
EDC16CP33_V5C_DF120 / EDC16CP33_V24_DF120 / EDC16CP33_V04_DF120 / EDC16CP33_V08_DF120 / EDC16CP33_V44_DF120 /
EDC16CP33_V4C_DF120 / EDC16CP33_V34_DF120 / EDC16CP33_V38_DF120 / EDC16CP33_V74_DF120 / EDC16CP33_V28_DF120 /
EDC16CP33_V62_DF120/ EDC16CP33_V26_DF120 / EDC16CP33_V60_DF120
DIESEL INJECTION
Fault finding – Interpretation of faults
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 145 of 510
13B-145
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF151
STOREDMAIN RELAY CIRCUIT1.DEF: Relay cut off too soon
2.DEF: Relay cut off too late
NOTESSpecial notes:
The level 1 warning light is on.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
IMPORTANT:
For Mégane II ph2 and Scénic II ph2, the injection supply relay is located on the UPC.
For Laguna II ph2 and Espace IV ph2, the injection supply relay is located on the
engine fuse and relay box.
1.DEF
NOTESNone.
Check the condition of the injection supply relay mounting connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 983).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the tightness and the condition of the "+ " and "-" battery terminals.
Check the conformity of the main relay (relay removed) (Laguna II ph2 and Espace IV ph2):
•Insulation between connections 3FB and BP37 or 3MV of component 983.
• Measure the resistance between connections3AA and BP37 of component983.
(see Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II
ph2, Component code 983).
Replace the relay if its resistance is less than 6 Ω or greater than 1 kΩ.
EDC16CP33_V18_DF151M / EDC16CP33_V1C_DF151M / EDC16CP33_V54_DF151M / EDC16CP33_V20_DF151M /
EDC16CP33_V58_DF151M / EDC16CP33_V5C_DF151M / EDC16CP33_V24_DF151M / EDC16CP33_V04_DF151M /
EDC16CP33_V08_DF151M / EDC16CP33_V44_DF151M / EDC16CP33_V4C_DF151M / EDC16CP33_V34_DF151M /
EDC16CP33_V38_DF151M / EDC16CP33_V74_DF151M / EDC16CP33_V28_DF151M / EDC16CP33_V62_DF151M/
EDC16CP33_V26_DF151M / EDC16CP33_V60_DF151M
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 147 of 510
13B-147
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF151
CONTINUED 2
2.DEFNOTESNone.
Check the condition of the injection supply relay mounting connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 983 or 1337).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the conformity of the main relay (relay removed) (Laguna II ph2 and Espace IV ph2):
•Insulation between connections 3FB and BP37 of component 983.
• Measure the resistance between connections 3AA and BP37 (or 3MV)of component 983.
(see Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II
ph2, component code 983).
Replace the relay if its resistance is less than 6 Ω or greater than 1 kΩ.
Check the insulation to earth of the following connection:
•3AA between components 120 and 983 or 1337.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, replace the injection supply relay.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 148 of 510
13B-148
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF165
PRESENT
OR
STOREDACCELERATOR PEDAL POSITION SENSOR CIRCUIT1.DEF: Detection of the accelerator pedal depressed at the same time as the brake
pedal.
2.DEF: No signal
3.DEF: Jammed accelerator pedal detected
NOTESPriorities when dealing with a number of faults:
– DF012 Sensor supply voltage no. 2.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present when the brake pedal and accelerator pedal are
depressed simultaneously.
Special notes:
– Turbocharging and cruise control are not authorised.
– The engine speed is fixed at 1700 rpm.
–The level 1 warning light is lit for 2.DEF and 3.DEF.
Use bornier Elé.1681 for any operations on the computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check that the accelerator pedal is not jammed
Check the condition of the pedal sensor connector (component code 921).
Check the condition of the engine management computer connector (component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Measure the resistance between connections 3LT and 3LR of component 921.
If the accelerator pedal sensor resistance is not between: 0.7 kΩ < X < 1.7 kΩ or 0.91 kΩ < X < 2.49 kΩ (M9R721),
replace the sensor.
EDC16CP33_V18_DF165 / EDC16CP33_V1C_DF165 / EDC16CP33_V54_DF165 / EDC16CP33_V20_DF165 / EDC16CP33_V58_DF165 /
EDC16CP33_V5C_DF165 / EDC16CP33_V24_DF165 / EDC16CP33_V04_DF165 / EDC16CP33_V08_DF165 / EDC16CP33_V44_DF165 /
EDC16CP33_V4C_DF165 / EDC16CP33_V34_DF165 / EDC16CP33_V38_DF165 / EDC16CP33_V74_DF165 / EDC16CP33_V28_DF165 /
EDC16CP33_V62_DF165/ EDC16CP33_V26_DF165 / EDC16CP33_V60_DF165
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 150 of 510
13B-150
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF195
PRESENT
OR
STOREDENGINE SPEED/CAMSHAFT SENSOR CONSISTENCY
1.DEF: No engine speed signal, or engine speed signal interference
NOTESPriorities when dealing with a number of faults:
– DF119 Camshaft sensor signal
– DF120 Engine speed sensor signal.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the starter has been running for 10 seconds or a
1 minute delay with the engine running.
Special notes:
Use bornier Elé. 1681 for any operations on the computer connector.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
Check the sensor mounting and the conformity of the camshaft target.
Check the condition of the engine speed sensor connector (see Wiring Diagram Technical Note, Laguna II ph2,
Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 149).
Check the condition of the camshaft sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 746).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
– Check the conformity of the camshaft sprocket/camshaft assembly.
– Check the timing adjustment.
Carry out the necessary repairs.
If the fault is still present, contact the Techline.
EDC16CP33_V18_DF195 / EDC16CP33_V1C_DF195 / EDC16CP33_V54_DF195 / EDC16CP33_V20_DF195 / EDC16CP33_V58_DF195 /
EDC16CP33_V5C_DF195 / EDC16CP33_V24_DF195 / EDC16CP33_V04_DF195 / EDC16CP33_V08_DF195 / EDC16CP33_V44_DF195 /
EDC16CP33_V4C_DF195 / EDC16CP33_V34_DF195 / EDC16CP33_V38_DF195 / EDC16CP33_V74_DF195 / EDC16CP33_V28_DF195 /
EDC16CP33_V62_DF195/ EDC16CP33_V26_DF195 / EDC16CP33_V60_DF195
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 151 of 510
13B-151
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B

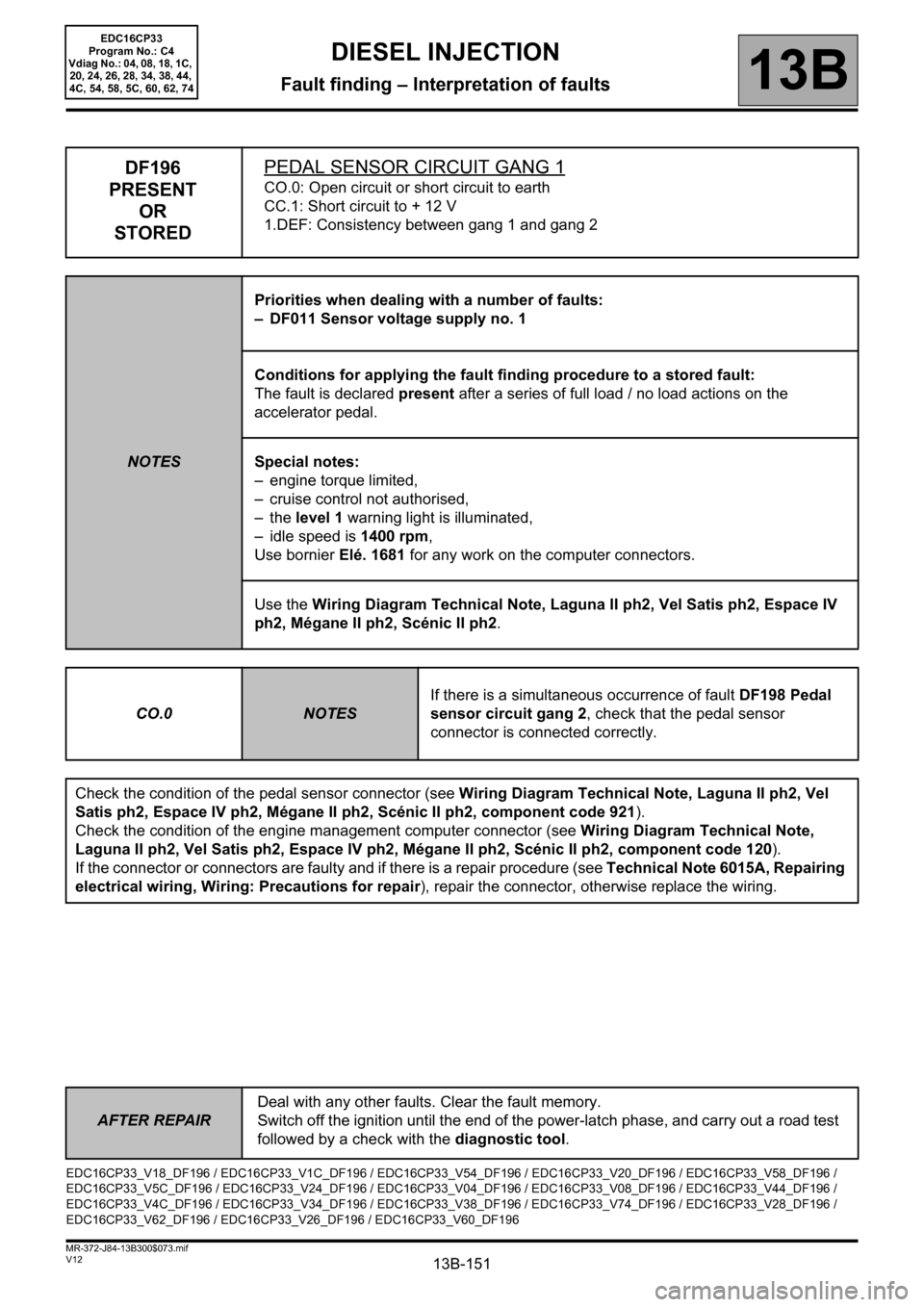

DF196
PRESENT
OR
STOREDPEDAL SENSOR CIRCUIT GANG 1
CO.0: Open circuit or short circuit to earth
CC.1: Short circuit to + 12 V
1.DEF: Consistency between gang 1 and gang 2
NOTESPriorities when dealing with a number of faults:
– DF011 Sensor voltage supply no. 1
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after a series of full load / no load actions on the
accelerator pedal.
Special notes:
– engine torque limited,
– cruise control not authorised,
–the level 1 warning light is illuminated,
– idle speed is 1400 rpm,
Use bornier Elé. 1681 for any work on the computer connectors.
Use the Wiring Diagram Technical Note, Laguna II ph2, Vel Satis ph2, Espace IV
ph2, Mégane II ph2, Scénic II ph2.
CO.0
NOTESIf there is a simultaneous occurrence of fault DF198 Pedal
sensor circuit gang 2, check that the pedal sensor
connector is connected correctly.
Check the condition of the pedal sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 921).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33_V18_DF196 / EDC16CP33_V1C_DF196 / EDC16CP33_V54_DF196 / EDC16CP33_V20_DF196 / EDC16CP33_V58_DF196 /
EDC16CP33_V5C_DF196 / EDC16CP33_V24_DF196 / EDC16CP33_V04_DF196 / EDC16CP33_V08_DF196 / EDC16CP33_V44_DF196 /
EDC16CP33_V4C_DF196 / EDC16CP33_V34_DF196 / EDC16CP33_V38_DF196 / EDC16CP33_V74_DF196 / EDC16CP33_V28_DF196 /
EDC16CP33_V62_DF196 / EDC16CP33_V26_DF196 / EDC16CP33_V60_DF196
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 152 of 510
13B-152
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF196
CONTINUED 1
Measure the resistance between connections 3LT and 3LR of component 921.
If the resistance of the pedal sensor gang 1 is less than 500 Ω or greater than 2 kΩ, replace the sensor.
Measure the resistance between connections 3LT and 3LS of component 921.
If the resistance of the pedal sensor gang 1 is less than 500 Ω or greater than 10 kΩ, replace the sensor.
Check the continuity of the following connections:
•3LS between components 120 and 921,
•3LR between components 120 and 921.
Check the insulation to earth of the following connection:
•3LS between components 120 and 921.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
CO.1
NOTESNone.
Check the condition of the pedal sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 921).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
Page 153 of 510
13B-153
AFTER REPAIRDeal with any other faults. Clear the fault memory.
Switch off the ignition until the end of the power-latch phase, and carry out a road test
followed by a check with the diagnostic tool.
V12 MR-372-J84-13B300$073.mif
DIESEL INJECTION
Fault finding – Interpretation of faults13B
DF196
CONTINUED 2
Measure the resistance between connections 3LT and 3LR of component 921.
If the resistance of the pedal sensor gang 1 is less than 500 Ω or greater than 2 kΩ, replace the sensor.
Measure the resistance between connections 3LT and 3LS of component 921.
If the resistance of the pedal sensor gang 1 is less than 500 Ω or greater than 10 kΩ, replace the sensor.
Check the insulation from + 12 V and + 5 V (computer feeds) of the following connection:
•3LS between components 120 and 921.
Check the continuity of the following connection:
•3LT between components 120 and 921.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
1.DEF
NOTESNone.
Check the condition of the pedal sensor connector (see Wiring Diagram Technical Note, Laguna II ph2, Vel
Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 921).
Check the condition of the engine management computer connector (see Wiring Diagram Technical Note,
Laguna II ph2, Vel Satis ph2, Espace IV ph2, Mégane II ph2, Scénic II ph2, component code 120).
If the connector or connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing
electrical wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
EDC16CP33
Program No.: C4
Vdiag No.: 04, 08, 18, 1C,
20, 24, 26, 28, 34, 38, 44,
4C, 54, 58, 5C, 60, 62, 74
