Df043 RENAULT SCENIC 2013 J95 / 3.G Electronic Parking Brake Workshop Manual

37B-17
MR-372-J84-37B000$432.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Fault summary table
Tool faultAssociated
DTCDiagnostic tool title
DF003 50C3Computer
DF004 50CAComputer
DF006 50C5Computer configuration
DF015 5166Clutch position sensor circuit
DF016 50 CBWarning light circuit
DF025 5168Vehicle movement with maximum application
DF028 517EComputer
DF029 517BComputer
DF035 5170Undervoltage
DF036 5180No injection multiplex signal
DF037 5181No ABS system multiplex signal
DF038 5188No automatic transmission multiplex signal
DF039 5183No UCH multiplex signal
DF041 5160Angle sensor (internal)
DF042 5161Force sensor (internal)
DF043 5162Parking brake motor
DF044 516CBrake switch
DF045 5172Redundant brake switch
DF046 516FBrake motor/cables connection
DF047 5171Manual control
DF048 5173Release switch
DF049 5175Braking
DF050 5178Mechanical jamming (internal)
DF051 5176System fault after computer replacement
DF052 516DMultiplex network
DF054 50C1Battery overvoltage
DF055 50C0Battery voltage too low
DF056 5163Brake cables incorrectly fitted
DF057 517AComputer internal temperature sensor
DF058 5177Parking brake motor current (internal)
DF059 5194No Protection and Switching Unit multiplex signal
DF073 5174Computer
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$432.mif

37B-43
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B

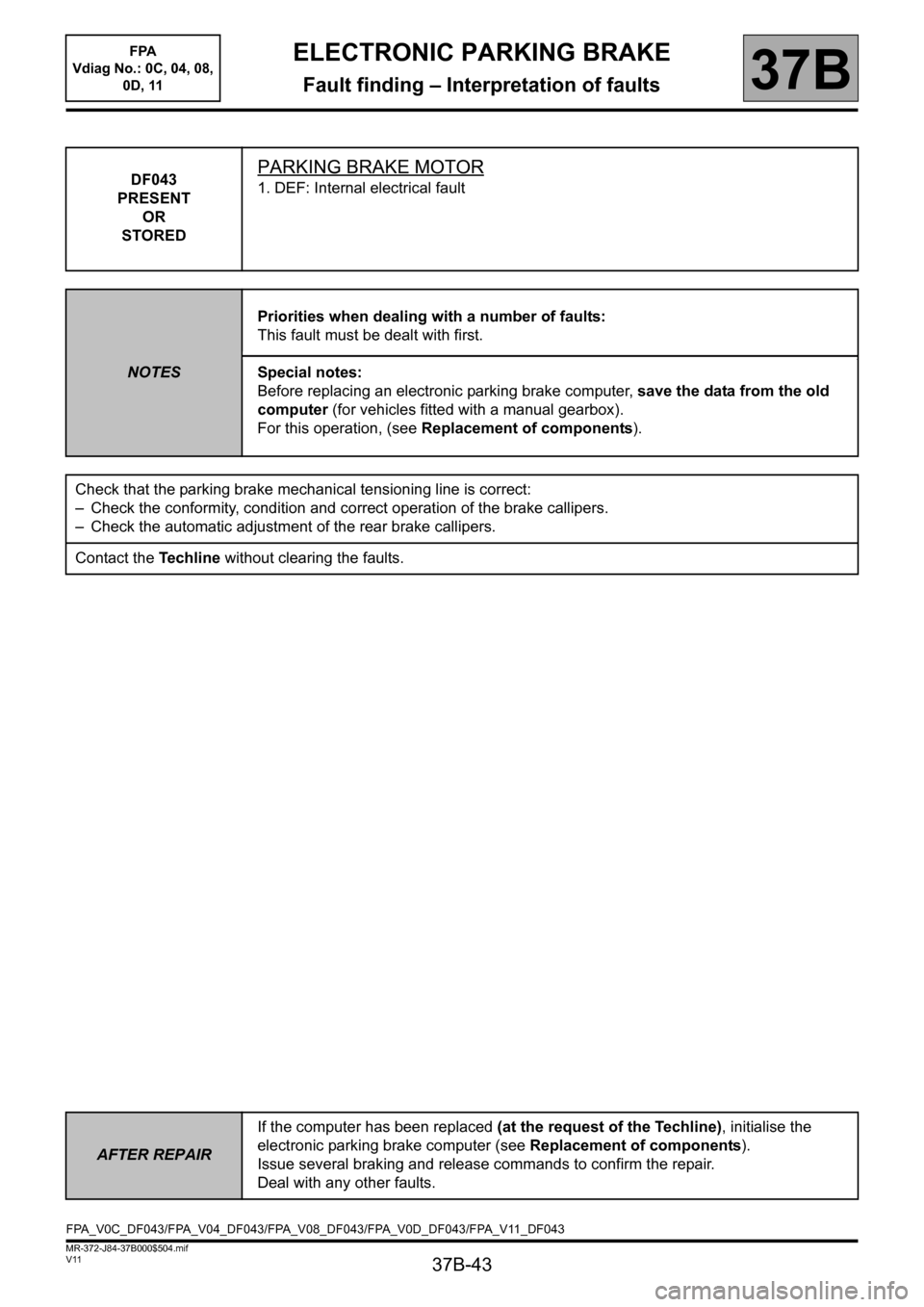

DF043
PRESENT
OR
STOREDPARKING BRAKE MOTOR
1. DEF: Internal electrical fault
NOTESPriorities when dealing with a number of faults:
This fault must be dealt with first.
Special notes:
Before replacing an electronic parking brake computer, save the data from the old
computer (for vehicles fitted with a manual gearbox).
For this operation, (see Replacement of components).
Check that the parking brake mechanical tensioning line is correct:
– Check the conformity, condition and correct operation of the brake callipers.
– Check the automatic adjustment of the rear brake callipers.
Contact the Techline without clearing the faults.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF043/FPA_V04_DF043/FPA_V08_DF043/FPA_V0D_DF043/FPA_V11_DF043

37B-49
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF046
PRESENT
OR
STOREDBRAKE MOTOR/CABLES CONNECTION
(EMERGENCY UNLOCKING)
1. DEF: Parking brake unlocked by the emergency handle
NOTESPriority when dealing with a number of faults:
Deal first with faults DF003, DF004, DF028, DF029, DF035, DF041, DF042, DF043,
DF050, DF054, DF055, DF057, DF058 and DF073 if they are present or stored.
Conditions for applying the fault finding procedure to a stored fault:
Apply this fault finding procedure if the fault recurs after the fault is cleared, with the
ignition switched off and on again (forced + after ignition feed, see Introduction),
and the parking brake released then applied using the control lever.
Special notes:
The fault does not usually come from the electronic parking brake computer.
This fault indicates that the electronic parking brake system has been unlocked by the
manual control (if this is the case, check that the handle protector has not been
damaged).
Check that the emergency unlocking handle has not been manually pulled by the
user, which would provoke this fault.
The cables are reset by the parking brake release manual command or automatically
(if the fault is present) when the vehicle is driven at more than 1.2 mph (2 km/h)
(the fault is then stored).
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
If there has been no manual use of the emergency unlocking handle and if PR019 > 5,
contact the Techline.
Check that the fault was not provoked by manual usage of the emergency unlocking handle. In this case, it is
normal for the fault to arise; clear the fault.
Carry out a releasing command, then a braking command with the control lever to reset the cables of the parking
brake.
Check the conformity of the parking brake mechanical tensioning line: correctly attached, no breakage.
Check the conformity of the emergency unlocking cable.
Carry out the necessary repairs.
Check that the braking force and maximum braking are operating correctly.
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF046/FPA_V04_DF046/FPA_V08_DF046/FPA_V0D_DF046/FPA_V11_DF046

37B-52
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF048
PRESENT
OR
STOREDRELEASE SWITCH
1. DEF: Signal inconsistency
NOTESPriority when dealing with a number of faults:
Deal first with faults DF003, DF004, DF028, DF029, DF035, DF041, DF042, DF043,
DF047, DF050, DF054, DF055, DF057, DF058 and DF073 if they are present or
stored.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the ignition is switched on (forced + after ignition
feed, see Introduction) and a brake release request using the control lever.
Special notes:
The fault does not usually come from the electronic parking brake computer.
8 applications (in 2 seconds) using the control lever without pressing the release
switch causes the fault to appear as present.
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
If the fault is stored and PR019 < 3, clear the fault: do not take this fault into account.
Using the diagnostic tool (PARKING sub-function), check the operation of the parking brake control lever.
With the ignition switched on, statuses ET008, ET009 and ET010 should operate as follows:
ET008 "Engagement
switch position"ET009 "Redundant
braking switch position"ET010 "Release switch
position"
Lever at rest INACTIVE INACTIVE RELEASED
Lever pulled slightly
(3 mm travel)ACTIVE INACTIVE RELEASED
Lever pulled to end of
travelACTIVE ACTIVE RELEASED
Lever pulled and release
switch pressedACTIVE ACTIVE PRESSED
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF048/FPA_V04_DF048/FPA_V08_DF048/FPA_V0D_DF048/FPA_V11_DF048

37B-55
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults37B
DF049
PRESENT
OR
STOREDBRAKING
1. DEF: Inconsistent braking value
2. DEF: Normal brake application value not reached
3. DEF: Normal brake release value not reached
4. DEF: Insufficient braking force
NOTESPriorities when dealing with a number of faults:
Deal first with faults DF003 (1.DEF; 2.DEF), DF004, DF028, DF029, DF041, DF042,
DF043, DF050, DF055, DF057, DF058 and DF073.
Conditions for applying the fault finding procedure to a stored fault:
The fault is declared present after the ignition is switched on (forced + after ignition
feed, see Introduction) and an application request on a slope.
1. DEF
NOTESSpecial notes:
The 1.DEF code indicates an inconsistency between the
measured force value (PR004) and the parking brake status
(ET030: Electronic parking brake operation when there
is a fault in the fault context).
This fault can appear after disconnecting the battery
(parking brake applied).
Check the context of the fault when the fault appears:
If ET030 is S TAT U S 5 , S TAT U S 6 , S TAT U S 7 , S TAT U S 8 , S TAT U S 9 o r S TAT U S 1 0 and if PR004 is greater than
450 N and if PR012 Vehicle speed is 0 mph (0 km/h) when the fault appears:
– check to see if the battery has been disconnected, if it has, the appearance of this fault is normal, clear the
fault,
– if not, check the computer supply voltage and the battery.
Repair if necessary.
If the fault persists, contact the Techline.
If ET030 is S TAT U S 5 , S TAT U S 6 , S TAT U S 7 and if PR004 is less than 450 N and if PR012 Vehicle speed is
less than 3 mph (5 km/h) when the fault appears:
– Check for traces of heating on the brakes:
– Check that the pads have returned correctly to the rest position.
– Check that the small lever has sufficient return force.
– Check that there is no friction or points of resistance on the cables.
– If there is no indication of any defective operation of these components and if PR019 < 3 and PR022 >
25 and PR018 < 15, then clear the fault.
– If not, contact the Techline.
If the fault is still present, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF049/FPA_V08_DF049/FPA_V0D_DF049/FPA_V11_DF049
FPA
Vdiag No.: 0C, 08, 0D,
11

37B-60
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF052
PRESENT
OR
STOREDMULTIPLEX NETWORK
1. DEF: Problem receiving multiplex frames by the parking brake computer. The
computer is not receiving any multiplex signals or else two computers are not
communicating with the parking brake computer
NOTESPriorities when dealing with a number of faults:
Deal first with faults DF003 (1.DEF; 2.DEF), DF004, DF028, DF029, DF041, DF042,
DF043, DF050, DF055, DF057, DF058 and DF073.
Deal with any faults on the multiplex network first (see 88B, Multiplexing).
Conditions for applying the fault finding procedure to a stored fault:
Apply this fault finding procedure if the fault reappears as present after the ignition
has been switched on (forced + after ignition feed, see Introduction).
Special notes:
This fault indicates either a complete absence of multiplex signal transmission (no
inconsistency) to the parking brake control unit, or no multiplex signal transmission
from two computers (the continuity of the multiplex network lines may be correct, but if
two computers fail to respond, this fault appears).
The fault does not usually come from the electronic parking brake computer.
Note:
Using another battery for a boost when starting may trigger this fault.
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25 clear the fault: do not take this
fault into account.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF052/FPA_V04_DF052/FPA_V08_DF052/FPA_V0D_DF052/FPA_V11_DF052

37B-62
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF054
PRESENT
OR
STOREDBATTERY VOLTAGE TOO HIGH
1. DEF: Battery voltage too high
NOTESPriorities when dealing with a number of faults:
Deal first with faults DF003 (1.DEF; 2.DEF), DF004, DF028, DF029, DF041, DF042,
DF043, DF050, DF057, DF058 and DF073.
Conditions for applying the fault finding procedure to a stored fault:
Apply this fault finding procedure if the fault appears as present again after the ignition
has been switched on
(forced + after ignition feed, see Introduction).
Special notes:
The fault does not usually come from the electronic parking brake computer.
This fault appears as present if the computer supply voltage is greater than 16.5 V,
and becomes stored when the voltage goes back down below 15.7 V.
Note:
Using another battery for a boost when starting may trigger this fault.
Only for Vdiag 08, 0C and 0D.
If there is a stored fault, refer to the statuses and parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25, clear the fault:
do not take this fault into account.
Check the charging circuit: the alternator should not supply a voltage of less than + 12 V or greater than + 14.4 V
(engine at idle speed).
Check the alternator and the regulator.
Carry out the necessary repairs.
If the fault is still present, check that no electrical system using the same supply fuse as the electronic parking
brake computer is faulty.
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF054/FPA_V04_DF054/FPA_V08_DF054/FPA_V0D_DF054/FPA_V11_DF054

37B-65
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF056
PRESENT
OR
STOREDBRAKE CABLES INCORRECTLY FITTED
1. DEF: Incorrect brake cable fitting detected
NOTESPriorities when dealing with a number of faults:
Deal first with faults DF003 (1.DEF; 2.DEF), DF004, DF028, DF029, DF041, DF042,
DF043, DF050, DF057, DF058 and DF073.
Special notes:
This fault only appears during configuration of the parking brake.
The fault does not usually come from the electronic parking brake computer.
Conditions for applying the fault finding procedure to a stored fault:
Deal with the fault as if it were present.
Check that the battery voltage PR001 is above 12.5 V.
Check that the mechanical tensioning line is correctly fitted: cables, connections, callipers.
If the parking brake cables are damaged (particularly at the calliper collars), replace both cables (see MR405
(Espace IV) or MR395 (Laguna II) or MR370 (Scénic), Mechanical, 37A, Mechanical component controls,
Parking brake cables: Removal - Refitting or MR353 (Vel Satis), Mechanical, 37B, Automatic parking
brake, Brake cables).
Start the electronic parking brake computer configuration process again: run command VP011 Computer
calibration and initialisation (see Replacement of components).
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF056/FPA_V04_DF056/FPA_V08_DF056/FPA_V0D_DF056/FPA_V11_DF056

37B-73
MR-372-J84-37B000$576.mif
V11
FPA
Vdiag No.: 0C, 04, 08,
0D, 11ELECTRONIC PARKING BRAKE
Fault finding – Conformity check37B
MAIN SCREEN (CONTINUED 2)
NOTESOnly carry out this conformity check after carrying out a complete check using the
diagnostic tool.
Application conditions: ignition on (forced + after ignition, see Introduction)
Note:
The interpretation of these statuses and parameters is only valid with the
ignition switched on, the statuses and parameters displayed in blue on the
diagnostic tool is information supplied by other computers, which are transmitted via
the multiplex network. If these variables display inconsistent values, make sure that
the multiplex system test has not shown up any faulty connections. Repair the faulty
multiplex connections before looking for a possible problem with the signals.
Each sub-function in this test is associated with a Fault finding chart.
Special notes
The diagnostic tool may display the message Computer busy when displaying
statuses and parameters. This message is displayed when the parking brake is
applying or releasing the brake, because the computer gives priority to controlling the
motor before transmitting variables. If this message is displayed, exit the current
screen and then return to it.
Order FunctionParameter or Status
Checked or ActionDisplay and
NotesFault finding
Electronic
parking brake
(continued)ET011:Parking brakeNo movement of the
lever:
INACTIVE
When released:
Released (while
releasing, then
INACTIVE).
When applying the brake:
STATUS 1 Static
braking
During emergency
braking:
STATUS 2 Dynamic
braking (over 6 mph
(10 km/h)).
When the system is
faulty:
DEFECTIVEIf the status does not operate
as specified, refer to the
interpretation of fault DF043
Parking brake motor.

37B-77
MR-372-J84-37B000$576.mif
V11
FPA
Vdiag No.: 0C, 04, 08,
0D, 11ELECTRONIC PARKING BRAKE
Fault finding – Conformity check37B
SUB-FUNCTION: PARKING (CONTINUED 3)
NOTESOnly carry out this conformity check after carrying out a complete check using the
diagnostic tool.
Application conditions: ignition on (forced + after ignition, see Introduction)
Note:
The interpretation of these statuses and parameters is only valid with the
ignition switched on, the statuses and parameters displayed in blue on the
diagnostic tool is information supplied by other computers, which are transmitted via
the multiplex network. If these variables display inconsistent values, make sure that
the multiplex system test has not shown up any faulty connections. Repair the faulty
multiplex connections before looking for a possible problem with the signals.
Each sub-function in this test is associated with a Fault finding chart.
Special notes
The diagnostic tool may display the message Computer busy when displaying
statuses and parameters. This message is displayed when the parking brake is
applying or releasing the brake, because the computer gives priority to controlling the
motor before transmitting variables. If this message is displayed, exit the current
screen and then return to it.
Order FunctionParameter or Status
checked
or ActionDisplay and
NotesFault finding
ET011:Parking brakeNo movement of the lever:
INACTIVE
When released: Released
(while releasing, then
INACTIVE). When
applying the brake:
STATUS 1 Static braking
During emergency
braking:
STATUS 2 Dynamic
braking (over 6 mph
(10 km/h)). When the
system is faulty:
DEFECTIVEIf the status does not operate as
specified, refer to the
interpretation of fault DF043
Parking brake motor.
4BrakingAC002: BrakingACTIVE or INACTIVE
5ReleaseAC003: ReleaseACTIVE or INACTIVE
