RENAULT SCENIC 2016 J95 / 3.G User Guide

1.5
RENAULT “HANDS-FREE” CARD: use (1/3)
UseOn equipped vehicles, in addition to
the functions of the above-mentioned
remote control RENAULT card, it can
be used to lock/unlock without using
the RENAULT card, when it is in access
zone 1.
2
41
After unlocking the vehicle or the
boot only using the buttons of the
RENAULT card, remote locking and
unlocking in hands-free mode are
deactivated.
To reactivate the hands-free mode:
restart the vehicle.
Recommendations
Do not store the RENAULT card
anywhere it may come into contact
with other electronic equipment
(computer, PDA, phone, etc.) as this
could hinder its operation.
Unlocking the vehicleRENAULT card in area 1, press the 3
button: the vehicle will unlock.
In some cases (leaving the vehicle
parked for several days, for example),
you may need to pull handle 2 twice to
unlock the vehicle and open the door.
Pressing the button 4 also unlocks all
the doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
3

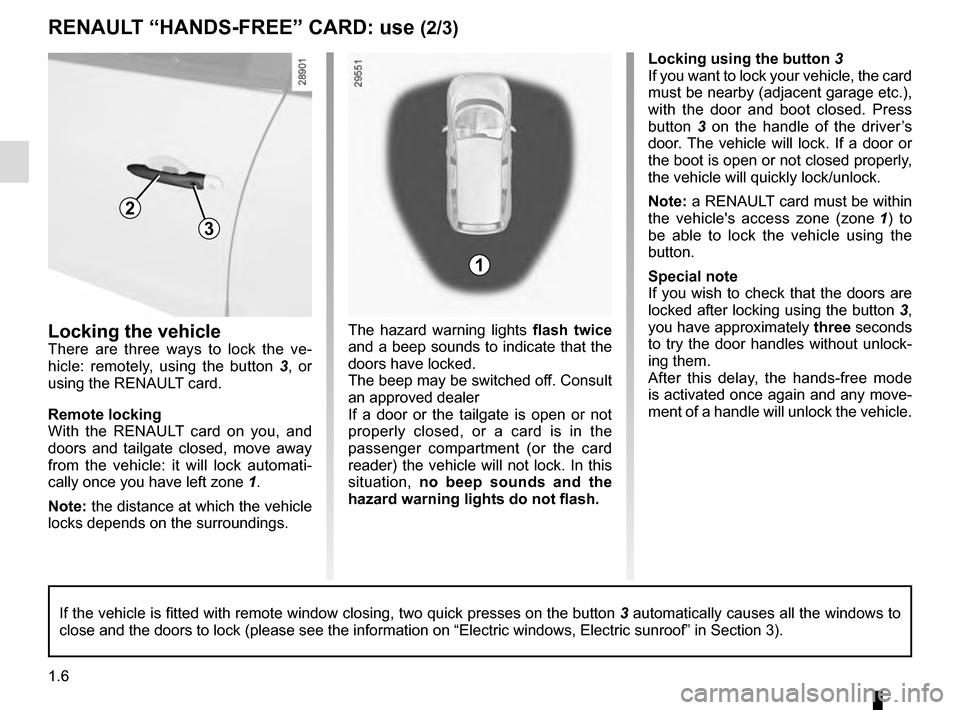

1.6
RENAULT “HANDS-FREE” CARD: use (2/3)
Locking the vehicle
There are three ways to lock the ve-
hicle: remotely, using the button 3, or
using the RENAULT card.
Remote locking
With the RENAULT card on you, and
doors and tailgate closed, move away
from the vehicle: it will lock automati-
cally once you have left zone 1.
Note: the distance at which the vehicle
locks depends on the surroundings. The hazard warning lights
flash twice
and a beep sounds to indicate that the
doors have locked.
The beep may be switched off. Consult
an approved dealer
If a door or the tailgate is open or not
properly closed, or a card is in the
passenger compartment (or the card
reader) the vehicle will not lock. In this
situation, no beep sounds and the
hazard warning lights do not flash. Locking using the button
3
If you want to lock your vehicle, the card
must be nearby (adjacent garage etc.),
with the door and boot closed. Press
button 3 on the handle of the driver’s
door. The vehicle will lock. If a door or
the boot is open or not closed properly,
the vehicle will quickly lock/unlock.
Note: a RENAULT card must be within
the vehicle's access zone (zone 1) to
be able to lock the vehicle using the
button.
Special note
If you wish to check that the doors are
locked after locking using the button 3,
you have approximately three seconds
to try the door handles without unlock-
ing them.
After this delay, the hands-free mode
is activated once again and any move-
ment of a handle will unlock the vehicle.
1
If the vehicle is fitted with remote window closing, two quick presses o\
n the button 3 automatically causes all the windows to
close and the doors to lock (please see the information on “Electric\
windows, Electric sunroof” in Section 3).
2
3

1.7
With the engine running, if having
once opened and closed a door, the
card is no longer in the passenger com-
partment, the message “Keycard not
detected” (accompanied by a warning
beep once the speed passes a thres-
hold value) will tell you that the card is
no longer in the vehicle. This avoids
you driving away after having dropped
off a passenger who has the card, for
example.
The warning disappears when the card
is detected again.
RENAULT “HANDS-FREE” CARD: use (3/3)
Locking using the RENAULT card
With the doors and luggage compart-
ment closed, press button 5: the vehi-
cle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur-
roundings. Special features
The vehicle will not lock if:
– a door or the tailgate is open or not
properly closed;
– a card is still in zone 6 (or in the card
reader) and no other card is in the
external detection zone.
After locking/unlocking the vehicle
or the tailgate only using the but-
tons on the RENAULT card, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the hands-free mode:
restart the vehicle.
5
6

1.8
To deactivate deadlocking
Unlock the vehicle using button 1 on
the RENAULT card.
The hazard warning lights flash once to
indicate that the doors have been un-
locked.
RENAULT CARD: deadlocking
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
You can choose between two deadlock-
ing activation modes:
– press button 2 twice in quick succes-
sion;
– or, press the button on the driver’s door handle 3 twice in quick succes-
sion.
The hazard warning lights flash five
times to indicate locking.
Activating deadlocking also re-
motely closes the windows and/or
the electric sunroof, on equipped
vehicles.
After activating the deadlocking
function using button 2, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
12
3

1.9
OPENING AND CLOSING THE DOORS (1/2)
Opening the doors from the
outside
RENAULT card
With the doors unlocked, hold handle 1
and pull it towards you.
Hands-free RENAULT card
With the RENAULT card in the detec-
tion zone, press the button 2 or, de-
pending on the vehicle, place your
handle behind the handle, then grip the
handle 1 and pull it towards you.
In some cases, it may be necessary to
pull the handle twice to open the door.
Opening from the inside
Pull handle 3.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Card reminder buzzer
On opening the driver’s door, if the
card is still in the reader, the message
“Please remove keycard” is displayed
on the instrument panel accompanied
by a warning beep.
Door/tailgate open buzzer
If an opening element (door or boot) is
open or not properly closed, as soon
as the vehicle reaches a speed of ap-
proximately 6 mph (10 km/h), the mes-
sage “Boot open” or “Door open” (de-
pending on which is open) will appear
on the instrument panel accompanied
by a warning light.
Special note
After switching off the engine, the lights
and any accessories that are in opera-
tion (radio, etc.) will continue to oper-
ate.
They stop as soon as the driver’s door
is opened.
3
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
21

1.10
OPENING AND CLOSING THE DOORS (2/2)
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 4 on each door and check from
the inside that the doors are securely
locked.
4
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

1.11
LOCKING/UNLOCKING THE DOORS (1/2)
Locking/Unlocking the doors
from the outside
This is done using the RENAULT Card;
see the “RENAULT Card” information in
Section 1.
In certain cases, the RENAULT card
may not work:
– when the RENAULT card battery is drained, flat battery, etc.
– use of appliances operating on the same frequency as the card (mobile
phone, etc.);
– vehicle located in a high electromag- netic radiation zone.
It is then possible:
– to use the key integrated into the card to unlock the front left-hand
door;
– to lock each of the doors manually;
– to use the interior door locking/un- locking control (refer to the following
pages).
Using the key integrated in
the RENAULT card
Insert key 1, integrated into the
RENAULT card, in the front left-hand
door and lock or unlock.
Locking the doors manually
Turn screw 2 with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
2
1

1.12
LOCKING/UNLOCKING THE DOORS (2/2)
Interior locking/unlocking
door control
Switch 3 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If transporting an object with the tail-
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 3 for more than five sec-
onds to lock the other doors.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or the tailgate open, press and
hold switch 3 for more than five sec-
onds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
Door and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 3 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail- gate are locked;
– indicator light off, the doors and tail- gate are unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
When locking the vehicle using
switch 3 , the vehicle’s hands-free
locking is deactivated.
Never leave your vehicle
with the RENAULT card
inside.
3
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

1.13
AUTOMATIC LOCKING WHEN DRIVING
Operating principle
After the vehicle is started, the system
automatically locks the doors when
you are driving at approximately 6 mph
(10 km/h) and over.
The door can be unlocked:
– by pressing door unlocking button 1.
– by opening a front door (vehicle sta- tionary).
Note: if a door is opened or closed,
it will automatically lock again when
the vehicle reaches a speed of 6 mph
(10 km/h).
Activating/deactivating the
function
To activate: with the vehicle stopped
and the engine running, press switch 1
until a beep sounds.
To deactivate: with the vehicle at a
standstill and with the engine running,
press switch 1 until two beeps sound.
You can also activate/deactivate this
function, refer to the information on the
“Vehicle settings customisation menu”
in Section 1, function “Auto door locking
while driving”:
= function activated
< function deactivated.
Operating faults
If you experience an operating fault (no
automatic locking, the indicator light in-
corporated in button 1 does not light up
when trying to lock the doors and tail-
gate, etc.), first check that the doors
and tailgate are properly closed. If they
are properly closed and the fault is still
present, contact an approved Dealer.
Also make sure that locking has not
been inadvertently deactivated.
If it has, switch the ignition off and on
again and reactivate it.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

1.14
To raise the headrestPull the headrest upwards to the de-
sired height.
To lower the headrestPress button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headrest
Depending on the vehicle, move sec-
tion A towards or away from you to the
required position.
To adjust side supports BDepending on the vehicle, sections B
can be adjusted independently to the
desired position.
To remove the headrest
Raise it to its highest position (tilt the
seatback backwards if necessary).
Press button 1 on each rod 3 and lift it
until it is released.
To refit the headrestPull out the headrest rods 3 as far as
possible by pulling from the top. Take
care to ensure they are clean and cor-
rectly aligned and, if there are any prob-
lems, check that the notches are facing
forwards.
Insert the headrest rods into the holes
(tilt the seatback backwards if neces-
sary).
Lower the headrest until it locks, press
button 2 and lower the headrest as far
as possible.
Check that each rod 3 on the seatback
is securely locked.
FRONT HEADRESTS
The headrest is an impor-
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section A should be
as small as possible.
B
A
2
3
B
1
The three upper positions can
be manipulated without pressing
button 2. However, it is preferable to
press this button to lower the head-
rest.
