Page 111 of 358

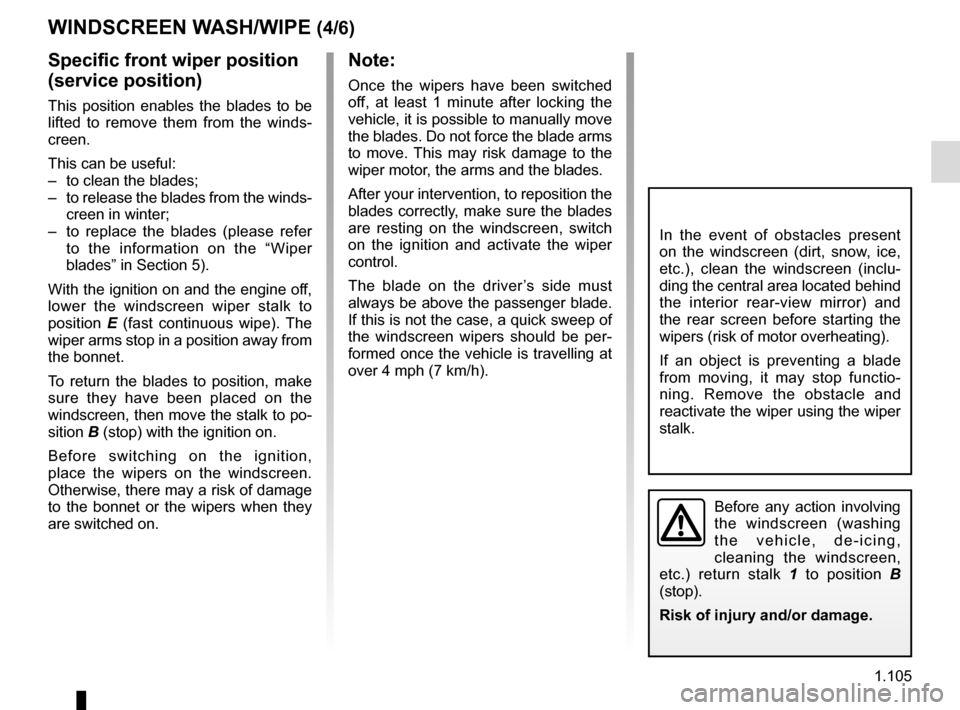

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.105
Before any action involving
the windscreen (washing
the vehicle, de-icing,
cleaning the windscreen,
etc.) return stalk 1  to position B
(stop).
Risk of injury and/or damage.
In the event of

Page 112 of 358

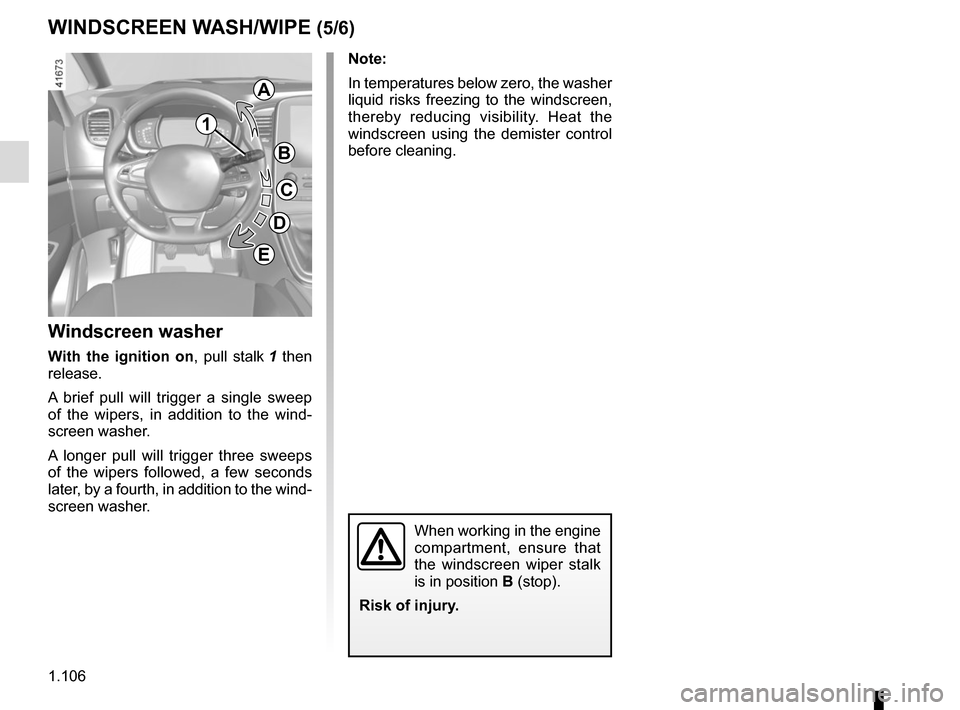

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.106
WINDSCREEN WASH/WIPE (5/6)
Note:
In temperatures below zero, the washer
liquid risks freezing to the windscreen,
thereby reducing visibility. Heat the
windscreen using the demister control
b

Page 113 of 358

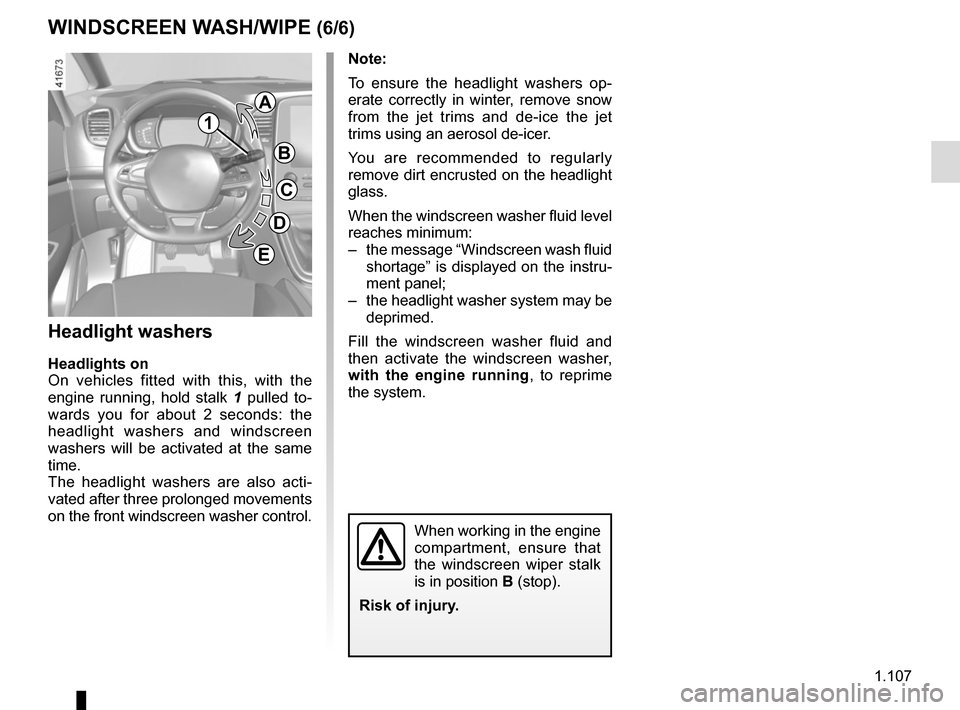

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.107
WINDSCREEN WASH/WIPE (6/6)
Note:
To ensure the headlight washers op-
erate correctly in winter, remove snow
from the jet trims and de-ice the jet
trims using an aerosol de-icer.
You are recom

Page 114 of 358

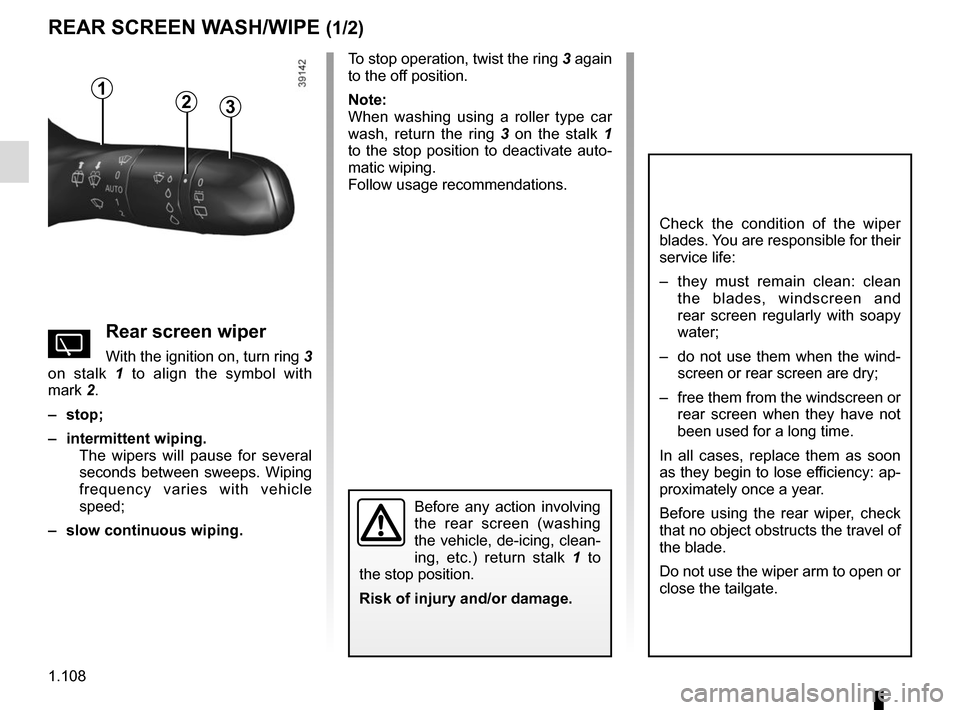

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.108
REAR SCREEN WASH/WIPE (1/2)
1
3
Check the condition of the wiper
blades. You are responsible for their
service life:
–  they must remain clean: clean the blades, windscreen and
rear screen

Page 115 of 358

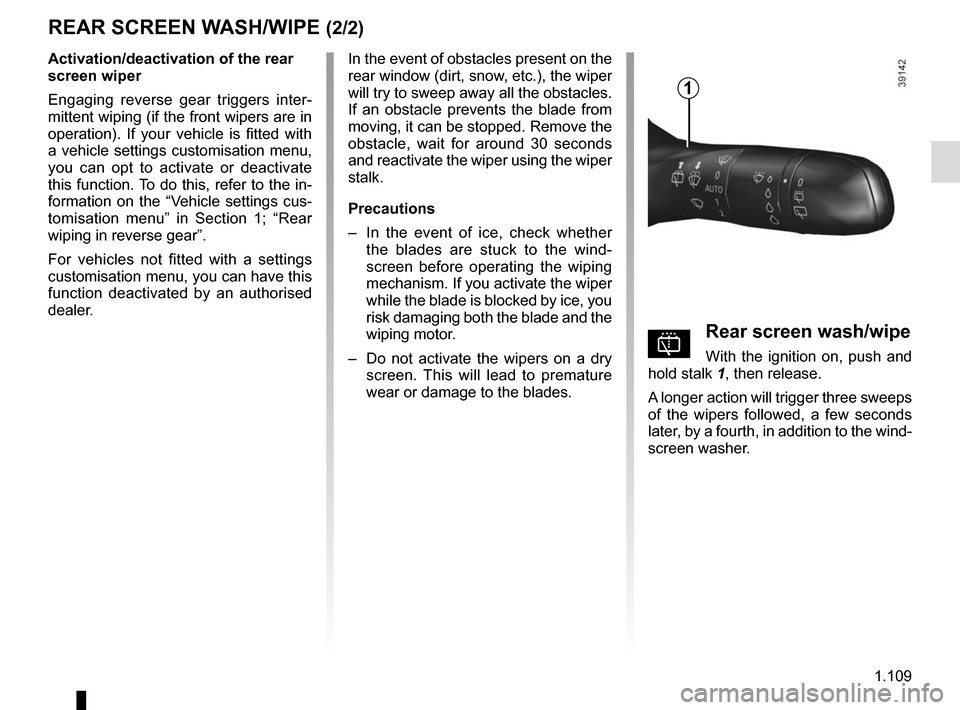

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.109
Activation/deactivation of the rear
screen wiper
Engaging reverse gear triggers inter-
mittent wiping (if the front wipers are in
operation). If your vehicle is fitted with
a vehicle setting

Page 116 of 358

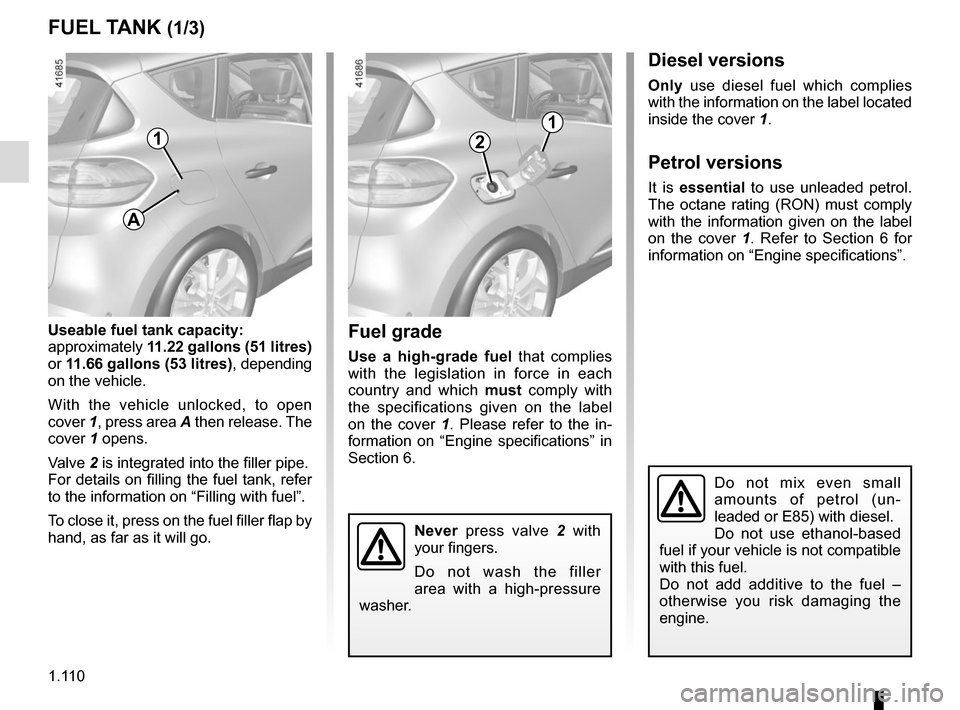

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.110
FUEL TANK (1/3)
Useable fuel tank capacity:
approximately 11.22 gallons (51 litres)
or  11.66 gallons (53 litres), depending
on the vehicle.
With the vehicle unlocked, to open
cover  1, press

Page 117 of 358

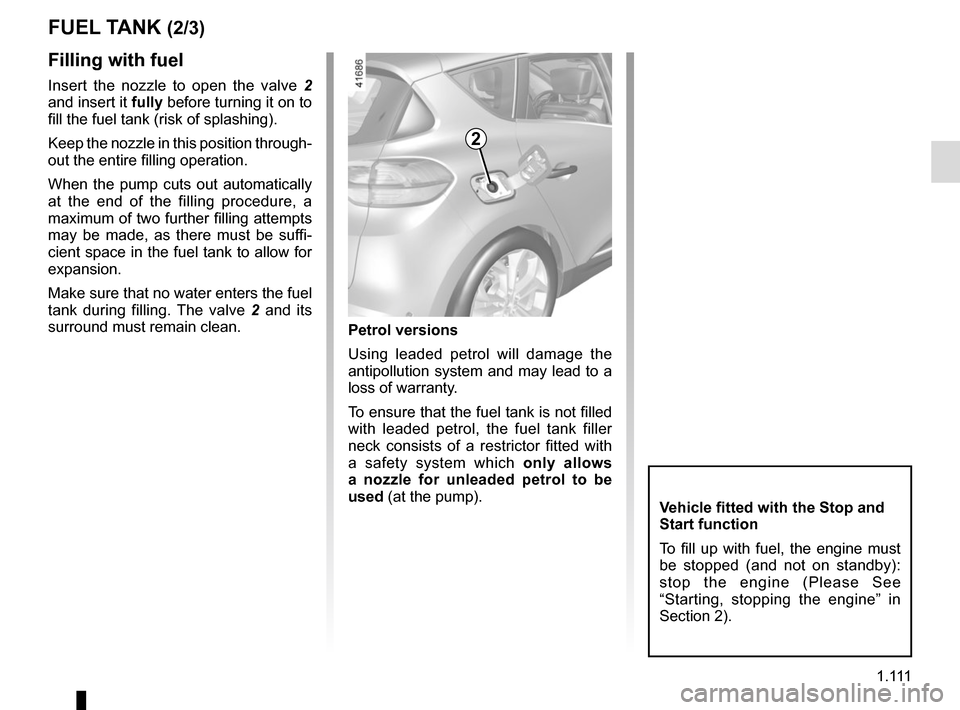

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1 .
111
FUEL TANK (2/3)
Filling with fuel
Insert the nozzle to open the valve  2
and insert it fully before turning it on to
fill the fuel tank (risk of splashing).
Keep the nozzle in this position

Page 118 of 358

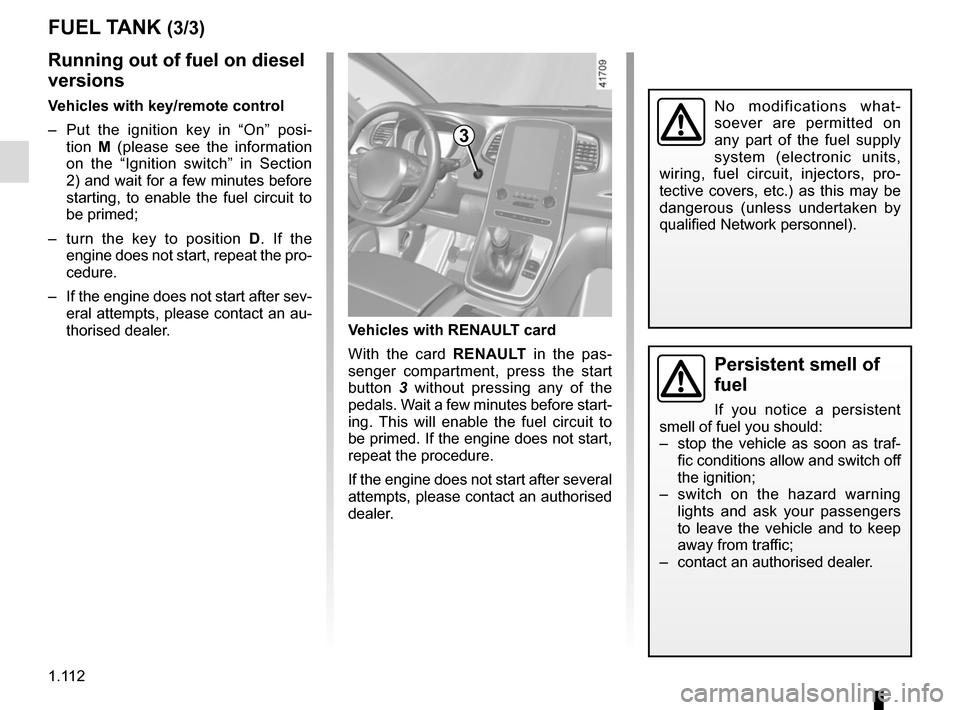

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 1.112
FUEL TANK (3/3)
Persistent smell of
fuel
If you notice a persistent
smell of fuel you should:
–  stop the vehicle as soon as traf- fic conditions allow and switch off
the ignition;
–  swi

Page 119 of 358

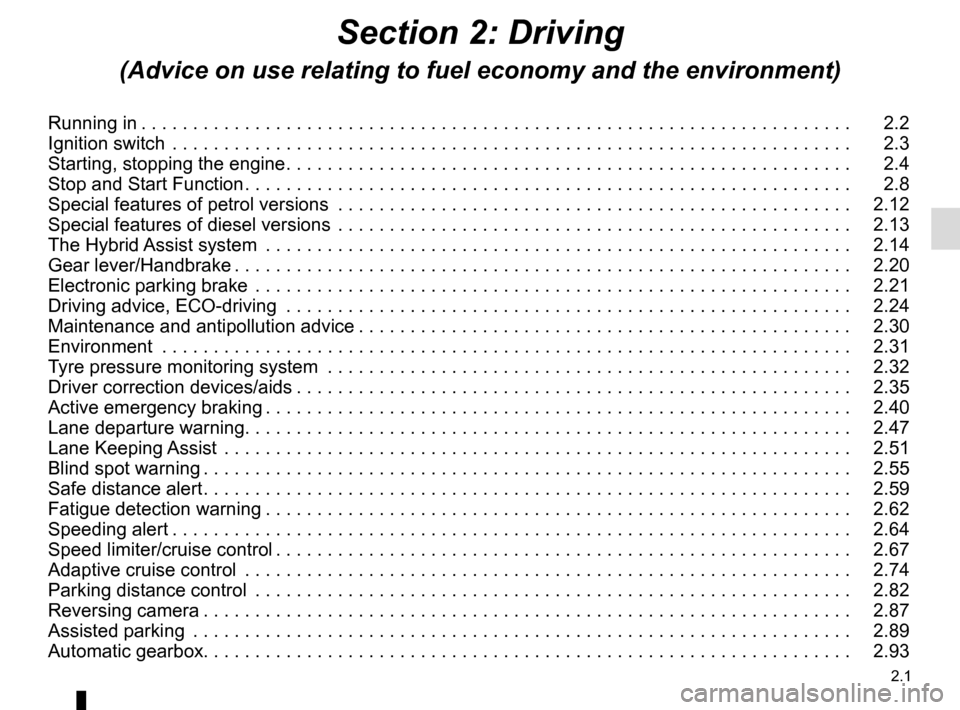

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 2.1
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .

Page 120 of 358

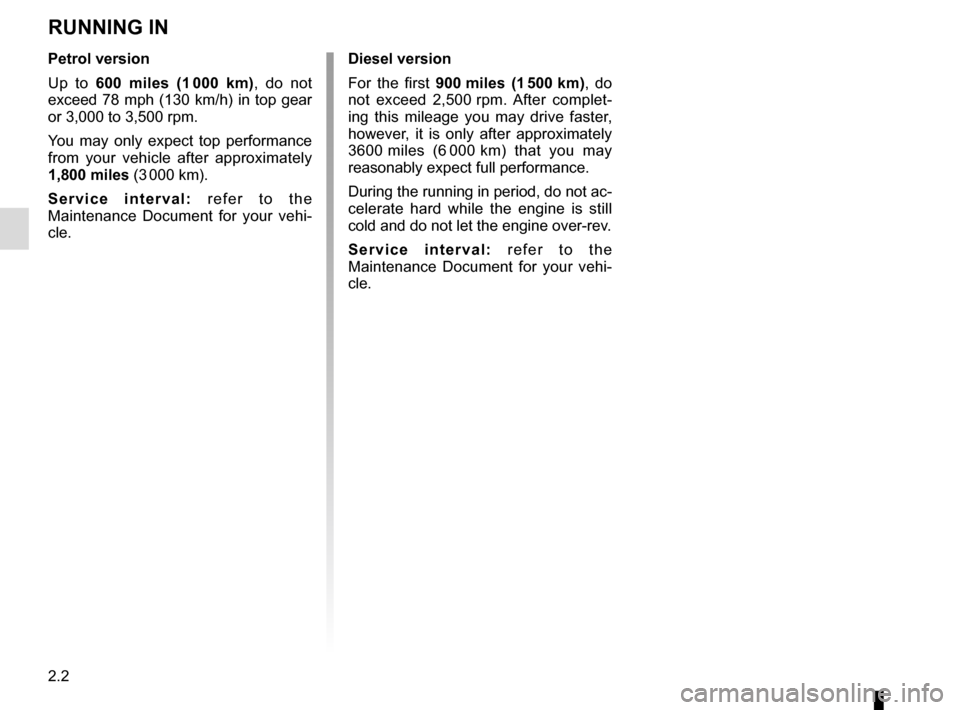

RENAULT SCENIC 2017 J95 / 3.G Owners Manual 2.2
RUNNING IN
Petrol version
Up to 600 miles (1 000 km), do not
exceed 78 mph (130 km/h) in top gear
or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximatel
