coolant temperature RENAULT SCENIC 2017 J95 / 3.G Owners Manual

1.68
xAnti-lock braking warning
light
It lights up when the ignition or the
engine is switched on and goes off after
a few seconds.
If it lights up when you are driving, it in-
dicates a fault in the anti-lock braking
system.
Braking will then be as normal, without
the ABS. Contact an approved Dealer
as soon as possible.
ÔCoolant temperature warn-
ing light
This lights up red when the ignition is
switched on or the engine is started.
If it turns red, stop and let the engine
idle for a minute or two.
The temperature should drop.
Otherwise, stop the engine. Let the
engine cool down before checking the
coolant.
Contact an approved Dealer.

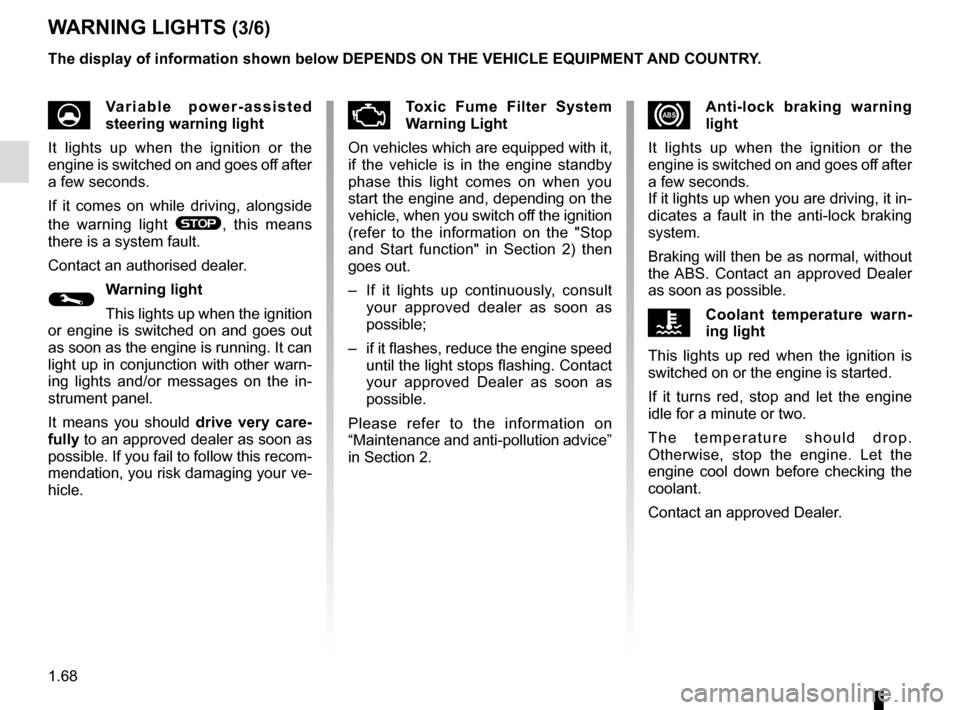

WARNING LIGHTS (3/6)
UVariable power-assisted
steering warning light
It lights up when the ignition or the
engine is switched on and goes off after
a few seconds.
If it comes on while driving, alongside
the warning light
®, this means
there is a system fault.
Contact an authorised dealer.
©Warning light
This lights up when the ignition
or engine is switched on and goes out
as soon as the engine is running. It can
light up in conjunction with other warn-
ing lights and/or messages on the in-
strument panel.
It means you should drive very care-
fully to an approved dealer as soon as
possible. If you fail to follow this recom-
mendation, you risk damaging your ve-
hicle.
ÄToxic Fume Filter System
Warning Light
On vehicles which are equipped with it,
if the vehicle is in the engine standby
phase this light comes on when you
start the engine and, depending on the
vehicle, when you switch off the ignition
(refer to the information on the "Stop
and Start function" in Section 2) then
goes out.
– If it lights up continuously, consult your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

1.73

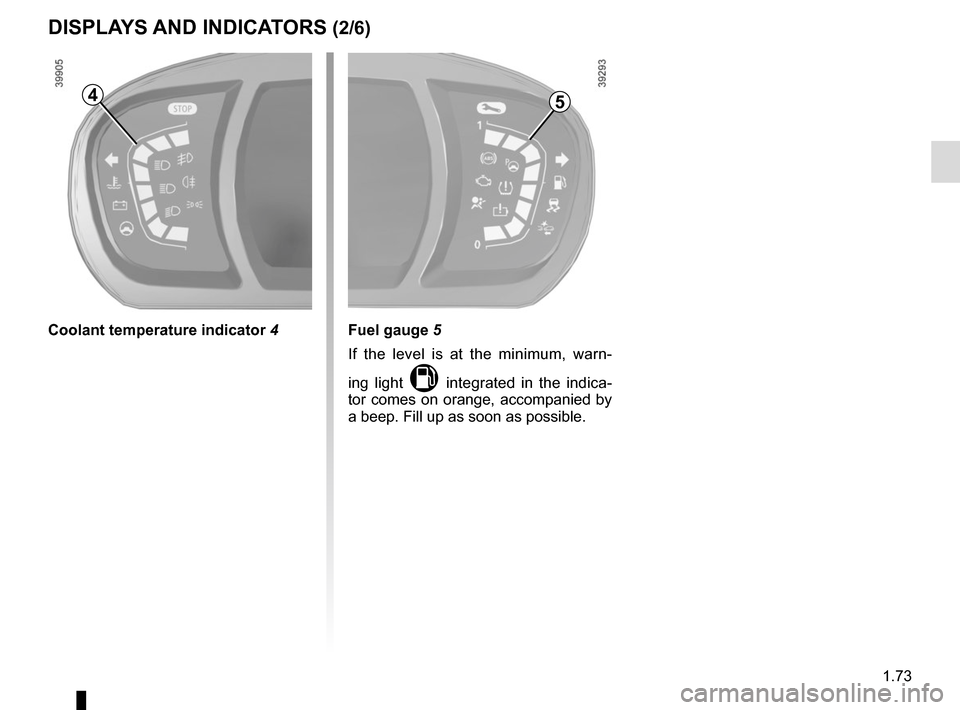

DISPLAYS AND INDICATORS (2/6)
Fuel gauge 5
If the level is at the minimum, warn-
ing light
M integrated in the indica-
tor comes on orange, accompanied by
a beep. Fill up as soon as possible.
Coolant temperature indicator 4
54

1.75

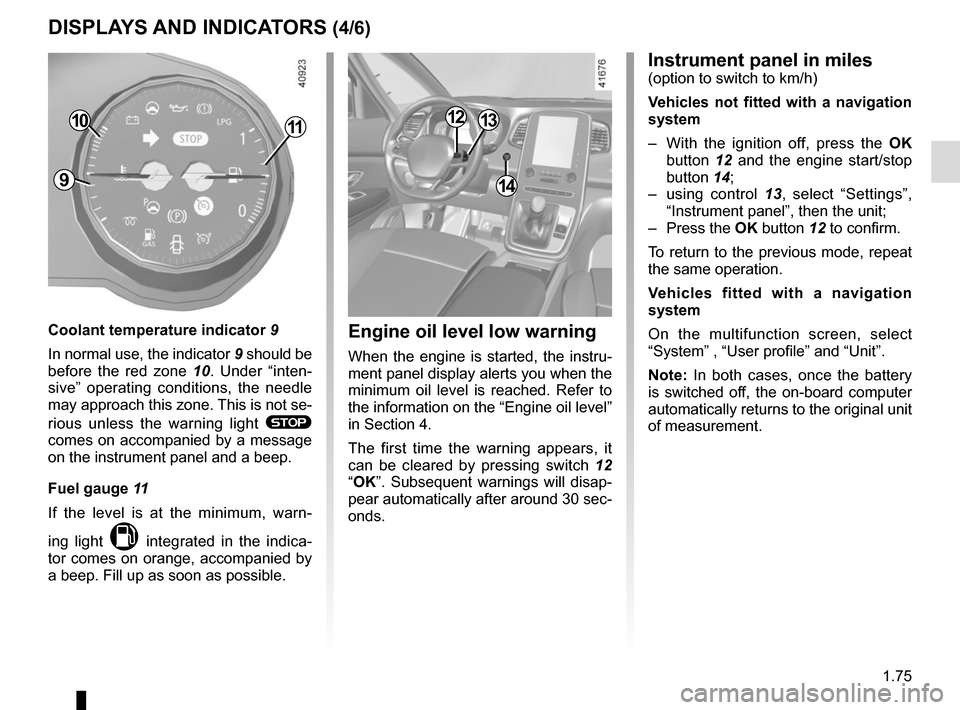

DISPLAYS AND INDICATORS (4/6)
1110
Coolant temperature indicator 9
In normal use, the indicator 9 should be
before the red zone 10. Under “inten-
sive” operating conditions, the needle
may approach this zone. This is not se-
rious unless the warning light
®
comes on accompanied by a message
on the instrument panel and a beep.
Fuel gauge 11
If the level is at the minimum, warn-
ing light
M integrated in the indica-
tor comes on orange, accompanied by
a beep. Fill up as soon as possible.
914
1213
Instrument panel in miles(option to switch to km/h)
Vehicles not fitted with a navigation
system
– With the ignition off, press the OK
button 12 and the engine start/stop
button 14;
– using control 13, select “Settings”,
“Instrument panel”, then the unit;
– Press the OK button 12 to confirm.
To return to the previous mode, repeat
the same operation.
Vehicles fitted with a navigation
system
On the multifunction screen, select
“System” , “User profile” and “Unit”.
Note: In both cases, once the battery
is switched off, the on-board computer
automatically returns to the original unit
of measurement.
Engine oil level low warning
When the engine is started, the instru-
ment panel display alerts you when the
minimum oil level is reached. Refer to
the information on the “Engine oil level”
in Section 4.
The first time the warning appears, it
can be cleared by pressing switch 12
“OK”. Subsequent warnings will disap-
pear automatically after around 30 sec-
onds.

5.42
OPERATING FAULTS (5/7)
On the roadPOSSIBLE CAUSESWHAT TO DO
Steering becomes heavy. Assistance overheating. Consult an approved dealer.
The engine is overheating. The cool-
ant temperature indicator is in the
warning zone and warning light
® comes on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con- tain fluid. If there is no coolant, consult an
authorised dealer as soon as possible.
Coolant boiling in the coolant reser-
voir. Mechanical fault: damaged cylinder
head gasket. Stop the engine.
Contact an approved dealer.
Radiator:
If there is a significant lack of coolant, remember that it must never b\
e topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial drain\
ing of the cooling
system, it must be refilled with a new mixture prepared in the correct p\
roportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

7.3
ALPHABETICAL INDEX (3/6)
fuel consumption ...................................................2.24 → 2.29
fuel economy .........................................................2.24 → 2.29
fuel level ........................................................................\
.... 1.72
fuel repriming ....................................................................1.111
fuel tank capacity ........................................................ 1.110 → 1.112
fuel tank capacity ............................................... 1.110 → 1.112
fuses ....................................................................... 5.27 – 5.28
G
gear lever........................................................................\
... 2.20
grab handle........................................................................\
3.32
H
handbrake............................................................... 2.20 – 2.21
hands-free telephone integrated control ................. 3.21 – 3.22
hazard warning lights signal ................................... 1.94 – 1.95
head-up display .....................................................1.72 → 1.77
headlight beam adjustment ............................................. 1.101
headlight flashers .............................................................. 1.94
headlight washer ............................................................. 1.106
headrest........................................................................\
..... 3.38
heating and air conditioning system .................3.6 → 3.8, 3.19
heating system ...............................................3.6 → 3.13, 3.19
Hill Start Assist.......................................................2.35 → 2.39
horn ...................................................................\
................ 1.94
horn: flash ..................................................................\
........... 1.94
sounding the horn ........................................................ 1.94
hubcap tool .............................................................. 5.9 → 5.11
Hybrid Assist ......................1.69, 2.14 → 2.19, 3.44, 3.49, 5.28
Hybrid Assist system .........1.69, 2.14 → 2.19, 3.44, 3.49, 5.28
I
ignition switch ...................................................................... 2.3
indicators ....................................................... 1.94, 5.17 – 5.18 indicators:
direction indicators .............................................. 1.94, 5.19
exterior temperature indicator ...................................... 1.90
instrument panel ..............................................1.66 → 1.79
instrument panel ...........................................1.66 → 1.87, 1.95
instrument panel messages...................................1.80 → 1.87
interior trim maintenance ..................................................... 4.16 – 4.17
Isofix .................................................................\
.....1.53 → 1.58
J
jack ...................................................................\
....... 5.9 → 5.11
K
keys ...................................................................\
........1.2 → 1.5
L
lane departure warning ..........................................2.47 → 2.54
L
lane keeping: assistance .......................................2.51 → 2.54
L
levels: brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
engine oil ....................................................................... 4.4
windscreen washer reservoir ......................................... 4.9
lifting the vehicle changing a wheel .............................................. 5.12 – 5.13
lighting: exterior ....................................................1.7, 1.95 → 1.101
instrument panel .......................................................... 1.95
interior ..........................................3.26 – 3.27, 5.24 → 5.26
lights adjustment .............................................................\
.... 1.101

7.5
ALPHABETICAL INDEX (5/6)
RENAULT card battery ...................................................... 5.31
replacement parts ................................................................ 6.8
reverse gear selecting ..................................................2.20, 2.93 → 2.95
reversing sensor ....................................................2.82 → 2.86
roof bars ........................................................................\
.... 3.54
roof rack roof bars ....................................................................... 3.54
running in .................................................................... 2.2 – 2.3
S
safety distance warning .........................................2.59 → 2.61
safety distances .....................................................2.59 → 2.61
screen fold-away screen .......................................................... 1.74
navigation display .................................. 1.73, 3.21 – 3.22
navigation screen ..................................... 1.73, 3.21 – 3.22
screen wash/wipe ............................................... 1.108 – 1.109
seat belt pretensioners ..........................................1.32 → 1.35
seat belts ................................ 1.28 → 1.30, 1.32 → 1.35, 1.38
see-me-home lighting ........................................................ 1.99
service sheets..........................................................6.9 → 6.14
side indicator lights changing bulbs ............................................................. 5.23
sign detection: overspeed warning ........................2.64 → 2.66
signals and lights .................................................1.95 → 1.101
special features of diesel versions..................................... 2.13
special features of petrol vehicles ..................................... 2.12
speed limiter ..........................................................2.67 → 2.69
starting the engine .....................................................2.3 → 2.7
steering wheel adjustment .............................................................\
...... 1.91
Stop & Start ............................................................. 2.8 → 2.11
Stop & Start function................................................ 2.8 → 2.11
stopping the engine ............................................................. 2.4
storage compartment.............................................3.29 → 3.36storage compartments ..................................3.29
→ 3.36, 3.48
sun blinds ........................................................................\
.. 3.28
sun visor ........................................................................\
.... 3.28
switching on the vehicle ignition ................................... 2.3, 2.6
T
tailgate .................................................. 3.45 – 3.46, 3.48, 3.50
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications ..............................................6.4 → 6.8
telephone ................................................................ 3.21 – 3.22
temperature regulation ...................................3.9 → 3.13, 3.19
tool kit ...................................................................... 5.9 → 5.11
towing breakdown ........................................................ 5.36 – 5.37
towing equipment .............................................. 3.50 – 3.51
towing a caravan ............................................. 3.50 – 3.51, 6.7
towing equipment fitting ................................................................. 3.50 – 3.51
towing hitch............................................................. 5.36 – 5.37
towing rings .............................................................. 3.50, 3.53
towing weights ..................................................................... 6.7
traction control .......................................................2.35 → 2.39
transporting children ..........................1.39 – 1.40, 1.42 → 1.58
transporting objects in the luggage compartment ........................................ 3.50
luggage net ....................................................... 3.52 – 3.53
trims ..................................................................\
................. 5.10
trip computer and warning system... 1.66 → 1.71, 1.78 → 1.87
tyre inflation kit...........................................................5.5 → 5.8
tyre pressure.............................2.32 → 2.34, 4.12 – 4.13, 5.15
tyre pressure monitor.............................................2.32 → 2.34
tyre pressures ...........................2.32 → 2.34, 4.12 – 4.13, 4.13
