RENAULT SCENIC 2018 Owners Manual

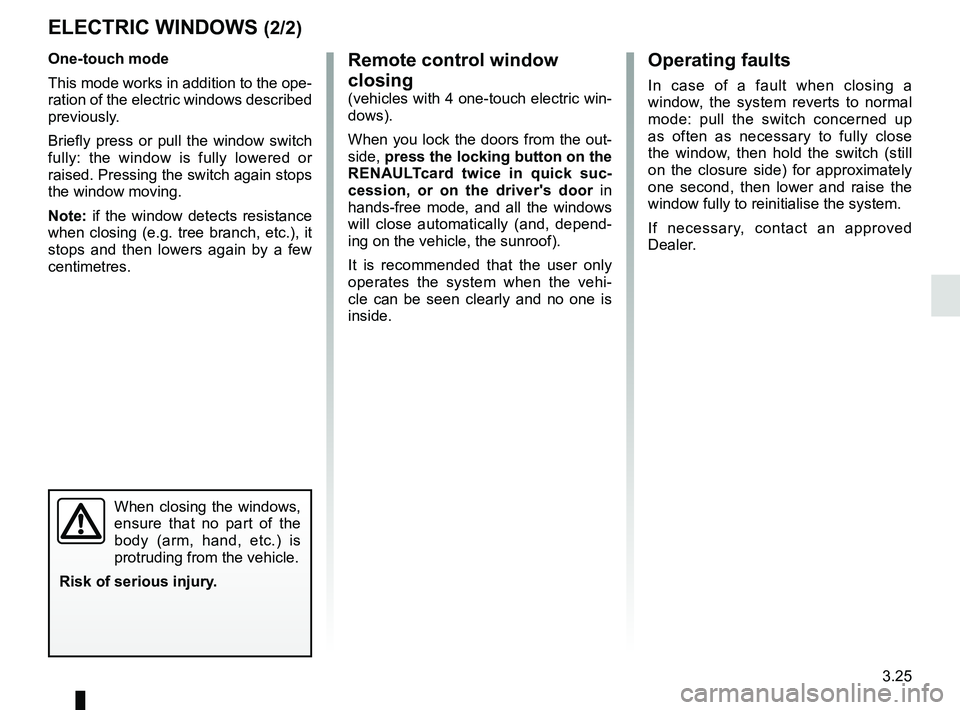

3.25
Operating faults
In case of a fault when closing a
window, the system reverts to normal
mode: pull the switch concerned up
as often as necessary to fully close
the window, then hold the switch (still
on the closure side) for approximately
one second, then lower and raise the
window fully to reinitialise the system.
If necessary, contact an approved
Dealer.
ELECTRIC WINDOWS (2/2)Remote control window
closing
(vehicles with 4 one-touch electric win-
dows).
When you lock the doors from the out-
side, press the locking button on the
RENAULTcard twice in quick suc-
cession, or on the driver's door in
hands-free mode, and all the windows
will close automatically (and, depend-
ing on the vehicle, the sunroof).
It is recommended that the user only
operates the system when the vehi-
cle can be seen clearly and no one is
inside.
One-touch mode
This mode works in addition to the ope-
ration of the electric windows described
previously.
Briefly press or pull the window switch
fully: the window is fully lowered or
raised. Pressing the switch again stops
the window moving.
Note: if the window detects resistance
when closing (e.g. tree branch, etc.), it
stops and then lowers again by a few
centimetres.
When closing the windows,
ensure that no part of the
body (arm, hand, etc.) is
protruding from the vehicle.
Risk of serious injury.

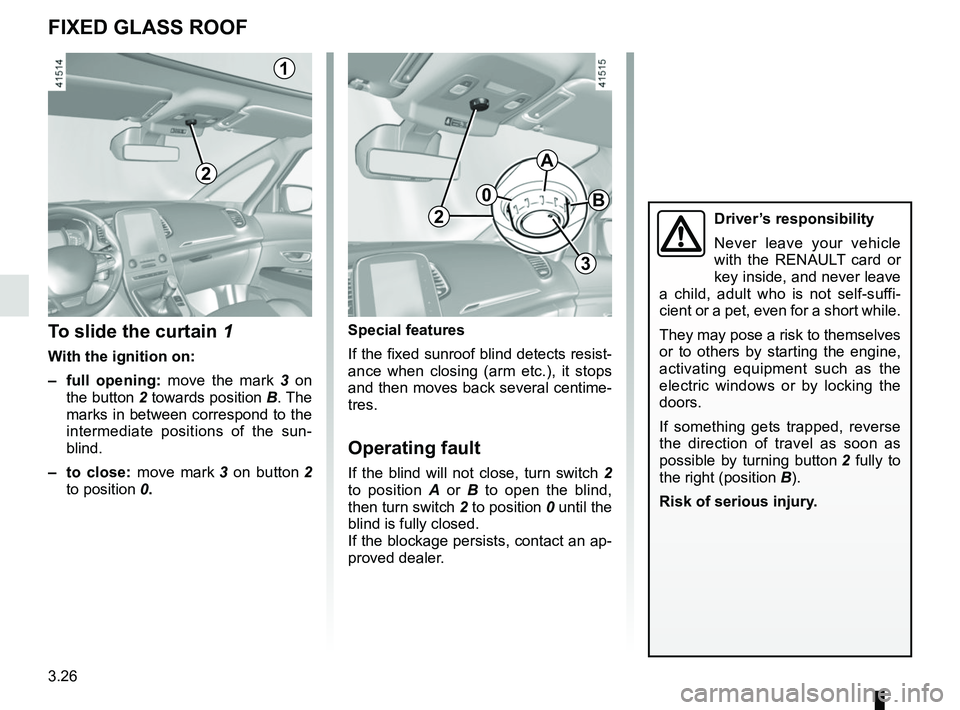

3.26
FIXED GLASS ROOF
To slide the curtain 1
With the ignition on:
– full opening: move the mark 3 on
the button 2 towards position B. The
marks in between correspond to the
intermediate positions of the sun-
blind.
– to close: move mark 3 on button 2
to position 0.
1
Driver’s responsibility
Never leave your vehicle
with the RENAULT card or
key inside, and never leave
a child, adult who is not self-suffi-
cient or a pet, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
If something gets trapped, reverse
the direction of travel as soon as
possible by turning button 2 fully to
the right (position B).
Risk of serious injury.
3
0
A
B2
Special features
If the fixed sunroof blind detects resist-
ance when closing (arm etc.), it stops
and then moves back several centime-
tres.
Operating fault
If the blind will not close, turn switch 2
to position A or B to open the blind,
then turn switch 2 to position 0 until the
blind is fully closed.
If the blockage persists, contact an ap-
proved dealer.
2

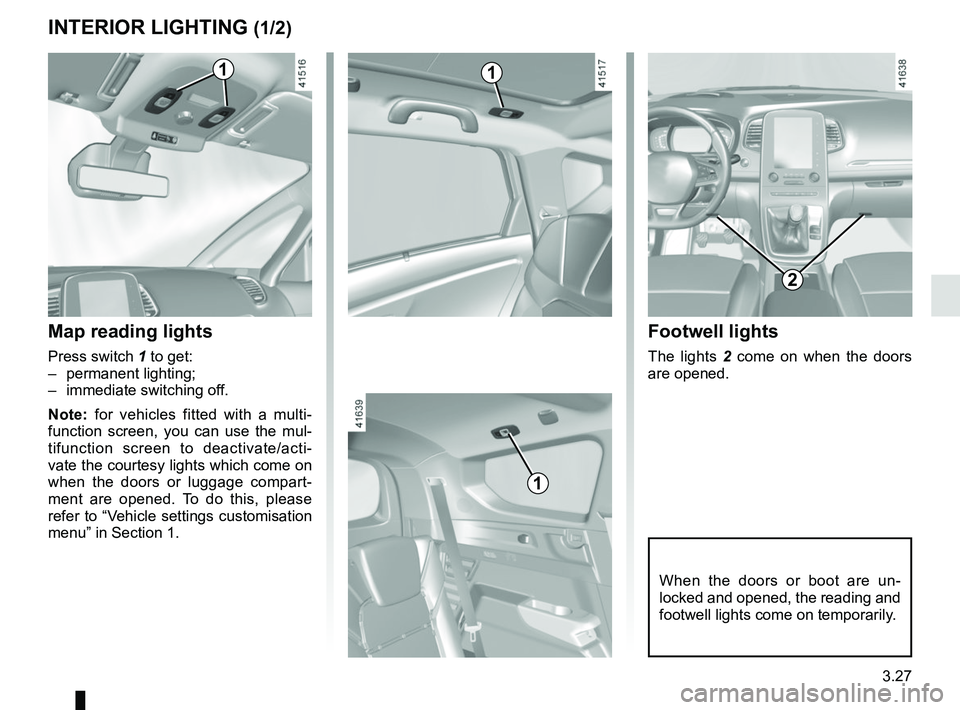

3.27
When the doors or boot are un-
locked and opened, the reading and
footwell lights come on temporarily.
1
INTERIOR LIGHTING (1/2)
1
Map reading lights
Press switch 1 to get:
– permanent lighting;
– immediate switching off.
Note: for vehicles fitted with a multi-
function screen, you can use the mul-
tifunction screen to deactivate/acti-
vate the courtesy lights which come on
when the doors or luggage compart-
ment are opened. To do this, please
refer to “Vehicle settings customisation
menu” in Section 1.
1
2
Footwell lights
The lights 2 come on when the doors
are opened.

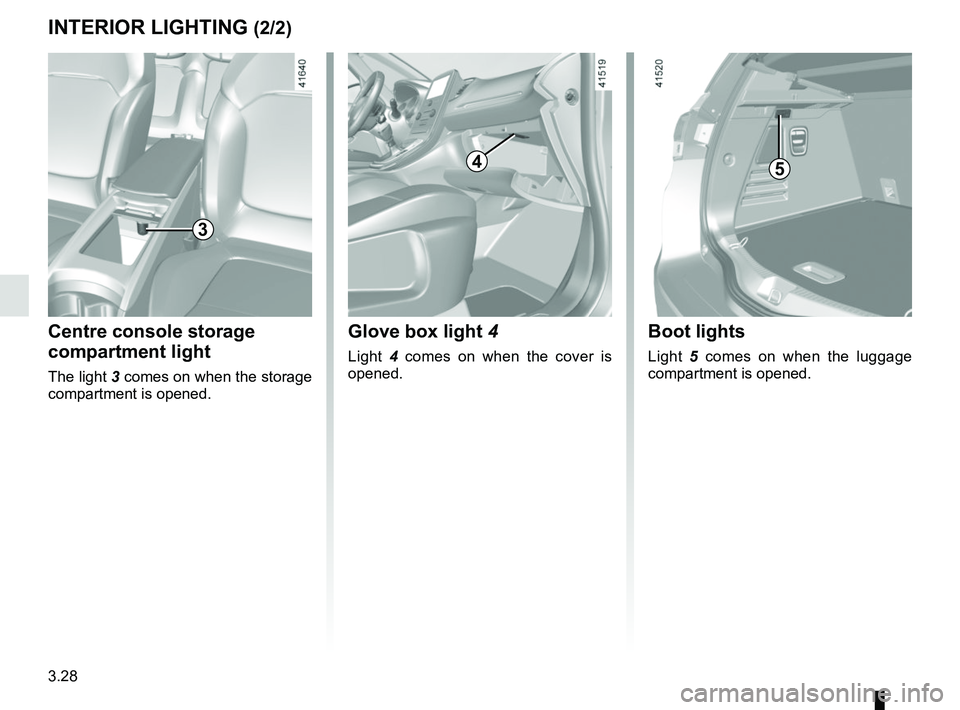

3.28
Boot lights
Light 5 comes on when the luggage
compartment is opened.
INTERIOR LIGHTING (2/2)
5
Glove box light 4
Light 4 comes on when the cover is
opened.
4
Centre console storage
compartment light
The light 3 comes on when the storage
compartment is opened.
3

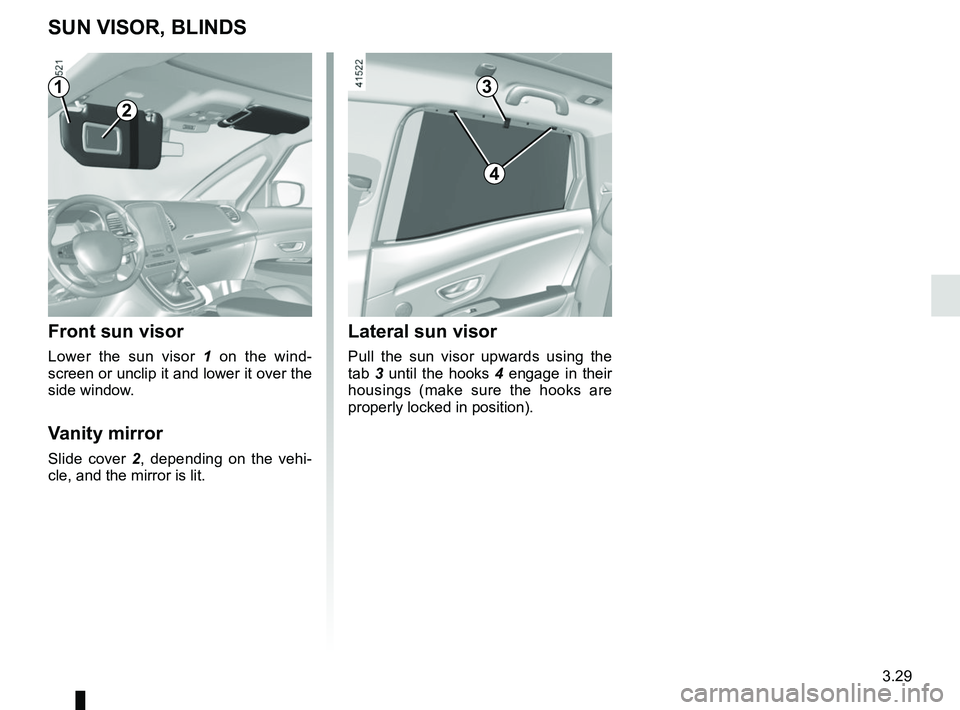

3.29
SUN VISOR, BLINDS
Front sun visor
Lower the sun visor 1 on the wind-
screen or unclip it and lower it over the
side window.
Vanity mirror
Slide cover 2 , depending on the vehi-
cle, and the mirror is lit.
Lateral sun visor
Pull the sun visor upwards using the
tab 3 until the hooks 4 engage in their
housings (make sure the hooks are
properly locked in position).
3
4
2
1

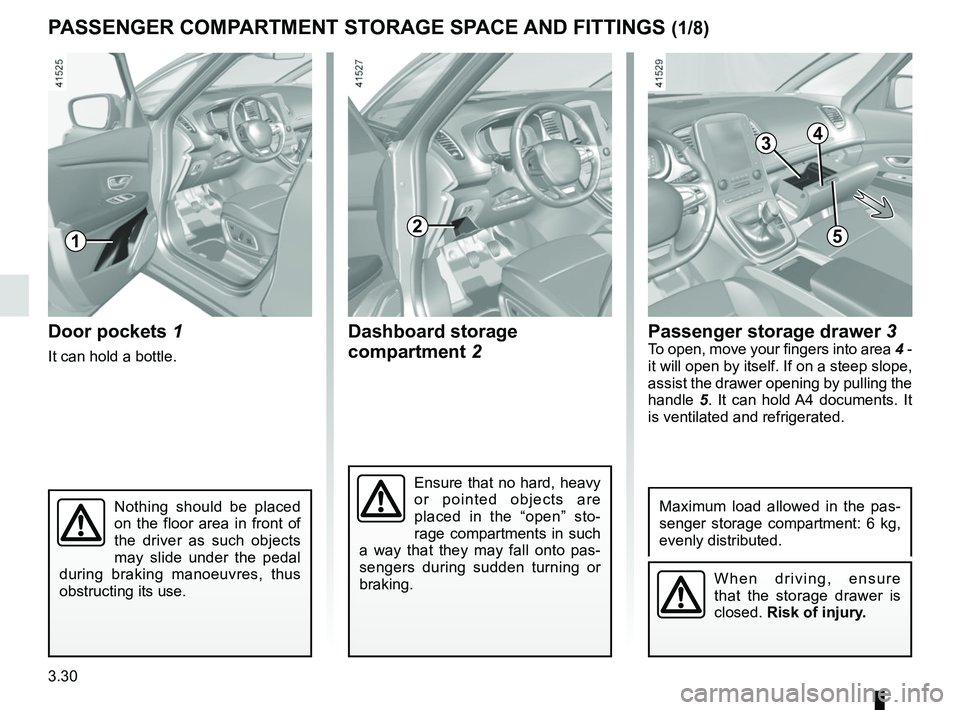

3.30
Passenger storage drawer 3To open, move your fingers into area 4 -
it will open by itself. If on a steep slope,
assist the drawer opening by pulling the
handle 5. It can hold A4 documents. It
is ventilated and refrigerated.Dashboard storage
compartment 2Door pockets 1
It can hold a bottle.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/8)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
2
Maximum load allowed in the pas-
senger storage compartment: 6 kg,
evenly distributed.
When driving, ensure
that the storage drawer is
closed. Risk of injury.
34
5

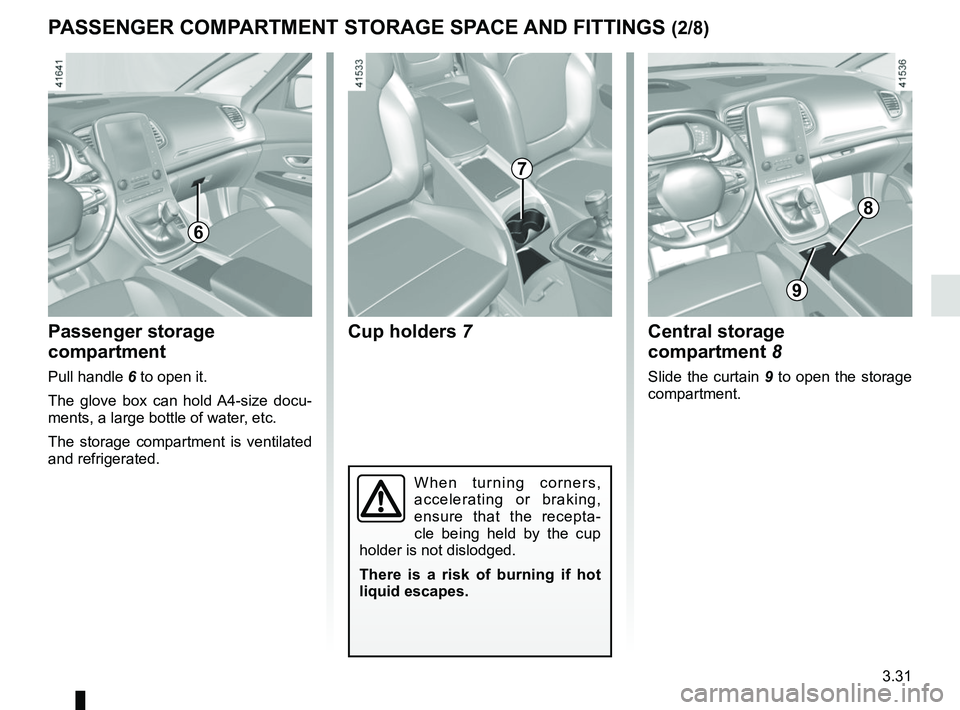

3.31
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/8)
Cup holders 7
8
9
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot
liquid escapes.
7
Passenger storage
compartment
Pull handle 6 to open it.
The glove box can hold A4-size docu-
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
6
Central storage
compartment 8
Slide the curtain 9 to open the storage
compartment.

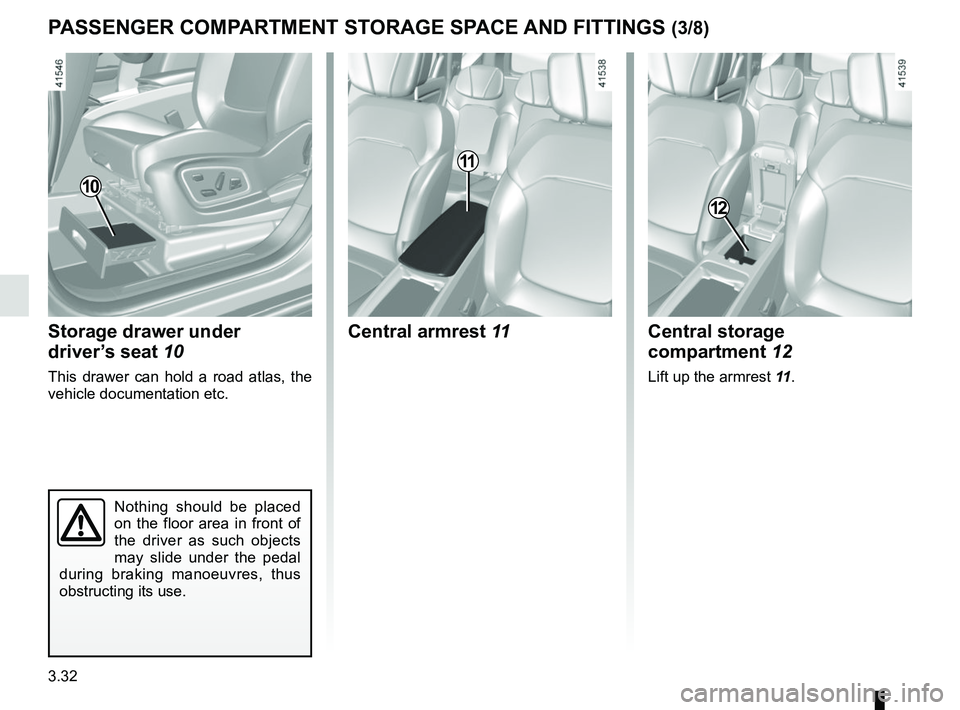

3.32
12
Central storage
compartment 12
Lift up the armrest 11.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/8)
Central armrest 11
11
Storage drawer under
driver’s seat 10
This drawer can hold a road atlas, the
vehicle documentation etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
10

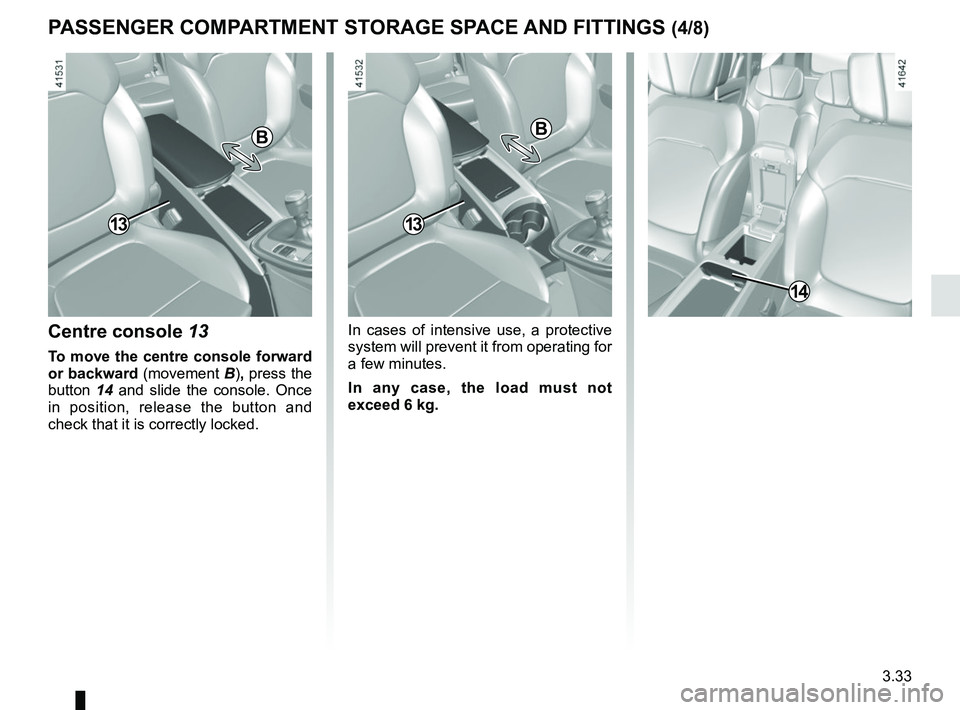

3.33
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/8)
Centre console 13
To move the centre console forward
or backward (movement B), press the
button 14 and slide the console. Once
in position, release the button and
check that it is correctly locked.
B
13
In cases of intensive use, a protective
system will prevent it from operating for
a few minutes.
In any case, the load must not
exceed 6 kg.
14
B
13

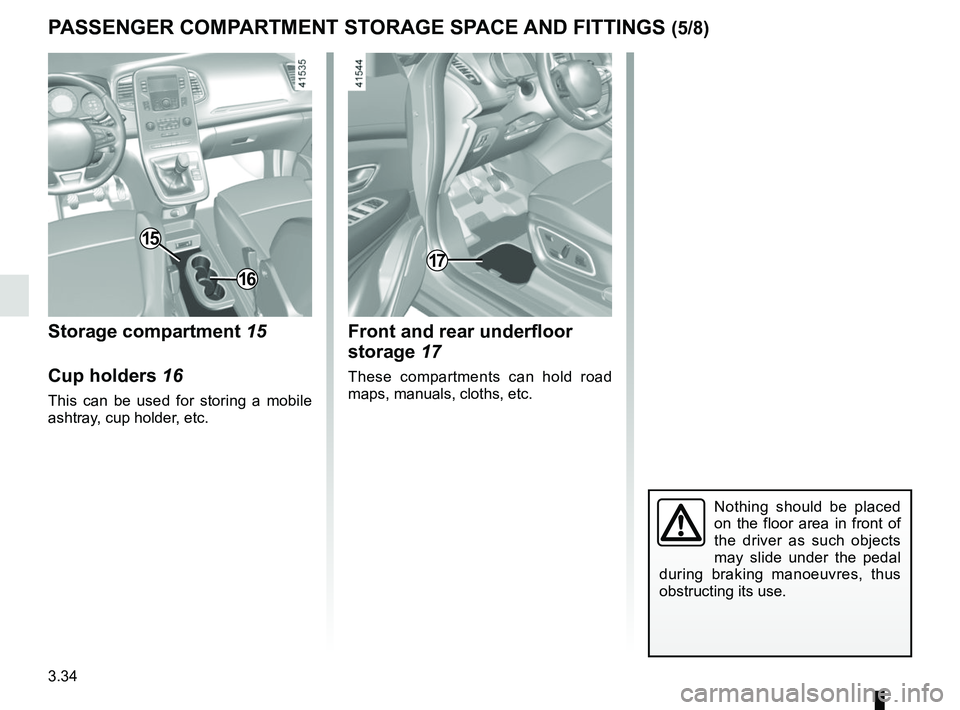

3.34
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (5/8)
Storage compartment 15
Cup holders 16
This can be used for storing a mobile
ashtray, cup holder, etc.
15
16
17
Front and rear underfloor
storage 17
These compartments can hold road
maps, manuals, cloths, etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
