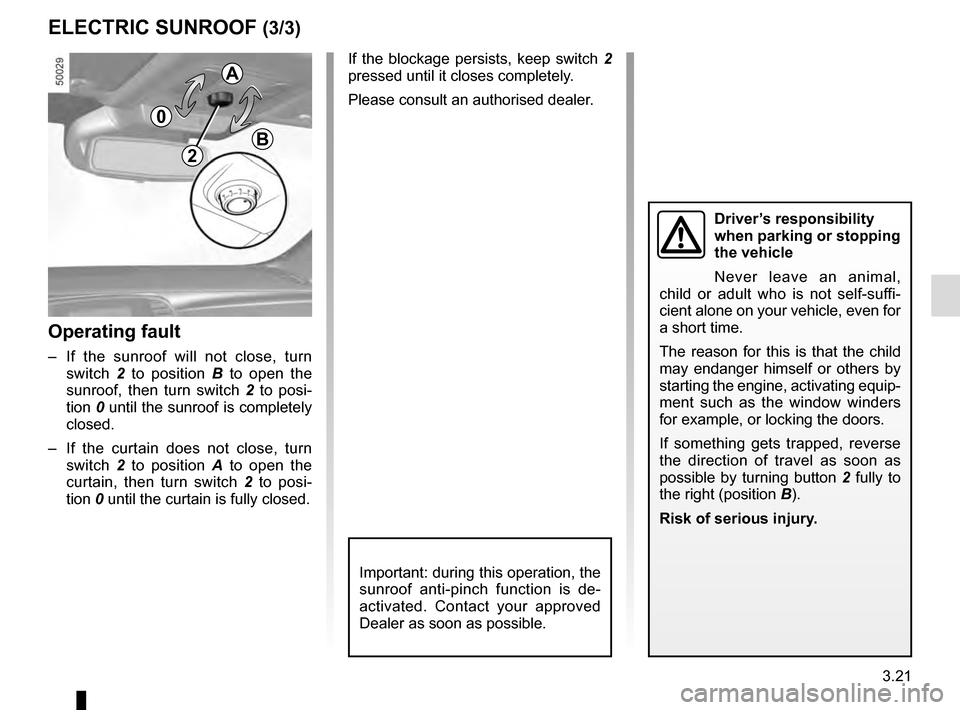

Page 211 of 328
3.21
Operating fault
– If the sunroof will not close, turn switch 2 to position B to open the
sunroof, then turn switch 2 to posi-
tion 0 until the sunroof is completely
closed.
– If the curtain does not close, turn switch 2 to position A to open the
curtain, then turn switch 2 to posi-
tion 0 until the curtain is fully closed.
2
ELECTRIC SUNROOF (3/3)
If the blockage persists, keep switch 2
pressed until it closes completely.
Please consult an authorised dealer.
0
A
B
Important: during this operation, the
sunroof anti-pinch function is de-
activated. Contact your approved
Dealer as soon as possible.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
If something gets trapped, reverse
the direction of travel as soon as
possible by turning button 2 fully to
the right (position B).
Risk of serious injury.

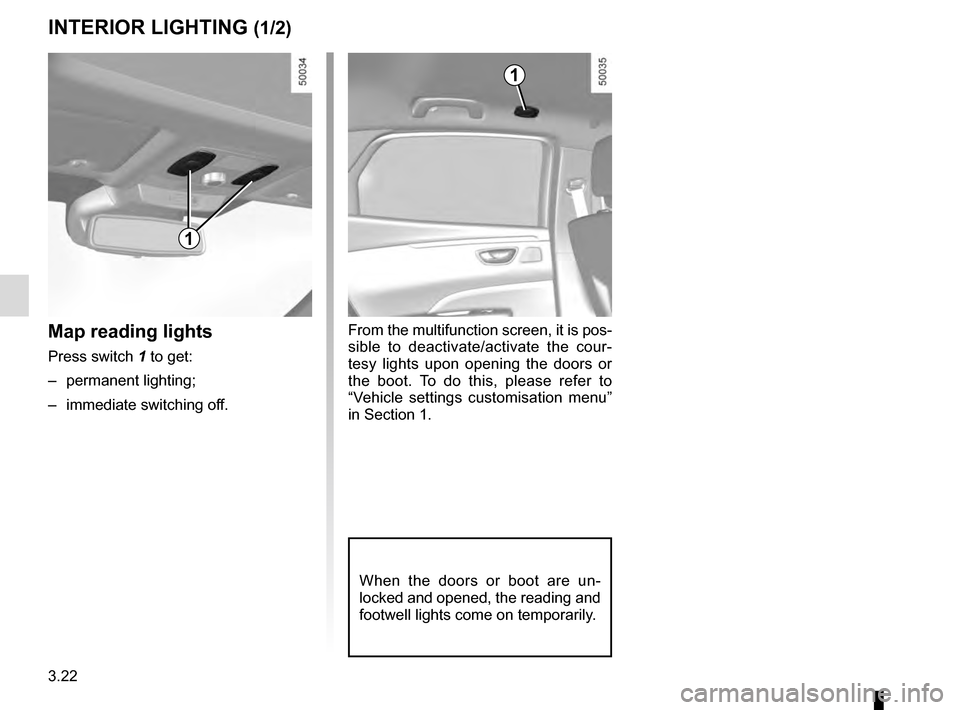

Page 212 of 328
3.22
When the doors or boot are un-
locked and opened, the reading and
footwell lights come on temporarily.
Map reading lights
Press switch 1 to get:
– permanent lighting;
– immediate switching off.
1
From the multifunction screen, it is pos-
sible to deactivate/activate the cour-
tesy lights upon opening the doors or
the boot. To do this, please refer to
“Vehicle settings customisation menu”
in Section 1.
INTERIOR LIGHTING (1/2)
1

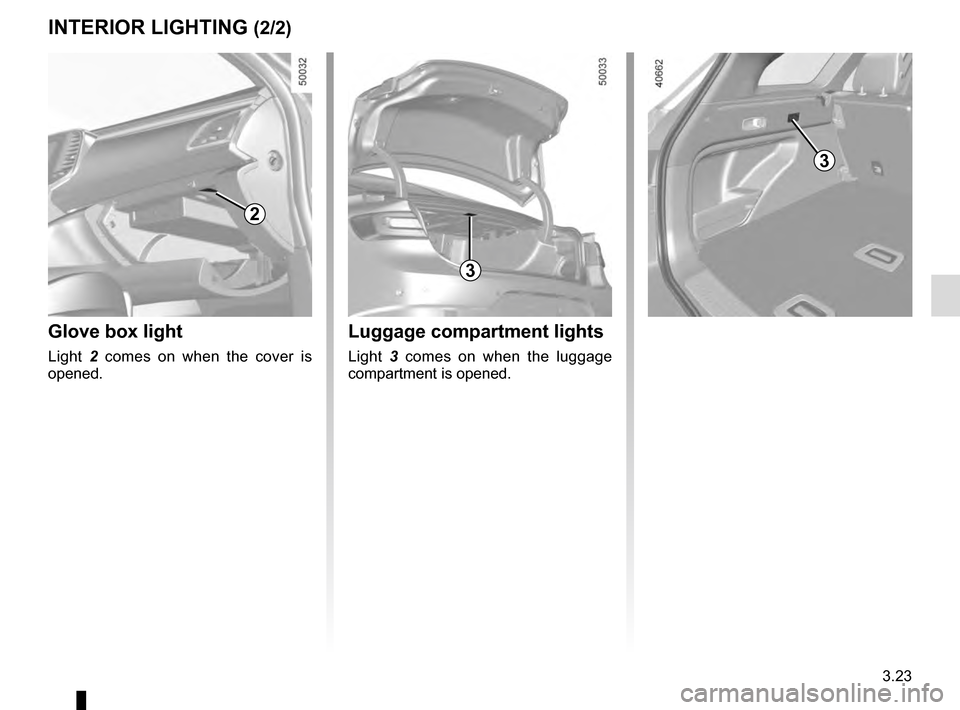

Page 213 of 328
3.23
Luggage compartment lights
Light 3 comes on when the luggage
compartment is opened.
Glove box light
Light 2 comes on when the cover is
opened.
INTERIOR LIGHTING (2/2)
2
3
3

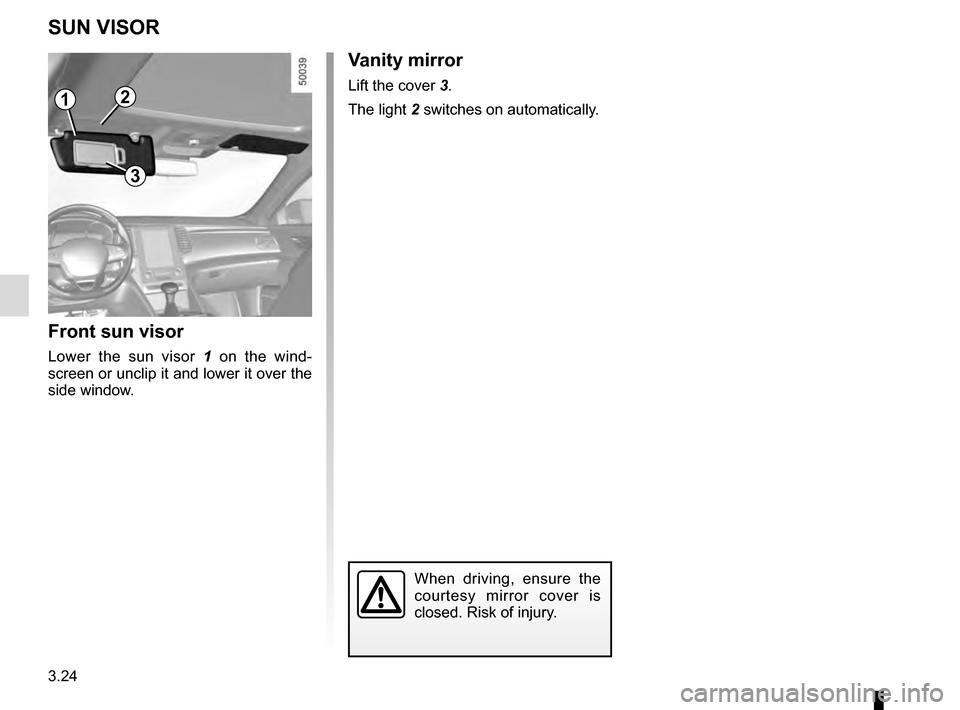

Page 214 of 328
3.24
Vanity mirror
Lift the cover 3.
The light 2 switches on automatically.
SUN VISOR
Front sun visor
Lower the sun visor 1 on the wind-
screen or unclip it and lower it over the
side window.
2
3
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
1

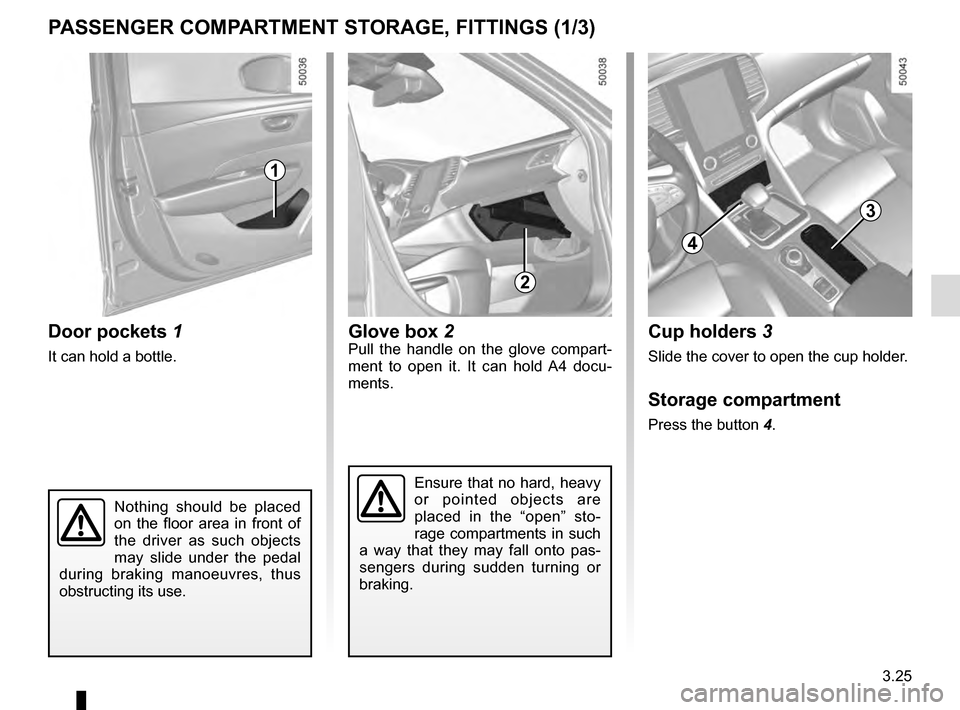

Page 215 of 328
3.25
Door pockets 1
It can hold a bottle.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/3)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
Glove box 2Pull the handle on the glove compart-
ment to open it. It can hold A4 docu-
ments.
2
Cup holders 3
Slide the cover to open the cup holder.
Storage compartment
Press the button 4.
3
4

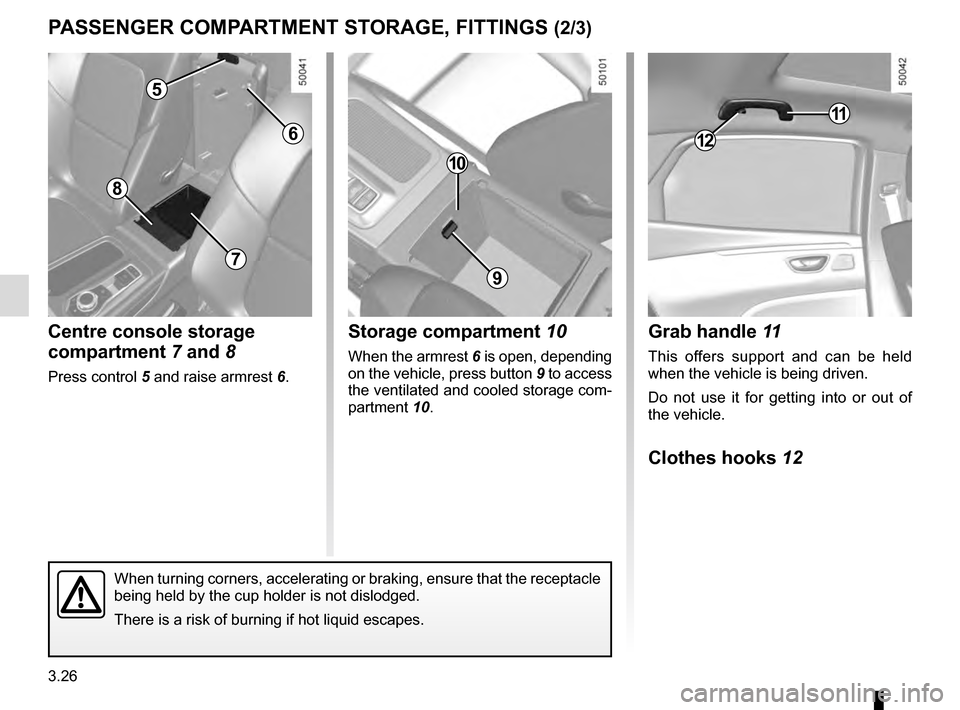

Page 216 of 328
3.26
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/3)
Grab handle 11
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
Clothes hooks 12
Centre console storage
compartment 7 and 8
Press control 5 and raise armrest 6.
8
11
12
5
7
6
9
10
Storage compartment 10
When the armrest 6 is open, depending
on the vehicle, press button
9 to access
the ventilated and cooled storage com-
partment 10.
When turning corners, accelerating or braking, ensure that the receptacl\
e
being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.

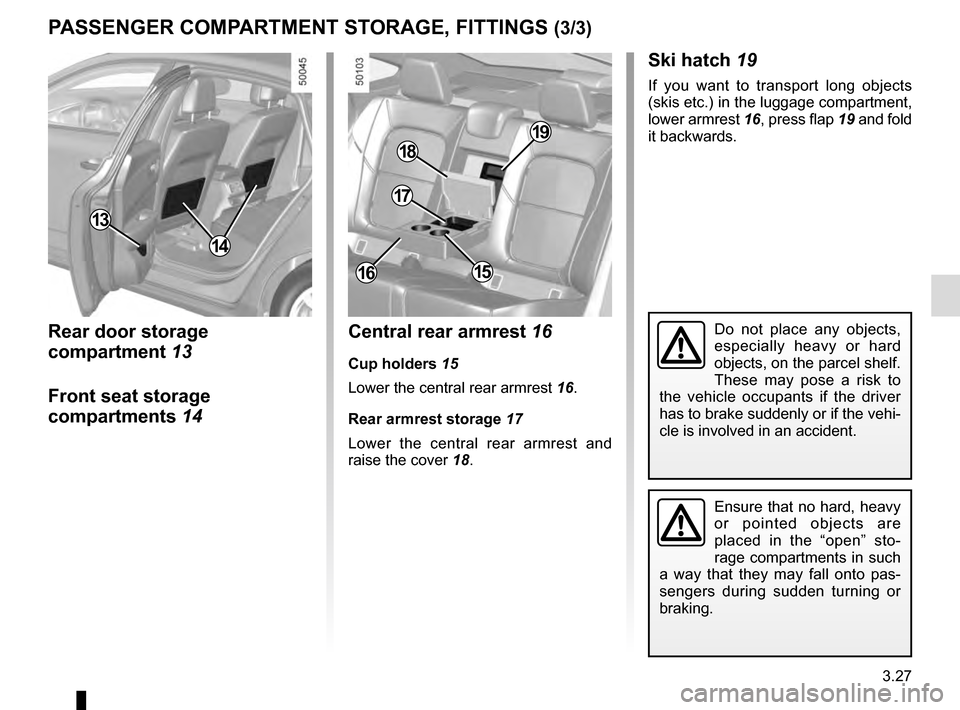

Page 217 of 328
3.27
Ski hatch 19
If you want to transport long objects
(skis etc.) in the luggage compartment,
lower armrest 16, press flap 19 and fold
it backwards.
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
Rear door storage
compartment 13
Front seat storage
compartments 14
13
14
Central rear armrest 16
Cup holders 15
Lower the central rear armrest 16.
Rear armrest storage 17
Lower the central rear armrest and
raise the cover 18.
17
16
18
19
15
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.

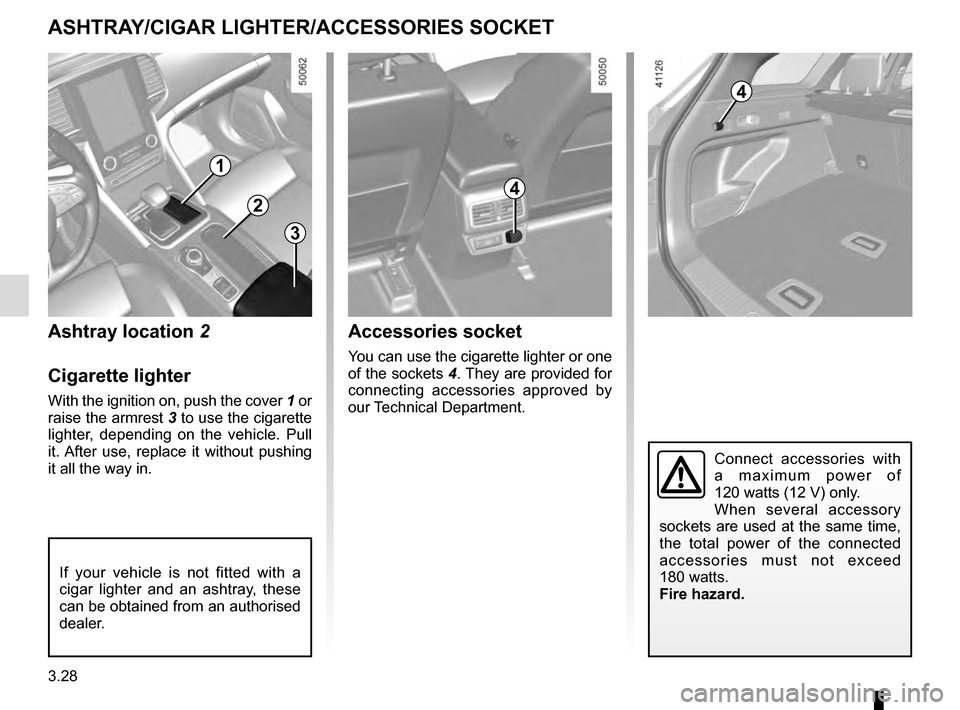

Page 218 of 328
3.28
ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET
1
Ashtray location 2
Cigarette lighter
With the ignition on, push the cover 1 or
raise the armrest 3 to use the cigarette
lighter, depending on the vehicle. Pull
it. After use, replace it without pushing
it all the way in.
Accessories socket
You can use the cigarette lighter or one
of the sockets 4. They are provided for
connecting accessories approved by
our Technical Department.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
4
2
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an authorised
dealer.
3
4

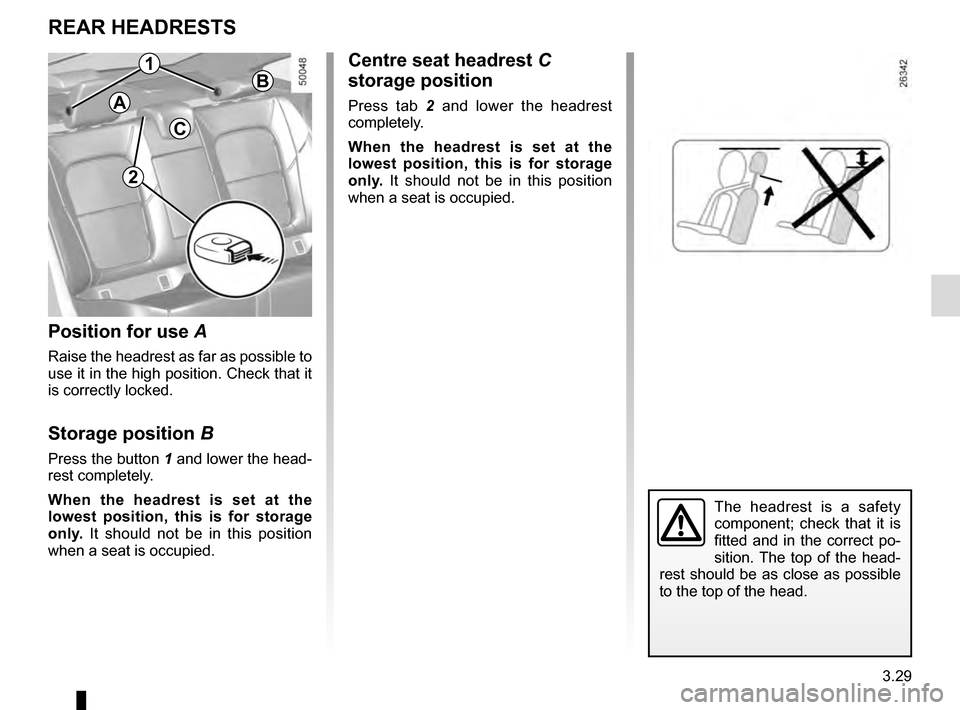

Page 219 of 328
3.29
Centre seat headrest C
storage position
Press tab 2 and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
REAR HEADRESTS
Position for use A
Raise the headrest as far as possible to
use it in the high position. Check that it
is correctly locked.
Storage position B
Press the button 1 and lower the head-
rest completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
1
2
C
A
B

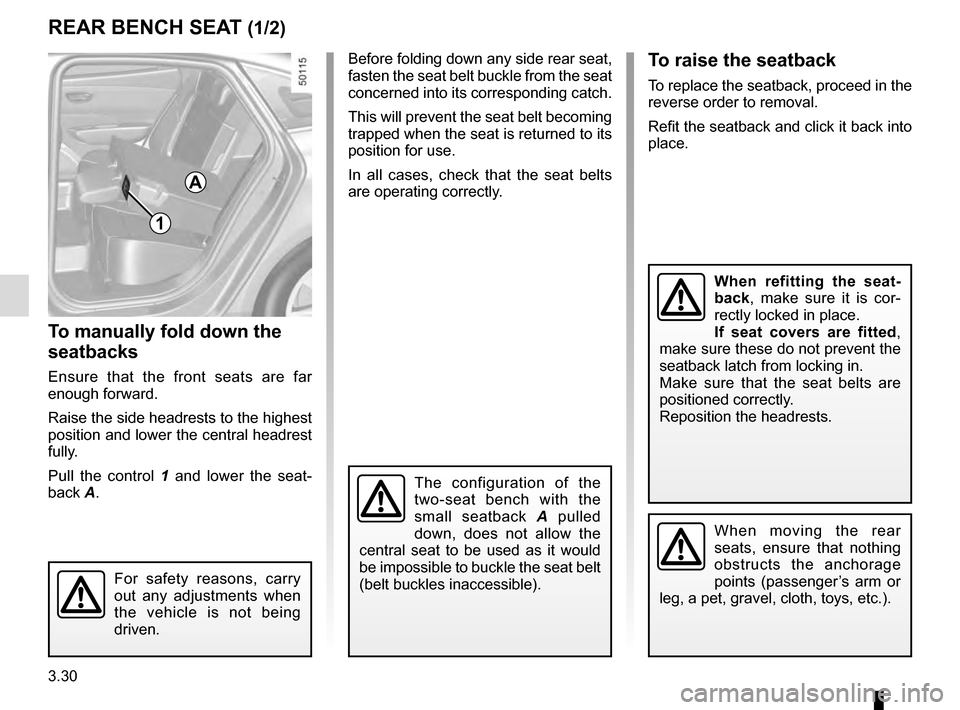

Page 220 of 328
3.30
To manually fold down the
seatbacks
Ensure that the front seats are far
enough forward.
Raise the side headrests to the highest
position and lower the central headrest
fully.
Pull the control 1 and lower the seat-
back A.
REAR BENCH SEAT (1/2)
1
To raise the seatback
To replace the seatback, proceed in the
reverse order to removal.
Refit the seatback and click it back into
place.
A
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The configuration of the
two-seat bench with the
small seatback A pulled
down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Before folding down any side rear seat,
fasten the seat belt buckle from the seat
concerned into its corresponding catch.
This will prevent the seat belt becoming
trapped when the seat is returned to its
position for use.
In all cases, check that the seat belts
are operating correctly.
