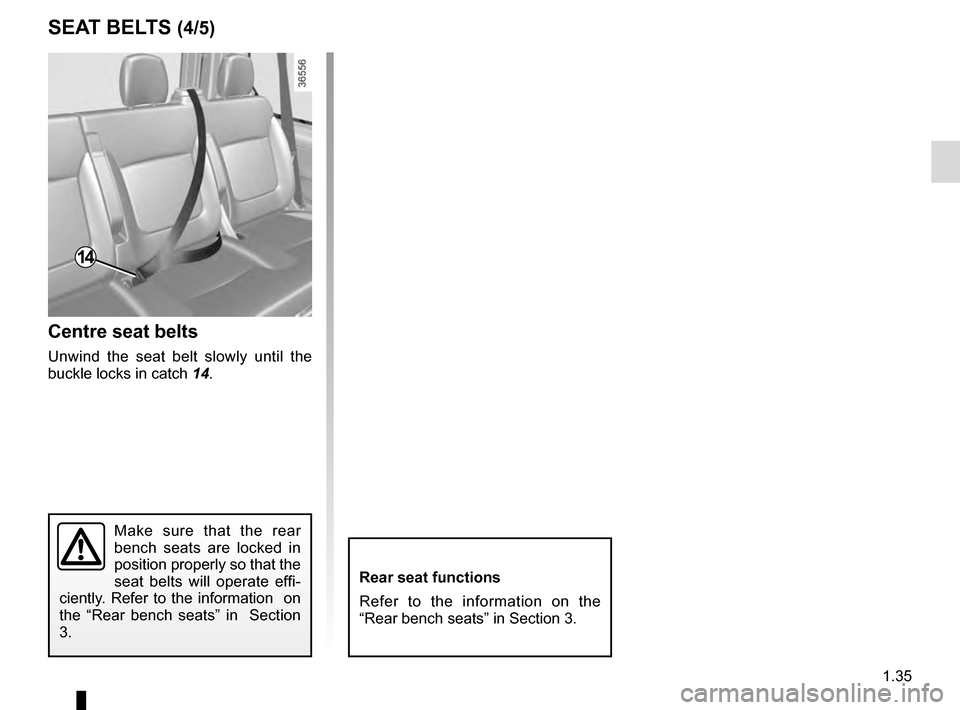

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.35
Centre seat belts
Unwind the seat belt slowly until the
buckle locks in catch 14.
Make sure that the rear
bench seats are locked in
position properly so that the
seat belts will operate effi-

Page 42 of 292

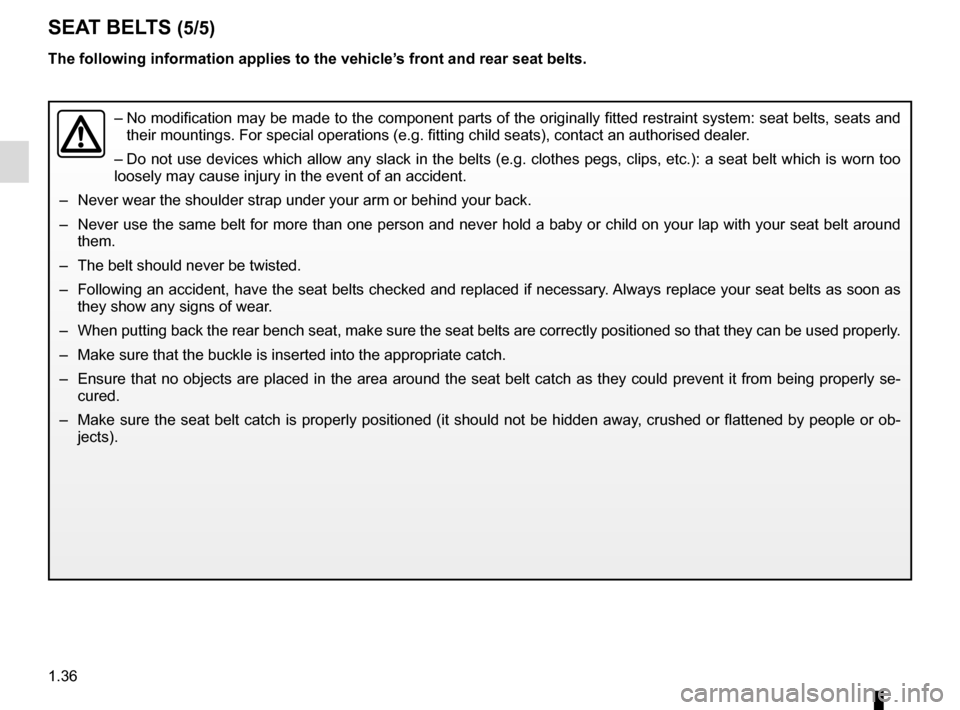

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.36
SEAT BELTS (5/5)
–  No modification may be made to the component parts of the originally fit\
ted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting

Page 43 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.37
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/4)
1
–  Have the entire restraint
system checked following
an accident.
– No operation whatsoe-
ver is permitted on any part of

Page 44 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.38
Load limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
Airbags for driver and front
pass

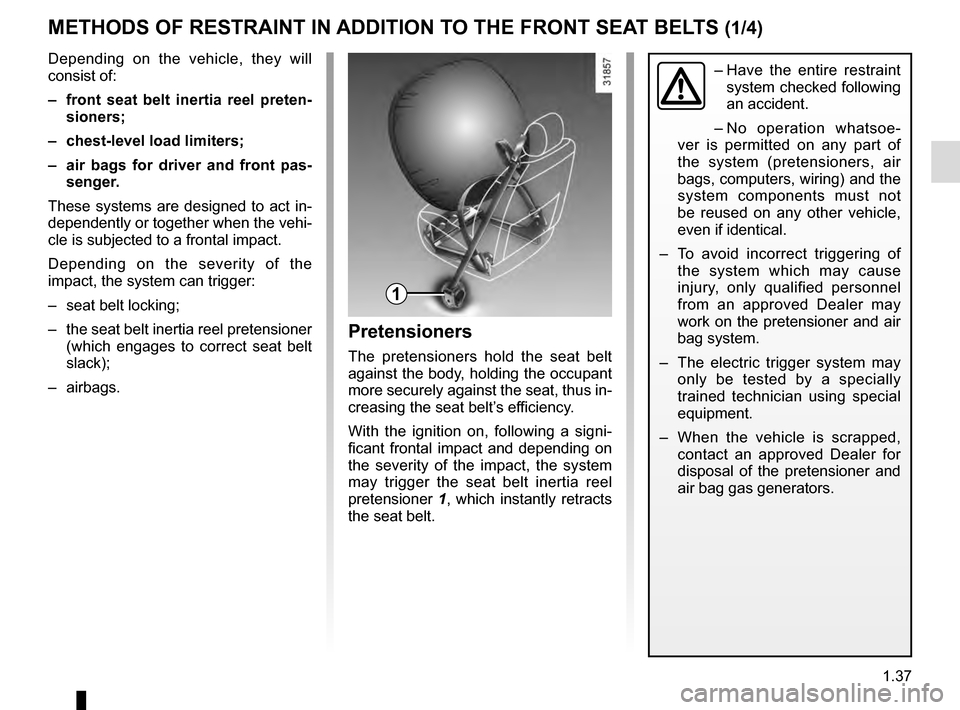

Page 45 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.39
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/4)
Operating faults
Warning light 4 å will light up on
the instrument panel when the ignition
is turned on and then go out after a f

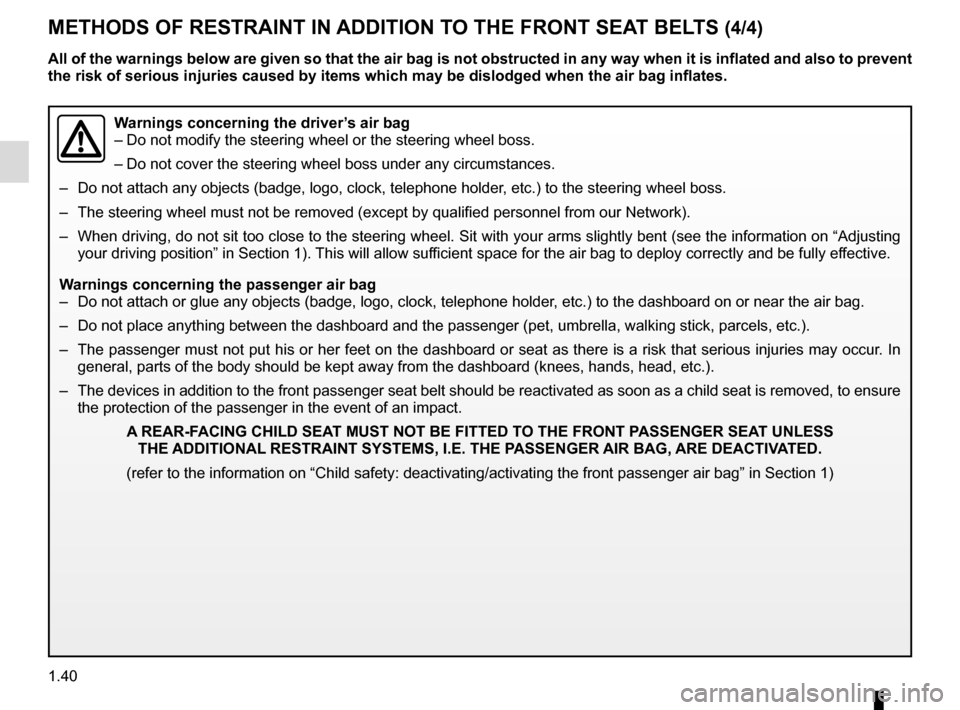

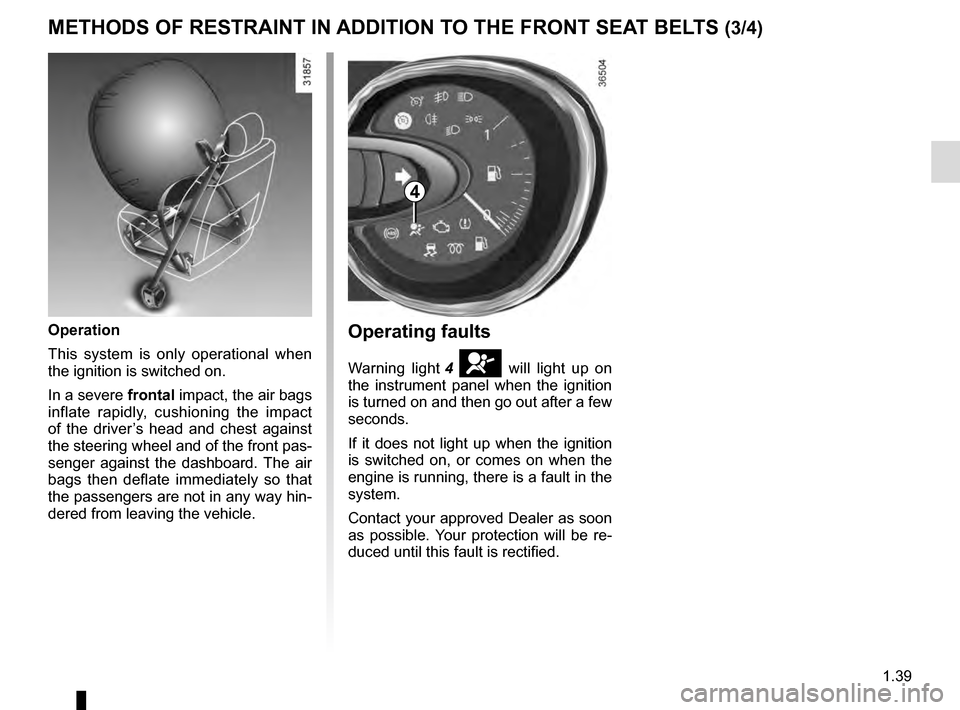

Page 46 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.40
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/4)
Warnings concerning the driver’s air bag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the ste

Page 47 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.41
METHODS OF RESTRAINT IN ADDITION TO REAR SEAT BELTS
Force limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at

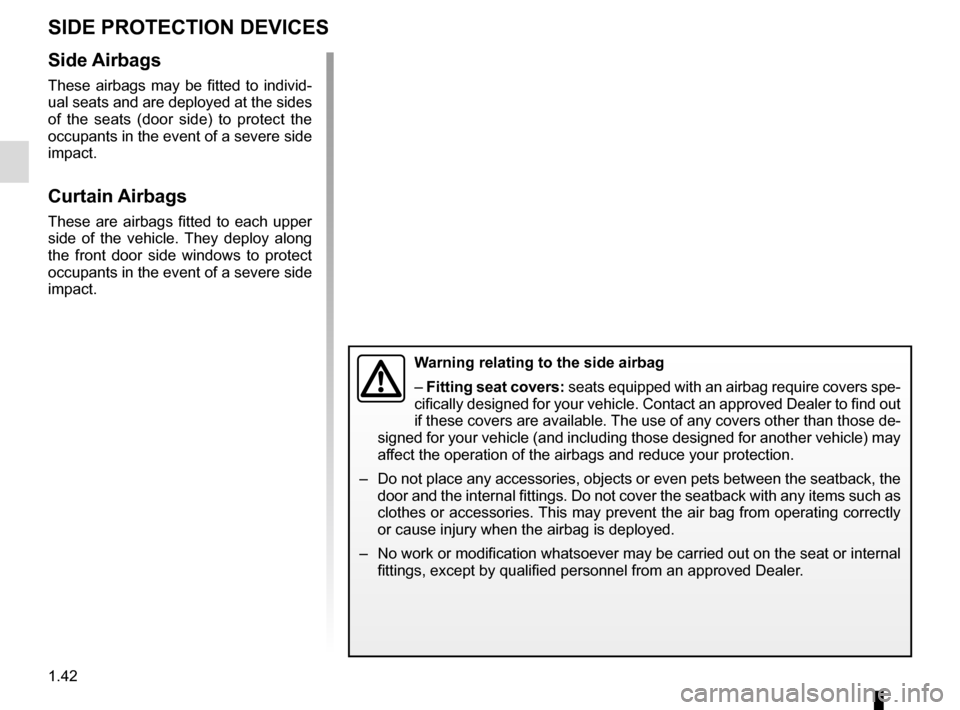

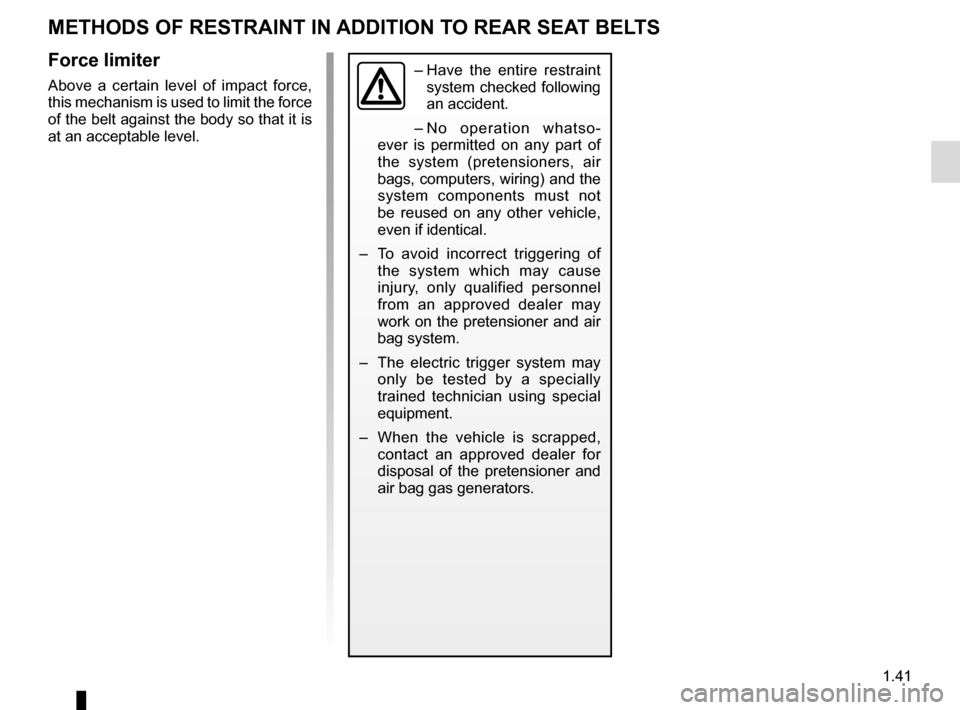

Page 48 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.42
Side Airbags
These airbags may be fitted to individ-
ual seats and are deployed at the sides
of the seats (door side) to protect the
occupants in the event of a severe side
impact.
Curtain Air

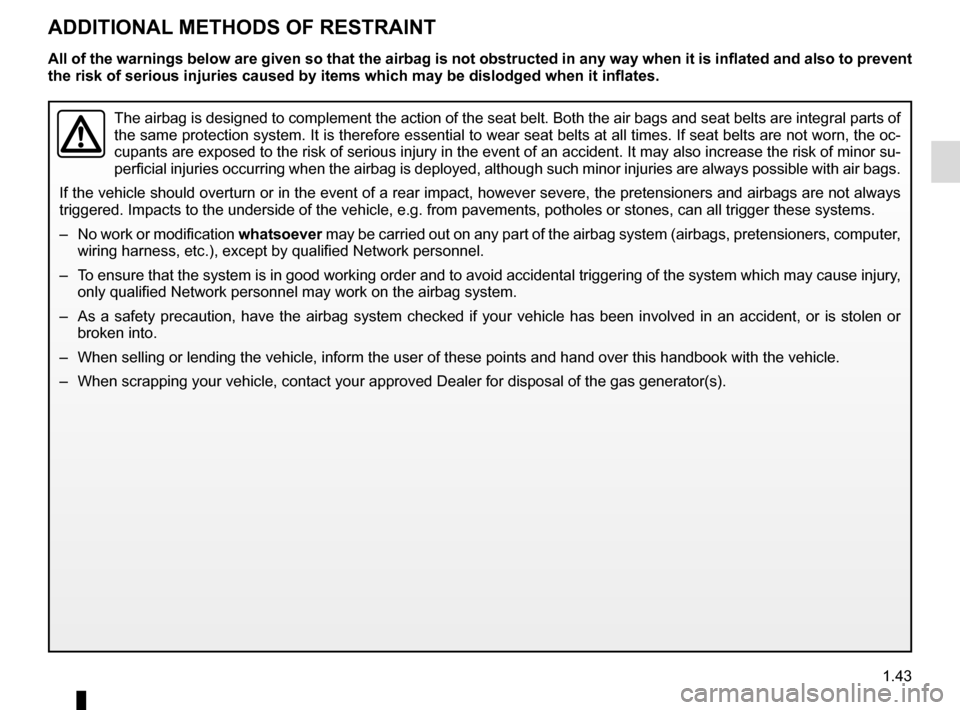

Page 49 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.43
ADDITIONAL METHODS OF RESTRAINT
The airbag is designed to complement the action of the seat belt. Both t\
he air bags and seat belts are integral parts of
the same protection system. It is there

Page 50 of 292

RENAULT TRAFIC 2016 X82 / 3.G Service Manual 1.44
CHILD SAFETY: General information (1/2)
Carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your
