Page 241 of 294

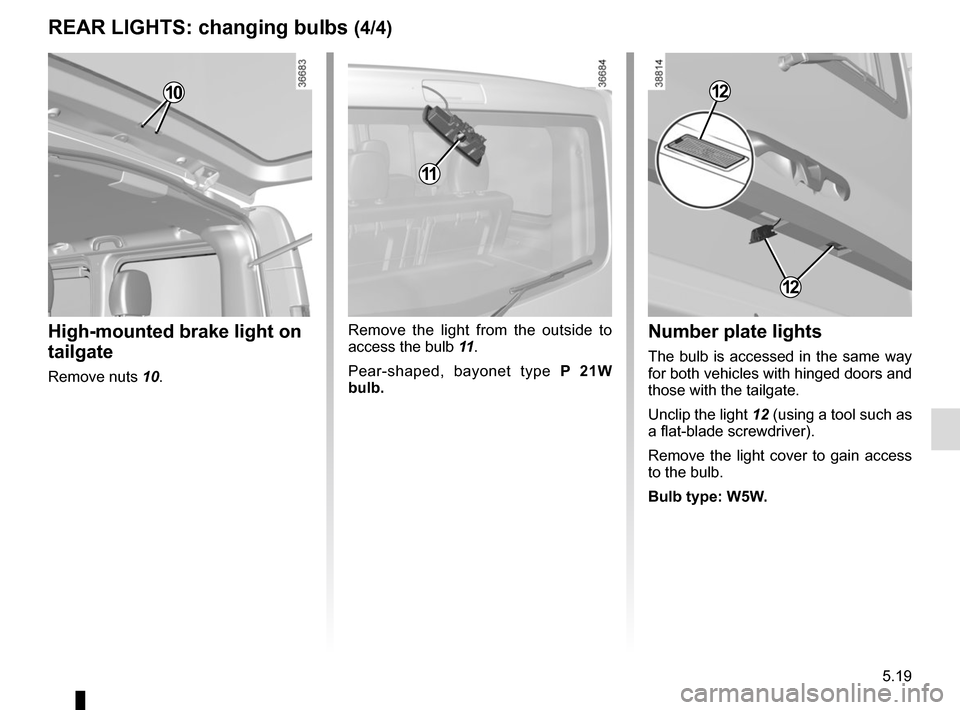

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.19
REAR LIGHTS: changing bulbs (4/4)
High-mounted brake light on
tailgate
Remove nuts 10.
Remove the light from the outside to
access the bulb 11.
Pear-shaped, bayonet type P 21W
bulb.Number plat

Page 242 of 294

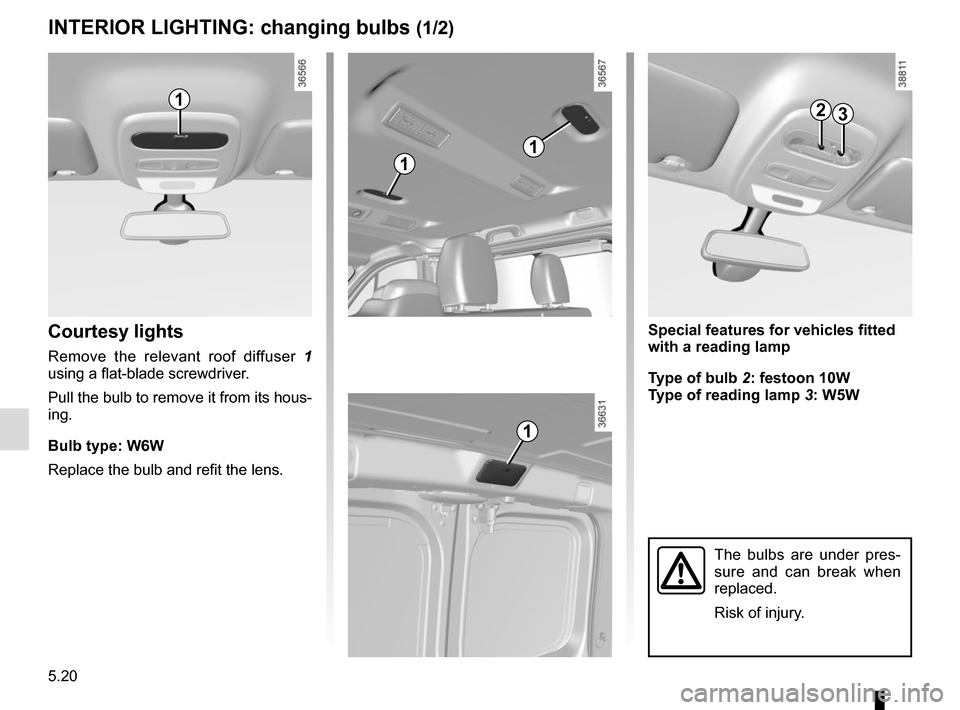

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.20
INTERIOR LIGHTING: changing bulbs (1/2)
Courtesy lights
Remove the relevant roof diffuser  1
using a flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W6W
Replace

Page 243 of 294

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.21
INTERIOR LIGHTING: changing bulbs (2/2)
Glovebox lights 4
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W5W
Replace the

Page 244 of 294

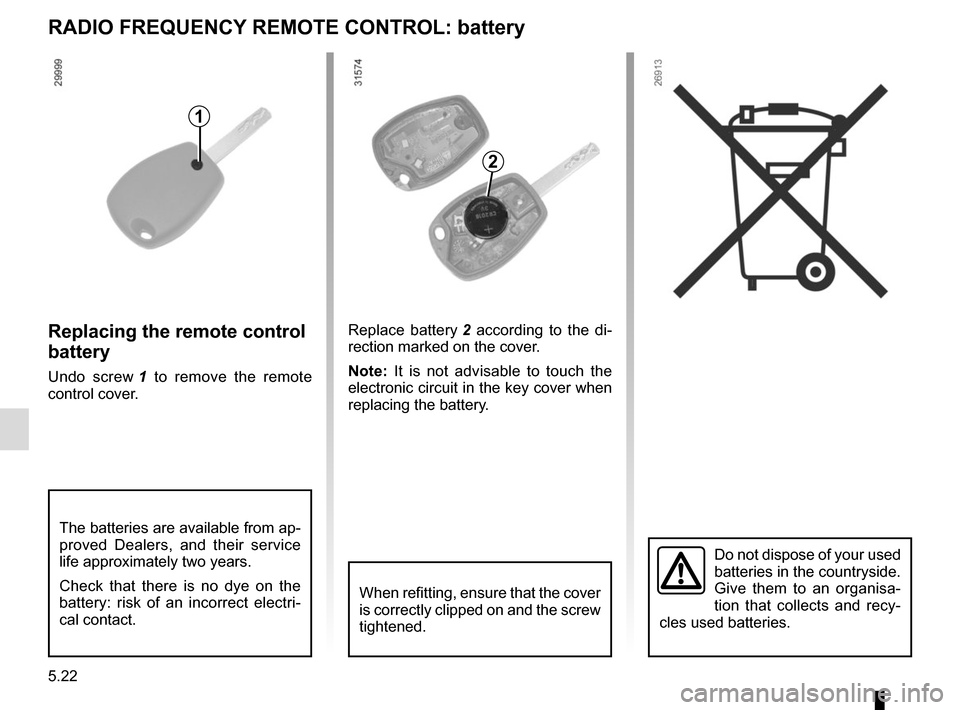

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.22
RADIO FREQUENCY REMOTE CONTROL: battery
Do not dispose of your used
batteries in the countryside.
Give them to an organisa-
tion that collects and recy-
cles used batteries.
1
Replacing the rem

Page 245 of 294

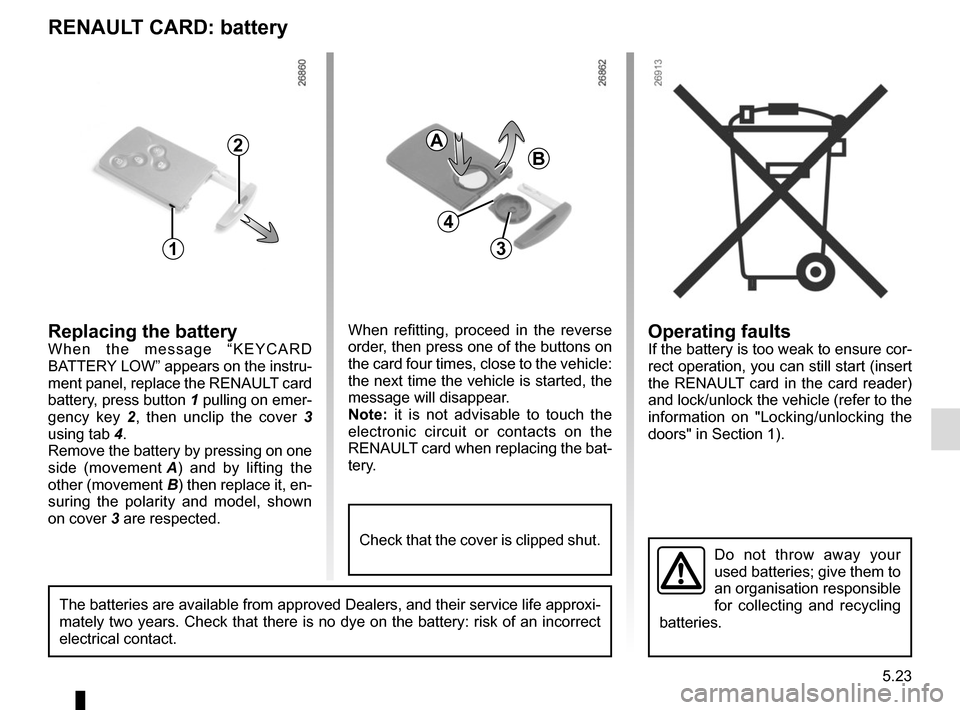

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.23
Operating faultsIf the battery is too weak to ensure cor-
rect operation, you can still start (insert
the RENAULT card in the card reader)
and lock/unlock the vehicle (refer to the
information

Page 246 of 294

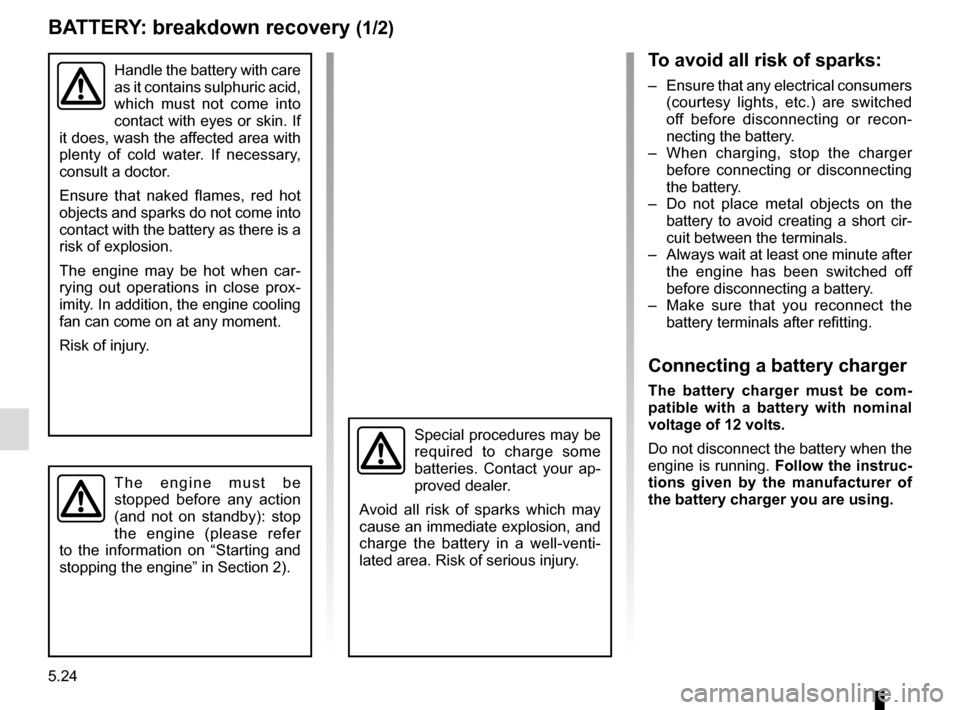

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.24
BATTERY: breakdown recovery (1/2)
To avoid all risk of sparks:
–  Ensure that any electrical consumers (courtesy lights, etc.) are switched
off before disconnecting or recon-
necting the batte

Page 247 of 294

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.25
BATTERY: breakdown recovery (2/2)
Depending on the vehicle, unclip the
battery cover.
Connect the positive cable A to the
support on the (+) terminal  1, then to the
(+) terminal 4 of the bat

Page 248 of 294

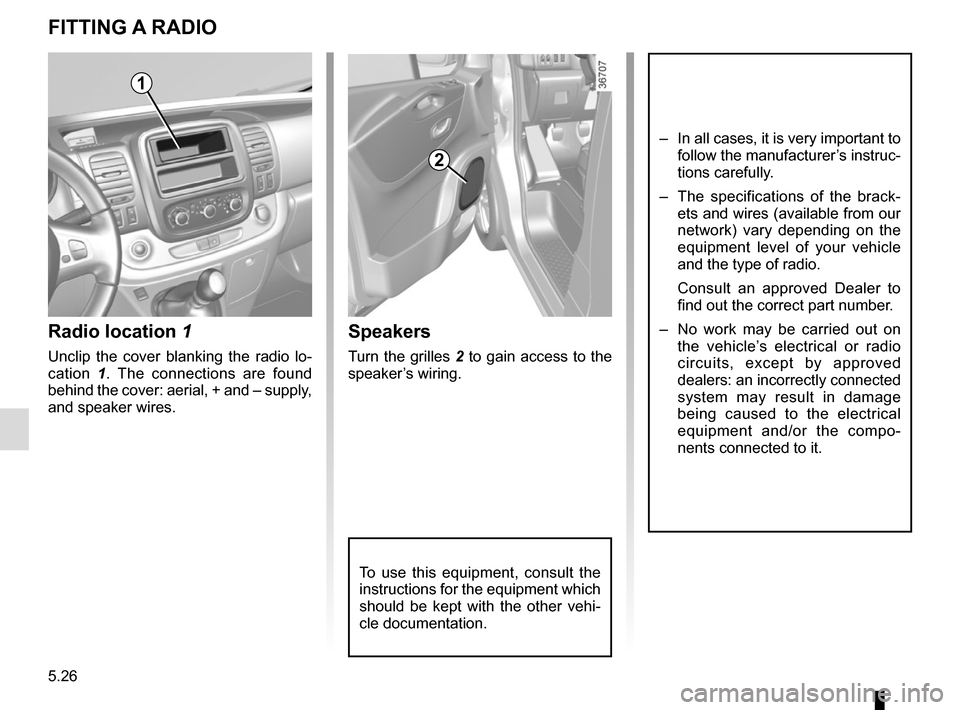

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.26
FITTING A RADIO
Radio location 1
Unclip the cover blanking the radio lo-
cation 1. The connections are found
behind the cover: aerial, + and – supply,
and speaker wires.
Speakers
Turn the gri

Page 249 of 294

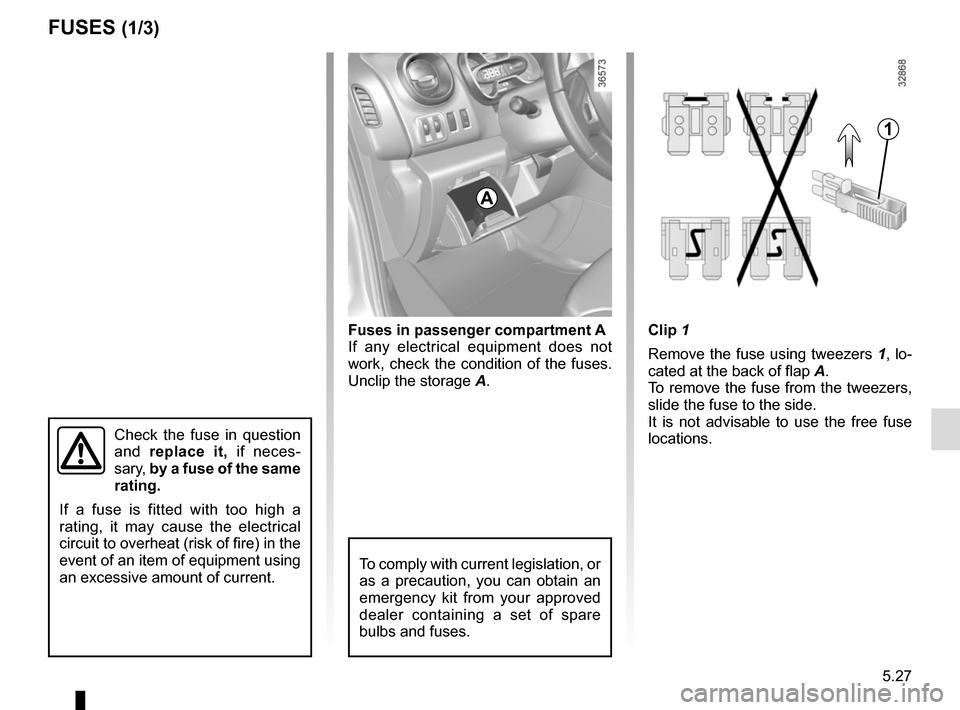

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.27
Clip 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.Fu

Page 250 of 294

RENAULT TRAFIC 2017 X82 / 3.G Owners Manual 5.28
FUSES (2/3)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
12
3
4
5
6
789
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
