RENAULT TWINGO 2009 2.G Electrical Equipment - Fuse Box User Guide

81C-11
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 6 No component 1016 fuse F16-20A supply
NOTESCheck fuse F16-20A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F16-20A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F16-20A of component 1016.Carry out a continuity test on connection BPS1
between fuse F16-20A of component 1016 and
fuse MF-60A of component 1033.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPS1 of
component 1033 and a
chassis earth.
Is the test light lit?
YES NO
End of procedure. Replace the battery.
Replace the passenger
compartment fuse box.Replace the fuse.Fault on connection BPS1.
Repair the wiring. If there is
a repair procedure (see
Technical Note 6015A,
Repairing electrical
wiring, Wiring:
Precautions for repair),
repair the wiring, otherwise
replace it.

81C-12
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 7 No component 1016 fuse F25-5A supply
NOTESCheck fuse F25-5A of component 1016 in addition to fuse MF-60A of component 597.
Use a test light to check for + 12 V between fuse F25-5A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F25-5A of component 1016.Carry out a continuity test on connection BPS1
between fuse F25-5A of component 1016 and
fuse MF-60A of component 1033.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPS1 of
component 1033 and a
chassis earth.
Is the test light lit?
YES NO
End of procedure. Replace the battery.
Replace the passenger
compartment fuse box.Replace the fuse.Fault on connection BPS1.
Repair the wiring. If there is
a repair procedure (see
Technical Note 6015A,
Repairing electrical
wiring, Wiring:
Precautions for repair),
repair the wiring, otherwise
replace it.

81C-13
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 8 No component 1016 fuse F40-5A supply
NOTESCheck fuse F40-5A of component 1016 in addition to fuse MF-60A of component 597.
Use a test light to check for + 12 V between fuse F40-5A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F40-5A of component 1016.Carry out a continuity test on connection BPS1
between fuse F40-5A of component 1016 and
fuse MF-60A of component 1033.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPS1 of
component 1033 and a
chassis earth.
Is the test light lit?
YES NO
End of procedure. Replace the battery.
Replace the passenger
compartment fuse box.Replace the fuse.Fault on connection BPS1.
Repair the wiring. If there is
a repair procedure (see
Technical Note 6015A,
Repairing electrical
wiring, Wiring:
Precautions for repair),
repair the wiring, otherwise
replace it.

81C-14
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 9 No component 1016 fuse F15-5A supply
NOTESCheck fuse F15-5A of component 1016 in addition to fuse MF-60A of component 597.
Use a test light to check for + 12 V between fuse F25-5A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F15-5A of component 1016.Carry out a continuity test on connection BP11
between fuse F15-5A of component 1016 and
fuse MF-60A of component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPDA of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between
connection BP11 of component 597 and a chassis
earth.Carry out a continuity test on connection BPDA
between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A. Replace the battery. Fault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it .
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on
connection BP11.Repair the
wiring. If there is a repair
procedure (see Technical Note
6015A, Repairing electrical
wiring, Wiring: Precautions
for repair), repair the wiring,
otherwise replace it.

81C-15
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 10 No component 1016 fuse F17-30A supply
NOTESCheck fuse F17-30A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F17-30A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F17-30A of component 1016.Carry out a continuity test on connection BP11
between fuse F17-30A of component 1016 and
fuse MF-60A of component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPDA of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between
connection BP11 of component 597 and a chassis
earth.Carry out a continuity test on connection BPDA
between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A.Replace the battery. Fault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it .
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on connection BP11.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.

81C-16
MR-413-X44-81C000$400_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 11 No component 1016 fuse F18-10A supply
NOTESCheck fuse F18-10A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F18-10A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F18-10A of component 1016.Carry out a continuity test on connection BP11
between fuse F18-10A of component 1016 and
fuse MF-60A of component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to check for
+ 12 V between
connection BPDA of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between
connection BP11 of component 597 and a chassis
earth.Carry out a continuity test on connection BPDA
between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A.Replace the battery. Fault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on connection BP11.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.

81C-17
MR-413-X44-81C000$600_eng.mif
V1
81C
FUSE BOX
Fault finding chart
ALP 12 No component 1016 fuse F20-15A supply
NOTESCheck fuse F20-15A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F20-15A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F20-15A of component 1016.Carry out a continuity test on connection BP11 between
fuse F20-15A of component 1016 and fuse MF-60A of
component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to
check for + 12 V
between connection
BPDA of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between connection
BP11 of component 597 and a chassis earth.Carry out a continuity test on connection
BPDA between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A.Replace
the batteryFault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on connection BP11.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
MR-413-X44-81C000$600_eng.mif

81C-18
MR-413-X44-81C000$600_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 13 No component 1016 fuse F21-20A supply
NOTESCheck fuse F21-20A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F21-20A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F21-20A of component 1016.Carry out a continuity test on connection BP11 between
fuse F21-20A of component 1016 and fuse MF-60A of
component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to
check for + 12 V
between connection
BPDA of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between connection
BP11 of component 597 and a chassis earth.Carry out a continuity test on connection
BPDA between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A.Replace
the batteryFault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on connection BP11.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.

81C-19
MR-413-X44-81C000$600_eng.mif
V1
FUSE BOX
Fault finding chart81C
ALP 14 No component 1016 fuse F48-15A supply
NOTESCheck fuse F48-15A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F48-15A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F48-15A of component 1016.Carry out a continuity test on connection BP11 between
fuse F48-15A of component 1016 and fuse MF-60A of
component 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to
check for + 12 V
between connection
BP11 of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between connection
BP11 of component 597 and a chassis earth.Carry out a continuity test on connection
BPDA between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check fuse MF-60A.Replace
the batteryFault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on connection BP11.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.

81C-20
MR-413-X44-81C000$600_eng.mif
V1

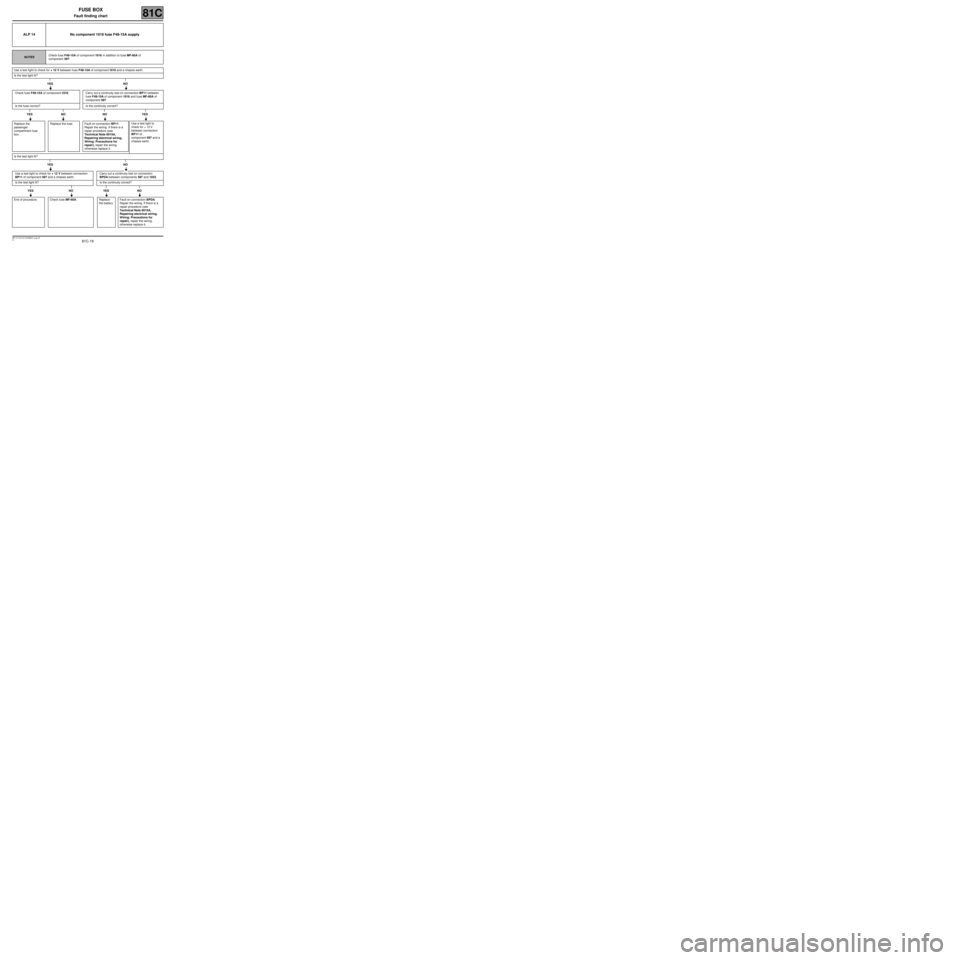

FUSE BOX
Fault finding chart81C
ALP 15 No component 1016 fuse F23-30A supply
NOTESCheck fuse F23-30A of component 1016 in addition to fuse MF-60A of
component 597.
Use a test light to check for + 12 V between fuse F23-30A of component 1016 and a chassis earth.
Is the test light lit?
YES NO
Check fuse F23-30A of component 1016.Test the continuity on connection BP13 between
fuse F23-30A and components 1016 and 597.
Is the fuse correct? Is the continuity correct?
YES NO NO YES
Use a test light to
check for + 12 V
between connection
BP13 of
component 597 and a
chassis earth.
Is the test light lit?
YES NO
Use a test light to check for + 12 V between connection
BP11 of component 597 and a chassis earth.Carry out a continuity test on connection
BPDA between components 597 and 1033.
Is the test light lit? Is the continuity correct?
YES NO YES NO
End of procedure. Check the fuse of
component 597.Replace
the batteryFault on connection BPDA.
Repair the wiring. If there is a
repair procedure (see
Technical Note 6015A,
Repairing electrical wiring,
Wiring: Precautions for
repair), repair the wiring,
otherwise replace it.
Replace the
passenger
compartment fuse
box.Replace the fuse. Fault on
connection BP13.Repair the
wiring. If there is a repair
procedure (see Technical Note
6015A, Repairing electrical
wiring, Wiring: Precautions
for repair), repair the wiring,
otherwise replace it.
