Audible and visual signals
AUDIBLE AND VIsUAL sIGNALs
horn
Press the end of the stalk 1.
headlight flasher
Pull stalk 1 towards you to flash the
headlights.
éhazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
Only use this function to warn other
road users if:
– you have to stop in an area where
stopping is prohibited or unexpected;
– you are obliged to drive under spe -
cial conditions. Depending on the vehicle, the hazard
warning lights may come on automati
-
cally under deliberate heavy decelera -
tion.
In this case, the hazard warning lights
may be switched off by pressing
switch 2 once.
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is not often turned
enough to return the stalk automatically
to 0 . There is an intermediate position
in which the stalk may be held when
changing lanes.
When the stalk is released, it automati-
cally returns to 0.
0
1
2

JauneNoirNoir texte
1.47
ENG_UD30823_8
Tableau de bord : témoins lumineux (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
uside light tell-tale light
kDipped beam headlight tell-
tale light
áMain beam headlight tell-tale
light
Òs equential gearbox elec -
tronic fault warning light or
water in the diesel warning light
This light flashes when the ignition is
switched on (without engine running).
It is then continuously lit for a few sec-
onds before going out again.
If it comes on when driving, it indicates
a fault in the injection computer or the
sequential gearbox, or the presence of
water in the diesel.
Contact your approved dealer as soon
as possible.
INsTRUMENT p ANEL: warning lights (4/4)
dDirection indicator tell-tale
light
gFront fog light tell-tale light
fRear fog light telltale light
\[Fuel economy indica -
tor light
Please refer to the information on “Help
with fuel economy” in Section 2.
©Warning light
This lights up when the igni -
tion is switched on and goes out after a
few seconds. It may come on with other
warning lights on the instrument panel.
If it lights up when the vehicle is being
driven, it is advisable to stop at an ap-
proved dealer soon.
Îs peed limiter and cruise
control warning light
To understand how this operates, refer
to the information on “Cruise control”
and “Speed limiter” in Section 2.
Épreheating warning light
(diesel version)
With the ignition on, this light comes on;
it indicates that the heater plugs are op-
erating. It goes out as soon as preheat-
ing is sufficient and the engine may be
started.
The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.

rear view mirrors ................................... (up to the end of the DU)
1.54
ENG_UD20150_5
Rétroviseurs / Volant de direction (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Rear view mirrors
REAR VIEW MIRRORs
heated door mirrors(depending on vehicle)
The door mirrors are de-iced when the
rear screen demisting/de-icing is active.
Door mirrors with manual
adjustment
To adjust the mirror, move lever 2.
Door mirrors with electrical
adjustment:
With the ignition on, position control 1
on:
A to adjust the left-hand door mirror,
C to adjust the right-hand door mirror,
B to deactivate it.
The door mirror on the driver’s side has two clearly defined zones. Zone E shows what can normally be seen in an
ordinary rear view mirror. For your safety, zone D increases the rear side visibility.
Objects in zone D look much further away than they really are.
Interior rear view mirror
Its position can be adjusted. When driv-
ing at night, to avoid being dazzled by
the headlights of the vehicle behind,
depress the little lever located behind
the rear view mirror 3.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
AB
C
DE2
3

lights:main beam headlights ...................................... (current page)
lights-on warning buzzer ........................................ (current page)
lights: dipped beam headlights ................................... (current page)
JauneNoirNoir texte
1.59
ENG_UD26567_5
Éclairages et signalisations extérieures (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
kDipped beam
headlights
Manual operation
Turn the end of stalk 1 until the symbol
is opposite mark 2.
An indicator light on the instrument
panel comes on
EXTERIOR LIGhTING AND sIGNALs (2/3)
áMain beam headlights
When the dipped beam head-
lights are lit, pull stalk 1 towards you
(an indicator light on the instrument
panel lights up).
To return to the dipped beam headlight
position, pull the stalk towards you.
eswitching off the lights
Return the stalk to its original
position.
Lights-on warning buzzer
A warning buzzer will sound when the
driver’s door is opened and the lights
are left on after the ignition has been
switched off (to prevent the battery run-
ning down, etc.).
Before driving at night,
check that the electrical
equipment is in good con -
dition and adjust the head -
light beams (if your vehicle is not
carrying its normal load). Check that
the lights are not obscured (by dirt,
mud, snow or objects which could
cover them).
12
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.

headlight beam adjustment ................................... (current page)
electric beam height adjustment ............................ (current page)
1.61
ENG_UD26566_4
Réglages électriques de la hauteur des faisceaux (X44 - Renault)\
ENG_NU_952-4_X44_Renault_1
Examples of positions for adjusting
control A according to the load
All versions except
commercial vehicles Commercial vehicles
Driver only 0_
Driver alone or with front
passenger 0
_
Driver with one front
passenger and two rear
passengers 1
–
Driver with three
passengers with luggage 2
–
Driver with luggage or load
reaching the maximum
authorised load weight 3
3
Headlight beam adjustment
ELECTRIC BEAM hEIGhT ADJUsTMENT
On vehicles fitted with this function,
control A allows you to adjust the height
of the beams according to the load.
Turn control A downwards to lower the
headlights and upwards to raise them.
A
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.

4.14
ENG_UD26811_2
Entretien de la carrosserie (peinture mate) (X44 - X77 - J77 - X85 - \
B90 - X61 - TEST - X77 ph2 - X95 - B95 - D95 - K95 - J95 - R95 - L90 Ph2 - F90 Ph2 - R90\
Ph2 - X62
ENG_NU_952-4_X44_Renault_4

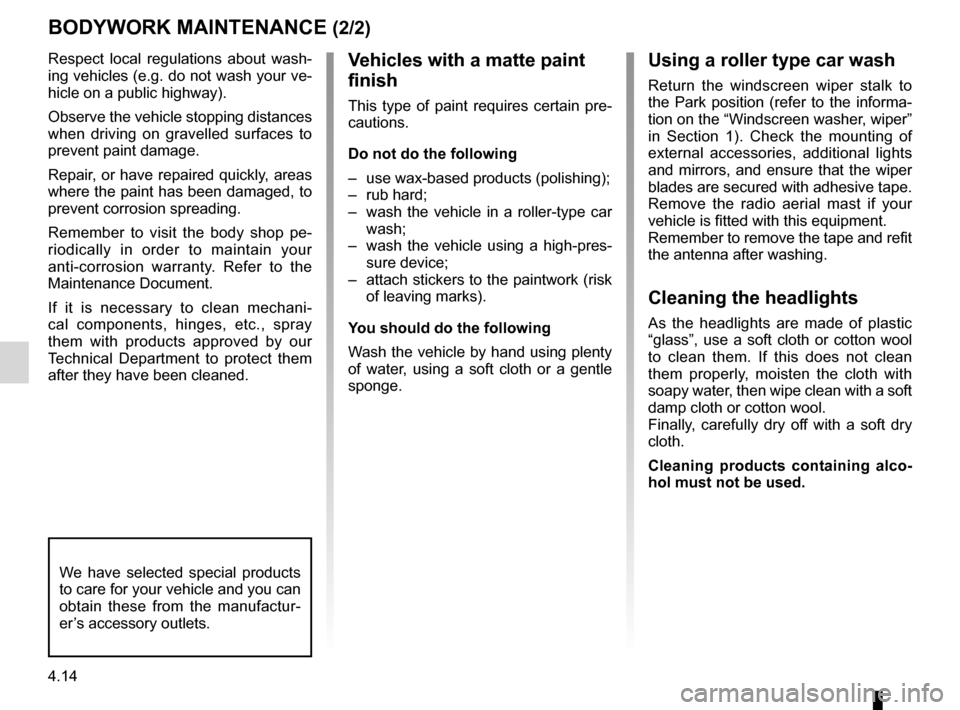

Respect local regulations about wash -
ing vehicles (e.g. do not wash your ve-
hicle on a public highway).
Observe the vehicle stopping distances
when driving on gravelled surfaces to
prevent paint damage.
Repair, or have repaired quickly, areas
where the paint has been damaged, to
prevent corrosion spreading.
Remember to visit the body shop pe -
riodically in order to maintain your
anti-corrosion warranty. Refer to the
Maintenance Document.
If it is necessary to clean mechani -
cal components, hinges, etc., spray
them with products approved by our
Technical Department to protect them
after they have been cleaned.
BODyWORk MAINTENANCE (2/2)
We have selected special products
to care for your vehicle and you can
obtain these from the manufactur -
er’s accessory outlets.
Using a roller type car wash
Return the windscreen wiper stalk to
the Park position (refer to the informa-
tion on the “Windscreen washer, wiper”
in Section 1). Check the mounting of
external accessories, additional lights
and mirrors, and ensure that the wiper
blades are secured with adhesive tape.
Remove the radio aerial mast if your
vehicle is fitted with this equipment.
Remember to remove the tape and refit
the antenna after washing.
Cleaning the headlights
As the headlights are made of plastic
“glass”, use a soft cloth or cotton wool
to clean them. If this does not clean
them properly, moisten the cloth with
soapy water, then wipe clean with a soft
damp cloth or cotton wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco -
hol must not be used.
Vehicles with a matte paint
finish
This type of paint requires certain pre-
cautions.
Do not do the following
– use wax-based products (polishing);
– rub hard;
– wash the vehicle in a roller-type car
wash;
– wash the vehicle using a high-pres-
sure device;
– attach stickers to the paintwork (risk
of leaving marks).
y ou should do the following
Wash the vehicle by hand using plenty
of water, using a soft cloth or a gentle
sponge.

lights:main beam headlights ...................................... (current page)
lights: dipped beam headlights ................................... (current page)
front lights changing bulbs ................................ (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
lights front ................................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD26876_6
Projecteurs avant avec lampes halogènes : remplacement des lampes (X\
44 - Renault)
ENG_NU_952-4_X44_Renault_5
Jaune NoirNoir texte
Main beam headlights,
dipped beam headlights
– remove bulb holder 1 from its hous-
ing without pulling on the cable;
– remove cover 2;
– release the spring 3;
– change the bulb 4.
Bulb type: H4 60/55 W
Do not touch the bulb glass. Hold it
by its base.
The following bulbs can be replaced.
However, we would advise you to have
them replaced by an authorised dealer
if it proves difficult.
To return it, proceed in the reverse
order to removal.
It is recommended that the headlights
be adjusted after this operation.
FrOnt HeADLIgHtS:
changing bulbs (1/2)
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
4
1
2
3

feux :indicateurs de direction ................................. (page courante)
JauneNoirNoir texte
5.15
ENG_UD26876_6
Projecteurs avant avec lampes halogènes : remplacement des lampes (X\
44 - Renault)
ENG_NU_952-4_X44_Renault_5
Direction indicator lights
changing a bulb
– unclip cover 3 and remove it;
– turn bulb holder 4 anticlockwise;
– change the bulb 5.
Bulb type: PY21W.
FrOnt HeADLIgHtS: changing bulbs (2/2)
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since incorrect connections could
damage the electrical equipment
(wiring, components, in particu -
lar the alternator). In addition, your
dealer has available all the parts
necessary for fitting electrical com -
ponents.
3
To return it, proceed in the reverse
order to removal.
When the bulb has been changed,
make sure you refit the cover 3 cor -
rectly.
4
5

5.28
ENG_UD24741_10
Fusibles (X44 - Renault)
ENG_NU_952-4_X44_Renault_5
Jaune NoirNoir texte
FuSeS (2/3)
numbers Allocation
1 and 2 Windscreen wipers/
Rev counter.
3 Power-assisted
steering.
4, 16 and 27 Sequential gearbox.
5 Brake light/Speed
limiter.
6 Reversing light/Rear
view mirror control/
Alarm siren/Parking
distance control.
7 Air bag.
8 Passenger
compartment electrical
unit/Instrument panel.
9 Injection.
10 ABS/ASR/ESP.numbers Allocation
11 Direction indicator
lights/Diagnostic
socket.
12 Power supply/
Instrument panel.
13 Dipped beam
headlights/Rear fog
light.
14 Electric door locking.
15 Side lights/Front fog
lights.
17 Heated rear screen/
Heated door mirrors.
18 Interior lighting/
Courtesy light/Heating
and air conditioning
system/Rev counter.
19 Side lights.
20 Front and rear fog
lights.numbers Allocation
21 Main beam headlights/
Horn.
22 Main beam headlights.
23 and 31 Electric windows.
24 and 28 Passenger
compartment
ventilation.
25 Dipped beam
headlights/Front and
rear fog lights.
26 Sunroof.
29 Radio/Passenger
compartment electrical
unit/Air conditioning/
Instrument panel/
Heated seat.
30 Cigar lighter.
32 Right-hand main beam
headlight.
Allocation of fuses
(the presence of fuses DEPENDS ON THE EQUIPMENT LEVEL OF THE VEHICLE)
