Page 12 of 220
locking the doors .................................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
1.6
ENG_UD19700_4
Verrouillage / Déverrouillage des portes (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Jaune NoirNoir texte
Doors
OpENING AND CLOsING ThE DOORs
Manual locking
Opening manually from the inside
Pull handle 1.
Lights-on warning buzzer
If you have left the lights on after switch-
ing off the ignition, a reminder buzzer
will sound when the driver’s door or, de-
pending on the vehicle, the front doors
or tailgate are opened (to prevent dis -
charge of the battery, etc.).
Opening manually from the outside
With the key, unlock the front door
lock 2. Place your hand under handle 3.
Lift the handle and then pull the door
towards you.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.
1
2
3
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the door\
s.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RIsK OF DEATh OR sERIOUs INJURY.
Page 45 of 220
audible and visual signals......................................(current page)
hazard warning lights signal .................................. (current page)
lights: direction indicators ........................................... (current page)
lights: hazard warning ................................................ (current page)
hazard warning lights signal .................................. (current page)
1.39
ENG_UD24710_3
Avertisseurs sonores et lumineux (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
Audible and visual signals
AUDIBLE AND VIsUAL sIGNALs
horn
Press the end of the stalk 1.
headlight flasher
Pull stalk 1 towards you to flash the
headlights.
éhazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
Only use this function to warn other
road users if:
– you have to stop in an area where
stopping is prohibited or unexpected;
– you are obliged to drive under spe -
cial conditions. Depending on the vehicle, the hazard
warning lights may come on automati
-
cally under deliberate heavy decelera -
tion.
In this case, the hazard warning lights
may be switched off by pressing
switch 2 once.
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is not often turned
enough to return the stalk automatically
to 0 . There is an intermediate position
in which the stalk may be held when
changing lanes.
When the stalk is released, it automati-
cally returns to 0.
0
1
2
Page 59 of 220
mileage before service .......................................... (current page)
JauneNoirNoir texte
1.53
ENG_UD24927_5
Ordinateur de bord (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
TRIp COMpUTER (5/5)
Examples of display selections
by repeatedly pressing button 2Interpreting the display selected
Mileage before service
Distance remaining until the next oil change.
There are several scenarios:
– distance less than 900 miles (1,500 km). It appears on the display for approxi -
mately 8 seconds when the ignition is switched on as soon as the distance is
less than or equal to 900 miles (1,500 km).
– distance less than 0 miles/km. The
© indicator light will light up on the
instrument panel.
The vehicle requires an oil change as soon as possible.
NB: depending on the vehicle, the mileage before an oil change varies according to the driving style (frequent driving at low
speed, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next oil change
can therefore decrease more quickly in some cases than the actual distan\
ce travelled.
The oil change intervals are independent of the vehicle’s maintenance schedule: please refer to your vehicle’s Maintenance
Document.
Resetting: to reset the mileage before an oil change, press and hold one of the display reset buttons for approximately 10 sec-
onds until the display shows the mileage permanently.
The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.
Page 65 of 220
lights:main beam headlights ...................................... (current page)
lights-on warning buzzer ........................................ (current page)
lights: dipped beam headlights ................................... (current page)
JauneNoirNoir texte
1.59
ENG_UD26567_5
Éclairages et signalisations extérieures (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
kDipped beam
headlights
Manual operation
Turn the end of stalk 1 until the symbol
is opposite mark 2.
An indicator light on the instrument
panel comes on
EXTERIOR LIGhTING AND sIGNALs (2/3)
áMain beam headlights
When the dipped beam head-
lights are lit, pull stalk 1 towards you
(an indicator light on the instrument
panel lights up).
To return to the dipped beam headlight
position, pull the stalk towards you.
eswitching off the lights
Return the stalk to its original
position.
Lights-on warning buzzer
A warning buzzer will sound when the
driver’s door is opened and the lights
are left on after the ignition has been
switched off (to prevent the battery run-
ning down, etc.).
Before driving at night,
check that the electrical
equipment is in good con -
dition and adjust the head -
light beams (if your vehicle is not
carrying its normal load). Check that
the lights are not obscured (by dirt,
mud, snow or objects which could
cover them).
12
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.
Page 69 of 220
JauneNoirNoir texte
1.63
ENG_UD24729_6
Essuie-vitre / Lave-vitre avant (X44 - Renault)
ENG_NU_952-4_X44_Renault_1
WINDsCREEN WAsh/WIpE (2/2)
Windscreen washer
With the ignition on, pull stalk 1 towards
you.
A short pull triggers one sweep cycle
of the wiper. A longer pull triggers three
sweeps followed by a final sweep after
several seconds.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(risk of motor overheating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
If you switch off the ignition before
switching off the windscreen wiper
the blades will stop at random on
the windscreen.
Clean your windscreen regularly.
1
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park).
Risk of injury.
Page 76 of 220
catalytic converter................................. (up to the end of the DU)
special features of petrol vehicles ........ (up to the end of the DU)
catalytic converter ................................. (up to the end of the DU)
2.4
ENG_UD11065_2
Particularités versions essence (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Special features of petrol versions
SPecIAl NoteS oN PetRol veRSIoNS
The following operating conditions:
– driving for long periods when the low
fuel level warning light is lit;
– using leaded petrol;
– using fuel or lubrication additives
which are not approved.
Or operating faults such as:
– faulty ignition system, running out of
fuel or disconnected spark plugs re-
sulting in the engine misfiring or cut-
ting out when driving;
– loss of power,
may cause the catalytic converter to
overheat, reducing its efficiency which
may irreparably damage it and cause
heat damage to the vehicle. If you notice any of the above operating
faults, have the necessary repairs car-
ried out as soon as possible by an ap-
proved Dealer.
These faults may be avoided by regu
-
larly taking your vehicle to an approved
Dealer at the intervals specified in the
Maintenance Document.
Starting problems
To avoid damaging the catalytic con -
verter, do not keep trying to start the
engine (using the start button, or by
pushing or towing the vehicle) without
having identified and corrected the
starting fault.
If the fault cannot be identified, do not
keep trying to start the engine, but con-
tact an approved Dealer.
Do not park the vehicle or
run the engine in locations
where combustible sub -
stances or materials such
as grass or leaves can come into
contact with the hot exhaust system.
Page 82 of 220
tyres ....................................................................... (current page)
2.10
ENG_UD27029_5
Conseils antipollution, économies de carburant, conduite (X44 - E33 - Renault)
ENG_NU_952-4_X44_Renault_2
ADvIce: antipollution, fuel economy and driving (3/3)
Advice on use
– Electricity is fuel; switch off all the
electrical components which are
not really needed. however (safety
first), keep your lights on when the
visibility is bad (“see and be seen”).
– Use the air vents. Driving with the
windows open at 60 mph (100 km/h)
will increase fuel con -sumption by
4%.
– When towing a caravan, fit a wind
deflector and adjust it carefully.
– For vehicles fitted with air condi -
tioning , it is normal to observe an
increase in fuel consumption (es -
pecially in city conditions) when
it is used. For vehicles fitted with
manual air conditioning, switch off
the system when it is not required.
Advice for reducing consumption
and therefore helping to preserve
the environment:
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few mo -
ments to let the hot air escape before
starting the engine.
– Never fill the fuel tank right to the
brim to avoid overflow.
– Do not leave an empty roof rack
fitted to the vehicle.
– It is better to fit a trailer for bulky ob-
jects.
– Avoid using the vehicle for door -
to-door calls (short journeys with
long waits in between) because the
engine never reaches its normal op-
erating temperature.
t yres
– An under-inflated tyre increases fuel
consumption.
– The use of non-recommended tyres
can increase fuel consumption.
Page 83 of 220
environment .......................................... (up to the end of the DU)
2.11
ENG_UD25716_1
Environnement (sans marque) (X44 - X45 - X77 - X81 - X85 - X90 - X91 - X83 - X61 - TEST - X95 - J95 - R95 - F90 Ph2 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X09 -
ENG_NU_952-4_X44_Renault_2
Environment
eNvIRoNMeNt
emissions
Your vehicle has been designed to
emit fewer greenhouse gases (CO2)
while in use, and therefore to consume
less fuel (eg. 140 g/km, equivalent to
5.3 l/100 km for a diesel vehicle).
Our vehicles are also equipped with a
particle filter system including a cata -
lytic converter, an oxygen sensor and
an active carbon filter (the latter pre -
vents vapour from the fuel tank being
released into the open air).
For certain diesel vehicles, this system
also has a particle filter to reduce the
volume of soot particles emitted.
Please make your own
contribution towards
protecting the environment
too
– Worn parts replaced in the course of
routine vehicle maintenance (vehi -
cle battery, oil filter, air filter, batter -
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations. –
At the end of the vehicle’s service
life, it should be sent to approved
centres to ensure that it is recycled.
– In all cases, comply with local legis -
lation.
Recycling
Your vehicle is 85% recyclable and
95% recoverable.
To achieve these objectives, many of
the vehicle components have been de-
signed to enable them to be recycled.
The materials and structures have
been carefully designed to allow these
components to be easily removed and
reprocessed by specialist companies.
In order to preserve raw material re -
sources, this vehicle incorporates nu -
merous parts made from recycled plas-
tics or renewable materials (vegetable
or animal-derived materials such as
cotton or wool).
Your vehicle has been designed with
respect for the
environment in mind for
its entire service life: during production,
use and at the end of its life.
This commitment is illustrated by the of
the manufacturer eco² signature.Manufacture
Your vehicle has been manufactured at
a factory which complies with a policy
to reduce the environmental impact
on the surrounding areas (reduction of
water and energy consumption, visual
and noise pollution, atmospheric emis-
sions and waste water; sorting and re-
using waste).
Page 95 of 220
automatic gearbox (use) ........................................ (current page)
JauneNoirNoir texte
2.23
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Starting
The display shows N (neutral) and A
(automatic mode).
Forwards gear
– With the brake pedal depressed,
push the selector lever forwards and
release it (the number 1 will appear
on the display);
– release the brake pedal and acceler-
ate gently to move forwards.
Reverse
– With your foot on the brake pedal,
push the selector lever towards the
right and backwards, and then re -
lease it.
Reverse gear is engaged (letter R
appears on the display).
– release the brake pedal then accel -
erate gently to move backwards. The
engine’s idle speed is sufficient for
parking manoeuvres.
When the vehicle is stationary, push
the selector lever towards the front to
engage a forwards gear.
operation
Switch on the ignition.
The display on the instrument panel
switches on. If neutral (N) is displayed,
start the engine but do not depress the
accelerator.
If a gear other than neutral ( N) is dis -
played, it will flash; starting is possi-
ble if you depress the brake pedal
(indicator light 4 will come on if you
forget) when holding the key in the
starting position.
The gear will automatically change to
neutral (N) and the engine will start.
You may also select neutral after
switching on the ignition by pushing the
lever to the right whilst depressing the
brake pedal.
When the engine is running, automatic
mode will be selected by default.
Note: if the display does not light up
when the ignition is switched on (dis -
charged battery), do not attempt to start
the engine by pushing the vehicle. Shifting to neutral
With the brake pedal depressed, push
the lever to the right.
Note:
when the vehicle is stationary,
you must depress the brake pedal to
engage or disengage a gear. Otherwise,
warning light 4 will light up.
QUIcKShIFt GeARBoX (2/5)
4
The oil level in the automatic gearbox system reservoir is variable depending on use. Adding oil is strictly forbidden
(except by qualified approved network personnel).
Page 96 of 220
horn ....................................................................... (current page)
2.24
ENG_UD24716_6
Boîte de vitesses Quickshift (X44 - Renault)
ENG_NU_952-4_X44_Renault_2
Jaune NoirNoir texte
changing mode
You can change mode at any time
by pushing the lever to the left. This
switches mode without changing gear.
Driving in manual mode
Using the selector lever
Pushing the lever repeatedly allows
you to change gears manually:
– To change up a gear: push the lever
forwards;
– to change down a gear: push the
lever backwards;
– to change to neutral: with the brake
pedal depressed (indicator light 4
will come on if you forget), push the
lever towards the right.
Note: when the vehicle is stationary
(braking, red light, etc.), the system au-
tomatically switches to first gear.
By pushing the lever forwards twice
you can move up two gears at a time
(unless this causes low engine speeds).
By pushing the lever backwards twice
you can move down two gears at a time
(unless this causes overrevving).
Note: neutral may only be selected
when the vehicle is being driven or is
stationary when the brake pedal is
depressed (if you forget, warning
light 4 will light up).
Accelerating and overtaking
To obtain maximum vehicle perform -
ance, in automatic or manual mode,
quickly depress the accelerator pedal
beyond the kickdown point.
This will activate the kickdown func -
tion allowing you to change down to the
most suitable gear.

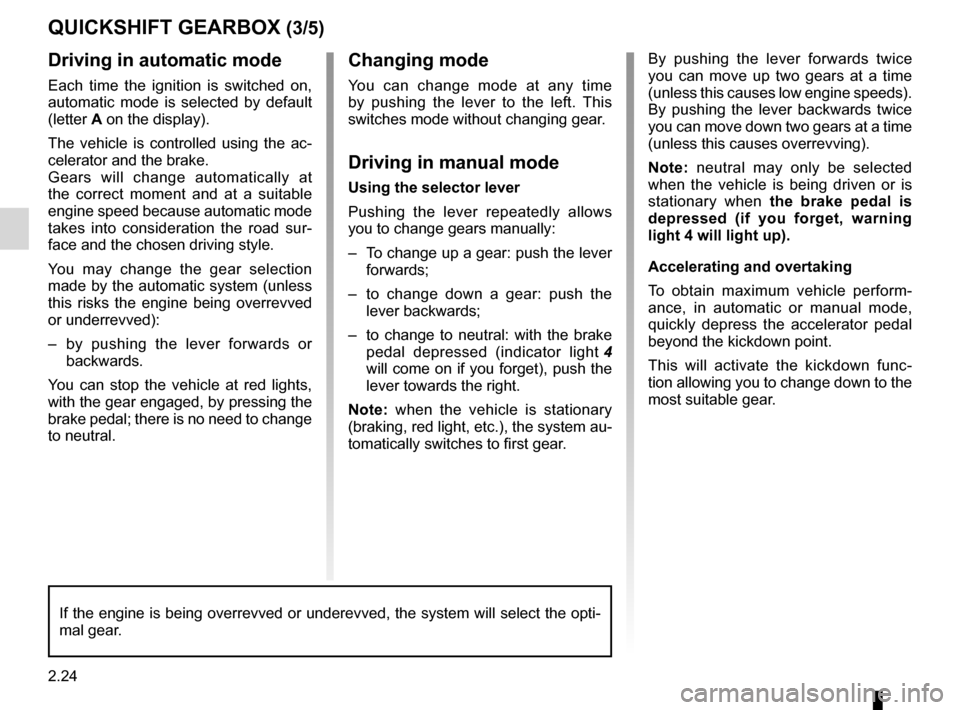

QUIcKShIFt GeARBoX (3/5)
Driving in automatic mode
Each time the ignition is switched on,
automatic mode is selected by default
(letter A on the display).
The vehicle is controlled using the ac -
celerator and the brake.
Gears will change automatically at
the correct moment and at a suitable
engine speed because automatic mode
takes into consideration the road sur -
face and the chosen driving style.
You may change the gear selection
made by the automatic system (unless
this risks the engine being overrevved
or underrevved):
– by pushing the lever forwards or
backwards.
You can stop the vehicle at red lights,
with the gear engaged, by pressing the
brake pedal; there is no need to change
to neutral.
If the engine is being overrevved or underevved, the system will select the opti-
mal gear.
