New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5 Only the driver's window does not operate at all
Applies to:Driver's one-touch electric windows and passenger's
electric window
Left-hand drive vehicle
NOTESUse Wiring Diagram Technical Note, New Twingo.
Carry out the various checks with the battery charged, + after ignition feed switched
on and doors closed.
Check that the fuses are sound.
Using a 21 W test bulb and a multimeter.
Remove the driver's window winder switch (see
MR 411 mechanical, 87D Electric windows -
Sunroof, driver's door
front window winder switch: Removal -
Refitting) and disconnect its connector.
Shunt connection 21E to MAM to lower the
window (to raise it, shunt 21C to MAM) on the
connector of component 1512.
Does the window move?
YES
Replace the driver's window winder switch (see
MR 411 mechanical, 87D, Electric windows -
Sunroof, Driver's door front window winder
switch: Removal - Refitting).
NOUsing an ohmmeter, carry out a continuity
test on connection MAM between
component 1512 and the chassis earth.
Is the earth correct?
YES NO
NOCheck that earth MAM is correctly mounted
on the chassis. If the earth is faulty, clean and
retighten it.
Otherwise the fault is caused by the wiring;
if there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring; if not, replace it.
Check for an earth on connection MAM of
component 203
Is the earth correct?
YES
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
A
Page 22 of 54
87D-22
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5
CONTINUED 1
Connect a test light between connection MAM
and BPT3 of component 203.
Does the test light illuminate?
YES
Use a multimeter to check the presence of +
12 V on both connections 21E and 21C of
component 1512.
Is the feed approximately 12 V?
YES
Check for + 12 V using a multimeter between
connections 21K and BPT3 of component 203.
Is the feed approximately 12 V?
YES
Replace the window winder motor (see MR 412
bodywork, 51A, Side opening element
mechanisms, Front side door electric
window mechanism: Removal - Refitting).
NO
NO
NOContinuity fault on connection BPT3, pay
close attention to the intermediate
connectors. Check the continuity.
Otherwise the fault is caused by the wiring; if
there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring; if not, replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
A
B
C
Page 23 of 54
87D-23
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5
CONTINUED 2
Check the continuity on connections 21E and
21C, between components 1512 and 203.
Is the continuity of the connections good?
YES
Replace the window winder motor (see MR 412
bodywork, 51A, Side opening element
mechanisms, Front side door electric
window mechanism: Removal - Refitting).
Use an ohmmeter to test the continuity on
connection 21K between components 203
and 645.
Is the continuity correct?
YES
Use the diagnostic tool to check that
status ET087 “One touch window/sunroof
authorisation” displays “ACTIVE” and refer to
the fault finding for status ET087 (see 87B,
passenger compartment connection unit,
Interpretation of statuses).
NOIf there is a repair method (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair or
replace the wiring.
NOContinuity fault on connections 21K between
components 645 and 203. If there is a repair
procedure (see Technical Note 6015A,
Repairing electrical wiring, Wiring:
Precautions for repair), repair the wiring,
otherwise replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
B
C
Page 24 of 54
87D-24
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5 Only the driver's window does not operate at all
Applies to:Driver's one-touch electric windows and passenger's
electric window
Right-hand drive vehicle
NOTESUse Wiring Diagram Technical Note, New Twingo.
Carry out the various checks with the battery charged, + after ignition feed switched
on and doors closed.
Check that the fuses are sound.
Using a 21 W test bulb and a multimeter.
Remove the driver's window winder switch (see
MR 411 mechanical, 87D Electric windows -
Sunroof, driver's door
front window winder switch: Removal -
Refitting) and disconnect its connector.
Shunt connection 21E to MAN to lower the
window (to raise it, shunt 21C to MAN) on the
connector of component 1512.
Does the window move?
YES
Replace the driver's window winder switch (see
MR 411 mechanical, 87D, Electric windows -
Sunroof, Driver's door front window winder
switch: Removal - Refitting).
NOUse an ohmmeter to test the continuity on
connection MAN between component 1512
and the chassis earth.
Is the earth correct?
YESNO
NOCheck that earth MAN is correctly mounted
on the chassis. If the earth is faulty, clean and
retighten it.
Otherwise the fault is caused by the wiring;
if there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring; if not, replace it.
Check for earth on connection MAN of
component 203.
Is the earth correct?
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
A
YES
Page 25 of 54
87D-25
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5
CONTINUED 1
Connect a test light between connection MAN
and BPT3 of component 203.
Does the test light illuminate?
YES
Use a multimeter to check the presence of +
12 V on both connections 21E and 21C of
component 1512.
Is the feed approximately 12 V?
YES
Check for + 12 V using a multimeter between
connections 21K and BPT3 of component 203.
Is the feed approximately 12 V?
YES
Replace the electric window motor (see MR 412
bodywork, 51A, Side opening element
mechanisms, Front side door electric
window mechanism: Removal - Refitting).
NO
NO
NOContinuity fault on connection BPT3, pay
close attention to the intermediate
connectors. Check the continuity.
Otherwise the fault is caused by the wiring;
if there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring; if not, replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
A
B
C
Page 26 of 54
87D-26
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 5
CONTINUED 2
Check the continuity on connections 21E and
21C, between components 1512 and 203.
Is the continuity of the connections good?
YES
Replace the window winder motor (see MR 412
bodywork, 51A, Side opening element
mechanisms, Front side door electric
window mechanism: Removal - Refitting).
Use an ohmmeter to test the continuity on
connection 21K between components 203
and 645.
Is the continuity correct?
YES
Use the diagnostic tool to check that
status ET087 “One touch window/sunroof
authorisation” displays “ACTIVE” and refer to
fault finding on status ET087 (see 87B,
passenger compartment connection unit,
Fault finding - Interpretation of statuses).
NOIf there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring, otherwise replace it.
NOContinuity fault on connection 21K between
components 645 and 203. If there is a repair
procedure (see Technical Note 6015A,
Repairing electrical wiring, Wiring:
Precautions for repair), repair the wiring,
otherwise replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
B
C
Page 27 of 54
87D-27
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 6Driver's and passenger's windows do not operate at all with the
driver's switch only
Applies to:Driver's one-touch electric windows and passenger's
electric window
Left-hand drive vehicle
NOTESUse Technical Note Wiring Diagram, New Twingo.
Carry out the various checks with the battery charged and + after ignition feed
switched on.
Use a multimeter.
Remove the driver's window winder switch (see
MR 411 mechanical, 87D Electric windows -
Sunroof, driver's door front
window winder switch: Removal - Refitting).
Use an ohmmeter to check the continuity on
connection MAM between component 1512 and
the chassis earth.
Is the continuity good?
YES
Replace the driver's window winder switch (see
MR 411 mechanical, 87D Electric windows -
Sunroof, Driver's door front
window winder switch: Removal - Refitting).
NOCheck that earth MAM is correctly mounted
on the chassis. If the earth is faulty, clean and
retighten it. If there is a repair procedure (see
Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
Page 28 of 54
87D-28
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 6Driver's and passenger's windows do not operate at all with the
driver's switch only
Applies to:Driver's one-touch electric windows and passenger's
electric window
Right-hand drive vehicle
NOTESUse Wiring Diagram Technical Note, New Twingo.
Carry out the various checks with the battery charged and + after ignition feed
switched on.
Use a multimeter.
Remove the driver's window winder switch (see
MR 411 mechanical, 87D Electric windows -
Sunroof, driver's door
front window winder switch: Removal -
Refitting).
Use an ohmmeter to check the continuity on
connection MAN between component 1512 and
the chassis earth.
Is the continuity good?
YES
Replace the driver's window winder switch (see
MR 411 mechanical, 87D, Electric windows -
Sunroof, Driver's door front window winder
switch: Removal - Refitting).
NOCheck that earth MAN is correctly mounted
on the chassis. If the earth is faulty, clean and
retighten it. If there is a repair procedure (see
Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
Page 29 of 54
87D-29
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
Continuity fault on connection SPB3. Pay
attention to the intermediate connector. If
there is a repair procedure (see Technical
Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the
wiring, otherwise replace it.

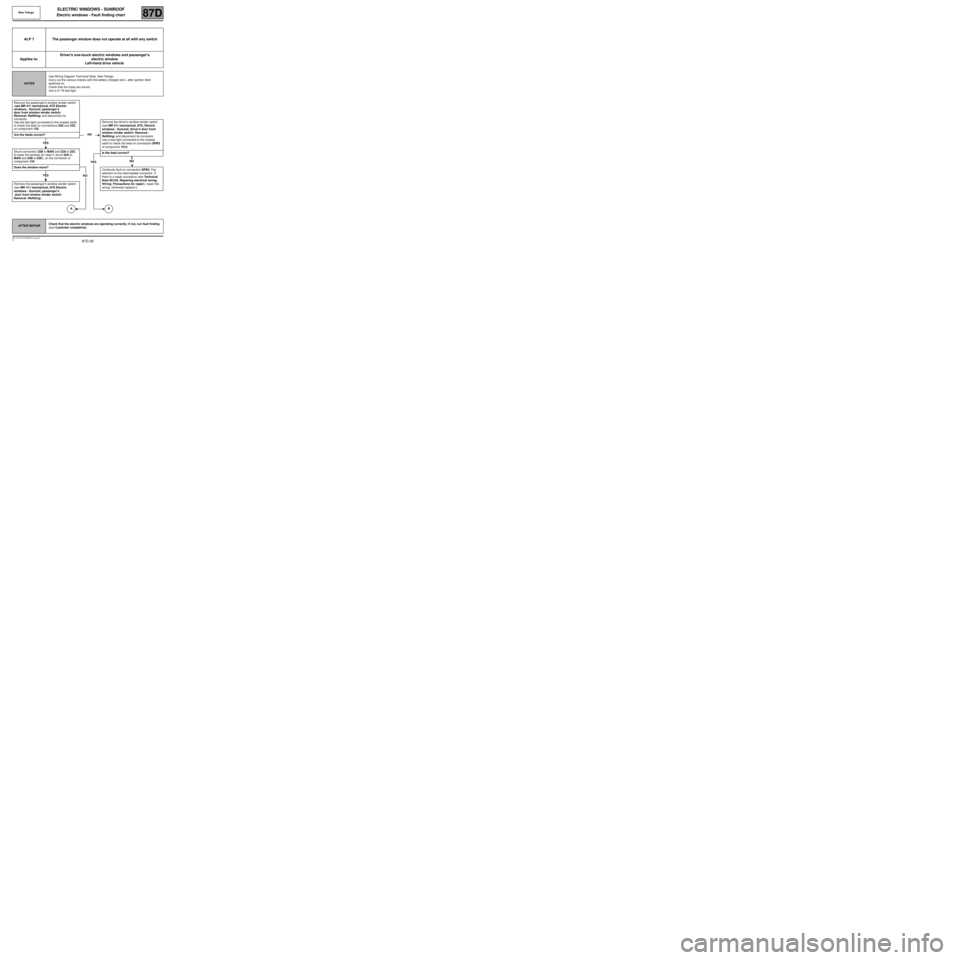

ALP 7 The passenger window does not operate at all with any switch
Applies to:Driver's one-touch electric windows and passenger's
electric window
Left-hand drive vehicle
NOTESUse Wiring Diagram Technical Note, New Twingo.
Carry out the various checks with the battery charged and + after ignition feed
switched on.
Check that the fuses are sound.
Use a 21 W test light.
Remove the passenger's window winder switch
(see MR 411 mechanical, 87D Electric
windows - Sunroof, passenger's
door front window winder switch:
Removal -Refitting) and disconnect its
connector.
Use the test light connected to the chassis earth
to check the feed on connections 22D and 22C
on component 133.
Are the feeds correct?
YES
Shunt connection 22B to MAN and 22A to 22C
to lower the window (to raise it, shunt 22A to
MAN and 22B to 22D), on the connector of
component 133.
Does the window move?
YES
Remove the passenger's window winder switch
(see MR 411 mechanical, 87D Electric
windows - Sunroof, passenger's
door front window winder switch:
Removal -Refitting).
NORemove the driver's window winder switch
(see MR 411 mechanical, 87D, Electric
windows - Sunroof, driver's door front
window winder switch: Removal -
Refitting) and disconnect its connector.
Use a test light connected to the chassis
earth to check the feed on connection SPB3
of component 1512.
Is the feed correct?
NO
NOYES
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
BA
Page 30 of 54
87D-30
MR-413-X44-87D000$472_eng.mif
V1
New TwingoELECTRIC WINDOWS - SUNROOF
Electric windows - Fault finding chart87D
ALP 7
CONTINUED
Shunt connection SPB3 to 22D and 22C on component
connector 1512.
Using the test bulb connected to the chassis earth,
check the feeds again on connections 22D and 22C on
component 133.
Are the feeds correct?
YES
Replace the driver's window winder switch (see
MR 411 mechanical, 87D, Electric windows -
Sunroof, Driver's door front window winder switch:
Removal - Refitting).
NOContinuity fault on connections 22D
and 22C. Pay close attention to the
intermediate connector. If there is a
repair procedure (see Technical Note
6015A, Repairing electrical wiring,
Wiring: Precautions for repair),
repair the wiring, otherwise replace it.
Connect a test light between connections 22B and 22A
of component 204.
Reconnect the electric window switch and operate
it. Does the test light illuminate?
YES
Replace the window winder motor (see MR 412
bodywork, 51A, Side opening element
mechanisms, Front side door electric window
mechanism: Removal - Refitting).
NOContinuity fault on connection 22A and
22B. If there is a repair procedure (see
Technical Note 6015A, Repairing
electrical wiring, Wiring:
Precautions for repair), repair the
wiring, otherwise replace it.
AFTER REPAIRCheck that the electric windows are operating correctly; if not, run fault finding
(see Customer complaints).
A
B
