Section 1: Getting to know your vehicle
Electric vehicle: introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . 1.2
Important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . 1.7
Electric vehicle: charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . 1.8
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.13
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.14
Engine immobiliser system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 1.15
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.16
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.17
Methods of restraint in addition to the front seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 1.20
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.24 booster seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
attaching a booster seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.27
installing a booster seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.28
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.31
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.32
Displays and indicators . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.35
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.37
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.38
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.39
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Windscreen washer, wiper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 1.41
Page 17 of 118
1.11
ELECTRIC VEHICLE: charging (4/5)
Recharging the traction
battery
Ignition switched off:
– open flap 3;
– take out the entire charging cord 2 located in the storage compartment
at the front of your vehicle, pulling it
by the plug using reasonable force.
The maximum length of the charging
cord is approximately 3 metres;
– plug in the end of the cord to the power supply (domestic plug socket,
etc);
– make sure that the stretch limiter 8 of the charging cord 2 is not exceeded
during charging. NB:
It is not necessary to wait:
– until you reach reserve levels in
order to recharge your vehicle;
– for a full charge of the traction bat- tery in order to use the vehicle.
3
2
4
5
67
When charging, the following informa-
tion is displayed:
– warning light 4. This flashes to indi-
cate that the traction battery is re-
ceiving energy;
– the completed charge percentage 5;
– warning light 6 indicates that the
cord is attached to the power supply;
– the battery 7 indicates the amount of
energy stored in the traction battery.
At the end of a full charge, the instru-
ment panel switches off.
8
2
The vehicle can only be charged
with the ignition switched off.
In the absence of any protection
against overvoltage, you are ad-
vised not to charge the vehicle in
stormy weather (lightning, etc).
Page 40 of 118
1.34
Low traction battery level
warning light
This comes on when the traction bat-
tery charge level has reached the re-
serve threshold. Please see the infor-
mation on “Displays and indicators” in
Section 1.
Electrotechnical system
warning light
If it lights up while driving, this means
there is an electrotechnical fault in the
“58 volt” electrical circuit. Please see an
authorised dealer as soon as possible.
\bWindscreen de-icing warn-
ing light .
©Not used
ERROR Not used
+ Not used
WARNING LIGHTS (3/3)
Electrotechnical system
warning light
When the warning light comes on, this
indicates the traction battery or the
engine temperature is too high. Opt for
a calmer driving style.
The warning light can be accompa-
nied by a drop in vehicle perform-
ance. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
Gear selector 1 position indicator (N,
D or R).
1
Page 41 of 118
1.35
DISPLAYS AND INDICATORS (1/2)
Charge level 1
The gauge indicates the level of energy
remaining.
NB: Each time you switch off the igni-
tion, the remaining energy level will be
calculated.
Once you switch on the ignition again,
you will see a slight change in the level
display. The presence and operation of the display and indicators DEPENDS ON THE \
LEVEL OF EQUIPMENT AND THE COUNTRY.
Immobilisation threshold imminent
When the battery reaches less than 6%
charge, a beep repeats every 20 sec-
onds and warning light
flashes on
and off.
Motor performance gradually de-
creases until the vehicle comes to a
stop.
Please see the information on “Towing:
in the event of energy loss” in Section 5.
Charge meter 2
Please refer to the information on the
“Charge meter” in Section 2.
Speedometer 3
In kilometres or miles per hour.
1
2
3
Reserve level
When the battery reaches approxi-
mately 12% charge, warning light
comes on, along with a beep.
To optimise your range, please see the
information on “Recommendations:
saving energy” in Section 2.
Page 42 of 118
1.36
Forecast range display features
– Sporty driving will strongly affect the forecast range value. Once you
return to a calmer driving style, you
will need to drive for several miles to
return to an estimate that is closer to
the real situation;
– the forecast range displayed after charging the traction battery is calcu-
lated based on the power consump-
tion over the last 93 miles (150 kilo-
metres) travelled.
Instrument panel in miles
It is possible to switch to km/h.
Press button 5 and switch on the igni-
tion.
The speed measurement unit indica-
tor flashes for approximately three sec-
onds, then the new unit flashes on the
display and is then lit up continuously:
release button 5.
To return to miles, proceed in the same
manner.Display 4
Press and hold button 5 to reset the trip
mileage recorder. The display must be
set to “Trip mileage recorder”. Zones
6 of the instrument panel dis-
play the information detailed below by
pressing button 5 repeatedly:
– estimated range;
– total mileage recorder;
– trip mileage recorder;
– Eco score;
– clock (CS : Clock setting).
Note: resetting is automatic when
the maximum capacity of any of the
memories is exceeded.
4
5
6
DISPLAYS AND INDICATORS (2/2)
Page 43 of 118
1.37
With the ignition switched on, the
clock is displayed on the instrument
panel.
Adjusting the time on the
instrument panel 1
– Press button 2 in quick succession,
as many times as necessary, to
obtain the time adjustment mode;
– press and hold button 2.
The hour reading flashes;
CLOCK
– repeatedly press button 2 as neces-
sary to adjust the hour;
– press and hold button 2 to confirm
the hours.
The minute display flashes;
– repeatedly press button 2 as neces-
sary to adjust the minutes;
– press and hold button 2 to confirm
the minutes.
1
2
Page 51 of 118
2.3
Driving
Press switch D, a beep will sound.
While driving, press the accelerator
pedal to achieve the desired speed.
Hill start
When setting off on a slope, release the
handbrake whilst pressing the brake
pedal before pressing the accelerator
pedal.
Reverse
Press switch R.
The reversing light will come on as
soon as reverse gear is selected (igni-
tion on).
A beep will sound.
GEAR CONTROL (1/2)
Display 1
The display 1 on the instrument panel
indicates the selection control posi-
tion 2.
Selection control 2
D: forward
N: neutral
R: reverse
Operation
– Switch on the ignition;
– start the engine;
– with your foot on the brake pedal,
release the handbrake (refer to the
information under “Handbrake” in
Section 2). It will now be possible to
drive off.
Only engage D or R when the vehicle
is at a standstill, with your foot on
the brake and the accelerator pedal
released.
To protect the charging cord, always
check that it is properly stored in its
housing before setting off.
The vehicle can only be started if
the charging cord is unplugged from
the vehicle and stored away.
1
D
N
R
2
Page 57 of 118
2.9

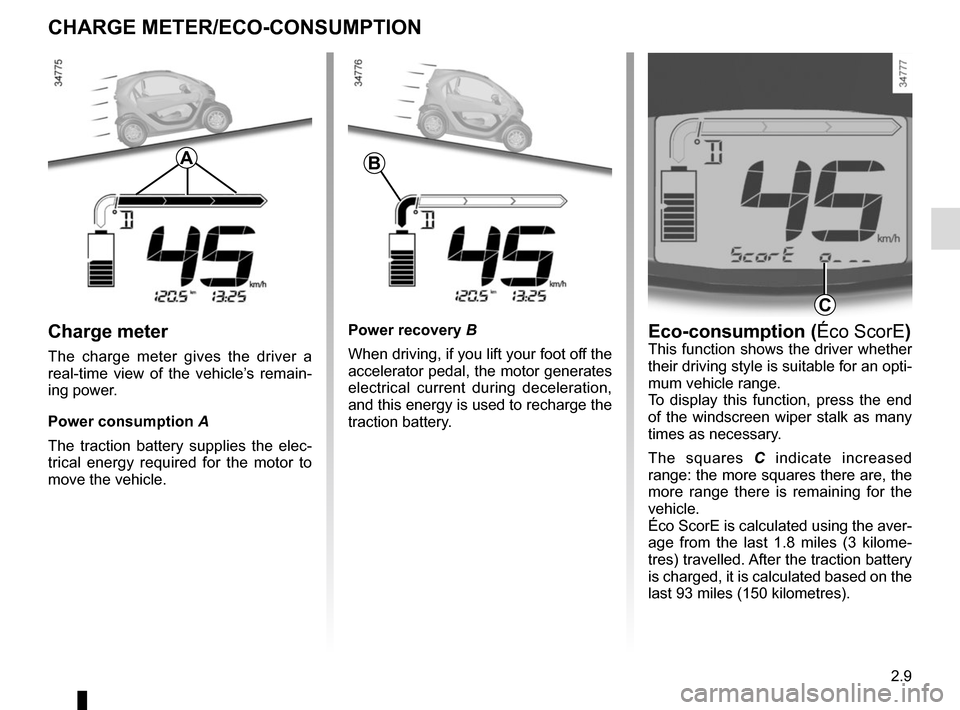

CHARGE METER/ECO-CONSUMPTION
Eco-consumption (Éco ScorE)This function shows the driver whether
their driving style is suitable for an opti-
mum vehicle range.
To display this function, press the end
of the windscreen wiper stalk as many
times as necessary.
The squares C indicate increased
range: the more squares there are, the
more range there is remaining for the
vehicle.
Éco ScorE is calculated using the aver-
age from the last 1.8 miles (3 kilome-
tres) travelled. After the traction battery
is charged, it is calculated based on the
last 93 miles (150 kilometres).
Power recovery
B
When driving, if you lift your foot off the
accelerator pedal, the motor generates
electrical current during deceleration,
and this energy is used to recharge the
traction battery.Charge meter
The charge meter gives the driver a
real-time view of the vehicle’s remain-
ing power.
Power consumption A
The traction battery supplies the elec-
trical energy required for the motor to
move the vehicle.
BA
C
Page 113 of 118
7.1
ALPHABETICAL INDEX (1/3)
A
accessories.............................................................\
........... 5.12
additional methods of restraint ..............................1.20 → 1.23
to the front seat belts .......................................1.20 → 1.22
to the rear seat belts ........................................1.20 → 1.22
adjusting your driving position ........................................... 1.17
air bag.................................................................\
...1.20 → 1.23
anti-corrosion check ..............................................6.13 → 6.18
anti-corrosion protection ...................................................... 4.6
audible and visual signals.................................................. 1.38
B
battery.................................................................\
............... 1.33
12 volt battery maintenance ......................................................... 4.4 – 4.5
12 volt battery ............................................................. 4.4 – 4.5
brake fluid ........................................................................\
.... 4.2
bulbs changing ............................................................... 5.8 – 5.9
C
changing a bulb .......................................................... 5.8 – 5.9
charge meter ....................................................................... 2.9
charging cord ...........................................................1.8 → 1.12
charging flap ........................................................................\
1.7
child booster seat ..............................1.24 – 1.25, 1.28 → 1.30
child restraint/seat .............................1.24 – 1.25, 1.27 → 1.30
child safety.........................................1.24 – 1.25, 1.2\
7 → 1.30
child seats..........................................1.24 – 1.25, 1.2\
7 → 1.30
children ............................................... 1.13 – 1.14, 1.24 – 1.25
cleaning: inside the vehicle .................................................. 4.8 – 4.9
clock ..................................................................\
................ 1.37
closing the doors ............................................................... 1.14
control instruments ................................................1.32 → 1.36
controls ...............................................................\
............... 1.31 D
dashboard...............................................................\
........... 1.31
de-icing windscreen .............................................................\
........ 3.2
demisting windscreen .............................................................\
........ 3.2
display ................................................................\
...1.32 → 1.36
doors...................................................................\
............... 1.14
driver’s position .....................................................1.31 → 1.34
driving .................................................................. 2.2, 2.6 – 2.7
driving position settings ............................................................1.1\
7 → 1.19
E
electric vehicle vehicle range ........................................................ 2.6 – 2.7
charge ................................................................1.8 → 1.12
driving ................................................................... 2.6 – 2.7
important recommendations ................................... 1.7, 1.9
electrical installation ............................................................ 1.9
energy recovery ...............................................................\
.......... 2.9
saving .................................................................\
........... 2.6
charge meter (function) .................................................. 2.9
consumption ............................................................\
...... 2.9
energy saving ............................................................. 2.6 – 2.7
energy consumption ............................... 1.35 – 1.36, 2.6 – 2.7
energy recovery ................................................................... 2.6
engine immobiliser......................................................\
....... 1.15
engine specifications ........................................................... 6.3
environment ............................................................\
............. 2.8
F
faults operating faults ................................................5.17 → 5.19
fittings ...............................................................\
.........3.3 → 3.6
