length RENAULT TWIZY 2018 Owners Manual

1.11
ELECTRIC VEHICLE: charging (4/5)
Recharging the traction
battery
Ignition switched off:
– open flap 3;
– take out the entire charging cord 2 located in the storage compartment
at the front of your vehicle, pulling it
by the plug using reasonable force.
The maximum length of the charging
cord is approximately 3 metres;
– plug in the end of the cord to the power supply (domestic plug socket,
etc);
– make sure that the stretch limiter 8 of the charging cord 2 is not exceeded
during charging. NB:
It is not necessary to wait:
– until you reach reserve levels in
order to recharge your vehicle;
– for a full charge of the traction bat- tery in order to use the vehicle.
3
2
4
5
67
When charging, the following informa-
tion is displayed:
– warning light 4. This flashes to indi-
cate that the traction battery is re-
ceiving energy;
– the completed charge percentage 5;
– warning light 6 indicates that the
cord is attached to the power supply;
– the battery 7 indicates the amount of
energy stored in the traction battery.
At the end of a full charge, the instru-
ment panel switches off.
8
2
The vehicle can only be charged
with the ignition switched off.
In the absence of any protection
against overvoltage, you are ad-
vised not to charge the vehicle in
stormy weather (lightning, etc).

4.5

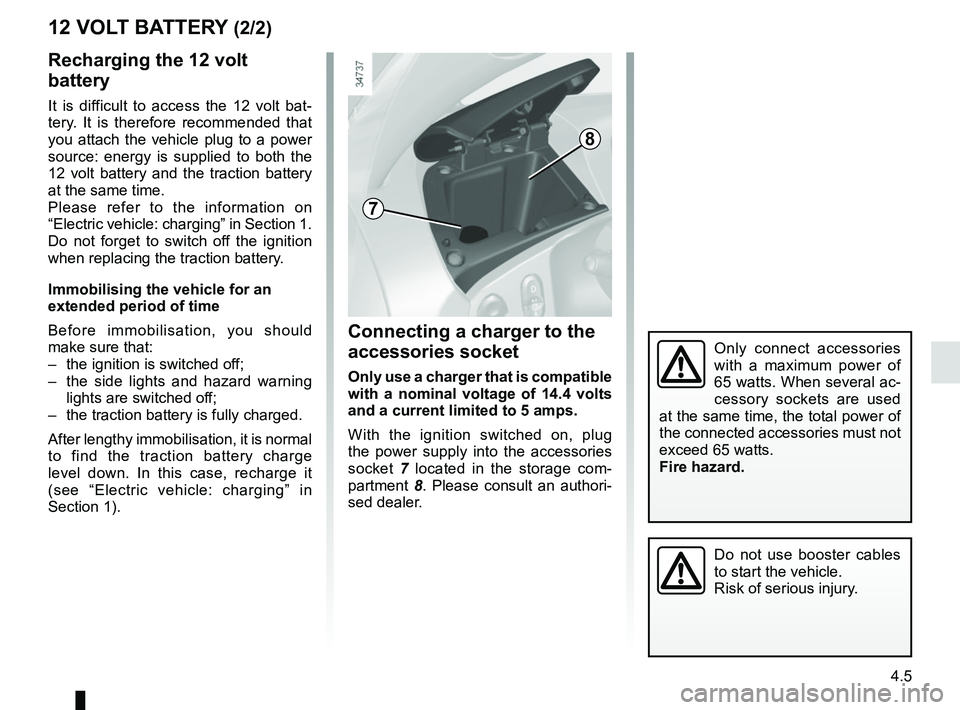

12 VOLT BATTERY (2/2)Connecting a charger to the
accessories socket
Only use a charger that is compatible
with a nominal voltage of 14.4 volts
and a current limited to 5 amps.
With the ignition switched on, plug
the power supply into the accessories
socket 7 located in the storage com-
partment 8. Please consult an authori-
sed dealer.
Recharging the 12 volt
battery
It is difficult to access the 12 volt bat-
tery. It is therefore recommended that
you attach the vehicle plug to a power
source: energy is supplied to both the
12 volt battery and the traction battery
at the same time.
Please refer to the information on
“Electric vehicle: charging” in Section 1.
Do not forget to switch off the ignition
when replacing the traction battery.
Immobilising the vehicle for an
extended period of time
Before immobilisation, you should
make sure that:
– the ignition is switched off;
– the side lights and hazard warning lights are switched off;
– the traction battery is fully charged.
After lengthy immobilisation, it is normal
to find the traction battery charge
level down. In this case, recharge it
(see “Electric vehicle: charging” in
Section 1).
Do not use booster cables
to start the vehicle.
Risk of serious injury.
8
7
Only connect accessories
with a maximum power of
65 watts. When several ac-
cessory sockets are used
at the same time, the total power of
the connected accessories must not
exceed 65 watts.
Fire hazard.
