RENAULT WIND ROADSTER 2012 Owners Manual

JauneNoirNoir texte
5.5
ENG_UD28665_3
Kit de gonflage des pneumatiques (X77 - X85 - B85 - C85 - S85 - X77 ph2\
- K85 - X95 - E95 - X67 - X92 - X10 - X98 - X52 - Renault)
ENG_NU_865-6_E33_Renault_5

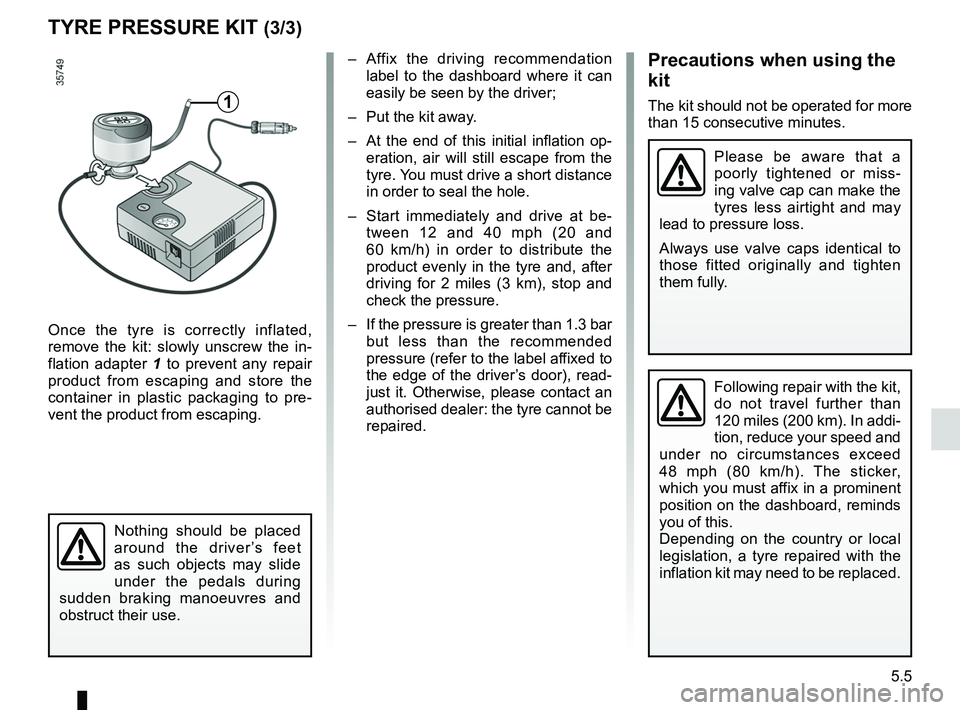

tyre Pressure KIt (3/3)
Once the tyre is correctly inflated,
remove the kit: slowly unscrew the in -
flation adapter 1 to prevent any repair
product from escaping and store the
container in plastic packaging to pre -
vent the product from escaping.
– Affix the driving recommendation
label to the dashboard where it can
easily be seen by the driver;
– Put the kit away.
– At the end of this initial inflation op-
eration, air will still escape from the
tyre. You must drive a short distance
in order to seal the hole.
– Start immediately and drive at be -
tween 12 and 40 mph (20 and
60 km/h) in order to distribute the
product evenly in the tyre and, after
driving for 2 miles (3 km), stop and
check the pressure.
– If the pressure is greater than 1.3 bar
but less than the recommended
pressure (refer to the label affixed to
the edge of the driver’s door), read-
just it. Otherwise, please contact an
authorised dealer: the tyre cannot be
repaired.Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Nothing should be placed
around the driver ’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
1
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and may
lead to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi -
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.

tool kit ................................................... (up to the end of the DU)
hubcap tool ........................................... (up to the end of the DU)
jack ....................................................... (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
wheelbrace ........................................... (up to the end of the DU)
trims ...................................................... (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
wheelbrace ............................................................ (current page)
5.6
ENG_UD20555_2
Bloc-outils (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5

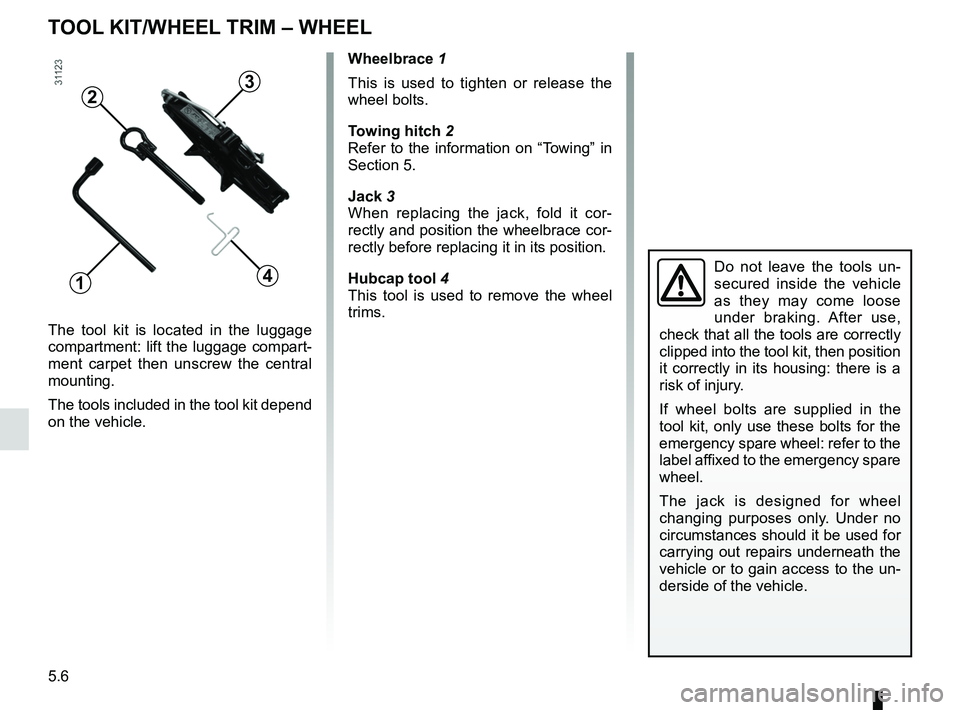

Tool kit (jack, wheelbrace, etc.)
Hubcap
t OOL KIt/WHeeL trIm – WHeeL
The tool kit is located in the luggage
compartment: lift the luggage compart-
ment carpet then unscrew the central
mounting.
The tools included in the tool kit depend
on the vehicle.
Wheelbrace 1
This is used to tighten or release the
wheel bolts.
towing hitch 2
Refer to the information on “Towing” in
Section 5.
Jack 3
When replacing the jack, fold it cor -
rectly and position the wheelbrace cor-
rectly before replacing it in its position.
Hubcap tool 4
This tool is used to remove the wheel
trims.
Do not leave the tools un -
secured inside the vehicle
as they may come loose
under braking. After use,
check that all the tools are correctly
clipped into the tool kit, then position
it correctly in its housing: there is a
risk of injury.
If wheel bolts are supplied in the
tool kit, only use these bolts for the
emergency spare wheel: refer to the
label affixed to the emergency spare
wheel.
The jack is designed for wheel
changing purposes only. Under no
circumstances should it be used for
carrying out repairs underneath the
vehicle or to gain access to the un-
derside of the vehicle.
1
23
4

changing a wheel.................................. (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
lifting the vehicle changing a wheel ............................ (up to the end of the DU)
5.7
ENG_UD22214_3
Changement de roue (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5

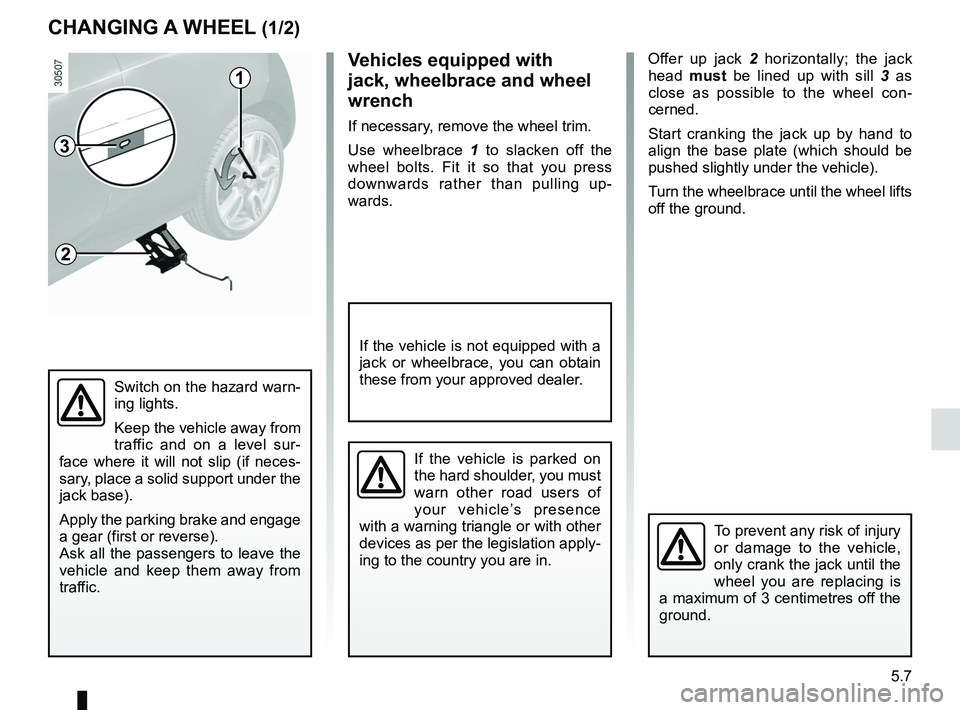

Changing a wheel
cHangIng a WHeeL (1/2)
Vehicles equipped with
jack, wheelbrace and wheel
wrench
If necessary, remove the wheel trim.
Use wheelbrace 1 to slacken off the
wheel bolts. Fit it so that you press
downwards rather than pulling up -
wards.
Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level sur -
face where it will not slip (if neces -
sary, place a solid support under the
jack base).
Apply the parking brake and engage
a gear (first or reverse).
Ask all the passengers to leave the
vehicle and keep them away from
traffic.
1
2
3
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Offer up jack 2 horizontally; the jack
head must be lined up with sill 3 as
close as possible to the wheel con -
cerned.
Start cranking the jack up by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Turn the wheelbrace until the wheel lifts
off the ground.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.

5.8
ENG_UD22214_3
Changement de roue (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5

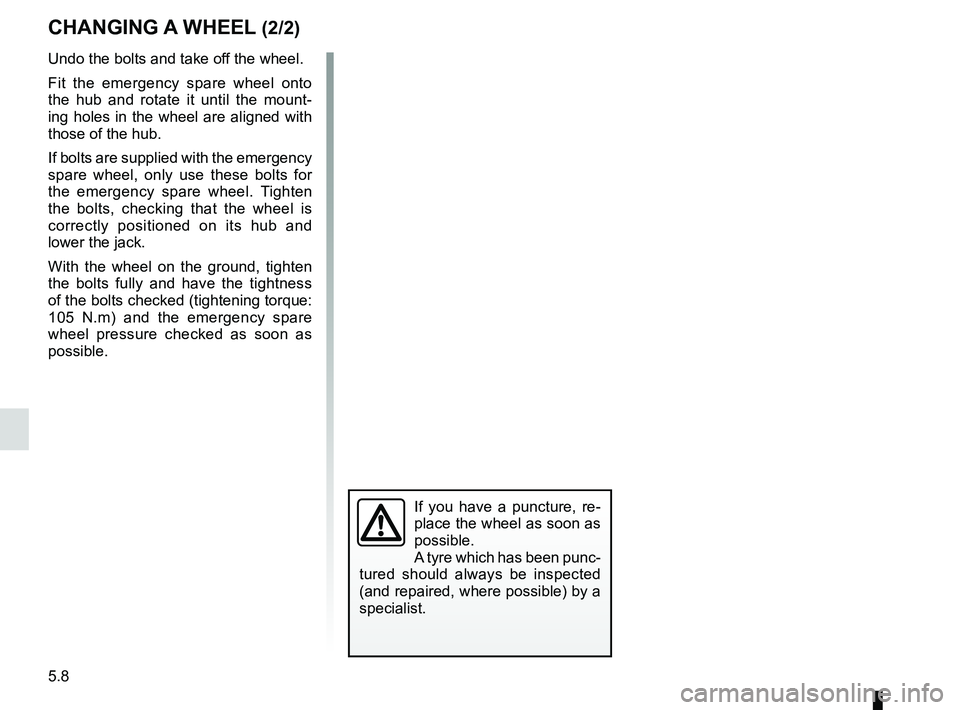

Undo the bolts and take off the wheel.
Fit the emergency spare wheel onto
the hub and rotate it until the mount -
ing holes in the wheel are aligned with
those of the hub.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel. Tighten
the bolts, checking that the wheel is
correctly positioned on its hub and
lower the jack.
With the wheel on the ground, tighten
the bolts fully and have the tightness
of the bolts checked (tightening torque:
105 N.m) and the emergency spare
wheel pressure checked as soon as
possible.
cHangIng a WHeeL (2/2)
If you have a puncture, re -
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.

tyres ...................................................... (up to the end of the DU)
wheels (safety) ..................................... (up to the end of the DU)
5.9
ENG_UD11227_1
Pneumatiques (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5
Tyres (tyre and wheel safety, use in winter)

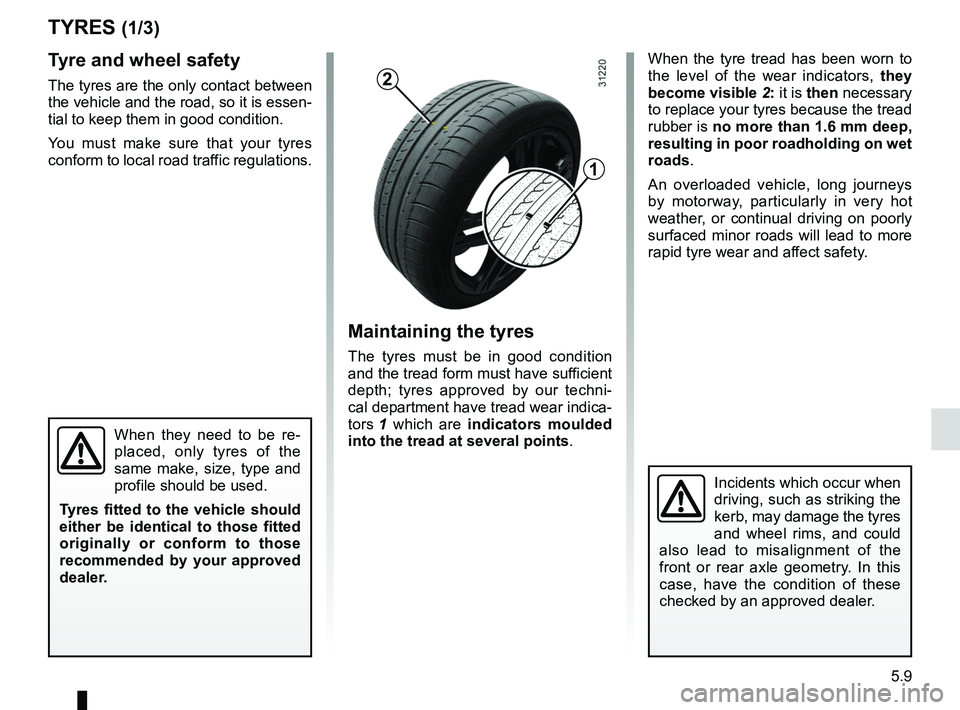

tyres (1/3)
maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our techni -
cal department have tread wear indica -
tors 1 which are indicators moulded
into the tread at several points .
tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations. When the tyre tread has been worn to
the level of the wear indicators,
they
become visible 2: it is then necessary
to replace your tyres because the tread
rubber is no more than 1.6 mm deep,
resulting in poor roadholding on wet
roads.
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
t yres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
dealer.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
1
2

tyre pressure.......................................................... (current page)
5.10
ENG_UD11227_1
Pneumatiques (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5
Jaune NoirNoir texte

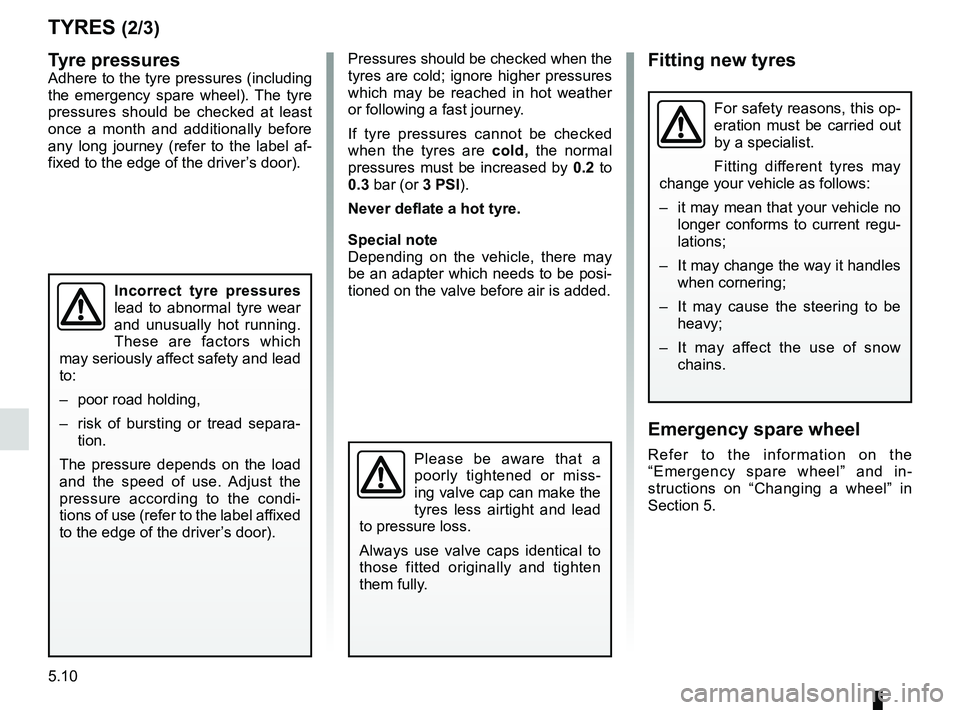

tyre pressuresAdhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door). Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are
cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.
special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.Fitting new tyres
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
tyres (2/3)
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressure according to the condi -
tions of use (refer to the label affixed
to the edge of the driver’s door).
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– It may change the way it handles
when cornering;
– It may cause the steering to be
heavy;
– It may affect the use of snow
chains.

JauneNoirNoir texte
5.11
ENG_UD11227_1
Pneumatiques (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5

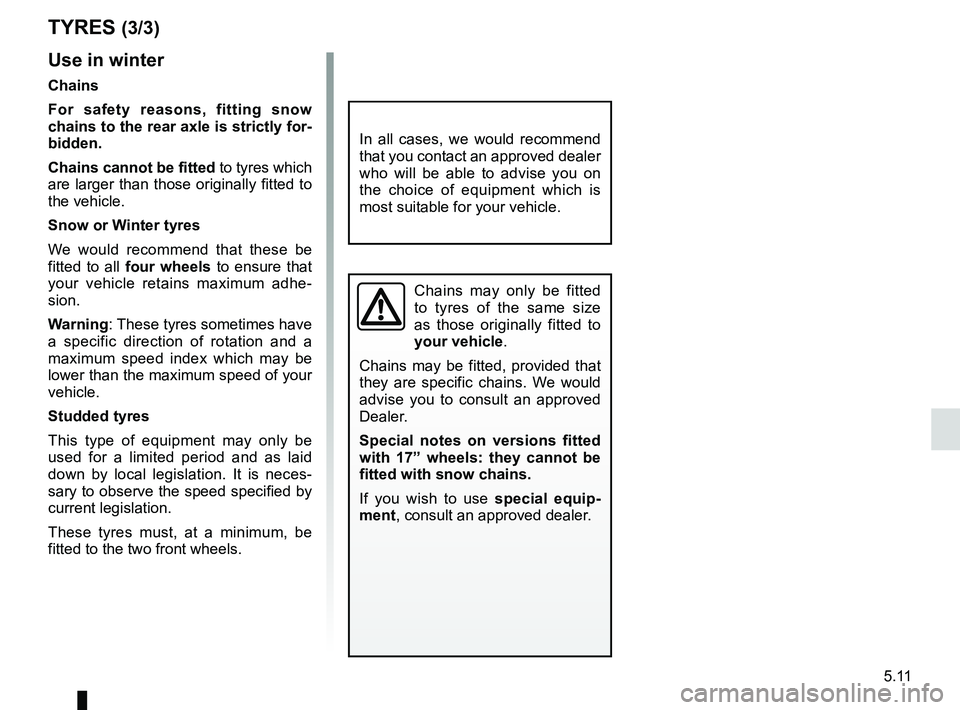

use in winter
chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
Warning: These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces -
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
tyres (3/3)
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Chains may be fitted, provided that
they are specific chains. We would
advise you to consult an approved
Dealer.
s pecial notes on versions fitted
with 17” wheels: they cannot be
fitted with snow chains.
If you wish to use special equip-
ment, consult an approved dealer.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.

5.12
ENG_UD25522_3
Projecteurs avant : remplacement des lampes (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5
Jaune NoirNoir texte
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
HeadLIgHts: changing bulbs (1/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
a
B
1
side light
Pull bulb holder 6. Change the bulb.
Bulb type: W5W.
direction indicator lights
Rotate bulb holder 1 to unlock it.
Bulb type: Py21W.
2
3
45
6
dipped beam A/main beam B
headlights
Remove cover A or B , disconnect
bulb 3 or 4 , unlock spring 2 or 5 to
remove the bulb.
do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Bulb type: H1.
It is essential to use anti U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved dealer.

JauneNoirNoir texte
5.13
ENG_UD25522_3
Projecteurs avant : remplacement des lampes (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5

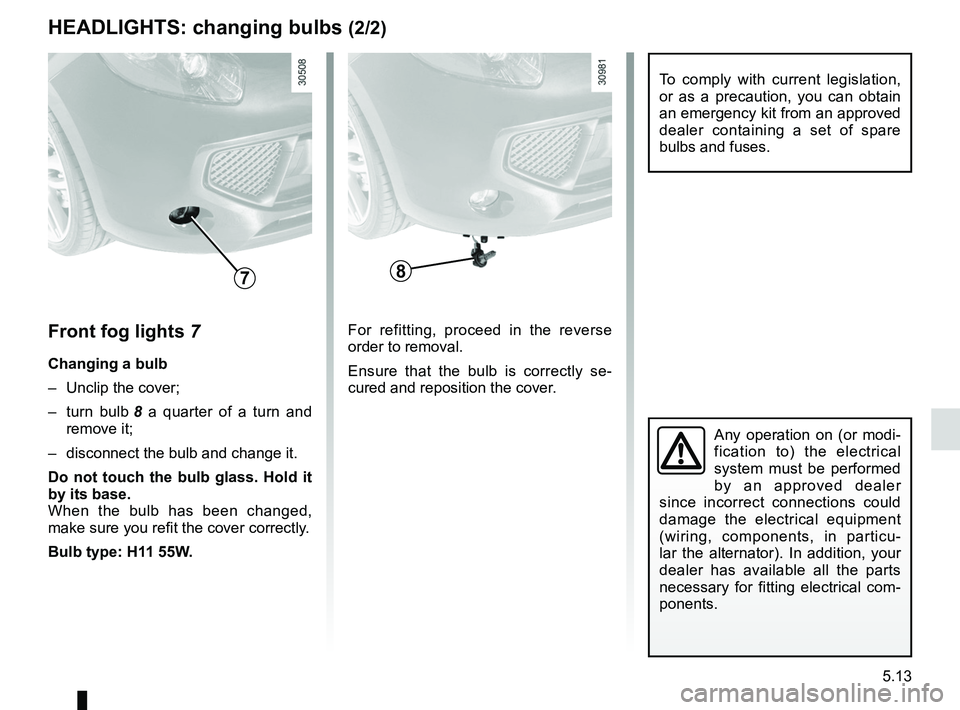

HeadLIgHts: changing bulbs (2/2)
Front fog lights 7
changing a bulb
– Unclip the cover;
– turn bulb 8 a quarter of a turn and
remove it;
– disconnect the bulb and change it.
do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
Bulb type: H11 55W. For refitting, proceed in the reverse
order to removal.
Ensure that the bulb is correctly se
-
cured and reposition the cover.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since incorrect connections could
damage the electrical equipment
(wiring, components, in particu -
lar the alternator). In addition, your
dealer has available all the parts
necessary for fitting electrical com -
ponents.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.
78

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
lights: reversing lights ................................................. (current page)
lights: fog lights .......................................................... (current page)
indicators: direction indicators ........................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD11230_1
Feux arrière et latéraux : remplacement des lampes (E33 - X33 - R\
enault)
ENG_NU_865-6_E33_Renault_5
Jaune NoirNoir texte

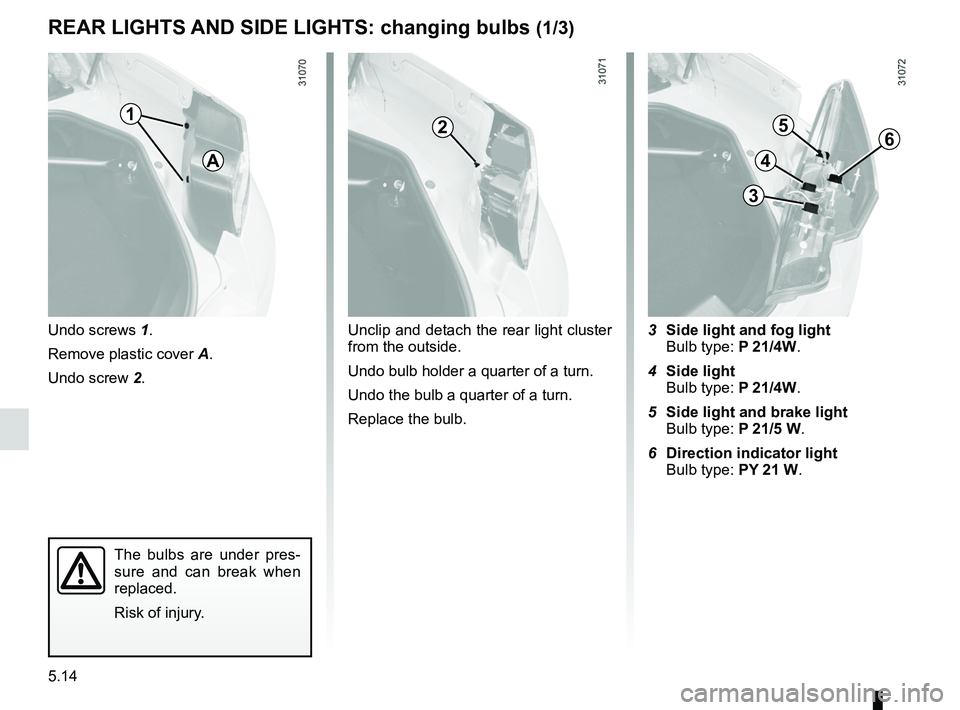

Rear lights (changing bulbs)
rear LIgHts and sIde LIgHts: changing bulbs (1/3)
Undo screws 1.
Remove plastic cover A.
Undo screw 2. Unclip and detach the rear light cluster
from the outside.
Undo bulb holder a quarter of a turn.
Undo the bulb a quarter of a turn.
Replace the bulb. 3
side light and fog light
Bulb type: P 21/4W.
4 side light Bulb type: P 21/4W.
5 side light and brake light
Bulb type: P 21/5 W.
6 direction indicator light
Bulb type: Py 21 W.
12
3
4
56
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
a
