Consumer information and Reporting safety defects
13-11
13
– CONTINUED –

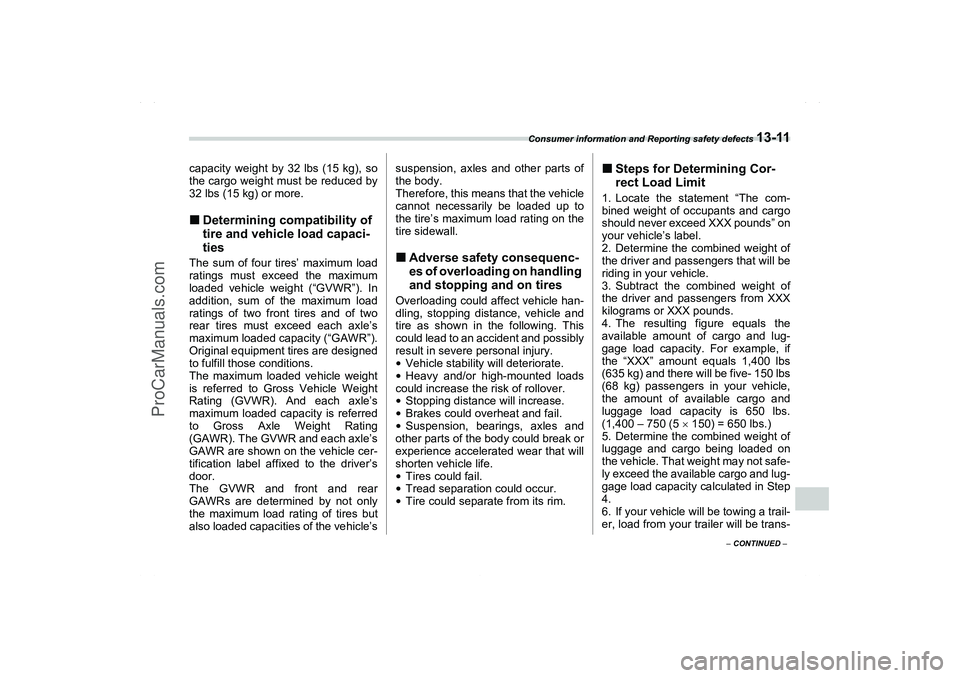

capacity weight by 32 lbs (15 kg), so
the cargo weight must be reduced by
32 lbs (15 kg) or more.Determining compatibility of
tire and vehicle load capaci-
tiesThe sum of four tires’ maximum load
ratings must exceed the maximum
loaded vehicle weight (“GVWR”). In
addition, sum of the maximum load
ratings of two front tires and of two
rear tires must exceed each axle’s
maximum loaded capacity (“GAWR”).
Original equipment tires are designed
to fulfill those conditions.
The maximum loaded vehicle weight
is referred to Gross Vehicle Weight
Rating (GVWR). And each axle’s
maximum loaded capacity is referred
to Gross Axle Weight Rating
(GAWR). The GVWR and each axle’s
GAWR are shown on the vehicle cer-
tification label affixed to the driver’s
door.
The GVWR and front and rear
GAWRs are determined by not only
the maximum load rating of tires but
also loaded capacities of the vehicle’ssuspension, axles and other parts of
the body.
Therefore, this means that the vehicle
cannot necessarily be loaded up to
the tire’s maximum load rating on the
tire sidewall.
Adverse safety consequenc-
es of overloading on handling
and stopping and on tiresOverloading could affect vehicle han-
dling, stopping distance, vehicle and
tire as shown in the following. This
could lead to an accident and possibly
result in severe personal injury.Vehicle stability will deteriorate.Heavy and/or high-mounted loads
could increase the risk of rollover.Stopping distance will increase.Brakes could overheat and fail.Suspension, bearings, axles and
other parts of the body could break or
experience accelerated wear that will
shorten vehicle life.Tires could fail.Tread separation could occur.Tire could separate from its rim.
Steps for Determining Cor-
rect Load Limit1. Locate the statement “The com-
bined weight of occupants and cargo
should never exceed XXX pounds” on
your vehicle’s label.
2. Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from XXX
kilograms or XXX pounds.
4. The resulting figure equals the
available amount of cargo and lug-
gage load capacity. For example, if
the “XXX” amount equals 1,400 lbs
(635 kg) and there will be five- 150 lbs
(68 kg) passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 650 lbs.
(1,400 – 750 (5 150) = 650 lbs.)
5. Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safe-
ly exceed the available cargo and lug-
gage load capacity calculated in Step
4.
6. If your vehicle will be towing a trail-
er, load from your trailer will be trans-
A1910BE-A-GSAAB.book Page 11 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 312 of 322
13-12
Consumer information and Reporting safety defects

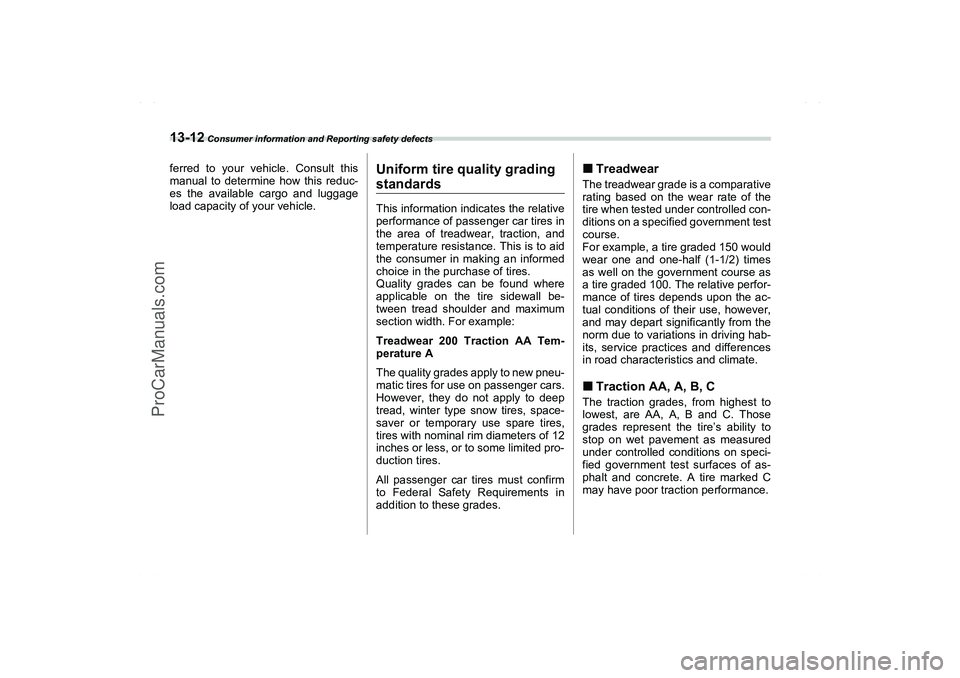

ferred to your vehicle. Consult this
manual to determine how this reduc-
es the available cargo and luggage
load capacity of your vehicle.
Uniform tire quality grading standardsThis information indicates the relative
performance of passenger car tires in
the area of treadwear, traction, and
temperature resistance. This is to aid
the consumer in making an informed
choice in the purchase of tires.
Quality grades can be found where
applicable on the tire sidewall be-
tween tread shoulder and maximum
section width. For example:
Treadwear 200 Traction AA Tem-
perature A
The quality grades apply to new pneu-
matic tires for use on passenger cars.
However, they do not apply to deep
tread, winter type snow tires, space-
saver or temporary use spare tires,
tires with nominal rim diameters of 12
inches or less, or to some limited pro-
duction tires.
All passenger car tires must confirm
to Federal Safety Requirements in
addition to these grades.
TreadwearThe treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlled con-
ditions on a specified government test
course.
For example, a tire graded 150 would
wear one and one-half (1-1/2) times
as well on the government course as
a tire graded 100. The relative perfor-
mance of tires depends upon the ac-
tual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving hab-
its, service practices and differences
in road characteristics and climate.Traction AA, A, B, CThe traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on speci-
fied government test surfaces of as-
phalt and concrete. A tire marked C
may have poor traction performance.
A1910BE-A-GSAAB.book Page 12 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 313 of 322
Consumer information and Reporting safety defects
13-13
13
– CONTINUED –
Temperature A, B, CThe temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel. Sustained high tempera-
ture can cause the material of the tire
to degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C corre-
sponds to a level of performance
which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standards No. 109. Grades B
and A represent higher levels of per-
formance on the laboratory test wheel
than the minimum required by law.
Reporting safety defects (USA)If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the Nation-
al Highway Traffic Safety Administra-
tion (NHTSA) in addition to notifying
Saab Cars USA, Inc.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or Saab Cars USA, Inc.
To contact NHTSA, you may call the
toll-free Vehicle Safety Hotline at 1-
888-327-4236 (TTY: 1-800-424-9153;
go to http://www.safercar.gov; or write
to: Administrator, NHTSA, 400 Sev-
enth Street, SW., Washington D.C.
20590. You can also obtain other in-
formation about motor vehicle safety
from http:// www safercar.gov. The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning, or
peak traction characteristics.
The temperature grade for this
tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, under-
inflation, or excessive loading,
either separately or in combina-
tion, can cause heat buildup and
possible tire failure.
A1910BE-A-GSAAB.book Page 13 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 314 of 322
13-14
Consumer information and Reporting safety defects

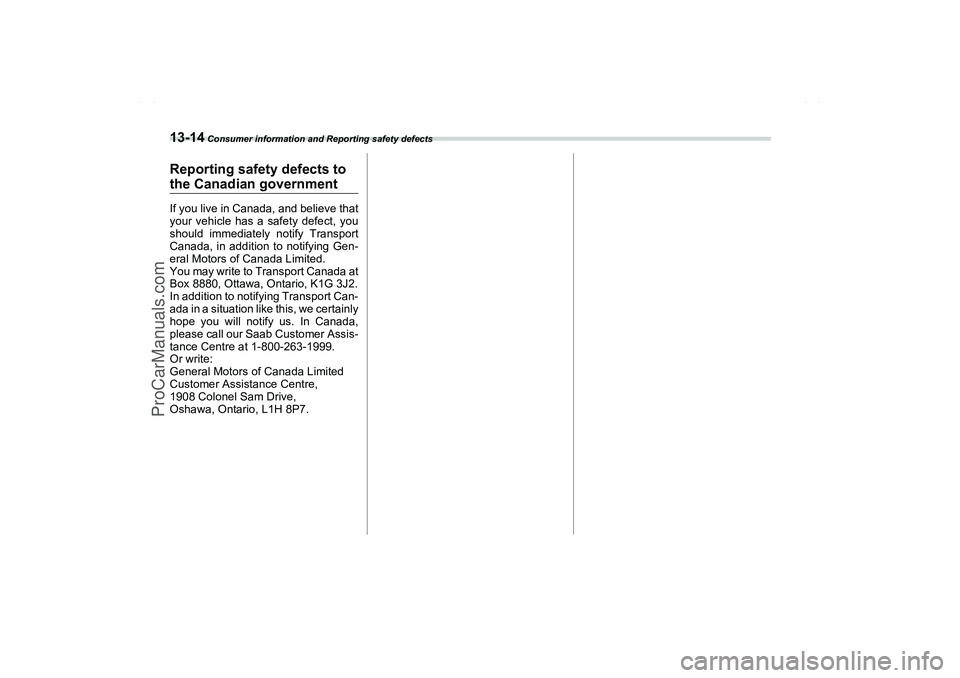

Reporting safety defects to the Canadian governmentIf you live in Canada, and believe that
your vehicle has a safety defect, you
should immediately notify Transport
Canada, in addition to notifying Gen-
eral Motors of Canada Limited.
You may write to Transport Canada at
Box 8880, Ottawa, Ontario, K1G 3J2.
In addition to notifying Transport Can-
ada in a situation like this, we certainly
hope you will notify us. In Canada,
please call our Saab Customer Assis-
tance Centre at 1-800-263-1999.
Or write:
General Motors of Canada Limited
Customer Assistance Centre,
1908 Colonel Sam Drive,
Oshawa, Ontario, L1H 8P7.A1910BE-A-GSAAB.book Page 14 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 315 of 322

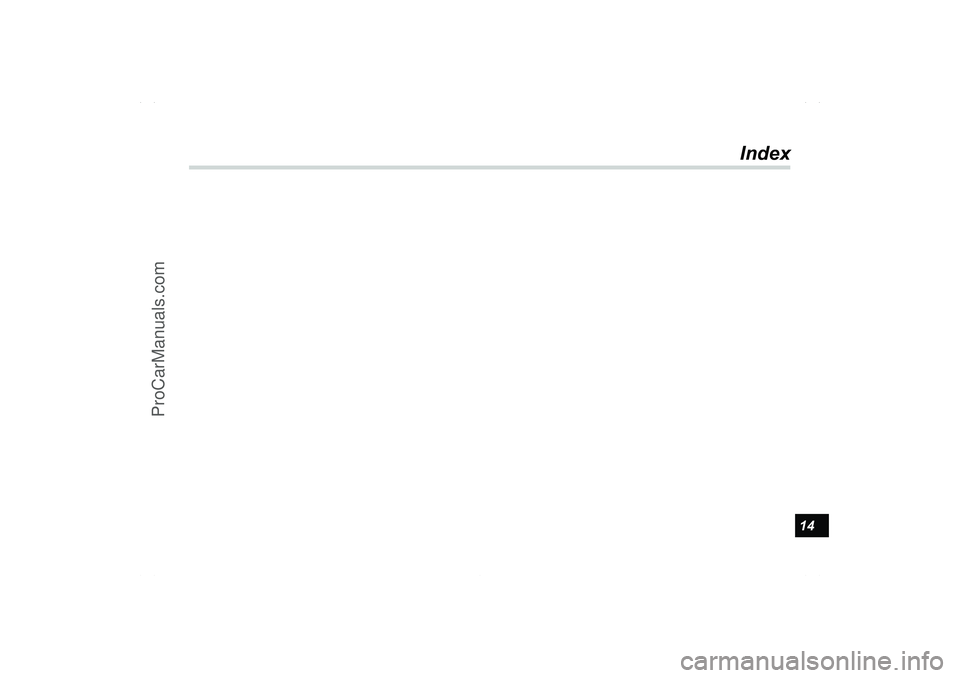

Index
14
14
A1910BE-A-GSAAB.book Page 1 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 316 of 322

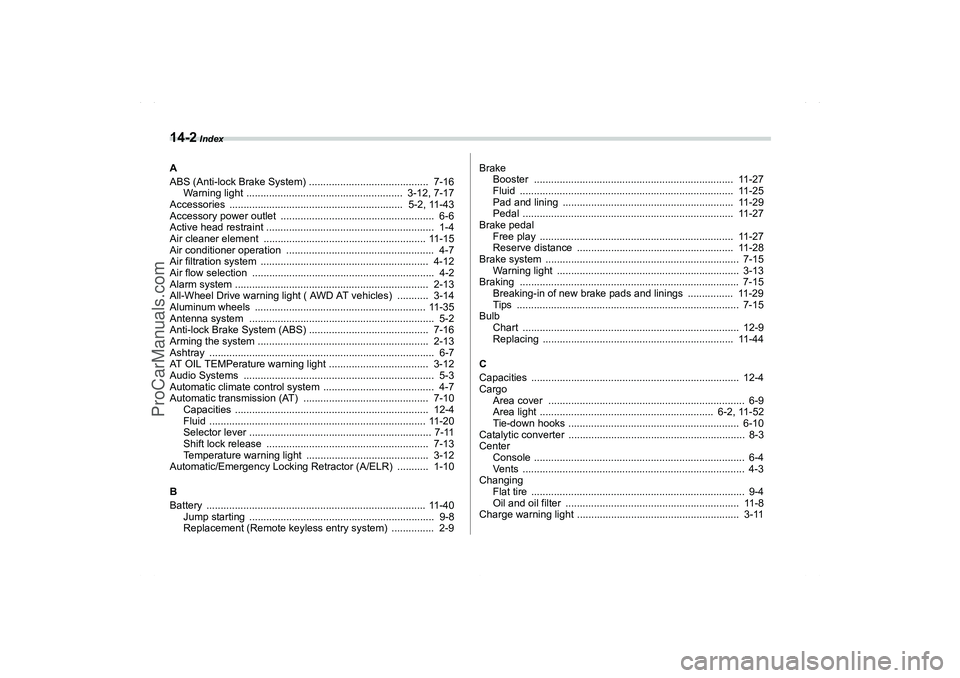

14-2
Index
A
ABS (Anti-lock Brake System) .......................................... 7-16
Warning light ....................................................... 3-12, 7-17
Accessories ............................................................. 5-2, 11-43
Accessory power outlet ...................................................... 6-6
Active head restraint ........................................................... 1-4
Air cleaner element ......................................................... 11-15
Air conditioner operation .................................................... 4-7
Air filtration system ........................................................... 4-12
Air flow selection ................................................................ 4-2
Alarm system .................................................................... 2-13
All-Wheel Drive warning light ( AWD AT vehicles) ........... 3-14
Aluminum wheels ............................................................ 11-35
Antenna system ................................................................. 5-2
Anti-lock Brake System (ABS) .......................................... 7-16
Arming the system ............................................................ 2-13
Ashtray ............................................................................... 6-7
AT OIL TEMPerature warning light ................................... 3-12
Audio Systems ................................................................... 5-3
Automatic climate control system ....................................... 4-7
Automatic transmission (AT) ............................................ 7-10
Capacities .................................................................... 12-4
Fluid ............................................................................ 11-20
Selector lever ................................................................ 7-11
Shift lock release ......................................................... 7-13
Temperature warning light ........................................... 3-12
Automatic/Emergency Locking Retractor (A/ELR) ........... 1-10
B
Battery ............................................................................. 11-40
Jump starting ................................................................. 9-8
Replacement (Remote keyless entry system) ............... 2-9Brake
Booster ...................................................................... 11-27
Fluid ........................................................................... 11-25
Pad and lining ............................................................ 11-29
Pedal .......................................................................... 11-27
Brake pedal
Free play .................................................................... 11-27
Reserve distance ....................................................... 11-28
Brake system .................................................................... 7-15
Warning light ................................................................ 3-13
Braking ............................................................................. 7-15
Breaking-in of new brake pads and linings ................ 11-29
Tips .............................................................................. 7-15
Bulb
Chart ............................................................................ 12-9
Replacing ................................................................... 11-44
C
Capacities ......................................................................... 12-4
Cargo
Area cover ..................................................................... 6-9
Area light ............................................................. 6-2, 11-52
Tie-down hooks ............................................................ 6-10
Catalytic converter .............................................................. 8-3
Center
Console .......................................................................... 6-4
Vents .............................................................................. 4-3
Changing
Flat tire ........................................................................... 9-4
Oil and oil filter ............................................................. 11-8
Charge warning light ......................................................... 3-11A1910BE-A-GSAAB.book Page 2 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

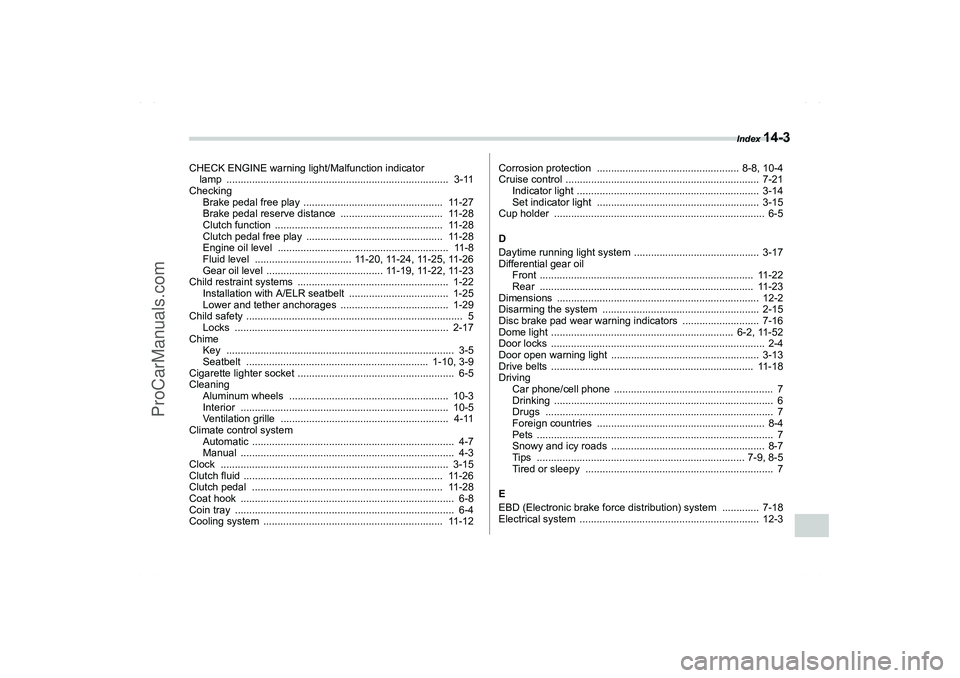

Page 317 of 322
Index
14-3
14
CHECK ENGINE warning light/Malfunction indicator
lamp .............................................................................. 3-11
Checking
Brake pedal free play ................................................. 11-27
Brake pedal reserve distance .................................... 11-28
Clutch function ........................................................... 11-28
Clutch pedal free play ................................................ 11-28
Engine oil level ............................................................ 11-8
Fluid level .................................. 11-20, 11-24, 11-25, 11-26
Gear oil level ......................................... 11-19, 11-22, 11-23
Child restraint systems ..................................................... 1-22
Installation with A/ELR seatbelt ................................... 1-25
Lower and tether anchorages ...................................... 1-29
Child safety ............................................................................ 5
Locks ........................................................................... 2-17
Chime
Key ................................................................................ 3-5
Seatbelt ................................................................ 1-10, 3-9
Cigarette lighter socket ....................................................... 6-5
Cleaning
Aluminum wheels ........................................................ 10-3
Interior ......................................................................... 10-5
Ventilation grille ........................................................... 4-11
Climate control system
Automatic ....................................................................... 4-7
Manual ........................................................................... 4-3
Clock ................................................................................ 3-15
Clutch fluid ...................................................................... 11-26
Clutch pedal ................................................................... 11-28
Coat hook ........................................................................... 6-8
Coin tray ............................................................................. 6-4
Cooling system ............................................................... 11-12Corrosion protection .................................................. 8-8, 10-4
Cruise control .................................................................... 7-21
Indicator light ................................................................ 3-14
Set indicator light ......................................................... 3-15
Cup holder .......................................................................... 6-5
D
Daytime running light system ............................................ 3-17
Differential gear oil
Front ........................................................................... 11-22
Rear ........................................................................... 11-23
Dimensions ....................................................................... 12-2
Disarming the system ....................................................... 2-15
Disc brake pad wear warning indicators ........................... 7-16
Dome light ................................................................ 6-2, 11-52
Door locks ........................................................................... 2-4
Door open warning light .................................................... 3-13
Drive belts ....................................................................... 11-18
Driving
Car phone/cell phone ........................................................ 7
Drinking ............................................................................. 6
Drugs ................................................................................ 7
Foreign countries ........................................................... 8-4
Pets ................................................................................... 7
Snowy and icy roads ...................................................... 8-7
Tips ......................................................................... 7-9, 8-5
Tired or sleepy .................................................................. 7
E
EBD (Electronic brake force distribution) system ............. 7-18
Electrical system ............................................................... 12-3
A1910BE-A-GSAAB.book Page 3 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

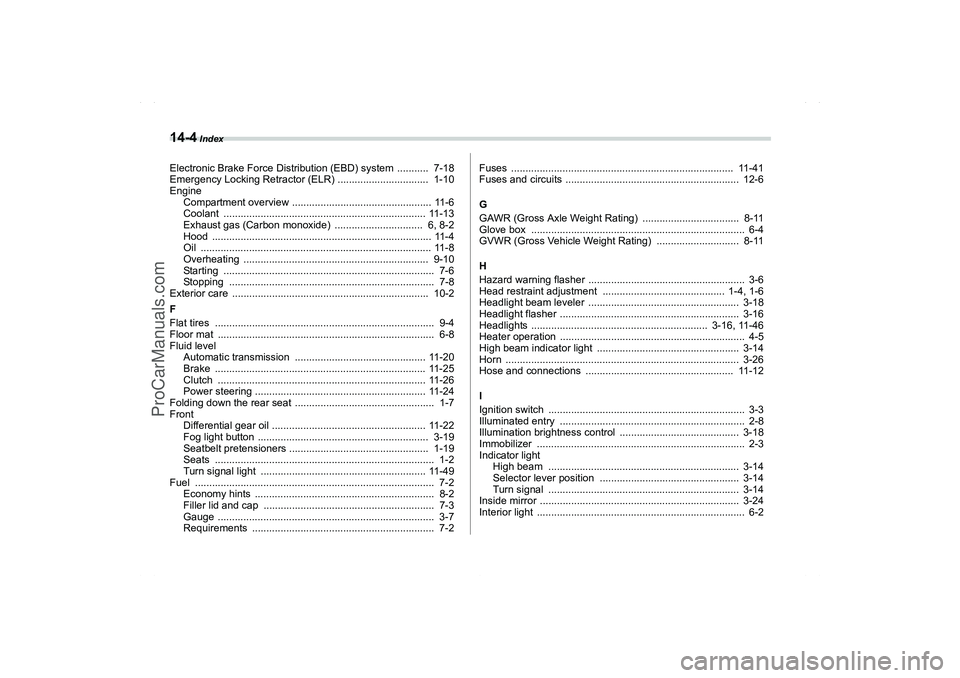

Page 318 of 322
14-4
Index
Electronic Brake Force Distribution (EBD) system ........... 7-18
Emergency Locking Retractor (ELR) ................................ 1-10
Engine
Compartment overview ................................................. 11-6
Coolant ....................................................................... 11-13
Exhaust gas (Carbon monoxide) ............................... 6, 8-2
Hood ............................................................................. 11-4
Oil ................................................................................. 11-8
Overheating ................................................................. 9-10
Starting .......................................................................... 7-6
Stopping ........................................................................ 7-8
Exterior care ..................................................................... 10-2
F
Flat tires ............................................................................. 9-4
Floor mat ............................................................................ 6-8
Fluid level
Automatic transmission .............................................. 11-20
Brake .......................................................................... 11-25
Clutch ......................................................................... 11-26
Power steering ............................................................ 11-24
Folding down the rear seat ................................................. 1-7
Front
Differential gear oil ...................................................... 11-22
Fog light button ............................................................ 3-19
Seatbelt pretensioners ................................................. 1-19
Seats ............................................................................. 1-2
Turn signal light .......................................................... 11-49
Fuel .................................................................................... 7-2
Economy hints ............................................................... 8-2
Filler lid and cap ............................................................ 7-3
Gauge ............................................................................ 3-7
Requirements ................................................................ 7-2Fuses .............................................................................. 11-41
Fuses and circuits ............................................................. 12-6
G
GAWR (Gross Axle Weight Rating) .................................. 8-11
Glove box ........................................................................... 6-4
GVWR (Gross Vehicle Weight Rating) ............................. 8-11
H
Hazard warning flasher ....................................................... 3-6
Head restraint adjustment ........................................... 1-4, 1-6
Headlight beam leveler ..................................................... 3-18
Headlight flasher ............................................................... 3-16
Headlights .............................................................. 3-16, 11-46
Heater operation ................................................................. 4-5
High beam indicator light .................................................. 3-14
Horn .................................................................................. 3-26
Hose and connections .................................................... 11-12
I
Ignition switch ..................................................................... 3-3
Illuminated entry ................................................................. 2-8
Illumination brightness control .......................................... 3-18
Immobilizer ......................................................................... 2-3
Indicator light
High beam ................................................................... 3-14
Selector lever position ................................................. 3-14
Turn signal ................................................................... 3-14
Inside mirror ...................................................................... 3-24
Interior light ......................................................................... 6-2A1910BE-A-GSAAB.book Page 4 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

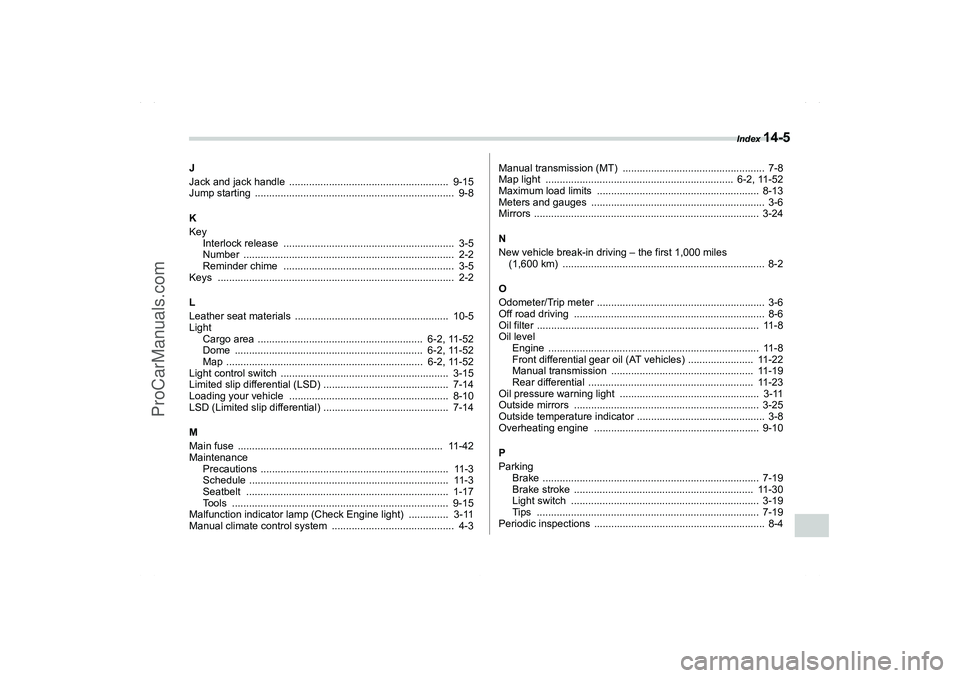

Page 319 of 322
Index
14-5
14
J
Jack and jack handle ........................................................ 9-15
Jump starting ...................................................................... 9-8
K
Key
Interlock release ............................................................ 3-5
Number .......................................................................... 2-2
Reminder chime ............................................................ 3-5
Keys ................................................................................... 2-2
L
Leather seat materials ...................................................... 10-5
Light
Cargo area .......................................................... 6-2, 11-52
Dome .................................................................. 6-2, 11-52
Map ..................................................................... 6-2, 11-52
Light control switch ........................................................... 3-15
Limited slip differential (LSD) ............................................ 7-14
Loading your vehicle ........................................................ 8-10
LSD (Limited slip differential) ............................................ 7-14
M
Main fuse ........................................................................ 11-42
Maintenance
Precautions .................................................................. 11-3
Schedule ...................................................................... 11-3
Seatbelt ....................................................................... 1-17
Tools ............................................................................ 9-15
Malfunction indicator lamp (Check Engine light) .............. 3-11
Manual climate control system ........................................... 4-3Manual transmission (MT) .................................................. 7-8
Map light .................................................................. 6-2, 11-52
Maximum load limits ......................................................... 8-13
Meters and gauges ............................................................. 3-6
Mirrors ............................................................................... 3-24
N
New vehicle break-in driving – the first 1,000 miles
(1,600 km) ....................................................................... 8-2
O
Odometer/Trip meter ........................................................... 3-6
Off road driving ................................................................... 8-6
Oil filter .............................................................................. 11-8
Oil level
Engine .......................................................................... 11-8
Front differential gear oil (AT vehicles) ....................... 11-22
Manual transmission .................................................. 11-19
Rear differential .......................................................... 11-23
Oil pressure warning light ................................................. 3-11
Outside mirrors ................................................................. 3-25
Outside temperature indicator ............................................. 3-8
Overheating engine .......................................................... 9-10
P
Parking
Brake ............................................................................ 7-19
Brake stroke ............................................................... 11-30
Light switch .................................................................. 3-19
Tips .............................................................................. 7-19
Periodic inspections ............................................................ 8-4
A1910BE-A-GSAAB.book Page 5 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 320 of 322
14-6
Index
Power
Door locking switches .................................................... 2-6
Steering ....................................................................... 7-15
Steering fluid ............................................................... 11-24
Windows ...................................................................... 2-17
Preparing to drive ............................................................... 7-6
Printed antenna .................................................................. 5-2
R
Rear
Combination lights ...................................................... 11-50
Differential gear oil ...................................................... 11-23
Gate ............................................................................. 2-19
Seats ............................................................................. 1-6
Rear seat
Folding down ................................................................. 1-7
Rear window
Defogger button ........................................................... 3-23
Wiper and washer switch ............................................. 3-22
Recommended
Automatic transmission fluid ....................................... 11-21
Brake fluid .................................................................. 11-26
Clutch fluid .................................................................. 11-27
Oil grade and viscosity .............. 11-11, 11-20, 11-22, 11-23
Power steering fluid .................................................... 11-25
Spark plugs ................................................................. 11-18
Remote keyless entry system ............................................ 2-7
Replacement
Brake pad and lining ................................................... 11-29
Wiper blades ............................................................... 11-36
Replacing
Air cleaner element ..................................................... 11-16Battery (remote keyless entry system) .......................... 2-9
Lost transmitters (keyless entry system) ..................... 2-10
Replacing bulbs .............................................................. 11-44
Cargo area ................................................................. 11-52
Dome light .................................................................. 11-52
Front turn signal light ................................................. 11-49
Headlight .................................................................... 11-46
License plate light ...................................................... 11-52
Map light .................................................................... 11-52
Rear combination lights ............................................. 11-50
Rocking the vehicle ............................................................ 8-9
Roof crossbar ................................................................... 8-12
S
Seat
Fabric ........................................................................... 10-5
Heater ............................................................................ 1-5
Seatbelt ................................................................................. 4
Extender ...................................................................... 1-18
Maintenance ................................................................ 1-17
Pretensioners ............................................................... 1-19
Safety tips ...................................................................... 1-8
Warning light and chime ....................................... 1-10, 3-9
Seatbelts ............................................................................. 1-8
Selector lever .................................................................... 7-11
Position indicator ......................................................... 3-14
Shift lock release .............................................................. 7-13
Side vents ........................................................................... 4-3
Snow tires ........................................................................... 8-9
Sounding a panic alarm ...................................................... 2-8
Spark plugs ..................................................................... 11-18
Specifications ................................................................... 12-2A1910BE-A-GSAAB.book Page 6 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
