headlamp SAAB 9-3 2000 Owners Manual

4Exterior Sunroof _______________ 120
Convertible _____________ 42
Washing the car ________ 201
Waxing and polishing ____ 202
Touching-up of paintwork _ 202
Anticorrosion treatment ___ 203
Service program ________ 215Taillights ______________ 183
Stop lights _____________ 183
Light switches ___________ 71
Changing bulbs _________ 181Towing ________________ 160
Towrope attachment eyes _ 160
Towing a trailer _________ 156Trunk lid lock ___________ 125
Lowering the rear seat ____ 125
Trunk _________________ 128
Spare wheel ___________ 130
Tools _________________ 130
Lighting _______________ 183
Driving with a roof rack load ____ 158
Mounting of roof rack __________ 158
Maximum loads ______________ 220
Hood release handle __________ 168
Engine compartment: washing __ 201
Central locking __________ 30
Interior locking buttons ____ 31
Trunk lock ______________ 33
Child safety lock catch ____ 33
Car alarm (Anti-theft alarm) 35Headlight switches _______ 71
High/low beam control stalk 71
Turn signal & lane change
indicators ______________ 72
Headlamp wipers _______ 180
Changing bulbs ________ 181Fuel filler door __________ 138
Refuelling _____________ 138
Fuel grade ____________ 224
Fuel gauge _____________ 61
Fuel economy __________ 153
Tires & Rims _____________ 192 / 227
Driving in cold weather ________ 154
Brakes and braking ___________ 149
Compact spare wheel _________ 195
Changing a wheel ____________ 196
ProCarManuals.com

72 Instruments and controlsCourtesy Headlamp Feature A delay function allows the headlights to
remain on low beam for about 30 seconds
after the driver’s door has been closed.
To activate this function, switch off the igni-
tion, remove the key, open the driver’s door
and pull the high/low beam control stalk
towards the steering wheel like you are
flashing the high beam, see page 71. The
low beam headlights will now come on
immediately after the driver’s door has been
closed and will remain on for about
30 seconds.

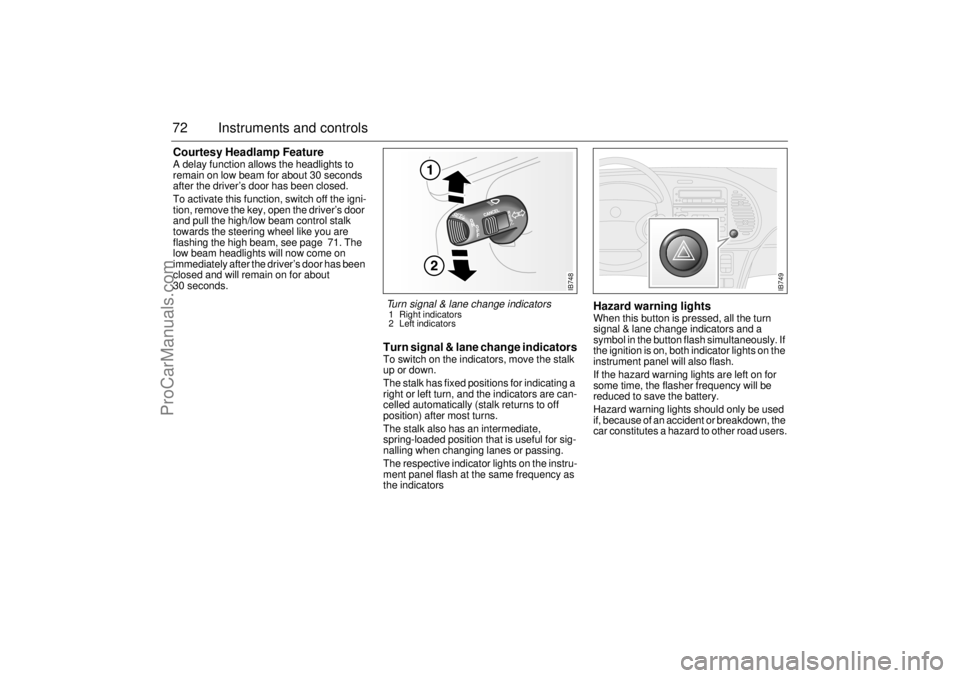

Turn signal & lane change indicatorsTo switch on the indicators, move the stalk
up or down.
The stalk has fixed positions for indicating a
right or left turn, and the indicators are can-
celled automatically (stalk returns to off
position) after most turns.
The stalk also has an intermediate,
spring-loaded position that is useful for sig-
nalling when changing lanes or passing.
The respective indicator lights on the instru-
ment panel flash at the same frequency as
the indicators
Hazard warning lightsWhen this button is pressed, all the turn
signal & lane change indicators and a
symbol in the button flash simultaneously. If
the ignition is on, both indicator lights on the
instrument panel will also flash.
If the hazard warning lights are left on for
some time, the flasher frequency will be
reduced to save the battery.
Hazard warning lights should only be used
if, because of an accident or breakdown, the
car constitutes a hazard to other road users.
IB748
Turn signal & lane change indicators 1 Right indicators
2 Left indicators
IB749
ProCarManuals.com

216 Maintenance and owner assistance* These are the minimum required Emission Control System maintenance steps. Saab urges that all recommended maintenance procedures be performed
according to this program.
(b.) Change automatic transmission fluid at more frequent intervals (30,000; 90,000 miles, etc.) if car is driven in dense city traffic where the outside tem-
perature regularly reaches 90°F or higher, if car is used in a mountainous/high altitude area or for trailer towing.
Service Intervals **
Miles = U.S. Cars
Kilometers = Canadian Cars
1,000
(1,600 km)
10,000
(16,000 km)
20,000
(32,000 km)
30,000
(48,000 km)
40,000
(64,000 km)
50,000
(80,000 km)
60,000
(96,000 km)
70,000
(112,000 km)
80,000
(128,000 km)
90,000
(144,000 km)
100,000
(160,000 km)
Service #
1234567891011
Engine and engine compartment (cont.)
E Evaporative emission system including filler cap, vapor
lines, EVAP canister and canister purge valve""
R Fuel system; leaks and damages""""""""""
E Fuel filter!
E Engine air cleaner element!
*
!*
!*
R Exhaust system and mountings; leaks and condition"""""""""""
Electrical
R Battery; state of charge and electrolyte level; clean termi-
nals if necessary"""""""""""
R Headlamp and fog lamp alignment"""""""""""
R Head, fog, brake, tail, turn signal, warning lights instru-
ment panel, backup and marker lamps"""""""""""
Transmission
R Automatic transmission change fluid (b.)!
R Automatic gearbox; oil level and condition""""""""""
R Manual gearbox; oil level"""
R Outer and inner driver joint boots""""""""""
