fuse box SAAB 9-3 2001 Owners Manual

6Engine bayWarning labels ___________ 7
V.I.N. number __________ 253
Engine number _________ 253
Gearbox number ________ 253
Color coding ___________ 253Ignition system _________ 250
Drive belt ______________ 203
Alternator _____________ 203
Spark plugs ____________ 250
Catalytic converter ______ 156
Simple fault tracing
(A/C, ACC) ____________ 232Turbo-compressor ________ 67
Pressure gauge __________ 67
Important considerations
for driving _____________ 154
Technical data: engine ___ 247Manual transmission __________ 197
Automatic transmission ________ 197
Transmission oil ______________ 197
Gearbox: technical data ________ 250
Battery _____________________ 201
Battery charge _______________ 201
Jump starting ________________ 187IB1624
Engine: description ____________ 194
Engine oil, level control
and topping up _______________ 196
Engine oil: changing ___________ 196
Oil grade_____________________ 247
Washer fluid ___________ 205
Topping up with fluid _____ 205
Washer jets ___________ 205
Wiper/washer control stalk _ 78
Steering servo _______________ 201
Fluid checking
and topping up ______________ 201
Coolant, checking
and topping up ________ 198
Coolant, changing ______ 199
Temperature gauge ______ 67
Driving in hot weather ____ 179
Driving in cold weather ___ 177Fuse panels ___________ 212
Changing a fuse ________ 212
Table of fuses __________ 214
Relays _______________ 216
Brake system ________________ 251
Brake fluid __________________ 200
Brake pads __________________ 200
ABS brakes _________________ 170
ProCarManuals.com

190 Starting and drivingDriving considerations
with compact spare
wheel/tire fitted The following should be observed when the
compact spare wheel (T115/70 R16) is
installed:
The compact spare is light and easy to
handle when changing the wheel. Do not
drive farther than necessary with the com-
pact spare fitted – the maximum life of the
wheel is only just over 2000 miles
(3,500 km). Have the standard wheel
repaired and reinstalled as soon as possi-
ble.Points to bear in mind when driving with a
compact spare wheel:
 The car’s ground clearance is reduced
with the compact spare fitted.
 Only one compact spare wheel may be
used at any time.
 Take care not to hit the curb.
 Do not fit snow chains.
 Leave the wheel cover off, so that the
warning text is readily visible.
For long tripsBefore starting off on a long journey, it is
advisable to have your car inspected by
your Saab dealer.
Obtain a few important items to take along
on your journey such as spare bulbs, wiper
blades, fuses, a Poly-Vee-belt and the like.
You can check some points yourself before-
hand:
 Make sure that the engine is in good con-
dition.
 Check that no oil or fuel leaks out of the
engine or gearbox/transmission.
 Check the coolant and power steering
fluid levels. Check also for leaks.
 Inspect the Poly-Vee-belt and replace it if
it shows any signs of wear.
 Check the battery charge.
 Check the tires for tread pattern and air
pressure, including the compact spare
wheel.
 Take an extra car key/remote control and
keep it separate, see also page 36.
 Check the brakes.
 Check all bulbs.
 Check for the presence of the tool kit and
the jack in the car.
WARNING
Do not exceed 50 mph (80 km/h) as the
tire can overheat and adversely affect the
handling of the car.
The tire should be inflated to 60 psi
(420 kPa).
NOTETo avoid damaging a punctured alloy
wheel this can be placed outside up in the
spare-wheel well but only while driving to
the closest dealer.
A general rule is that all heavy loads must
be well secured in the luggage compart-
ment, see page 148.
ProCarManuals.com

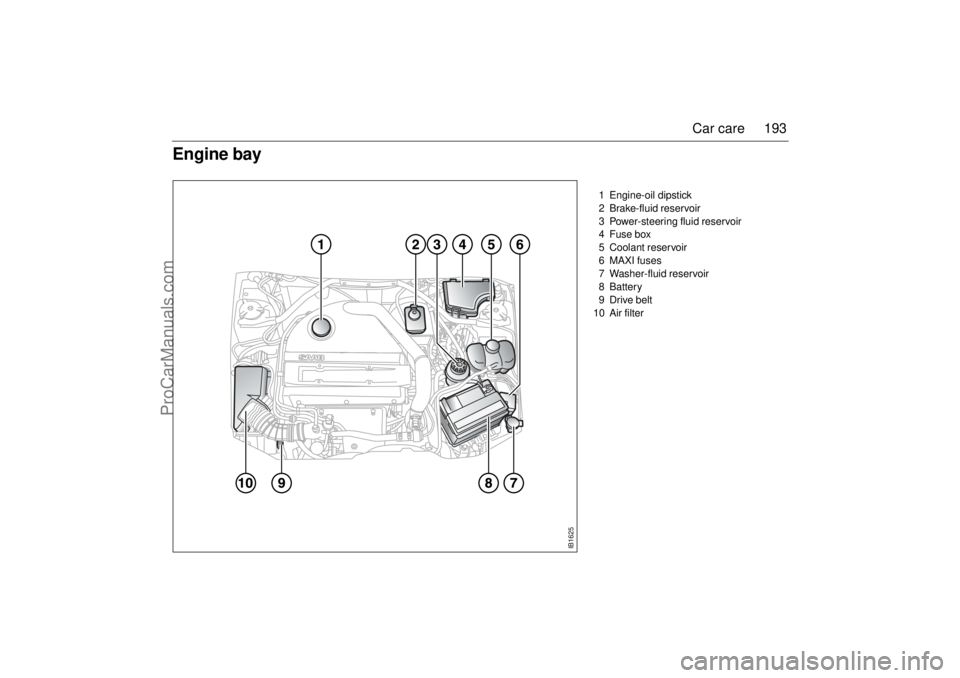

193 Car care
1 Engine-oil dipstick
2 Brake-fluid reservoir
3 Power-steering fluid reservoir
4 Fuse box
5 Coolant reservoir
6 MAXI fuses
7 Washer-fluid reservoir
8Battery
9Drive belt
10 Air filter
Engine bay
IB1625
ProCarManuals.com

213 Car care
MAXI fusesThe MAXI fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The MAXI fuses are designed to protect the
car’s electrical system from being dam-
aged. Each MAXI fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare MAXI fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules.
DICE controls, among other things:
 Front lights and interior lighting.
 Instrument illumination.
 Intermittent wiper operation.
 Electric heating of rear window and door
mirrors.
TWICE controls, among other things:
 Central locking.
 Car alarm (Anti-theft system).
 Engine immobilizer.
 Auto checking of lights.
 Electric heating of rear seat.
 Safety belt reminder.
 Electrically adjustable passenger seat.The DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which enhances fault
diagnosis at the Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
drivers side.
NOTEIf a MAXI fuse blows, it means that there
is a major fault in the electrical system.
Have the car checked without delay by an
authorized Saab dealer.
IB920
MAXI fuse for soft-top system
(Convertible)
ProCarManuals.com

258 IndexEEconomical motoring
____________ 176
Electrical system, technical data
____ 250
Electrical window
_______________ 136
Electrically adjustable seats
_______ 133
Electrically heated front seats ______ 135
Electrically heated rear seat
_______ 135
Electrically heated rear window _____ 83
Electronic starting interlock
_________ 37
Emergency opening, fuel filler door
_ 150
Emergency operation of the soft top,
Convertible
____________________ 52
Emergency operation of the sunroof
_ 138
Emission control systems
_________ 194
Engine bay
____________________ 193
Engine bay, cleaning
_____________ 226
Engine break-in period _______ 161
, 176
Engine number
_________________ 253
Engine oil, changing
_____________ 196
Engine oil, checking _____________ 196
Engine oil, grade
________________ 247
Engine oil, volume _______________ 247
Engine variants
_________________ 249
Engine, description ______________ 194
Engine, technical data ____________ 247
FFault codes, Audio System
________ 115
Flat spot
______________________ 224Folding the soft top, Convertible
_____ 49
For long trips
___________________ 190
Front fog lights __________________ 77
Fuel filler door, emergency opening
_150
Fuel gauge
_____________________ 68
Fuel grade _____________________ 249
Fueling
_______________________ 157
Fuel-tank capacity
_______________ 249
Fuse table
_____________________ 214
Fuses
________________________ 212
GGearbox number
________________ 253
Gearbox oil, checking
____________ 197
Gearbox oil, grade
_______________ 250
General particulars ______________ 244
General safety instructions, Convertible
48
Glove compartment
______________ 141
HHandbrake
_____________________ 174
Hazard warning lights
_____________ 76
Head restraint
___________________ 18
Headlight flasher _________________ 75
Hood
_________________________ 192
Horn signal
____________________ 137
IIf the car does not start
___________ 153
Ignition switch
__________________ 152
Immobilizer
_____________________ 37
Important considerations concerning
cars with catalytic converters
_____ 156
Important considerations for driving
_ 154
Indicator lights
___________________ 60
Instrument lighting
________________ 78
Integrated booster seat
____________ 26
Interior equipment
_______________ 129
Interior lighting
__________________ 139
Interior lighting, Convertible
_________ 58
Interior rearview mirror
___________ 143
JJump starting
___________________ 187
KKey
___________________________ 36
Key, removing
__________________ 152
LLATCH (child safety)
______________ 21
Labels and plates
_______________ 253
