fuse SAAB 9-3 2002 User Guide

185 Car care
IB944
Hood release handle ....... 186
Engine .............................. 188
Engine bay ....................... 187
Engine oil ......................... 190
Transmission fluid .......... 191
Coolant ............................. 192
Air filter ............................ 193
Brake- clutch fluid and
brake pads ..................... 194
Power steering ................ 195
Battery .............................. 195
Drive belt .......................... 197
Wipers and washers ....... 198
Wiper blades .................... 198
Changing bulbs ............... 200
Fuses ................................ 206
Wheels.............................. 211 Safety belts ....................... 218
Upholstery and trim ......... 219
Textile carpeting .............. 219
Engine bay ........................ 220
Washing ............................ 220
Waxing and polishing ...... 221
Touching up the paint ..... 221
Anti-corrosion treatment . 222
Recovery and/or recy-
cling of automotive mate-
rials .................................. 224
Air conditioning (A/C
system) ........................... 226 Car care
ProCarManuals.com

187 Car care
1 Engine-oil dipstick
2 Brake-fluid reservoir
3 Power-steering fluid reservoir
4 Fuse box
5 Coolant reservoir
6 MAXI fuses
7 Washer-fluid reservoir
8Battery
9Drive belt
10 Air filter
Engine bay
IB1625
ProCarManuals.com

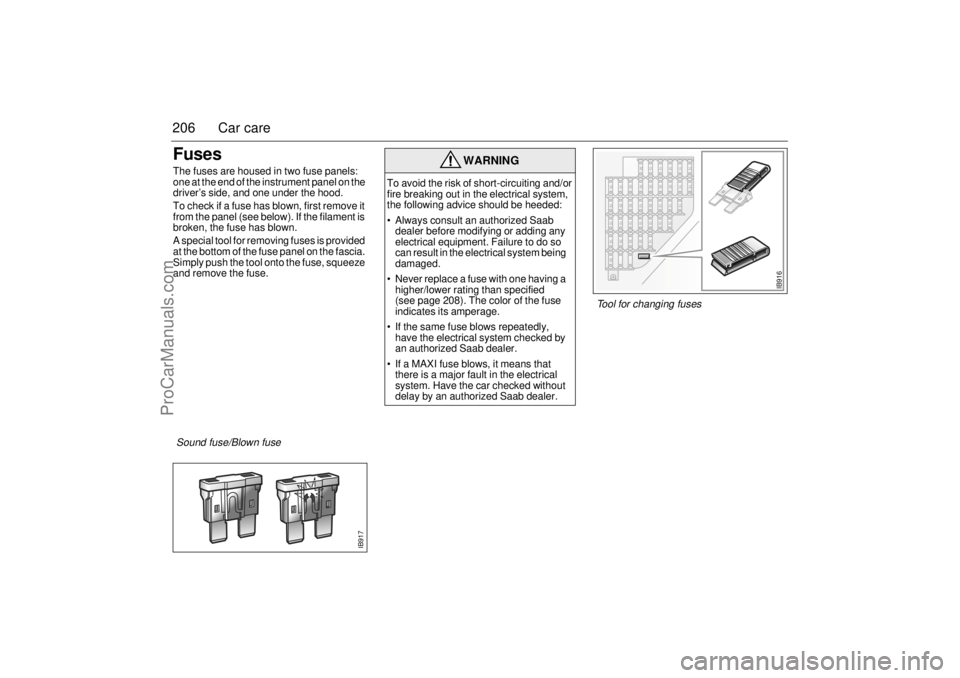

206 Car careFusesThe fuses are housed in two fuse panels:
one at the end of the instrument panel on the
driver’s side, and one under the hood.
To check if a fuse has blown, first remove it
from the panel (see below). If the filament is
broken, the fuse has blown.
A special tool for removing fuses is provided
at the bottom of the fuse panel on the fascia.
Simply push the tool onto the fuse, squeeze
and remove the fuse.
WARNING
To avoid the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following advice should be heeded:
 Always consult an authorized Saab
dealer before modifying or adding any
electrical equipment. Failure to do so
can result in the electrical system being
damaged.
 Never replace a fuse with one having a
higher/lower rating than specified
(see page 208). The color of the fuse
indicates its amperage.
 If the same fuse blows repeatedly,
have the electrical system checked by
an authorized Saab dealer.
 If a MAXI fuse blows, it means that
there is a major fault in the electrical
system. Have the car checked without
delay by an authorized Saab dealer.
301020303015
15151010101010
1030301020151515
101020202020201515
301515101515
IB916
IB917
Sound fuse/Blown fuse Tool for changing fuses
ProCarManuals.com

207 Car care
MAXI fusesThe MAXI fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The MAXI fuses are designed to protect the
car’s electrical system from being dam-
aged. Each MAXI fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare MAXI fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules.
DICE controls, among other things:
 Front lights and interior lighting.
 Instrument illumination.
 Intermittent wiper operation.
 Electric heating of rear window and door
mirrors.
TWICE controls, among other things:
 Central locking.
 Car alarm (Anti-theft system).
 Engine immobilizer.
 Auto checking of lights.
 Electric heating of rear seat.
 Safety belt reminder.
 Electrically adjustable passenger seat.The DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which enhances fault
diagnosis at the Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
driver’s side.
NOTEIf a MAXI fuse blows, it means that there
is a major fault in the electrical system.
Have the car checked without delay by an
authorized Saab dealer.
IB920
MAXI fuse for soft-top system
(Convertible)
ProCarManuals.com

208 Car careFusesNo. Amp Function
A––
B 10 Stop lights, trailer
C 30 Cabin fan, ACC
1 30 Electrically heated rear window and rear-view mir-
rors
220Direction indicators
330Cabin fan, A/C
4 15 Trunk light; switch illumination; electrically powered
radio antenna
5 30 Electrically operated front seat, right
6 30 Cigarette lighter
6A 7.5 Automatic transmission
7 30 Rear window operators, rear-view mirrors, sunroof
8 15 Rear wiper
9 7.5 ACC panel
10 10 Horn
11 7.5 DICE / TWICE
12 20 Stop lights; front fog lights
13 15 Diagnostics; radio
14 30 Front window motors; soft top (Convertible)
15 20 Daytime running lights
16 30 Electrically operated front seat, left
16B 30 Control module, engine management system
17 15 Control module, engine management system;
DICE/TWICE; main instrument panel/SID; memory
for electrically operated driver’s seat; telephone;
cruise control
18 10 Airbag
19 10 ABS; A/C; rear fog light; switch, rear fog light
20 20 Electric heating, front seats; switch, electrically
heated rear window
30 10 20
30 30 15
15 15
10 10 10
10
10
10 30
30 10 20
15
15
15
10 10
20
10 20 20
20 20 15
15
30 15
15 10 15
15
IB918
1 C B A23456
7 6A 8 9 10 11 12 13 14 15 16
17 16B 18 19 20 21 22 23 2425 26 27 28 29 30 3132 33 34 35 3637 38 39
Fuse holder on the end of the instrument panel
ProCarManuals.com

210 Car careFuses and relays Fuse panel in engine bay
No. Amp Function
1––
2 15 Front fog lights
3 40 Radiator fan, low speed
4 10 Vacuum pump
5 15 A/C-compressor
610Left low beam
7 10 Right low beam
8 10 Left high beam
9 10 Right high beam
10 7.5 Headlight wipers
11 – –
12 – Extra lights
13 – –
14 10 Extra heater; water pump (Europe)
15 15 Extra heater (Europe)
MAXI 1 30 Radiator fan, high speed
MAXI 2 50 ABS
Item Amp Function
A Low beam
B High beam
C1 Extra heater (Europe)
C2 –
D Radiator fan, low speed
E Lamp check (filament monitor, front)
F1 – –
F2 – –
G1 Headlamp wipers
G2 Front fog lights
H–
I Radiator fan, high speed
J A/C-compressor
IB919
Fuses and relays in engine bay (left side)
ProCarManuals.com

226 Car careAir conditioning
(A/C system)
Fault diagnosis If a fault occurs in the A/C system, there are
a number of checks you can perform your-
self. If the fault persists, however, have the
system checked by an authorized Saab
dealer.Important!

When the A/C system is in operation, mois-
ture from the air will condense on the evap-
orator. When the car is then parked, this
condensation will drip off the evaporator
and form a small pool of water on the
ground. This is normal. The warmer the
ambient air and the higher the humidity, the
greater the amount of condensation formed.Inadequate cooling:
a Make sure that the temperature and
air-distribution controls are in the
appropriate settings, see page 81.
b Check that the condenser (forward of
the radiator) has not become clogged
with dirt and insects.
c Make sure that the drive belt for the com-
pressor is not slipping, see page 197.
d Check the fuses for the ventilation fans
and compressor, see page 208.
NOTE The A/C system is designed for use
with R134a refrigerant.
 Refrigerant handling requires special
equipment and special procedures for
charging and draining the system.
 All repairs and adjustments on the A/C
system must be carried out by a Saab
dealer authorized for this kind of work.
 Never mix R134a and R12 refriger-
ants.
WARNING
 The A/C system is pressurized. Do not
break any connections or undo A/C
system components.
 Escaping refrigerant gas can cause
visual impairment or other injury.
ProCarManuals.com

246 Technical dataSaab 9-3 Audio System:
The following functions can be adjusted by
the driver (see page 105):
 Maximum starting volume (when the
radio is switched on).
 Telephone volume (if the car is equipped
with a phone connected to the audio sys-
tem).
 Speed dependent volume (volume
increases or decreases with vehicle
speed).
 Loudness.Alarm System:
The glass breakage sensor can be tempo-
rarily disabled, see page 42.
Daytime Running Lights:
To disable, turn off the ignition and pull out
fuse 15, see page 208.
ProCarManuals.com

248 IndexElectrically adjustable seats
_______ 127
Electrically heated front seats ______ 129
Electrically heated rear window _____ 83
Electronic starting interlock
_________ 37
Emergency opening, fuel filler door
_144
Emergency operation of the soft top,
Convertible
____________________ 52
Emergency operation of the sunroof
_132
Emission control systems
_________ 188
Engine bay
____________________ 187
Engine bay, cleaning
_____________ 220
Engine break-in period ______ 155
, 170
Engine number
_________________ 243
Engine oil, changing
_____________ 190
Engine oil, checking _____________ 190
Engine oil, grade
________________ 237
Engine oil, volume _______________ 238
Engine variants
_________________ 239
Engine, description ______________ 188
Engine, technical data ____________ 237
FFault codes, Audio System
________ 109
Flat spot
______________________ 218
Folding the soft top, Convertible
_____ 49
For long trips
___________________ 184
Front fog lights __________________ 77
Fuel filler door, emergency opening
_144
Fuel gauge
_____________________ 68
Fuel grade _____________________ 239Fueling
_______________________151
Fuel-tank capacity
_______________239
Fuse table
_____________________208
Fuses
________________________206
GGearbox number
________________243
Gearbox oil, checking
____________191
Gearbox oil, grade
_______________240
General particulars ______________234
General safety instructions, Convertible
48
Glove compartment
______________135
HHandbrake
_____________________168
Hazard warning lights
_____________76
Head restraint
___________________18
Headlight flasher _________________75
Hood
_________________________186
Horn signal
____________________131
IIf the car does not start
___________147
Ignition switch
__________________146
Immobilizer
_____________________37
Important considerations concerning
cars with catalytic converters
_____150Important considerations for driving

148
Indicator lights
__________________ 60
Instrument lighting
_______________ 78
Integrated booster seat
___________ 26
Interior equipment
______________ 123
Interior lighting
_________________ 133
Interior lighting, Convertible
________ 58
Interior rearview mirror
__________ 137
JJack
_________________________ 215
Jump starting
__________________ 181
KKey
__________________________ 36
Key, removing
_________________ 146
LLATCH (child safety)
_____________ 21
Labels and plates
______________ 243
Leather upholstery, care of
_______ 219
Load eyes
____________________ 142
Locks
_________________________ 36
Lowering rear seat
______________ 138
Luggage compartment
__________ 138
Luggage compartment, Convertible
_56
Luggage-compartment lighting
____ 142
ProCarManuals.com

249 Index
MMain beam
_____________________ 75
Main instrument panel
_____________ 60
Maintenance schedule ___________ 230
Manual climate-control system
______ 80
Manual raising of the soft top,
Convertible
____________________ 52
Manual transmission
_____________ 155
Manually opening the fuel filler door,
Convertible
____________________ 58
Manually opening the fuel filler door,
Coupé and 5-door
______________ 144
Maxi fuses
_____________________ 207
Memory, driver’s seat
____________ 128
Motoring abroad
________________ 184
NNight Panel
_____________________ 73
OORVR
________________________ 189
Odometer ______________________ 66
Oil specification
_________________ 237
OnStar
________________________ 111
Opening handle
__________________ 36
Owner assistance _______________ 231
PPaint touch-up
__________________221
Parcel shelf
____________________141
Park Brake Shift Lock
____________158
Parking brake
__________________168
Parking lights ____________________75
Plates and labels
________________243
Power steering fluid, check
________195
Power steering oil, grade
_________241
Pressure gauge
__________________67
Programmable driver’s seat
_______128
Programming, ACC
_______________90
RRadio
__________________________98
Raising the soft top, Convertible
_____51
Rear fog light
____________________77
Rear seat
______________________138
Rear seat, tipping
_______________138
Rearview mirrors ________________137
Rear-window wiper _______________79
Recirculation
____________________82
Recycling
______________________224
Refuelling _____________________151
Relay table ____________________209
Release handle, hood
____________186
Remote control
__________________36
Remote control battery, changing
____39
Removing the key
_______________146
Reporting safety defects
__________232Rev counter
____________________ 66
Reversing lights
_________________ 77
Roof rack
_____________________ 176
Rotating the tires
_______________ 212
Running-in
____________________ 155
SSAHR, head restraint
____________ 18
SID (Side Instrument Display)
______ 69
SRS (airbag)
___________________ 28
Saab Audio System
______________ 93
Saab Trionic engine management
system
______________________ 189
Safety belts ____________________ 12
Safety belts, care of
_____________ 218
Seat belts
_____________________ 12
Seat-belt pretensioners
___________ 13
Seats
________________________ 124
Service costs
__________________ 231
Service information
_____________ 232
Service intervals
_______________ 230
Service record retention
_________ 231
Side airbags
___________________ 30
Ski hatch
_____________________ 141
Snow tires ____________________ 242
Soft top storage, Convertible
_______ 56
Spare wheel
__________________ 143
Speedometer ___________________ 66
Starting the engine
_____________ 147
Steering-wheel adjustment
_______ 131
ProCarManuals.com
