power steering fluid SAAB 9-3 2006 Owners Manual

6Engine bay, 4-cylColor code______________ 307
Engine number __________ 307
Gearbox number _________ 307
Warning labels __________ 8
Vehicle identification number 307Alternator ______________ 229
Drive belt _______________ 229
Exhaust emission control __ 165
Ignition system __________ 300
Simple troubleshooting
(A/C, ACC) _____________ 282
Spark plugs _____________ 300
Turbo gauge ____________ 90Engine oil: checking level __ 219Automatic transmission _________ 173
Transmission: technical data _____ 301
Manual transmission ___________ 172
Battery ______________________ 226
Battery charge ________________ 226
Jump starting _________________ 208
Changing engine oil ____________ 220
Engine: description ____________ 215
Engine: technical data __________ 297
Important considerations for driving 164
Oil grade and viscosity__________ 298
Topping-up fluid _________ 231
Wash/wipe stalk switch____ 106
Washer fluid ____________ 231
Washer jets ____________ 231
Power steering ________________ 225
Fluid: checking/topping up _______ 225
Coolant: checking/topping-up ____ 222
Driving in hot climates __________ 197
Radiator _____________________ 297
Temperature gauge ____________ 90
Changing a fuse _________ 247
Fuse table _____________ 252
Fuses _________________ 247
Relays ________________ 252ABS brakes_____________ 180
Brake pads _____________ 224
Brake system ___________ 303
Brake fluid______________ 224
93U S M 06.book Page 6 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

7
Engine bay, 2.8 V6Power steering___________ 225
Fluid: checking/topping up__ 225Vehicle identification
number ________________ 307
Colour code _____________ 307
Engine number __________ 307
Warning labels___________ 8
Gearbox number _________ 307Exhaust emission control __ 165
Drive belt _______________ 229
Simple troubleshooting
(A/C, ACC) _____________ 282
Alternator_______________ 229
Turbo gauge ____________ 90
Spark plugs _____________ 300
Ignition system __________ 300Automatic transmission __________ 173
Manual gearbox________________ 172
Gearbox: technical data__________ 301
Engine: description _____________ 215
Changing engine oil _____________ 220
Engine oil: topping up ___________ 219
Oil grade and viscosity___________ 298
Engine: technical data ___________ 297
Important considerations
for driving ____________________ 164Engine oil: checking level_________ 219
Battery ______________________ 226
Battery charge ________________ 226
Jump starting _________________ 208
Wash/wipe stalk switch ____ 106
Topping-up fluid _________ 231
Washer jets_____________ 231
Washer fluid ____________ 231Changing a fuse _________ 249
Fuses _________________ 247
Relays ________________ 252
Fuse table ______________ 249ABS brakes_____________ 181
Brake pads _____________ 303
Brake system ___________ 180
Brake fluid______________ 224
Cooling system, coolant capacity__ 297
Coolant: checking/topping-up ____ 222
Driving in hot climates __________ 197
Temperature gauge ____________ 90
93U S M 06.book Page 7 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

211 Starting and driving
For long tripsBefore starting off on a long journey, it is
advisable to have your car inspected by
your Saab dealer.
Obtain a few important items to take along
on your journey, such as spare bulbs, wiper
blades, fuses, a drive belt (poly-V-belt) and
the like.
You can check some points yourself before-
hand:
 Check that no oil or fuel leaks out of the
engine or gearbox/transmission.
 Check the coolant and power steering
fluid levels. Check also for leaks.
 Inspect the drive belt (poly-V-belt) and
replace if it shows any signs of wear.
 Check the battery charge.
 Check the tires for tread pattern and air
pressure, including the compact spare
tire.
 Take an extra remote control and keep it
separate.
 Check the brakes.
 Check all bulbs.
 Check for the presence of the tool kit and
jack in the car.93U S M 06.book Page 211 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

213 Car care
Hood ________________ 214
Engine ______________ 215
Engine bay, 4-cyl engine 217
Engine oil ____________ 219
Air filter______________ 222
Transmission fluid ____ 222
Coolant ______________ 222
Brake/clutch fluid and
brake pads__________ 224
Power steering________ 225
Battery ______________ 226
Drive belt ____________ 229
Wipers and washers ___ 230
Wiper blades _________ 230
Changing bulbs _______ 232 Fuses ________________ 247
Automatic tire pressure
monitoring3_________ 254
Tires _________________ 256
Compact spare ________ 270
Changing a tire ________ 273
Safety belts ___________ 276
Upholstery and trim ____ 276
Textile carpeting _______ 277
Engine bay ____________ 277
Washing ______________ 277
Waxing and polishing ___ 279
Touching up the paint___ 279
Anti-corrosion treatment 280
Recovery and/or
recycling of automotive
materials ____________ 282
Air conditioning (A/C) ___ 282
Car care
3Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).93U S M 06.book Page 213 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

217 Car care
1 Oil filler cap
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Power-steering fluid reservoir
8 Engine-oil dipstick
Engine bay, 4-cyl engine93U S M 06.book Page 217 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

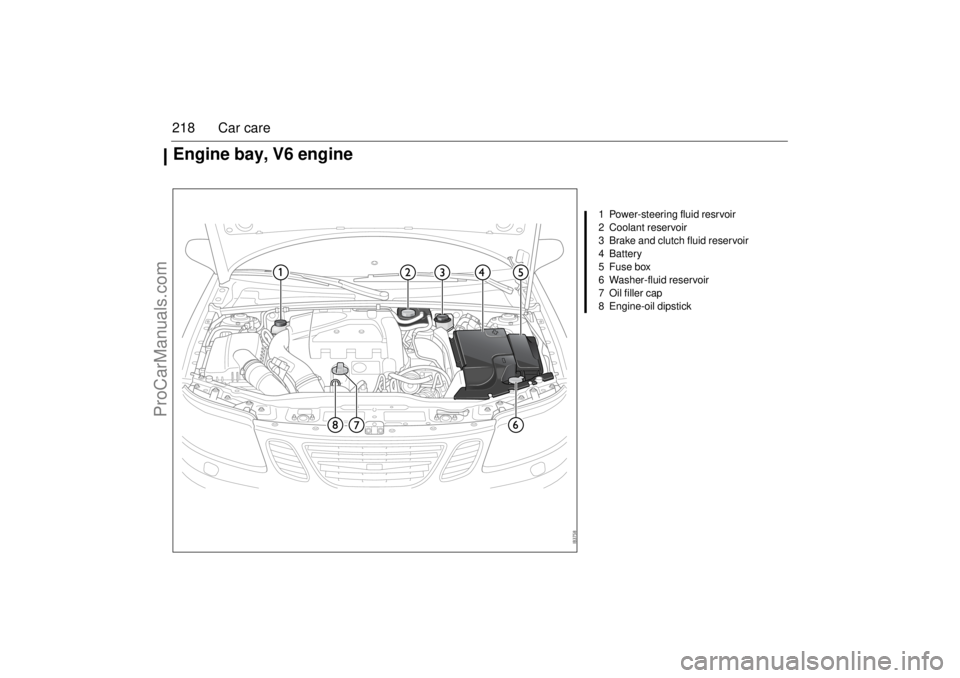

218 Car care
1 Power-steering fluid resrvoir
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Oil filler cap
8 Engine-oil dipstick
Engine bay, V6 engine93U S M 06.book Page 218 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

225 Car care
Power steeringCheck the level of the power steering fluid in
the reservoir regularly, in accordance with
the service program.
The wheels should point directly forwards
during this check.
Clean round the cap before unscrewing it.
Wipe the dipstick. To check the level, screw
down the cap completely and then remove
it again.
The oil level should lie between the MAX
and MIN marks when the oil temperature is
about 68°F (+20°C). If the oil is colder, the
level will be lower, and at a higher tempera-
tures the level will be higher.
Top up with CHF 11S or CHF 202 power
steering fluid.
WARNING
Power steering fluid on hot engine
components constitutes a fire risk.
Power steering fluid reservoir, 4-cyl
engine
Power steering fluid reservoir, V6 engine
93U S M 06.book Page 225 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

302 Technical dataAutomatic transmission Suspension
SteeringType:
5-speed__________________________ Electronically con-
trolled, 5-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function in
selector positions 3,
4 and 5.
6-speed__________________________ Electronically-
controlled, 6-speed,
fully-automatic with
hydraulic torque
converter, planetary
gears and integral
final drive.
Lock-up function for
1st to 6th gear.
Selector lever positions _______________ P, R, N, D, M
Clutch type ________________________ Hydraulic plate
clutches, brake
bands and one-way
couplings
Speed (mph/km/h) at 1000 rpm in top gear:
5-speed__________________________ 46—49
6-speed__________________________ 63Spring type, front and rear ____________ Coil springs
Maximum deflection of springs:
Front ____________________________ 7.0'' (178 mm)
Rear ____________________________ 8.3'' (212 mm)
Dampers, front and rear ______________ Gas-filled dampers
Steering __________________________ Power-assisted
steering gear of
rack-pinion type and
telescopic jointed
steering column
Number of turns, lock to lock___________ 2.97
Oil type ___________________________ Power steering fluid
CHF 11S or
CHF 20293U S M 06.book Page 302 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

316 IndexPinch protection, electric windows
__ 130
Pinch protection, sunroof
_________ 140
Plates and labels, location ________ 307
Polishing and waxing
____________ 279
Poly-V-belt
____________________ 229
Portable fuel container
___________ 169
Position lights
__________________ 102
Power steering fluid, checking
_____ 225
Power steering fluid, grade
________ 302
Pressure gauge
_________________ 90
Pressure, tires
__________________ 257
Profiles, customized settings
_______ 93
QQuality grading, tires
_____________ 261
Quick guide, remote control
________ 51
RRain sensor
____________________ 107
Raising the soft top manually,
Convertible ____________________ 70
Reading lights, Convertible
_________ 80
Rear fog light
__________________ 104
Rear seats, folding down
_________ 146
Rear towing eye
________________ 206
Rear window heating
____________ 114
Rearview mirrors
________________ 132
Recirculation
___________________ 113Recommendations for automatic
transmission, towing a trailer
_____ 199
Recommendations for manual
gearbox, towing a trailer
_________ 200
Recommended snow chains _______ 304
Refueling
______________________ 167
Remote control
__________________ 50
Remote locking malfunction
________ 52
Replacement, wheel
_____________ 262
Reporting safety defects __________ 291
Rev counter
_____________________ 88
Reversing lights
________________ 105
Rollover Pop-up Bars, Convertible
___ 78
Roof lighting
___________________ 141
Roof lighting, changing
___________ 242
Running-in
_____________________ 171
SSaab Information Display
__________ 93
Saab Parking Assistance _________ 190
Saab Trionic engine management
system
______________________ 216
Safety belts _____________________ 12
Seatbelts
_______________________ 12
Seatbelts in rear seat, Convertible
___ 77
Seatbelts, care
_________________ 276
Seatbelts, checking
______________ 276
Seats
__________________________ 18
Securing a load
_________________ 149
Sentronic, manual gear selection
___ 178Service costs
___________________ 289
Service information
______________ 290
Service intervals
________________ 288
Service record retention
__________ 289
Signalling, horn
_________________ 128
Ski hatch
______________________ 148
Spare wheel ___________________ 270
Speed ratings, tires
______________ 266
Speedometer
____________________ 89
Starting the engine
______________ 162
Steering wheel adjustment
________ 128
Steering wheel lock
______________ 162
Steps for determining correct load
limit
_________________________ 269
Storage compartments
___________ 144
Sun visor
______________________ 142
Sunroof
_______________________ 138
Switches ______________________ 102
SAHR, head restraint
_____________ 23
SDM
_________________________ 292
SID
___________________________ 93
SPA __________________________ 190
TTechnical data
__________________ 294
Textile carpeting, cleaning
_________ 277
Tie down eyes
__________________ 149
Tightening torque, wheels
_________ 275
Tire chains
_____________________ 263
Tire date code __________________ 270
93U S M 06.book Page 316 Friday, February 18, 2005 1:15 PM
ProCarManuals.com
