set clock SAAB 9-5 2003 Owners Manual

70 Instruments and controlsThe following conditions will wake up the
respective displays in the Night-Panel
mode:
 Setting of the Audio system, SID or ACC
(display comes on for ten seconds).
 CHECK message generated in the SID.
 High engine revs cause the rev counter to
be illuminated until the engine speed has
fallen again.
 If the quantity of fuel remaining falls below
4 gallons (15 liters), the fuel gauge will be
illuminated.
 If the engine temperature rises above nor-
mal, the temperature gauge will be illumi-
nated.
 If the speed of the car exceeds 84 mph
(135 km/h), the entire speedometer will
be illuminated.
 In cars with automatic transmission, if the
selector lever is moved from D to position
M or L, the selector indication on the main
instrument panel will be illuminated.
To restore the displays and lighting to the
normal mode, press the Night-Panel button.
Units and language versionsThe SID has four sets of units:
CHECK messages can be displayed in six
language options: English, Swedish,
German, French, Italian and Spanish. Selecting units and language 1 Press CLEAR and SET simultaneously
for four seconds until a chime sounds.
2 Press or to select the required
units.
3 Touch SET.
4 Press or to select the required
language.
5 Touch SET.
Clock Set the clock by means of the two buttons
under the digital clock on the left of the dis-
play.
When the ignition key is in the OFF position
or removed, the clock can be illuminated
(approx. 10 seconds) by pressing one of
the SID buttons (not the NIGHT PANEL but-
ton). METRIC IMP. 1 IMP. 2 US
km miles miles miles
km/h mph mph mph
liters UK gal UK gal US gal
°C °F °C °F
24-hour 12-hour 12-hour 12-hour
ProCarManuals.com

93 Saab 9-5 Audio System
Sound controlsON/OFF The Audio System will come on:
• When the volume control is pressed.
 When the ignition is switched ON, if the
Audio System was on when the ignition
key was last removed.
The Audio System will be switched off:
 When the volume control is pressed.
 When the ignition key is removed.
 One hour after the ignition was switched
OFF, if the ignition key has not been
removed.
 When one hour has elapsed since a con-
trol button on the Audio System was last
pressed after the ignition key was
removed. VOL – Volume
BAL – Balance Pull out and rotate the VOL control to adjust
the balance between the left and right
speakers. When the control is released, it
reverts to the volume function.
BAS – Bass
TRE – Treble Rotate clockwise to increase the level and
counter-clockwise to reduce it.
The Bass and Treble controls must be
pressed first to release them.
FAD – Fader The fader control adjusts the balance
between the front and rear sets of speakers.
The Fader controls must be pressed first to
release it.
IB1154
DOLBY B NR
ProCarManuals.com

220 Car care and technical information2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.
Refitting the trim
1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.

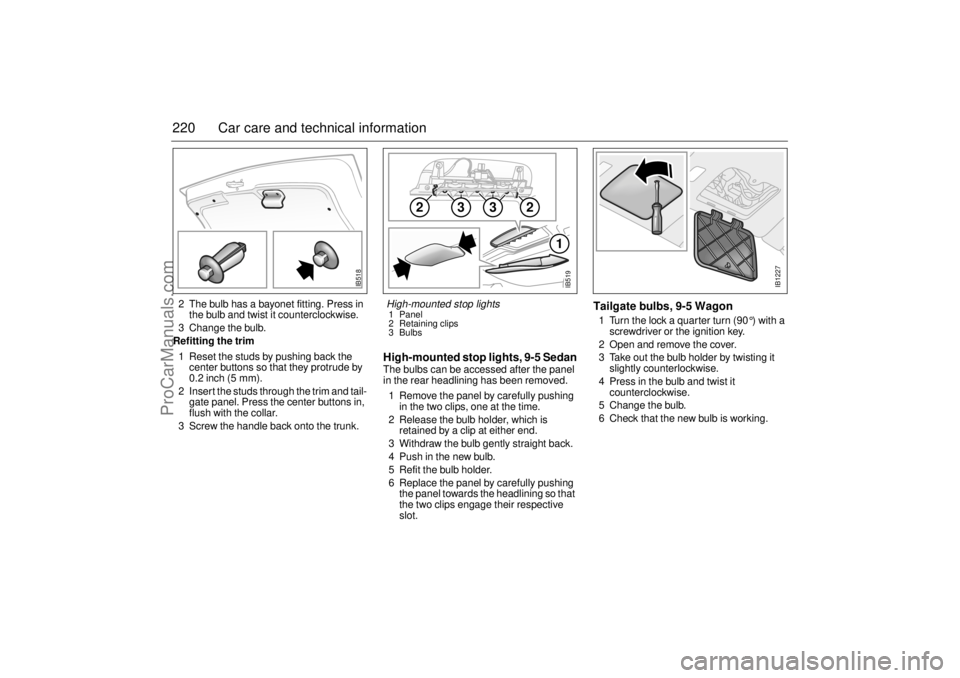

High-mounted stop lights, 9-5 SedanThe bulbs can be accessed after the panel
in the rear headlining has been removed.
1 Remove the panel by carefully pushing
in the two clips, one at the time.
2 Release the bulb holder, which is
retained by a clip at either end.
3 Withdraw the bulb gently straight back.
4 Push in the new bulb.
5 Refit the bulb holder.
6 Replace the panel by carefully pushing
the panel towards the headlining so that
the two clips engage their respective
slot.
Tailgate bulbs, 9-5 Wagon1 Turn the lock a quarter turn (90 °) with a
screwdriver or the ignition key.
2 Open and remove the cover.
3 Take out the bulb holder by twisting it
slightly counterlockwise.
4 Press in the bulb and twist it
counterclockwise.
5 Change the bulb.
6 Check that the new bulb is working.
IB518
3
2
2
3
1
IB519
High-mounted stop lights1 Panel
2 Retaining clips
3 Bulbs
IB1227
ProCarManuals.com

273 Index
IndexAA/C system, fault diagnosis
________ 242
A/C system, maintenance _________ 242
ABS brakes
____________________ 172
ACC
__________________________ 77
ACC functions
___________________ 80
ACC, automatic climate control
______ 77
ACC, calibration
_________________ 85
ACC, condensation _______________ 86
ACC, programming _______________ 83
ACC, useful tips
_________________ 85
Adjusting the steering wheel
_______ 124
Adjustment, seats
________________ 12
Afterheater, V6-engine cars
________ 87
Air conditioning (A/C), fault diagnosis
and maintenance
______________ 242
Air distribution, ACC ______________ 82
Airbag
_________________________ 33
Alarm __________________________ 48
Alarm functions
__________________ 51
Alarm signals
_______________ 48
, 51
Alternator
_____________________ 211
Alternator drive belt
_________ 211
, 263
Alternator rating
________________ 263
Anticorrosion treatment
___________ 246
Antidazzle rear-view mirror
________ 129
Ashtrays
______________________ 135
Audio System
___________________ 89
Audio System, quick guide
_________ 91Autochecking of lights on starting
____62
Automatic climate control (ACC) _____77
Automatic transmission,
technical data
_________________264
Aviod theft, tip
__________________195
BBattery
________________________209
Battery charging/replacing
________210
Battery, boost starting
____________191
Belt guide
______________________17
Boost starting using jump leads
____191
Booster cushion
_________________31
Brake and clutch fluid
____________207
Brake-fluid reservoir
_____________207
Brakes, technical data ____________265
Bulbs, changing
_________________214
Bulbs, table of
__________________225
CCD changer
____________________101
CD player
______________________99
CHECK messages
_______________69
CHECKING
_____________________69
Calibration, ACC
_________________85
Cancelling the programmed settings
__83
Car alarm
______________________48
Car care
______________________197
Cargo net, 9-5 Wagon
____________146
Carpeting, care of
_______________243
Cassette player
__________________96Catalytic converter,
important considerations
________ 156
Central locking
__________________ 42
Change language in SID
__________ 70
Change of address notification
____ 256
Changing a wheel
______________ 237
Changing bulbs
________________ 214
Changing the wheels round
_______ 233
Changing wiper blades
__________ 212
Chassis number
_______________ 269
Chassis number, key to
__________ 270
Child safety
____________________ 23
Child safety locks, rear doors
______ 45
Child seat, integral
_______________ 31
Cleaning, engine bay ____________ 245
Clock
______________________ 69
, 70
Color code, body
_______________ 269
Color code, trim ________________ 269
Compact spare wheel
___________ 236
Compass
_____________________ 130
Condensation, ACC
______________ 86
Coolant
______________________ 206
Courtesy Headlight Feature
_______ 72
Cruise control
_________________ 171
Cup holder
____________________ 138
DDICE/TWICE
__________________ 227
Dampers
_____________________ 265
Date code, tires
________________ 235
Dim-dipped beam _______________ 71
Direction indicators ______________ 73
ProCarManuals.com
