technical data SAAB 9-5 2003 Owners Manual

6Engine compartment,
4-cyl engine
IB1737
Engine ______________________ 202
Checking the oil level ___________ 203
Oil changing__________________ 204
Engine oil, specification _________ 261
Braking______________________ 172
ABS brakes __________________ 173
Brake and clutch fluid ___________ 207
Brake system _________________ 265
Brake pads ___________________ 265
Fuses _________________ 226
Changing a fuse _________ 228
Relays ________________ 229
Table of fuses ___________ 226Temperature gauge ______ 63
Driving in hot weather_____ 181
Driving in cold weather ____ 179
Coolant________________ 206
Coolant capacity_________ 260
Power steering fluid _______ 208
Steering, technical data ___ 265
Wipers and washers ______ 75
Washers _______________ 213
Washer jets ____________ 213
Jump starting _________________ 191
Battery ______________________ 209
Charging/replacing the battery____ 210
Manual transmission ___________ 162
Automatic transmission _________ 163
Automatic transmission,
technical data ________________ 264
Manual gearbox, technical data ___ 264
Important considerations for driving 155
Turbo unit ___________________ 199
Engine, technical data __________ 260Ignition switch ___________ 152
Drive belts ______________ 211
Spark plugs _____________ 263
Catalytic converter _______ 156Warning labels __________ 8
V.I.N. number ___________ 269
Engine number __________ 269
Gearbox number _________ 269
Color code______________ 269
ProCarManuals.com

7
Engine compartment,
3.0t V6
IB1738
Warning labels __________ 8
V.I.N. number ___________ 269
Engine number __________ 269
Gearbox number ________ 269
Color code _____________ 269Ignition switch ___________ 152
Drive belts ______________ 211
Spark plugs _____________ 263
Catalytic converter _______ 156Important considerations for driving 155
Turbo unit ___________________ 199
Engine, technical data __________ 260
Automatic transmission _________ 163
Automatic transmission,
technical data ________________ 264
Braking______________________ 172
ABS brakes __________________ 173
Brake and clutch fluid ___________ 207
Brake system _________________ 265
Brake pads ___________________ 265Jump starting _________________ 191
Battery ______________________ 209
Charging/replacing the battery____ 210
Fuses _________________ 226
Changing a fuse _________ 228
Relays ________________ 229
Table of fuses ___________ 226Temperature gauge ______ 63
Driving in hot weather_____ 181
Driving in cold weather ____ 179
Coolant________________ 206
Coolant capacity_________ 260
Power steering fluid _______ 208
Steering, technical data ___ 265
Wipers and washers ______ 75
Washers _______________ 213
Washer jets ____________ 213
Engine ______________________ 202
Checking the oil level ___________ 203
Oil changing__________________ 204
Engine oil, specification _________ 261
ProCarManuals.com

38 Safety
Crash sensingCrash sensing and diagnostic modules
have been used in many automobiles since
air bags were first produced. The technical
information gained from these modules can
be useful to understanding the circum-
stances that led to the air bag deployment.
In addition, information from many field
events can be used in the aggregate to help
manufactures and others better understand
real world crashes. This, in turn, can lead to
improved automotive safety.
Your vehicle is equipped with two electronic
frontal sensors, which helps the sensing
system distinguish between a moderate
frontal impact and a more severe frontal
impact. Your vehicle is also equipped with a
crash sensing and diagnostic module,
which records information about the frontal
air bag system. The module records infor-
mation about the readiness of the system,
when the system commands air bag infla-
tion and driver´s safety belt usage at deploy-
ment or in a near-deployment crash. The
module also records speed, engine rpm,
brake and throttle data etc.
AIR BAG warning light
AIRBAG servicingThe AIRBAG must be inspected as part of
the normal service program but otherwise
may be regarded as maintenance-free.  The side airbags will inflate only in the
event of a side impact; not in the event
of a front or rear-end crash or of the
car’s rolling over.
 Damage or wear to the seat cover, or
the seat seam, in the area of the side
airbag must immediately be repaired
by an authorized Saab dealer.
 Do not modify the speaker installation
in the front doors or install speakers
other than those specifically approved
by Saab.
WARNING
 If the airbag readiness light stays on
after you start your vehicle, it means
the air bag system may not be working
properly. See page. 58. The airbags
in your vehicle may not inflate in a
crash, or they could even inflate with-
out a crash.
 To help avoid injury to yourself or
others, have your vehicle serviced
right away if the air bag readiness light
stays on after you start your vehicle.
ProCarManuals.com

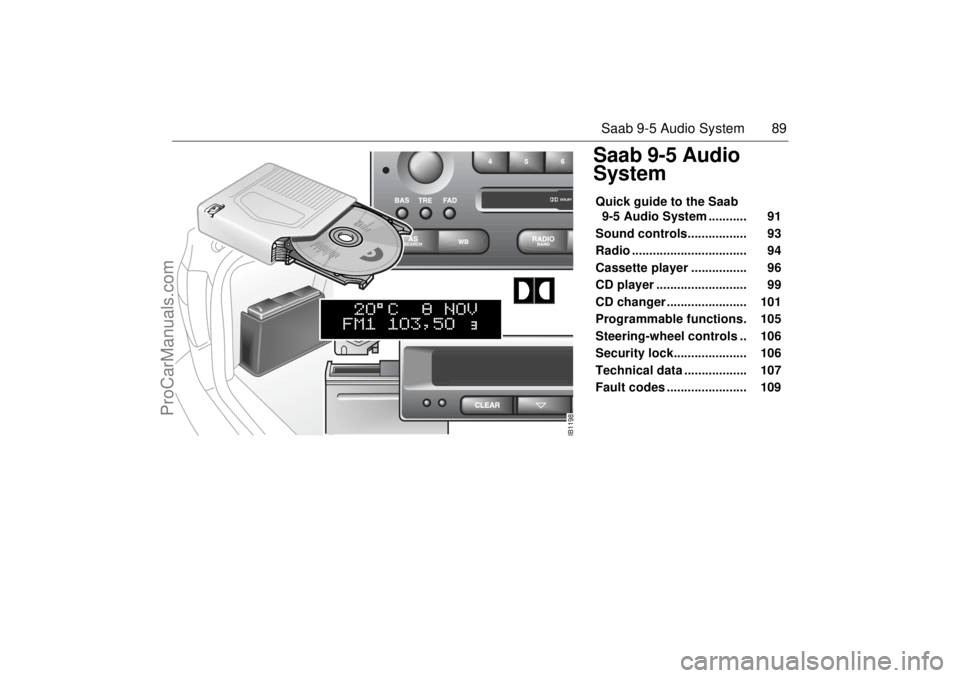

89 Saab 9-5 Audio System
Saab 9-5 Audio
SystemQuick guide to the Saab
9-5 Audio System ........... 91
Sound controls................. 93
Radio ................................. 94
Cassette player ................ 96
CD player .......................... 99
CD changer ....................... 101
Programmable functions. 105
Steering-wheel controls .. 106
Security lock..................... 106
Technical data .................. 107
Fault codes ....................... 109
IB1198
ProCarManuals.com

107 Saab 9-5 Audio System
Technical data
 These specifications comply with the new IHF Standard
 Since the policy at Saab is one of continual improvement, we retain the right to alter
specifications and design without prior notice.
 Dolby noise reduction is produced under licence from Dolby Laboratories Licensing
Corporation
 ”Dolby” and the double-D symbol are trademarks of Dolby Laboratories Licens-
ing Corporation
Changes or modifications not expressly approved by the manufacturer for compliance
could void the user´s authority to operate the equipment.
Tone controls
Bass ______________________ ±10 dB at 100 Hz
Treble _____________________ ±10 dB at 10,000 Hz
Power output
Premium __________________ 150 W
110 W at 1 % THD (total har-
monic distortion) and 13.5 V
Prestige __________________ 200 W
150 W at 1 % THD (total har-
monic distortion) and 13.5 V
Radio module
Radio system _______________ PLL dual-synthesizer tuner
Number of presets:
FM ______________________ 3 x 6
AM ______________________ 2 x 6
Frequency range:
FM ______________________ 87.9–107.9 MHz
AM ______________________ 530–1710 kHz
WB _______________________ 162.40–162.55 MHz
Tuning steps:
Automatic seek tuning: _______ FM 200 kHz
AM 10 kHz
WB 50 kHz
Manual tuning: _____________ FM 200 kHz
AM 10 kHzFrequency range (FM) ________ 40–15000 Hz
±1 dB
Distortion (FM) ______________ < 0.5 %
Cassette player
Fast forward/rewind __________ < 120 seconds (C-60)
Frequency range _____________ 40–16000 Hz
±2 dB
Wow and flutter ______________ 0.2 % WRMS
Signal-to-noise ratio __________ 45 dB
Dolby B/C NR effect __________ 8/16 dB
CD player and CD changer
1-bit system and 8 x oversampling
Frequency range _____________ 20–20000 Hz
±0.5 dB
Distortion __________________ < 0.008 %
Dynamics __________________ > 80 dB (1 kHz)
CD-changer capacity __________ 6 discs
ProCarManuals.com

227 Car care and technical information
Maxi fusesThe Maxi fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The Maxi fuses are designed to protect the
car’s electrical system from being dam-
aged. Each Maxi fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare Maxi fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules that monitor and control a variety
of functions, including:
DICE controls (among other things):
 Front lights and interior lighting
 Instrument illumination
 Intermittent wiper operation
 Electric heating of rear window and door
mirrors
 Cooling fans
TWICE controls (among other things):
 Central locking.
 Car alarm (Anti-theft system)
 Engine immobilizer
 Autochecking of lights.
 Electric heating of rear seat
 Safety belt reminder
 Electrically adjustable passenger seatThe DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which facilitates fault
diagnosis at the Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
drivers side.
NOTICEIf a Maxi fuse blows, it means that there is
a major fault in the electrical system.
Have the car checked without delay by an
authorized Saab dealer.
IB1795
Maxi fuses under the hood
ProCarManuals.com

273 Index
IndexAA/C system, fault diagnosis
________ 242
A/C system, maintenance _________ 242
ABS brakes
____________________ 172
ACC
__________________________ 77
ACC functions
___________________ 80
ACC, automatic climate control
______ 77
ACC, calibration
_________________ 85
ACC, condensation _______________ 86
ACC, programming _______________ 83
ACC, useful tips
_________________ 85
Adjusting the steering wheel
_______ 124
Adjustment, seats
________________ 12
Afterheater, V6-engine cars
________ 87
Air conditioning (A/C), fault diagnosis
and maintenance
______________ 242
Air distribution, ACC ______________ 82
Airbag
_________________________ 33
Alarm __________________________ 48
Alarm functions
__________________ 51
Alarm signals
_______________ 48
, 51
Alternator
_____________________ 211
Alternator drive belt
_________ 211
, 263
Alternator rating
________________ 263
Anticorrosion treatment
___________ 246
Antidazzle rear-view mirror
________ 129
Ashtrays
______________________ 135
Audio System
___________________ 89
Audio System, quick guide
_________ 91Autochecking of lights on starting
____62
Automatic climate control (ACC) _____77
Automatic transmission,
technical data
_________________264
Aviod theft, tip
__________________195
BBattery
________________________209
Battery charging/replacing
________210
Battery, boost starting
____________191
Belt guide
______________________17
Boost starting using jump leads
____191
Booster cushion
_________________31
Brake and clutch fluid
____________207
Brake-fluid reservoir
_____________207
Brakes, technical data ____________265
Bulbs, changing
_________________214
Bulbs, table of
__________________225
CCD changer
____________________101
CD player
______________________99
CHECK messages
_______________69
CHECKING
_____________________69
Calibration, ACC
_________________85
Cancelling the programmed settings
__83
Car alarm
______________________48
Car care
______________________197
Cargo net, 9-5 Wagon
____________146
Carpeting, care of
_______________243
Cassette player
__________________96Catalytic converter,
important considerations
________ 156
Central locking
__________________ 42
Change language in SID
__________ 70
Change of address notification
____ 256
Changing a wheel
______________ 237
Changing bulbs
________________ 214
Changing the wheels round
_______ 233
Changing wiper blades
__________ 212
Chassis number
_______________ 269
Chassis number, key to
__________ 270
Child safety
____________________ 23
Child safety locks, rear doors
______ 45
Child seat, integral
_______________ 31
Cleaning, engine bay ____________ 245
Clock
______________________ 69
, 70
Color code, body
_______________ 269
Color code, trim ________________ 269
Compact spare wheel
___________ 236
Compass
_____________________ 130
Condensation, ACC
______________ 86
Coolant
______________________ 206
Courtesy Headlight Feature
_______ 72
Cruise control
_________________ 171
Cup holder
____________________ 138
DDICE/TWICE
__________________ 227
Dampers
_____________________ 265
Date code, tires
________________ 235
Dim-dipped beam _______________ 71
Direction indicators ______________ 73
ProCarManuals.com

274 IndexDoor handles
____________________ 42
Door mirrors ___________________ 125
Doors, locks & luggage compartment
_41
Drive belt
______________________ 263
Drive belt, alternator
_____________ 211
Drive belts, length
_______________ 263
Driver’s seat, programmable
________ 14
Driving at night
_________________ 186
Driving in hot weather
____________ 181
Driving with a load
_______________ 187
EESP
__________________________ 176
Electric heating seat
______________ 15
Electric heating, front seats
_________ 15
Electric windows
________________ 131
Electrical system, technical data
____ 263
Electrically heated rear seat
________ 15
Electronic Stability Program, ESP
___ 176
Electronic starting interlock
_________ 43
Emergency operation of sunroof
____ 133
Emission control systems
_________ 201
Engine bay, 3.0t V6
______________ 200
Engine bay, 4-cyl
_______________ 199
Engine bay, cleaning _____________ 245
Engine number
_________________ 269
Engine oil, grade ________________ 261
Engine, description _________ 202
, 203
Engine, technical data
____________ 260
Engine, temperature gauge
________ 63
Engine-oil level, checking
_________ 203
Expansion tank, coolant
__________ 206
FFault codes, Audio System
________109
Flat spot, tire
___________________241
Fluid level, automatic transmission
__205
Folding the rear seat, 9-5 Sedan
____139
Folding the rear seat, 9-5 Wagon ___142
Frequently asked questions on airbag
39
Front fog lights
__________________74
Frost warning
___________________66
Fuel
__________________________158
Fuel consumption
________________65
Fuel filler door
__________________150
Fuel gauge
_____________________63
Fuel grade _____________________260
Fuse box under hood
____________230
Fuse panel
____________________226
Fuses
________________________226
GGarage door opener
_____________126
Gearbox number
________________269
Gearbox oil, checking
____________205
Gearbox, technical data, __________264
Glove compartment
______________136
HHandbrake
_____________________195
Hazard warning lights
_____________74
Head restraint
___________________16
Headlight flasher _________________71Headlights
_____________________ 71
Holidaying abroad
______________ 248
Hood
________________________ 198
Horn _________________________ 124
IIgnition switch
_________________ 152
Immobilizer
____________________ 43
Indicator and warning lights
________ 56
Indicator lights
__________________ 56
Instrument illumination
___________ 73
Instruments and controls __________ 55
Integral child seat
_______________ 31
Interior equipment ______________ 123
Interior lighting
_________________ 134
Interior rearview mirror
__________ 125
JJack
_________________________ 239
KKey
__________________________ 42
Key to chassis number
__________ 270
Key, remove
__________________ 152
LLATCH (child safety)
_____________ 24
Labels
_________________________ 8
Leather upholstery, care of
_______ 243
Light horn
_____________________ 71
ProCarManuals.com

275 Index
Light switches
___________________ 71
Luggage-compartment lighting
_____ 134
MMain instrument panel
_____________ 56
Main/dipped beam
_______________ 71
Maintenance schedule ___________ 254
Manual gearbox, technical data
____ 264
Maxi fuses
_____________________ 227
Milometer ______________________ 62
Motoring abroad
________________ 248
NNight Panel
_____________________ 69
OOil capacity, engine
______________ 260
Oil change, engine ______________ 204
Oil specification
_________________ 260
OnStar
________________________ 111
Outdoor temperature
______________ 65
Owner assistance
_______________ 255
PPaintwork, touching-in
____________ 245
Parking Assistance
______________ 193
Parking lights
___________________ 71
Plates and labels ________________ 269
Poly-V-belt
____________________ 211
Power steering _________________ 208Power-steering fluid
_____________208
Pressure gauge
__________________64
Programming I, ACC
______________83
Programming II, ACC _____________84
Programming the ACC ____________83
QQuestions on function of airbag
_____39
Quick guide, Audio System
_________91
RRadiator fan
____________________211
Radio
__________________________94
Rain sensor
_____________________75
Rear fog light ____________________72
Rear seat, 9-5 Sedan, folding
______139
Rear seat, 9-5 Wagon, folding _____142
Rear-seat head restraints
__________16
Rear-view mirror, antidazzle _______129
Rearview mirrors
________________125
Reclamation
___________________248
Recommendations for cars with
automatic transmission,
towing a caravan or trailer
________182
Refuelling
_____________________158
Relay panel ____________________229
Remote control __________________42
Remote-control battery, changing
____45
Remove the key
________________152
Reporting safety defects
__________256
Reprogramming of systems _______271Reservoir, power-steering fluid
____ 208
Rev counter
____________________ 62
Reversing lights
_________________ 74
Roof load
_____________________ 185
Running-in ____________________ 178
SSID
__________________________ 65
Saab 9-5 Audio System
___________ 89
Saab Information Display (SID)
_____ 65
Saab Parking Assistance
________ 193
Safety belts
____________________ 17
Safety belts, care of
_____________ 243
Safety-belt pretensioners
_________ 18
Safety-belt reminder
_____________ 17
Seats
_________________________ 12
Securing a load
_________________ 46
Selector lever indication,
automatic transmission
__________ 65
Sentronic, manual mode _________ 167
Service costs
__________________ 255
Service information
_____________ 256
Service intervals
_______________ 254
Service record retention
_________ 255
Settings, seats
__________________ 12
Side airbags
___________________ 36
Signalling, horn ________________ 124
Sliding floor, 9-5 Wagon
_________ 147
Snow chains
__________________ 179
Spare wheel __________________ 236
Spare wheel and tools
___________ 149
Spark plugs
___________________ 263
ProCarManuals.com

276 IndexSpeed rating
___________________ 232
Speedometer _______________ 62
, 63
Starting in cold weather, ACC
_______ 83
Starting in hot weather, ACC _______ 83
Steering wheel adjustment
________ 124
Steering, technical data
__________ 265
Stone-chip damage, repairing
______ 245
Storage compartments
___________ 136
Sun visors
_____________________ 135
Sunroof
_______________________ 132
Suspension
____________________ 265
Suspension, technical data
________ 265
Switches
_______________________ 71
Symbols _______________________ 10
Systems, adjustment
_____________ 271
TTCS OFF
_______________________ 61
Table of fuses
__________________ 228
Tachometer
_____________________ 62
Tailgate, opening
________________ 46
Tank gauge
_____________________ 63
Technical data __________________ 257
Telematics
_____________________ 111
Temperature control, ACC
_________ 79
Temperature gauge, engine ________ 63
Temperature zones, ACC
__________ 79
Textile carpeting
________________ 243
Through-load hatch ______________ 141
Tie Downs
_____________________ 141
Tightening torque, wheel studs
_____ 237
Tip, driving at night
______________ 186Tip, to avoid theft
________________195
Tire markings
_____________ 232
, 233
Tire pressure
______________ 187
, 232
Tires
____________________ 232
, 267
Tires, winter
____________________266
Tools
_________________________149
Touching-in the paintwork
_________245
Towbar attachment
______________181
Towbar load
___________________184
Towing the car __________________189
Towing, automatics
______________189
Traction
_______________________175
Trailer weights
__________________259
Trionic
________________________201
Trip computer
___________________65
Trip meter
______________________62
Trunk
_________________________139
Trunk lid, opening
________________46
Turbo gauge
____________________64
Turbo, points to note
_____________155
UUnder the hood, 3.0t V6
__________200
Under the hood, 4-cyl
____________199
Upholstery and trim
______________243
Upholstery and trim, care of
_______243
Useful tips, ACC
_________________85
VVanity mirrors
__________________135
Ventilated front seats
_____________15
Viscosity, engine oil
______________260
WWarning labels
___________________ 8
Warning light, AIR BAG
___________ 38
Warning lights
__________________ 56
Washers
_____________________ 212
Washers, windshield
____________ 213
Washing the car
_______________ 244
Waxing and polishing
___________ 245
Wear indicators, tires ____________ 234
Wheel, change
________________ 237
Wheels and tires ___________ 232
, 267
Wheels and tires, sizes
__________ 266
Window glass sensor, car alarm
____ 49
Windshield washers
_____________ 75
Windshield wipers
_______________ 75
Winter tires
___________________ 266
Wiper blades, replacing
__________ 212
Wipers and washers
_________ 75
, 212
ProCarManuals.com
