131 Interior equipment and trunk
WARNING
 Place heavy items closest to the backrest and stow smaller
and lighter items on top.
Never overload the cargo net
. If the elastic breaks this may
cause personal injury. Do not use a cargo net that shows signs
of wear.
 Secure heavy and bulky items using the tie down points
provided in the trunk. This will avert the danger of luggage
flying around if the car should brake suddenly or be involved
in a crash (see page 132).
 Secure small items if the backrest is folded down or the
load-through hatch is open. Small items can also be thrown
around inside the car and cause personal injury.
 Do not exceed the load capacity of the car, as this will alter its
handling characteristics (see page 260).
 Make sure that the seat cushions and backrests are properly
secured when folding them back to their normal position.
Check that the button (item 3 on page 130) is flush with the
surround before entering the back seat.
The tail pipe of the exhaust system can become very hot during
driving. Bear this in mind when loading and unloading the car so
that children, for example, do not burn themselves.

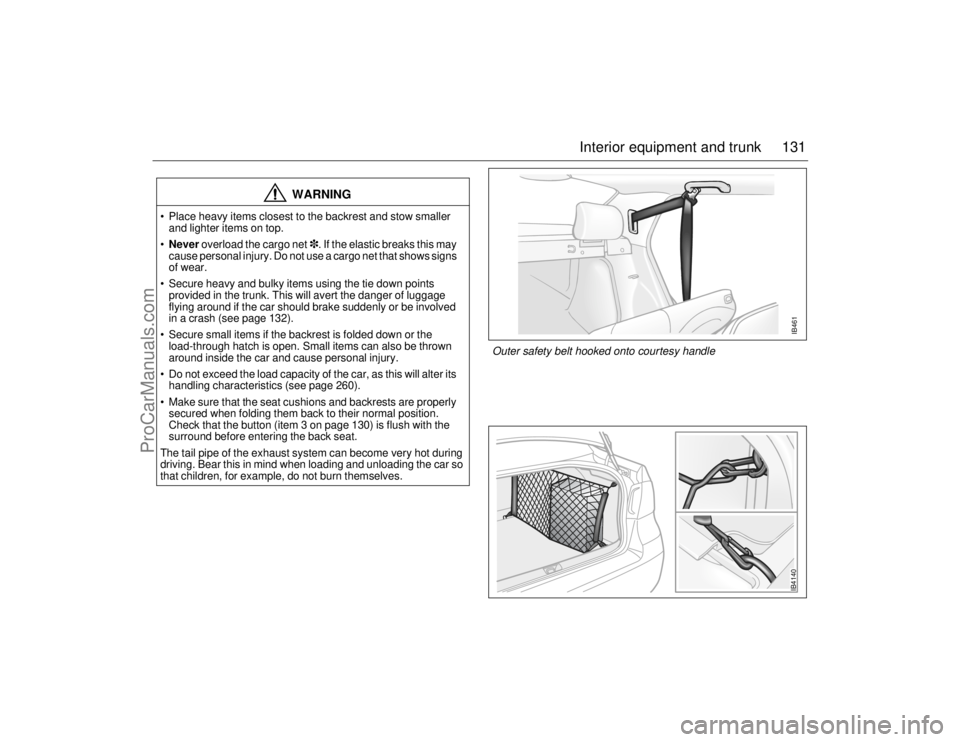

IB4140IB461
Outer safety belt hooked onto courtesy handle
95usM06.book Page 131 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

132 Interior equipment and trunkTrunk pass-through hatch A trunk pass-through hatch is incorporated in the rear seat backrest
to enable long, narrow items to be carried inside the car.
Items should not weigh more than 33 lbs. (15 kg) nor be more than
2 yards (2 metres) in length. See the label on the hatch.
1 Fold down the armrest.
2 Raise the hatch by lifting the handle.
Before loading or unloading long items, switch off the engine and
apply the parkingbrake. This averts the danger of the car moving off
suddenly if a long item were to knock the gear or selector lever into
gear. Tie DownsThe tie downs for securing the load are fitted inside the trunk. Place
the load as far in as possible.
WARNING
 Anchor the load securely (e.g. using middle safety belt) to
avoid danger of injury resulting from displacement of load on
hard braking.
 Do not exceed the load capacity of the car, as this will alter its
handling characteristics (see page 260).
IB463IB4141
95usM06.book Page 132 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

133 Interior equipment and trunk
Folding the rear seat, 9-5 SportCombiBoth the narrow and wide sections of the rear seat can be folded
separately. Folding is facilitated if the front seats are not located too
far back. The wide section cannot be folded separately if a cargo net
(accessory) is mounted on the rear of the backrest.
1 Make sure that the head restraint is in the down position. For
height adjustment refer to page 21.
2 Put the safety belts for the outer seat places in their respective
belt clips, which are located near the backrest (see illustration).
3 Raise the rear seat cushions by pulling the loop located between
the cushion and the backrest.
4 Fold the narrow section (right) of the backrest forward by raising
the opening handle on the right-hand side.
5 Fold the wide section of the backrest forward in the
corresponding manner.
6 Adjust the front seats for optimal driving/passenger comfort. NOTICEThe safety belts for the outer seating positions should be put in
their respective belt clips near the backrest to prevent them from
being pinched when the rear seat is raised to the upright position.

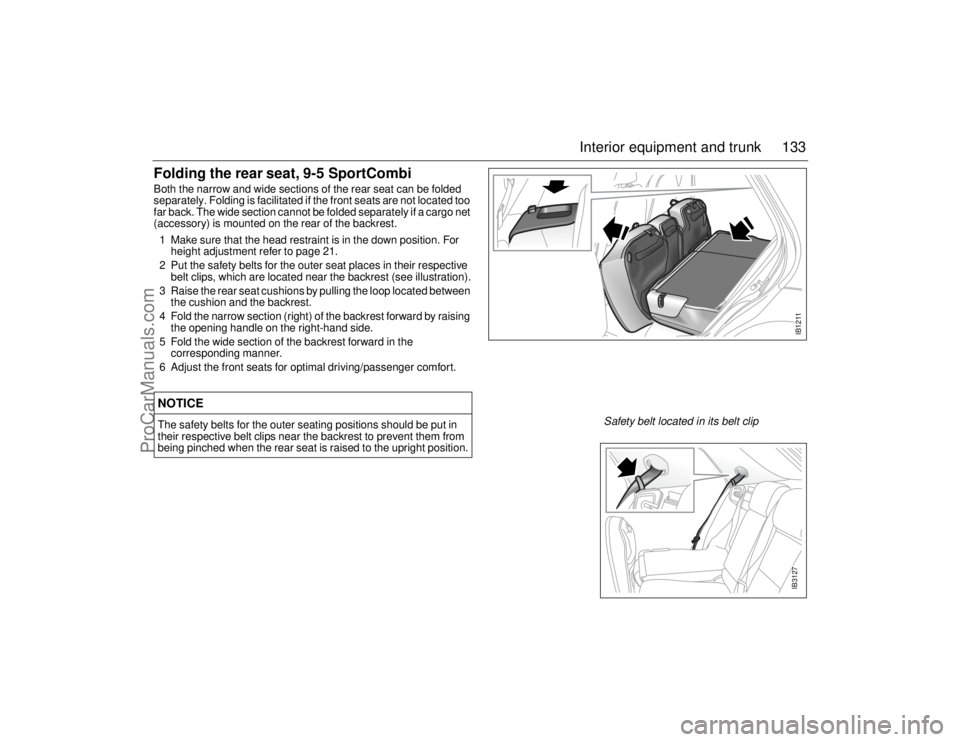

IB1211IB3127
Safety belt located in its belt clip
95usM06.book Page 133 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

134 Interior equipment and trunk
Parcel shelf, 9-5 SportCombiFold the parcel shelf as follows:
1 Press the rear edge of the shelf downwards and forwards.
2 Continue pressing the folded section forward until it is folded over
the front section.
Extend the parcel shelf as follows:
1 Hold the rear edge of the shelf and pull it back.
2 The shelf rests on a track located beneath the rear side windows.
Make sure that the rear corner fits in the recess. Otherwise it will
not lie flat.
Alternative location of the parcel shelf if this is removed:
 Folded up on the floor at the rear of the luggage compartment.
 On its end on the floor behind the front seat backrest.
WARNING
 Do not travel in the back seat without ensuring that the head
restraint is set at a suitable height for the seats to be occupied.
 Never allow anyone to sit on a folded backrest.
 Always be aware of the risk of pinching when handling moving
parts of the seating.
 Never place heavy objects on the parcel shelf. There is always
a danger of loose objects flying about and causing injury if the
car should brake suddenly or be involved in a crash.
 Make sure that the backrests are locked when they are folded
back upright. Check that the two red warning-indication flags
are fully down. This indicates that the backrests are locked.
 Check that the safety belt lock is not trapped under the seat
cushions when these are raised back up.
 Never leave a child or animal unattended in the car. During
sunny weather the temperature in the passenger and luggage
compartments can climb to 158–176°F (70–80°C). Small chil-
dren are very susceptible to heat stroke.95usM06.book Page 134 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

135 Interior equipment and trunk
Folding the narrow section of the backrestThe folding is facilitated if the front seat is not too far back.
1 Make sure that the head restraint is in the down position. For
height adjustment refer to page 21.
2 Put the safety belt in the belt clip near the backrest.
3 Raise the rear seat cushion by pulling the loop located at the rear
of the cushion.
4 Fold the narrow section (right) of the backrest forward by raising
the opening handle.
5 Adjust the front seat for optimal passenger comfort.NOTICEThe safety belts for the outer seating positions should be put in
their respective belt clips near the back rest to prevent them being
pinched when the rear seat is raised to the upright position, see
illustration page 133.

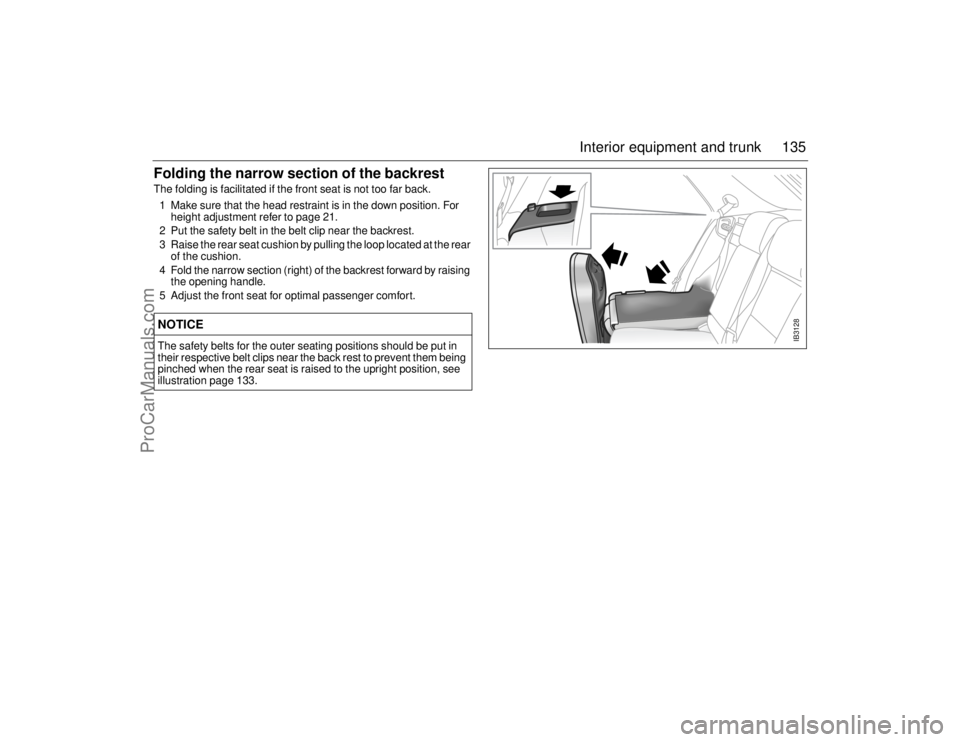

IB3128
95usM06.book Page 135 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

136 Interior equipment and trunkLoad anchoring
Driving with the trunk lid/tailgate open, see
page 185.
WARNING
 Put heavy loads as low down and as
far forward as possible in the luggage
compartment, i.e. against the back of
the rear seat.
Never overload the cargo net
. If the
elastic breaks this may cause personal
injury. Do not use a cargo net that
shows signs of wear.
 Never stack cargo so high that any part
of the cargo lies above the edge of the
backrest, if a cargo guard
is not
being used.
 Always tie down the cargo so that it
cannot be thrown forward during
heavy braking or in the event of a
crash.
 Unsecured and heavy cargo can
increase the risk of injury during hard
braking, sudden avoidance maneu-
vers and in the event of a crash.
 For the best load anchoring, use the
special cargo tie down eye and load
straps
.
 Load the cargo tie down eyes evenly.
Never attach more than one strap to
each tie down eye.
 Provide protection on sharp edges to
prevent damage to the load straps.
 Never use the elastic floor net
and
elastic side net (accessory) when the
rear seat is folded down. These nets
are only intended to keep light objects
tidy, not for the anchoring of loads.
 If possible, avoid having the rear seat
folded down when driving with a heavy
load because the anchoring possibili-
ties are restricted when the rear seat is
in this position. That the rear seat is
in the upright position is a basic
requirement for protection against
cargo displacement in the event of
a crash.
 Cargo can intrude into the passenger
compartment during a sudden stop or
front crash if the outer safety belts are
not fastened. Check that the two red
warning-indication flags are fully
down. This shows that the backrests
are locked.
WARNING
 Match the speed and driving style
according to how the car is loaded.
The driving characteristics of the car
can be affected because the center of
gravity is altered when there is a cargo
in the luggage compartment.
 An object weighing 55 lbs. (25 kg) cor-
responds to a weight of 2200 lbs.
(1000 kg) in a head on crash at
32 mph (50 km/h).
 Adjust the car’s load (passengers and
luggage) so that the gross vehicle
weight or the axle weight is not
exceeded, see page 260.
95usM06.book Page 136 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

137 Interior equipment and trunk
On the floor of the luggage compartment
there may be two longitudinal aluminium
rails (CargoTracks™) where accessory
cargo tie down eye can be mounted.
Fitting a lashing eye:
1 Hold it between your forefinger and
middle finger with the ring up.
2 Press down the spring centre section
with your thumb.
3 Insert the centre section into one of the
holes and move the lashing eye forward
or back slightly to fit it into the middle of
the recess in the rail.
4 Release it.
5 Check that the lashing eye is firmly fitted
by pulling on it.Items for load anchoring:
 Cargo tie down eye
.
 Special load straps
.
Items to keep light objects tidy
:
 Elastic floor cargo net
.
 Elastic side cargo net for the right-hand
side of the luggage compartment
.
The elastic nets may only be used to keep
light objects tidy, not for anchoring.
The floor net should be attached to the
cargo tie down eye that are mounted on the
CargoTracks™. Place the tie down eyes as
far forward and as far back as possible on
the CargoTracks™.
The side netting should be attached to the
two tie down eyes which are included in the accessory kit and to two of the eyes
mounted on the right-hand CargoTrack™
on the floor.
The cargo tie down eyes, load straps and
elastic nets are stored in the two floor lock-
ers on the right- and left-hand side of the
luggage compartment. The lockers are
opened by lifting the respective fabric loop.
NOTICEDo not place any objects so that the
demisting and antenna elements on the
inside of the window could be damaged.

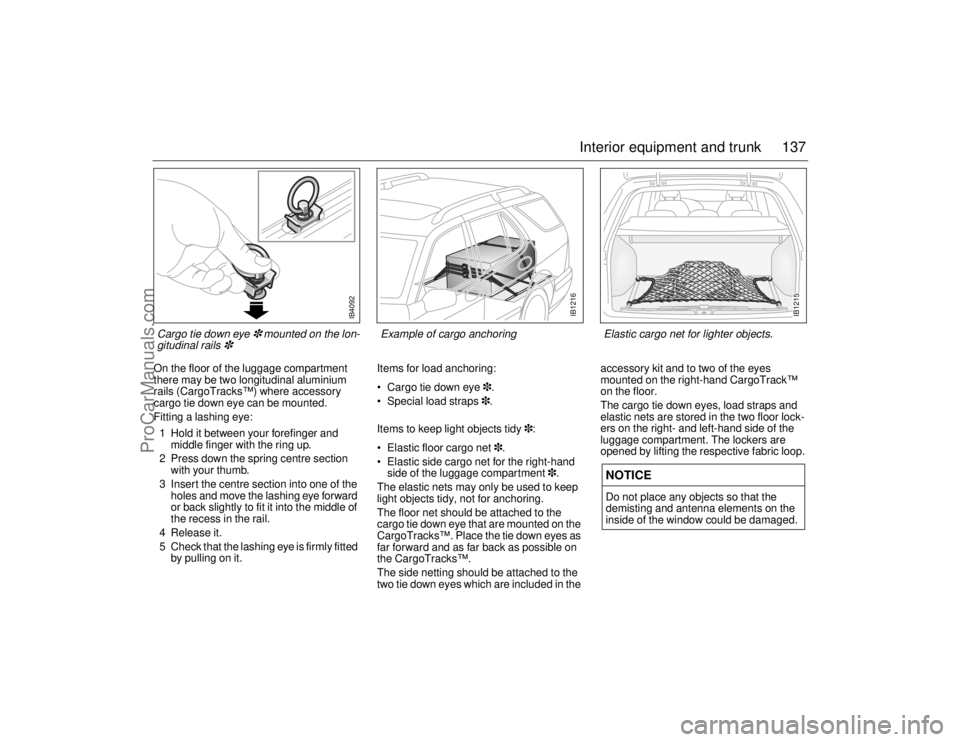

IB4092
Cargo tie down eye
mounted on the lon-
gitudinal rails

IB1216
Example of cargo anchoring
IB1215
Elastic cargo net for lighter objects.
95usM06.book Page 137 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

138 Interior equipment and trunkCargo net




Install the net behind the rear seat backrest.
1 Remove the rearmost covers from the
roof.
2 Fasten the attachments at the top of the
net to the two attachment points in the
roof.
3 Secure a lashing eye furthest forward on
each of the CargoTracks (see previous
page). Attach the hooks on the net to
these eyes. Tension the straps.You can also install the cargo net directly
behind the front seats when the rear seats
are folded.
1 Remove the front covers from the roof.
2 Fasten the attachments at the top of the
net to the two attachment points in the
roof.
3 Wrap each strap around the tube run-
ning under the rear edge of each front
seat and attach the hook to the eye on
the strap.
WARNING
The cargo in the luggage compartment
must be anchored properly, even if the
cargo net is correctly in position. The only
purpose of the net is to prevent light
objects from being thrown about in the
cabin during heavy braking or in the event
of a crash.

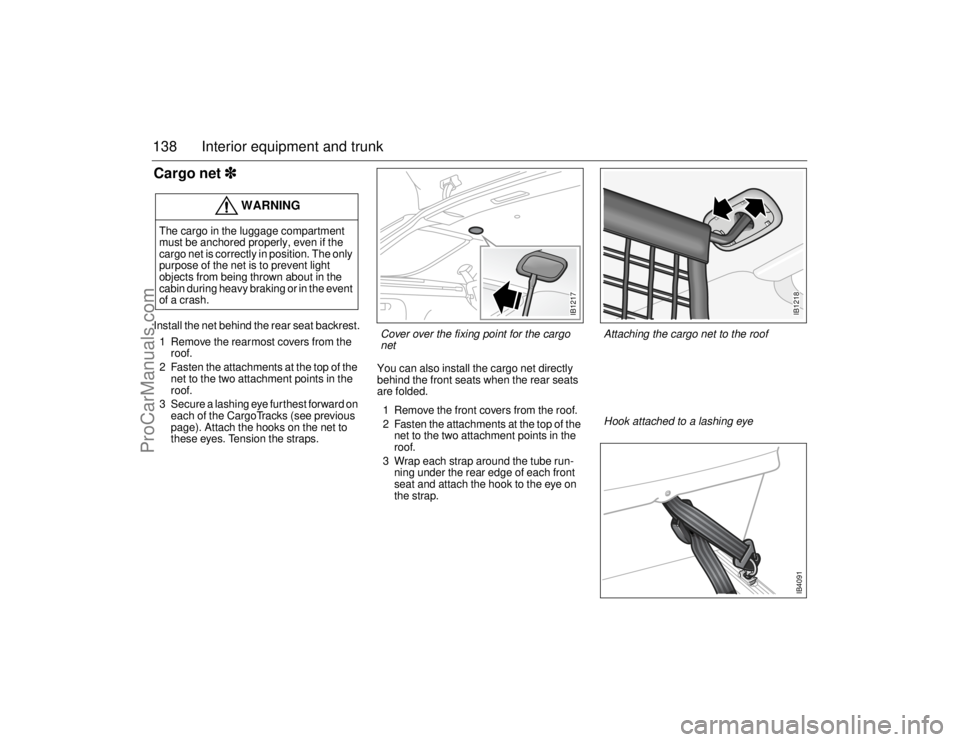

IB1217
Cover over the fixing point for the cargo
net
IB1218
Attaching the cargo net to the roof
IB4091
Hook attached to a lashing eye
95usM06.book Page 138 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

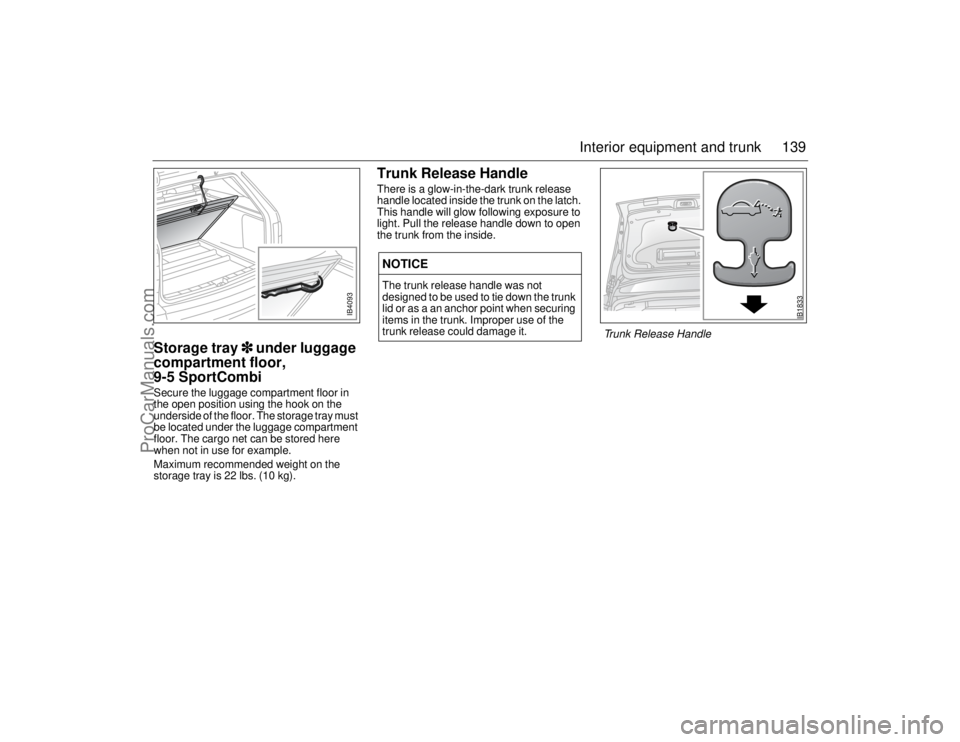

139 Interior equipment and trunk
Storage tray




under luggage
compartment floor,
9-5 SportCombiSecure the luggage compartment floor in
the open position using the hook on the
underside of the floor. The storage tray must
be located under the luggage compartment
floor. The cargo net can be stored here
when not in use for example.
Maximum recommended weight on the
storage tray is 22 lbs. (10 kg).
Trunk Release HandleThere is a glow-in-the-dark trunk release
handle located inside the trunk on the latch.
This handle will glow following exposure to
light. Pull the release handle down to open
the trunk from the inside.NOTICEThe trunk release handle was not
designed to be used to tie down the trunk
lid or as a an anchor point when securing
items in the trunk. Improper use of the
trunk release could damage it.
IB1833
Trunk Release Handle
IB4093
95usM06.book Page 139 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

140 Interior equipment and trunk(This page has been left blank.)95usM06.book Page 140 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com
