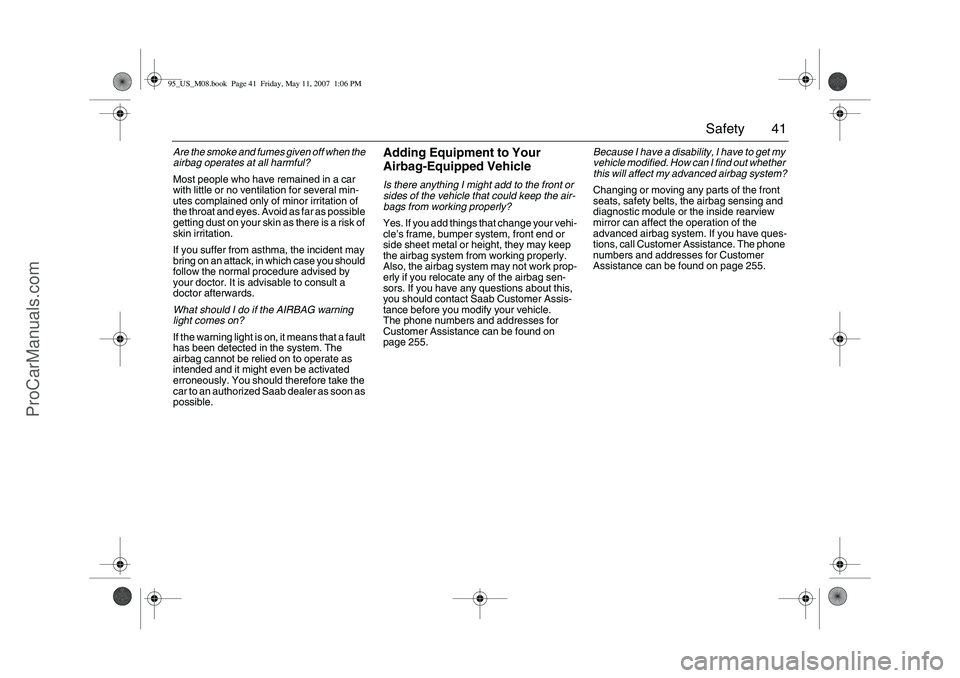

41 Safety
Are the smoke and fumes given off when the
airbag operates at all harmful?
Most people who have remained in a car
with little or no ventilation for several min-
utes complained only of minor irritation of
the throat and eyes. Avoid as far as possible
getting dust on your skin as there is a risk of
skin irritation.
If you suffer from asthma, the incident may
bring on an attack, in which case you should
follow the normal procedure advised by
your doctor. It is advisable to consult a
doctor afterwards.
What should I do if the AIRBAG warning
light comes on?
If the warning light is on, it means that a fault
has been detected in the system. The
airbag cannot be relied on to operate as
intended and it might even be activated
erroneously. You should therefore take the
car to an authorized Saab dealer as soon as
possible.
Adding Equipment to Your
Airbag-Equipped VehicleIs there anything I might add to the front or
sides of the vehicle that could keep the air-
bags from working properly?
Yes. If you add things that change your vehi-
cle’s frame, bumper system, front end or
side sheet metal or height, they may keep
the airbag system from working properly.
Also, the airbag system may not work prop-
erly if you relocate any of the airbag sen-
sors. If you have any questions about this,
you should contact Saab Customer Assis-
tance before you modify your vehicle.
The phone numbers and addresses for
Customer Assistance can be found on
page 255.Because I have a disability, I have to get my
vehicle modified. How can I find out whether
this will affect my advanced airbag system?
Changing or moving any parts of the front
seats, safety belts, the airbag sensing and
diagnostic module or the inside rearview
mirror can affect the operation of the
advanced airbag system. If you have ques-
tions, call Customer Assistance. The phone
numbers and addresses for Customer
Assistance can be found on page 255.
95_US_M08.book Page 41 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

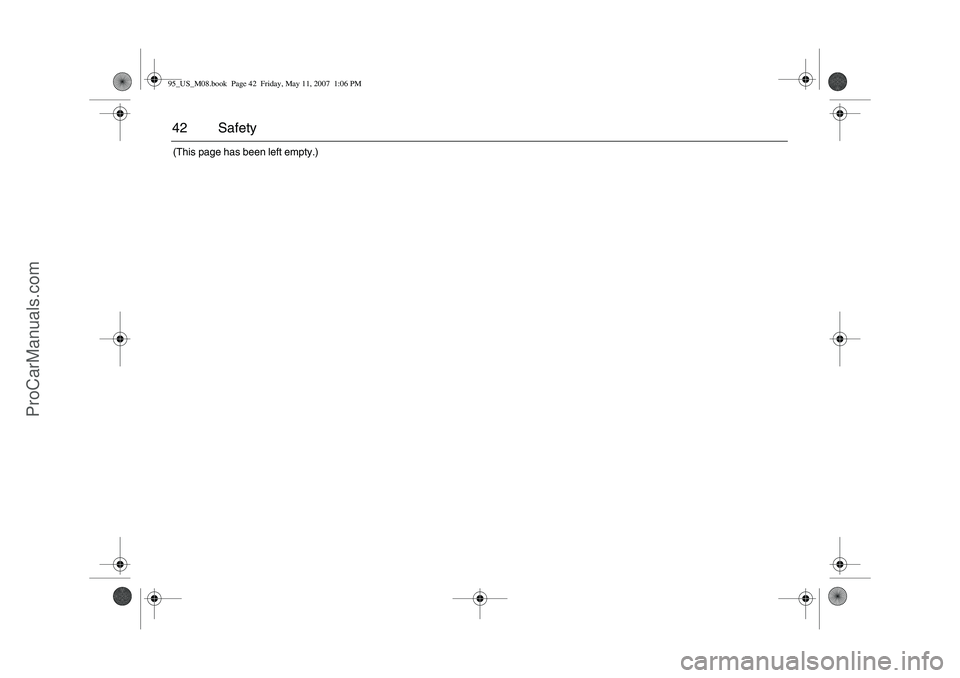

42 Safety(This page has been left empty.)95_US_M08.book Page 42 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

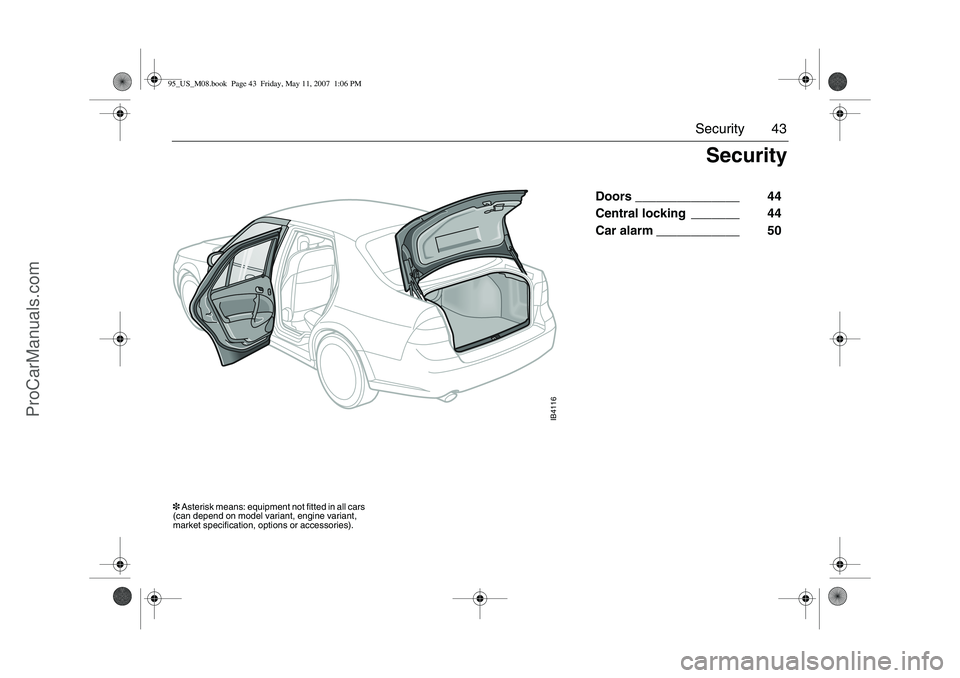

43 Security
Doors _______________ 44
Central locking _______ 44
Car alarm ____________ 50
IB4116
Security
3 Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).95_US_M08.book Page 43 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

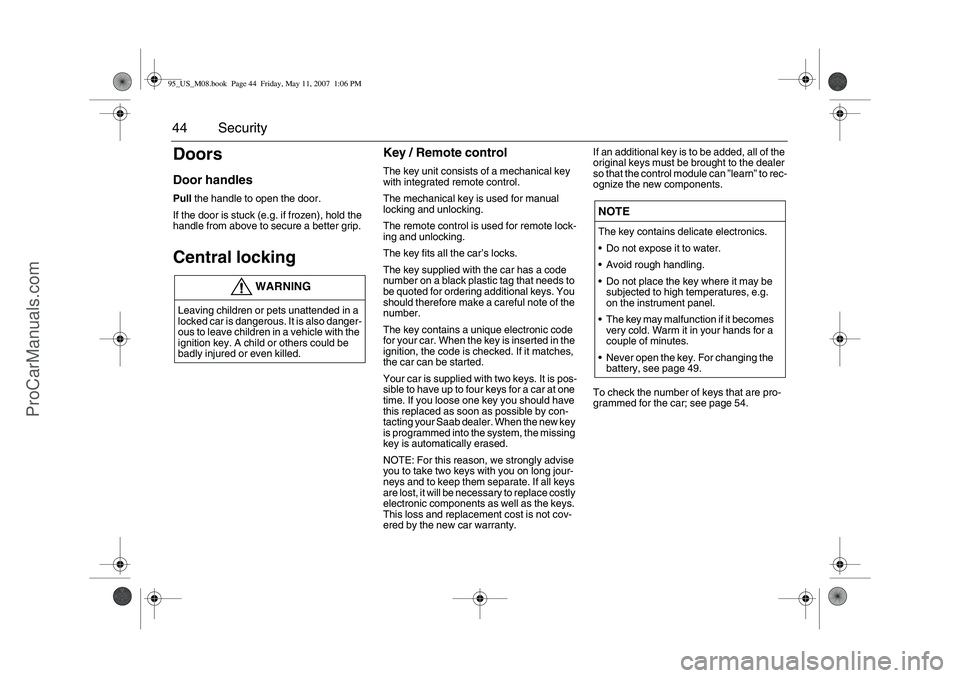

44 SecurityDoorsDoor handlesPull the handle to open the door.
If the door is stuck (e.g. if frozen), hold the
handle from above to secure a better grip.Central locking
Key / Remote control The key unit consists of a mechanical key
with integrated remote control.
The mechanical key is used for manual
locking and unlocking.
The remote control is used for remote lock-
ing and unlocking.
The key fits all the car’s locks.
The key supplied with the car has a code
number on a black plastic tag that needs to
be quoted for ordering additional keys. You
should therefore make a careful note of the
number.
The key contains a unique electronic code
for your car. When the key is inserted in the
ignition, the code is checked. If it matches,
the car can be started.
Your car is supplied with two keys. It is pos-
sible to have up to four keys for a car at one
time. If you loose one key you should have
this replaced as soon as possible by con-
tacting your Saab dealer. When the new key
is programmed into the system, the missing
key is automatically erased.
NOTE: For this reason, we strongly advise
you to take two keys with you on long jour-
neys and to keep them separate. If all keys
are lost, it will be necessary to replace costly
electronic components as well as the keys.
This loss and replacement cost is not cov-
ered by the new car warranty.If an additional key is to be added, all of the
original keys must be brought to the dealer
so that the control module can ”learn” to rec-
ognize the new components.
To check the number of keys that are pro-
grammed for the car; see page 54.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
NOTEThe key contains delicate electronics.
Do not expose it to water.
Avoid rough handling.
Do not place the key where it may be
subjected to high temperatures, e.g.
on the instrument panel.
The key may malfunction if it becomes
very cold. Warm it in your hands for a
couple of minutes.
Never open the key. For changing the
battery, see page 49.
95_US_M08.book Page 44 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

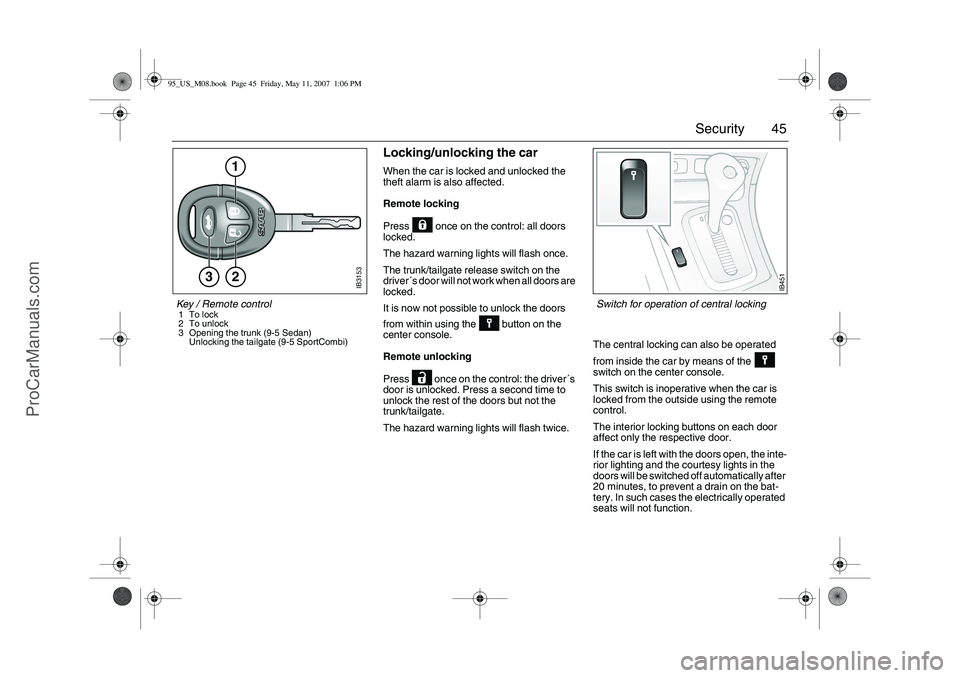

45 Security
Locking/unlocking the carWhen the car is locked and unlocked the
theft alarm is also affected.
Remote locking
Press once on the control: all doors
locked.
The hazard warning lights will flash once.
The trunk/tailgate release switch on the
driver´s door will not work when all doors are
locked.
It is now not possible to unlock the doors
from within using the button on the
center console.
Remote unlocking
Press once on the control: the driver´s
door is unlocked. Press a second time to
unlock the rest of the doors but not the
trunk/tailgate.
The hazard warning lights will flash twice.The central locking can also be operated
from inside the car by means of the
switch on the center console.
This switch is inoperative when the car is
locked from the outside using the remote
control.
The interior locking buttons on each door
affect only the respective door.
If the car is left with the doors open, the inte-
rior lighting and the courtesy lights in the
doors will be switched off automatically after
20 minutes, to prevent a drain on the bat-
tery. In such cases the electrically operated
seats will not function.
IB3153
3
2 1
Key / Remote control1To lock
2 To unlock
3 Opening the trunk (9-5 Sedan)
Unlocking the tailgate (9-5 SportCombi)
IB451
Switch for operation of central locking
95_US_M08.book Page 45 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

46 Security
If remote unlocking should fail to work
Unlock the front door with the key. To
silence the alarm, insert the key into the igni-
tion switch and turn it to the ON position.
The car can now be started. Contact a work-
shop to have the system checked and
repaired. We recommend that you contact
an authorized Saab dealer.
Locking by key (1)
When the car is locked and unlocked the
theft alarm is also affected.
Turn the key clockwise: all doors locked.
The trunk/tailgate release/unlock switch on
the driver’s door will not work when all doors
are locked. Nor will the switch on the center
console.
Unlocking by key (2)
Turn the key counterclockwise once: the
driver´s door will unlock.
Turn the key counterclockwise twice: all
doors, but not tailgate, unlocked. Switch in
driver´s door and switch in center console
enabled.
WARNING
The remote control also works from inside
the car. Therefore, hold the key in such a
way that the buttons are not unintention-
ally pressed when the key is turned, or
inserted or removed from the ignition
switch.
Otherwise, the doors may be unintention-
ally locked or the tailgate unlocked. On
Sedan models, the trunk may even be
opened.
Having the doors locked when you are
driving will reduce the likelihood of:
Passengers, especially children,
opening doors and falling out of the
car.
Intruders entering the car when it is
moving slowly or at a standstill.
However, you must also remember that
locked doors can hamper rescuers in the
event of a crash.
IB1555
2
1
Locking/unlocking by key1To lock
2 To unlock
95_US_M08.book Page 46 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

47 Security
Child safety locksThe rear doors are equipped with child
safety locks that are operated by means of
a catch adjacent to the door lock.
Insert a key and turn the catch 45
clockwise
or counterclockwise as indicated by the
label on the door.
When the child safety catch is in the locked
position, the door cannot be opened from
the inside.
Trunk lid lock, 9-5 SedanThe trunk lid lock is independent of the cen-
tral-locking system. The trunk lid release
switch on the driver’s door is inoperative
when the car is locked from the outside or
moving at a speed greater than 2.7 mph
(4 km/h).
WARNING
If small children ride in the rear seats, the
safety locks on rear doors should be acti-
vated to prevent unintentional opening
from the inside.
IB1871
Child safety lock on rear doors
Trunk lid switch
95_US_M08.book Page 47 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

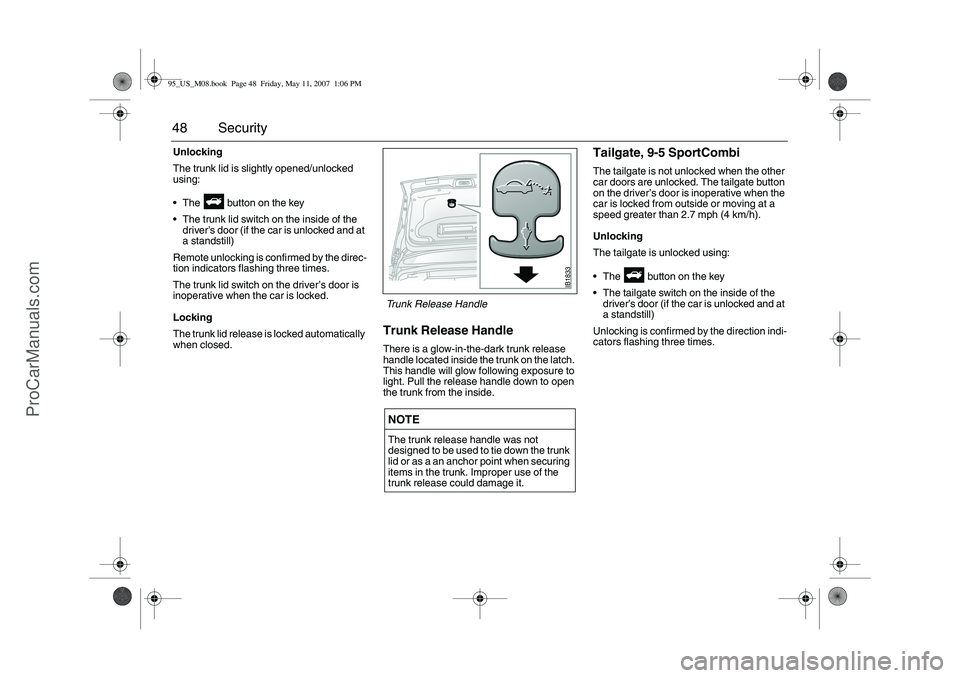

48 SecurityUnlocking
The trunk lid is slightly opened/unlocked
using:
The button on the key
The trunk lid switch on the inside of the
driver’s door (if the car is unlocked and at
a standstill)
Remote unlocking is confirmed by the direc-
tion indicators flashing three times.
The trunk lid switch on the driver’s door is
inoperative when the car is locked.
Locking
The trunk lid release is locked automatically
when closed.
Trunk Release HandleThere is a glow-in-the-dark trunk release
handle located inside the trunk on the latch.
This handle will glow following exposure to
light. Pull the release handle down to open
the trunk from the inside.
Tailgate, 9-5 SportCombiThe tailgate is not unlocked when the other
car doors are unlocked. The tailgate button
on the driver’s door is inoperative when the
car is locked from outside or moving at a
speed greater than 2.7 mph (4 km/h).
Unlocking
The tailgate is unlocked using:
The button on the key
The tailgate switch on the inside of the
driver’s door (if the car is unlocked and at
a standstill)
Unlocking is confirmed by the direction indi-
cators flashing three times.
NOTEThe trunk release handle was not
designed to be used to tie down the trunk
lid or as a an anchor point when securing
items in the trunk. Improper use of the
trunk release could damage it.
IB1833
Trunk Release Handle
95_US_M08.book Page 48 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

49 Security

Locking
The tailgate is locked using:
The button on the key
The button on the center console
The key in the driver’s door.
When vehicle speed exceeds 2.7 mph
(4 km/h).Electronic starting interlock
(immobilizer)Each time the key is removed from the igni-
tion, the electronic starting interlock is acti-
vated and the car is thus immobilized, see
also page 51.Reprogramming lock system
functionsCertain lock system functions can be repro-
grammed by your authorized Saab dealer;
see page 272.
Changing the key batteryWhen the battery voltage in the key falls
below a predetermined level the Saab Infor-
mation Display (SID) will issue the following
message:
”Remote control battery
low. Replace battery.”
Press the CLR button on the SID to
acknowledge this message. You must then
replace the battery without delay to avoid
malfunctions. The life of the battery is nor-
mally 4 years.Contact a Saab dealer to
have the battery replaced.
NOTEUse the grab handle to assist in closing
the tailgate.
Avoid the following, due to the risk of lock
mechanism damage when the tailgate is
closed.
Never grasp the lock mechanism as
this can lock the mechanism.
Never close the lock mechanism
manually.
IB3160
Grab handle95_US_M08.book Page 49 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

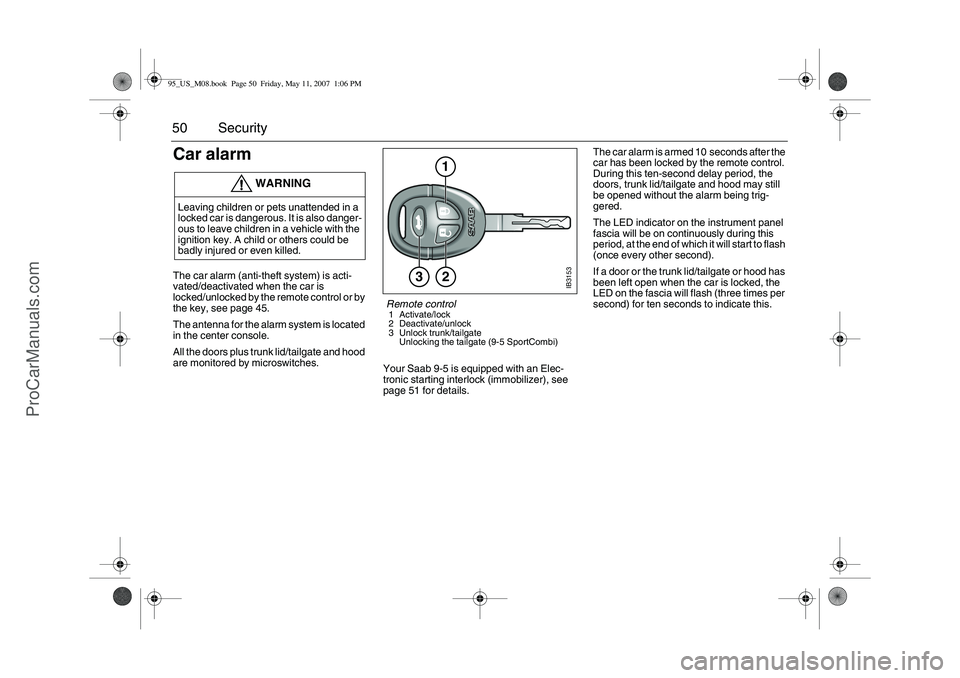

50 SecurityCar alarm The car alarm (anti-theft system) is acti-
vated/deactivated when the car is
locked/unlocked by the remote control or by
the key, see page 45.
The antenna for the alarm system is located
in the center console.
All the doors plus trunk lid/tailgate and hood
are monitored by microswitches.
Your Saab 9-5 is equipped with an Elec-
tronic starting interlock (immobilizer), see
page 51 for details. The car alarm is armed 10 seconds after the
car has been locked by the remote control.
During this ten-second delay period, the
doors, trunk lid/tailgate and hood may still
be opened without the alarm being trig-
gered.
The LED indicator on the instrument panel
fascia will be on continuously during this
period, at the end of which it will start to flash
(once every other second).
If a door or the trunk lid/tailgate or hood has
been left open when the car is locked, the
LED on the fascia will flash (three times per
second) for ten seconds to indicate this.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
IB3153
3
2 1
Remote control 1 Activate/lock
2 Deactivate/unlock
3 Unlock trunk/tailgate
Unlocking the tailgate (9-5 SportCombi)
95_US_M08.book Page 50 Friday, May 11, 2007 1:06 PM
ProCarManuals.com
