If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.Airbag System
Your vehicle has a frontal airbag for the driver and
another frontal airbag for the right front passenger.
Your vehicle also has roof-mounted side impact airbags
designed for either side impact or rollover deployment.
Roof-mounted side impact airbags are available for
the driver and the passenger seated directly behind the
driver and for the right front passenger and the
passenger seated directly behind that passenger.
Frontal airbags are designed to help reduce the risk of
injury from the force of an in ating frontal airbag.
But these airbags must in ate very quickly to do their
job and comply with federal regulations.
1-45
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 52 of 398
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts but do not
replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to in ate in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal airbags may provide less
protection in frontal crashes than more forceful
airbags have provided in the past.
CAUTION: (Continued)
CAUTION: (Continued)
The roof-mounted side impact airbags are
designed to in ate only in moderate to severe
crashes where something hits the side of your
vehicle. They are not designed to in ate in
frontal or in rear crashes. The rollover capable
airbags have been designed to deploy the
roof-mounted side impact airbags in the event
of a vehicle rollover.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
1-46
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 53 of 398
{CAUTION:
Both frontal and roof-mounted airbags in ate
with great force, faster than the blink of an
eye. If you are too close to an in ating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag in ation before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
There is an airbag
readiness light on
the instrument panel
cluster, which shows the
airbag symbol.The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-29
for more information.
Where Are the Airbags?
The driver’s airbag is in the middle of the steering
wheel.
1-47
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 54 of 398
The right front passenger’s airbag is in the instrument
panel on the passenger’s side.The roof-mounted side impact airbag for the driver and
the person seated directly behind the driver is in the
ceiling above the side windows.
1-48
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 55 of 398

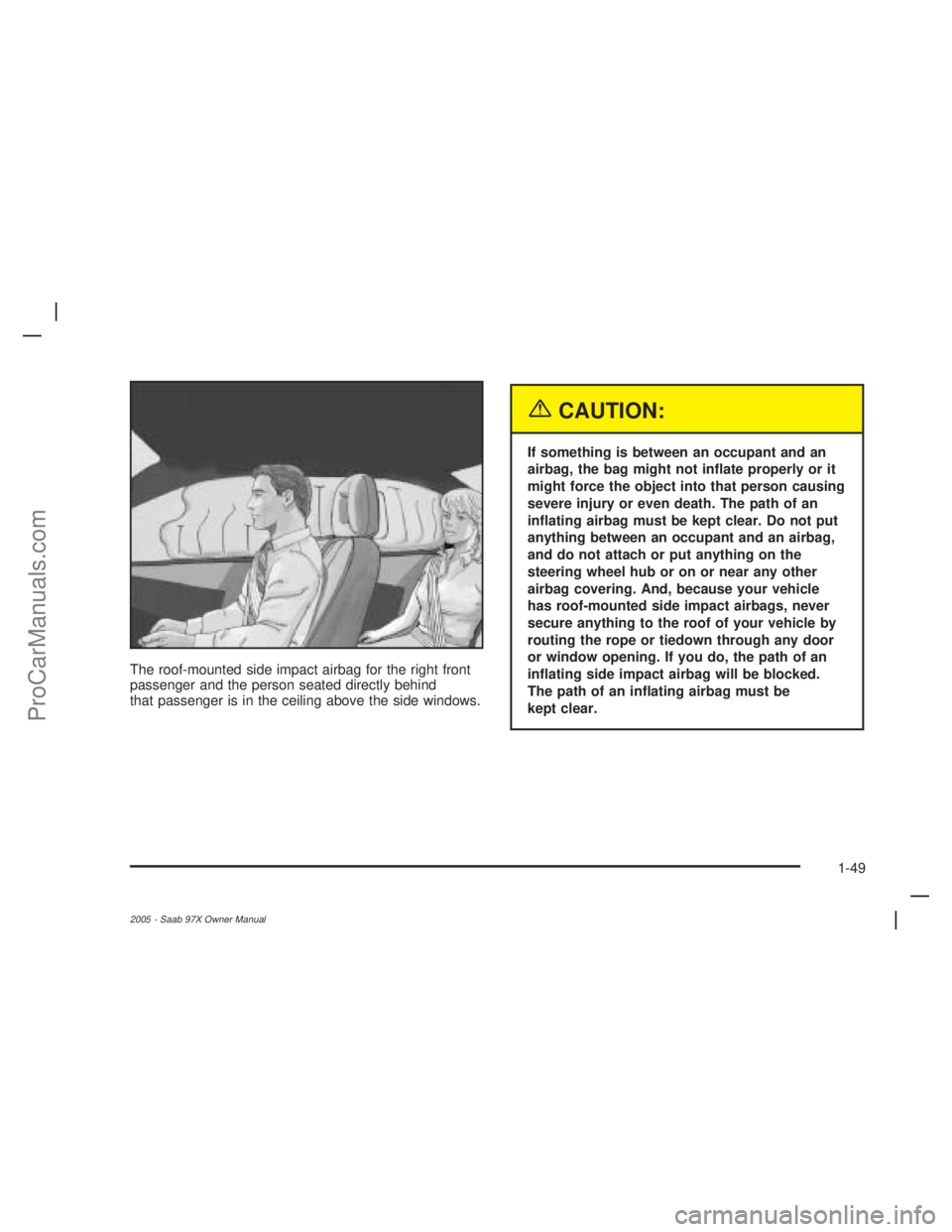

The roof-mounted side impact airbag for the right front
passenger and the person seated directly behind
that passenger is in the ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, because your vehicle
has roof-mounted side impact airbags, never
secure anything to the roof of your vehicle by
routing the rope or tiedown through any door
or window opening. If you do, the path of an
in ating side impact airbag will be blocked.
The path of an in ating airbag must be
kept clear.
1-49
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 56 of 398
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal airbags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to in ate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
in ate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs.
If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level for
the reduced deployment is about 9 to 16 mph
(14 to 26 km/h), and the threshold level for a full
deployment is about 18 to 25 mph (29 to 40 km/h).(The threshold level can vary, however, with speci c
vehicle design, so that it can be somewhat above
or below this range.)
Frontal airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could in ate at a different crash speed than if the
object were moving.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash speed than
if the vehicle hits an object does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger) are
not intended to in ate during vehicle rollovers, rear
impacts, or in many side impacts.
Your vehicle has seat position sensors which enable the
sensing system to monitor the position of the driver’s
seat and the right front passenger’s seat. Seat position
sensors provide information that is used to determine
if the airbags should deploy at a reduced level or at full
deployment.
1-50
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 57 of 398
Your vehicle has roof-mounted side impact airbags and
a rollover sensor. SeeAirbag System on page 1-45.
These “rollover capable” airbags are intended to in ate
in moderate to severe side crashes or during a
rollover. A side impact airbag will in ate if the crash
severity is above the system’s designed “threshold
level.” The threshold level can vary with speci c vehicle
design. Side impact airbags are not intended to
in ate in frontal or near-frontal impacts, or rear impacts.
In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, in ation is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For side impact
airbags, in ation is determined by the location and
severity of the impact.
The airbag system is designed to work properly under a
wide range of conditions, including off-road usage.
As always, wear your safety belt. SeeOff-Road Driving
on page 4-13.What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. In the case
of a “rollover capable” roof-mounted side impact
airbag, the sensing system detects that the vehicle is
about to roll over. The sensing system triggers a release
of gas from the in ator, which in ates the airbag. The
in ator, airbag, and related hardware are all part of
the airbag modules inside the steering wheel and in the
instrument panel in front of the right front passenger.
For vehicles with roof-mounted side impact airbags,
the airbag modules are located in the ceiling of
the vehicle, near the side windows.
1-51
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 58 of 398

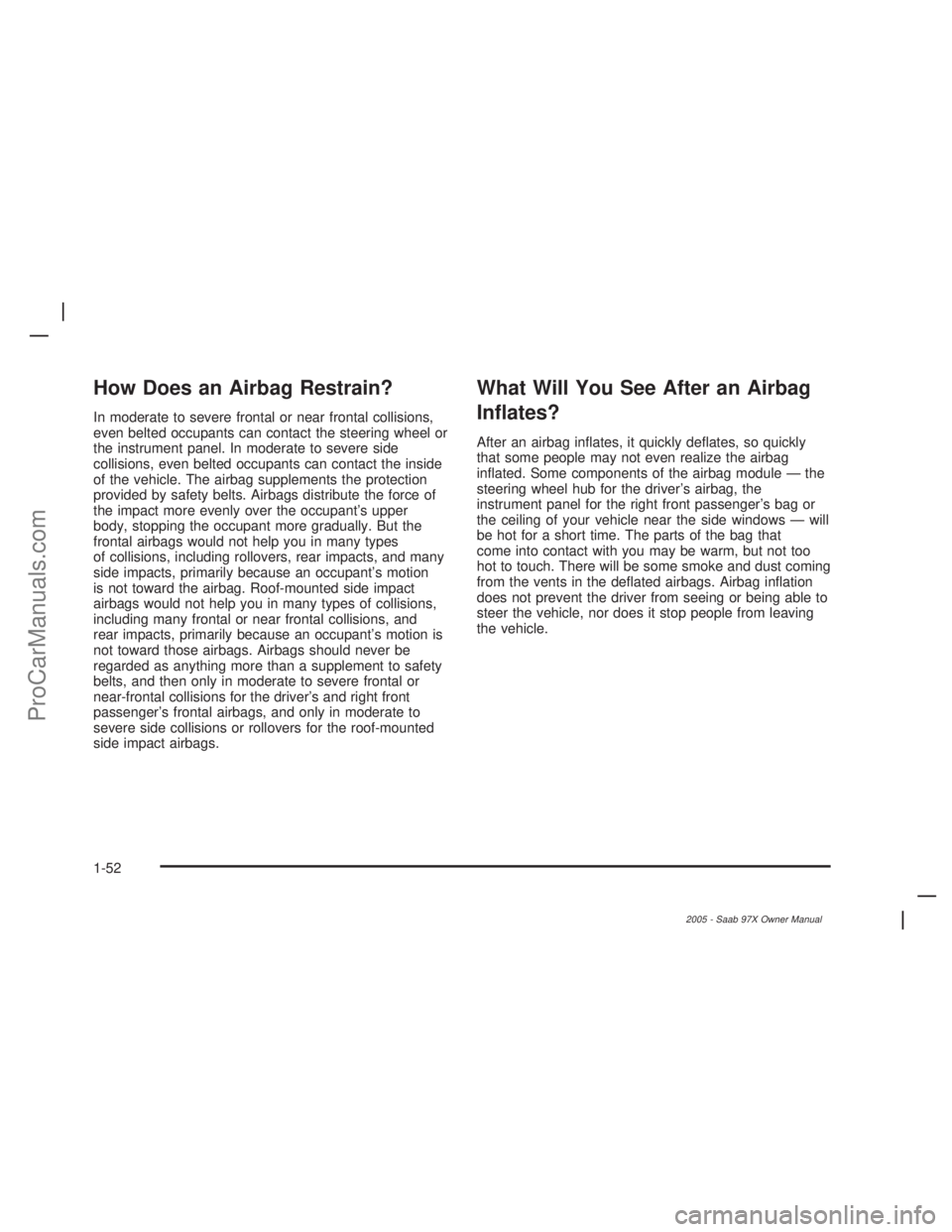

How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Roof-mounted side impact
airbags would not help you in many types of collisions,
including many frontal or near frontal collisions, and
rear impacts, primarily because an occupant’s motion is
not toward those airbags. Airbags should never be
regarded as anything more than a supplement to safety
belts, and then only in moderate to severe frontal or
near-frontal collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate to
severe side collisions or rollovers for the roof-mounted
side impact airbags.
What Will You See After an Airbag
In ates?
After an airbag in ates, it quickly de ates, so quickly
that some people may not even realize the airbag
in ated. Some components of the airbag module — the
steering wheel hub for the driver’s airbag, the
instrument panel for the right front passenger’s bag or
the ceiling of your vehicle near the side windows — will
be hot for a short time. The parts of the bag that
come into contact with you may be warm, but not too
hot to touch. There will be some smoke and dust coming
from the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing or being able to
steer the vehicle, nor does it stop people from leaving
the vehicle.
1-52
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 59 of 398

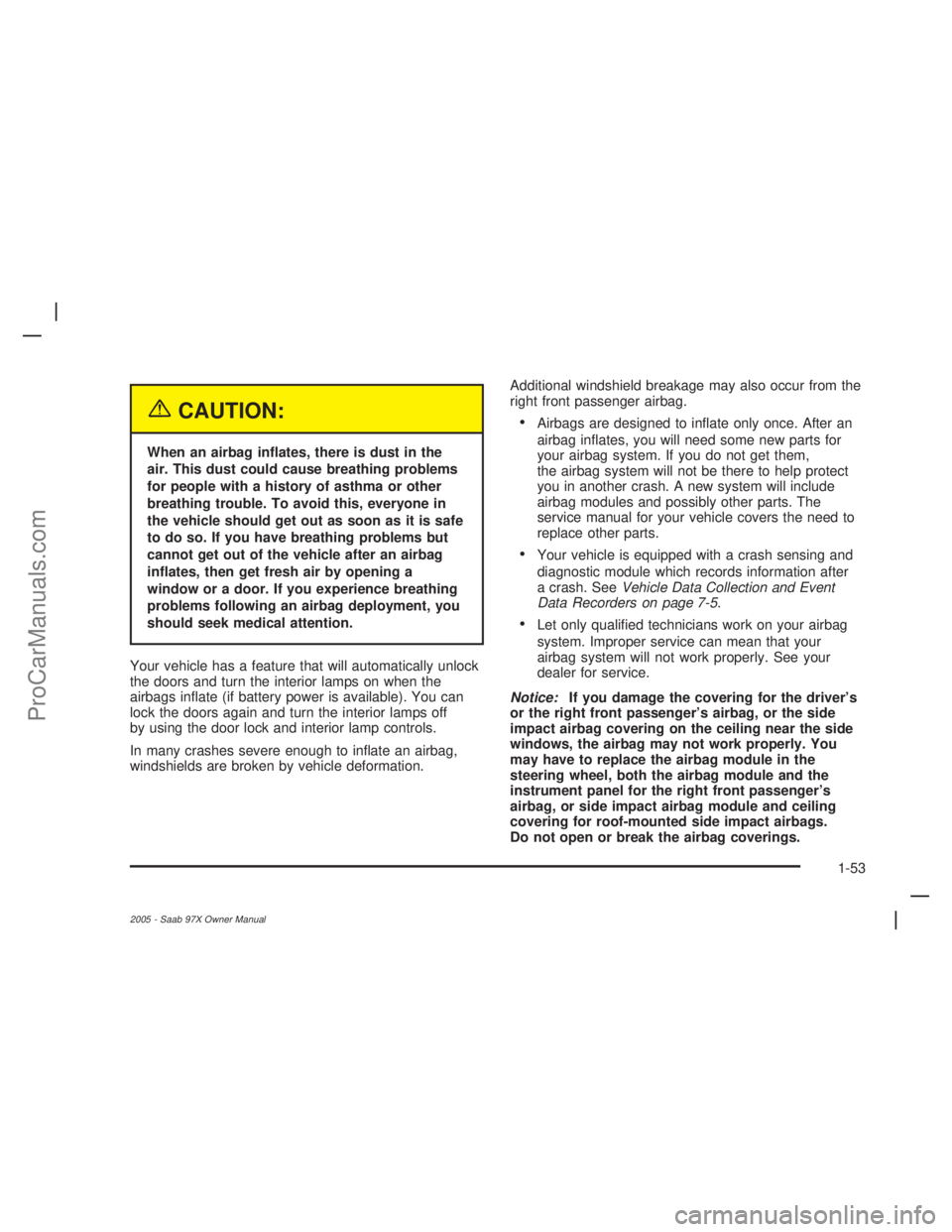

{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
cannot get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment, you
should seek medical attention.
Your vehicle has a feature that will automatically unlock
the doors and turn the interior lamps on when the
airbags in ate (if battery power is available). You can
lock the doors again and turn the interior lamps off
by using the door lock and interior lamp controls.
In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.Additional windshield breakage may also occur from the
right front passenger airbag.
Airbags are designed to in ate only once. After an
airbag in ates, you will need some new parts for
your airbag system. If you do not get them,
the airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need to
replace other parts.
Your vehicle is equipped with a crash sensing and
diagnostic module which records information after
a crash. SeeVehicle Data Collection and Event
Data Recorders on page 7-5.
Let only quali ed technicians work on your airbag
system. Improper service can mean that your
airbag system will not work properly. See your
dealer for service.
Notice:If you damage the covering for the driver’s
or the right front passenger’s airbag, or the side
impact airbag covering on the ceiling near the side
windows, the airbag may not work properly. You
may have to replace the airbag module in the
steering wheel, both the airbag module and the
instrument panel for the right front passenger’s
airbag, or side impact airbag module and ceiling
covering for roof-mounted side impact airbags.
Do not open or break the airbag coverings.
1-53
2005 - Saab 97X Owner Manual
ProCarManuals.com
Page 60 of 398
Passenger Sensing System
Your vehicle has a passenger sensing system for the
right front passenger’s position. A passenger airbag
status indicator in the rearview mirror will be visible
when you turn your ignition key to START or RUN.
The words ON and OFF or the symbol for on and off,
will be visible during the system check. When the
system check is complete, either the word ON or the
word OFF, or the symbol for on or the symbol for off will
be visible. SeePassenger Airbag Status Indicator on
page 3-30.The passenger sensing system will turn off the right
front passenger’s frontal airbag under certain conditions.
The driver’s airbag and the side airbags are not part
of the passenger sensing system.
The passenger sensing system works with sensors that
are part of the right front passenger’s seat and safety
belt. The sensors are designed to detect the presence
of a properly-seated occupant and determine if the
passenger’s frontal airbag should be enabled
(may in ate) or not.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat. Passenger Airbag Status Indicator – United States
Passenger Airbag Status Indicator – Canada
1-54
2005 - Saab 97X Owner Manual
ProCarManuals.com
