Follow this diagram to store the
underbody-mounted at or spare tire.
A. Wheel Wrench
B. Hoist Shaft
C. Extension
D. Retainer
E. Spare or Flat Tire
(Valve Stem
Pointed Up)
1. Put the tire (E) on the ground at the rear of
the vehicle.
2. Remove the wheel cap, if the vehicle has one,
from the at tire by tapping the backside of
the wheel cap with the wheel wrench (A).
Store in a safe location until the at tire
is repaired. Once the tire is repaired, replace
the wheel cap.3. Make sure the valve stem is pointed up and
to the rear. Then pull the retainer (D) through
the wheel opening.
4. Put the socket end of the extension (C)
through the hole just above the rear bumper at
a 45 degree downward angle. Connect the
socket end of the extension to the hoist
shaft (B).
5. Raise the tire fully against the underside of
the vehicle. Continue turning the wheel
wrench (A) clockwise until you hear two clicks
or feel it skip twice. This indicates that the
tire is secure and the cable is tight. The spare
tire hoist cannot be overtightened.
421
ProCarManuals.com

6. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire.
If the tire moves, use the wheel wrench and
socket end of the extension to tighten
the cable.
7. Return the equipment to the proper location
in the vehicle as shown next.A. Handle
B. Wheel Wrench
C. Instruction LabelD. Extension
E. Knob
F. Wheel Blocks and Jack
1. Attach the handle (A), wheel wrench (B) and
extension (D) in the slots provided.
2. Roll up the instruction label (C) and return to
the slot in the tool kit.
3. Assemble the wheel blocks (F) to the jack.
4. Turn the knob (E) on the jack clockwise
to raise the jack head.
5. Return the rear seat to its proper position.
422
ProCarManuals.com

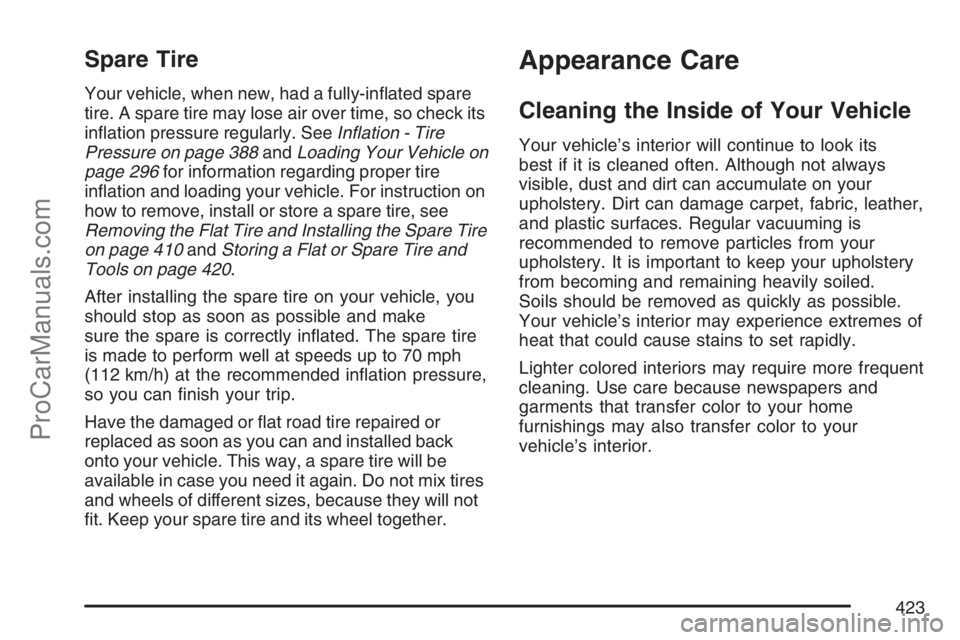

Spare Tire
Your vehicle, when new, had a fully-inated spare
tire. A spare tire may lose air over time, so check its
ination pressure regularly. SeeInation - Tire
Pressure on page 388andLoading Your Vehicle on
page 296for information regarding proper tire
ination and loading your vehicle. For instruction on
how to remove, install or store a spare tire, see
Removing the Flat Tire and Installing the Spare Tire
on page 410andStoring a Flat or Spare Tire and
Tools on page 420.
After installing the spare tire on your vehicle, you
should stop as soon as possible and make
sure the spare is correctly inated. The spare tire
is made to perform well at speeds up to 70 mph
(112 km/h) at the recommended ination pressure,
so you can nish your trip.
Have the damaged or at road tire repaired or
replaced as soon as you can and installed back
onto your vehicle. This way, a spare tire will be
available in case you need it again. Do not mix tires
and wheels of different sizes, because they will not
t. Keep your spare tire and its wheel together.
Appearance Care
Cleaning the Inside of Your Vehicle
Your vehicle’s interior will continue to look its
best if it is cleaned often. Although not always
visible, dust and dirt can accumulate on your
upholstery. Dirt can damage carpet, fabric, leather,
and plastic surfaces. Regular vacuuming is
recommended to remove particles from your
upholstery. It is important to keep your upholstery
from becoming and remaining heavily soiled.
Soils should be removed as quickly as possible.
Your vehicle’s interior may experience extremes of
heat that could cause stains to set rapidly.
Lighter colored interiors may require more frequent
cleaning. Use care because newspapers and
garments that transfer color to your home
furnishings may also transfer color to your
vehicle’s interior.
423
ProCarManuals.com

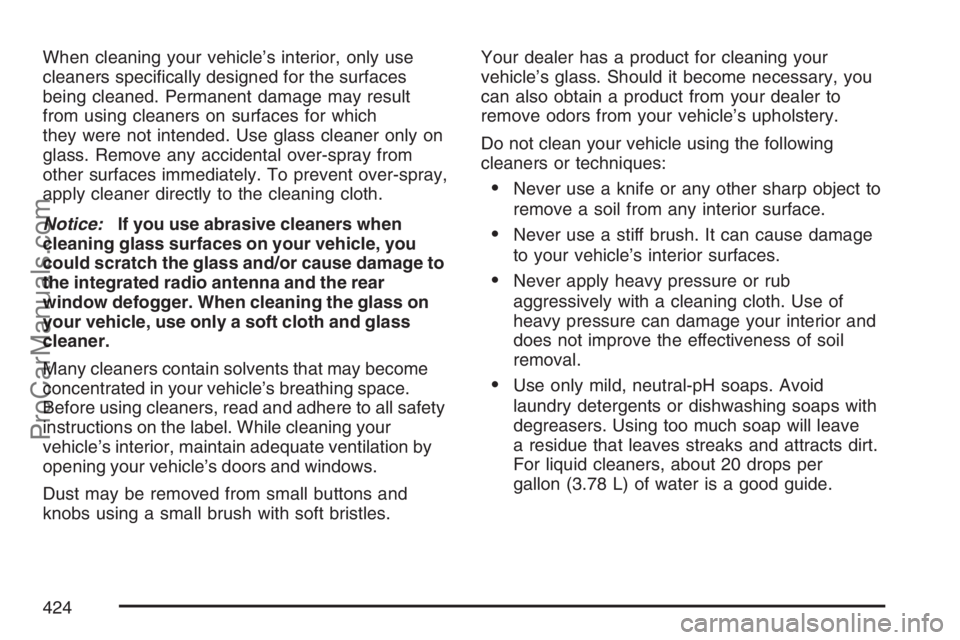

When cleaning your vehicle’s interior, only use
cleaners specically designed for the surfaces
being cleaned. Permanent damage may result
from using cleaners on surfaces for which
they were not intended. Use glass cleaner only on
glass. Remove any accidental over-spray from
other surfaces immediately. To prevent over-spray,
apply cleaner directly to the cleaning cloth.
Notice:If you use abrasive cleaners when
cleaning glass surfaces on your vehicle, you
could scratch the glass and/or cause damage to
the integrated radio antenna and the rear
window defogger. When cleaning the glass on
your vehicle, use only a soft cloth and glass
cleaner.
Many cleaners contain solvents that may become
concentrated in your vehicle’s breathing space.
Before using cleaners, read and adhere to all safety
instructions on the label. While cleaning your
vehicle’s interior, maintain adequate ventilation by
opening your vehicle’s doors and windows.
Dust may be removed from small buttons and
knobs using a small brush with soft bristles.Your dealer has a product for cleaning your
vehicle’s glass. Should it become necessary, you
can also obtain a product from your dealer to
remove odors from your vehicle’s upholstery.
Do not clean your vehicle using the following
cleaners or techniques:
Never use a knife or any other sharp object to
remove a soil from any interior surface.
Never use a stiff brush. It can cause damage
to your vehicle’s interior surfaces.
Never apply heavy pressure or rub
aggressively with a cleaning cloth. Use of
heavy pressure can damage your interior and
does not improve the effectiveness of soil
removal.
Use only mild, neutral-pH soaps. Avoid
laundry detergents or dishwashing soaps with
degreasers. Using too much soap will leave
a residue that leaves streaks and attracts dirt.
For liquid cleaners, about 20 drops per
gallon (3.78 L) of water is a good guide.
424
ProCarManuals.com

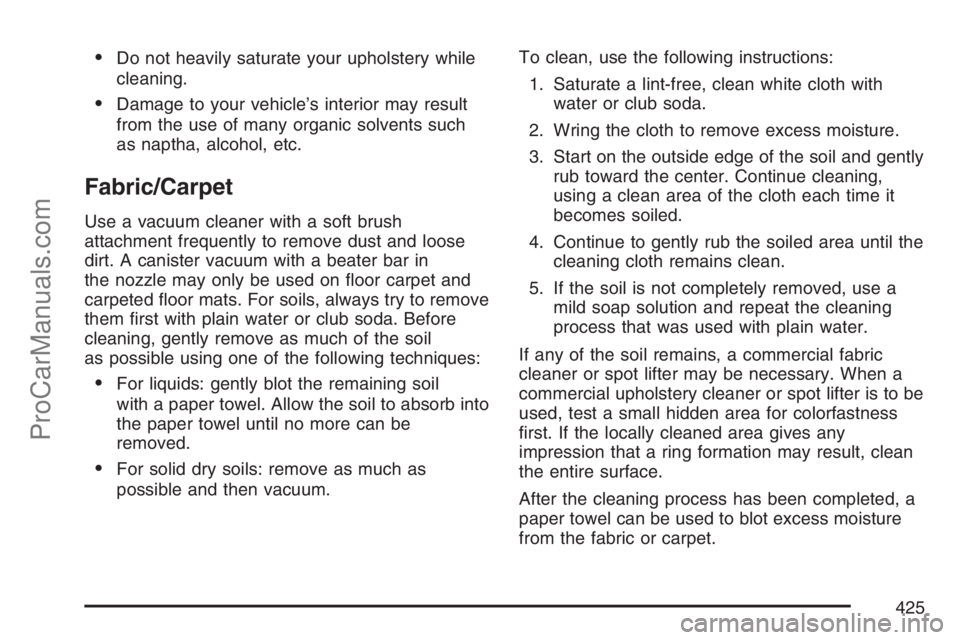

Do not heavily saturate your upholstery while
cleaning.
Damage to your vehicle’s interior may result
from the use of many organic solvents such
as naptha, alcohol, etc.
Fabric/Carpet
Use a vacuum cleaner with a soft brush
attachment frequently to remove dust and loose
dirt. A canister vacuum with a beater bar in
the nozzle may only be used on oor carpet and
carpeted oor mats. For soils, always try to remove
them rst with plain water or club soda. Before
cleaning, gently remove as much of the soil
as possible using one of the following techniques:
For liquids: gently blot the remaining soil
with a paper towel. Allow the soil to absorb into
the paper towel until no more can be
removed.
For solid dry soils: remove as much as
possible and then vacuum.To clean, use the following instructions:
1. Saturate a lint-free, clean white cloth with
water or club soda.
2. Wring the cloth to remove excess moisture.
3. Start on the outside edge of the soil and gently
rub toward the center. Continue cleaning,
using a clean area of the cloth each time it
becomes soiled.
4. Continue to gently rub the soiled area until the
cleaning cloth remains clean.
5. If the soil is not completely removed, use a
mild soap solution and repeat the cleaning
process that was used with plain water.
If any of the soil remains, a commercial fabric
cleaner or spot lifter may be necessary. When a
commercial upholstery cleaner or spot lifter is to be
used, test a small hidden area for colorfastness
rst. If the locally cleaned area gives any
impression that a ring formation may result, clean
the entire surface.
After the cleaning process has been completed, a
paper towel can be used to blot excess moisture
from the fabric or carpet.
425
ProCarManuals.com

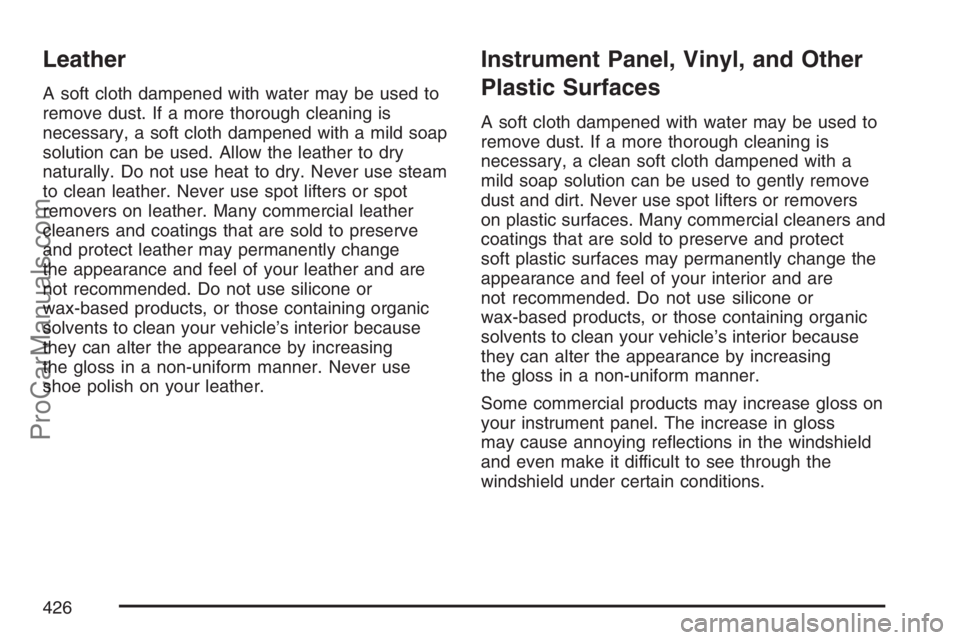

Leather
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a soft cloth dampened with a mild soap
solution can be used. Allow the leather to dry
naturally. Do not use heat to dry. Never use steam
to clean leather. Never use spot lifters or spot
removers on leather. Many commercial leather
cleaners and coatings that are sold to preserve
and protect leather may permanently change
the appearance and feel of your leather and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner. Never use
shoe polish on your leather.
Instrument Panel, Vinyl, and Other
Plastic Surfaces
A soft cloth dampened with water may be used to
remove dust. If a more thorough cleaning is
necessary, a clean soft cloth dampened with a
mild soap solution can be used to gently remove
dust and dirt. Never use spot lifters or removers
on plastic surfaces. Many commercial cleaners and
coatings that are sold to preserve and protect
soft plastic surfaces may permanently change the
appearance and feel of your interior and are
not recommended. Do not use silicone or
wax-based products, or those containing organic
solvents to clean your vehicle’s interior because
they can alter the appearance by increasing
the gloss in a non-uniform manner.
Some commercial products may increase gloss on
your instrument panel. The increase in gloss
may cause annoying reections in the windshield
and even make it difficult to see through the
windshield under certain conditions.
426
ProCarManuals.com

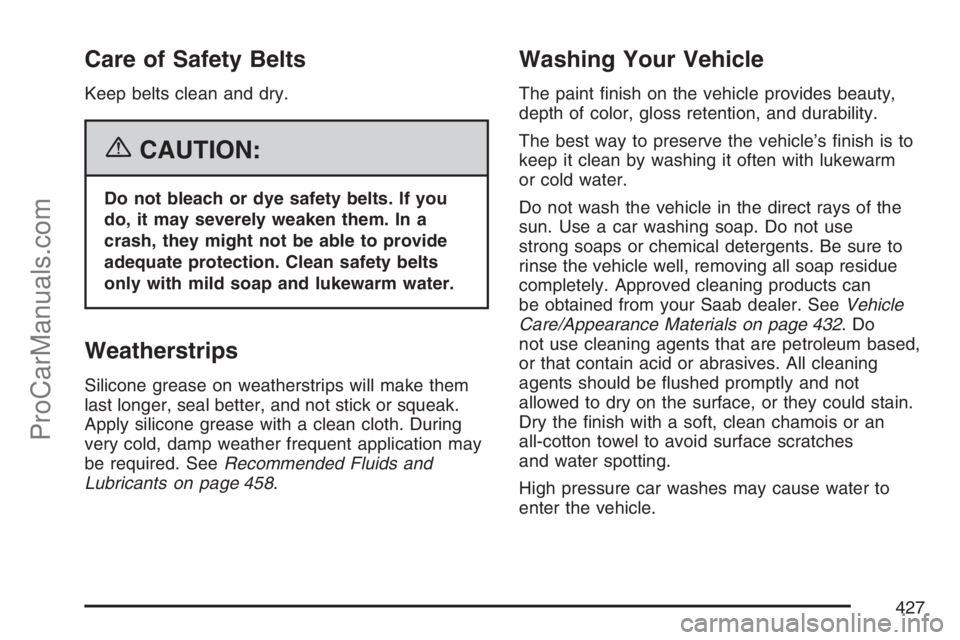

Care of Safety Belts
Keep belts clean and dry.
{CAUTION:
Do not bleach or dye safety belts. If you
do, it may severely weaken them. In a
crash, they might not be able to provide
adequate protection. Clean safety belts
only with mild soap and lukewarm water.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth. During
very cold, damp weather frequent application may
be required. SeeRecommended Fluids and
Lubricants on page 458.
Washing Your Vehicle
The paint nish on the vehicle provides beauty,
depth of color, gloss retention, and durability.
The best way to preserve the vehicle’s nish is to
keep it clean by washing it often with lukewarm
or cold water.
Do not wash the vehicle in the direct rays of the
sun. Use a car washing soap. Do not use
strong soaps or chemical detergents. Be sure to
rinse the vehicle well, removing all soap residue
completely. Approved cleaning products can
be obtained from your Saab dealer. SeeVehicle
Care/Appearance Materials on page 432.Do
not use cleaning agents that are petroleum based,
or that contain acid or abrasives. All cleaning
agents should be ushed promptly and not
allowed to dry on the surface, or they could stain.
Dry the nish with a soft, clean chamois or an
all-cotton towel to avoid surface scratches
and water spotting.
High pressure car washes may cause water to
enter the vehicle.
427
ProCarManuals.com

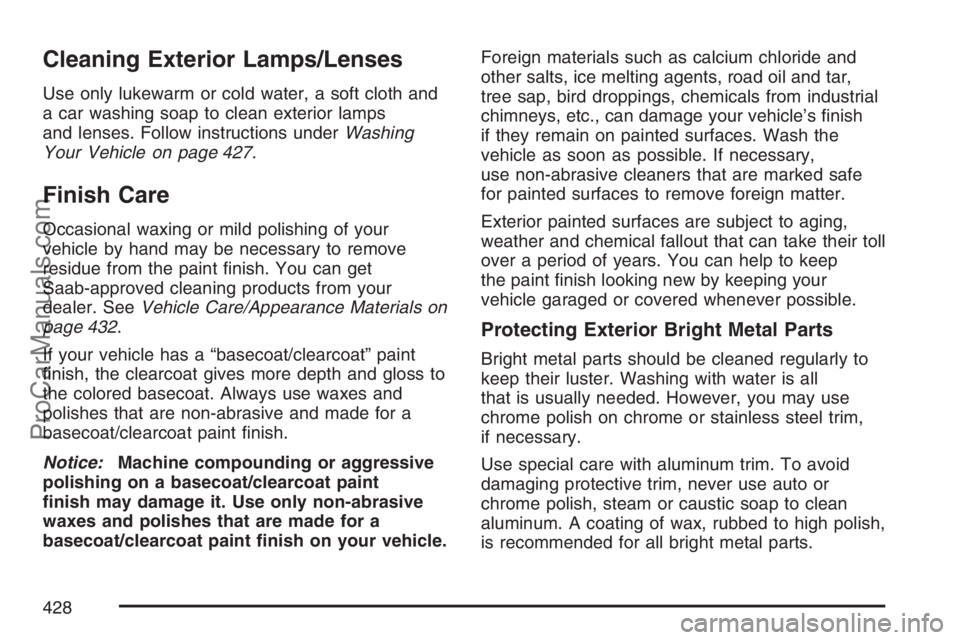

Cleaning Exterior Lamps/Lenses
Use only lukewarm or cold water, a soft cloth and
a car washing soap to clean exterior lamps
and lenses. Follow instructions underWashing
Your Vehicle on page 427.
Finish Care
Occasional waxing or mild polishing of your
vehicle by hand may be necessary to remove
residue from the paint nish. You can get
Saab-approved cleaning products from your
dealer. SeeVehicle Care/Appearance Materials on
page 432.
If your vehicle has a “basecoat/clearcoat” paint
nish, the clearcoat gives more depth and gloss to
the colored basecoat. Always use waxes and
polishes that are non-abrasive and made for a
basecoat/clearcoat paint nish.
Notice:Machine compounding or aggressive
polishing on a basecoat/clearcoat paint
nish may damage it. Use only non-abrasive
waxes and polishes that are made for a
basecoat/clearcoat paint nish on your vehicle.Foreign materials such as calcium chloride and
other salts, ice melting agents, road oil and tar,
tree sap, bird droppings, chemicals from industrial
chimneys, etc., can damage your vehicle’s nish
if they remain on painted surfaces. Wash the
vehicle as soon as possible. If necessary,
use non-abrasive cleaners that are marked safe
for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging,
weather and chemical fallout that can take their toll
over a period of years. You can help to keep
the paint nish looking new by keeping your
vehicle garaged or covered whenever possible.
Protecting Exterior Bright Metal Parts
Bright metal parts should be cleaned regularly to
keep their luster. Washing with water is all
that is usually needed. However, you may use
chrome polish on chrome or stainless steel trim,
if necessary.
Use special care with aluminum trim. To avoid
damaging protective trim, never use auto or
chrome polish, steam or caustic soap to clean
aluminum. A coating of wax, rubbed to high polish,
is recommended for all bright metal parts.
428
ProCarManuals.com

Windshield, Backglass, and
Wiper Blades
If the windshield is not clear after using the
windshield washer, or if the wiper blade chatters
when running, wax, sap or other material may
be on the blade or windshield.
Clean the outside of the windshield with a
full-strength glass cleaning liquid. The windshield
is clean if beads do not form when you rinse it
with water.
Grime from the windshield will stick to the wiper
blades and affect their performance. Clean the
blade by wiping vigorously with a cloth soaked
in full-strength windshield washer solvent.
Then rinse the blade with water.
Check the wiper blades and clean them as
necessary; replace blades that look worn.
Aluminum Wheels
Notice:If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or
cleaners that contain acid on aluminum or
chrome-plated wheels, you could damage the
surface of the wheel(s). The repairs would
not be covered by your warranty. Use only
Saab-approved cleaners on aluminum or
chrome-plated wheels.
Keep the wheels clean using a soft clean cloth
with mild soap and water. Rinse with clean water.
After rinsing thoroughly, dry with a soft clean
towel. A wax may then be applied.
Notice:Using chrome polish on aluminum
wheels could damage the wheels. The repairs
would not be covered by your warranty.
Use chrome polish on chrome wheels only.
The surface of these wheels is similar to the
painted surface of the vehicle. Do not use strong
soaps, chemicals, abrasive polishes, abrasive
cleaners, cleaners with acid, or abrasive cleaning
brushes on them because the surface could
be damaged. Do not use chrome polish on
aluminum wheels.
429
ProCarManuals.com

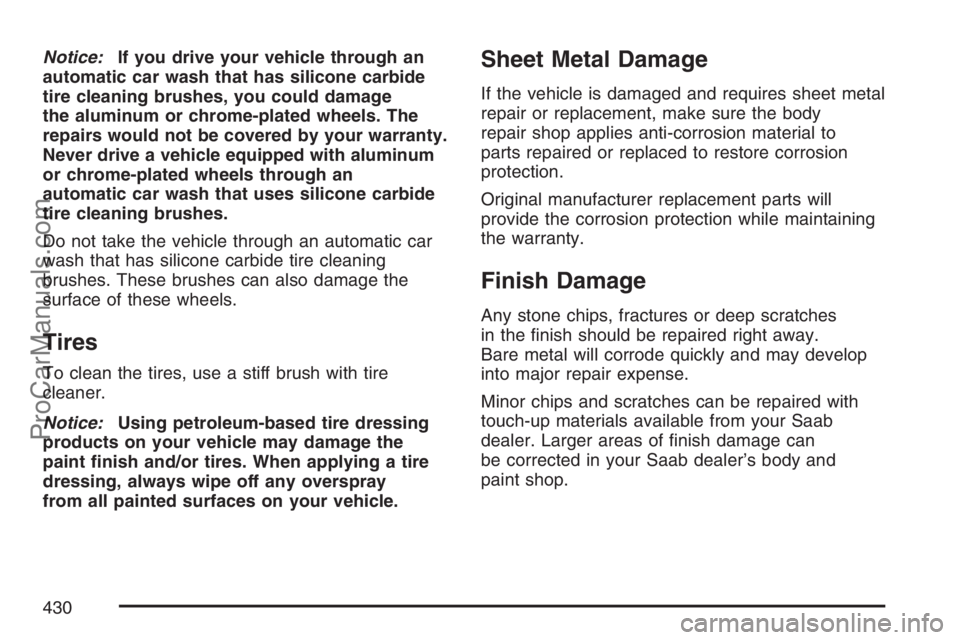

Notice:If you drive your vehicle through an
automatic car wash that has silicone carbide
tire cleaning brushes, you could damage
the aluminum or chrome-plated wheels. The
repairs would not be covered by your warranty.
Never drive a vehicle equipped with aluminum
or chrome-plated wheels through an
automatic car wash that uses silicone carbide
tire cleaning brushes.
Do not take the vehicle through an automatic car
wash that has silicone carbide tire cleaning
brushes. These brushes can also damage the
surface of these wheels.
Tires
To clean the tires, use a stiff brush with tire
cleaner.
Notice:Using petroleum-based tire dressing
products on your vehicle may damage the
paint nish and/or tires. When applying a tire
dressing, always wipe off any overspray
from all painted surfaces on your vehicle.
Sheet Metal Damage
If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body
repair shop applies anti-corrosion material to
parts repaired or replaced to restore corrosion
protection.
Original manufacturer replacement parts will
provide the corrosion protection while maintaining
the warranty.
Finish Damage
Any stone chips, fractures or deep scratches
in the nish should be repaired right away.
Bare metal will corrode quickly and may develop
into major repair expense.
Minor chips and scratches can be repaired with
touch-up materials available from your Saab
dealer. Larger areas of nish damage can
be corrected in your Saab dealer’s body and
paint shop.
430
ProCarManuals.com
