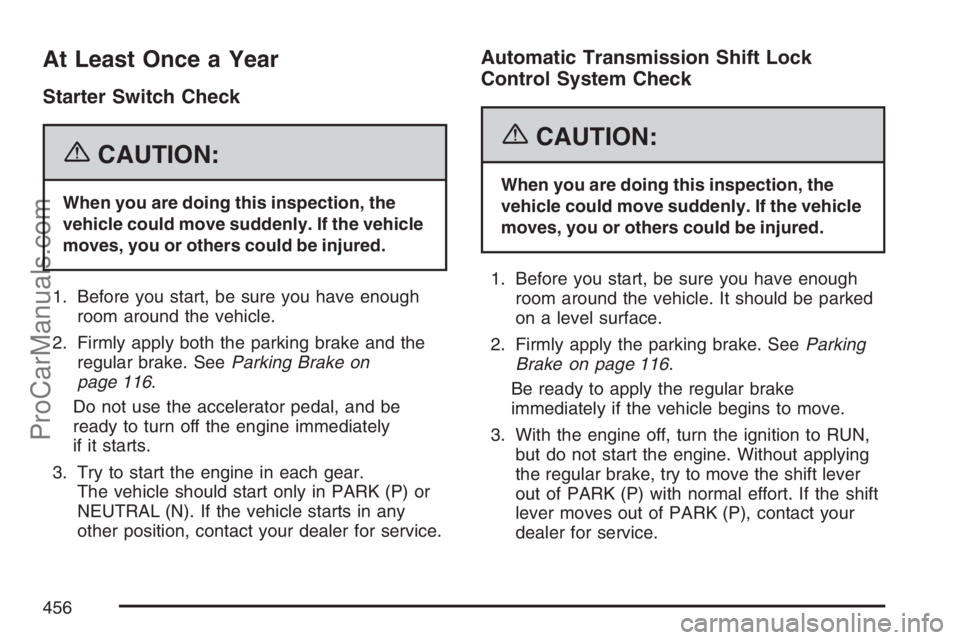

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 116.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately
if it starts.
3. Try to start the engine in each gear.
The vehicle should start only in PARK (P) or
NEUTRAL (N). If the vehicle starts in any
other position, contact your dealer for service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 116.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to RUN,
but do not start the engine. Without applying
the regular brake, try to move the shift lever
out of PARK (P) with normal effort. If the shift
lever moves out of PARK (P), contact your
dealer for service.
456
ProCarManuals.com

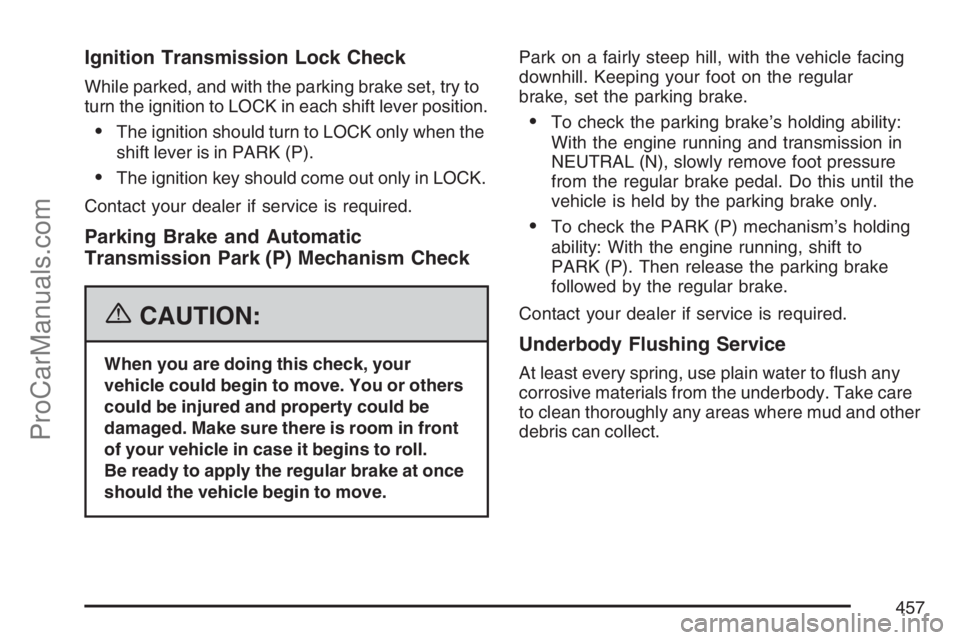

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to
turn the ignition to LOCK in each shift lever position.
The ignition should turn to LOCK only when the
shift lever is in PARK (P).
The ignition key should come out only in LOCK.
Contact your dealer if service is required.
Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or others
could be injured and property could be
damaged. Make sure there is room in front
of your vehicle in case it begins to roll.
Be ready to apply the regular brake at once
should the vehicle begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your dealer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care
to clean thoroughly any areas where mud and other
debris can collect.
457
ProCarManuals.com

Bulb Replacement (cont.)
Replacement Bulbs.................................. 376
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps........... 374
Buying New Tires........................................ 398
C
Calibration..........................................121, 123
California Fuel............................................. 324
California Proposition 65 Warning................ 322
Canadian Owners........................................... 3
Capacities and Specications...................... 445
Carbon Monoxide............... 98,119, 291, 305
Care of
Safety Belts............................................. 427
Your CD and DVD Player........................ 261
Your CDs and DVDs................................ 261
Cargo Cover............................................... 142
Cargo Tie Downs........................................ 143
CD, MP3 ..................................................... 233
Center Console Storage Area...................... 140
Chains, Tire................................................. 404
Charging System Light................................ 182Check
Engine Light............................................ 187
Gages Warning Light............................... 192
Check Gas Cap Light.................................. 194
Checking Things Under the Hood ................ 329
Chemical Paint Spotting .............................. 431
Child Restraints
Child Restraint Systems............................. 44
Infants and Young Children........................ 40
Lower Anchors and Tethers for
Children.................................................. 50
Older Children........................................... 38
Securing a Child Restraint in a
Rear Outside Seat Position.................... 57
Securing a Child Restraint in the
Center Rear Seat Position...................... 59
Securing a Child Restraint in the
Right Front Seat Position........................ 60
Where to Put the Restraint........................ 48
Cleaning
Aluminum Wheels.................................... 429
Exterior Lamps/Lenses............................. 428
Fabric/Carpet........................................... 425
Finish Care.............................................. 428
485
ProCarManuals.com

Door
Delayed Locking........................................ 94
Locks......................................................... 92
Power Door Locks..................................... 93
Programmable Automatic Door Locks......... 94
Rear Door Security Locks.......................... 97
Driver
Position, Safety Belt................................... 24
Driver Information Center (DIC)................... 194
DIC Operation and Displays..................... 195
DIC Vehicle Customization....................... 205
DIC Warnings and Messages................... 199
Driving
At Night................................................... 281
City.......................................................... 285
Defensive................................................. 264
Drunken................................................... 265
Freeway................................................... 286
Hill and Mountain Roads.......................... 288
In Rain and on Wet Roads...................... 282
Off-Road.................................................. 281
Rocking Your Vehicle to Get it Out.......... 296
Winter...................................................... 291
Dual Automatic Climate Control System....... 167
DVD
Rear Seat Entertainment System............. 243E
Electric Power Management........................ 164
Electrical System
Add-On Equipment................................... 434
Engine Compartment Fuse Block............. 435
Fuses and Circuit Breakers...................... 435
Headlamps............................................... 434
Power Windows and Other
Power Options...................................... 435
Rear Underseat Fuse Block..................... 442
Windshield Wiper Fuses........................... 434
Electronically Controlled Air Suspension
System.................................................... 303
Engine
Air Cleaner/Filter...................................... 339
Battery..................................................... 361
Check and Service Engine Soon Light..... 187
Coolant.................................................... 344
Coolant Heater......................................... 110
Coolant Temperature Gage...................... 186
Drive Belt Routing.................................... 461
Engine Compartment Overview ................ 330
Exhaust................................................... 119
Fan Noise................................................ 355
Oil ........................................................... 334
487
ProCarManuals.com

Engine (cont.)
Oil Life System........................................ 337
Overheating............................................. 347
Reduced Power Light............................... 191
Starting.................................................... 108
Entry Lighting.............................................. 164
Event Data Recorders (EDR)...................... 473
Exit Lighting................................................ 164
Extender, Safety Belt..................................... 37
F
Filter
Engine Air Cleaner................................... 339
Finish Damage............................................ 430
Fixed Mast Antenna.................................... 261
Flashers, Hazard Warning........................... 150
Flash-to-Pass.............................................. 153
Flat Tire...................................................... 406
Flat Tire, Changing...................................... 406
Flat Tire, Storing......................................... 420Fluid
Automatic Transmission............................ 341
Power Steering........................................ 356
Windshield Washer.................................. 357
Fog Lamps.................................................. 162
Front Axle................................................... 370
Fuel............................................................ 324
Additives.................................................. 325
California Fuel.......................................... 324
Check Gas Cap Light.............................. 194
Filling a Portable Fuel Container.............. 328
Filling Your Tank...................................... 326
Fuels in Foreign Countries....................... 326
Gage....................................................... 193
Gasoline Octane...................................... 324
Gasoline Specications............................ 324
Low Warning Light................................... 194
Fuses
Engine Compartment Fuse Block............. 435
Fuses and Circuit Breakers...................... 435
Rear Underseat Fuse Block..................... 442
Windshield Wiper..................................... 434
488
ProCarManuals.com

G
Gage
Check Gages Warning Light..................... 192
Engine Coolant Temperature.................... 186
Fuel......................................................... 193
Oil Pressure............................................. 190
Speedometer........................................... 176
Tachometer.............................................. 176
Voltmeter Gage........................................ 182
Garage Door Opener..........................128, 129
Gasoline
Octane..................................................... 324
Specications........................................... 324
Gate Ajar Light............................................ 193
Glove Box................................................... 139
H
Hazard Warning Flashers............................ 150
Head Restraints............................................ 15
Headlamp
Aiming..................................................... 371
Headlamps.........................................160, 372
Automatic Headlamp System.................... 161
Bulb Replacement.................................... 371Headlamps (cont.)
Daytime Running Lamps.......................... 161
Electrical System..................................... 434
Flash-to-Pass........................................... 153
Front Turn Signal, Sidemarker and
Parking Lamps..................................... 374
Halogen Bulbs......................................... 372
High Intensity Discharge (HID) Lighting...... 371
High/Low Beam Changer......................... 153
On Reminder........................................... 160
Washer.................................................... 156
Heated Seats................................................ 10
Heater......................................................... 167
Highbeam On Light..................................... 192
High-Speed Operation, Tires........................ 390
Highway Hypnosis....................................... 288
Hill and Mountain Roads............................. 288
Hood
Checking Things Under............................ 329
Release................................................... 329
Horn............................................................ 150
How to Use This Manual ................................ 4
How to Wear Safety Belts Properly............... 23
489
ProCarManuals.com

Light (cont.)
Low Fuel Warning.................................... 194
Malfunction Indicator................................ 187
Passenger Airbag Status Indicator............ 179
Passenger Safety Belt Reminder.............. 177
Reduced Engine Power............................ 191
Safety Belt Reminder............................... 177
Security................................................... 191
Service All-Wheel-Drive............................ 192
StabiliTrak
®Indicator................................ 185
StabiliTrak®Service.................................. 185
Tire Pressure........................................... 186
Lighting
Entry........................................................ 164
Exit.......................................................... 164
Limited-Slip Rear Axle................................. 271
Loading Your Vehicle................................... 296
Lockout Protection......................................... 97
Locks
Delayed Locking........................................ 94
Door.......................................................... 92
Lockout Protection..................................... 97
Power Door............................................... 93
Programmable Automatic Door Locks......... 94
Rear Door Security Locks.......................... 97Loss of Control........................................... 280
Low Fuel Warning Light............................... 194
Luggage Carrier.......................................... 141
Lumbar
Power Controls............................................ 9
M
Maintenance Schedule
Additional Required Services.................... 452
At Each Fuel Fill...................................... 455
At Least Once a Month............................ 455
At Least Once a Year .............................. 456
Introduction.............................................. 448
Maintenance Footnotes............................ 453
Maintenance Record................................ 462
Maintenance Requirements...................... 448
Normal Maintenance
Replacement Parts............................... 460
Owner Checks and Services.................... 455
Recommended Fluids and Lubricants....... 458
Scheduled Maintenance........................... 450
Using....................................................... 448
Your Vehicle and the Environment............ 448
Malfunction Indicator Light........................... 187
491
ProCarManuals.com

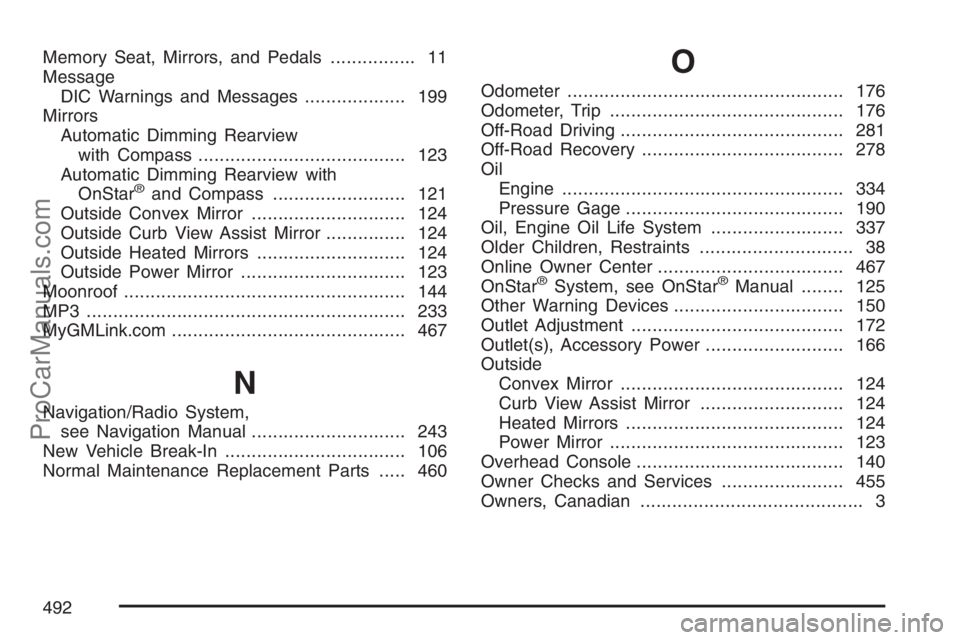

Memory Seat, Mirrors, and Pedals................ 11
Message
DIC Warnings and Messages................... 199
Mirrors
Automatic Dimming Rearview
with Compass....................................... 123
Automatic Dimming Rearview with
OnStar
®and Compass......................... 121
Outside Convex Mirror............................. 124
Outside Curb View Assist Mirror............... 124
Outside Heated Mirrors............................ 124
Outside Power Mirror............................... 123
Moonroof..................................................... 144
MP3 ............................................................ 233
MyGMLink.com............................................ 467
N
Navigation/Radio System,
see Navigation Manual............................. 243
New Vehicle Break-In.................................. 106
Normal Maintenance Replacement Parts..... 460
O
Odometer.................................................... 176
Odometer, Trip............................................ 176
Off-Road Driving.......................................... 281
Off-Road Recovery...................................... 278
Oil
Engine..................................................... 334
Pressure Gage......................................... 190
Oil, Engine Oil Life System ......................... 337
Older Children, Restraints............................. 38
Online Owner Center................................... 467
OnStar
®System, see OnStar®Manual........ 125
Other Warning Devices................................ 150
Outlet Adjustment........................................ 172
Outlet(s), Accessory Power.......................... 166
Outside
Convex Mirror.......................................... 124
Curb View Assist Mirror........................... 124
Heated Mirrors......................................... 124
Power Mirror............................................ 123
Overhead Console....................................... 140
Owner Checks and Services....................... 455
Owners, Canadian.......................................... 3
492
ProCarManuals.com

Reading Lamps........................................... 164
Rear Axle.................................................... 369
Limited-Slip.............................................. 271
Rear Climate Control System...................... 173
Rear Door Security Locks............................. 97
Rear Floor Storage Lid................................ 142
Rear Safety Belt Comfort Guides.................. 35
Rear Seat Audio (RSA)............................... 257
Rear Seat Entertainment System................. 243
Rear Seat Operation..................................... 16
Rear Seat Passengers, Safety Belts.............. 32
Rear Windshield Washer/Wiper.................... 155
Rearview Mirror, Automatic Dimming
with Compass.......................................... 123
Rearview Mirror, Automatic Dimming
with OnStar
®and Compass..................... 121
Reclining Seatbacks, Power.......................... 13
Recommended Fluids and Lubricants.......... 458
Recreational Vehicle Towing........................ 302
Reduced Engine Power Light...................... 191
Remote Keyless Entry (RKE) System............ 89
Remote Keyless Entry (RKE) System,
Operation................................................... 90Removing the Flat Tire and Installing
the Spare Tire.......................................... 410
Removing the Spare Tire and Tools............ 408
Replacement Bulbs..................................... 376
Replacement, Windshield............................. 377
Reporting Safety Defects
Canadian Government............................. 479
Saab........................................................ 480
United States Government....................... 479
Restraint System Check
Checking the Restraint Systems................. 82
Replacing Restraint System Parts
After a Crash......................................... 83
Retained Accessory Power (RAP)................ 108
Right Front Passenger Position,
Safety Belts............................................... 32
Roadside
Assistance Program................................. 469
Rocking Your Vehicle to Get it Out.............. 296
Routing, Engine Drive Belt.......................... 461
Running the Engine While Parked............... 120
494
ProCarManuals.com
