Page 67 of 498
There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness Light
on page 178for more information.Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
67
ProCarManuals.com
Page 69 of 498

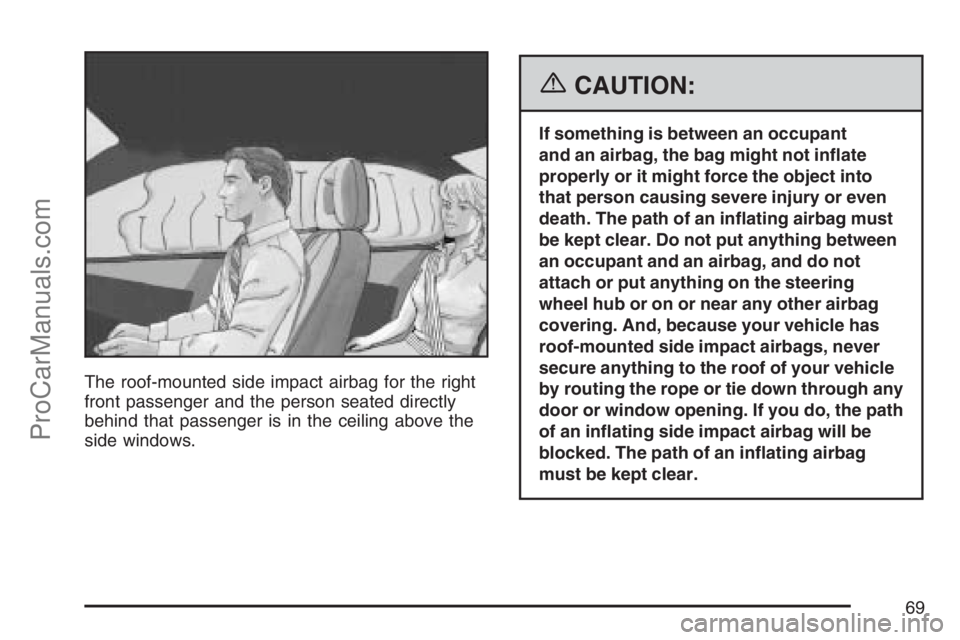

The roof-mounted side impact airbag for the right
front passenger and the person seated directly
behind that passenger is in the ceiling above the
side windows.
{CAUTION:
If something is between an occupant
and an airbag, the bag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag must
be kept clear. Do not put anything between
an occupant and an airbag, and do not
attach or put anything on the steering
wheel hub or on or near any other airbag
covering. And, because your vehicle has
roof-mounted side impact airbags, never
secure anything to the roof of your vehicle
by routing the rope or tie down through any
door or window opening. If you do, the path
of an in ating side impact airbag will be
blocked. The path of an in ating airbag
must be kept clear.
69
ProCarManuals.com
Page 72 of 498

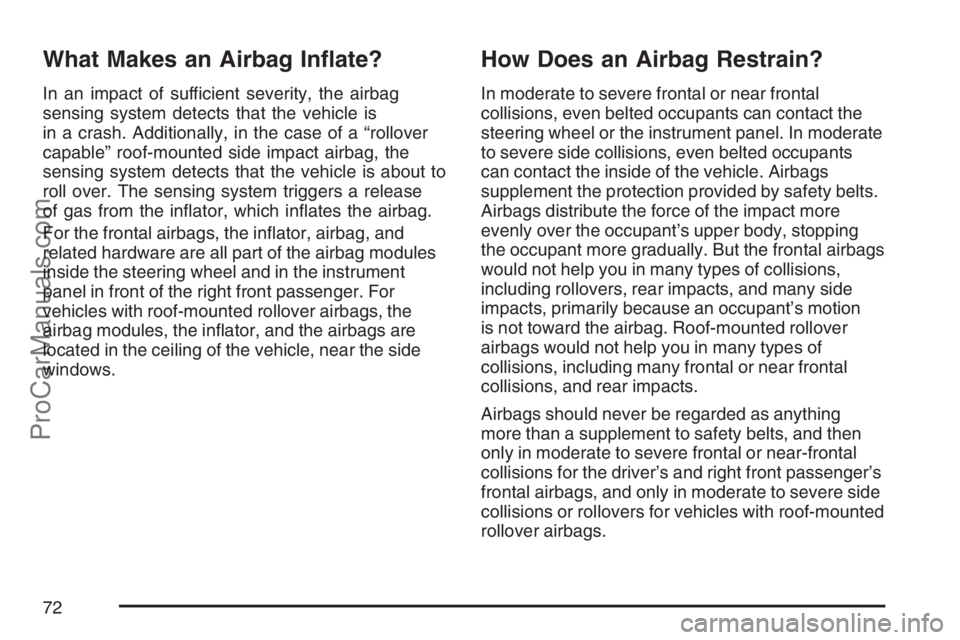

What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. Additionally, in the case of a “rollover
capable” roof-mounted side impact airbag, the
sensing system detects that the vehicle is about to
roll over. The sensing system triggers a release
of gas from the in ator, which in ates the airbag.
For the frontal airbags, the in ator, airbag, and
related hardware are all part of the airbag modules
inside the steering wheel and in the instrument
panel in front of the right front passenger. For
vehicles with roof-mounted rollover airbags, the
airbag modules, the in ator, and the airbags are
located in the ceiling of the vehicle, near the side
windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In moderate
to severe side collisions, even belted occupants
can contact the inside of the vehicle. Airbags
supplement the protection provided by safety belts.
Airbags distribute the force of the impact more
evenly over the occupant’s upper body, stopping
the occupant more gradually. But the frontal airbags
would not help you in many types of collisions,
including rollovers, rear impacts, and many side
impacts, primarily because an occupant’s motion
is not toward the airbag. Roof-mounted rollover
airbags would not help you in many types of
collisions, including many frontal or near frontal
collisions, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe side
collisions or rollovers for vehicles with roof-mounted
rollover airbags.
72
ProCarManuals.com
Page 73 of 498

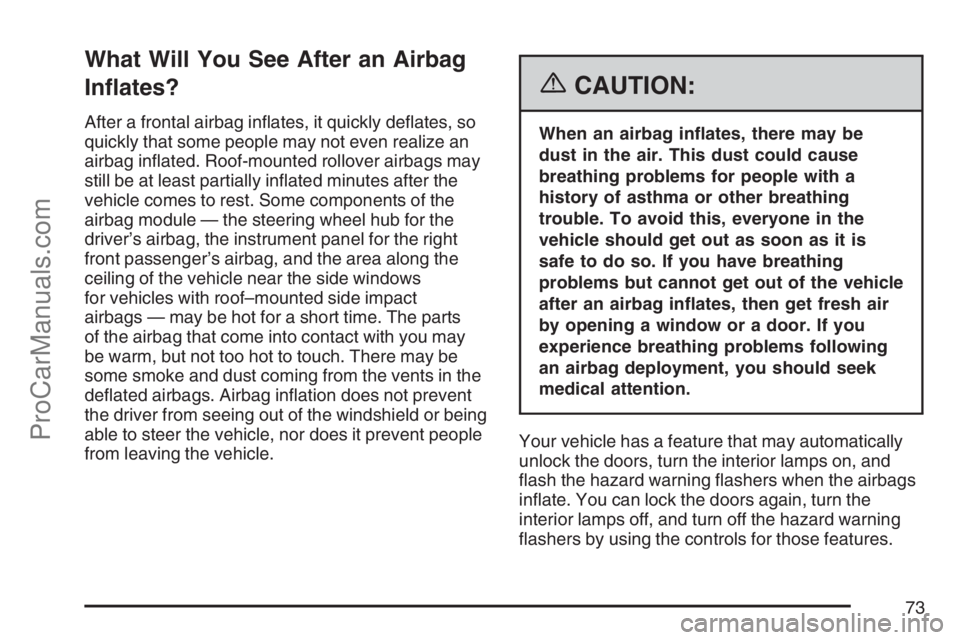

What Will You See After an Airbag
In ates?
After a frontal airbag in ates, it quickly de ates, so
quickly that some people may not even realize an
airbag in ated. Roof-mounted rollover airbags may
still be at least partially in ated minutes after the
vehicle comes to rest. Some components of the
airbag module — the steering wheel hub for the
driver’s airbag, the instrument panel for the right
front passenger’s airbag, and the area along the
ceiling of the vehicle near the side windows
for vehicles with roof–mounted side impact
airbags — may be hot for a short time. The parts
of the airbag that come into contact with you may
be warm, but not too hot to touch. There may be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent
the driver from seeing out of the windshield or being
able to steer the vehicle, nor does it prevent people
from leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and
ash the hazard warning ashers when the airbags
in ate. You can lock the doors again, turn the
interior lamps off, and turn off the hazard warning
ashers by using the controls for those features.
73
ProCarManuals.com
Page 82 of 498

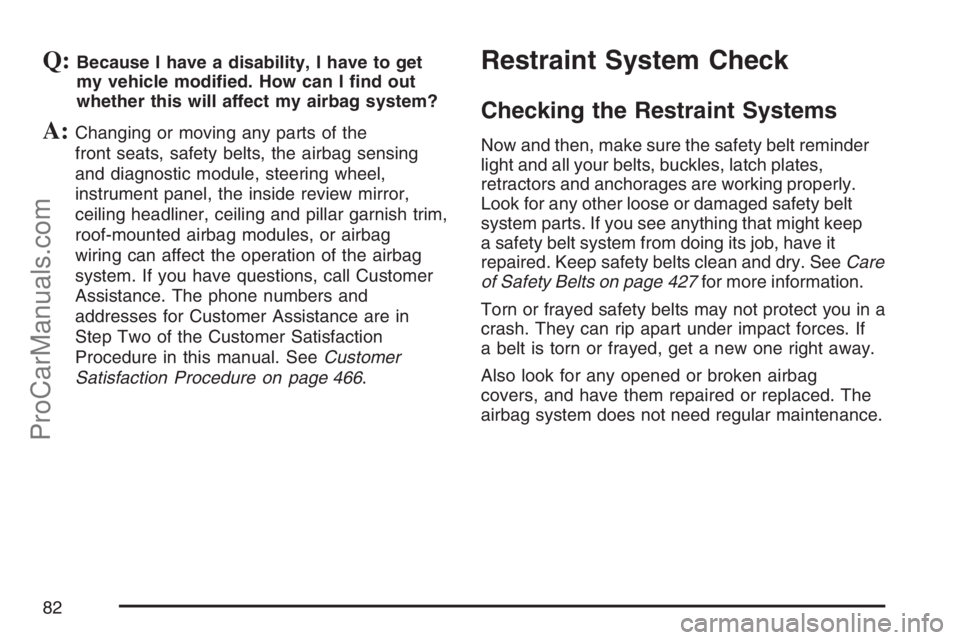

Q:Because I have a disability, I have to get
my vehicle modi ed. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, the inside review mirror,
ceiling headliner, ceiling and pillar garnish trim,
roof-mounted airbag modules, or airbag
wiring can affect the operation of the airbag
system. If you have questions, call Customer
Assistance. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 466.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety belt
system parts. If you see anything that might keep
a safety belt system from doing its job, have it
repaired. Keep safety belts clean and dry. SeeCare
of Safety Belts on page 427for more information.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If
a belt is torn or frayed, get a new one right away.
Also look for any opened or broken airbag
covers, and have them repaired or replaced. The
airbag system does not need regular maintenance.
82
ProCarManuals.com
Page 83 of 498

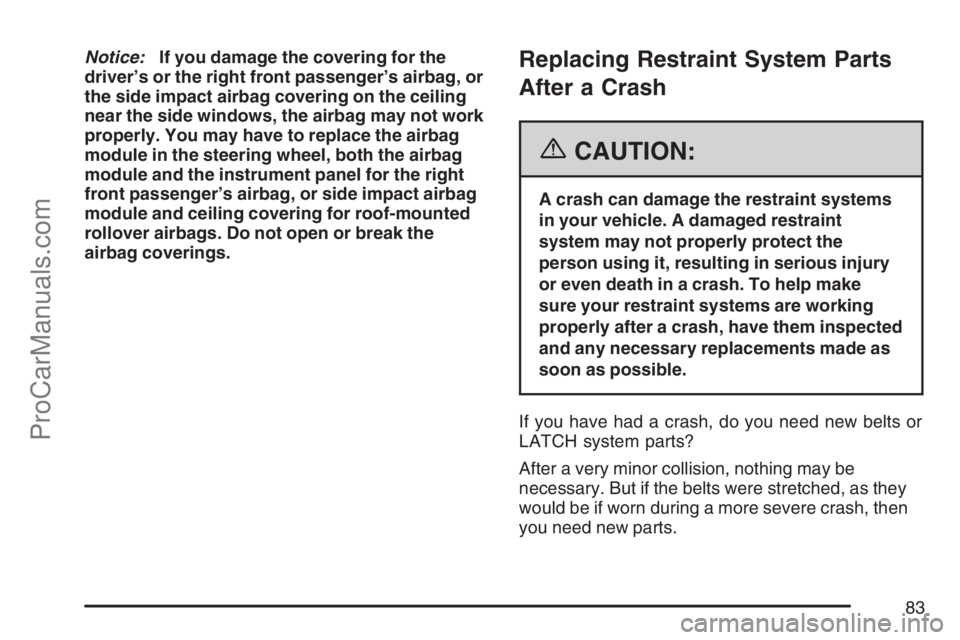

Notice:If you damage the covering for the
driver’s or the right front passenger’s airbag, or
the side impact airbag covering on the ceiling
near the side windows, the airbag may not work
properly. You may have to replace the airbag
module in the steering wheel, both the airbag
module and the instrument panel for the right
front passenger’s airbag, or side impact airbag
module and ceiling covering for roof-mounted
rollover airbags. Do not open or break the
airbag coverings.Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash, then
you need new parts.
83
ProCarManuals.com
Page 107 of 498
Ignition Positions
Use the key to turn
the ignition switch to
four different positions.
The ignition switch
is located on the
center console.
9(LOCK):This position locks the ignition and
transmission. It is a theft-deterrent feature. You will
only be able to remove the key when the ignition
is turned to LOCK and the vehicle has power.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break
the key. Use the correct key and turn the key
only with your hand. Make sure the key is all the
way in. If it is, turn the steering wheel left and
right while you turn the key hard. If none of this
works, then your vehicle needs service.ACC (Accessory):This position lets you use
things like the radio and the windshield wipers
when the engine is off.
Lengthy operation of features such as the radio in
the accessory ignition position may drain the
battery and prevent your vehicle from starting. Do
not operate your vehicle in the accessory
ignition position for a long period of time.
R(RUN):This is the position for driving.
The battery could be drained if you leave the key
in the ACC or RUN position with the engine
off. You may not be able to start your vehicle if
the battery is allowed to drain for an extended
period of time.
/(START):This position starts the engine.
107
ProCarManuals.com
Page 110 of 498
Adjustable Throttle and Brake Pedal
If your vehicle has this feature, you can change the
position of the throttle and brake pedals. This
feature is designed for shorter drivers, since the
pedals cannot move farther away from the standard
position, but can move closer for better pedal reach.
If your vehicle has this feature, it can be
programmed to work with the memory function. See
Memory Seat, Mirrors, and Pedals on page 11.
The vehicle must be in PARK (P) for this feature
to operate.
The switch used
to adjust the pedals
is located on the
steering column.
Press the switch forward or backward to move the
pedals closer or farther away from you.
Engine Coolant Heater
Your vehicle may have an engine coolant heater.
In very cold weather, 0°F (−18°C) or colder,
the engine coolant heater can help. You will get
easier starting and better fuel economy during
engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your
vehicle. At temperatures above 32°F (0°C), use of
the coolant heater is not required. Your vehicle
may also have an internal thermostat in the
plug end of the cord. This will prevent operation of
the engine coolant heater when the temperature
is at or above 0°F (−18°C) as noted on the cord.
110
ProCarManuals.com
Page 127 of 498

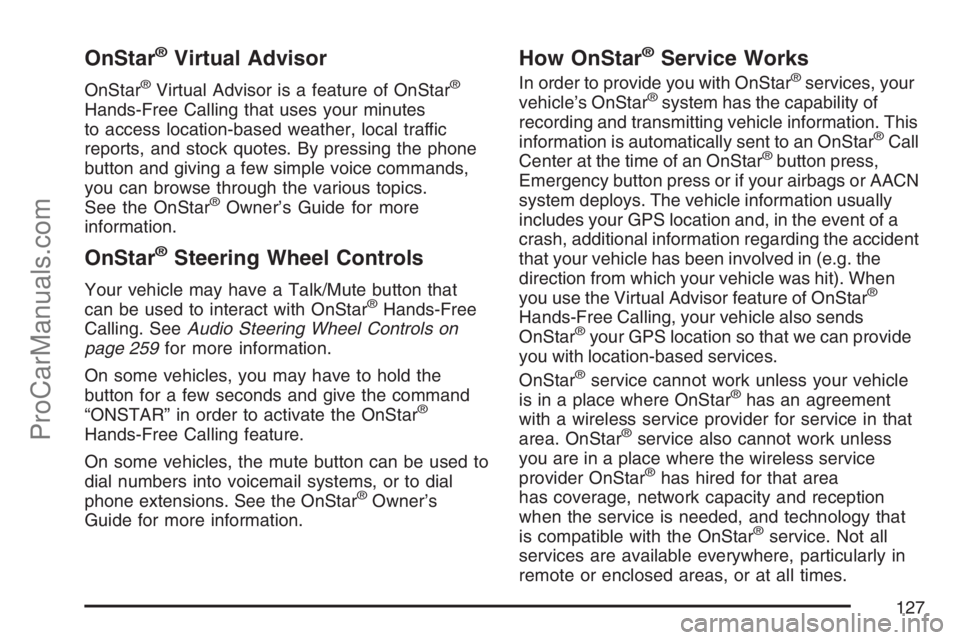

OnStar®Virtual Advisor
OnStar®Virtual Advisor is a feature of OnStar®
Hands-Free Calling that uses your minutes
to access location-based weather, local traffic
reports, and stock quotes. By pressing the phone
button and giving a few simple voice commands,
you can browse through the various topics.
See the OnStar
®Owner’s Guide for more
information.
OnStar®Steering Wheel Controls
Your vehicle may have a Talk/Mute button that
can be used to interact with OnStar®Hands-Free
Calling. SeeAudio Steering Wheel Controls on
page 259for more information.
On some vehicles, you may have to hold the
button for a few seconds and give the command
“ONSTAR” in order to activate the OnStar
®
Hands-Free Calling feature.
On some vehicles, the mute button can be used to
dial numbers into voicemail systems, or to dial
phone extensions. See the OnStar
®Owner’s
Guide for more information.
How OnStar®Service Works
In order to provide you with OnStar®services, your
vehicle’s OnStar®system has the capability of
recording and transmitting vehicle information. This
information is automatically sent to an OnStar
®Call
Center at the time of an OnStar®button press,
Emergency button press or if your airbags or AACN
system deploys. The vehicle information usually
includes your GPS location and, in the event of a
crash, additional information regarding the accident
that your vehicle has been involved in (e.g. the
direction from which your vehicle was hit). When
you use the Virtual Advisor feature of OnStar
®
Hands-Free Calling, your vehicle also sends
OnStar®your GPS location so that we can provide
you with location-based services.
OnStar
®service cannot work unless your vehicle
is in a place where OnStar®has an agreement
with a wireless service provider for service in that
area. OnStar
®service also cannot work unless
you are in a place where the wireless service
provider OnStar
®has hired for that area
has coverage, network capacity and reception
when the service is needed, and technology that
is compatible with the OnStar
®service. Not all
services are available everywhere, particularly in
remote or enclosed areas, or at all times.
127
ProCarManuals.com

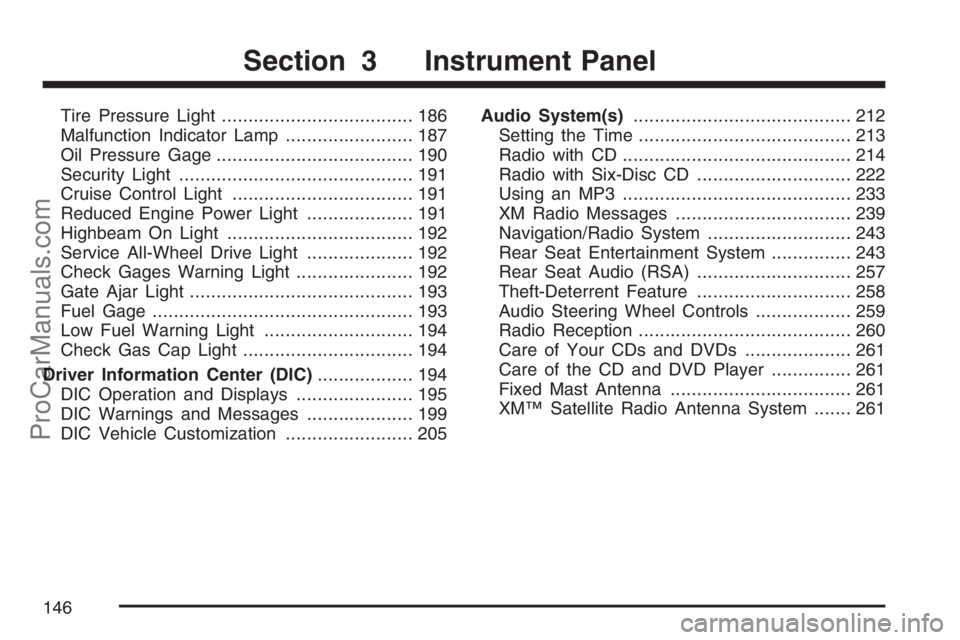

Page 146 of 498
Tire Pressure Light.................................... 186
Malfunction Indicator Lamp........................ 187
Oil Pressure Gage..................................... 190
Security Light............................................ 191
Cruise Control Light.................................. 191
Reduced Engine Power Light.................... 191
Highbeam On Light................................... 192
Service All-Wheel Drive Light.................... 192
Check Gages Warning Light...................... 192
Gate Ajar Light.......................................... 193
Fuel Gage................................................. 193
Low Fuel Warning Light............................ 194
Check Gas Cap Light................................ 194
Driver Information Center (DIC).................. 194
DIC Operation and Displays...................... 195
DIC Warnings and Messages.................... 199
DIC Vehicle Customization........................ 205Audio System(s)......................................... 212
Setting the Time........................................ 213
Radio with CD........................................... 214
Radio with Six-Disc CD............................. 222
Using an MP3........................................... 233
XM Radio Messages................................. 239
Navigation/Radio System........................... 243
Rear Seat Entertainment System............... 243
Rear Seat Audio (RSA)............................. 257
Theft-Deterrent Feature............................. 258
Audio Steering Wheel Controls.................. 259
Radio Reception........................................ 260
Care of Your CDs and DVDs.................... 261
Care of the CD and DVD Player............... 261
Fixed Mast Antenna.................................. 261
XM™ Satellite Radio Antenna System....... 261
Section 3 Instrument Panel
146
ProCarManuals.com
