turn signal bulb SAAB 9-7X 2008 Owners Manual

Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. SeeTurn
and Lane-Change Signals on page 3-7.
OHeadlamps. SeeHeadlamps on page 3-14.
23Headlamp High/Low Beam-Changer. See
Headlamp High/Low-Beam Changer on page 3-8.
Flash-To-Pass Feature. SeeFlash-to-Pass
on page 3-8.
-Fog Lamps. SeeFog Lamps on page 3-17.
ICruise Control. SeeCruise Control
on page 3-11.
Turn and Lane-Change Signals
The turn signal has two upward and two downward
positions.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever returns
automatically.
An arrow on the instrument
panel cluster ashes in
the direction of the turn or
lane change.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until your
lane change is completed. The lever returns by
itself when released.
If the arrows ash more quickly than normal, a signal
bulb could be burned out. Replace the bulb. If the arrows
do not go on at all when you signal a turn, check the
fuse. SeeFuses and Circuit Breakers on page 5-112
and check for burned-out bulbs.
3-7
ProCarManuals.com

If you have a trailer towing option with added wiring for
the trailer lamps, a turn signal asher is used. With
this asher installed, the signal indicator ashes even if
a turn signal bulb is burned out. Check the front and
rear turn signal lamps regularly to make sure they
are working.
Turn Signal On Chime
A chime sounds if the turn signal has been on 3/4 of
a mile (1.2 km). Move the turn signal lever to off.
Headlamp High/Low-Beam Changer
To change the headlamps from low to high beam,
push the lever toward the instrument panel. To return
to low-beam headlamps, pull the multifunction lever
toward you. Then release it.
When the high beams are
on, this indicator light on
the instrument panel
cluster will also be on.
Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
It works even if your headlamps are in the automatic
position.
To use it, pull the turn signal lever toward you, then
release it.
If the headlamps are in the automatic position or on
low beam, the high-beam headlamps turn on. They will
stay on as long as you hold the lever toward you.
The high-beam indicator on the instrument panel cluster
comes on. Release the lever to return to normal
operation.
3-8
ProCarManuals.com

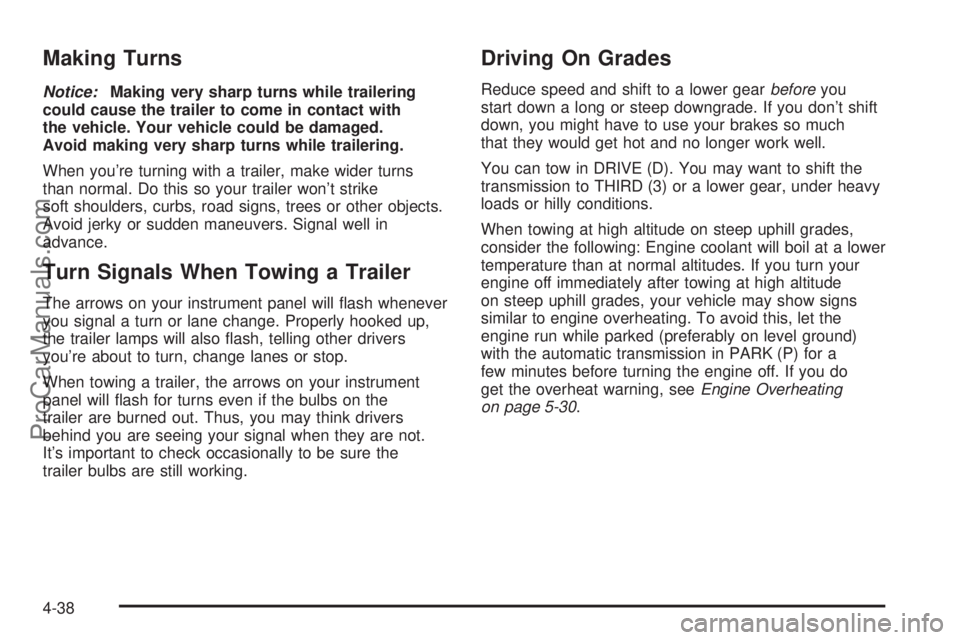

Making Turns
Notice:Making very sharp turns while trailering
could cause the trailer to come in contact with
the vehicle. Your vehicle could be damaged.
Avoid making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns
than normal. Do this so your trailer won’t strike
soft shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in
advance.
Turn Signals When Towing a Trailer
The arrows on your instrument panel will ash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also ash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will ash for turns even if the bulbs on the
trailer are burned out. Thus, you may think drivers
behind you are seeing your signal when they are not.
It’s important to check occasionally to be sure the
trailer bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gearbeforeyou
start down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much
that they would get hot and no longer work well.
You can tow in DRIVE (D). You may want to shift the
transmission to THIRD (3) or a lower gear, under heavy
loads or hilly conditions.
When towing at high altitude on steep uphill grades,
consider the following: Engine coolant will boil at a lower
temperature than at normal altitudes. If you turn your
engine off immediately after towing at high altitude
on steep uphill grades, your vehicle may show signs
similar to engine overheating. To avoid this, let the
engine run while parked (preferably on level ground)
with the automatic transmission in PARK (P) for a
few minutes before turning the engine off. If you do
get the overheat warning, seeEngine Overheating
on page 5-30.
4-38
ProCarManuals.com

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
California Perchlorate Materials Requirements.....5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of Your Vehicle . . .5-4
Fuel................................................................5-4
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-5
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-6
Filling the Tank..............................................5-7
Filling a Portable Fuel Container.......................5-9
Checking Things Under the Hood....................5-10
Hood Release..............................................5-10
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-18
Engine Oil Life System..................................5-22
Engine Air Cleaner/Filter................................5-24
Automatic Transmission Fluid.........................5-25
Engine Coolant.............................................5-28
Radiator Pressure Cap..................................5-30
Engine Overheating.......................................5-30
Cooling System............................................5-32
Engine Fan Noise.........................................5-37Power Steering Fluid.....................................5-38
Windshield Washer Fluid................................5-39
Brakes........................................................5-40
Battery........................................................5-43
Jump Starting...............................................5-44
All-Wheel Drive..............................................5-49
Rear Axle.......................................................5-50
Front Axle......................................................5-51
Headlamp Aiming...........................................5-52
Bulb Replacement..........................................5-52
High Intensity Discharge (HID) Lighting............5-52
Halogen Bulbs..............................................5-53
Headlamps..................................................5-53
Front Turn Signal, Sidemarker and
Parking Lamps..........................................5-54
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps...................5-55
License Plate Lamp......................................5-56
Replacement Bulbs.......................................5-57
Windshield Replacement.................................5-57
Windshield Wiper Blade Replacement..............5-57
Tires..............................................................5-60
Tire Sidewall Labeling...................................5-62
Tire Terminology and Denitions.....................5-64
Ination - Tire Pressure.................................5-67
Section 5 Service and Appearance Care
5-1
ProCarManuals.com

5. Remove the bulb socket that needs to be replaced
by turning it counterclockwise.
6. Disconnect the electrical connector from the
old bulb.
7. Plug the electrical connector into the new bulb using
care not to touch the glass with your ngers.
8. Install the new bulb socket and turn it clockwise to
secure.
9. Reinstall the bulb covers.
10. Reverse Steps 1 through 4 to reinstall.
11. Press down on the retaining clips to secure the
headlamp assembly.
Front Turn Signal, Sidemarker and
Parking Lamps
To replace one of these bulbs:
1. Follow Steps 1 through 3 underHeadlamps on
page 5-53to access the front turn signal,
sidemarker or parking lamp.
2. Turn the bulb socket counterclockwise and remove
it from the lamp assembly.
3. Holding the socket, pull the old bulb to release it
from the socket.
4. Push the new bulb into the socket until it clicks.
5. Insert the bulb socket into the lamp assembly and
turn it clockwise to secure.
6. Reinstall the headlamp assembly by lining up the
headlamp assembly with the slots in the headlamp
retaining clips.
7. Press down on the headlamp retaining clips to
secure the headlamp assembly.
5-54
ProCarManuals.com

Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps
A. Back-up Lamp
B. Turn Signal LampC. Stoplamp/Taillamp
D. Sidemarker LampTo replace one of these bulbs:
1. Open the liftgate. SeeLiftgate/Liftglass on
page 2-12for more information.
2. Remove the screws
from the taillamp
assembly.
3. Pull the taillamp assembly away from the vehicle.
4. Turn the bulb socket counterclockwise to remove it
from the taillamp assembly.
5-55
ProCarManuals.com

Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamp 921
Front Parking, Turn Signal Lamp 5702 NAK
Front/Rear Sidemarker 194
License Plate Lamp W5W
Halogen Headlamps
High-Beam 9005
Low-Beam (Halogen Only) H11
Rear Turn Signal 3757 AK
Stoplamp and Taillamp 3157
For replacement bulbs not listed here, contact your
dealer/retailer.
Windshield Replacement
Your vehicle is equipped with an acoustic windshield.
If you ever have to have your windshield replaced
be sure to get an acoustic windshield so you will
continue to have the benets an acoustic windshield
can provide.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeScheduled Maintenance on page 6-3.
Allowing the wiper blade arm to touch the windshield
when no wiper blade is installed could damage the
windshield. Any damage that occurs would not
be covered by your warranty. Do not allow the
wiper blade arm to touch the windshield.
1. To remove the old wiper blades, lift the wiper arm
until it locks into a vertical position.
5-57
ProCarManuals.com

Audio System (cont.)
Theft-Deterrent Feature................................3-90
XM™ Satellite Radio Antenna System............3-92
Audio System(s).............................................3-61
Automatic Headlamp System............................3-16
Automatic Transmission
Fluid..........................................................5-25
Operation...................................................2-25
B
Battery..........................................................5-43
Electric Power Management..........................3-18
Run-Down Protection...................................3-19
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-40
System Warning Light..................................3-34
Braking........................................................... 4-3
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-52
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-54
Halogen Bulbs............................................5-53
Headlamp Aiming........................................5-52
Headlamps.................................................5-53
High Intensity Discharge (HID) Lighting...........5-52Bulb Replacement (cont.)
License Plate Lamps....................................5-56
Replacement Bulbs......................................5-57
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps.................5-55
Buying New Tires...........................................5-77
C
Calibration.....................................................2-33
California Fuel.................................................. 5-5
California Perchlorate Materials Requirements....... 5-3
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-122
Carbon Monoxide...................2-12, 2-31, 4-17, 4-30
Care of
Safety Belts..............................................5-104
Cargo Cover..................................................2-47
Cargo Tie Downs............................................2-48
CD, MP3 .......................................................3-71
Center Console Storage Area...........................2-45
Chains, Tire...................................................5-82
Charging System Light....................................3-33
Check
Engine Light...............................................3-38
Gages Warning Light...................................3-43
Check Gas Cap Light......................................3-44
2
ProCarManuals.com

G
Gage
Check Gages Warning Light..........................3-43
Engine Coolant Temperature.........................3-36
Fuel..........................................................3-44
Oil Pressure...............................................3-40
Speedometer..............................................3-28
Tachometer.................................................3-28
Voltmeter Gage...........................................3-33
Garage Door Opener.......................................2-40
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Gate Ajar Light...............................................3-43
Glove Box.....................................................2-44
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamp
Aiming.......................................................5-52
Headlamps............................................3-14, 5-53
Bulb Replacement.......................................5-52
Daytime Running Lamps...............................3-15
Electrical System.......................................5-111
Flash-to-Pass............................................... 3-8Headlamps (cont.)
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-54
Halogen Bulbs............................................5-53
High Intensity Discharge (HID) Lighting...........5-52
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Washer......................................................3-11
Heated Seats................................................... 1-3
Heater...........................................................3-20
Highbeam On Light.........................................3-42
High-Speed Operation, Tires.............................5-68
Highway Hypnosis...........................................4-16
Hill and Mountain Roads..................................4-16
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-20
Infants and Young Children,
Restraints...................................................1-32
Ination - Tire Pressure...................................5-67
Instrument Panel
Overview..................................................... 3-4
6
ProCarManuals.com
